Product type	APS film camera (Advanced Photo System)
Dimensions	117 mm x 72.5 mm x 49 mm (4 5/8 in x 2 7/8 in x 1 15/16 in)
Weight	255 g (9 oz) without battery or film
Power source	2 KODAK K123LA (or equivalent) 3-volt lithium batteries
Film type	KODAK ADVANTIX film for color or black-and-white photos
Lens	Motorized zoom lens 25-65 mm
Focusing system	Multi-zone passive focusing system
Viewfinder	Real-image zoom with C, H, and P format display
Flash	KODAK SENSALITE retractable flash
Apertures	f/4.3 to f/10.4
Shutter	Programmed, 1/2 to 1/400 second
Viewing screen	Color screen to view the last photo
Photo formats	Classic (C), Group/HDTV (H), Panoramic (P)
Print quantity selection	From 0 to 9 prints per photo
Title printing	10 preprogrammed titles in 5 languages
Mid-roll film change	Yes, allows removing and reloading film
Care and cleaning	Clean the lens with a blast of air and a soft cloth; do not use solvents
Safety	Do not disassemble the camera; remove batteries during prolonged storage
Spare parts and repairability	Contact Kodak customer service; do not repair yourself
General information	Class B device compliant with Canadian standards

Frequently Asked Questions - Advantix Preview KODAK

How to install the batteries?

Slide the battery compartment latch (20) to open it. Insert two KODAK K123LA (or equivalent) 3-volt lithium batteries. Close the cover securely.

How to set the date and time?

Lift the lens/flash cover to turn on the camera. Press and hold the DATE button (25) until the first digit flashes. Use the zoom thumbwheel (13) to change the value, then press ENTER (16) to confirm and move to the next digit.

How to load the film?

Open the film compartment door (21) by turning the latch (17). Fully insert the APS film cassette (make sure the status indicator is on • for new film or ▶ for partially exposed film). Close the door for automatic advance.

How to use the zoom?

Move the zoom thumbwheel (13) to the right for telephoto mode (zoom in) or to the left for wide-angle mode (zoom out). The thumbwheel automatically returns to wide-angle position after about 2 minutes of inactivity.

How to choose the number of prints?

After taking a photo, press PREVIEW (14) to view the image. The print quantity 'P 1' flashes. Use the zoom thumbwheel (13) to select a number from 0 to 9, then press ENTER (16) to confirm.

How to change the photo format?

Turn the photo format selector (3) to choose C (classic), H (group/HDTV), or P (panoramic). The viewfinder frame adjusts accordingly.

How to activate the self-timer?

Mount the camera on a tripod or stable surface. Turn it on, then press SELECT (15) once. The self-timer indicator appears on the LCD panel. Press the shutter button; the light flashes for about 10 seconds before the shot.

How to use the fill flash?

Turn on the camera, then press ENTER (16) repeatedly until the fill flash indicator (FILL) appears on the LCD panel. Frame and take the photo. This mode is canceled when the camera is turned off.

What to do if the flash light blinks red?

This may indicate that the flash is not fully charged (wait until it turns green), the shutter speed is slow (use a tripod), the subject is out of flash range (move closer), or focus is impossible (recompose).

How to change film mid-roll?

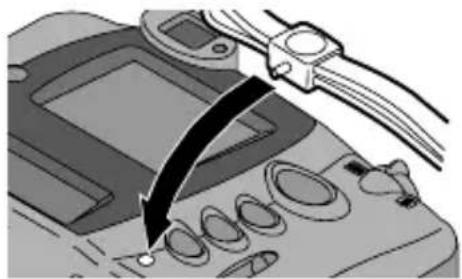

Lightly press the MRC button (19) using the strap activator to start automatic rewind. Once the motor stops, open the compartment and remove the cassette. You can reinsert it later to continue shooting.

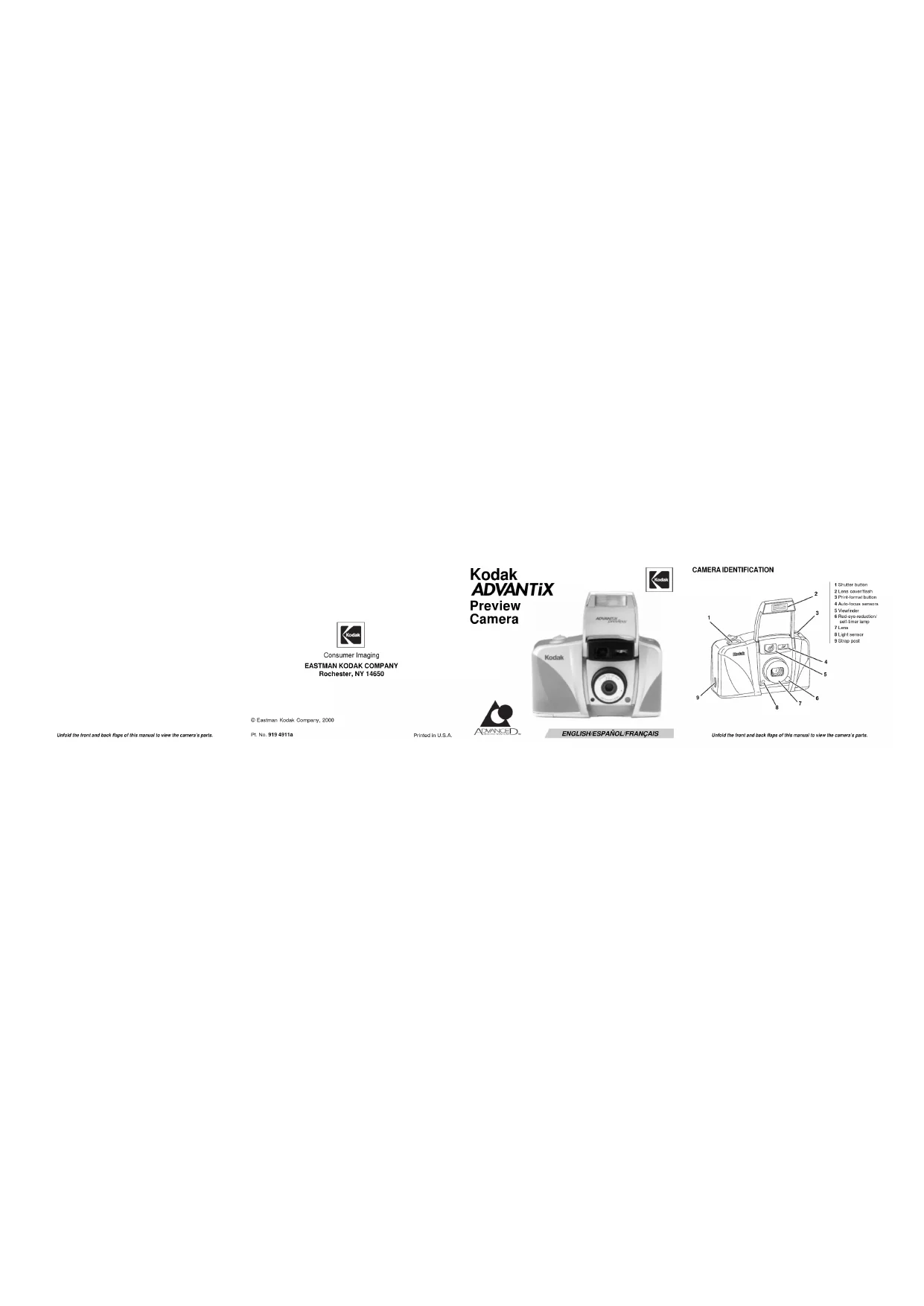

USER MANUAL Advantix Preview KODAK

EASTMAN KODAK COMPANY

Rochester, NY 14650

© Fushran Kosak Company, 2008

Pt. No. 9194911a

Printed in U.S.A.

Kodak ADVANTiX
Preview Camera

Exterior view of a Kodak digital camera (no visible text or symbols on body)

ENGLISH:ESPAÑOL:FRANÇAIS

CAMERA IDENTIFICATION

1. Shorter button
2. Lens or wall tooth
3. Non-thermal button
4. Axles or x sensors
5. Vessel iner
6. Post eye reduction/soft inner lamp
7. Lens
8. Light source
9. Swap post
   Unpaid the front and back tops of this manuscript to view the camera's parts.

Camera Identification LCD Panel

10 V and/or eyep oce

11 Flash camera/cable lamp

12 Pro view screen

13 Zoom dial

14 P FF/FE

15 Select

16 In Sex

17 Film door/arrow

18 M Ocs

19 W/O (Mid-roll-champel)

20 Battery door

21 Window

22 Triped socket

23 LCD panel

24 T MP

25 Dats

26 Brightness-control button

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Your model cameras has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCG Rules. These limits provide reasonable protection against interference in residential use. The camera generates, use and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause interference to radio communications. There is no guarantee that interference will not occur. If this camera, does cause interference to radio or television reception, which can be determined by turning the camera off and on, you may reduce the interference by the following:

- Respond or relocate the receiving antenna.

— Between the expansion between the vertex and the receiver

Consult the dealer or an experienced radio-television technician for help.

Changes or modifications not approved by the party responsible for compliance

could and the use's authority in operation the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations

27 Picture counter 28 Battery end octor 29 Self-timer indicator 30 Red-eye-reduction ind octor 31 High-level octor 32 Portable octor 33 Center spot- focus octor 34 Infinity focus octor 35 Muscle-receptor arrow 36 Bath catheter 37 Flash-cell indicator 38 Auto-bath symbol 39 Full-bath symbol 40 ISO film speed display 41 Film-passette ind uctor 42 PMAI indicator 43 Double time display

KODAK ADVANTIX Preview Camera

Welcome to the world of the Advanced Photo System! And thank you for buying this KODAK ADVANTIX Camera.

NEED HELP WITH YOUR CAMERA?

Go to our Web site at http://www.kodak.com (for US) or http://www.kodak.ca (for Canada) or call:

Kodak (USA only) from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday through Friday at 1 [phone].

Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time) Monday through Friday at 1 [phone], ext. 36100; for the Toronto area, call [phone], ext. 36100.

When you call, please have your camera available.

For warranty purposes, please keep your sales receipt as proof of the date of purchase.

CONTENTS

CAMERA FEATURES AND BENEFITS ....3

GETTING STARTED 5

Loading the batteries ....5

Setting the language 6

Setting the date and time ....7

Choosing the format ....7

ATTACHING THE STRAP 8

CONTROL-BUTTON ACTUATOR .....9

OTHER BATTERY INFORMATION .....9

Low-batteries indicator....9

Battery tips 10

Power shut-off 10

LOADING THE FILM 11

TAKING PICTURES— PREVIEWING THE PRINT.... 12

Typical print sizes (formats) 14

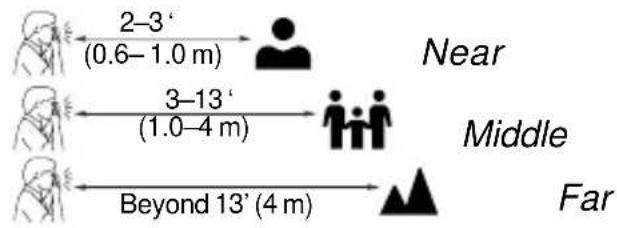

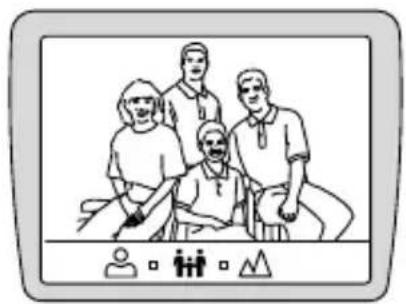

Focus feedback 15

Select the print quantity 15

Change the print format 16

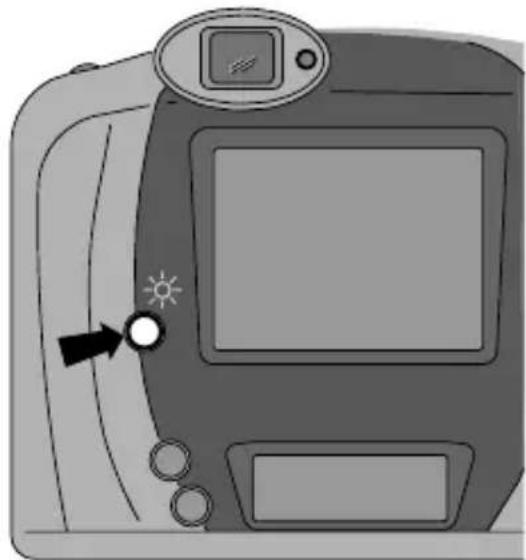

Brightness control 16

Tips for better pictures 17

USING THE ZOOM LENS 17

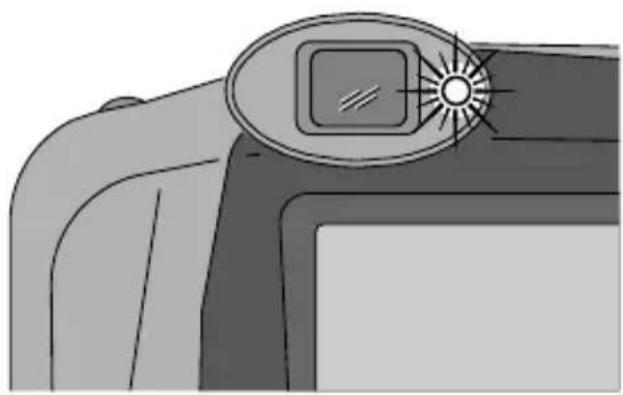

TAKING FLASH PICTURES 18

Flash-to-subject distance.... 19

Flash/warning-lamp signals 19

FLASH MODES 20

Auto flash with red-eye reduction.... 20

Auto flash without red-eye reduction.... 20

Fill flash.... 20

Flash off 21

Selecting the flash modes 21

SPECIAL OPTION MODES 22

Infinity focus 22

Center-spot focus 22

Portrait 22

Nightview 22

Selecting the special option modes .. 23

USING THE SELF-TIMER 24

TITLE IMPRINTING 25

TITLE-SELECT LIST 25

UNLOADING THE FILM 26

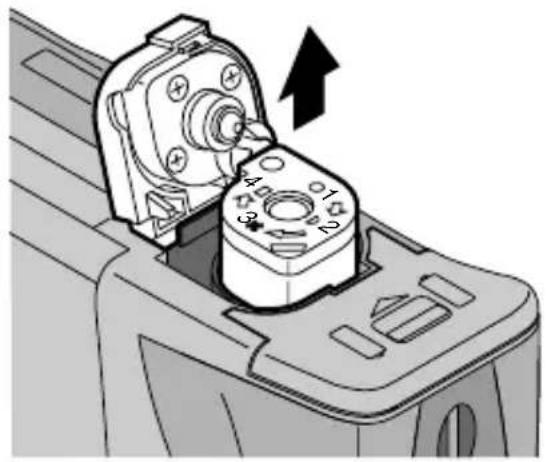

Automatic rewind.... 26

Mid-roll change (MRC) 27

CARING FOR YOUR CAMERA 27

TROUBLESHOOTING.... 28

SPECIFICATIONS 30

CAMERA FEATURES AND BENEFITS

Preview Screen

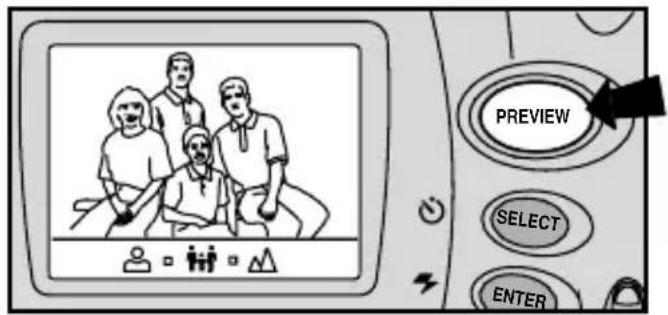

- You can be sure you got the shot when you preview your picture on the Preview Screen.

Print Quantity Selection

- If you are happy with the previewed picture, you can order extra prints, up to 9, with a touch of a button on the camera back. If not, you can select zero prints and take a new picture. The magnetic Information Exchange (IX) technology records the ordering information on the film, so the selected number of each print is produced automatically during processing.

Three Print Formats

- You can take three different size pictures: Classic (C), Group/HDTV (H), or Panoramic (P). The viewfinder changes to show the selected picture size. You can also see how your print will look in the different formats on the Preview Screen and change the format to the one that looks the best.

Automatic Energy Saving Features

Flip Flash Plus

- This smart-flash system automatically adjusts to provide the right light in any situation.

- Flip flash moves the flash away from the lens to reduce redeye.

- Automatically turns on for dimly lit scenes.

- Long flash range delivers brighter light for more colorful distance pictures.

- Automatically provides fill-in light for more sparkle and clarity in harshly lit outdoor portraits.

- Provides softer light for more natural images for close-ups.

- Provides extra red-eye reduction with the red-eye-reduction mode.

Date, Time, and Title Imprinting

- The date, time, and cassette ID number are printed on the back of your prints, which makes it easy to organize pictures and order reprints. You can choose from one of 10 pre-programmed titles (5 languages available) to print on the back of the prints. See your photofinisher for a full description of the available services.

Mid-Roll Change (MRC)

• You can remove your film in mid-roll and later reload it and continue taking pictures. MRC lets you:
  – share a family camera in which the members use their own roll of film,
• switch between color and black-and-white film,
• switch film speeds in mid-roll to match scene requirements, and
• organize by dedicating individual film rolls to specific subjects.

Picture Quality Information Exchange (PQix)

- This camera records vital scene data on the film's magnetic information strip and communicates that information to the photo lab to optimize lighting and color for better-looking prints.

Easy, drop-in loading

- Easy, drop-in loading is fast and virtually error-free, eliminating blank rolls and double exposures. The camera uses KODAK ADVANTIX Film. The film cassette, unlike the traditional 35 mm cartridge, becomes the carrier and storage container for the processed film.

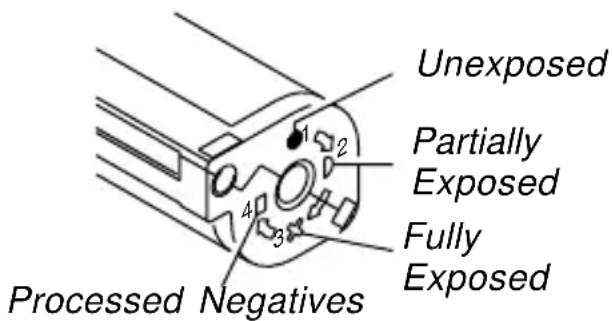

Film Status Indicator (FSI)

- A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette.

GETTING STARTED

Before you take pictures, you need to load the batteries, set the language, and set the date and time.

Loading the batteries

This camera uses two 3 V lithium KODAK K123LA (or equivalent) Batteries that supply power for all camera operations.

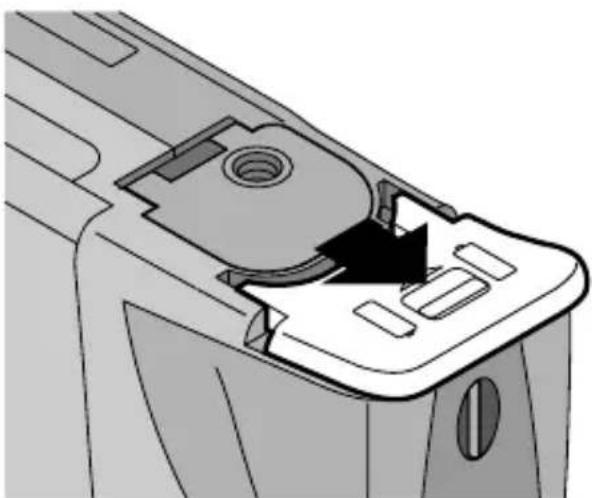

1. Slide the battery-door latch and lift to open the battery door (20).

Technical illustration of a mechanical component with internal parts and mounting holes (no text or symbols)

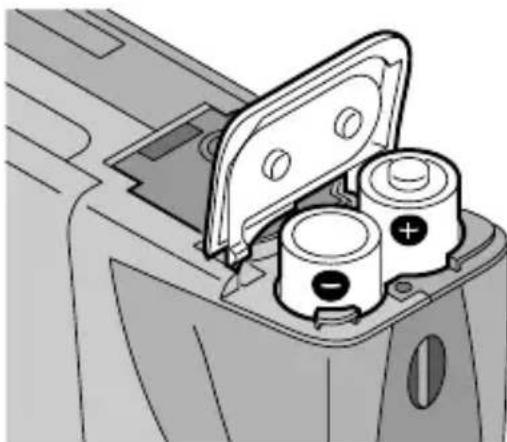

1. Insert the batteries into the battery chamber.

Diagram of a battery pack with three cylindrical cells and an open lid (no text or symbols)

1. Snap the battery door closed.

• After you load new batteries into the camera, reset the date and time.

Setting the language

English is initially set into the memory of this camera, but you can select another language (5 options available).

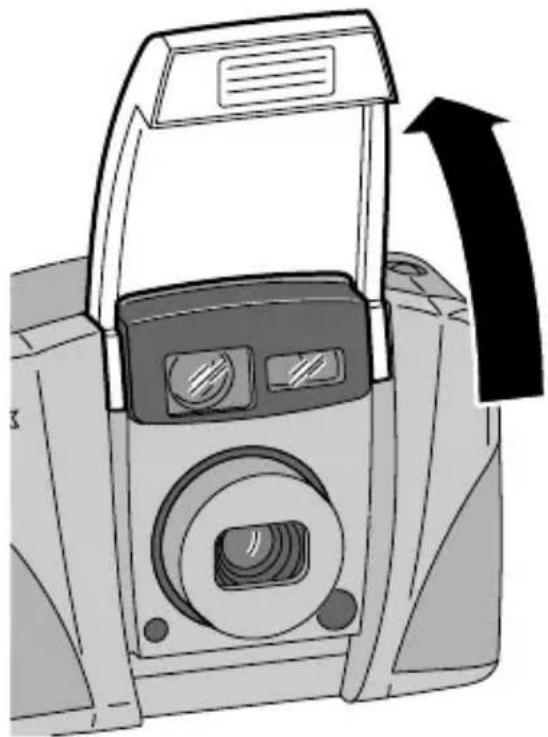

1. Completely lift up the lens cover/ flash (2) to uncover the lens (7) and to turn on the camera.

Illustration of a digital camera with an arrow indicating direction (no text or symbols present)

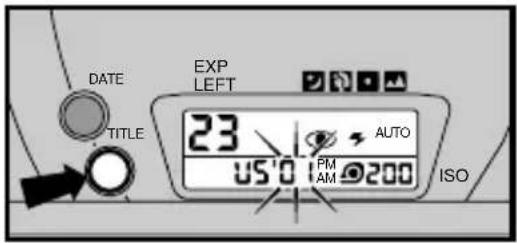

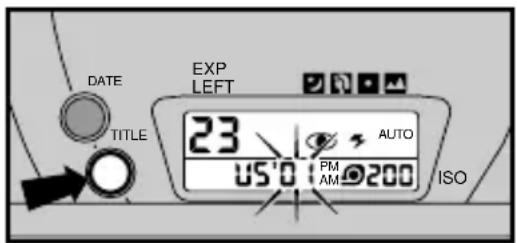

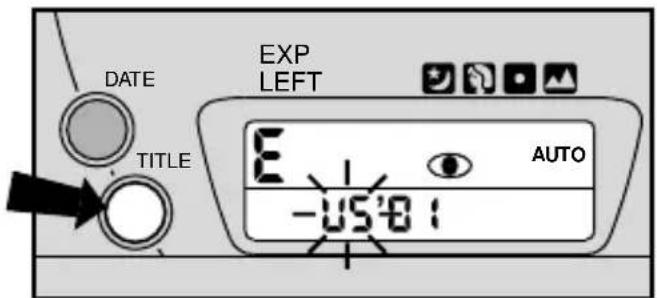

1. Press and hold TITLE (24) until the language indicator "blinks" on the LCD panel (23).

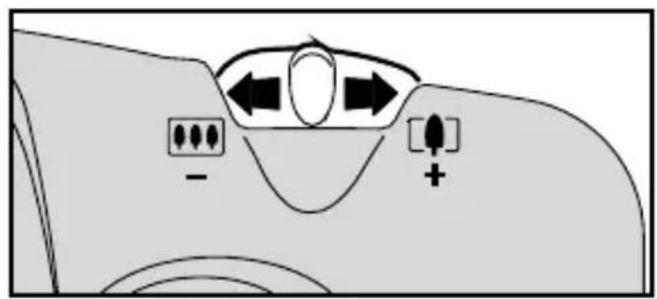

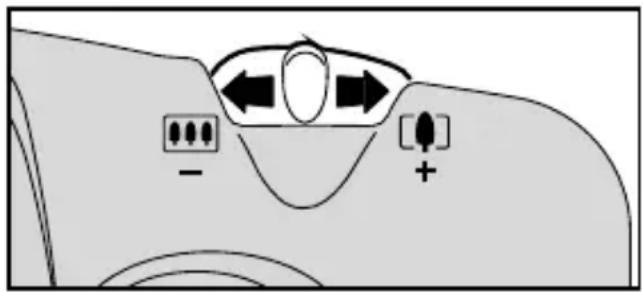

1. Move the zoom dial (13) to the left or right to select a language.

US = English dEU = German

FrA = French JP = Japan

ESP = Spanish

Diagram of a car interior showing directional arrows and symbols (no readable text or labels)

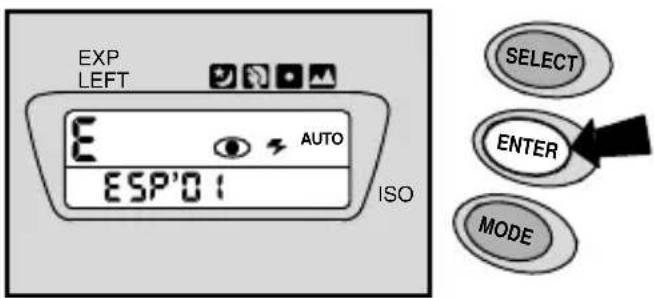

1. Press ENTER (16) to save your selection.

Setting the date and time

Traditional cameras print date and/or time information directly onto the film. Your camera uses the film's magnetic data-recording capability to record date and time information, which your photofinisher can imprint on the back of your photographs. This camera has a quartz clock and automatic calendar through the year 2099.

1. Completely lift up the lens cover/ flash (2) to uncover the lens (7) and to turn on the camera.

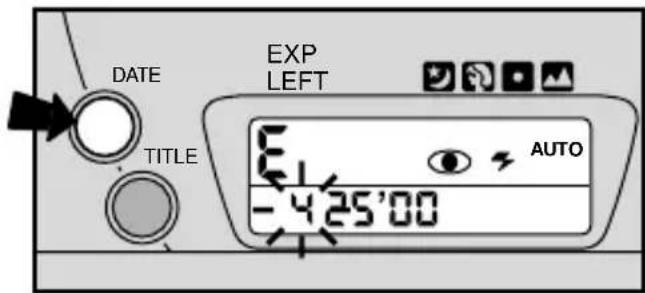

2. Press and hold DATE (25) until the first number "blinks."

1. Press the zoom dial (13) to the right or left to select the number.

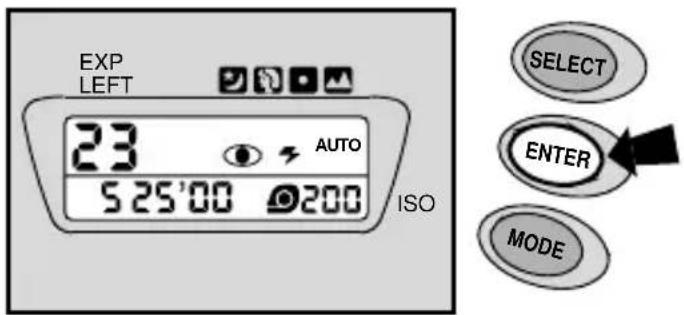

2. Press ENTER (16) to save the number and to actuate the next blinking number.

1. Repeat steps 3 and 4 to continue setting the date and time or close the lens cover/flash (2) to end your selection.

Choosing the format

You can choose from three formats: (month/day/year, day/month/year, or year/month/day) and time format (hour/minute) with PM or AM display.

1. Repeatedly press DATE (25) to choose a format.

1. Press ENTER (16) or close the lens cover/flash (2) to save the format.

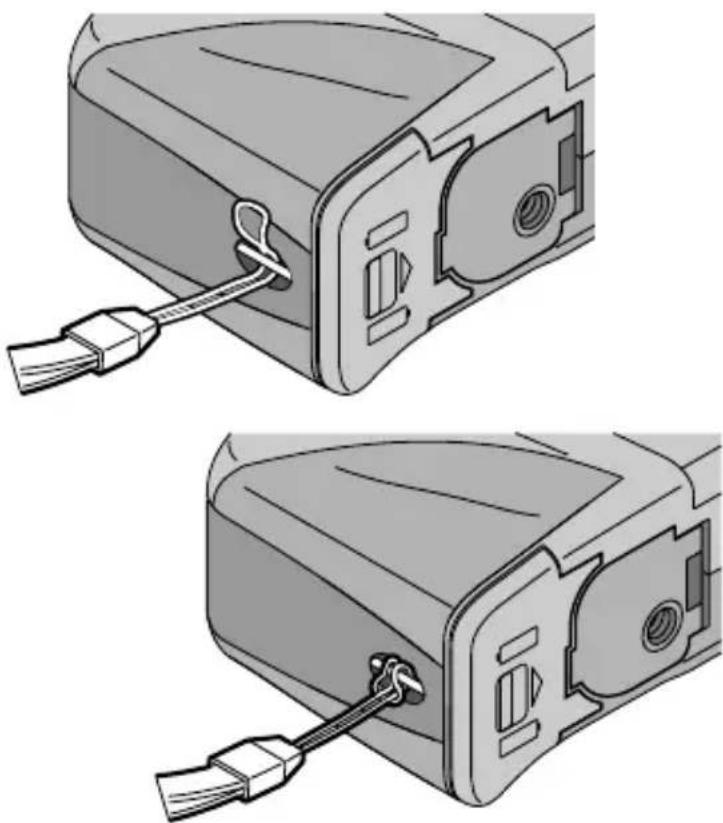

ATTACHING THE STRAP

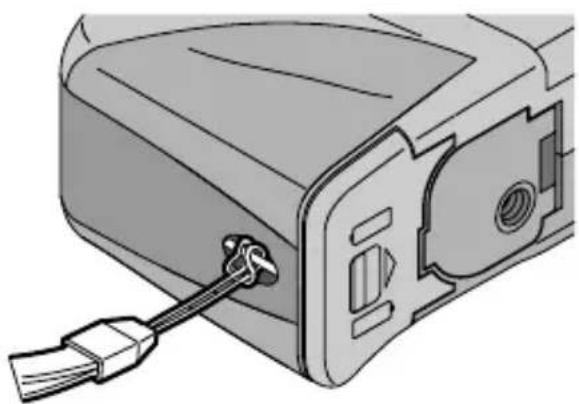

1. Insert the shorter looped end of the strap behind the strap post (9).
2. Thread the longer end of the strap through the shorter loop.
3. Pull the strap tight.

Two technical illustrations of a device with connectors and ports, showing internal components and wiring (no text or symbols)

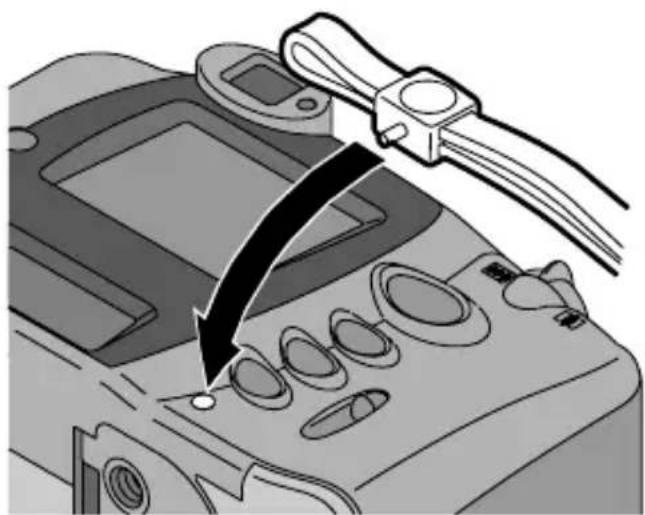

CONTROL-BUTTON ACTUATOR

You can use the knob on the clasp of the camera strap to actuate the small control buttons on the camera.

Diagram of a device's internal components with a black arrow indicating a process or operation (no text or symbols present)

OTHER BATTERY INFORMATION

Low-batteries indicator

It's time to replace the batteries when—

• the battery indicator (28) appears on the LCD panel (23),
• none of the indicators, except for a battery symbol, appear on the LCD panel and the shutter button (1) cannot be operated, or
• the LCD panel is blank when the lens cover/flash (2) is up.

Battery tips

• Dispose of batteries according to local and national regulations.
• Keep spare batteries with you at all times.
• Read and follow all warnings and instructions supplied by the battery manufacturer.
• Keep batteries away from children.
• Do not try to take apart, recharge or short circuit the battery, or subject it to high temperature or fire.
• Store batteries in their original packaging prior to use.
• Do not use rechargeable batteries.
• Remove the batteries from the camera when the camera is not going to be used for an extended length of time.

• Replace all batteries with the same brand and grade and as a set at the same time.

• In the unlikely event that battery fluid leaks onto your skin, contact Kodak Health, Safety and Environment Information at 1-716-722-5151 in the U.S. Customers outside the U.S. can contact their local health care provider.

• In the unlikely event that battery fluid leaks inside the camera, U.S. customers can contact the Kodak Information Center (KIC) at 1-800-242-2424. Customers outside the U.S. can contact their local Kodak Customer Service representative.

Automatic Energy Saving Features

Power shut-off

To conserve battery power, the camera automatically goes into a sleep mode if it is not operated for more than 2 minutes. You can press any of the control buttons to awaken the camera. When the camera is not used for an extended time, close the lens cover/flash to completely turn off the camera.

LOADING THE FILM

You can load film into the camera with the lens cover/flash opened or closed.

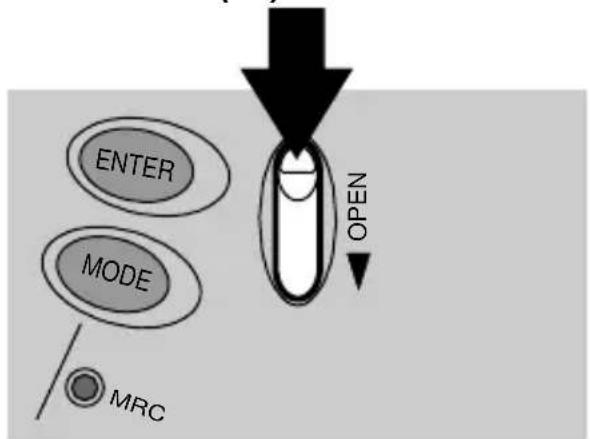

1. Slide the film-door lever (17) to open the film door (21).

- The film door opens only when the film chamber is empty or the film in the camera is completely rewound into the film cassette and the motor stops running.

Look for this logo to be certain that the film you buy is made for this camera.

Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.

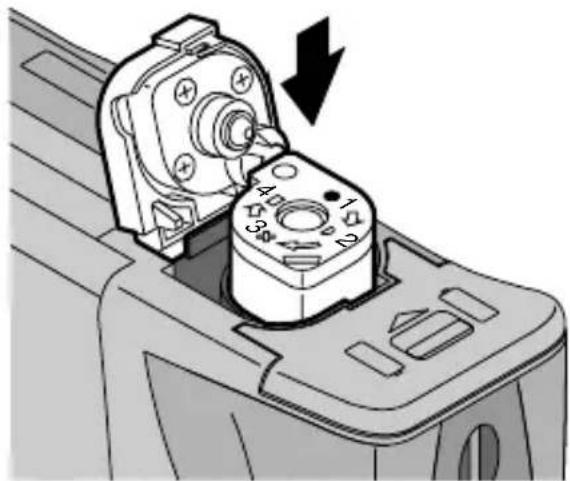

1. Insert the film cassette completely into the film chamber. Make sure the Film Status Indicator (FSI) on the film cassette is at ●(#1 position) for a new cassette or at ▶ (#2 position) for a partially exposed cassette.

Mechanical component diagram showing a rotary knob with numbered parts and an arrow indicating rotation (no text or symbols present)

- Do not force the film cassette into the film chamber.

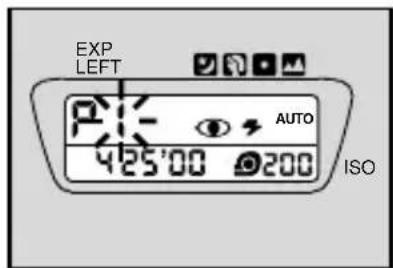

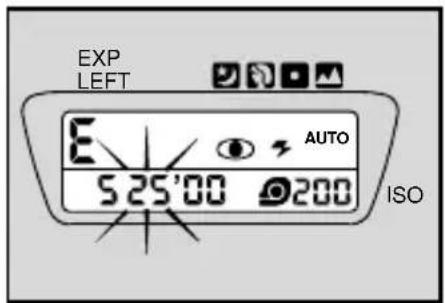

1. Close the film door to start the auto-film advance. The picture counter (27) on the LCD panel (23) shows the number of pictures remaining on the film cassette.

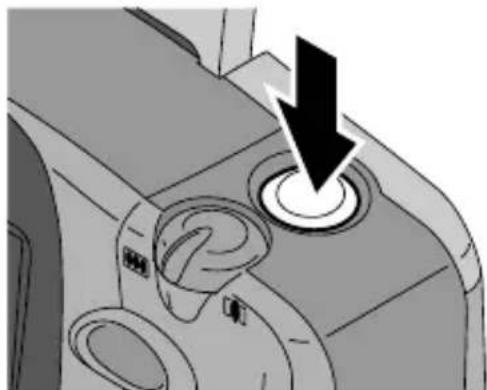

TAKING PICTURES— PREVIEWING THE PRINT

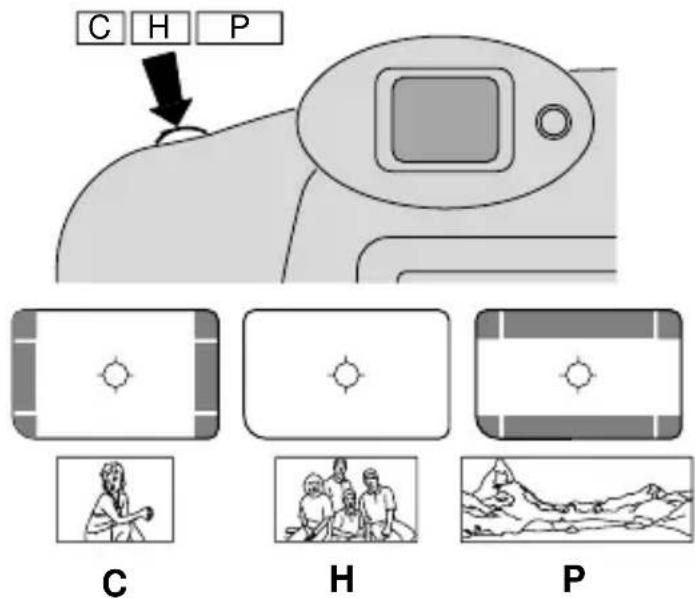

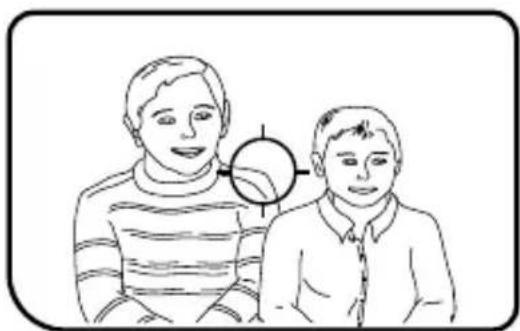

You can take Classic (C), Group/HDTV (H)*, and Panoramic (P) pictures on the same film cassette. You can view in color on the Preview Screen the last picture you took. While previewing the picture, you can select the print quantity, change the print format, and select the print title (see TITLE IMPRINTING on page 25).

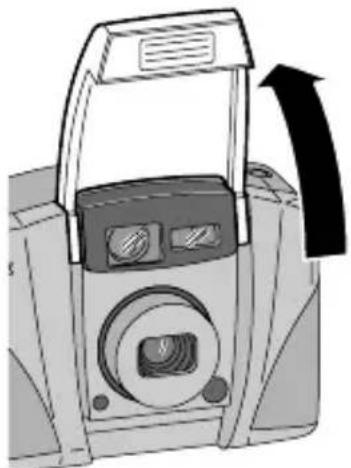

1. Completely lift up the lens cover/flash (2) to uncover the lens (7) and to turn on the camera.

Illustration of a vintage camera with an arrow indicating direction (no text or symbols present)

* High Definition Television (HDTV) prints are the same aspect ratio as the TV for CD interface capabilities.

1. Press the print-format button (3) to select C, H, or P format. The viewfinder changes to show the selected field of view.

• See the table on page 14 for Typical print sizes (formats).
- Your photo-processing cost may be based on the format size(s) that you use to expose the film.

1. Look through the viewfinder eyepiece (10) to compose your picture. For a sharp picture, stand at least 2 ft (0.6 m) from your subject.

Line drawing of two boys standing side by side, one with a circular symbol in the center (no text or symbols present)

1. Partially press down the shutter button (1) until the flash/camera-ready lamp (11) turns green. Fully press down the shutter button to take the picture.

Close-up of a mechanical component with a black arrow pointing to a circular button (no text or symbols visible)

1. Press PREVIEW (14) to view the last picture you took and to see what your print will look like.

IMPORTANT: You can only preview the last picture you took.

NOTE: To conserve battery power, the Preview Screen automatically turns off in 10 seconds. Press PREVIEW again to turn the screen back on or again to turn it off.

NOTE: The film-presence indicator (41) below the Preview Screen (12) "blinks" red if you try to take a picture without any film in the camera.

Typical print sizes (formats)

C

H

P

Classic Group (HDTV) Panoramic

3.5 x 5 in. or 4 x 6 in. 3.5 x 6 or 4 x 7 in. 3.5 x 8.5 in. to 4 x 11.5 in.

(88.9 x 127 mm or (88.9 x 152 mm or (88.9 x 216 mm to

NOTE: Your photofinisher generally provides 4 x 6, 4 x 7, and 4 x 11.5 in. (102 x 152, 102 x 178, and 102 x 292.7 mm) sizes. Some local printers may offer 3.5 x 5, 3.5 x 6, and 3.5 x 8.5 in. (88.9 x 127, 88.9 x 152, and 88.9 x 216 mm) sizes.

Focus feedback

Since it may be difficult to tell if your picture is in focus on the small Preview Screen, the camera provides feedback on where it focused. To use this information:

1. Estimate the camera-to-subject distance.

1. Compare your estimate to the green icon shown below the preview screen (12).

Illustration of a group of four people posing together, with icons below (no text or symbols)

1. If the icon is different from your estimate, for example, the picture is near but the icon is far, then you may want to take another picture using the Center-spot focus feature (see page 22).

Select the print quantity

You can select the number of prints, from 0–9, that you want your photo-finisher to print. If you are happy with the picture, you can order multiple prints. Selecting multiple prints does not mean that you will use more film. The camera exposes one frame of film for every picture that you take no matter how many prints you order for each frame. If you are unhappy with the picture, you can select "0" for zero and take a new picture. The picture remains on the film and prints can be made from it later, if you change your mind.

1. Press PREVIEW (14) to view the picture. The print-quantity number P"1" blinks.

1. Move the zoom dial (13) to select the print quantity.

2. Press ENTER (16) or close the lens cover/flash (2) to save the print quantity.

Change the print format

You can see how your print will look in the different formats on the Preview Screen and change the format to the one that looks the best.

1. Press PREVIEW (14) to view the picture.
2. Press the print-format button (3) to change the format of the picture to C, H, or P.

1. Press ENTER (16) or close the lens cover/flash (2) to save the format.

Brightness control

You can control the brightness of the picture on the Preview Screen for indoor or outdoor settings.

1. Completely lift up the lens cover/flash (2) to uncover the lens (7) and to turn on the camera.

Illustration of a camera with a screen, buttons, and a circular dial indicator (no text or symbols)

- The brightness control is initially set for indoor viewing.

1. Press the brightness-control button (26) to increase the illumination. • Press the button again to return to the other setting.

Tips for better pictures

• Move close enough to your subject so it fills the viewfinder but not closer than 2 ft (0.6 m).
• Take pictures at the subject's level. Kneel down to take pictures of children and pets.
• Hold your camera vertically to capture tall, narrow subjects, such as a waterfall, skyscraper, or a single person.
• Add interest to your picture by framing it with a tree branch, a window, or even the rails of a fence.
• Keep the sun behind you. This provides the best subject illumination.
• Stand at an angle to shiny surfaces like windows or mirrors to avoid flash reflection and bright spots in your pictures.
• Turn on all room lights and have your subject look at the red-eye-reduction lamp to reduce red eyes in flash pictures.

USING THE ZOOM LENS

This camera has a motorized-zoom lens that lets you select the ideal lens-focal length for taking pictures. When you turn on the camera, it is initially set to the wide-angle position.

1. Completely lift up the lens cover/flash (2) to uncover the lens (7) and to turn on the camera.
2. Look through the viewfinder eyepiece (10).
3. Move the zoom dial (13) to the right to zoom closer to the subject in the telephoto mode or to the left to zoom away from the subject in the wide-angle mode.

1. Partially press down the shutter button (1) until the flash/camera-ready lamp (11) turns green. Fully press down the shutter button to take the picture.

- The lens barrel automatically returns to the wide-angle position after 2 minutes.

TAKING FLASH PICTURES

In dim light, such as indoors or outdoors in heavy shade, or on dark overcast days, you need flash. Your camera features an automatic flash that fires when you need it. The special Flip-Flash Plus system of this camera shortens the flash duration in close-up pictures. This enhances your flash pictures and helps to conserve the battery life.

1. Completely lift up the lens cover/flash (2) to uncover the lens (7) and to turn on the camera.

2. Keep the subject within the recommended distance range for the speed of film in your camera (see Flash-to-subject distance).

- Do not take pictures beyond the maximum distance or your pictures will be dark.

1. Partially press down the shutter button (1).

2. When the flash/camera-ready lamp (11) glows green, fully press down the shutter button to take the picture (see Flash/warning-lamp signals).

Illustration of a camera lens with a sun icon on the top (no text or symbols)

Flash-to-subject distance

ISO Film Wide Angle Telephoto Speed (25 mm) (65 mm)

50 2 to 17 ft 2 to 7 ft(0.6 to 5.2 m) (0.6 to 2.1 m)

100 2 to 24 ft 2 to 10 ft(0.6 to 7.3 m) (0.6 to 3.1m)

200 2 to 34 ft 2 to 14 ft(0.6 to 10.4 m) (0.6 to 4.3 m)

400 2 to 48 ft 2 to 20 ft(0.6 to 14.7 m) (0.6 to 6.1 m)

800 2 to 67 ft 2 to 28 ft(0.6 to 20.4 m) (0.6 to 8.5 m)

Flash/warning-lamp signals

Lamp Indicator Situation

Glows green • Camera ready for picture-taking

Glows red • Subject closer then 2 ft (0.6 m) from camera. Shutter button locks.

“Blinks” red • Flash not fully charged• Slow shutter speed in low-light scenes• Beyond the flash range• Auto ranger cannot focus

FLASH MODES

Besides the auto-flash mode, you can select auto-flash with red-eye reduction, fill flash, or flash off. Choose the flash mode that best suits your subject and surroundings.

Repeatedly press ENTER (16) to view the choices on the LCD panel (23) and to make your selection.

Auto flash with red-eye reduction

AUTO

Some people's eyes (and some pets') can reflect flash with a red glow. The flip flash and the red-eye-reduction lamp on the camera help to minimize red eyes in flash pictures.

Auto flash without red-eye reduction

AUTO

Use this feature to take pictures of subjects other than people.

Fill flash

FILL

When in bright sun or when bright light comes from behind the subject, dark shadows (especially on faces) may occur. Use fill flash to lighten these shadows and to add sparkle to your subject's eyes.

Flash off

When you do not want to use the flash, especially indoors where flash is prohibited, or to capture the ambiance of existing light, use the flash-off feature. Use a tripod or place the camera on another firm support, and use high-speed film because the shutter speed in these situations will most likely be slow.

Selecting the flash modes

1. Completely lift up the lens cover/flash (2) to uncover the lens (7) and to turn on the camera.

2. Repeatedly press ENTER (16) until the fill-flash symbol (39) and flash indicator (36), flash-off indicator (37), or auto-flash symbol (38) and flash indicator (36) with or without the red-eye-reduction indicator (30) appears on the LCD panel (23).

3. Frame your subject within the viewfinder eyepiece (10).

4. Partially press down the shutter button (1). When the flash/camera-ready lamp (11) glows green, fully press down the shutter button to take the picture.

The fill-flash and flash-off modes cancel when you turn off the camera, select a different flash mode, or when the camera powers down. The auto-flash modes remain selected in these instances.

SPECIAL OPTION MODES

The special option modes let you tailor the camera's fully automatic operation to provide optimal camera settings for infinity-focus, center-spot focus, portrait, or nightview mode.

Repeatedly press MODE (18) to scroll through the selections.

Infinity focus

Capture sharp, distant scenery when you take pictures outdoors during the day or through windows.

Center-spot focus

Ideal for extremely precise focus control of what you consider the most important parts of your subject in the center of the picture.

Portrait

This selection allows you to take sharp, close-up pictures of people. The camera automatically zooms to provide suitable framing for portraits.

Nightview

Use this mode, to balance the flash and existing light exposure so that you can take beautiful pictures of people at sunset or at night. Use a tripod (tripod socket [22]) or place the camera on another firm support, and use high-speed KODAK ADVANTIX Film because the shutter speed at night will most likely be slow.

Selecting the special option modes

1. Completely lift up the lens cover/flash (2) to uncover the lens (7) and to turn on the camera.

2. Repeatedly press MODE (18) until the mode-selector arrow (35) points to the infinity-focus icon (34), center spot-focus icon (33), portrait icon (32), or nightview icon (31).

3. In the infinity-focus mode, the camera is automatically set for flash off.

4. In the nightview mode, all flash options, except for fill flash and flash off, are available.

5. In the portrait and spot-focus modes, all flash options are available.

6. Frame your picture in the viewfinder eyepiece (10).

7. Infinity-focus mode or nightview mode:

- Simply press the shutter button (1) to take the picture.

Portrait mode:

• Partially press down the shutter button until the zoom lens adjusts for suitable framing.
• Press the shutter button completely down to take the picture.

Center-spot focus mode:

• Place the center-spot-focus circle within the viewfinder eyepiece (10) on your subject.
• Press the shutter button completely down to take the picture.

The modes cancel when you turn off the camera, select a different option mode, or when the camera powers down. The portrait mode automatically cancels after you take the picture.

USING THE SELF-TIMER

Use the self-timer feature when you want to include yourself in pictures.

1. Attach a tripod to the camera tripod socket (22) or place it on another firm support.

2. Completely lift up the lens cover/flash (2) to uncover the lens (7) and to turn on the camera.

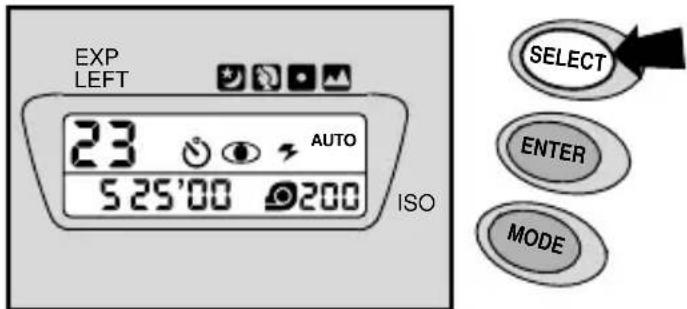

3. Press SELECT (15).

• The self-timer indicator (29) appears on the LCD panel (23).

1. Look through the viewfinder eyepiece (10) to compose the picture and to allow room for yourself in it.
2. Press the shutter button (1).

3. Quickly position yourself in the composed picture making sure that you see the self-timer lamp (6).

4. The self-timer lamp on the front of the camera blinks for approximately 10 seconds before the picture is taken.

5. To cancel the self-timer selection before the shutter releases, press the select button or close the lens cover/flash.
6. The self-timer automatically turns off after the shutter releases.

TITLE IMPRINTING

Choose a print title from the TITLE-SELECT LIST before you take the picture or after while previewing it on the Preview Screen. The title you select is recorded on the film's magnetic data strip. At certified Advanced Photo System labs, the selected title is printed on the back of your print.

1. Press TITLE (24).

- The language designator appears on the LCD panel and blinking indicators "01" for the title number.

1. Press the right or left side of the zoom dial (13) to select a title number.

2. Press ENTER (16) to save the information.

• The print title continues through out the roll.

- To cancel the print title for subsequent pictures, follow steps 1 through 3, but for step 2, select Title “__” (None) or a different title.

TITLE-SELECT LIST

The following table indicates the title numbers for the in-camera-stored titles.

Title Title Number

01 Birthday
02 Vacation
03 Wedding
04 Graduation
05 Congratulations
06 Christmas
07 Holiday
08 I Love You
09 Party
10 Family
-- None

UNLOADING THE FILM

Automatic rewind

When you take the last picture on the film cassette, the Preview Screen displays the last picture for 10 seconds and turns off before going into automatic rewind. You can modify the print quantity, format, and title of the previewed image before it goes into automatic rewind. When you press PREVIEW (14) to modify the print, the camera extends the 10 seconds to allow for the changes.

1. Wait for the film to completely rewind into the film cassette and for the motor to stop running.

- When the motor stops running, the film-presence indicator (41) and "0" blink on the LCD panel (23).

1. Slide the film-door lever (17) to open the film door (21).

2. Remove the film cassette from the camera and reload with new KODAK ADVANTIX Film.

Mechanical component diagram showing a rotary knob with numbered parts and an upward arrow indicating motion (no text or symbols present)

- The FSI on the fully-exposed film cassette is at × (#3 position) and the frame counter blinks "E."

Mid-roll change (MRC)

You can remove your film in mid-roll and later reload it to continue taking pictures. The Film Status Indicator (FSI) on a partially exposed film cassette is set to ▶ (#2 position). When you reload the film cassette into the camera, the camera automatically advances the film to the first unexposed frame. Film can be rewound and reloaded until the last picture is taken. The camera automatically rewinds the film and sets the FSI to ✗ (#3 position) when the last picture is taken.

1. Gently press MRC (19) with the control-

button activator on the camera strap to start the auto-film rewind.

Diagram showing a device with a curved arrow pointing to a control panel (no text or symbols present)

1. See Automatic rewind, steps 1-3.

- Either reinsert the partially exposed film cassette into the camera to take more pictures or take it to your photo-finisher for processing.

CARING FOR YOUR CAMERA

- Protect the camera from dust, moisture, sudden impact, and excessive heat.

CAUTION: Do not use solvents or harsh or abrasive cleaners on the camera body.

- If the lens appears dirty, breathe on it to form a mist and wipe the surface gently with a soft, lintless cloth or lens-cleaning tissue. Never wipe a dry lens.

CAUTION: Use solvents or solutions designed for cleaning camera lenses. Do not use chemically treated tissues intended for cleaning eye glasses.

- Remove the batteries when you store the camera for an extended time.

CAUTION: To prevent possible damage and electrical shock, do not attempt to disassemble or repair the camera or flash unit by yourself.

TROUBLESHOOTING

What happened Probable cause Solution
Camera will Batteries not operate or improperly loaded the batteries	weak, dead, missing, Replace or overload	reload
Film does not Batteries use weak, dead, missing, Replace or reload advance or rewind or improperly loaded the batteries		or reload
LCD panel is blank B	Batteries weak, dead, missing, Replace or reload or improperly loaded the batteries
	Camera in sleep mode See Power shut-off on page 10
	Lens cover/flash closed Open lens cover/flash
Flash/camera ready lamp “blinks” red glow	Flash not fully charged Wait for lamp to green
	Slow shutter speed in low-light scenes	Use high-speed film, a tripod, and hold the camera steady
	Subject beyond the flash range	Move closer to subject
	Auto ranging cannot focus	Recompose picture
Flash/camera ready lamp glows red and from shutter button locks	Subject closer then 2 ft (0.6 m) from camera	Move back and recompose picture
Film door does Film not open film chamber	cassette loaded in Press the mid-roll button. See Mid-roll-	change (MRC) on page 27 or continue taking pictures
	Batteries dead, missing, Replace or reload or improperly loaded the batteries

SPECIFICATIONS

Film type: KODAK ADVANTIX Film for color and black-and-white pictures

Lens: 25 – 65 mm motorized zoom

Focus system: Passive, multi-spot auto-focus system

Flash range (ISO 200):

Wide: 2 - 34 ft (0.6 - 10.4 m)

Tele: 2 - 14 ft (0.6 - 4.3 m)

Viewfinder: Real image zoom with C, H, & P format display

Film speed: DXIX (ISO) 50–800 for color and black-and-white films

Flash unit: Flip-up, KODAK SENSALITE™ Flash

Apertures: f/4.3 - f/10.4

Shutter: Programmed, 1/2–1/400 seconds

Memory: 1 picture storage

Power source: Main power: two 3 V lithium KODAK K123LA (or equivalent) Batteries

Dimensions: 4 5/8 in. x 2 7/8 in. x 1 15/16 in. (117 mm x 72.5 mm x 49 mm)

Weight: 9 oz. (255 g) without film or batteries

Kodak, Advantix, Sensalite, and the Advanced Photo System symbol and logotype are trademarks.

Cross-sectional diagram of a mechanical device showing internal components and a highlighted section (no text or symbols)

Diagram of a battery pack with three cylindrical components and an open lid (no text or symbols)

Illustration of a vintage camera with an arrow indicating direction (no text or symbols present)

Diagram of a car interior showing directional arrows and symbols (no readable text or labels)

Two technical illustrations of a device with attached cable, showing internal components and connectors (no text or symbols)

Diagram of a device's control panel with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a rotary knob with numbered parts and an arrow indicating rotation (no text or symbols present)

Illustration of a vintage camera with an arrow indicating direction (no text or symbols present)

Line drawing of two boys with a circular diagram highlighting a gender gap (no text or symbols)

Mechanical component with a black arrow pointing to a circular button (no text or symbols visible)

Pure diagram with human, person, and triangle symbols inside a rectangular frame (no text or labels)

Illustration of a group of five people posing together, with icons below (no text or symbols)

Illustration of a camera with a screen, lens, and control panel (no text or symbols)

Diagram of a car's front and side view showing directional arrows and symbols (no text or labels)

Illustration of a camera lens mounted on a screen, showing the lens and frame (no text or symbols)

1. Oprima ÍTULO (TITLE) (24).

Mechanical component diagram showing a piston-like assembly with numbered parts and an arrow indicating direction (no text or symbols present)

Diagram showing a mechanical device with a curved arrow indicating motion or force, no text or symbols present

Appareil-photo KODAK ADVANTIX Preview

Technical illustration of a mechanical component with a highlighted internal area (no text or symbols)

Diagram of a battery pack with three cylindrical cells and an open lid (no text or symbols)

Illustration of a digital camera with an arrow indicating direction (no text or symbols present)

Illustration of a device with a cable inserted into a housing (no text or symbols visible)

Illustration of a device with a USB cable inserted into a housing (no text or symbols)

ACTIVATEUR DE BOUTON DE COMMANDE

Diagram of a device's internal components with a hand holding a clip, showing a curved arrow pointing to a control panel (no text or symbols present)

RENSEIGNEMENTS SUR LES PILES

Mechanical component diagram showing a rotary knob with numbered parts and an arrow indicating rotation (no text or symbols present)

Illustration of a vintage camera with an arrow indicating direction (no text or symbols present)

Line drawing of two boys standing side by side, one with a circular diagram overlay (no text or symbols)

Mechanical component with a black arrow pointing to a circular button (no text or symbols visible)

Pure icon set with human, person, and triangle symbols (no text or labels)

Formats des photos

C

H

P

Illustration of a group of people in casual attire, no text or symbols present

Illustration of a camera with a screen, sensor, and sun icon (no text or symbols)

Diagram of a car interior showing directional arrows and symbols (no text or labels)

Illustration of a camera seat with a sun icon on the top (no text or symbols)

Mechanical component diagram showing a rotary knob with numbered parts and an upward arrow indicating rotation (no text or symbols present)

Illustration of a medical device with a curved arrow indicating direction (no text or symbols present)
