TP91 - Toaster GIRMI - Free user manual and instructions

Brand	GIRMI
Model	TP91
Product type	Toaster
Power supply	AC 220-240V~50-60Hz, 1370-1630W
Capacity	2 slices
Toasting function	Yes, with adjustable timer
Defrost function	Yes, Defrost button
Heating/warming function	Yes, dedicated button
Timer	Programmable, toast shade adjustment
Control lever	Yes, lower to start
Crumb tray	Removable, easy to clean
Cooking tongs	Included, washable like normal dishes
Body material	Heat-resistant plastic
Safety	Auto shut-off, overheat protection
Cleaning	Washable crumb tray, wipe body with damp cloth
Usage	Household, indoor

Frequently Asked Questions - TP91 GIRMI

How to use the Girmi TP91 toaster for the first time?

Before first use, clean the tongs and crumb tray. Plug in the appliance, set the timer according to your preference, insert the bread into the tongs, lower the lever. The appliance may emit smoke during first uses, this is normal.

What to do if smoke comes out during first use?

This is normal: new heating elements may emit smoke. It will disappear after a few uses. Make sure to use the appliance in a well-ventilated area.

How to adjust the toasting level?

Use the timer knob (8) to set the cooking time. The longer the time, the more toasted the bread. You can adjust according to the thickness of the bread.

What is the function of the 'Defrost' button?

The Defrost button allows you to thaw frozen bread before toasting. After setting the timer and lowering the lever, press this button to activate defrosting.

How to clean the crumb tray?

Remove the crumb tray, discard crumbs, clean with a damp sponge, dry completely before putting back.

Can I wash the tongs in the dishwasher?

The tongs can be treated like normal dishes. They are washable by hand or in the dishwasher, but make sure they are completely dry before reuse.

Does the appliance turn off automatically at the end of cooking?

Yes, once the toasting time is up, the lever automatically lifts and the appliance turns off.

What to do if the toaster does not turn on?

Check that the plug is properly inserted and the socket works. Ensure the lever is fully lowered. If the problem persists, contact an authorized service center.

Can I use the toaster to cook foods other than bread?

The appliance is designed to toast bread and toasts. Do not use foods containing jam or chocolate that could drip and damage the appliance.

How to store the toaster after use?

Unplug the appliance, allow it to cool completely, clean the crumb tray, wind the cord, and store in a dry place.

USER MANUAL TP91 GIRMI

Technical model: KY-881

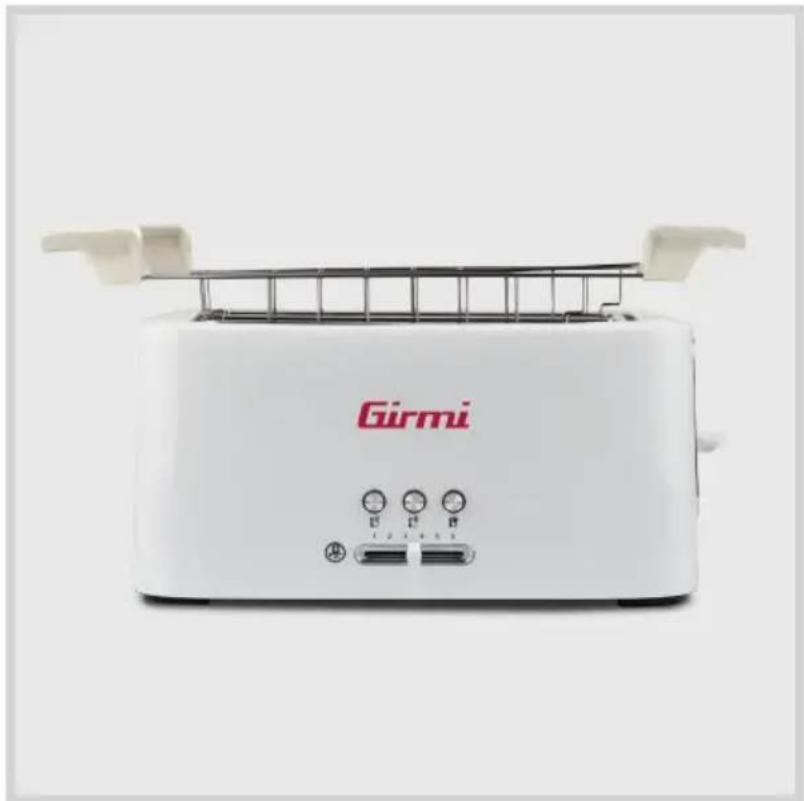

White Girmi toaster with red logo and three side grilles (no visible text or symbols on device body)

Tostapane

Toaster

ITA: INDICE

Simbologia....p. 2

General instructions.... p. 9

TP91 p. 10

Operating.... p. 10

Cooking.... p. 10

Defrost.... p. 10

Heating.... p. 10

Cleaning.... p. 10

Technical features.... p. 10

Waste of electric and electronic equipment (WEEE

Directive).... p. 29

PORTUGUESE...... p. 11

ESPAÑOL p. 15

DEUTSCH p. 19

FRANCAIS ......p. 24

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Diagram of a toaster with numbered parts and exploded view, showing internal components like buttons and fan structure.

Cottura

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

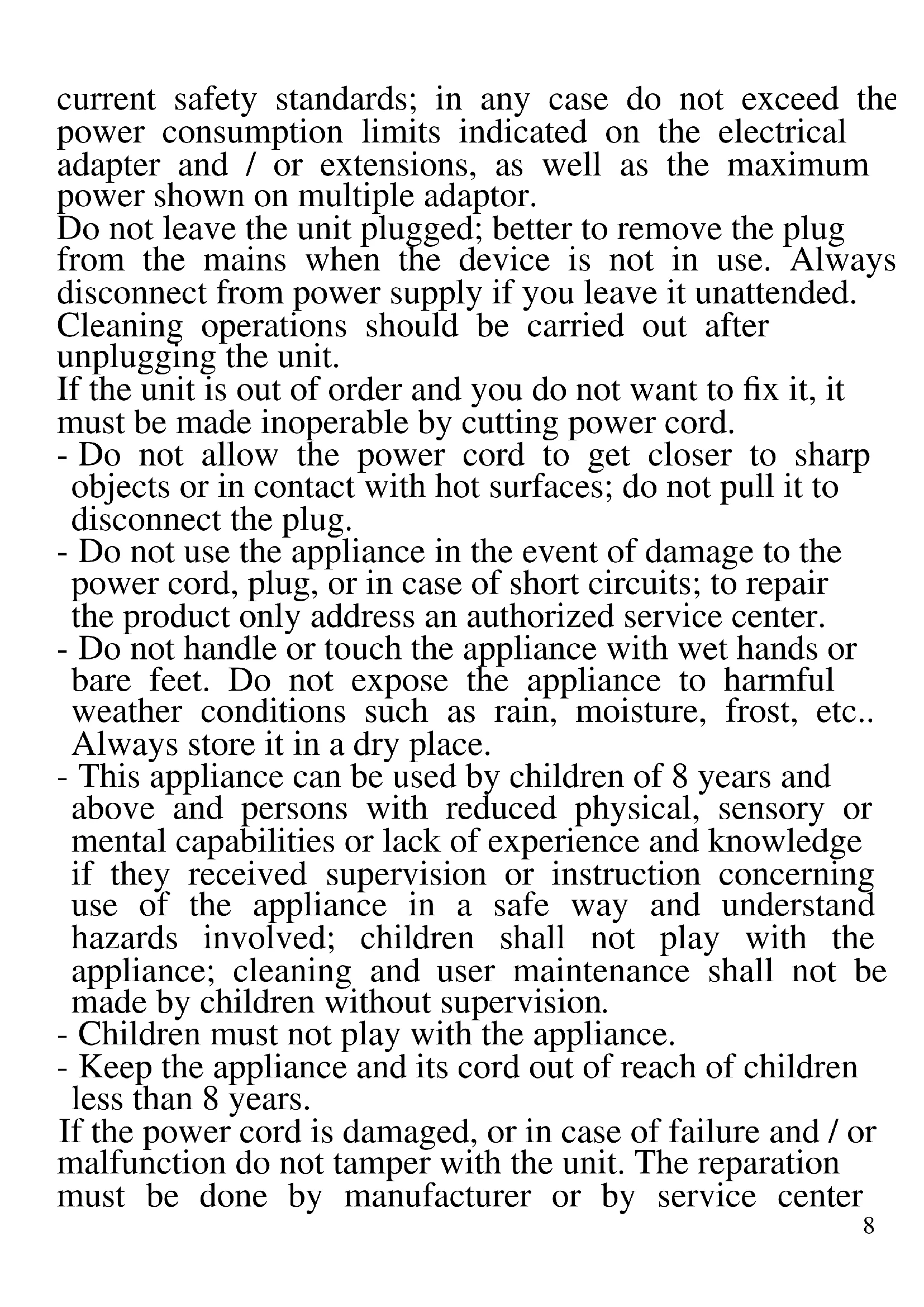

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with

current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center

authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household an similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Do not subject the product to strong impacts, serious damages may result.
• Use original spare parts and accessories only.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

- When you first use the appliance, the electric resistance can emit smoke. Do not worry because the smoke will disappear after a few uses.

- First of all, clean all the parts that will be in touch with food such as the pliers.

CAUTION: risk of burn! After having turn on the unit, avoid touching it since some parts become very hot. Handle with care freshly-cooked food.

- Touch only the handles of the pliers and the buttons while the unit is running. Use only for food preparation.

- Place the toaster on stable shelves. Never leave the

appliance unattended while it is working.

• Always place the slices of bread or food inside the special pliers and be careful not to include foods that are too large in relation with the capacity of cooking slots.
• Always use the toaster with crumb tray inserted, making sure it is assembled correctly.
• Do not use to cook food containing jam, chocolate spread, or foods that might drip in general.
• Once finished, unplug it and wait for the cooling of each part of the unit before storing.
• Do not immerse the product in water or other liquids. In any case prevent splashes of water or other liquids from reaching the toaster.

DESCRIPTION TP91

1 On-off lever

4 Body

7 Defrost button

8 Timer

2 Cooking slots

5 Safety switch-off button/Cancel

9 Stainless steel plyers

3 Removable crumb tray

6 Keep-warm button/Reheat

OPERATING

This bread toaster is suitable for cooking and heating tasty toast and toasted bread. Thanks to the defrost function, activated by the button (7) "Defrost", it is also possible to defrost bread or toast.

Cooking

• Make sure that the lever (7) is in the high position.
• Place the product on a flat and stable surface and connect the plug to the power outlet.
• Set the timer (8) depending on the taste, the thickness of the bread and the roast that you want to achieve.
• Place food in the special pliers (9) and put the clamps in the slots (2).
• Lower the lever (1) to start cooking. During cooking, check that food does not burn. If you want to stop cooking, at any time you can press the OFF/Cancel button (6).
• After cooking, the lever (1) lifts automatically to power off the equipment. To take them out, grab the pliers from the special handles without touching the toaster, especially the top.
• Unplug the unit and wait for the complete cooling of each part, before storing the appliance.

Defrost - This function allows you to heat the cooking slots at a temperature suitable for defrosting bread. To use this option, after you have set the timer (8) and turn down the lever (1), press defrost button (7).

Heating - This function allows you to heat the coking slots enough to maintain the temperature of the bread, or heating some cold food. To use this option, after you have set the timer (8) and turn down the lever (1), press the heat button (6).

CLEANING

Unplug the unit from the electrical outlet and let it cool down before starting cleaning operations.

• Do not immerse the unit in water. In any case, avoid any splashing of water or other liquids, and pay attention the water does not enter the slots for pliers.
• The pliers can be treated like normal dishes. Clean the crumb tray by removing first all the crumbs and then wipe off the residue with a sponge, making sure to dry completely before replacing it in the toaster.
• Clean the body of the toaster with a damp cloth.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz. 1370-1630W
- Timer - Control lights
• Cooking, defrosting and heating functions

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
