TS03 - Toaster GIRMI - Free user manual and instructions

Product type	Toaster
Brand	Girmi
Model	TS03
Power supply	AC 230 V ~ 50-60 Hz
Power	750 W
Cooking surface	2 grates (21.5 x 12 cm)
Material of grates	Teflon (non-stick coating)
Handle	Anti-burn
Light indicators	Power-on indicator (red) and temperature indicator (green)
Locking lever	Yes, to secure closure
Usage	Domestic and similar (staff kitchens, hotels, etc.)
Cleaning	Grates cleanable with a damp sponge and dish soap; base and lid with a damp cloth
Safety	Automatic shut-off? Not specified, but unplug after use; do not immerse; do not use with wet hands
Accessories	Wood or plastic utensils recommended for removing food
Dimensions (approx.)	Approximately 30 x 25 x 15 cm (estimate)
Weight (approx.)	Approximately 1.5 kg (estimate)
Repairability	Repairs by the manufacturer or authorized technical service
Disposal	Compliant with WEEE directives (2002/96/EC, 2012/19/EC)

Frequently Asked Questions - TS03 GIRMI

How to use the Girmi TS03 toaster for the first time?

Before first use, clean the grates with a damp sponge. Plug in the appliance, the red light turns on. Wait until the green light turns on indicating that the temperature is reached. Place the food on the lower grate, close the lid using the handle. Check cooking periodically to avoid burning the food.

Why is there smoke during the first use?

It is normal for the grates to emit a little smoke during the first uses. The smoke disappears after a few heating cycles. Make sure to ventilate the room.

Can I use metal utensils on the grates?

No, only use wood or plastic utensils to avoid scratching the Teflon coating. Metal utensils can damage the non-stick surface.

How to clean the Girmi TS03 toaster?

Unplug the appliance and let it cool completely. Clean the grates with a barely damp sponge and dish soap, then rinse and wipe. For the base, handle and lid, use a damp cloth. Never immerse the appliance in water.

What is the power of the TS03 toaster?

The Girmi TS03 toaster has a power of 750 W and operates on a power supply of 230 V ~ 50-60 Hz.

Can children use this appliance?

Children over 8 years can use the appliance under supervision. Children under 8 years must be kept away from the appliance and the power cord. Cleaning and maintenance operations must not be performed by children without supervision.

What to do if the power cord is damaged?

If the power cord is damaged, do not use the appliance. Entrust the repair to the manufacturer, its technical service, or a qualified person. Any unauthorized repair may compromise safety and void the warranty.

Can I leave the appliance unattended while it is operating?

No, never leave the appliance unattended while it is running. Always unplug it after use and when not in use.

What types of food can I cook with this toaster?

This toaster is designed for toasting bread, sandwiches, and other foods suitable for grilling. Do not use it as a heating appliance or for other unintended uses.

Where can I find spare parts for the TS03?

Only use original accessories and parts. To obtain spare parts, contact Girmi after-sales service or an authorized service center.

USER MANUAL TS03 GIRMI

White industrial device with a Girmi brand logo and a green button, no visible text or symbols beyond the branding.

Tostiera

Sandwich maker

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 7

General information.... p. 9

TS03 p. 10

Operating.... p. 10

Pulizia.... p. 10

Technical features.... p. 10

Waste of electric and electronic equipment (WEEE

Directive).... p. 23

PORTUGUES:....p. 10

ESPAÑOL ......p. 14

FRANCAIS p. 18

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

PULIZIA

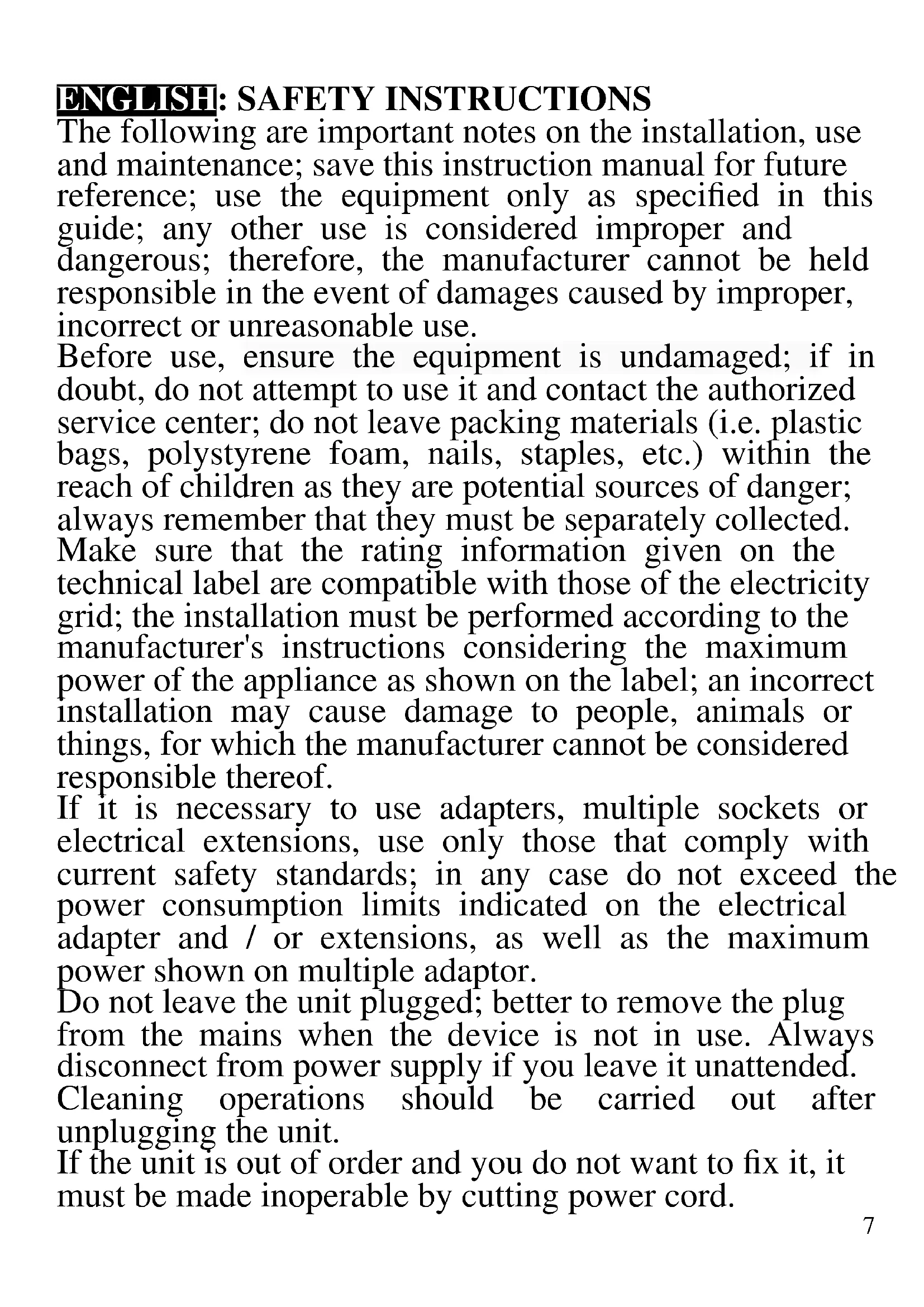

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
  WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops,

offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result. Don’t use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

When you first turn on the unit, the grill plates may emit some smoke. Do not worry, after few uses the smoke will disappear. At first use, clean the parts that will be in contact with food (ie the plates).

To avoid risk of burns, after turning on the appliance, do not touch the slots as they become very hot.

• Handle with care fresh-cooked food. While the unit is running and/or after every use, touch only the handle.
• Once you have placed the food on the grill plate, handle them with wooden cutlery only, being careful not to scrape the surface of the plates.
• Never leave the appliance unattended while it is running.
• After every use, unplug the unit and wait for the complete cooling of each part before cleaning.
• Do not immerse in water or other liquids. Do not leave it under the stream of tap water. In any case, avoid water or other liquids to slide on the cooking plates.
• For cleaning, use soft sponge, avoiding metal ones. Grill plates can be cleaned with a common cleaner for dishes.
• Place the unit on stable shelves. Leave enough space at both sides of the unit, while the unit is working.
• Keep the unit away from flammable materials, heat, cold spots and steam. Do not use as a support for objects.

DESCRIPTION TS03

1 Handle

4 Temperature control green light

2 Locking lever

5 Upper grill

3 Working red light

6 Lower grill

OPERATING

• Place the unit on a flat and stable surface and plug it to the electrical outlet. If the plug is properly inserted the red light switch (3) will light up.
• Let the appliance closed allowing the grills heating up. The green light (4) will illuminate, indicating that the correct temperature is reached.
• At this point the appliance is ready for cooking. Place the food and close the unit using the handle (1).
• During cooking, periodically check the condition of the food to prevent burnings.
• Once cooking is finished, raise the lid with the handle and remove food using a wooden or plastic utensil. Do not use metal utensils.
• Unplug the unit and wait for the complete cooling of each part before starting cleaning operations.

After cleaning, to be carried out by following the instructions in the next section, close the lid and secure it, then store the unit away from heat sources and out of the reach of children.

CLEANING - Unplug the unit from the electrical outlet and allow each part to cool down before carrying out any cleaning operation.

Do not immerse the unit in water; do not leave it under the water stream. In any case avoid water or other liquids to slide on the cooking plates. Do not use scouring or metal sponges for cleaning ceramic grills. Clean the cooking plates with a damp sponge and dishwashing detergents, after cleaning always remove any residual detergent and let them dry completely before reassembling.

Clean the main body, handle and cover with a damp cloth.

TECHNICAL FEATURES

• Power supply: AC 230V\~50-60Hz. Power 750W
• Cooking area dimensions: 2 grills (21.5 x 12) cm
• Insulated handle - Control lights

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
