YUMMY - Chair Kindercraft - Free user manual and instructions

Product type	High chair for children
Brand	Kindercraft
Model	YUMMY
Recommended age	From 6 to 36 months (child able to sit up alone)
Maximum weight capacity	15 kg
Materials	Plastic, fabric (cover), metal (frame)
Adjustable seat heights	7 positions
Adjustable backrest recline	3 positions
Adjustable footrest	3 positions
Removable tray	Yes, adjustable in 3 positions, washable
Safety harness	Adjustable 3-point harness (shoulders, waist, crotch)
Product weight (approx)	Approximately 6 kg
Dimensions (approx., folded)	Not specified in the manual
Footprint (unfolded)	Approximately 60 x 50 x 90 cm (estimate)
Use	Indoor use only
Maintenance	Clean with a damp cloth and mild soap
Cover washing	Hand wash, do not bleach, do not machine dry
Warranty	24 months (extendable to 120 months under conditions)
Replacement parts	Use only manufacturer-approved parts
Safety	Never leave child unattended, always use harness

Frequently Asked Questions - YUMMY Kindercraft

How to assemble the YUMMY high chair?

Remove the plastic caps from the tubes. Press the push button (6) and unfold the right and left legs. Insert the upper legs into the seat until you see the number "1" in the window. Secure the lower legs (rear with wheels, front). Make sure the elastic pins are properly in place.

Can I use the chair without a cover?

No, it is essential to use the cover for the child's safety and comfort. Never use the product without the cover.

How to adjust the safety harness?

The harness passes through the cover and the seat via holes. Insert the plastic rings into the holes to lock them. Gather the shoulder, waist, and crotch straps into the buckle. Press the center button to release them.

Is the tray removable?

Yes, the tray attaches via a locking mechanism and can be removed by pressing the hooks. It is adjustable to 3 positions and can be hung on the back of the chair when not in use.

How to adjust the footrest?

Press the two side buttons located under the footrest to adjust it to 3 different positions. Never stand on the footrest.

Up to what age and weight can my child use the chair?

The YUMMY chair is designed for children from 6 to 36 months, able to sit up alone, and weighing up to 15 kg.

How to clean the chair cover?

Detach the cover by removing the straps and hooks. Hand wash it with mild soap. Do not bleach, do not machine dry, do not iron, do not dry clean.

Can I use non-approved accessories?

No, only accessories and replacement parts approved by the manufacturer can be used. Use of third-party accessories may damage the product or compromise safety.

What to do if the chair is damaged?

Do not use the product if it has cracks, tears, or missing parts. Contact customer service via the website www.rma.kinderkraft.com for a warranty claim.

How to adjust the chair height and backrest recline?

For height, press both side buttons simultaneously and choose from 7 positions. For recline, lift the lever at the back, tilt the backrest (3 positions) and release the lever until it clicks into place.

USER MANUAL YUMMY Kindercraft

Black and white play button icon inside a circle (no text or symbols)

Watch manual

VIDEO!

youtube.com/kinderkraftofficial

kinderkraft.com

YUMMY

CZ STOLIČKA NA KRMENÍ

DE KINDERSTUHL

EN HIGH CHAIR

ES TRONA PARA COMER

FR CHAISE HAUTE POUR BÉBÉ

HU ETETÓSZÉK

IT SEGGIOLINO DA TAVOLO

NL VOEDINGSSTOELTJE

PL KRZESEŁKO DO KARMIENIA

Technical diagram showing eight labeled mechanical components with numbered annotations and directional arrows.

Technical diagram showing three stages of a baby seat with labeled parts and a magnified inset highlighting the component.

Technical line drawing of a mechanical device with three views: top view, side view showing internal components, and bottom view showing a blade assembly (no text or symbols)

C

Diagram of a mechanical or fluidic device with two vertical pipes and directional arrows indicating flow or movement (no text or symbols)

D1

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols present)

D2

Line drawing of a cartoon character wearing a helmet and holding a rectangular object, standing on a chair with arms extended (no text or symbols)

D3

Pure mechanical diagram of a V-shaped pipe fitting with directional arrows indicating flow or movement (no text or symbols)

D4

Line drawing of a folding chair with seat, armrest, and seatbelt (no text or symbols)

Line drawing of a folding chair with black blades and a circular seat (no text or symbols)

E1

Diagram of a medical procedure showing two views of a coiled tube with circular ports, no text or symbols present.

E2

Technical line drawing of a mechanical assembly with no visible text or symbols

F

Diagram of a baby seat with an inset showing the anatomical view of the seat and hip area.

G1

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

G2

Technical line drawing of a baby boom chair with Chinese annotation indicating the seat replacement mechanism.

H1

Line drawing of a baby boom chair with seat, legs, and frontrest (no text or symbols)

H2

VÁŽENÝ ZÁKAZNÍKU!

Prohibition sign with pictograms of a child and adult walking, indicating no movement or death

Prohibition sign with pictograms of a child and adult walking, indicating no movement or death

Thank you for purchasing a Kinderkraft product.

Our products are designed to help your child – we always care about safety and quality, thus ensuring the comfort of the best choice.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Safety instructions and precautions

WARNING!

• Never leave the child unattended.
  • Always use the restraint system.
• Falling hazard: Prevent your child from climbing on the product.
• Do not use the product unless all components are correctly fitted and adjusted
• Be aware of the risk of open fires and other sources of strong heat in the

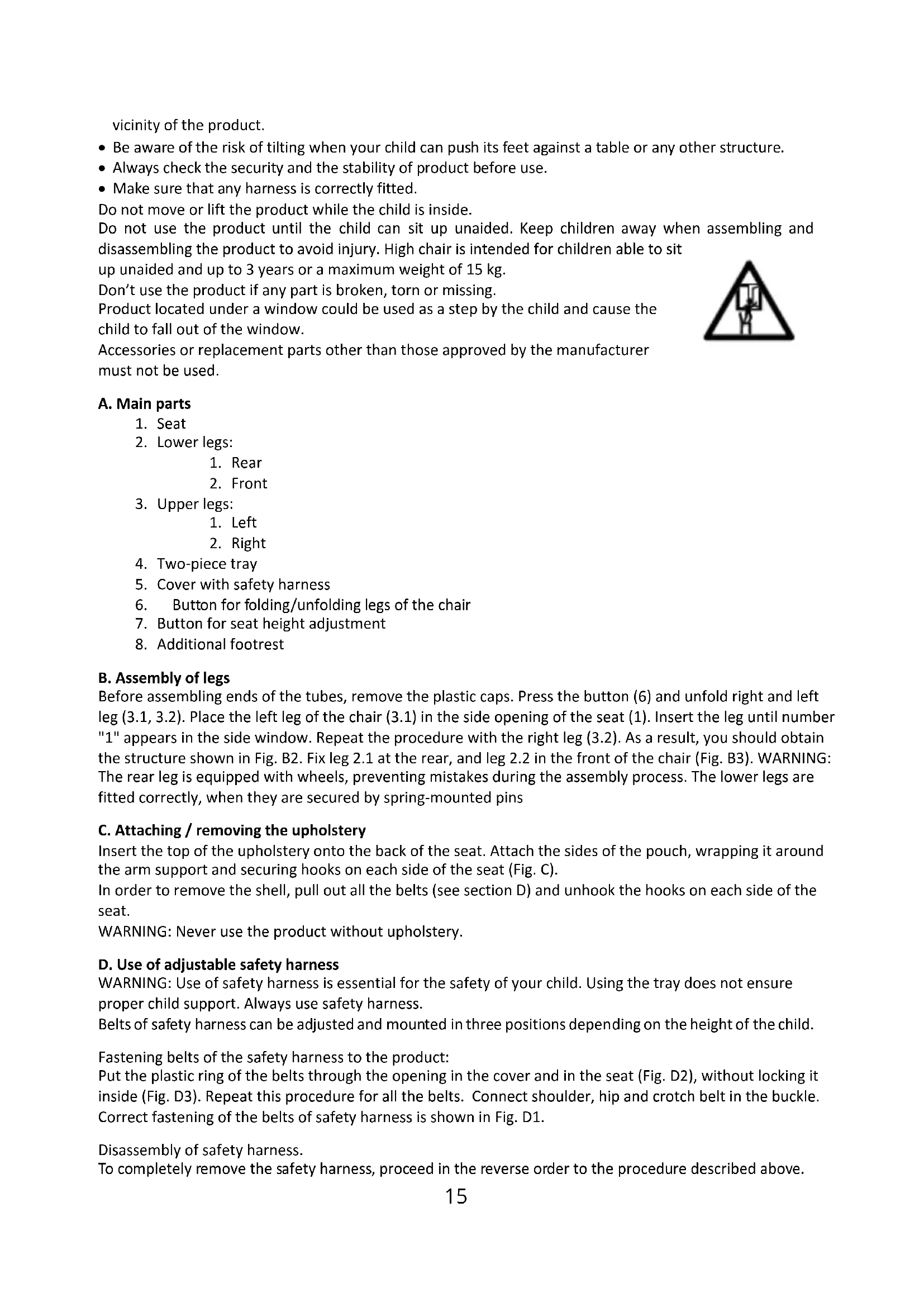

Prohibition sign with pictograms showing a child and adult walking, indicating no movement or death.

vicinity of the product.

• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
  • Always check the security and the stability of product before use.
• Make sure that any harness is correctly fitted.

Do not move or lift the product while the child is inside.

Do not use the product until the child can sit up unaided. Keep children away when assembling and disassembling the product to avoid injury. High chair is intended for children able to sit

up unaided and up to 3 years or a maximum weight of 15 kg.

Don't use the product if any part is broken, torn or missing.

Product located under a window could be used as a step by the child and cause the child to fall out of the window.

Accessories or replacement parts other than those approved by the manufacturer must not be used.

A. Main parts

1. Seat
2. Lower legs:
3. Rear

4. Front

5. Upper legs:

6. Left

7. Right

8. Two-piece tray

9. Cover with safety harness

10. Button for folding/unfolding legs of the chair

11. Button for seat height adjustment

12. Additional footrest

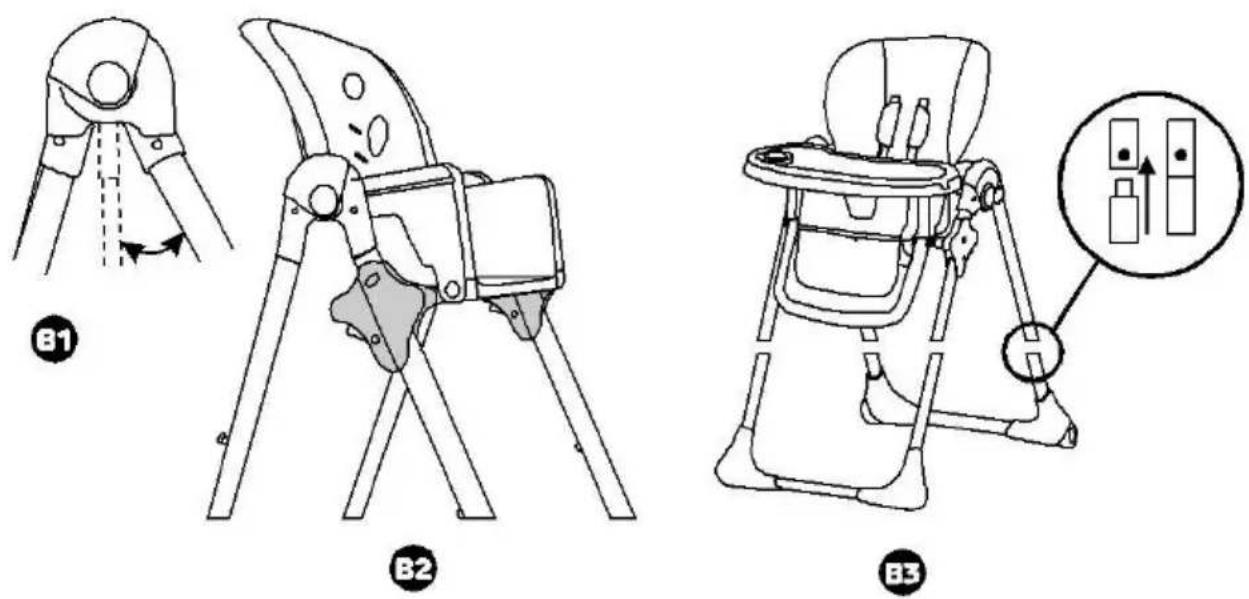

B. Assembly of legs

Before assembling ends of the tubes, remove the plastic caps. Press the button (6) and unfold right and left leg (3.1, 3.2). Place the left leg of the chair (3.1) in the side opening of the seat (1). Insert the leg until number "1" appears in the side window. Repeat the procedure with the right leg (3.2). As a result, you should obtain the structure shown in Fig. B2. Fix leg 2.1 at the rear, and leg 2.2 in the front of the chair (Fig. B3). WARNING: The rear leg is equipped with wheels, preventing mistakes during the assembly process. The lower legs are fitted correctly, when they are secured by spring-mounted pins

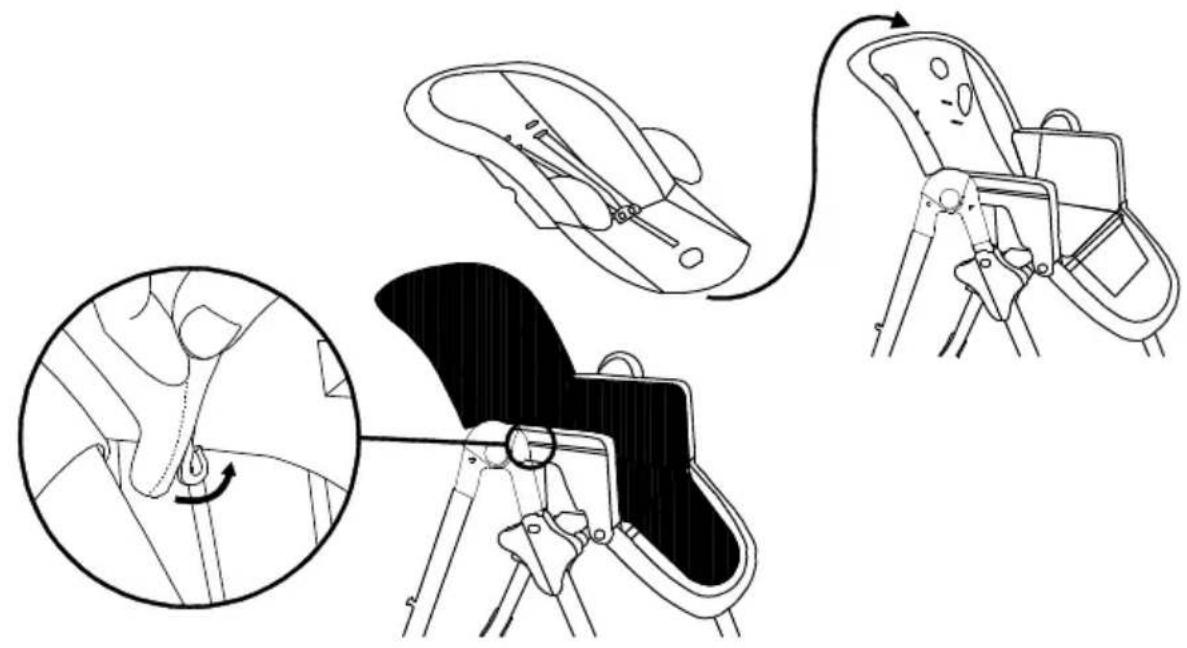

C. Attaching / removing the upholstery

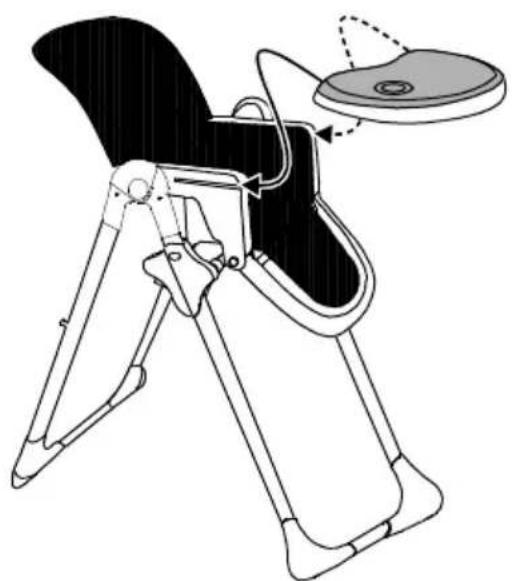

Insert the top of the upholstery onto the back of the seat. Attach the sides of the pouch, wrapping it around the arm support and securing hooks on each side of the seat (Fig. C).

In order to remove the shell, pull out all the belts (see section D) and unhook the hooks on each side of the seat.

WARNING: Never use the product without upholstery.

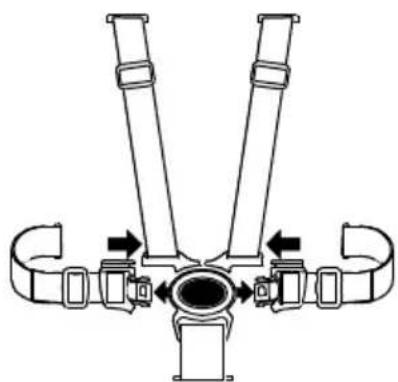

D. Use of adjustable safety harness

WARNING: Use of safety harness is essential for the safety of your child. Using the tray does not ensure proper child support. Always use safety harness.

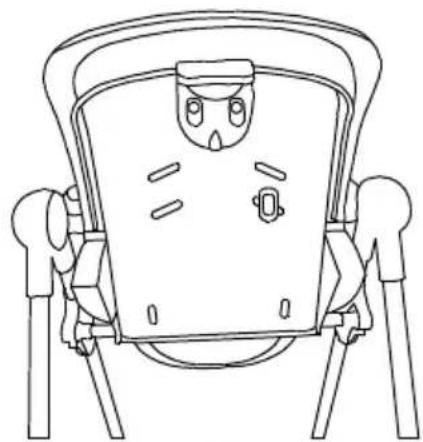

Belts of safety harness can be adjusted and mounted in three positions depending on the height of the child.

Fastening belts of the safety harness to the product:

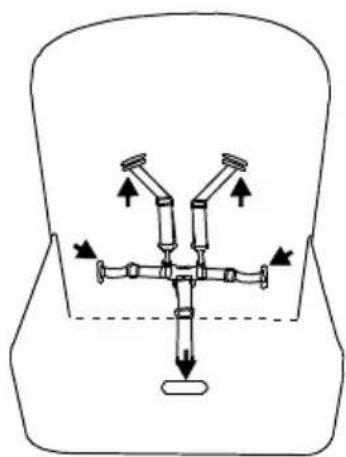

Put the plastic ring of the belts through the opening in the cover and in the seat (Fig. D2), without locking it inside (Fig. D3). Repeat this procedure for all the belts. Connect shoulder, hip and crotch belt in the buckle.

Correct fastening of the belts of safety harness is shown in Fig. D1.

Disassembly of safety harness.

To completely remove the safety harness, proceed in the reverse order to the procedure described above.

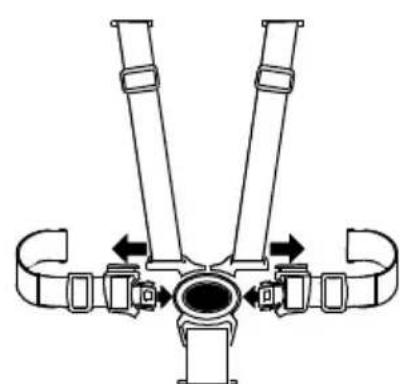

To disconnect the belts of the safety harness, press the button in the middle of the buckle (Fig. D4).

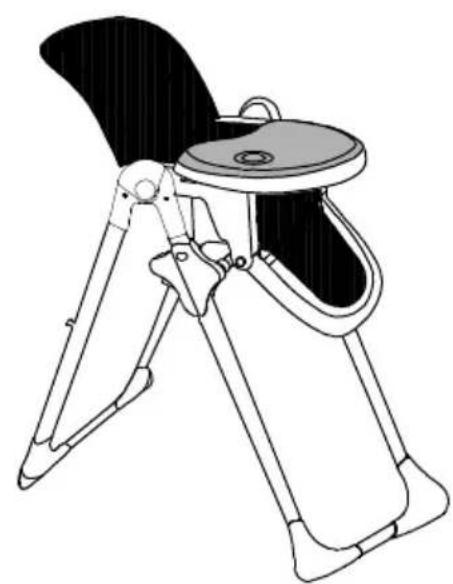

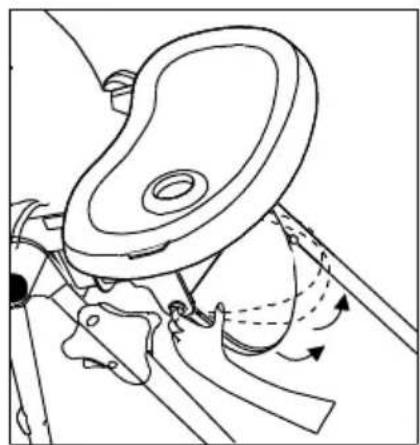

E. Assembly and adjustment of the plastic tray

Attach the plastic tray to the chair by means of the clamping mechanism.

The tray can be set in one of three positions - marking is located on the armrest.

After inserting the tray, make sure that it is securely mounted.

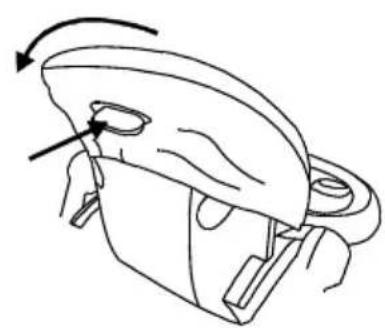

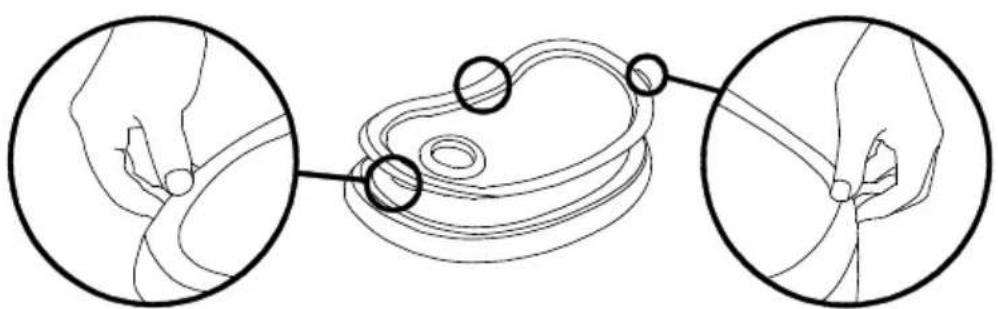

In order to wash the tray, you can remove its top after releasing two catches (Fig. E2).

Completely dismantled tray may be attached to the leg, at the back of the chair.

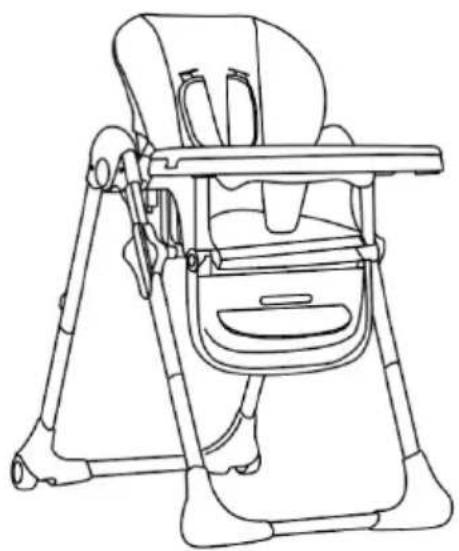

F. Footrest adjustment

The footrest can be set in three different positions by pressing the two side buttons (Fig. F)

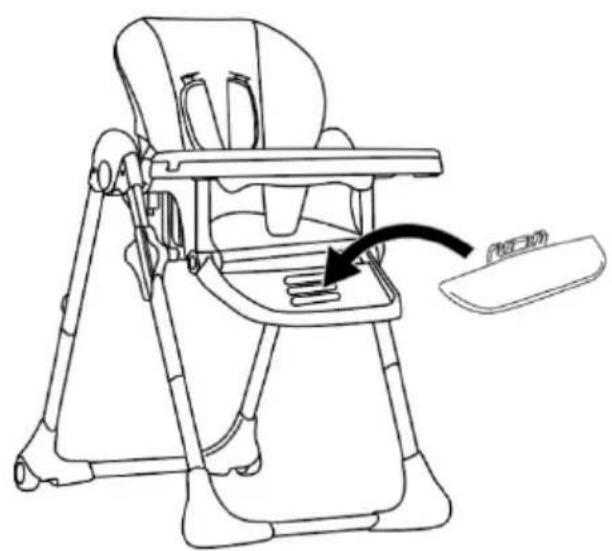

The YUMMY chair can be fitted with an additional footrest. To do this, insert the hook into one of the three holes as shown in figure H1, H2.

WARNING! Do not stand on the footrest.

G. Adjusting the height of the chair and the backrest inclination

The chair can be set at 7 different heights.

To lift/lower the seat: simultaneously press the button to adjust the height of the seat on both sides and set to the selected position (Fig. G1). WARNING: Do not do this when the baby is sitting in the chair.

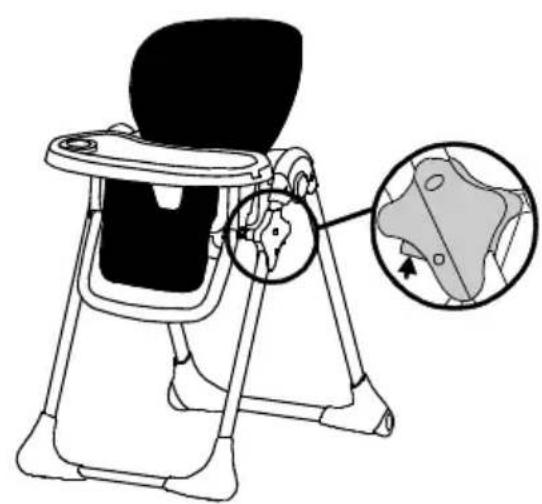

The backrest of the chair can be set in three positions. To adjust the backrest, lift the lever located at back (Fig. G2), tilt the backrest and place it in the desired position, then release the lever. The backrest is locked automatically and you will hear a locking sound.

When selecting the lowest seat position, make sure that the indicator on the side indicates 7.

H. Cleaning

Chair: Clean with a clean and damp cloth using mild soap. Safety harness: Fasten belts together. Handwash.

Do not bleach. Do not dry in a tumble dryer. Do not iron. Do not dry clean.

Warranty

1. All Kinderkraft products are covered by a 24-month warranty. The warranty period starts from the date the product is handed over to the Buyer.
2. The warranty is only valid in the member states of the European Union, excluding overseas territories (as currently defined, including in particular: Azores, Madeira, Canary Islands, French Overseas Departments, Åland Islands, Athos, Ceuta, Melilla, Helgoland, Büsingen am Hochrhein, Campione d'Italia and Livigno) and the territory of the United Kingdom of Great Britain and Northern Ireland excluding the British Overseas Territories (e.g. Bermuda, Cayman Islands, Falkland Islands).
3. The manufacturer's warranty does not apply to countries not listed above. The conditions of the additional warranty may be determined by the Seller.
4. In some countries, it is possible to extend the warranty to a limited period of 120 months (10 years). The complete terms and conditions and the warranty extension registration form are available at WWW.KINDERKRAFT.COM
5. The warranty is valid only in the territory indicated in paragraph 2.
6. Claims must be made by completing the form available at WWW.RMA.KINDERKRAFT.COM
7. The warranty does not cover:

A. Cosmetic damage, including but not limited to: scratches, dents and cracks in plastic, unless the failure is due to a material or manufacturing defect;

B. Damage resulting from misuse or poor maintenance - including but not limited to: mechanical damage to products caused by misuse or poor maintenance;

• Refer to the instructions for use and installation of the product contained in the user manual;

C. Damage caused by improper assembly, installation or disassembly of products and/or accessories;

• Refer to the instructions for use and installation of the product contained in the user manual;
D. Damage caused by corrosion, mould or rust, resulting from improper maintenance, care and storage;
E. Damage caused by normal wear and tear or otherwise resulting from the normal passage of time;
- This includes: tears or punctures in inner tubes; tyre damage; tyre tread damage; fading of fabrics resulting from mechanical use (e.g. on joints and covering of moving parts);
F. Damage or erosion caused by sun, perspiration, detergents, storage conditions or frequent washing, etc;
G. Damage caused by accident, abuse, misuse, fire, contact with liquid, earthquake or other external causes;
H. Products that have been modified to change functionality without 4Kraft's written consent;
I. Products from which the serial number or lot number has been removed or tampered with in any way;
J. Damage caused by the use of third party components or products - including but not limited to: cup holders, umbrellas, reflectors, bells;
K. Damage caused by transport or by ground handling service providers.

1. The warranty period for accessories included with the product is 6 months from the date of sale, excluding the faults described above.

2. These warranty conditions are complementary to the Customer's statutory rights with respect to 4KRAFT sp. z o.o. The warranty does not exclude, limit or suspend the Customer's rights under warranty for defects in goods sold.

3. The full text of the Terms and Conditions of the Warranty is available on the website WWW.KINDERKRAFT.COM

All rights to this data are entirely reserved to 4Kraft Sp. z o.o. Any unauthorized use or misuse, including usufruct, copying, duplication and sharing, wholly or partially, without consent of 4Kraft Sp. z o.o. may result in legal consequences.
