Product Type	Convertible high chair for children
Brand	Kindercraft
Model	TIXI
Recommended age (high chair)	From the age when the child can sit unaided up to 36 months
Recommended age (booster seat)	24 to 60 months
Maximum weight (high chair)	15 kg
Maximum weight (booster seat)	20 kg
Main materials	Plastic, metal, fabric padding
Dimensions (approx.)	Not specified in the manual; standard high chair model
Product weight	Not specified
Main functions	High chair for meals, convertible into a booster seat, removable double-layer tray with 3 positions, adjustable footrest, 5-point safety harness
Safety	Safety harness, tray lock, reinforced stability, do not leave child unattended
Care and cleaning	Seat: damp cloth and mild soap; harness and fabric: hand wash, no bleach, no tumble drying, no ironing, no dry cleaning
Spare parts and repairability	Use only manufacturer-approved spare parts; stop use if parts are broken or missing
Warranty	24 months (extendable to 120 months under conditions at WWW.KINDERKRAFT.COM)
Included accessories	Seat with padding and straps, tray, feet (front and rear) x4, fasteners, footrest, screws, washers, key

Frequently Asked Questions - TIXI Kindercraft

What is the maximum age for using the TIXI high chair?

In high chair mode, it is suitable up to 36 months (15 kg max). In booster seat mode (without tray), it is suitable from 24 to 60 months (20 kg max).

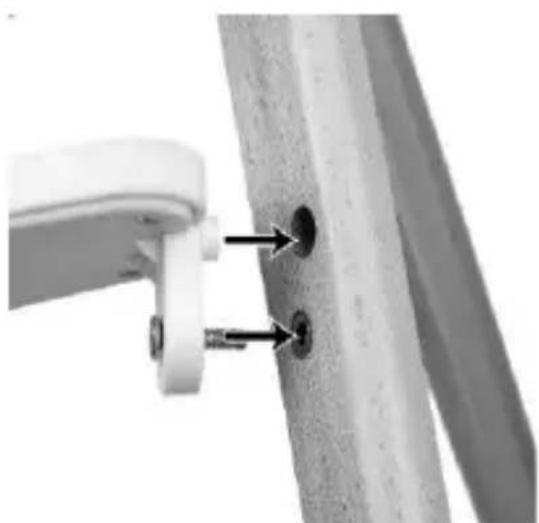

How to install the footrest?

Insert the footrest pins into the holes on the front legs of the seat, then secure with the provided M6x25 mm screws. Ensure the holes are facing forward.

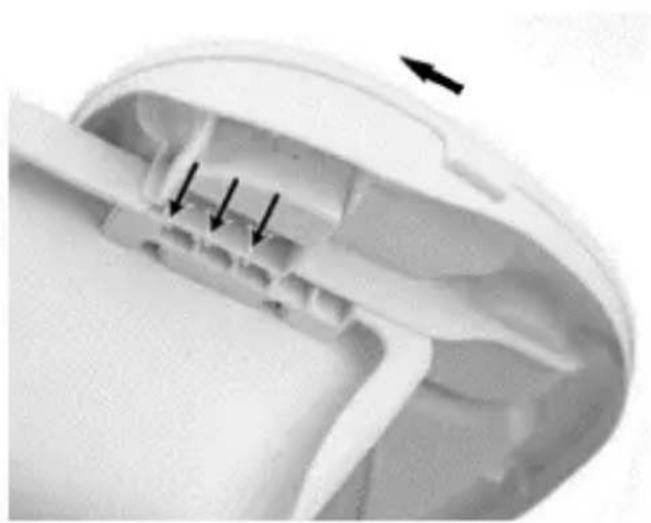

Can the tray be removed easily?

Yes, hold down the locking mechanism and slide the tray out of the seat. It locks into three different positions.

How to clean the seat fabric?

Wash the fabric and straps by hand with mild soap. Do not use bleach, do not tumble dry, do not iron, do not dry clean.

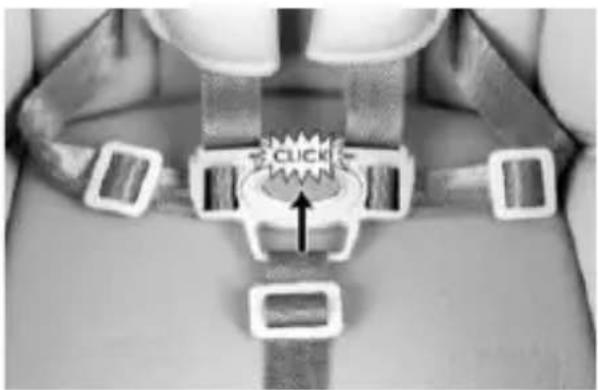

Can I use the chair without the harness?

No, the safety harness is mandatory to prevent falls. Always secure the child with the 5-point harness.

How to convert the high chair into a booster seat?

Remove the tray and footrest. Loosen the screws of the fasteners, remove the long legs and install the shorter legs of the booster seat. Remove the harness by sliding the buckles through the openings.

Is the product stable on uneven floor?

Make sure all screws are tight and the chair is flat on the floor. Never place on an unstable surface and do not let the child push against a table.

Is there a risk of tipping over?

Yes, if the child pushes their feet against a table or window. Never place the chair near a window or heat source.

What is the warranty of the TIXI chair?

The warranty is 24 months from the date of purchase. It can be extended up to 120 months (10 years) by registering at WWW.KINDERKRAFT.COM.

Where can I find spare parts?

Use only manufacturer-approved parts. Contact customer service via the website WWW.KINDERKRAFT.COM to obtain spare parts.

USER MANUAL TIXI Kindercraft

Line drawing of a baby in a high chair with seat, legs, and tray (no text or symbols)

10 YEARS WARRANTY

register now st: www.kinderkraft.com

kinderkraft.com

/inderkrafttufficial

kinderkraft

@kinderkraftofficial

(AR) كرسي الطعام
(CS) Stolička na krmení
(DE) Kinderstuhl
(EN) High chair
(ES) Trona para comer
(FR) Chaise haute pour bébé
(HU) Etetőszék
(IT) Seggiolino da tavolo

دليل الاستخدام

Návod k obsluze

Bedienungsanleitung

User manual

Manual de uso

Guide d'utilisation

Használati útmutató

Interior view of a car seatbelt with visible seat, seat, and straps (no text or symbols)

1

Two plain, rounded rectangular objects with small circular cutouts on the left side (no text or symbols)

2

Four vertical gray bars labeled A, B, C, D, showing different shapes and colors (no text or symbols beyond labels)

3

Four gray rectangular panels labeled A, B, C, D (no text or symbols on panels)

4

Two gray 3D mechanical parts labeled A and D, showing internal cutouts and mounting holes (no text or symbols beyond labels)

B

Plain white plastic plate with rounded edges and two wheels (no text or symbols)

6
5

Six identical cylindrical screw or bolt designs arranged in a row (no text or symbols visible)

8

9

Four identical black plastic pushpins arranged in a 2x2 grid (no text or symbols visible)

10

Simple L-shaped metal angle bracket (no text or symbols)

11

C D

|

Mechanical assembly with bracket and mounting holes, showing structural details (no text or symbols)

||

Mechanical structure with two circular annotations highlighting specific points on the beams (no text or symbols present)

III

Top-down view of a white mechanical component with four metallic beams and four corner fasteners, no visible text or symbols.

IV

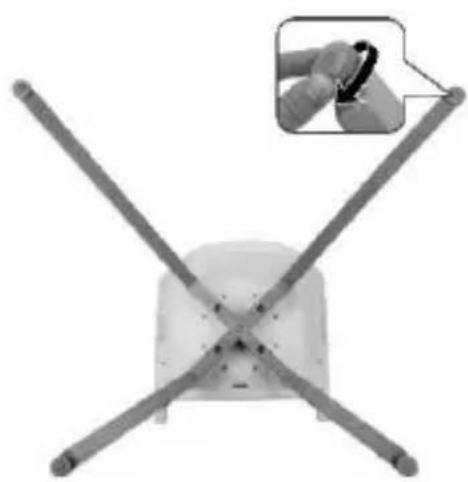

Diagram of a mechanical device with four arms crossed, showing a close-up inset of a component (no text or symbols)

V

Close-up of a mechanical joint or bracket with two circular fasteners inserted, no visible text or symbols

VI

Close-up of a white plastic container with internal compartments and an arrow indicating direction (no text or symbols)

VII

Top-down view of a medical imaging device showing internal anatomical structures with measurement arrows (no text or symbols)

VIII

1 2 3

IX

Close-up of a white plastic object with a circular opening and a small hole, resembling a button or grip (no text or symbols visible)

X

Close-up of a medical or orthopedic device with a circular connector and four rectangular buttons, no visible text or symbols.

XI

Close-up of a mechanical buckle with a click button and mounting bracket (no text or symbols visible)

XII

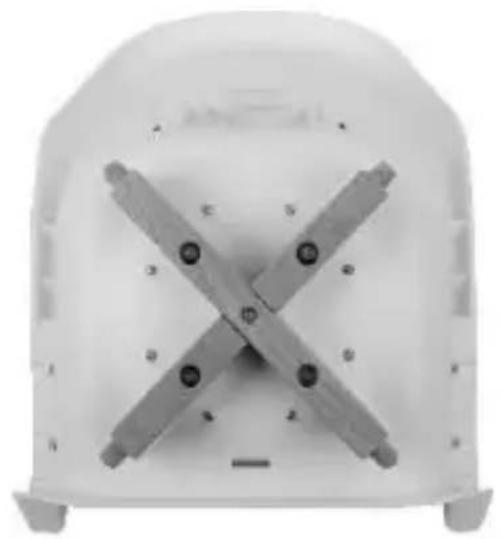

White industrial machine component with two X-shaped cutouts, no visible text or symbols

XIII

Top-down view of a white modern chair with two side legs and three legs, no text or symbols visible.

XIV

Top-down view of a gray baby chair with visible seat, legs, and front panel (no text or symbols)

XV

AR

عميلنا المحتر

Prohibition sign with pictograms of a child and adult walking, indicating no movement or behavior in the circle

Warning symbol depicting a person inside a triangle with an object above, indicating caution or hazard.

Prohibition sign with pictograms of a child and adult walking, indicating no movement or behavior in the depicted scenario.

Warning symbol depicting a person inside a triangle with an umbrella, indicating caution or hazard.

Prohibition sign with pictograms of a child and adult walking, indicating no movement or death

WARNUNG!

Warning symbol depicting a person falling into a structure inside a triangle (no text or numbers present)

Thank you for choosing a product by Kinderkraft.

Our designs are child-oriented – safety and quality always comes first, stay comfortable knowing that you have made the best choice.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

A. Safety and care notes!

HIGH CHAIR

WARNING!

• Never leave the child unattended.

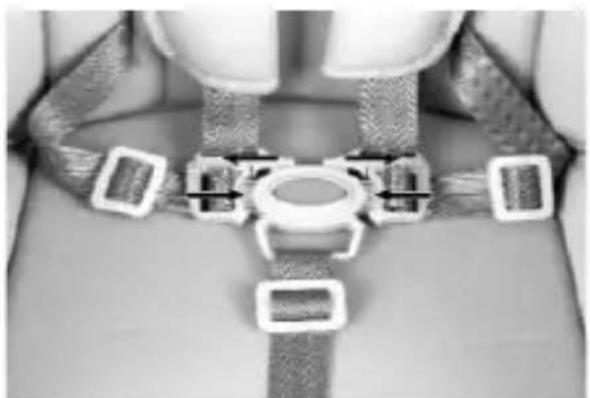

• High chairs: Always use the restraint system.
• Falling hazard: Prevent your child from climbing on the product.
• Do not use the product unless all components are correctly fitted and adjusted

- Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.

- Be aware of the risk of tilting when your child can push its feet against a table or any other structure.

- Always check the security and the stability of product before use.

- Make sure that any harness is correctly fitted.

- Do not move or lift the product while the child is inside.

- Do not use the product until the child can sit up unaided. Keep children away when assembling and disassembling the product to avoid injury. High chair is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15 kg.

Prohibition sign with pictograms of a child and adult walking, indicating no religious or social restrictions.

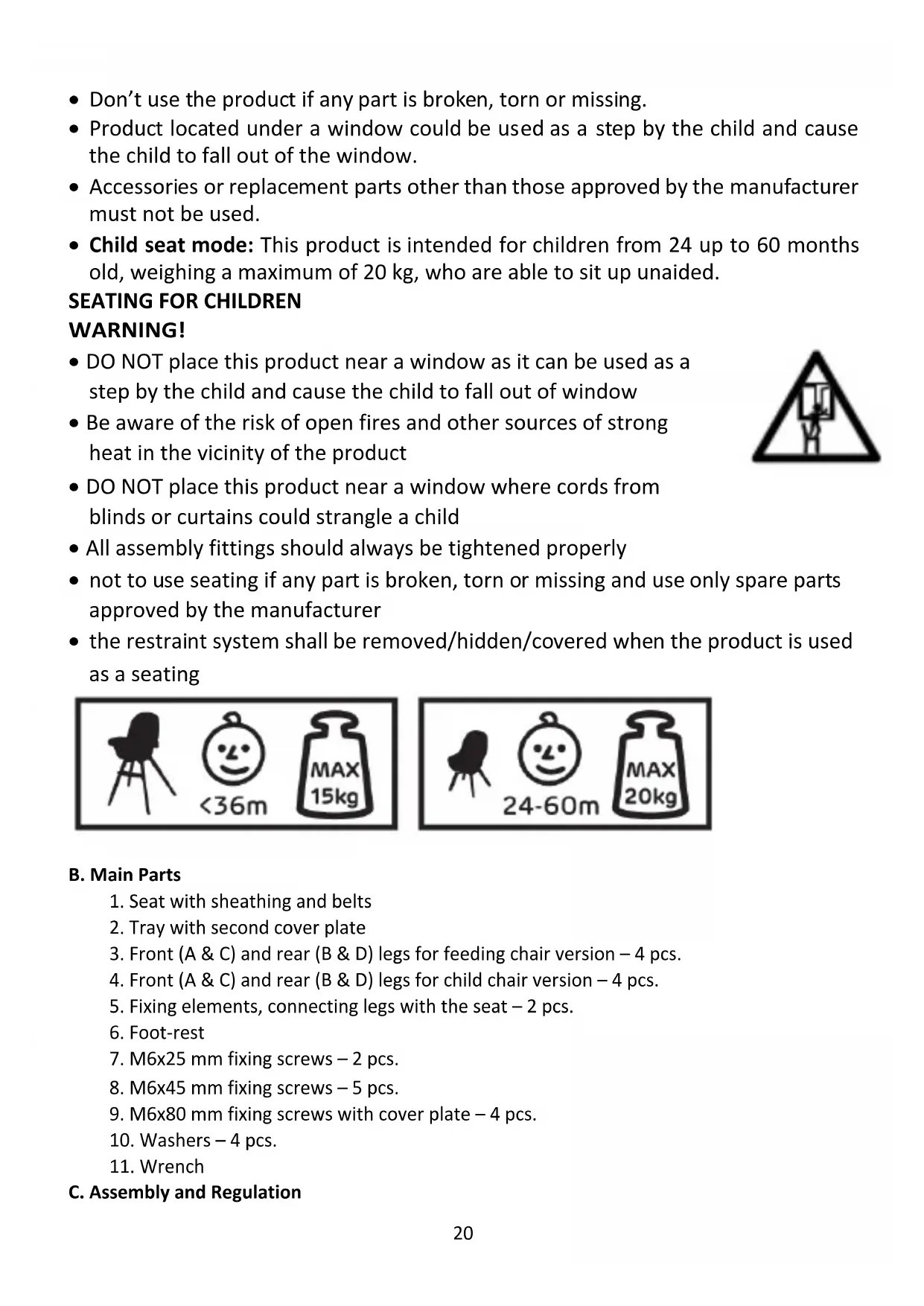

• Don't use the product if any part is broken, torn or missing.
• Product located under a window could be used as a step by the child and cause the child to fall out of the window.
• Accessories or replacement parts other than those approved by the manufacturer must not be used.
• Child seat mode: This product is intended for children from 24 up to 60 months old, weighing a maximum of 20 ~kg , who are able to sit up unaided.

SEATING FOR CHILDREN

WARNING!

• DO NOT place this product near a window as it can be used as a step by the child and cause the child to fall out of window
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product
• DO NOT place this product near a window where cords from blinds or curtains could strangle a child
• All assembly fittings should always be tightened properly
• not to use seating if any part is broken, torn or missing and use only spare parts approved by the manufacturer
• the restraint system shall be removed/hidden/covered when the product is used as a seating

<36m MAX 15kg

24-60m MAX 20kg

Warning sign depicting a person falling into a structure inside a triangle

B. Main Parts

1. Seat with sheathing and belts

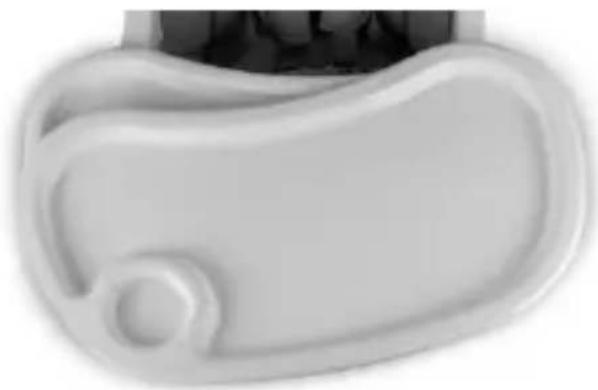

2. Tray with second cover plate
3. Front (A & C) and rear (B & D) legs for feeding chair version - 4 pcs.
4. Front (A & C) and rear (B & D) legs for child chair version - 4 pcs.
5. Fixing elements, connecting legs with the seat - 2 pcs.

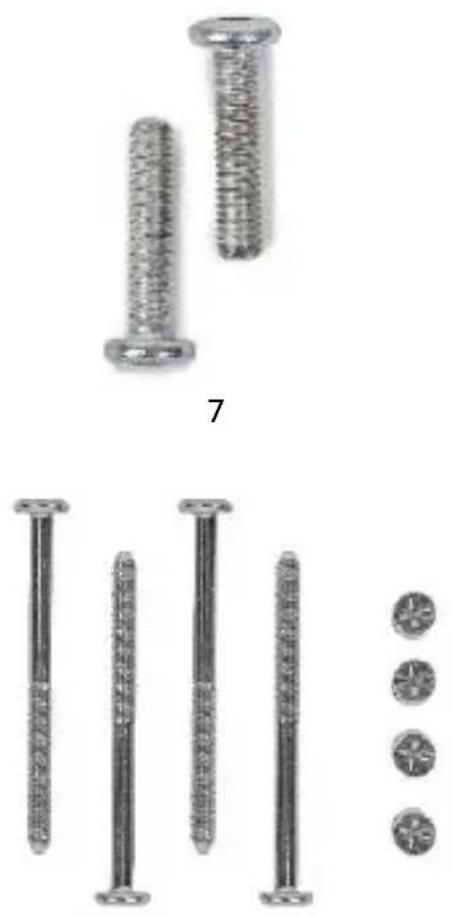

6. Foot-rest

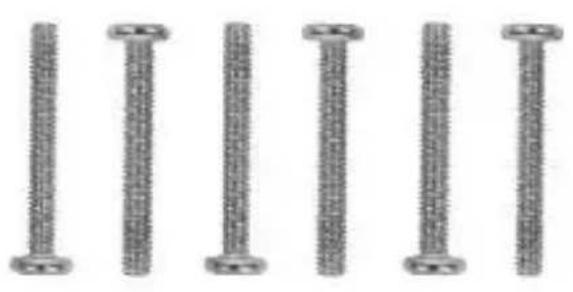

7. M6x25 mm fixing screws - 2 pcs.
8. M6x45 mm fixing screws - 5 pcs.
9. M6x80 mm fixing screws with cover plate - 4 pcs.
10. Washers - 4 pcs.
11. Wrench

C. Assembly and Regulation

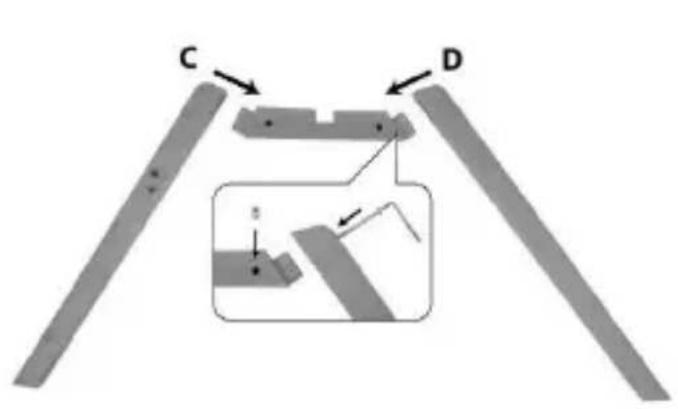

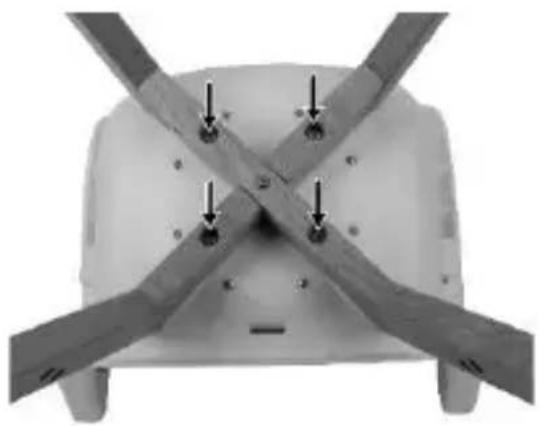

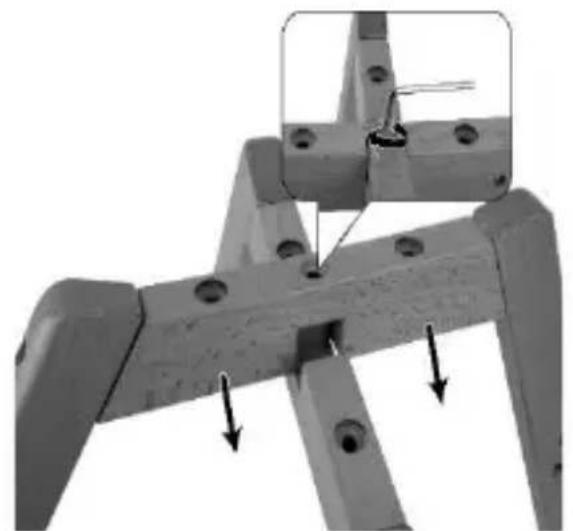

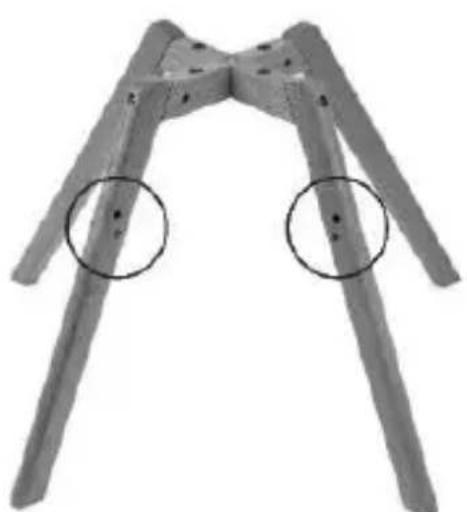

The first step in assembly of the feeding chair is to connect front and rear legs (3) with fixing elements (5), using a screw and a washer (9), and the wrench (11) (FIG. I). Pay attention to letter designations inside leg holes and at both sides of fixing element. The next step is to connect the already assembled legs with screws (8), as shown in Fig. II; remember that the holes for assembly of the foot-rest are directed towards each other (FIG. III). Next, assemble the seat (1) on top elements of legs, using four fixing screws (8) (FIG. IV). Make sure the holes for assembly of foot-rest are located at the seat's front edge side (FIG. III). Screw in the delivered washers at the ends of legs (10) (FIG. V). To assemble the foot-rest (6), slide the pins at the side of the foot-rest into holes in chair legs and fix them with screws (7) (FIG. VI). Slide the plastic tray (2) onto the chair, while at the same time holding the latch mechanism (FIG. VII). The tray may be set in one of three positions, using latches at both sides (FIG. VIII) — the marking may be found on arm-rest (FIG. IX). After each assembly of the tray, check the correctness of its connection with the seat. In order to wash the tray, you may remove its cover plate by releasing its three catches (FIG. X). To buckle the safety belts, connect the arm and hip belts and then snap them into the crotch belt clasp (FIG. XI). To unbuckle the safety belts, press the button in the middle of the clasp (FIG. XII).

D. Child Chair

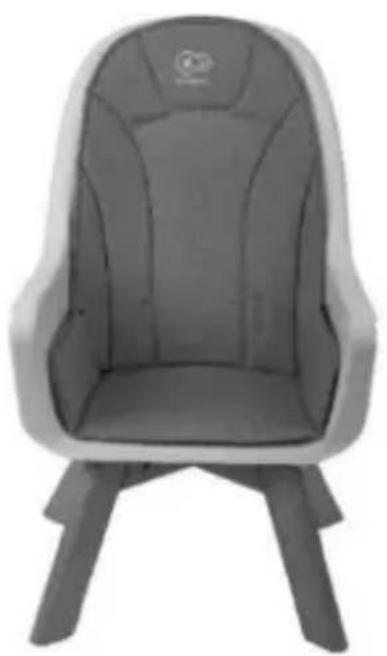

The child feeding chair features also the child chair function. Disassemble the tray and the foot-rest. Remove the legs from the fixing element (FIG. XIII), and then secure the front and rear legs (4) as per letter designations. CAUTION! In order to facilitate disassembly and assembly of legs, loosen screws of fixing element, so that fixing element is mobile but still fastened to the seat, and then disassemble/assemble the legs. Screw the washers into the legs. Remove the safety belts by sliding the clasps through holes in the seat (FIG. XIV). If re-assembly to feeding chair function is needed, perform the steps in reverse order. Fig. XV shows correctly assembled child chair.

E. Cleaning

Chair: Wash with clean and damp cloth and mild soap.

Sheathing and belts: Wash in hands. Do not bleach. Do not tumble-dry. Do not iron. Do not dry clean.

F. Warranty

1. All Kinderkraft products are covered by a 24-month warranty. The warranty period starts from the date the product is handed over to the Buyer.

2. The warranty is only valid in the member states of the European Union, excluding overseas territories (as currently defined, including in particular: Azores, Madeira, Canary Islands, French Overseas Departments, Åland Islands, Athos, Ceuta, Melilla, Helgoland, Büsingen am Hochrhein, Campione d'Italia and Livigno) and the territory of the United Kingdom of Great Britain and Northern Ireland excluding the British Overseas Territories (e.g. Bermuda, Cayman Islands, Falkland Islands).

3. The manufacturer's warranty does not apply to countries not listed above. The conditions of the additional warranty may be determined by the Seller.

4. In some countries, it is possible to extend the warranty to a limited period of 120 months (10 years). The complete terms and conditions and the warranty extension registration form are available at WWW.KINDERKRAFT.COM
5. The warranty is valid only in the territory indicated in paragraph 2.
6. Claims must be made by completing the form available at WWW.RMA.KINDERKRAFT.COM
7. The warranty does not cover:

A. Cosmetic damage, including but not limited to: scratches, dents and cracks in plastic, unless the failure is due to a material or manufacturing defect;
B. Damage resulting from misuse or poor maintenance - including but not limited to: mechanical damage to products caused by misuse or poor maintenance;

• Refer to the instructions for use and installation of the product contained in the user manual;
C. Damage caused by improper assembly, installation or disassembly of products and/or accessories;
• Refer to the instructions for use and installation of the product contained in the user manual;
D. Damage caused by corrosion, mould or rust, resulting from improper maintenance, care and storage;
E. Damage caused by normal wear and tear or otherwise resulting from the normal passage of time;
• This includes: tears or punctures in inner tubes; tyre damage; tyre tread damage; fading of fabrics resulting from mechanical use (e.g. on joints and covering of moving parts);
F. Damage or erosion caused by sun, perspiration, detergents, storage conditions or frequent washing, etc;
G. Damage caused by accident, abuse, misuse, fire, contact with liquid, earthquake or other external causes;
H. Products that have been modified to change functionality without 4Kraft's written consent;
I. Products from which the serial number or lot number has been removed or tampered with in any way;
J. Damage caused by the use of third party components or products - including but not limited to: cup holders, umbrellas, reflectors, bells;
K. Damage caused by transport or by ground handling service providers.

1. The warranty period for accessories included with the product is 6 months from the date of sale, excluding the faults described above.

2. These warranty conditions are complementary to the Customer's statutory rights with respect to 4KRAFT sp. z o.o. The warranty does not exclude, limit or suspend the Customer's rights under warranty for defects in goods sold.

3. The full text of the Terms and Conditions of the Warranty is available on the website WWW.KINDERKRAFT.COM

All rights to this data are entirely reserved to 4Kraft Sp. z o.o. Any unauthorized use or misuse, including usufruct, copying, duplication and sharing, wholly or partially, without consent of 4Kraft Sp. z o.o. may result in legal consequences.
