Product Type	Submersible wastewater pump
Brand	Grundfos
Model	Unilift KP 150
Category	Pump
Application	Pumping domestic wastewater (shower, sink, washing machine), cellar drainage, groundwater lowering
Supply Voltage	1 x 220-240 V, 50 Hz
Frequency	50 Hz
Motor Power (P2)	150 W
Maximum Installation Depth	2 m (with 5 m cable)
Maximum Particle Size	10 mm (spherical diameter)
Liquid Temperature	0 °C to 50 °C (for 1x230 V)
Protection Rating	IP68
Cable Length	5 m
Sound Pressure Level	Below regulatory limits (Directive 2006/42/EC)
Operation	Automatic (float switch) or manual depending on version
Maintenance	Regular cleaning of the strainer and pump body; rinse with clean water after use
Safety	Built-in thermal protection; requires a 30 mA residual-current circuit breaker
Spare Parts Available	Impeller, suction strainer, non-return valve
Repairability	Can be disassembled by the user for cleaning; advanced maintenance by a professional

Frequently Asked Questions - Unilift KP 150 Grundfos

What is the maximum installation depth of the Unilift KP 150 pump?

The maximum installation depth is 2 meters when the pump is equipped with a 5-meter cable. For pumps with a 10 m cable, the maximum depth is 7 m.

Can the pump be used for wastewater containing solids?

Yes, the pump can pump water containing a limited amount of solid particles up to 10 mm in diameter. It is not suitable for liquids containing long fibers, stones, or flammable materials.

How to clean the suction strainer?

Cut off the power supply, drain the pump, then insert a screwdriver between the pump housing and the strainer to separate them. Remove the strainer, clean it, and put it back in place.

What to do if the pump does not start?

Check the power supply, fuses, and circuit breaker. Ensure that the level sensor has not stopped the pump. If the impeller is blocked, clean it. In case of a short circuit, replace the defective part.

What is the maximum temperature of the pumped liquid?

For a voltage of 1 x 230 V, the maximum liquid temperature is 50 °C. The pump can tolerate up to 70 °C for a maximum of 2 minutes, at intervals of at least 30 minutes.

Can the pump run dry?

No, dry running should be avoided. The suction strainer must always be submerged. For automatic versions, the level sensor prevents dry running. In manual mode, monitor the level regularly.

How to check the rotation direction of a three-phase pump?

Place the pump on a flat surface and start it briefly. Observe the jerk: if it is clockwise, the direction is correct. Otherwise, reverse two phases. For pipe installation, compare the flow rates.

What types of liquids should not be pumped?

The pump is not suitable for sewage, liquids containing long fibers, flammable liquids (oil, petroleum), slightly aggressive liquids, and liquids with solid particles exceeding 10 mm.

How to adjust the start and stop levels on a float version?

Change the free cable length between the float switch and the pump handle. The minimum length is 70 mm, maximum 150 mm. The greater the length, the greater the level difference.

What to do if the impeller is blocked?

Cut off the power supply, disassemble the strainer and pump body. Use a screwdriver to block the impeller and unscrew the 13 mm nut. Clean the impeller and the area around the shaft, then reassemble.

USER MANUAL Unilift KP 150 Grundfos

UNILIFT KP 150, KP 250, KP 350

Three stainless steel electric water purifiers with black handles and ports, displayed against a white background (no text or symbols visible)

UNILIFT KP 150, KP 250, KP 350

Français (FR)

N L 1 2 3 M 1~

TM1040337

Schéma de câblage

Pos.Description

Technical diagram of a cylindrical device with numbered components labeled 1 through 6

B

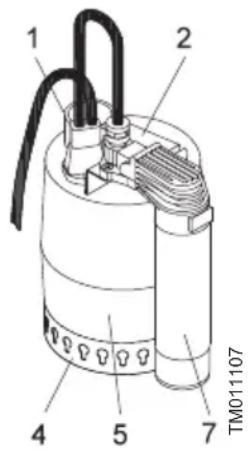

1 2 4 5 7 TM011107

Line drawing of a mechanical device with a coiled cable and a tool inserted (no text or symbols)

TM031167

Technical line drawing of a mechanical impeller or fan with motion lines indicating flow (no text or symbols)

TM031169

Rinçage de la roue

Technical line drawing of a mechanical assembly with a wrench and tool (no text or symbols)

TM031170

Exploded view diagram of a mechanical device with labeled parts A, B, C, and D

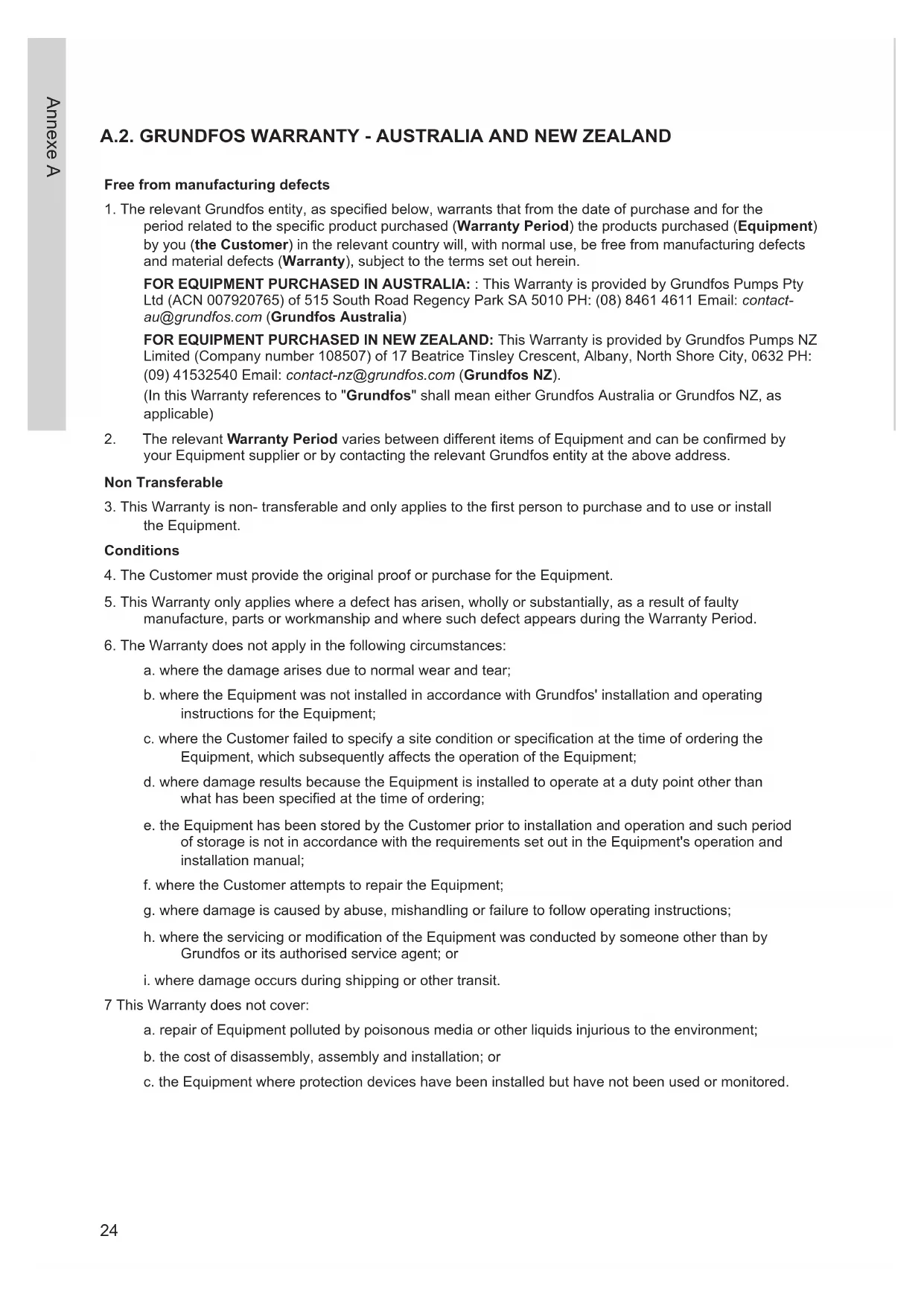

Free from manufacturing defects
