Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 06

PRODUCT INSTALLATION 07

OPERATION INSTRUCTIONS 08

CLEANING AND MAINTENANCE 09

TROUBLESHOOTING 10

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 11

DISPOSAL AND RECYCLING 12

DATA PROTECTION NOTICE 13

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

Danger

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention

The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

Caution

• Read Rules for Safe Operation and Instructions Carefully.
• Never insert fingers, pencils, or any other object through the grille when fan is running.
• Disconnect fan when moving from one location to another.
• Be sure fan is on a stable surface when operating to avoid overturning.
• DO NOT use fan in window, rain may create electrical hazard.
  • Household use only.

Warning

EN

• If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  • To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
  Cleaning and user maintenance shall not be made by children without supervision.
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.

• Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.

• Indoor and household use only.

• When the fan was assembled, the rotor blade guard shall not be taken off anymore.
• Prior cleaning unplug the fan.
• The rotor guard shall not be dissembled/opened to clean the rotor blades.
• Wipe the fan enclosure and rotor blade guard with a slightly damp cloth.

SPECIFICATIONS

	FT40-21MProduct Model
Voltage	220-240V~
Frequency	50Hz
Power	40W

EN

Description Symbol	Value	Unit
Maximum fan flow rate F 64,33 m			^3 /min
Fan power input	P 34,30 W
Service value	Sv 1,88 (m		^3 /min)W
Standby power consumption	PSB W	—
Off power consumption	POFF O		W
Fan sound power level	LWA 55,90 dB(A)
Maximum air velocity	C 3,27 meters/sec
Seasonal electricity consumption	Q 10,98 kWh/a
Measurement standard for service value	IEC 60879:1986 (corr.1992)

PRODUCT OVERVIEW

Component Name

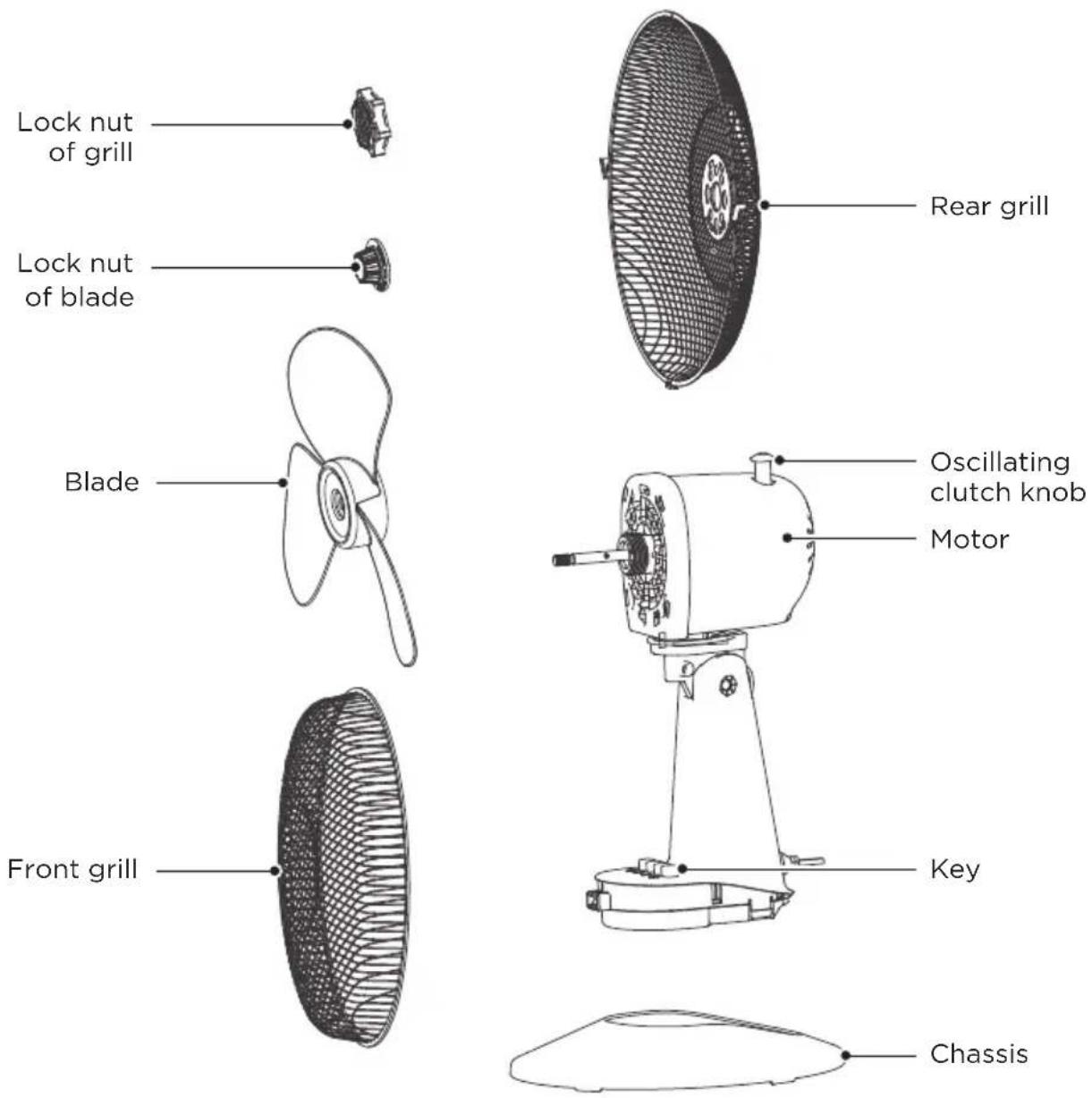

Lock nut of grill Lock nut of blade Blade Front grill Rear grill Oscillating clutch knob Motor Key Chassis

PRODUCT INSTALLATION

• Screw the lock nut of grill clockwise, and in the meantime, fix the rear grill.
• Pull the blade to rotate after installing, so as to ensure that the blade can be normally rotated.
• Lock nut of blade anticlockwise, and then install the front fan cover.

EN

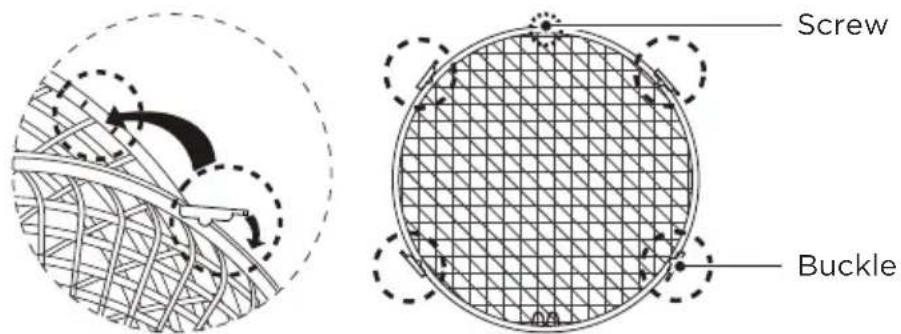

Front and Rear Guard Installation

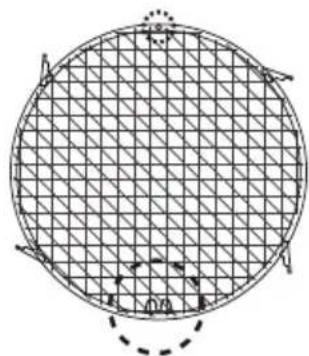

1 Align Screw Holes on the outer ring of both the Front and Rear Guards, with the Positioning Clip aligned as illustrated.

Circular grid pattern with triangular divisions and a dashed circular outline at the bottom (no text or symbols)

2 Press down all the Buckles to fasten the Front Guard with the Rear Guard. At the Screw Holes, tighten the separated screw and nut.

Screw Buckle

OPERATION INSTRUCTIONS

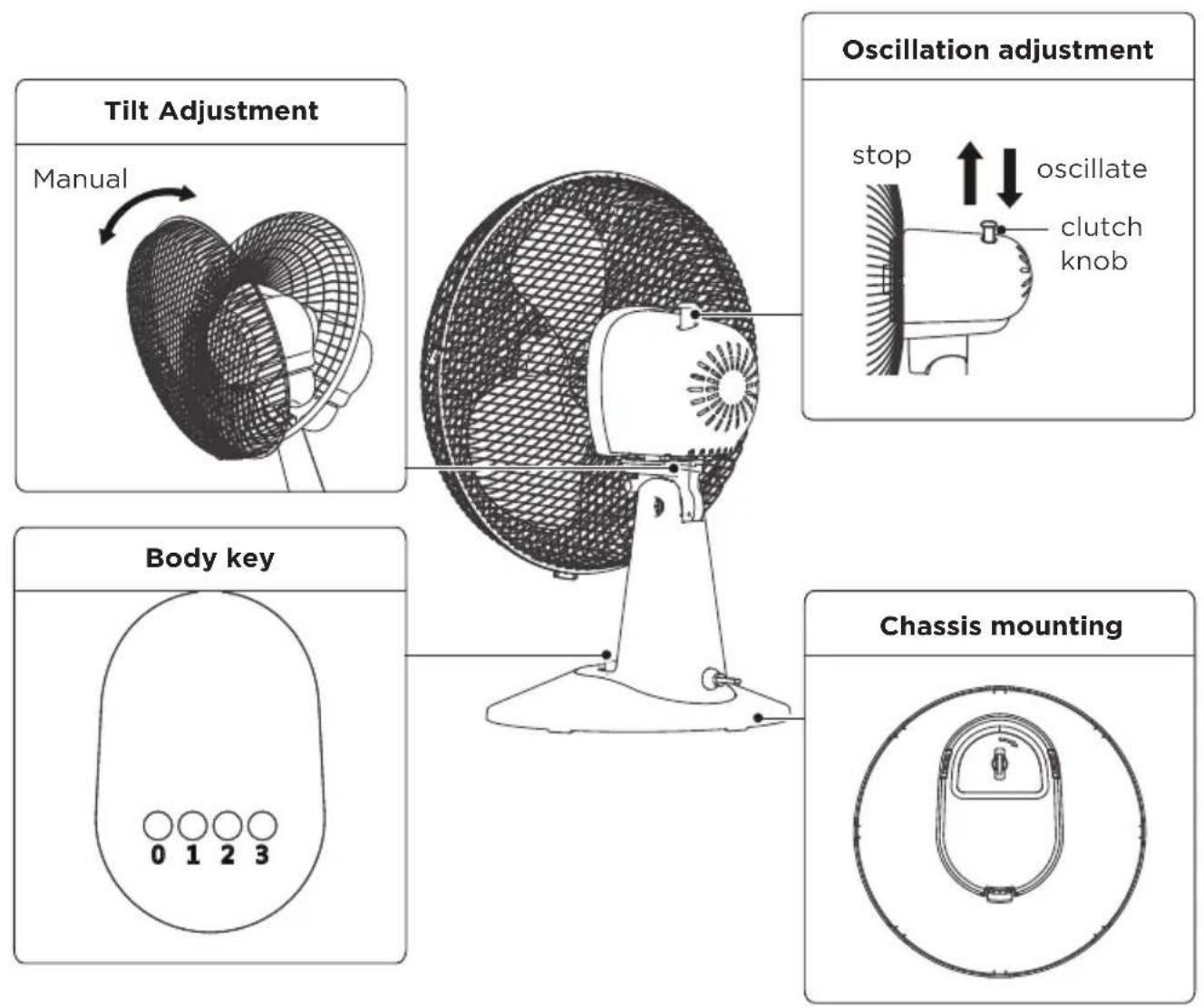

Instructions for Operation of Body

Tilt Adjustment Manual Oscillation adjustment stop ↑↓ oscillate clutch knob Body key 0 1 2 3 Chassis mounting

CLEANING AND MAINTENANCE

The fan requires minimal maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, unplug the fan power.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
   Please wipe the exterior parts with a soft cloth soaking a mild detergent.
3. Do not use any abrasive detergent or solvents to avoid scratching the surface.
4. Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid entering into the motor housing or interior parts.
6. Be sure to unplug from the electrical supply source before cleaning.
7. Plastic parts should be cleaned with a soft cloth moisten with mild soap Thoroughly remove soapsuds with dry cloth.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the table below carefully in order to save your time and money that may cost for calling to the service center.

	Cause SolutionProblem
The machine does not work properly after installed	• The power cable is not plugged in or has poor contact.	Make sure the plug is properly inserted into the socket.
	• The switch on the body is not turned on.	Turn on the switch on the body.

EN

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

EN

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important Instructions for Environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with no visible text or labels

EN

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

LETTRE DE REMERCIEMENTS

VUE D'ENSEMBLE DU PRODUIT 06

INSTALLATION DU PRODUIT 07

INSTRUCTIONS SUR LE FONCTIONNEMENT 08

NETTOYAGE ET ENTRETIEN 09

DEPANNAGE 10

MARQUES, DROITS D'AUTEUR ET MENTIONS LEGALES 11

ELIMINATION ET RECYCLAGE 12

AVIS SUR LA PROTECTION DES DONNEES 13

CONSIGNES DE SECURITE

Usage prévu

VUE D'ENSEMBLE DU PRODUIT

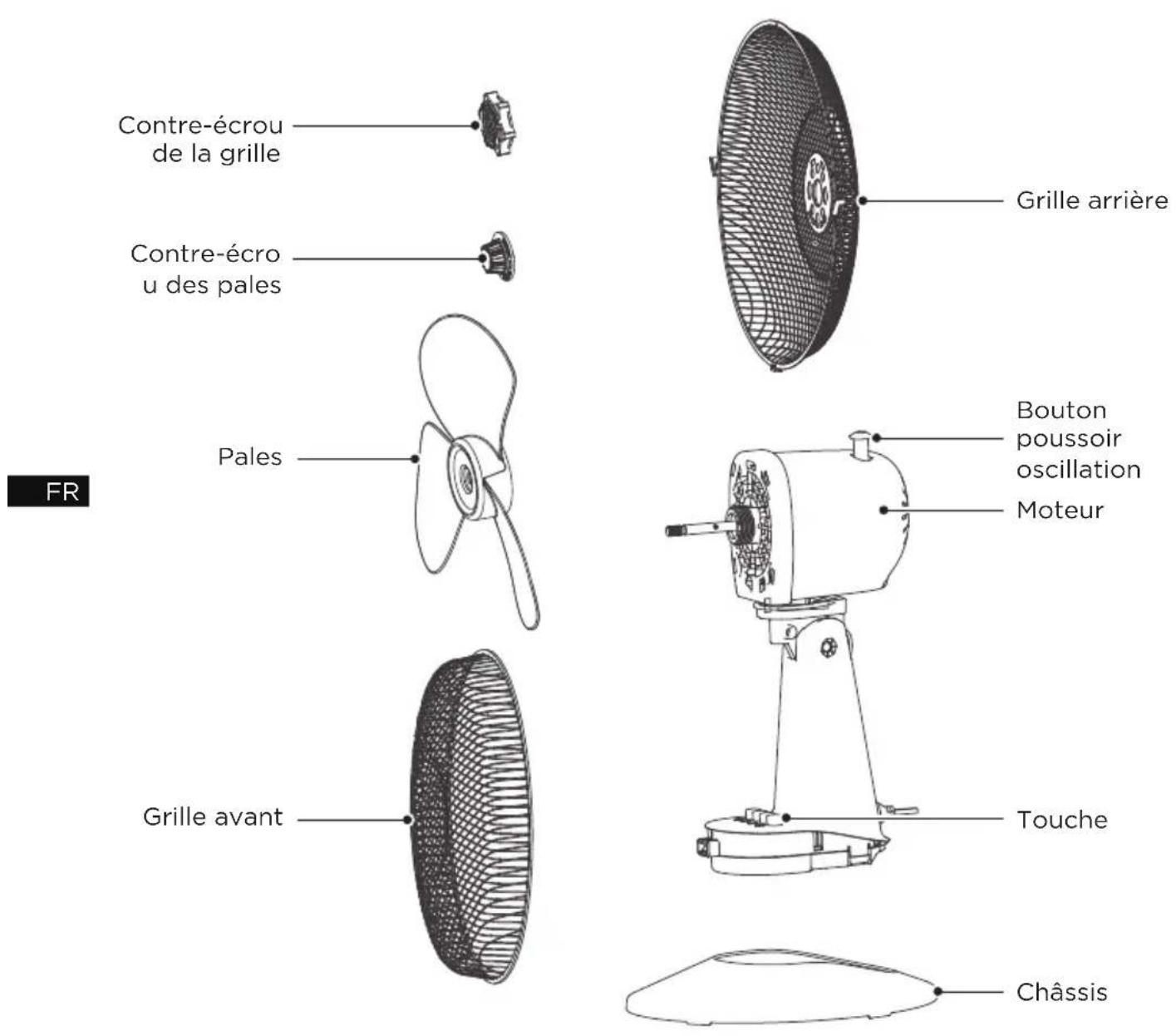

Noms des Composants

INSTALLATION DU PRODUIT

Circular grid pattern with triangular divisions and a dashed circular outline (no text or symbols)

Vis Attaches

INSTRUCTIONS SUR LE FONCTIONNEMENT

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

FR

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

AVIS SUR LA PROTECTION DES DONNEES

Circular grid pattern with triangular divisions and a dashed arc at the bottom (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Recycling symbol composed of five chasing arrows forming a triangle (no text or labels)

UTYLIZACJA I RECYKLING 12

NOTA WS. OCHRONY DANYCH OSOBOWYCH 13

INSTRUKCJA BEZPIECZEŃSTWA

Circular grid pattern with triangular mesh and a dashed circular outline (no text or symbols)

UTYLIZACJA I RECYKLING

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

PL

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

NOTA WS. OCHRONY DANYCH OSOBOWYCH

Circular grid pattern with triangular mesh and a dashed circular outline, no text or symbols present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Recycling symbol with four arrows forming a triangle (no text or labels)

ADATVÉDELMI NYILATKOZAT

INSTALACE PRODUKTU 07

NÁVOD K OBSLUZE 08

ČIŠTĚNÍ A ÚDRŽBA 09

ŘEŠENÍ PROBLÉMŮ 10

OCHRANNÉ ZNÁMKY, AUTORSKÁ PRÁVA A PRÁVNÍ PROHLÁŠENÍ 11

LIKVIDACE A RECYKLACE 12

OZNÁMENÍ O OCHRANĚ OSOBNÍCH ÚDAJŮ 13

BEZPEČNOSTNÍ POKYNY

Určené použití

Circular grid pattern with triangular divisions and a dashed circular outline at the bottom (no text or symbols)

LIKVIDACE A RECYKLACE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

OZNÁMENÍ O OCHRANĚ OSOBNÍCH ÚDAJŮ

DISPOSAL AND RECYCLING 12

OZNÁMENIE O OCHRANE OSOBNÝCH ÚDAJOV 13

BEZPEČNOSTNÉ POKYNY

Zamýšlané použitie

Circular grid pattern with triangular divisions and a dashed arc at the bottom (no text or symbols)

DISPOSAL AND RECYCLING

Dôležité pokyny pre životné prostredie

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Súlad so smernicou RoHS:

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

OZNÁMENIE O OCHRANE OSOBNÝCH ÚDAJOV

Esi- ja Tagakaitsmete Paigaldamine

Circular grid pattern with triangular mesh and a dashed circular outline, no text or symbols present

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Vastavus RoHS direktiivile

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

ANDMEKAITSE TEATIS

PRODUKTA PÄRSKATS 06

IZSTRĀDĀJUMA UZSTĀDĪŠANA 07

EKSPLUATĀCIJAS INSTRUKCIJAS 08

TİRİŞANA UN APKOPE 09

PROBLÉMU NOVĚRŠANA 10

PREČU ZIMES, AUTORTIESIBAS UN JURIDISKAIS PAZINOJUMS 11

UTILIZACIJA UN PĀRSTRĀDE 12

PAZINOJUMS PAR DATU AIZSARDZIBU 13

DROŠĪBAS INSTRUKCIJAS

Circular grid pattern with triangular divisions and a dashed circular outline, no text or symbols present

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Recycling symbol with four arrows forming a triangle (no text or labels)

LV

PAZIÑOJUMS PAR DATU AIZSARDZĪBU

Circular grid pattern with triangular divisions and a dashed outline at the bottom (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

DUOMENŲ APSAUGOS PRANEŠIMAS

Welcome to MIDEA Service

Midea

Dear Customer,

Thank you for purchasing Midea products. Please attach your purchase certificate (invoice or sales slip) to this warranty and keep it properly. If service is required during the warranty period, proof of purchase must be provided. If can't provide, in/out of warranty will be defined by Manufacturer.

Midea product warranty applies to inherent defects in materials and workmanship from the date of initial purchase. For warranty period, please visit www.midea-group.com or your local call center. Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.

Warranty terms and conditions

NORMAL RESPONSIBILITIES OF THE CONSUMER

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep in good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the appliance and in accordance with all local plumbing, electrical and / or gas codes.
4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loosened connections or defects in house wiring.
5. Expenses for making the appliance accessible for servicing.
6. Damages to finish after installation.

EXCLUSIONS

1. Damage due to mishandling or fire and becomes invalid if repair has been attempted by unauthorized persons.
2. Any failure to follow the instructions as mentioned in the user manual.
3. Fluctuation in voltage or any modifications/adjustments made to comply with local electrical, safety and technical standards.
4. Damages caused by fire, accident or any natural disaster, damage due to mishandling, wear & tear, voltage fluctuations.

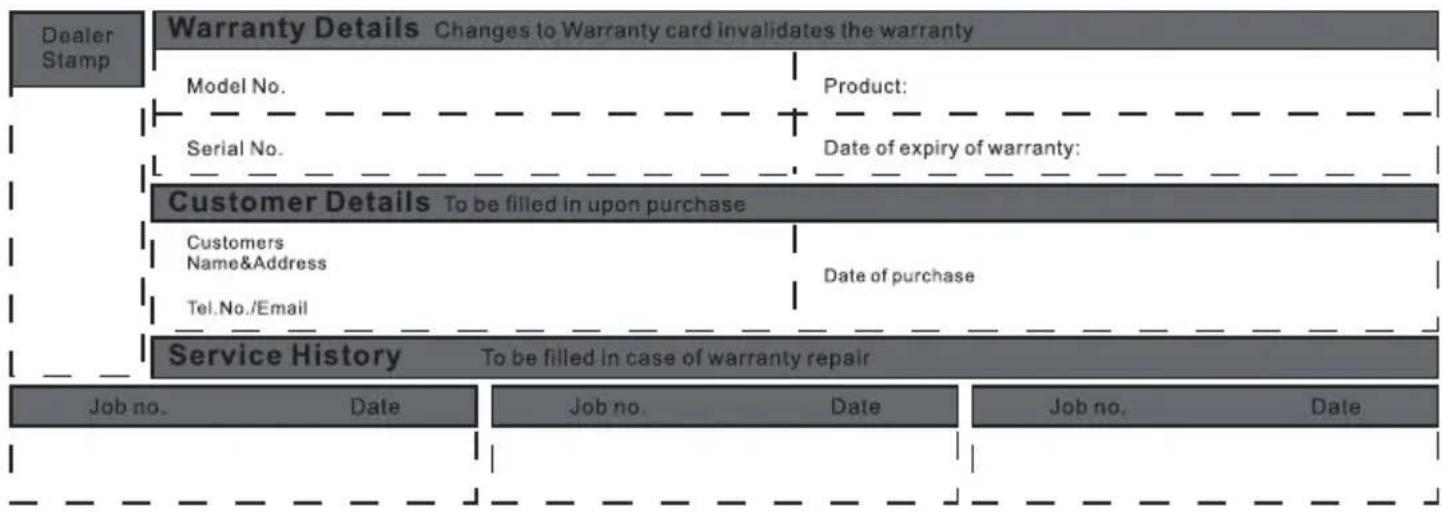


    subgraph Customer Details
        I["Product:"]
        J["Date of expiry of warranty:"]
    end

    subgraph Service History
        K["Job no. Date"] --> L["Job no. Date"] --> M["Job no. Date"]
    end

SERVICE CONTACTS

Albania	355
Bosnia and Herzegovina	[phone]
	[phone]
Croatia	[phone]
Cyprus	[phone]
	aikavols / cilbup 420 15 059
Germany	49 (0) 6196 9020 0
Greece	80111 22 622
	210483347
Hungary	[phone]
Italy	199240626
Kosovo	38349779349
	38349779100
Malta	[phone]
Moldova	[phone]
North Macedonia	389230848
Portugal	35 1225025742
Roumania	0742726843
	(07GARANTEI)/*414
Slovakia	421 2 5710 1800
Slovenia	[phone]
Spain	34 934803322
Srbija	[phone]
Latvia/Estonia [phone]
Lithuania [phone]
Poland	[phone]
Hungary	[phone]
	[phone]
	[phone]
Romania	021 9196
	021 528 9196

Importer

Albania

CED Electric Distributors Ltd

P.O.Box 45071

7100 Aradippou-Larnaca Cyprus

[phone]

Germany

Midea Europe GmbH

FG EUROPE SA Vouliagmenis 128

Ave, Glyfada,

P.O. 16674 - Athens, Greece

Italy

Midea Italia S.R.L.

Via Luigi Bodio 29/37 - Milano (MI)

20158 Italy

Kosovo

Elkos Shpk, address : Road Zona

Industriale P.N, 30 000 Peje, Kosove.

Malta

Kencar Co. Ltd.

168, Industrial Estate,

Luqa LQA 3000, Malta.

North Macedonia

Setec Se Od Tehnika Doo

Street 1523 no.1

Municipality of Kisela Voda 1000 Skopje

Republic of North Macedonia

Tel. [phone]

Portugal

MIDEA HOME APPLIANCES UK LTD

Conavon Court Ground Floor, 12 Blackfriars

Street, Salford, Manchester M3 5BQ UK

0333 900 1101

[e-mail]

Latvia/Estonia

Importer: ACC Distribution, UAB

Raudondvario pl. 131 B, LT-47191

Kaunas, Lithuania

Service Data: Raudondvario pl.131B-4,

Kaunas, LT-47191, Tel: [phone]

E-mail: [e-mail]

https://servisaict.eu/en/

Lithuania

Importer: ACC Distribution, UAB

Raudondvario pl. 131 B, LT-47191 Kaunas,

Lithuania

Service Data: Vilnius Geležinio

Vilko str. 6, LT-03150 Kaunas

https://servisaict.eu/en/

Poland

Importer: AB S.A. 55-040 Magnice, ul.

Europejska 4

Service Data: Quadranet Sp. Z.o.o

Hotline: [phone]

Mail: [e-mail]

Hungary

Importer: Blizzard Hungary kft. 1162

Global City Business Park

Sos. Bucuresti Nord nr. 10

Corp O1, etaj 10

Voluntari, 077190 Ilfov

Service Data: Bucuresti-Nord road,

No. 10, Corps O1, Voluntari, Ilfov

County, Romania, Tel: [phone], 021

528 9196, [e-mail]

Roumanla

ASBIS Romania SRL

J40/5587/1998 | RO10656216

Splaiul Independentei 319, Sector 6,

Bucuresti

Phone : [phone]

Fax : [phone]

DATENSCHUTZHINWEISE

make yourself at home
