Product type	Domestic sewing machine
Brand	Singer
Model	HD6620C
Dimensions (L x W x H)	≈440 x 190 x 280 mm
Weight	7 kg
Power supply	220-240 V~, 50/60 Hz, or 100-127 V~ depending on version
Maximum sewing speed	1000 stitches/min (1000 ± 50 rpm)
Stitch width	0 – 7.0 mm
Stitch length	0 – 4.5 mm
Number of stitches	99 utility and decorative stitches
Automatic buttonhole	Yes, one-step with special foot
Built-in needle threader	Yes

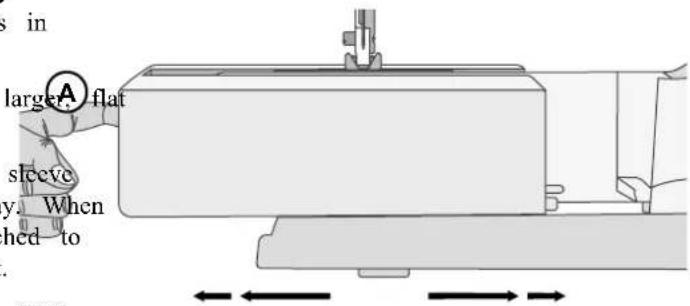

Free arm	Yes, with removable accessory box
Drop feed dogs	Yes (for button sewing)
Adjustable presser foot pressure	Yes, via dial
Adjustable thread tension	Yes, via dial (approx. 1 to 9)
Reverse	Yes, with button
Needle up/down stop	Yes, dedicated button
Lighting	LED
Noise level	Less than 80 dB
Protection class	II (Europe)
Included accessories	4 bobbins, presser feet (general purpose, invisible hem, zipper, buttonhole, decorative, non-stick, open toe), lint brush, L-screwdriver, spool pins, soft cover, foot pedal, power cord
Maintenance	Clean the bobbin area and feed dogs regularly with the brush. Lubrication not required.
Pedal type	C-8000 (Zeng Hsing)

Frequently Asked Questions - HD6620C SINGER

How to thread the machine correctly?

Raise the presser foot and place the needle in the highest position. Follow the thread path: thread guide, tension discs, take-up lever, lower thread guide, then thread the needle from front to back. Use the built-in needle threader if desired.

What to do if the thread tangles under the fabric?

This usually indicates incorrect upper threading. Rethread the machine making sure the thread passes correctly through the tension mechanism and the take-up lever. Also check that the bobbin is inserted correctly.

How to adjust the thread tension?

Turn the thread tension dial on top of the machine. For balanced stitching, the threads should meet in the middle of the fabric. If the bobbin thread appears on top, reduce the tension; if the upper thread appears underneath, increase it.

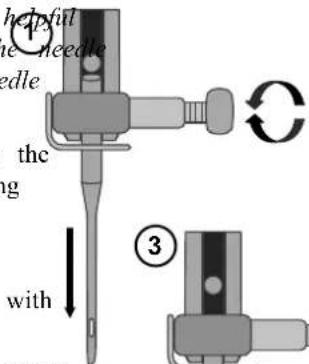

How to change the needle?

Turn off the machine. Loosen the needle screw, remove the old needle, insert the new one with the flat side toward the back, then tighten the screw. Use the provided L-screwdriver if necessary.

What to do if the machine does not advance the fabric?

Check that the presser foot is lowered, the feed dogs are raised (operate the lever at the back of the free arm), and the stitch length is not set to zero.

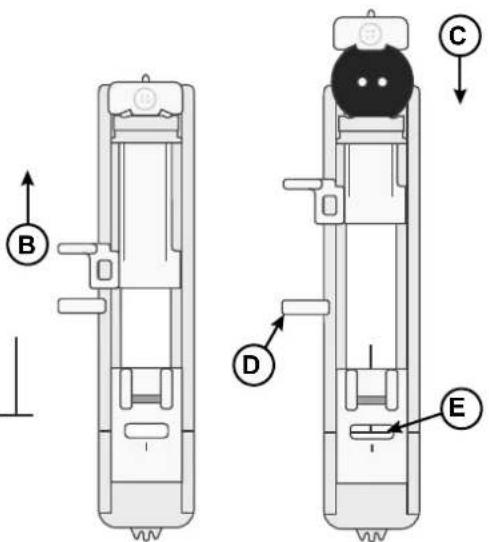

How to make a buttonhole?

Use the one-step buttonhole foot. Insert the button into the button holder at the back of the foot to set the length. Place the fabric under the foot, lower the buttonhole lever, then press the pedal. The machine automatically sews the buttonhole.

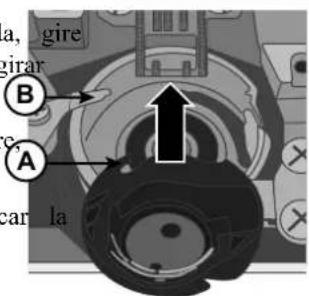

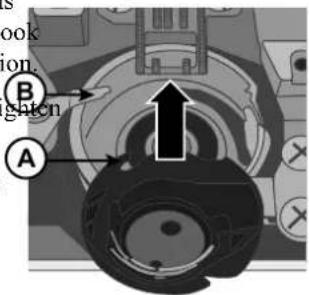

How to clean the bobbin area?

Turn off the machine. Remove the presser foot, bobbin cover, bobbin, and then the needle plate. Use the provided brush to clean the feed dogs and the compartment. Reassemble in reverse order.

What to do in case of upper thread breakage?

Check that the thread is not caught on the spool or behind the spool pin, that the machine is correctly threaded (raise the presser foot and rethread), and that the thread tension is not too high. Reduce the tension if necessary.

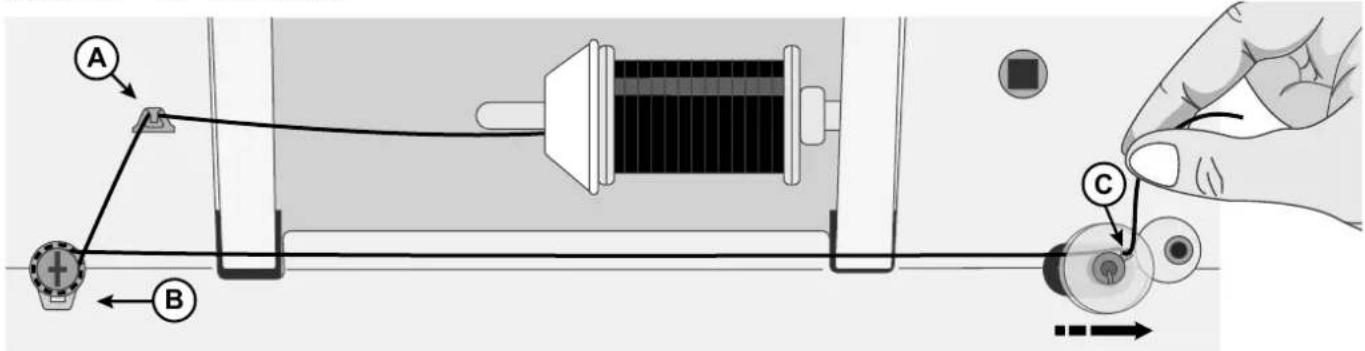

How to wind the bobbin?

Place the thread on the spool pin and guide it around the winding tension disc. Insert the thread through the hole in the bobbin, place the bobbin on the winding shaft, then push the shaft to the right. Hold the thread end and press the pedal. The machine stops automatically when the bobbin is full.

What to do if the machine does not start?

Check that the bobbin winding shaft is not engaged (push it to the left), that the power cord and foot pedal are properly plugged in, and that the switch is set to 'I'. If the problem persists, contact an authorized service center.

USER MANUAL HD6620C SINGER

Illustration of a sewing machine with decorative swirls around it, no text or symbols present.

SINGER®

This household sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions should always be followed, including the following:

Read all instructions before using this household sewing machine. Keep the instructions at a suitable close to the machine. Make sure to hand them over if the machine is given to a third party.

DANGER -TO REDUCE THE RISK OF ELECTRIC SHOCK:

- A sewing machine should never be left unattended when plugged in. The electrical socket, to which machine is plugged in should be easily accessible. Always unplug this sewing machine from the outlet immediately after using and before cleaning, removing covers, lubricating or when making a user servicing adjustments mentioned in the instruction manual.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON:

• Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used in children.
• Use this sewing machine only for its intended use as described in this manual. Use only attachment recommended by the manufacturer as contained in this manual.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not working prop been dropped or damaged, or dropped into water. Return the sewing machine to the nearest auth dealer or service center for examination, repair, electrical or mechanical adjustment.
• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the machine and foot control free from the accumulation of lint, dust, and loose cloth.
• Keep fingers away from all moving parts. Special care is required around the sewing machine no
  • Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent needles.
• Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
• Wear safety glasses.
• Switch the sewing machine off (“0”) when making any adjustment in the needle area, such as the needle, changing needle, threading bobbin, or changing presser foot, etc.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being adminis
• To disconnect, turn all controls to the off ("0") position, then remove plug from outlet.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• The foot control is used to operate the machine. Never place other objects on the foot control.
• Do not use the machine if it is wet.

• If the LED lamp is damaged or broken, it must be replaced by the manufacturer or its service similarly qualified person, in order to avoid a hazard.

• If the cord connected with the foot control is damaged, it must be replaced by the manufacturer service agent or a similarly qualified person, in order to avoid a hazard.

• This sewing machine is provided with double insulation. Use only identical replacement parts. So instructions for Servicing of Double-Insulated Appliances.

SAVE THESE INSTRUCTIONS

FOR CENELEC COUNTRIES ONLY:

This appliance can be used by children aged from 8 years and above and persons with reduced sensory or mental capabilities or lack of experience and knowledge if they have been given super instruction concerning use of the appliance in a safe way and understand the hazards involved. C not play with the appliance. Cleaning and user maintenance shall not be made by children without

The noise level under normal operating conditions is less than 80 dB.

The machine must only be used with foot control of type C-8000 manufactured by Zeng Hsing,

FOR NON CENELEC COUNTRIES:

This sewing machine is not intended for use by persons (including children) with reduced physical mental capabilities, or lack of experience and knowledge, unless they have been given supervision instruction concerning use of the sewing machine by a person responsible for their safety. Children supervised to ensure that they do not play with the sewing machine.

The noise level under normal operating conditions is less than 80 dB.

The machine must only be used with foot control of type C-8000 manufactured by Zeng Hsing,

SERVICING OF DOUBLE INSULATED PRODUCTS

In a double-insulated product, two systems of insulation are provided instead of grounding. No group is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing of a double-insulated product requires extreme care and knowledge of the system and shall be done only by qualified service personnel. Replacement parts for a double-insulated product must be to those parts in the product. A double-insulated product is marked with the words 'DOUBLE INSULATED' or 'DOUBLE INSULATED'.

TABLE OF CONTENTS

INTRODUCTION ....

Intended Use....1

Machine Overview 1

Needle Area Overview 2

Top of Machine....2

Overview Accessories....3 Included Accessories (Not Pictured)....3

Presser Feet ....4 Optional Accessories....4

Stitch Overview ....5 Utility Stitches ....5 Decorative Stitches ....6

Button Sewing 23

One-Step Buttonhole 24

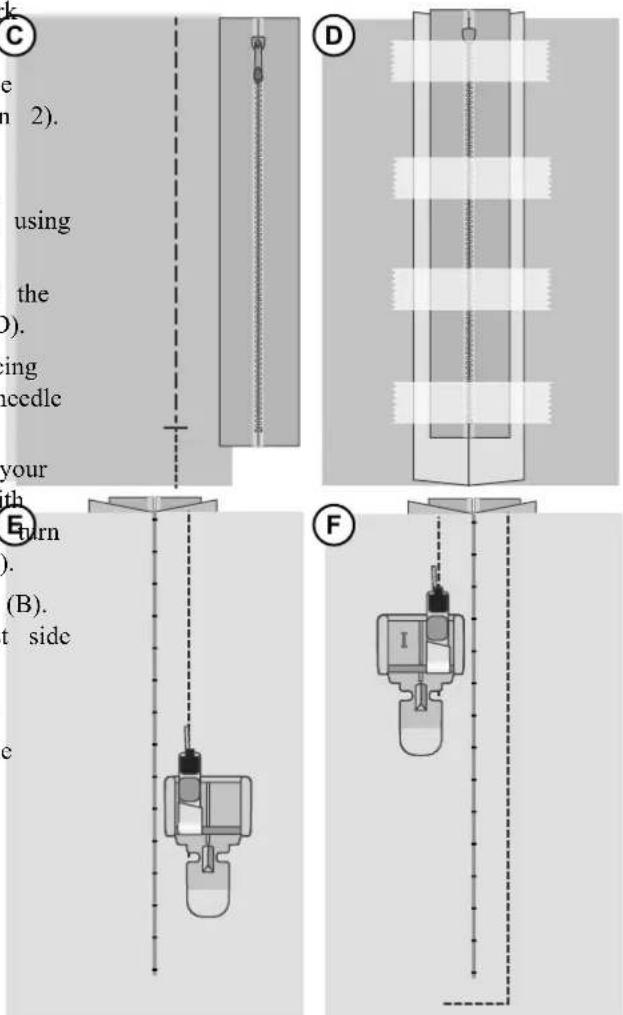

Sew Zippers....25 Centered Zipper .... 25

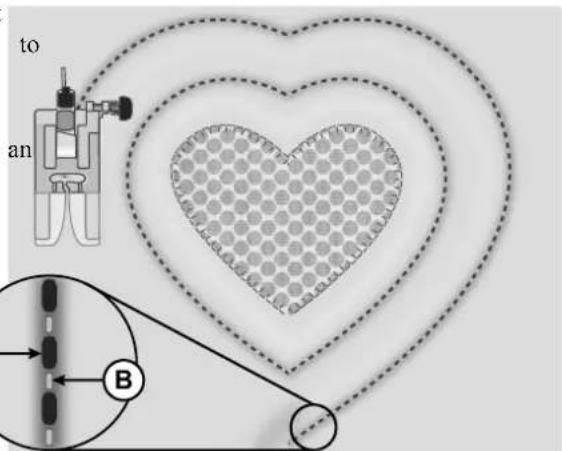

Hand-Look Quilt Stitch 26

MAINTENANCE.... 27

Cleaning the Machine 27

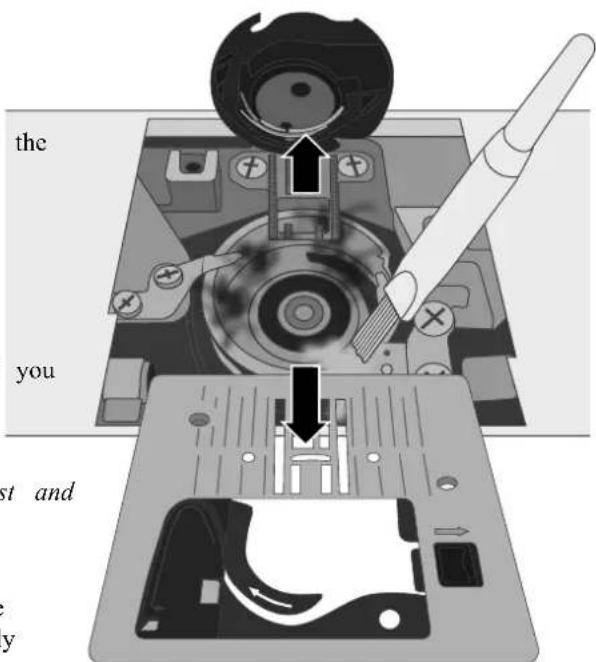

Cleaning the Bobbin Area....27

Cleaning under the Bobbin Area 27

Troubleshooting....28

Technical Specification....31

PREPARATIONS.... 8

Unpacking the Machine....8

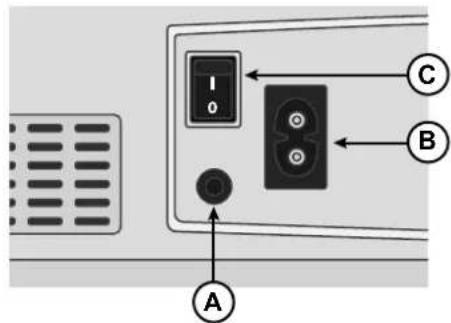

Connect to the Power Supply 8

Packing Machine after Sewing....8

Free Arm/Removable Accessory Tray 9

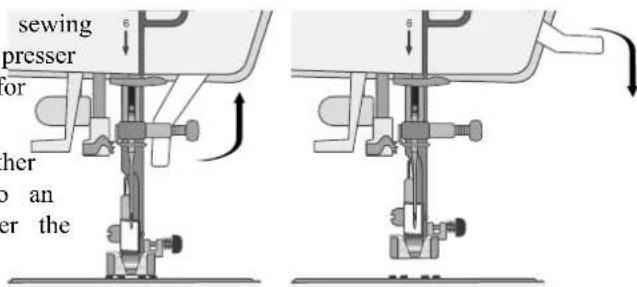

Presser Foot Lifter 9

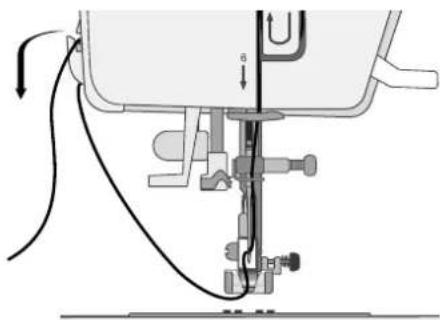

Thread Knife 9

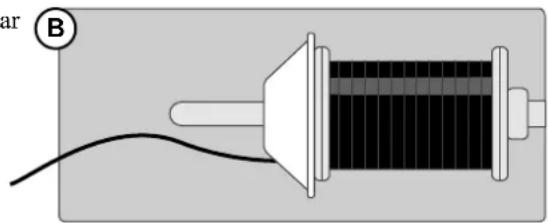

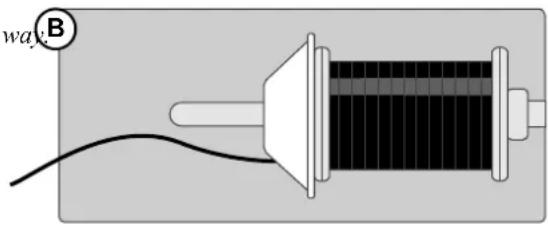

Spool Pin 10

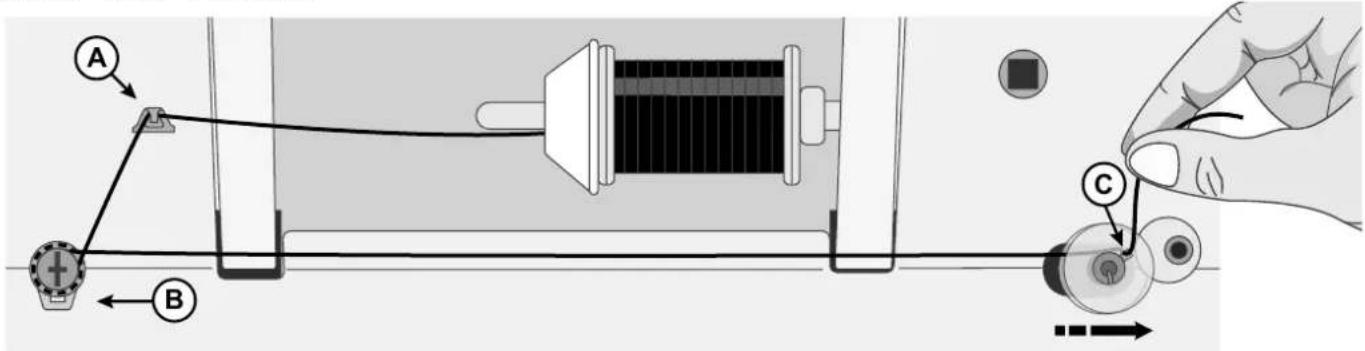

Wind the Bobbin 11

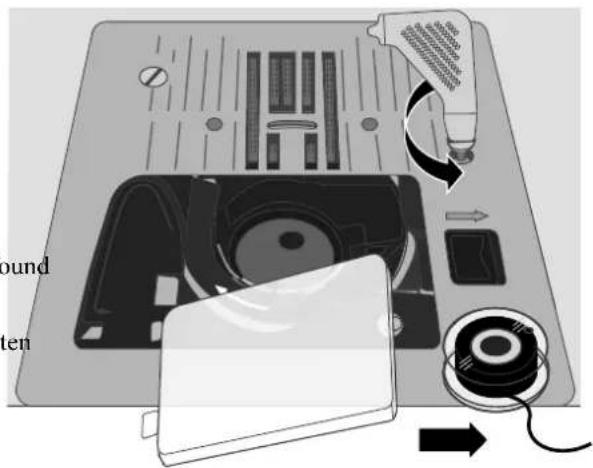

Insert the Bobbin 11

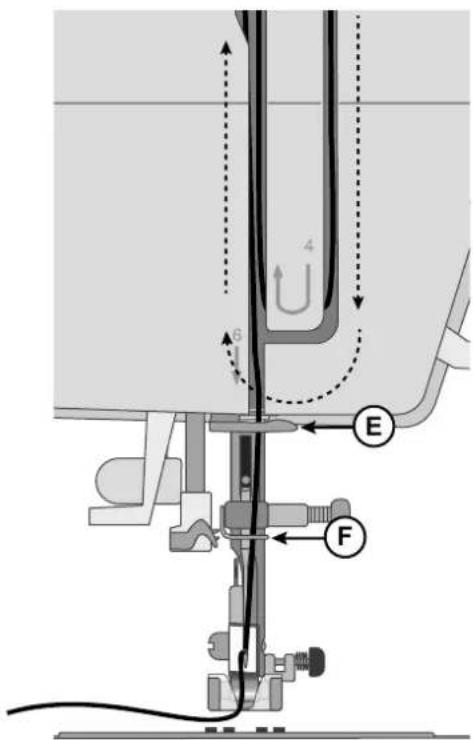

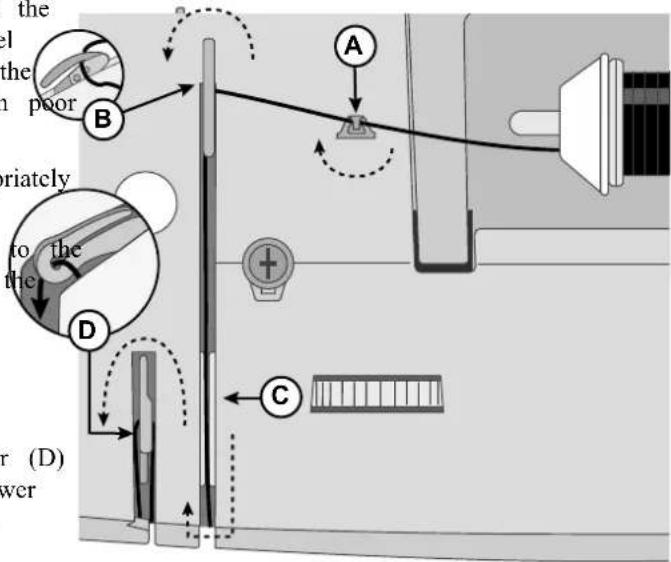

Thread the Machine....12

Needle Threader 13

Needles 13

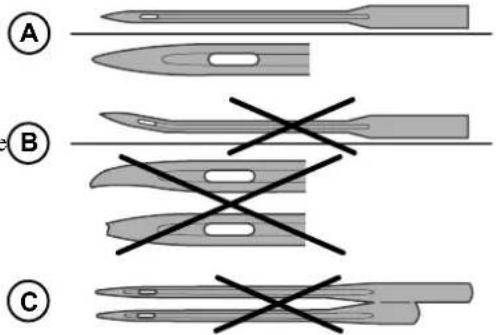

Important Needle Information.... 14

Selection Guide — Needle Size, Fabric, Thread 14

Change the Needle....14

Thread Tension 15

Sew without Feed Teeth 15

Presser Foot Pressure 15

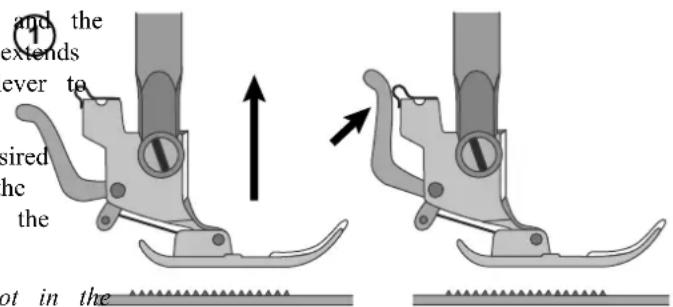

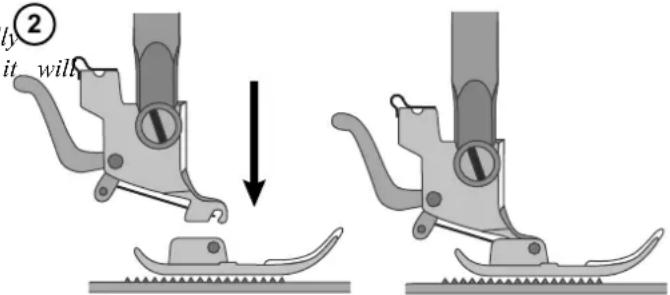

Change the Presser Foot 16

Operations and Stitch Control Buttons....16

Reverse Button 16

Needle Up/Down.... 16

Menu/Sound On/Off 16

Navigation Arrows 17

Utility and Decorative Stitches.... 17

Stitch Width / Needle Position 17

Stitch Length 17

Select Stitch....17

SEWING....18

Sewing 18

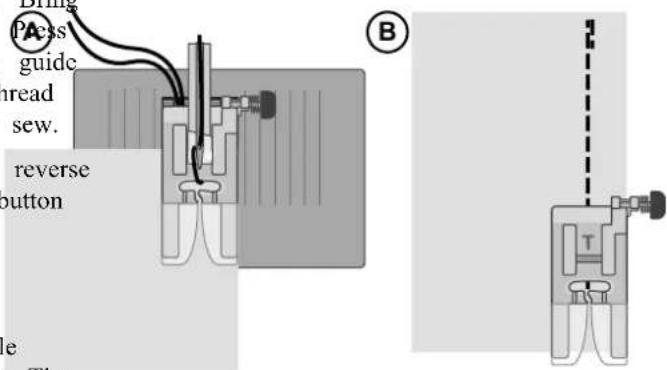

Start to Sew - Straight Stitch 18

Change Needle Position.... 18

Change Sewing Direction....18

Finish Sewing....19

Straight Stretch Stitch 19

Multi-Step Zigzag Stitch 19

Slant Overedge Stitch 20

Closed Overlock Stitch....20

Blind Hems 20

Darning and Mending....21

Repair Large Holes 21

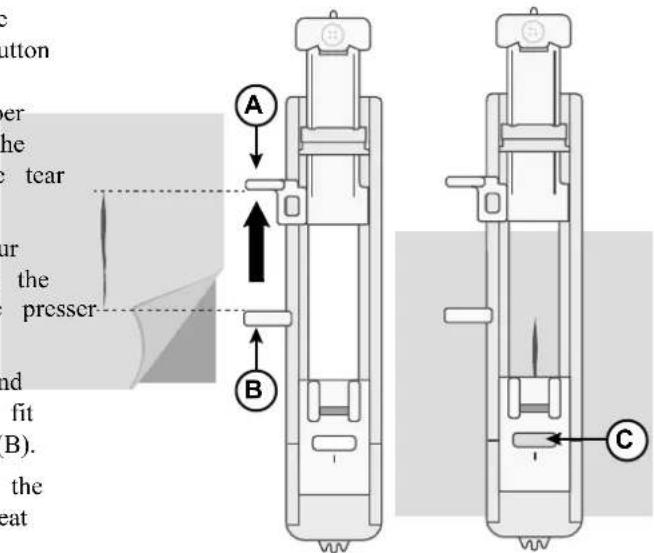

Repair Tears 22

Repair Small Holes 22

Jeans Hem....23

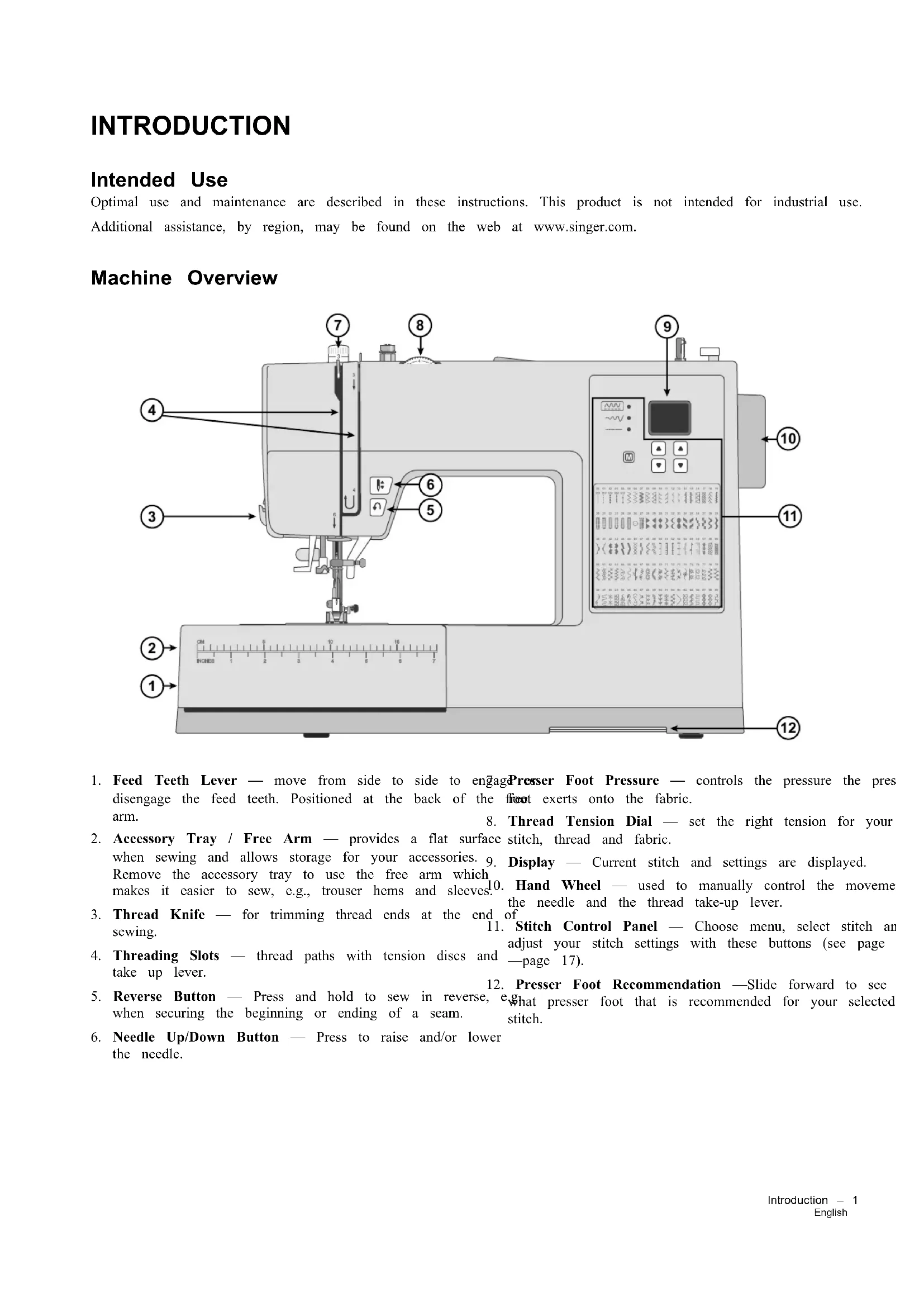

INTRODUCTION

Intended Use

Optimal use and maintenance are described in these instructions. This product is not intended for industrial use. Additional assistance, by region, may be found on the web at www.singer.com.

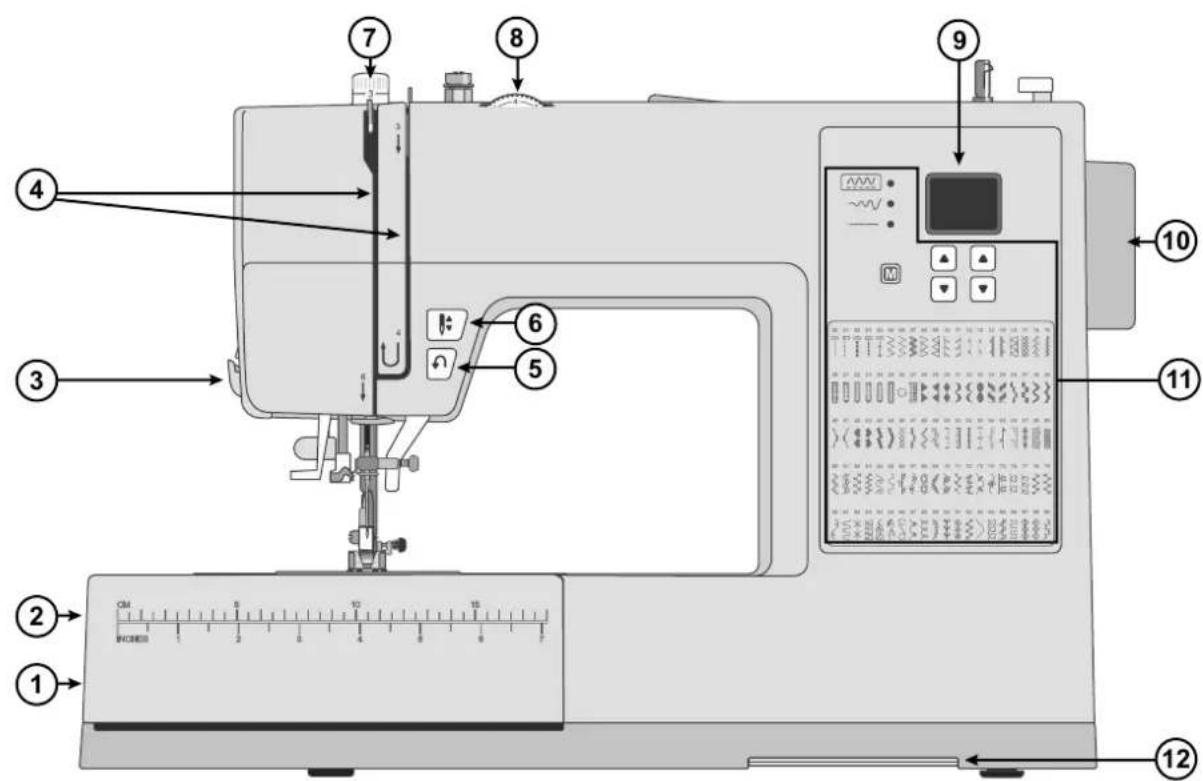

Machine Overview

1. Feed Teeth Lever — move from side to side to engage Presser Foot Pressure — controls the pressure the pres disengage the feed teeth. Positioned at the back of the foot exerts onto the fabric. arm.

2. Thread Tension Dial — set the right tension for your

3. Accessory Tray / Free Arm — provides a flat surface stitch, thread and fabric. when sewing and allows storage for your accessories. 9. Display — Current stitch and settings are displayed. Remove the accessory tray to use the free arm which makes it easier to sew, e.g., trouser hems and sleeves. 10. Hand Wheel — used to manually control the movement the needle and the thread take-up lever.

4. Thread Knife — for trimming thread ends at the end of sewing.

5. Threading Slots — thread paths with tension discs and take up lever.

6. Stitch Control Panel — Choose menu, select stitch and adjust your stitch settings with these buttons (see page 17).

7. Presser Foot Recommendation —Slide forward to see

8. Reverse Button — Press and hold to sew in reverse, e.g. what presser foot that is recommended for your selected when securing the beginning or ending of a seam. stitch.

9. Needle Up/Down Button — Press to raise and/or lower the needle.

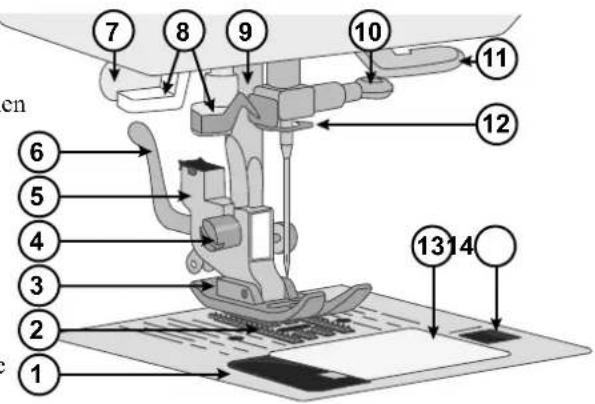

Needle Area Overview

1. Needle Plate — provides a flat area around presser foot for sewing. Guide lines make it easy to guide the fabric straight when sewing.

2. Feed Teeth — feed the fabric under the presser foot when sewing.

3. Presser Foot — holds fabric against feed teeth which draws fabric under the presser foot as you sew.

4. Presser Foot Holder Screw — loosen the screw to remove the presser foot holder.

5. Presser Foot Holder — holds the presser foot.

6. Presser Foot Release Lever — press this lever to release the presser foot from the holder.

7. Buttonhole Lever — used for buttonhole sewing.

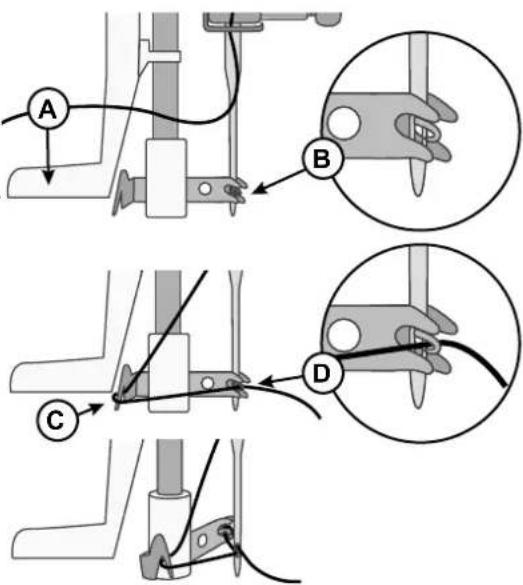

8. Built-in Needle Threader — thread the needle quickly and easily.

9. Presser Foot Bar — accommodates the presser foot holder.

10. Needle Clamp Screw — secures the needle.

11. Thread Guide — helps maintain thread flow when sewing.

12. Needle Thread Guide — helps maintain thread flow when sewing.

13. Bobbin Cover — protects the bobbin while sewing.

14. Bobbin Cover Release Button — push to open the bobbin cover.

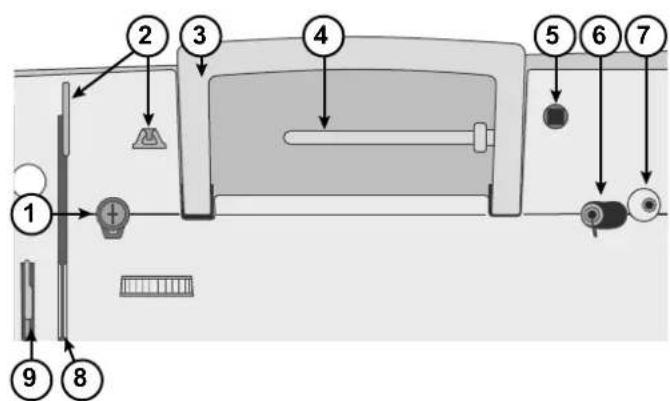

Top of Machine

1. Bobbin winding tension disc
2. Thread guides
3. Handle
4. Spool pin
5. Hole for auxiliary spool pin
6. Bobbin winding spindle
7. Bobbin winding stopper
8. Thread tension discs
9. Thread take-up lever

Overview Accessories

Bobbin x4 — Only use the type of transparent bobbins delivered with your machine (SINGI Class 15 transparent bobbins). One of the bobbins is inserted in the machine upon delivery.

Felt Pad — Used to cushion the spool of thread when using the Auxiliary Spool Pin.

Spool Cap — Two sizes (large and small) for various thread spool styles.

Auxiliary Spool Pin — For sewing with large thread spools or when using specialty threads

Brush and Seam Ripper — Used to remove stitches/brush off lint.

L-Screwdriver — Used to remove the needle plate, presser foot holder or needle screw.

Included Accessories (Not Pictured)

• Needles
• Foot control
• Power cord
• Soft cover

Presser Feet

All Purpose Foot (T)

(attached on the machine upon delivery)

This foot is used for general sewing on most types of fabric. The bottom of the foot is flat, so that the fabric is held down firmly against the feed teeth while sewing. It also has a wide slot so that the needle can move from left to right, depending on which stitch you sew.

The foot has a “lock in place” button, the button is pushed to lock the foot in horizontal position when sewing over thick seams (see page 23).

Blind Hem Foot (F)

The Blind Hem Foot is used for sewing blind hems in fashions and home decor. There is an adjustable guide with an extension at the front, used to guide the fold of the hem while stitching.

Zipper Foot (I)

This foot is used for inserting zippers. Attach the foot to the presser foot holder on either side of the foot, depending on which side of the zipper is being sewn. The Zipper Foot can also be used to create and insert piping.

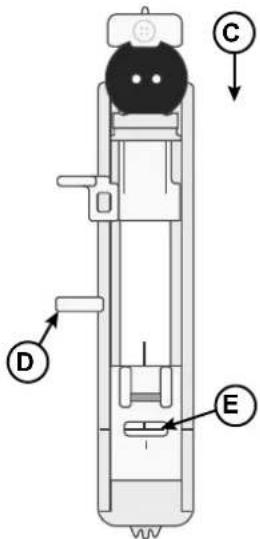

One-Step Buttonhole Foot (D)

This foot allows you to make perfectly sized buttonholes for your button. It has a space at the back for a button, used to set the size of the buttonhole. The machine will automatically sew a buttonhole to fit that button size.

Satin Stitch Foot (A)

This foot is used for satin stitches and other decorative stitches.

Non Stick Foot

The Non-Stick Foot is sometimes called a Teflon Foot. It is used to sew specialty fabrics such as leather, plastic, vinyl and oilcloth. The slick surface on the underside of the Non-Stick Foot allows these fabrics to glide smoothly under the foot.

Clear Open Toe Foot

The clear view through the foot gives greater visibility and helps to precisely match rows of stitches. A tunnel on the underside of the foot allows your stitches to feed smoothly.

Optional Accessories

Additional optional accessories are available for your machine. Visit the SINGER® website for more information.

Stitch Overview

Utility Stitches

The stitches described in the below chart are utility stitches, used mainly for utility sewing.

The stitches available on your machine are printed on the front of the sewing machine.

When sewing, use a thread tension between 3–5. Always test sew on a piece of scrap fabric, and adjust the tension if necessary.

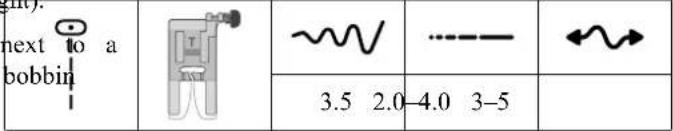

[1788]		[006A]	Application
[Y5K8]	Straight Stitch Center Position		The basic stitch used for sewing. The most common use for a straight two pieces of fabric together.
	Straight Stitch Left Position		For all types of sewing.
[YX2A]	Straight Stretch Stitch		Stronger than a regular straight stitch, on stretch knit fabrics, because it times — forward, backward and forward again. Use it to reinforce seams sportswear and for curved seams which take a lot of strain.
[TDY]	Stretch Stitch For in		tricot and stretch fabrics.
[HCTS]	Zigzag Stitch A Versatile stitch for decorative sewing, applique and attaching ribbons and trims.
[OWWX]	Multi-Step Zigzag Stitch		Finish seam allowances to prevent the fabric from unravelling. When scan the smaller step of the stitches will help keep fabric more flat than a It can also be used for mending tears and sewing elastic.
[3D6A]	Reinforced Zigzag Stitch		For joining fabric edge to edge or overlapping in leather. For decorative
[0758]	Overlock Stitch	So m	and overcast in one step along the edge or trim later. For medium and medium/heavy stretch fabrics.
[6422]	Blind Hem Stitch	[60ZA]	Sew hems that are practically invisible from the right side of the fabric skirts, dresses, trousers, curtains etc, made with non-stretch fabrics.
[450Y]	Stretch Blind Hem Stitch		Sew hems that are practically invisible from the right side of the fabric garments and other projects made with stretch knit fabrics.
[0022]	Slant Overedge Stitch		Seam and overcast in one step along the edge or trim later. For medium stretch fabrics.
	Closed Overlock Stitch		Sew decorative hems and overlapped seams, belts and bands. For medium/heavy stretch fabrics.
	Honeycomb Stitch		For elastic insertion, decorative stitching, smocking, couching and hemming.
	Buttonhole Sew	buttonholes	on home decór, garments, crafts and more.
	Rounded Bartack Buttonhole, Reinforced		For light weight fabrics.
	Keyhole Buttonhole		Square end for tailored jackets, coats, etc.
	Keyhole Buttonhole, Reinforced		Square end for tailored jackets, coats, etc.
	Keyhole Buttonhole, Tapered		Tapered end for tailored garments.
	Stretch Buttonhole		For stretch fabrics.
	Darning Stitch	Da WAGK	end small holes in work clothes, jeans, tablecloths and linen towels.
	Button Sewing Stitch	-	For sewing on buttons.

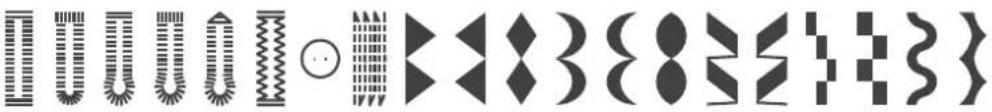

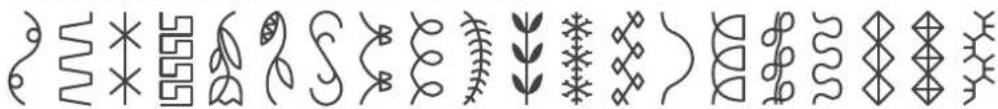

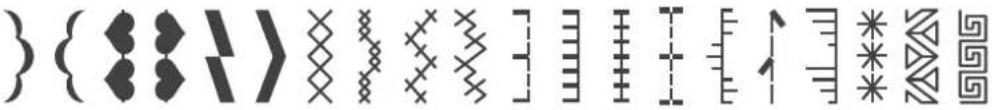

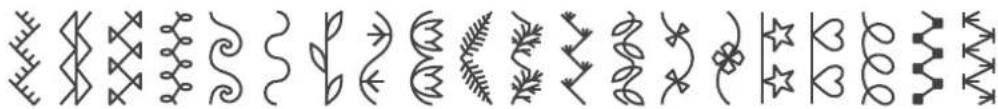

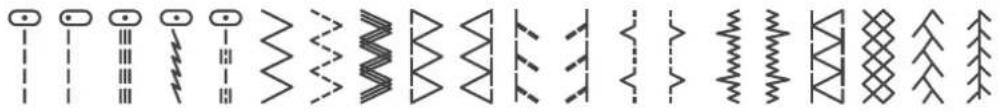

Decorative Stitches

Your machine also features decorative stitches. The stitches not described in the previous chart are decorative stitches. When sewing the decorative stitches, make sure to use a stabilizer underneath the fabric for better appearance. Use a thread tension between 3–5. Always test sew on a piece of scrap fabric, and adjust the tension if necessary.

0001020304050607080910111213141516171819

Pure electrical circuit lines without any symbols

2021222324252627282930313233343536373839

Collection of abstract geometric shapes and symbols in black, white, and gray (no text or labels)

4041424344454647484950515253545556575859

6061626364656667686970717273747576777879

Collection of abstract decorative line patterns with no text or symbols

8081828384858687888990919293949596979899

Collection of abstract line drawings and symbols, no text or labels present

Stitch Overview

PREPARATIONS

Unpacking the Machine

1. Place the box on a steady, flat surface. Lift the machine out of the box, and remove the packaging.
2. Remove all outer packing material and the plastic bag.
3. Wipe off the machine with a dry cloth to remove any lint and/or excess oil around the needle area.

Note: Your sewing machine is adjusted to provide the best stitch result at normal room temperature. Extreme hot and temperatures can affect the sewn result.

Connect to the Power Supply

Among the accessories you will find the power cord and the foot control.

Note: Consult a qualified electrician if in doubt as how to connect the machine to the power source. Unplug the power cord when the machine is not in use.

For this sewing machine, foot control model C-8000 manufactured by Zeng Hsing, Taiwan must be used.

On the bottom right side of the sewing machine, you find the connecting sockets and the ON/OFF button.

1. Connect the foot control cord to the front socket on the bottom right side of the machine (A).
2. Connect the power cord to the rear socket on the right side of the machine (B). Plug the cord into the socket.
3. Press the ON/OFF switch (C) to "I" to turn on pow light.

The sewing speed is regulated by pressing the foot control.

For the USA and Canada

This sewing machine has a polarized plug (one blade wider than the other). To reduce the risk of electric shock, this pl is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.

Note: After turning off the machine, residual power may remain in the machine. This could cause the light to stay on for a few seconds while the power is consumed. This is normal for an energy efficient appliance.

Packing Machine after Sewing

1. Switch the main switch off. After switching off, residual power may still remain in the machine. This may cause the light to stay on for a few seconds while the power is consumed. This is normal behavior for an energy efficient appliance
2. Unplug the cord from the wall socket and then from the machine.
3. Wind the cord around the foot control for easy storage.
4. Place all accessories in the accessory tray. Slide the tray on to the machine around the free arm.
5. Place the foot control and cord in the space above the free arm.
6. Place the soft cover on the machine to help protect it from dust and lint.

Free Arm/Removable Accessory Tray

Store presser feet, bobbins, needles and other accessories in the accessory tray so that they are easily accessible.

Keep the accessory tray on the machine to provide a large flat work surface.

Use the free arm to facilitate sewing trouser legs and sleeve hems. To use the free arm, slide off the accessory tray. When attached, a hook keeps the accessory tray securely attached to the machine. Remove the tray by sliding it to the left.

When the accessory tray is removed from the machine, open the door by putting a finger in the groove at the left side of the accessory box (A) and carefully pull it open. Push the door closed before putting the tray back onto the machine.

Presser Foot Lifter

The presser foot lever is located at the right side of the sewing machine head. The lever is used to raise and lower the presser foot. Raise the lever up for machine threading, lower it for sewing.

By raising the presser foot lever and then pressing it farther upwards, the lift height of the presser foot is increased to an extra height allowing you to slide very thick projects under the foot.

Thread Knife

To use the thread knife, pull the thread from back to front as illustrated. Doing this will leave the thread ends long enough so that the needle doesn't become unthreaded when you start to sew again.

Mechanical assembly diagram showing a pump, valve, and wiring (no text or labels)

Spool Pin

Your machine has two spool pins, a main spool pin and an Auxiliary Spool Pin. The spool pins are designed for all types of thread. The main spool pin is used in a horizontal position (the thread reels off the spool) and the Auxiliary Spool Pin in a vertical position (the thread spool rotates). Use the horizontal position for normal threads and the vertical position for large spools or specialty threads.

Main Spool Pin

Place the thread spool on the spool pin. Make sure that the thread reels off the spool counter clockwise and slide on a spool cap. Use a spool cap slightly larger than the thread spool. For narrow thread spools (A), use a smaller spool cap in front of the spool. For large thread spools (B), use a larger spool cap in front of the spool. The flat side of the spool cap should be pressed firmly against the spool. There should be no space between the spool cap and the thread spool.

Note: Not all thread spools are manufactured in the same If you experience problems with the thread, turn it in the opposite way or use the vertical position.

Simple line drawing of a battery with a coil and a speaker, no text or symbols present

Auxiliary Spool Pin

The Auxiliary Spool Pin is used when winding a bobbin thread from a second spool of thread or when sewing with large spools or with specialty threads. Insert the Auxiliary Spool Pin into the designated hole at the top of the machine. Place a felt pad under the thread spool. This is to prevent the thread from reeling off too fast. Do not place a spool cap on top of the spool pin as that would prevent the spool from rotating.

Two diagrams showing a coiled cable or wire between two spools, with no text or symbols present.

Wind the Bobbin

1. Place the thread spool on the spool pin. Slide a spool firmly against the spool.

2. Place the thread into the thread guide (A) from front back. Bring the thread clockwise around the bobbin winding tension disc (B), making sure that the thread is pulled snuggly between the discs.

3. Thread through the hole in the bobbin (C) from the in to the outside.

4. Place the bobbin on the bobbin winding spindle. Make the bobbin is pushed down firmly. 6.

Papsh the bobbin winding spindle to the right. Hold the thread end, and press the foot control to start winding.

After a few turns, take your foot off the foot control winding. Cut the excess thread tail above the bobbin,

making sure to trim it close to the bobbin. Step on the control to resume winding. When the bobbin is full, the bobbin winding will slow down and stop automatically.

When the winding spindle is pushed to the right, a bo winding icon is shown on the display. sure

Push the bobbin winding spindle to the left. Remove the bobbin and cut the thread.

Note: When the bobbin winding spindle is pushed to the right, the machine will not sew. Make sure to push the bobbin spindle back to the sewing position (left) before sewing.

Insert the Bobbin

Note: Make sure that the needle is fully raised and the machine is turned off before inserting or removing the bobbin.

1. Remove the bobbin cover (A) by pushing the small button to the right of the cover (B) towards the right.

2. Insert the bobbin in the bobbin case with the thread running in a counterclockwise direction.

3. With the tip of your finger on the bobbin, pull the thread slightly to the right and under the guide (C) then towards the left.

4. Continue guiding the thread up toward the left and around the curve (D).

5. Bring it down the channel toward the front and into bobbin thread knife (E).

Replace the bobbin cover and pull the thread to the cut off the excess thread.

Mechanical assembly diagram showing a dial indicator on a device (no text or symbols visible)

Thread the Machine

Important! Make sure that the presser foot is raised and the needle is in its highest position by turning the handwheel toward you. This is very important to help ensure that the machine is correctly threaded. Not doing so can result in po stitch quality when you start to sew.

1. Place the thread on the spool pin and fit the appropriately sized spool cap.

2. Pull the thread into the thread guide (A) from front back and thread guide (B) from back to front. Pull thread between the tension discs (C).

3. Continue bringing the thread down through the right threading slot, around the U-turn, then back upwards through the left threading slot.

4. Bring the thread from the right into the take-up lever (D) and down in the left-hand threading slot, into the lower thread guide (E) and to the needle thread guide (F).

5. Thread the needle from front to back.

Machine from above

Machine from front

Needle Threader

The built-in needle threader allows you to thread the needle quickly and easily.

The needle must be in its highest position to use the built-in needle threader. Turn the hand wheel towards you until the needle is in its highest position, or press the needle up/down button. It is also recommended that you lower the presser foot.

• Use the handle (A) to pull the needle threader all the way down. The metal flanges cover the needle. A small hook will pass through the needle eye (B).
• Place the thread from the back over the thread guide (C) and under the small hook (D).
• Let the needle threader gently swing back. The hook pulls the thread through the needle eye and forms a loop behind the needle. Pull the thread loop out behind the needle.
• Raise the presser foot and place the thread under it.
• Pull out about 6–8" (15–20cm) of thread beyond the needle eye. This will prevent the machine from coming unthreaded when you start to sew.

Note: The needle threader is designed to be used for size 70-110 needles. You cannot use the needle threader for size 60 needles or smaller, wing needles or twin needles. There are also some optional accessories that require manual threading of the needle. When threading the needle manually, make sure that the needle is threaded from front to back.

Needles

The sewing machine needle plays an important role in successful sewing. Use only quality needles. We recommend needles of system 130/705H. The needle package included with your machine contains needles of the most frequently used sizes

Be sure to match the needle to the thread you are using. Heavier threads require a needle with a larger needle eye. If the needle eye is too small for the thread the needle threader may not work properly.

Universal Needle

Universal needles have a slightly rounded point and come in a variety of sizes. For general variety of fabric types and weights.

Stretch Needle

Stretch needles have a ball point and a special scarf to eliminate skipped stitches when there in the fabric. For knits, swimwear, fleece, synthetic suedes and leathers.

Denim Needle

Denim needles have a sharp point to penetrate tightly woven fabrics without deflecting the n-canvas, denim, microfibers.

Embroidery Needle

Embroidery needles have a special scarf, a slightly rounded point and a slightly larger eye t damage to thread and materials. Use with metallic and other specialty threads for embroidery decorative sewing.

Wing Needle

Wing needles have wide extensions on each side of the needle to poke holes in the fabric entredeux and other hemstitches on natural fiber fabrics.

Important Needle Information

Change the needle often. As a general rule, needles should be changed every 6-8 hours of actual stitching time.

Always use a straight needle with a sharp point and make sure the point is not bent or damaged (A).

A damaged needle (B) can cause skipped stitches, breakage or snapping of the thread. It can also damage the needle plate.

Do not use asymmetrical twin needles (C), they can damage your sewing machine.

Selection Guide — Needle Size, Fabric, Thread

Needle Size Fabric		Thread
70-80 (9-11) L	lightweight fabrics: Fine cotton, voile, silk, muslin, interlock, tricot, jersey, crepe, polyester, chiffon, organza, organdy	Light duty all purpose thread
80-90 (11-14 )	Medium weight fabrics: Quilting cotton, satin, double lightweight wool, rayon, polyester, lightweight linen	Uknitpolyester threads on synthetic fabrics and all-purpose or cotton thread on natural fabrics for best results.
90 (14) Medium	weight fabrics: Firm woven, medium weight linen, cotton/polyester blend, terrycloth, chambray, double knit
100 (16) Heavy	weight fabrics: Canvas, wool, denim, home decor, fleece, heavy knit
110 (18) Heavy	weight fabrics: Coat weight wool, upholstery fabrics	Heavy duty thread for needle, with all-purpose thread for the bobbin.

Change the Needle

Note: Before you begin changing the needle, it can be helpful to place a small piece of paper or fabric underneath the needle area, over the hole in the needle plate, so that the needle doesn't accidentally fall down into the machine.

1. Loosen the needle clamp screw. If it feels tight, use the screwdriver from your accessories to aid with loosening the screw.
2. Remove the needle.
3. Push the new needle upwards into the needle clamp with the flat side away from you.
4. When the needle will go up no further, tighten the screw securely.

②

Mechanical device with a pointed tip and lever mechanism, no visible text or symbols

Thread Tension

To set the thread tension, turn the dial on top of the machine. Depending on the fabric, thread, etc., the tension may need to be adjusted. For the best stitch appearance and durability, make sure the needle thread tension is correctly adjusted. For general sewing, the threads evenly meet between the two layers of fabric (A).

Diagram of a multi-layered mechanical or electronic component with no visible text or symbols

If the bobbin thread is visible on the top side of the fabric, the needle thread tension is too tight (B). Reduce the needle thread tension.

If top thread is visible on the underside of the fabric, the needle thread tension is too loose (C). Increase the needle thread tension.

Diagram of a corrugated structure with no text or symbols

For decorative stitches and buttonholes, the top thread should be visible on the underside of the fabric.

Make a few tests on a scrap piece of the fabric you are going to sew and check the tension.

Sew without Feed Teeth

When sewing on buttons or doing other sewing techniques where you don't want the fabric to feed, you need to lower the feed teeth.

The feed teeth lever is found at the back of the free arm.

1. Lower the feed teeth by moving the lever to the "Feed Teeth Down" position.

2. Raise the feed teeth by moving the lever to the "Feed Teeth Up" position.

Note: The feed teeth will not raise immediately when the lever is switched. Turn the hand wheel toward you one full turn or start sewing to re-engage the feed teeth.

Presser Foot Pressure

The presser foot pressure is used to control the amount of pressure that the presser foot exerts onto the fabric, to ensure smooth feeding of the fabric while sewing. The presser foot pressure has been pre-set to the standard value "2". Though it needs no adjustment for most fabrics, it can be adjusted for very thick or very thin fabric - increase for heavy weight fabrics, decrease for lightweight fabrics.

Note: If the dial is turned counterclockwise too much, it could come off. If this happens, simply replace the dial and turn it clockwise until it stays in place.

Note: If the dial is turned clockwise until it comes to a stop, it has reached the maximum pressure available. Do not try to turn the dial any further!

Change the Presser Foot

1. Make sure that the needle is in the highest position and the presser foot is lifted. The presser foot release lever extends out the back of the presser foot holder. Press this lever to release the presser foot.

2. To attach a presser foot to the holder, place the desired presser foot with its pin directly under the slot in the presser foot holder. Lower the presser foot lifter and the presser foot will snap into place.

Note: If you find it difficult to place the presser foot in correct position, keep the release lever pressed while lowering the presser foot. Use your thumb to carefully guide the presser foot into the correct position and it will snap into place.

Operations and Stitch Control Buttons

The Machine Operation Controls are used to operate the machine, and are found on the sewing head of the machine. On the Stitch Control Panel (next to the display) you find buttons used to adjust and select stitches.

Each functionality is listed and described further below.

Reverse Button

The Reverse Button has different functionality depending on what stitch that is selected.

Stitch 00-05

Press and hold the Reverse button to sew in reverse. Release it to resume sewing forward. The machine reverse only as long as the reverse button is pressed.

Stitch 06–19, 28–99

Press the Reverse button and the machine sews 3 tie-off stitches then stops automatically.

Reverse has no functionality for buttonholes, darning and button sewing stitches.

Needle Up/Down

Press Needle Up/Down to move the needle down or up. You can also tap the foot control to raise or

Menu/Sound On/Off

Press to toggle between the Menus. There are three menus, Utility/Decorative Stitches, Stitch Width and Length. When a menu is selected, a light next to the icon becomes lit.

This button is also used to turn off the machine sound. Press and keep depressed for 2 seconds with t turned on, when an audio beep is heard, the sound is turned off. Press for 2 seconds until two audio heard and the sound is turned back on. The setting remains even if the machine is turned off.

Navigation Arrows

Press the up and down arrows to select stitch and/or to adjust the stitch settings.

The left set of arrows change the left number on the display and the right arrows changes the right

Note: Make sure that the correct menu is selected before using the selection arrows. A light next to when a menu is active.

Utility and Decorative Stitches

Select this menu for sewing. The stitches included in your machine are pictured on the machine. Nex stitch is a number, this is the number used to select the stitch.

Stitch Width / Needle Position

Select this menu to adjust the stitch width of the selected stitch.

When you select a stitch, your machine automatically sets the best stitch width. The default setting is the display. The stitch width can be adjusted between 0–7mm. Some stitches have a limited stitch width by pressing "up", decrease it by pressing "down".

When a straight stitch or a reinforced straight stitch is selected, the Stitch Width button is used to a needle position. When pressing "up", the needle position is moved to the right. When pressing "down" needle moves to the left. Center needle position is set when the stitch width is 3.5.

Stitch Length

Select this menu to adjust the stitch length of the selected stitch.

When you select a stitch, your machine automatically sets the best stitch length. The default setting is on the display. The stitch length can be adjusted between 0–4.5mm. Some stitches have a limited side Increase the stitch length by pressing "up", decrease it by pressing "down".

Select Stitch

When you turn on your machine, the Utility and Decorative Stitch Menu is active. This is indicated by the light, next menu icon (A). Straight stitch (stitch no.00) (B) is selected by default.

The stitches are printed on the machine. The Stitch Number is printed above the picture of respective stitch (C).

Press the up and down arrows to select stitch. The left set of arrows change the left number on the display and the right arrows changes the right number (D).

Each stitch has a pre-set stitch length and width. At the bottom right of the machine, you can slide forward a chart showing what presser foot that is recommended for each stitch.

SEWING

Sewing

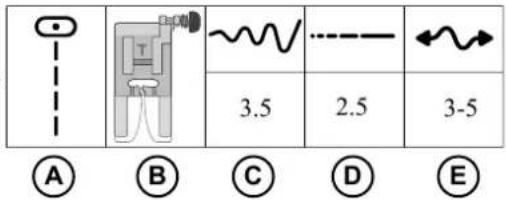

Next to each stitch or sewing technique described in this section of the manual is a chart showing the recommended settings and presser foot. See sample of the chart to the right.

Note: Some fabrics have a lot of excess dye which can cause discoloration on other fabric but also on your sewing machine. This discoloring may be very difficult or impossible to remove. Fleece and denim fabric in especially red and blue often contain a lot of excess dye. If you suspect that your fabric Stitch ready-to-wear garment contains a lot of excess dye, always Presser foot pre-wash it before sewing to avoid the discoloring on your C. Stitch width in mm machine.

D. Stitch length in mm

Note: For best sewing result, use the same thread on top. thread tension bobbin. If sewing with specialty/decorative threads, use regular sewing thread in the bobbin.

Start to Sew - Straight Stitch

Set your machine for straight stitch (see chart to the right).

Raise the presser foot and position the fabric under it, seam allowance guide line on the needle plate. On the cover there is a 1/4" (6mm) guide line.

Place the top thread underneath the presser foot.

Lower the needle to the point where you want to start. Bring the threads toward the back and lower the presser foot. Pass the foot control. Gently guide the fabric along the scam guide letting the machine feed the fabric (A). If the bobbin thread isn't pulled up, it will be automatically as you start to sew.

To secure the beginning of a seam, press and hold the reverse button. Sew a few reverse stitches. Release the reverse button and the machine will sew forward again (B).

Change Needle Position

Some sewing is done more easily by changing the needle position, e.g., topstitching a collar or sewing in a zipper. The needle position is adjusted with the Stitch Width button (see page 17).

Set up for straight stitch

Change Sewing Direction

To change sewing direction, stop the machine. Press the Needle Stop button to activate the Needle Down position. The needle is brought down into the fabric.

Raise the presser foot.

Pivot the fabric around the needle to change sewing direction as desired. Lower the presser foot and continue sewing in the new direction.

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

Finish Sewing

Press and hold the Reverse button and sew a few stitches in reverse when you reach the end of the seam. Release the button and sew forward again to the end of the seam. This will secure the seam so the stitches don't unravel.

Turn the handwheel toward you to raise the needle to its highest position. Raise the presser foot and remove the fabric, pulling the threads to the back.

Pull the threads up and into the thread knife so that the threads are cut the proper length and your needle won't come unthreaded when you start the next seam.

Straight Stretch Stitch

This stitch is stronger than regular straight stitch, due to the fact that it is a triple and elastic stitch. The Straight Stretch Stitch can be used for heavy stretch fabrics, for crotch seams which are subject to considerable strain and for topstitching heavy fabrics.

[TEXTY]
	3.5 2.5	3-5

Carefully guide the fabric while sewing as the fabric moves set up for Straight Stretch Stitch back and forth.

Cross-sectional diagram of a mechanical device with labeled components (no text or symbols)

Multi-Step Zigzag Stitch

Multi-step zigzag stitch is used to overcast raw edges. sure the needle pierces the fabric on the left side and the edge on the right side.

The stitch can also be used as an elastic stitch to all to stretch when sewing knit fabrics.

Makeovercastsow seams		~W	----	←→
		3.0-5.0	1.0 3-5

Set up for multi-step zigzag stitch

Diagram of a mechanical device with a spring-loaded component and a valve, no text or symbols present

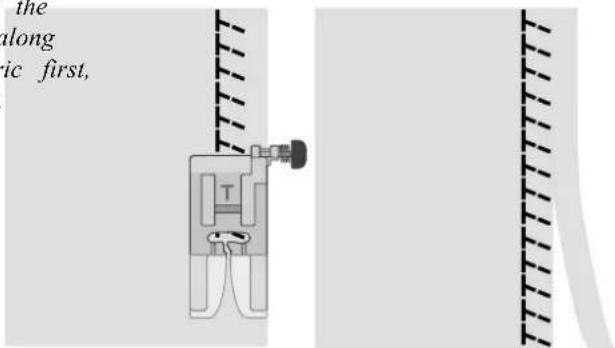

Slant Overedge Stitch

The slant overedge stitch sews the seam and overcasts th all at one time, perfect for stretch fabrics. This stitch is elastic than normal seams, very durable and quickly sewn.

Place the fabric under the presser foot aligning the edge presser foot with the edge of the fabric. Once the seam

finished, trim excess fabric outside the scam.

	5.0 2.5	3-5

Set up for slant overedge stitch

Tip: Use the Blind Hem foot to sew at the very edge of the fabric. Adjust the extension on the foot, and let it guide along the fabric edge. Always test sew on a piece of scrap fabric first, the result might vary due to the fabric weight and quality.

Closed Overlock Stitch

The closed overlock stitch can be used for sewing medium heavier weight stretch fabrics.

Use this stitch to hem stretch fabrics (A) and for belt Fold a hem to the wrong side and stitch with closed stitch from the right side. Trim away excess fabric.

um to loops B). verlock
		5.0 2.5	3-5

Set up for closed overlock stitch

Blind Hems

The blind hem stitch is used to make invisible hems of trousers and home décor projects. There are two types of hem; one is recommended for medium to heavy woven (1), the other for medium to heavy stretch fabric (2).

skirts, f blind fabric				—
(1) (2)			3.50	1.5-2.0	3-5

Set up for blind hem

- Finish the raw edge of the hem if sewing on a woven fabric. There is no need to finish the raw edge first on most knits.

- Fold and press the hem allowance to the wrong side.

- Fold the hem back on itself so approximately 3/8" (1 cm) of the finished edge extends beyond the fold. The wrong side of your project should now be facing up.

- Place the fabric under the presser foot so that the fold runs along edge guide (A).

- When the needle swings into the fold it should catch a small amount of fabric. If the stitches are visible on the right side, adjust edge guide (A) by turning the adjusting screw (B) until the stitch that catches the hem just barely shows.

Pure electrical circuit lines without any symbols

Woven fabric Stretch fabric

Roll of paper with a dotted line indicating a step (no text or symbols)

Right side of fabric

Darning and Mending

Repair Large Holes

To cover large holes it is necessary to sew a new piece of fabric onto the damaged area.

Baste the new piece of fabric onto the damaged area on the right side of the fabric.

	4.0-6.0	2.0	3-5

-step up for zigzag

Sew over the fabric edges with the zigzag or the multi-step set up for zigzag zigzag stitch.

Trim the damaged area close to the seam from the wrong of the fabric.

		~W	----	<→
		5.0 1.0	-2.0 3-5

Abstract geometric pattern with a dark square border and jagged black lines on the left side (no text or symbols)

Set up for multi-step zigzag

Repair Tears

On tears, frayed edges or small holes it is useful to lay a piece of fabric on the wrong side of the fabric. The underlayed fabric reinforces the damaged area.

Lay a piece of fabric underneath the damaged fabric. It must be a little larger than the damaged area.

Sew over the damaged area using the zigzag or multi-step zigzag stitch.

Trim the piece of fabric used as reinforcement.

Pure geometric diagram with arrow-like shapes and a shaded corner (no text or symbols)

Repair Small Holes

A small hole or tear is easily darned with the darning st. This stitch automatically sews small stitches back and forth cover small holes or tears.

Thread your machine with a thread in a color as close fabric as possible.

to		~~~	----	<→
		7.0 2.0	2-4

Set up for darning stitch

1. Select the Darning Stitch.
2. The darning stitch is used together with the Buttonhole Foot. Measure the length of the tear/hole. Push the button holder lever (A) out to the corresponding length. The distance between the button holder lever and the stopper (B) is the approximate length of the darning stitch. The maximum length is approximately 1 1/4" (3cm) (If the tear is longer, repeat the stitch).
3. Attach the Buttonhole Foot to your machine. Place your fabric under the presser foot. Align the fabric so that the bottom of the tear is slightly above the center of the presser foot (C).
4. Lower the Buttonhole Lever (D) all the way down, and push it away from you. The Buttonhole Lever should fit between the button holder lever (A) and the stopper (B).
5. Start sewing, the machine will stop automatically once the darning stitch is completed. Move your fabric and repeat until the whole damaged area is covered.

Note: To make the darning even sturdier, place a fabric underneath the hole/tear before sewing.

Jeans Hem

When sewing over seams in extra heavy fabric or a jeans hem, the presser foot may tip as it rides over the seam. To be able obtain even feed also over thicker seams, the All-Purpose Foot (T) is equipped with a "lock in place" button, that locks the foot in a horizontal position.

3.5 4.0

3-5

Set up for jeans hem

As you approach the thicker seam and the presser foot to raise over the thickness, stop sewing. Lower the need the fabric and raise the presser foot. As you lower the foot again, push the button on the presser foot towards groove (A) in the presser foot ankle. This will lock the a horizontal position, allowing the foot to pass the thick without needle breakage. The lock position will release automatically after a few stitches.

Mechanical assembly diagram showing a sewing machine with base and handle, no text or symbols present

Mechanical assembly diagram showing a sewing machine needle and foot (no text or symbols)

Button Sewing

Fasten buttons easily and quickly with the special button stitch.

●	—	~W	----	←→
		3.5	—	2-4

1. Select the Button Sewing Stitch.

2. Lower the feed teeth.

3. Remove the presser foot.

4. Mark the placement of the button with a marking pen (A).

5. Place the button on top of the marking and tape in place. Position your project under the presser foot holder aligning the holes of the button with the needle. Lower the presser foot holder (B).

6. Turn the handwheel toward you very slowly to be sure needle clears the holes. Adjust the stitch width if needed (C).

7. Start sewing at a low speed. The machine stops automatically after a few stitches.

8. Leave a long thread tail and pull it under the button. the thread tail around the shank.

9. Use a hand sewing needle to pull the thread to the wrong side of the fabric and secure.

10. To re-engage the feed teeth, move the Feed Teeth Lever back to regular sewing position, and then turn the hand wheel toward you one full revolution.

Set up for button sewing

One-Step Buttonhole

Sew buttonholes perfectly sized for your button. The fabric should be interfaced and/or stabilized where buttonholes are be sewn.

5.0 0.4

3-5

1. Mark the start position of the buttonhole on the fabric

2. On the One-Step Buttonhole Foot, push the button holder open by pushing the lever backwards (B). Insert the button.

Push the button holder forward until the button is locked in place (C). The button will determine the length of the buttonhole. The distance between the button holder lever (B) and the stopper (D) is the length of the buttonhole.

1. Attach the One-Step Buttonhole Foot.

2. Make sure that the thread is pulled though the hole in the presser foot and placed under the foot.

3. Position your fabric under the presser foot so that the marking on the fabric is aligned with the center of the Buttonhole Foot (E).

4. Lower the Buttonhole Lever (F) all the way down, and push it away from you. The buttonhole lever should fit between the button holder lever (B) and the stopper (D).

5. Hold the end of the upper thread and start sewing. The buttonhole is sewn from the front of the presser foot to the back. Stop sewing when the buttonhole is finished.

6. Once the buttonhole is finished, raise the presser foot. Push the buttonhole lever all the way up.

7. To secure the bartack, thread the end of the top thread into a hand sewing needle, pull to the wrong side and tie the end before cutting excess thread.

8. Use a seam ripper and cut the buttonhole open from both ends towards the middle (G).

If you want to sew another buttonhole, do not push the buttonhole lever up when the buttonhole is finished. Instead, push it away from you again. Sew another buttonhole.

Diagram of a mechanical or electrical component with spring-like elements and a tool, no visible text or symbols

Note: Always sew a test buttonhole on a piece of scrap fabric.

Sew Zippers

The Zipper Foot can be attached on either the right or of the needle, making it easy to sew both sides of the zipper. To sew the right side of the zipper, attach the foot in presser foot position (A).

	3.5 2.0-3.0 3-5

To sew the left side of zipper, attach the foot in the right up for sewing zippers presser foot position (B).

Cross-sectional diagram of a mechanical device with internal components and a labeled section (A), no readable text or symbols present.

Cross-sectional diagram of a mechanical device with labeled parts (no text or symbols beyond label)

Centered Zipper

• Place the fabric pieces right sides together and pin. Mark the zipper length on your fabric.
• Baste the zipper seam using the specified seam allowance (use straight stitch with stitch length 4mm, thread tension 2). Baste to the end of zipper marking (C).
• Set up the machine for straight stitch (see table above), backstitch a few stitches and sew the rest of the seam using the specified seam allowance (C).
• Press the seam allowances open. Place the right side of the zipper to the wrong side of the seam, tape in place (D).
• Flip your project, making sure that the right side is facing up. Snap on the Zipper Foot, to the left side of the needle (A).
• Sew along the right side of the zipper to the end of your zipper, remember to backstitch in the beginning. Stop with the needle down in the fabric, lift the presser foot and turn your project to sew across the bottom of the zipper (E).
• Attach the Zipper Foot to the right side of the needle (B). Sew the remaining zipper side as you did with the first side (F).
• Flip your project to remove the tape on the back side.
• Flip your project to the right side again and remove the basting stitches.

Hand-Look Quilt Stitch

Simulate the look of handmade quilting with the Hand-look Quilting stitch. Thread the needle with either transparent thread or with a thread that blends with the color of the top of the fabric. Thread the bobbin with a thread color that coordinates or contrasts with the top of the fabric, depending

on the look you want for your project (the bobbin threalet will for hand-look quilt stitch actually appear on the top of the fabric).

3.5 2.0-3.0 6-9

Tip: Use a size 100 Topstitch Needle for an even greater effect.

- To get the accurate hand stitched look it is important that the stitch is sewn using a high thread tension. Make sure set the tension according to the recommendations in the stitch chart.

- Stitch along one of the seams of your project, or around an appliqué. The handlook effect is created as the bobbin thread is pulled up to the top of the quilt.

A. Bobbin thread

B. Top thread

MAINTENANCE

Cleaning the Machine

To keep your sewing machine operating well, clean it often. No lubrication (oiling) is needed. Wipe the exterior surface of your machine with a soft cloth to remove any dust or lint built up.

Cleaning the Bobbin Area

Raise the needle and turn off the machine.

Remove the presser foot. Slide off the bobbin cover and remove the bobbin.

Remove the screws in the needle plate by using the L-screwdriver. Lift up and remove the needle plate.

Clean the feed teeth and the bobbin area with the brush found among the accessories.

Place the needle plate over the feed teeth, replace and tighten the screws.

Attach the presser foot, insert the bobbin and replace the bobbin cover.

Cleaning under the Bobbin Area

Raise the needle and turn off the machine.

Clean the area under the bobbin case after sewing several projects or any time you notice an accumulation of lint in the bobbin case area.

Remove the presser foot. Slide off the bobbin cover and remove the bobbin.

Remove the screws in the needle plate by using the L-screwdriver. Lift up and remove the needle plate.

Remove the bobbin case by lifting it up. This is easier if you push it slightly to the left or right as you lift.

Clean the area with the brush or with a dry cloth.

Note: Do not blow air into the bobbin case area. The dust and lint will be blown into your machine.

Guide the "forked" end of the bobbin case (A) under the bobbin case holder (B) and under the feed teeth. Move the bobbin case slightly from right to left until it slips correctly into the hook race (C). To make sure the bobbin case is properly replaced, turn the handwheel towards you. The hook race (C) should rotate freely in a counter-clockwise direction.

Place the needle plate over the feed teeth, replace and tighten the screws.

Attach the presser foot, insert the bobbin and replace the bobbin cover.

Mechanical component diagram showing a circular assembly with labeled point C (no text or symbols present)

Troubleshooting

Thread Loops on Underside of Fabric

Possible cause: Thread looping on the underside of the fabric is always an indication that the upper thread is not threaded. This happens when the upper thread is not correctly placed in the thread tension mechani has not been threaded through the take up lever.

Solution: Rethread the machine, making sure to first raise the presser foot lifter before starting to thread, so can be properly seated in the tension mechanism and take up lever. To know if you have rethread machine correctly, try this test:

• Raise the presser foot lifter (page 9) and thread the top of the machine (page 12).
• Thread the needle, but don't put the thread under the presser foot yet. As you pull the upper thread to the left, it should pull freely.
• Put the presser foot lifter down. As you pull the upper thread to the left, you should feel resistance. This means you are threaded correctly.
• Put the thread under the presser foot, and then draw up the bobbin thread. Slip both thread tails under the presser foot towards the back. Lower the presser foot and begin sewing.

If you put the presser foot lifter down, but the thread still pulls freely (you feel no difference with presser foot is up or down), this means that you have threaded incorrectly. Remove the upper three rethread the machine.

Bobbin Thread Breaking

Possible cause: Bobbin threaded incorrectly.

Solution: Check that bobbin is placed correctly in the bobbin holder (page 11).

Possible cause: Bobbin wound too full or unevenly.

Solution: Bobbin thread may not have been correctly placed into bobbin winding tension disc during the bot winding process (page 11).

Possible cause: Dirt or lint in bobbin holder.

Solution: Clean bobbin holder (page 27).

Possible cause: Wrong bobbins being used.

Solution: Use bobbins that are the same style as those that come with the machine (SINGER® Class 15 tr. bobbins) - don't substitute.

Bobbin Thread Showing on Top of Fabric

Possible cause: Top thread too tight.

Solution: Reduce upper thread tension (page 15).

Possible cause: Thread path is obstructed, putting extra tension on top thread.

Solution: Check that the top thread path is not obstructed and thread is moving freely through the thread.

Possible cause: Bobbin thread not in bobbin case tension.

Solution: Rethread bobbin (page 11).

Bobbin Winding Difficulties

Possible cause: Bobbin thread loosely wound on bobbin.

Solution: Rewind bobbin, making sure that the thread is placed snuggly in the bobbin winding tension disc 11).

Possible cause: Bobbin winding spindle not fully engaged, therefore bobbin not winding.

Solution: Check that the bobbin winding spindle has been fully engaged before starting to wind.

Possible cause: Bobbin is winding sloppily because thread end not held at beginning of winding process.

Solution: Before starting to wind, hold the thread tail (coming out of the bobbin) securely, allow the bobbin partially fill, then stop to trim the thread tail close to the bobbin.

Fabric Puckers

Possible cause: Top thread is too tight.

Solution: Reduce top thread tension (page 15).

Possible cause: Stitch length is set too short.

Solution: Increase stitch length setting (page 17).

Possible cause: Wrong style needle for fabric type.

Solution: Use correct needle style and size for your fabric (page 13 and page 14).

Fabric Is Tunneling Under Stitches

Possible cause: Fabric is not properly stabilized for the density of the stitches (for example, satin stitch appliqu

Solution: Add a fabric stabilizer underneath the fabric to help keep the stitches from tunneling in together a puckered ridge in fabric.

Loud Noise When Sewing

Possible cause: Thread not in take-up lever.

Solution: Rethread the machine, making sure the take up lever is in its highest position so thread goes the take up lever — turn machine hand wheel toward you to raise the take up lever to its key for threading.

Possible cause: Thread path is obstructed.

Solution: Check that thread is not caught on the thread spool or behind the spool cap.

Machine is Not Feeding Fabric

Possible cause: Presser foot lifter has not been lowered onto fabric after threading.

Solution: Lower the presser foot lifter before starting to sew. Don't "push" or "pull" the fabric as you

Possible cause:

Solution: The feed teeth need to be raised and re-engaged by turning the handwheel one full revolution

Possible cause: Stitch length is set at zero.

Solution: Increase stitch length setting (page 17).

Machine Will Not Run

Possible cause: Bobbin winding spindle is engaged when you try to sew.

Solution: Disengage bobbin winding spindle by pushing it to the left.

Possible cause: Power cord and/or foot control not plugged in correctly.

Solution: Make sure power cord/foot control are correctly seated in machine and power supply (page 8).

Possible cause: Wrong bobbins being used.

Solution: Use bobbins that are the same style as those that come with the machine (SINGER® Class 15 bobbins)—don't substitute.

Needles Breaking

Possible cause: Bent, dull or damaged needle.

Solution: Discard needle, insert new needle (page 14).

Possible cause: Wrong size needle for fabric.

Solution: Insert appropriate needle for fabric type (page 13).

Possible cause: Machine not threaded correctly.

Solution: Rethread the machine completely (page 12).

Possible cause: “Pushing” or “pulling” fabric.

Solution: Don't manually push/pull fabric in order to sew, but allow the machine's feed teeth to draw fabric the presser foot as you guide it.

Needle Threader Not Working

Possible cause: Needle not in correct position.

Solution: Raise needle to its highest position by turning hand wheel toward you.

Possible cause: Needle inserted incorrectly.

Solution: Needle all the way up in the needle clamp.

Possible cause: Needle is bent.

Solution: Remove the bent needle, insert new needle (page 14).

Possible cause: Hook pin damaged.

Solution: Needle Threader needs replacement. Contact authorized service center.

Skipping Stitches

Possible cause: Needle inserted incorrectly.

Solution: Check that flat side of needle top is toward back of machine and needle is up as far as it can tighten needle clamp screw.

Possible cause: Wrong needle for fabric sewn.

Solution: Use correct needle style and size for your fabric (page 13 and page 14).

Possible cause: Bent, dull or damaged needle.

Solution: Discard needle and insert new needle (page 14).

Stitches Distorted

Possible cause: “Pushing” or “pulling” the fabric.

Solution: Don't manually push/pull fabric in order to sew, but allow the machine's feed teeth to draw fabric presser foot as you guide it.

Possible cause: Incorrect stitch length setting.

Solution: Adjust stitch length setting (page 17).

Possible cause: Stabilizer may be needed for technique.

Solution: Place stabilizer underneath fabric.

Thread Bunching at Beginning

Possible cause: Top and bobbin threads have not been properly placed underneath presser foot before starting to se

Solution: Ensure that both the top thread and the bobbin thread are under the presser foot and toward the before starting to sew.

Possible cause: Sewing was started with no fabric under the presser foot.

Solution: Place fabric under foot, making sure that needle comes down into fabric; lightly hold both three first few stitches.

Possible cause: Stabilizer may be needed for technique.

Solution: Place stabilizer underneath fabric.

Upper Thread Breaking

Possible cause: Thread path obstructed

Solution: Check if thread is caught on thread spool (rough spots on the spool itself) or behind spool pin cap (if the thread has fallen behind the spool cap and therefore cannot feed freely through the path).

Possible cause: Machine is not threaded correctly.

Solution: Remove upper thread completely, raise presser foot lifter, rethread machine making sure thread i. up lever (raise take up lever to its highest position by turning hand wheel toward you.

Possible cause: Upper tension too tight.

Solution: Reduce upper thread tension (page 15).

Technical Specification

Sewing SpeedMaximum 1000 ± 50 rpm(using straight stitch with default stitch length), 127 V/60 Hz, 120 V/60 Hz, 100V/50-60Hz	Rated Voltage240 V/50Hz, 230 V/50Hz, 220 V/50Hz, 127 V/60 Hz, 120 V/60 Hz, 100V/50-60Hz	Presser Foot Rise Height6mm
Protection ClassII (Europe)	Stitch Width0–7.0mm	Stitch Length0–4.5mm
Type of LampLED light	Machine DimensionsLength: ≈440mmWidth: ≈190mmHeight: ≈280mm	Weight7kg

We reserve the right to change the machine equipment and the assortment of accessories without prior notice, or make modifications to the performance or design. Such modifications, however, will always be to the benefit of the user and the product.

INTELLECTUAL PROPERTY

Singer, and the Cameo “S” Design are exclusive trademarks of The Singer Company Limited S.à.r.l. or its Affiliates.

Please note that on disposal, this product must be safely recycled in accordance with relevant National legislation relating to electrical/electronic products. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. When replacing old appliances with new ones, the retailer may be legally obligated to take back your old appliance for disposal free of charge.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

SINGER®

ORIGINAL SINCE 1851.

Illustration of a sewing machine with decorative swirls around it, no text or symbols present.

SINGER®

Pure electrical circuit lines without any symbols

2021222324252627282930313233343536373839

Collection of abstract geometric shapes and symbols in black, white, and gray (no text or labels)

4041424344454647484950515253545556575859

6061626364656667686970717273747576777879

Collection of abstract decorative line patterns with no text or symbols

8081828384858687888990919293949596979899

Collection of abstract line drawings and symbols, no text or labels present

Technical line drawing of a sewing machine with no visible text or symbols

Palanca del prensatelas

Mechanical assembly diagram showing a pump, valve, and wiring (no text or labels)

Portacarretes

Simple diagram of a mechanical or electrical component with a curved wire and labeled point B (no text or symbols beyond label)

Portacarretes auxiliar

Two diagrams showing a coiled cable or wire between two spools, with no text or symbols present.

Mechanical assembly diagram showing a rotating component with a magnified view (no text or symbols)

Agujas

Pure mechanical diagram showing a lever mechanism with no text or symbols

Termine la costura

Cross-sectional diagram of a mechanical device with labeled component T and dashed line indicating a reference or measurement point (no text or symbols beyond basic labels)

Puntada múltiple de Zig-zag

Diagram of a mechanical device with a spring-loaded handle and a labeled component (no text or symbols present)

Puntada para borde inclinado

Roll of paper with a dotted line indicating a step (no text or symbols)

Abstract geometric pattern with a central square and irregular black zigzag border (no text or symbols)

Repare desgarrones

Pure geometric diagram with arrow-like shapes and a shaded corner (no text or symbols)

Diagram of a mechanical or electrical component with spring-like elements and a tool, no visible text or symbols

Cosa cremalleras

Cross-sectional diagram of a mechanical device with internal components and a labeled section (A), no text or symbols present.

Cross-sectional diagram of a mechanical device with labeled parts (I and B), no readable text or symbols beyond labels

Cremallera centrada

Pure diagram of a vertical cylindrical structure with horizontal bands, no text or symbols present

Mechanical assembly diagram showing a disassembly or disassembly process with tool and component (no text or symbols visible)

Mechanical component diagram showing a circular assembly with labeled part C (no readable text or symbols)

MANUEL D'INSTRUCTION

HD6620C

Illustration of a sewing machine with decorative swirls around it, no text or symbols present.

SINGER®

Point zigzag multi-point 20

Pied multi-usage (T)

Pure electrical circuit lines without any symbols

2021222324252627282930313233343536373839

Collection of abstract geometric shapes and symbols in black, white, and gray (no text or labels)

4041424344454647484950515253545556575859

6061626364656667686970717273747576777879

Collection of abstract decorative line patterns with no text or symbols

8081828384858687888990919293949596979899

Collection of abstract line drawings and symbols, no text or labels present

Broche porte-bobine repliable

Two diagrams showing a coiled cable or wire between two spools, with no text or symbols present.

Bobiner la canette

Mechanical assembly diagram showing a dial indicator on a device (no text or symbols visible)

Machine vue de face

Enfile-aiguille

Diagram of a test tube setup with multiple wells and tubes, labeled B (no text or symbols on the diagram itself)

Diagram of a corrugated structure with circular symbol and label 'f11' (no text or symbols on the diagram itself)

Pression du pied-de-biche

Changer le pied-de-biche

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

Terminer la couture

Mechanical device diagram showing a valve assembly with no visible text or symbols

Point zigzag multi-point

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

Ourlet invisible

Pure electrical circuit lines without any symbols

Roll of paper with a dotted line indicating a measurement or alignment (no text or symbols)

Endroit du tissu

Abstract geometric pattern with a central square and irregular black lines on the edges (no text or symbols)

Pure geometric diagram with arrow-like shapes and a shaded corner (no text or symbols)

		~~~~	--------	◀◀
		7,0 2,0		2-4

Ourlet de jean

Mechanical sewing machine diagram showing needle and handle components (no text or labels)

Mechanical assembly diagram showing a foot pressing a curved component on a sheet of paper, with no visible text or symbols.

Technical illustration of a sewing machine needle with no visible text or symbols

Couture de boutons

Technical line drawing of a vertical mechanical device with internal components (no text or symbols)

Diagram showing a tool interacting with a spring-like object, no text or symbols present

Pure diagram of a vertical pipe or tube with a dashed line indicating a vertical dimension (no text or symbols)

Diagram of a mechanical device with a vertical dashed line and internal components (no text or symbols)

D

Pure diagram of a vertical cylindrical structure with horizontal bands, no text or symbols present

F

Diagram of a mechanical device with internal components and dashed alignment lines (no text or symbols)

Mechanical component diagram showing a circular assembly with labeled point C (no text or symbols present)

Dépannage
