Product type	Iron
Brand	Girmi
Model	ST01
Water tank capacity	100 ml
Soleplate type	Stainless steel soleplate
Power	2000 W (estimated)
Voltage	220-240 V
Frequency	50-60 Hz
Cable length	1.8 m (estimated)
Dimensions (L x W x H)	30 x 12 x 15 cm (estimated)
Weight	1.2 kg (estimated)
Main functions	Steam ironing, dry ironing, spray, temperature adjustment, indicator light
Steam quantity	Adjustable via lever
Safety	Unplug before filling, do not immerse, do not use if damaged
Care and cleaning	Clean the soleplate with a damp cloth, rinse the tank with demineralized water, do not use abrasive products
Spare parts	Use only original parts
Repairability	Contact an authorized service center
Use	Domestic and indoor use
Warranty	Follow the instructions to maintain the warranty

Frequently Asked Questions - ST01 GIRMI

How to fill the water tank?

Unplug the iron, turn the temperature dial to 0, place the iron vertically, open the flap and pour water up to the MAX mark (100 ml). Preferably use demineralized water.

How to adjust temperature for different fabrics?

Use the adjustment dial: • for acrylic/nylon, •• for silk/wool, ••• to max for cotton/linen. The light turns off when the temperature is reached.

How to use the steam function?

Fill the tank, plug in the iron, turn the steam lever (3) to the desired position and set the temperature between •• and max. Wait for the light to turn off before ironing. To stop steam, set the lever to 0 or place the iron vertically.

Why does water leak from the soleplate?

If the selected temperature is too low, the steam condenses. Select a higher temperature (between •• and max) to avoid dripping.

How to clean the soleplate?

Unplug the iron and wait for it to cool. Run the soleplate while still warm over a damp cloth with light pressure. Do not use abrasive products.

What to do if the iron does not heat up?

Check that the plug is properly connected, that the temperature dial is not on 0, and that the light comes on. If the problem persists, contact an authorized service center.

Can I use tap water?

It is recommended to use demineralized water to avoid limescale. Do not use chemical additives, vinegar, or descaling agents.

How to use the spray function?

Press the button (5) directing the spray towards the fabric. For a dense spray, press slowly; for a fine spray, press quickly. Do not use on synthetic fabrics or silk.

How to store the iron?

After use, turn the temperature dial to 0, the steam lever to 0, unplug and store the iron vertically on a stable surface.

What to do in case of breakdown?

Do not intervene yourself. Contact an authorized service center and use only original spare parts.

USER MANUAL ST01 GIRMI

Technical model: CEA-13-07

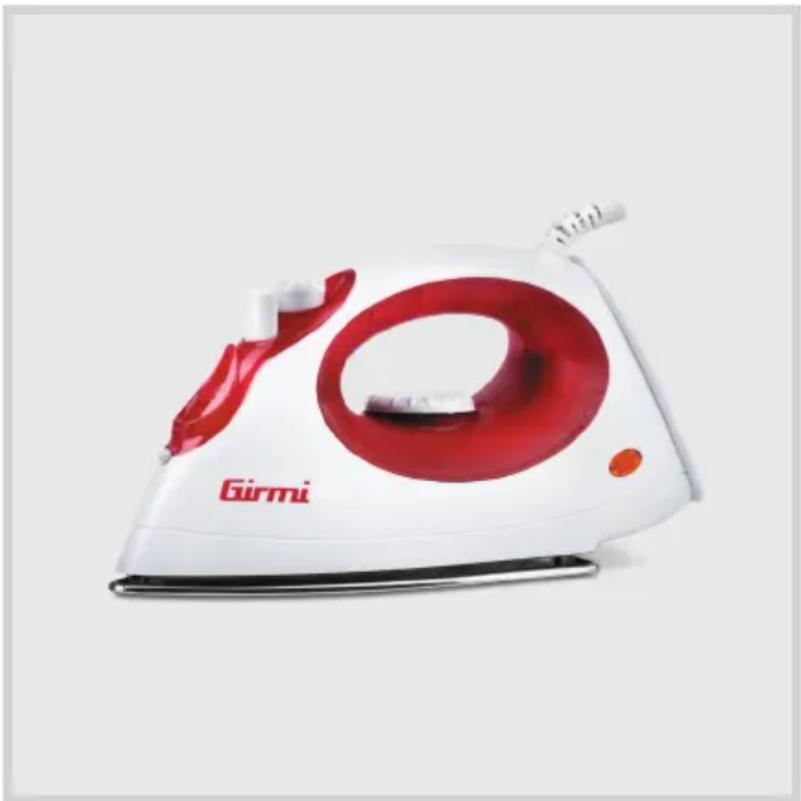

White and red Girmi iron iron with a handle, no visible text or symbols on the device itself.

Ferro da Stiro

Steam iron

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 8

General information.... p. 11

ST01.... p. 12

Filling the water tank....p. 12

Setting the temperature....p. 12

Steam ironing.... p. 12

Water spray.... p. 13

Dry ironing.... p. 13

Cleaning.... p. 13

Before storing.... p. 13

Technical features.... p. 13

Waste of electric and electronic equipment (WEEE

Directive) p. 36

PORTUGUES:....p. 13

ESPAÑOL......p. 19

DEUTSCH p. 25

FRANCAIS p. 30

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Exploded view diagram of a hair iron with numbered parts and close-up insets for detail

Close-up of a hand using a power tool on a flat surface (no visible text or symbols)

Close-up of a white plastic roller with a circular button and an arrow indicating rotation (no text or symbols)

Close-up of a person applying a medical or cosmetic device to a seated face (no visible text or symbols)

Hand ironing a white iron with control buttons (no visible text or symbols)

Close-up of a hand using an iron on a surface with a small inset showing a magnified view (no text or symbols visible)

Close-up of a white iron iron with a circular opening, resting on a surface (no text or symbols visible)

STIRATURA A VAPORE

ENGLISH: SAFETY INSTRUCTIONS

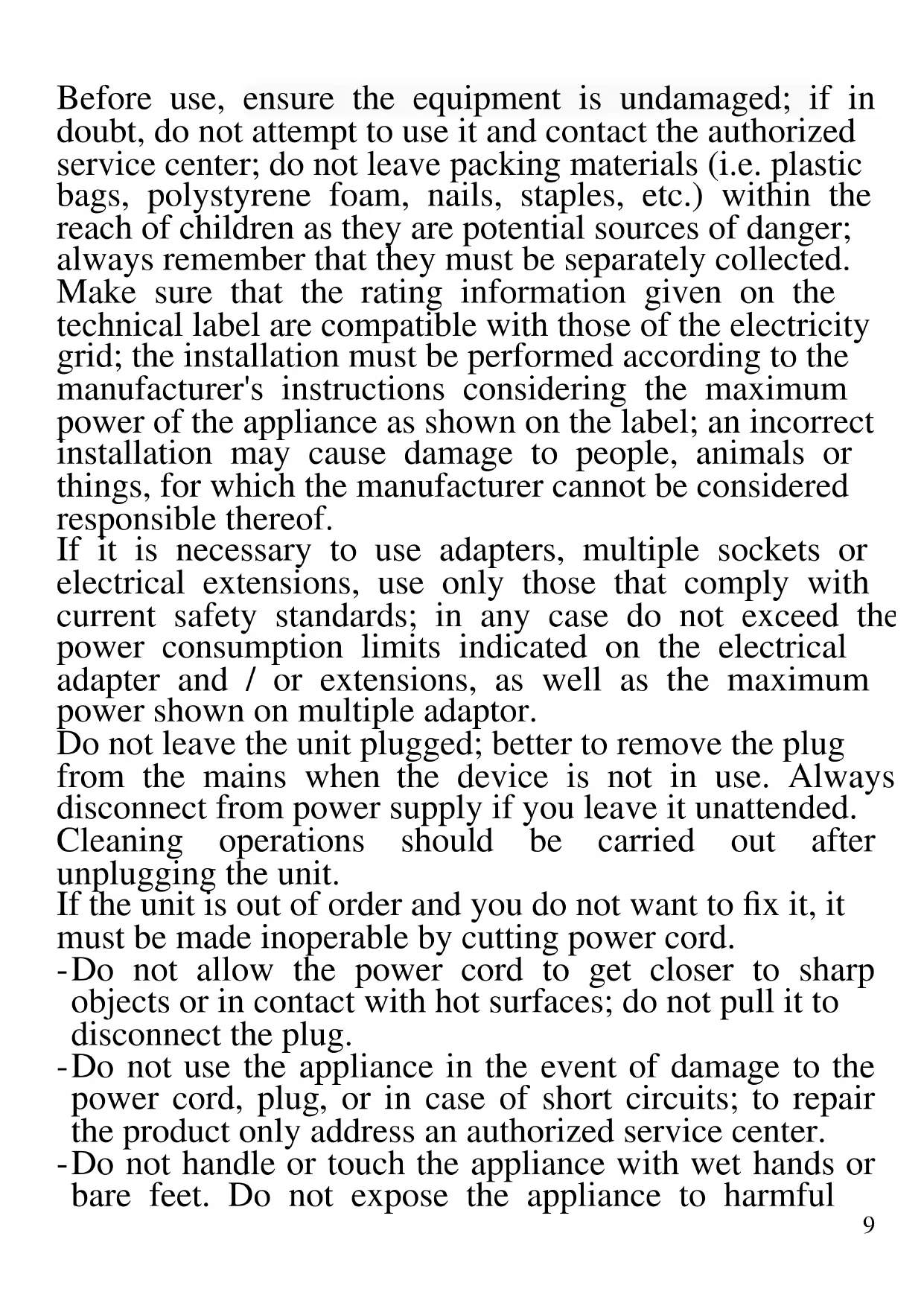

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful

weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Before every use, unroll the power cord.

- Use original spare parts and accessories only.

Do not subject the product to strong impacts, serious

damages may result.

- Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

At first use, remove the protective film of the plate; due to the presence of a protective oil and residues left over from the film, the plate could emit some smoke. After few uses, the smoke will disappear. When using the product for the first time, repeatedly use the steam (away from clothes) and try to use the iron on a worthless piece of cloth to remove any manufacturing residues that may stain or scratch the clothes.

Do not use the ironing system as a heating unit. When not in use, the iron must be stored upright.

Keep the power cord free from knots and tangles. Do not wrap the power cord around the iron.

It is recommended not to use too frequently the button called "steam shock" (steam shot), because it decreases the temperature of the iron plate which may cause drips of water instead of steam.

Always unplug the iron before you fill or empty the tank Do not fill the tank above the maximum capacity and do not introduce into the tank mixtures for removing stain, vinegar, descaling agents or chemicals in general.

Always select the most suitable temperature according to the fabric to be ironed.

The iron must be used and rested on a stable surface.

When placing the iron on its iron stand, make sure that the surface is stable. The iron should not be used if dropped, when there are visible signs of damage, or if it loses water during operations.

CAUTION: the iron plate gets very hot during use, be careful not to touch it, serious risk of burns. Do not put your face near the steam coming out the iron plate

MOD. ST01

1) Spray nozzle

2) Water fill opening

3) Steam adjustment lever

5) Spray button

6) Handle

8) "Soleplate temperature" indicator light.

7) Plug

9) Water measuring cup

10) Soleplate Temperature Selector Dial:

11) Water tank

12) Soleplate

FILLING THE TANK

The filling operation must be performed only when the plate has been cooled down and after having unplugged the unit from the electrical outlet. We recommend the use of demineralized water to prevent excessive fouling (not covered by warranty).

1) Place the steam control knob (3) on "0". Open the water tank lid (2).
2) Raise the tip of the iron to avoid any leak of water during the operation.
3) Enter the water up to the maximum level indicated with "MAX" on the tank (11).
4) Close the lid (2).

TEMPERATURE SETTING

The following table provides a guideline on how to adjust the thermostat according to the international symbols printed on the clothing labels or according to the type of fabric.

• It is recommended ironing clothes that require low temperatures first and then medium and high temperatures. This operation allows to save time since ironing plate heats faster than it cools down.
• When you do not know the composition, it is recommended to iron a non-visible part of the it, starting from the lowest temperature to find the most suitable temperature. ometimes the clothing becomes shiny, in this case you need to iron it on the inside not to ruin it. When ironing at maximum temperature (MAX), it is recommended to place a cloth between the ironing plate and the fabric.

LABEL	FABRIC	TEMPERATURE
	Synthetic (Acrylic, nylon...)	Low temperature
	silk – wool	Medium temperature
	cotton – linen	High temperature
	Do not iron

Setting the temperature

1) Place the iron vertically. Plug the device to the electrical outlet.
2) Select the temperature regulator (10) according to the symbols shown on the previous page. The chosen symbol has to be aligned with the mark placed on the tank. The iron plate temperature control light shows that iron plate (8) is warming up. Wait until light turns off to start ironing.

Caution: While ironing, control light lights up periodically indicating that temperature is constant. If you lower the thermostat, do not start ironing until the iron temperature control light turns off.

STEAM IRONING

Before using the steam check that the water contained in the tank is enough. Adjust steam power using the control knob (3). Place the steam control knob between minimum and maximum depending on the amount of steam required and temperature.

Caution: the iron provides continuous steam only if it is held in a horizontal position and if the plate is hot. It is possible to stop the continuous jet of steam by placing the iron vertically or placing the steam control (3) to "0". To avoid the dripping of water, it is recommended to only use steam at high temperatures.

WATER SPRAY

Press the water spray button (5) slowly for having dense spray; press fast for vaporized spray. Caution: make sure there is water in the tank. For delicate fibers it is advisable to moisten the article before using the spray. To prevent stains, do not use the spray over silk and synthetic fibers.

DRY IRONING

To perform dry ironing, move the steam regulator (3) in “0” position. In this position, the steam emission is disable, otherwise the water spray option is still unable.

CLEANING

Before cleaning any part of the product, ensure that the unit is unplugged from the electrical outlet and the ironing plate isn't hot anymore. Do not immerse the unit in water.

Any leftovers on the ironing plate can be removed with a damp cloth or with a non-abrasive detergents. Do not scrape the ironing plate with iron sponge or metal objects.

The plastic parts can be cleaned with a damp cloth and neutral detergent, then wiped with a dry cloth.

BEFORE STORING

• Unplug the system from the outlet.
• Empty the water tank by turning the device upside down and shake it gently.
- Allow the plate to cool down completely.
- Wrap the power cord in the back of the body.
- Leave the electric iron vertically.

TECHNICAL FEATURES

• Power supply: AC 230V\~50 Hz. 1800W power
• Water tank capacity: 150 ml

PORTUGUÊS: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
