ST-23-240-E - Heating STANLEY - Free user manual and instructions

Brand	Stanley
Model	ST-23-240-E
Product type	Electric fan heater
Rated input power	3.0 kW
Air flow	280 m³/h
Maximum heating area	30 m²
Rated voltage / Frequency	230 V ~ 50 Hz
Heating settings	2 (medium power and full power)
Weight	2.9 kg
Appliance class	Class I
Protection rating (IP)	IP20
Thermostat	Yes, adjustable mechanical
Safety	Overheat protection (automatic shut-off)
Usage	Indoor only, on a flat and stable surface
Maintenance	Wipe with a soft cloth and mild detergent; do not immerse
Spare parts	No user-serviceable parts; contact customer service

Frequently Asked Questions - ST-23-240-E STANLEY

The device does not heat up, what to do?

Check that the device is properly plugged in and that the function selector is set to a heating position (medium or full power). Make sure the thermostat is not set too low. If the indicator light is off, the overheat protection may have been triggered: unplug the device, wait 10 minutes and try again. If the problem persists, contact customer service.

How to clean the fan heater?

Unplug the device and let it cool down. Wipe the housing with a soft sponge or damp cloth with mild detergent (water below 50°C). Dry thoroughly. Do not let water enter the interior and never use solvents such as gasoline or toluene.

Can I use an extension cord?

Yes, but make sure the extension cord supports the power of the device (3.0 kW) and do not exceed the maximum load indicated on the extension cord. Use a properly sized and good condition extension cord.

What does the indicator light on the device mean?

The power indicator (red) lights up when the device is powered. If the function selector is set to a heating position, the heating element is activated and the light stays on. The light turns off if the thermostat cuts off the heating when the desired room temperature is reached.

How to set the thermostat?

First turn the thermostat to the '+' (maximum) position and let it heat. When the room has reached the desired temperature, slowly turn the thermostat to the left until the heating element turns off. The thermostat will then automatically maintain that temperature.

Why does an odor appear during first use?

This is normal. The steel heating element is coated with a protective oil that may emit a slight smoke smell during first heating. This disappears after a few minutes of use.

Is it safe to leave the heater unattended?

No. The manual clearly states: "NEVER LEAVE THE HEATER UNATTENDED WHEN IT IS CONNECTED TO A POWER SOURCE". It is imperative to always supervise the device during operation.

What area can I heat with this heater?

The maximum heating area is 30 m² for a well-insulated room. For occasional use, the 3.0 kW power is suitable for medium-sized rooms.

Can I use this heater in a bathroom?

No. The device has an IP20 protection rating and must not be used in the immediate vicinity of a bathtub, shower, or swimming pool. It is intended for indoor use in dry rooms.

How to store the heater in summer?

Let the device cool down and dry it. Cover it with a plastic bag and put it back in its packaging carton. Store it in a dry and well-ventilated place.

USER MANUAL ST-23-240-E STANLEY

Black electric heating fan with yellow handle and control buttons (no visible text or symbols)

Electric Fan Heater

EN

This product is only suitable for well insulated spaces or occasional use.

CE

RoHS

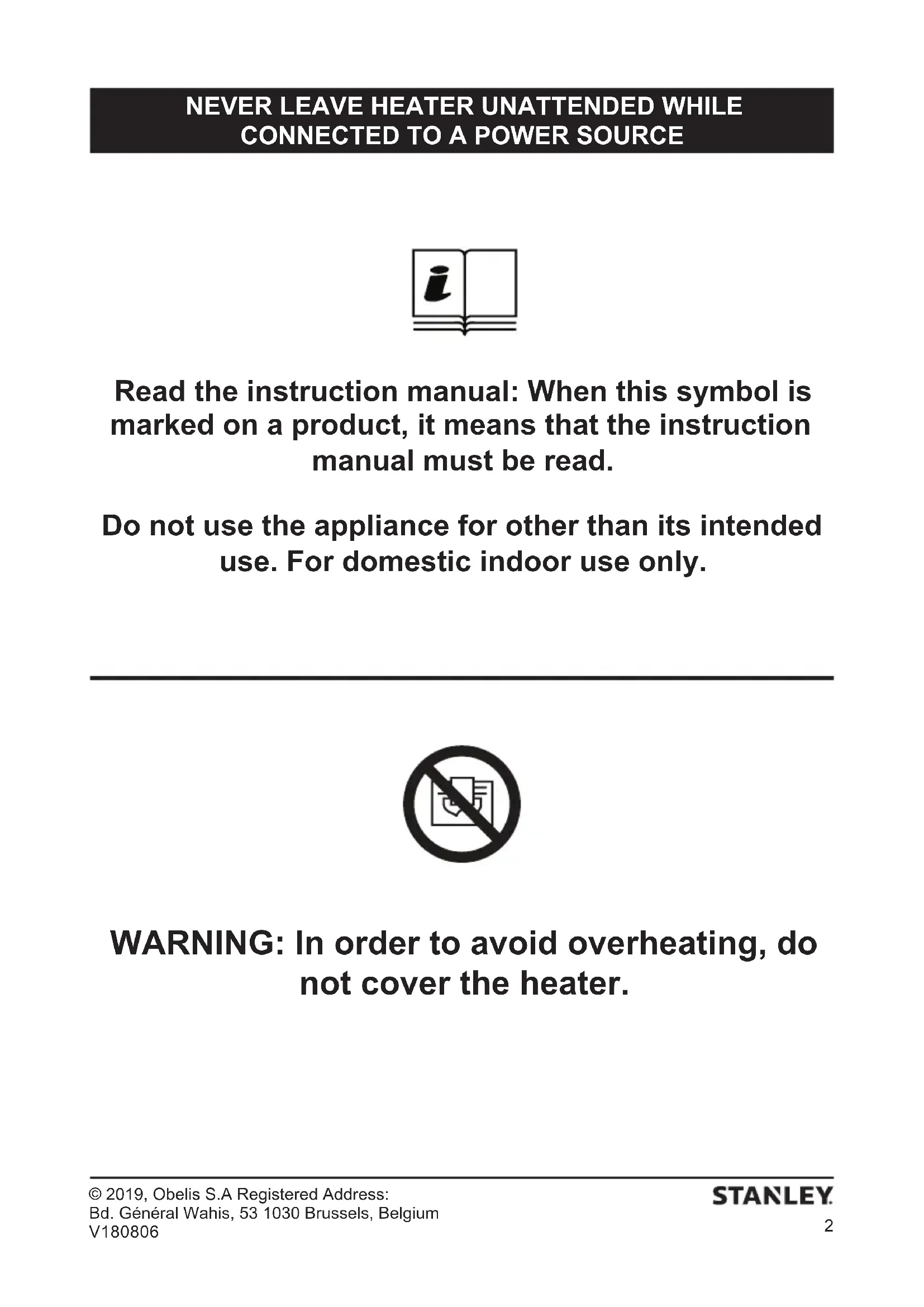

Read the instruction manual: When this symbol is marked on a product, it means that the instruction manual must be read.

Do not use the appliance for other than its intended use. For domestic indoor use only.

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

WARNING: In order to avoid overheating, do not cover the heater.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal.

By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment.

CE

Complies with European regulations applicable to this product.

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

GB PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The heater must not be located immediately below a socket-outlet.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use the appliance for other than its intended use. For domestic indoor use only.

- Place the appliance on a flat, stable, heat-resistant surface. Operating the product in any other position could cause a hazard.

- There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.

- Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside.

- CAUTION – if using an extension lead please ensure you do not exceed the maximum rated running wattage/load of the extension lead.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

ST-23-240-E

Technical diagram of a portable air conditioner with numbered parts labeled 1 through 8

GB

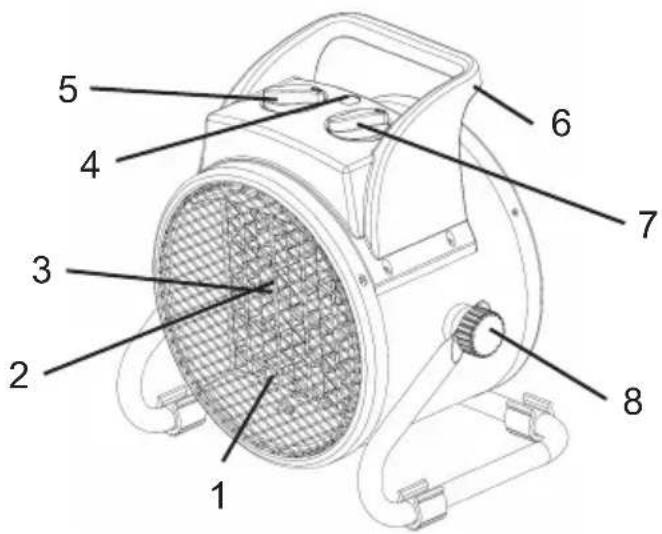

1. Front Guard
2. Fan
3. Heat Coil
4. Power Light
5. Function Selector
6. Handle
7. Thermostat
8. Adjustment Knob (x2)

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

GB

SPECIFICATIONS
Specifications subject to change without notice

	ST-23-240-E
RATED POWER INPUT (kW)	3.0
AIR FLOW ( m^3/h )	280
HEATING AREA ( m^2 ) 30
RATED VOLTAGE/FREQUENCY 230V~ 50Hz
HEAT SETTINGS 2
WEIGHT 2.9 kg
APPLIANCE CLASS 1
INGRESS PROTECTION RATING (IP) IP20
FUNCTIONS / SETTINGS
Unit is Off
Fan Runs - No Heating
Fan Runs - Half Power Heating
Fan Runs - Full Power Heating
NOTE: The fan will run continuously while the heater is operating.

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Safety Information

IMPORTANT: Read and understand all of the safety information and instructions in this manual before operating your heater.

DANGER

RISK OF EXPLOSION! Do Not operate this heater where there are harmful, explosive or flammable gasses, fumes or hazardous substances.

WARNING

RISK OF FIRE! Do Not operate this heater near combustible materials.

WARNING

ELECTRIC SHOCK HAZARD! Do not use this heater in the immediate surroundings of a bath, a shower, or a swimming pool.

WARNING

BURN HAZARD! Do Not touch the front of heater while it is operating. This heater is hot while operating.

WARNING

RISK OF INJURY! DO NOT MOVE HEATER WHILE IT IS OPERATING.

Children should be supervised so they do not play with the appliance.

ALWAYS use only the electrical power (voltage and frequency) specified on the model plate of the heater.

ALWAYS use an extension cord properly rated for this appliance.

ALWAYS ensure that all cords are protected against short circuit and overload.

ALWAYS keep power cord away from hot air outlet.

ALWAYS disconnect heater from power source when not in use.

NEVER place the heater on a small, uneven or unstable surface that may cause the heater to fall.

NEVER connect other appliances to the same electrical outlet as the fan heater.

NEVER operate heater with heater guards removed.

NEVER block hot air outlet while heater is operating.

NEVER cover or obstruct heater.

NEVER use ducting with heater.

NEVER pull or carry heater by the power cord.

NEVER use heater with an external switching device: such as a timer.

If heater is damaged, do not use it. The heater must be serviced by a qualified person or service agent.

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Operation

1. Position the fan heater so that it stands upright on a firm, level surface and at a safe distance from wet environments and flammable objects.
2. Connect the fan heater to the proper electrical power.
3. Set the thermostat dial to “+”.
4. The fan heater will switch on when the function selector dial is set to one of the power settings.
5. Once the room reaches the desired temperature, turn the thermostat dial back until heating element turns off.
6. Before you switch off the heater, please turn the thermostat to “-” and turn the switch to the fan position. Let the appliance cool down for two minutes, and only when turn of the heater and pull out the plug from the power supply.

Automatic Overheat Safety Control

- This heater is equipped with safety internal heat limiting thermostat and overheat protection circuit. When a potential overheat temperature is reached, the system will automatically shut the heater off.

Thermostat Instructions

- At first, set the thermostat to “+” and let the heater operate with full power input. When the room temperature reaches the required value, turn the thermostat to the left until it switches off.

• The thermostat will then switch on and off automatically to control the room temperature according to the preset value and keep the room temperature constant.
• When using the heater for the first time, you may notice a slight emission of smoke. This is quite normal and it stops after a short time. The heating element is made of steel and was coated with a layer of protective oil during production. The smoke is caused by the leftover oil as it is heated.

Cleaning and Maintenance

• Before cleaning the appliance, disconnect it from the outlet and let it cool down.
• The enclosure is easy to get dirty. Wipe it often with a soft sponge. For very dirty parts, wipe with a sponge dipped in < 50°C water and mild detergent, then dry the heater enclosure with a clean cloth. Be careful not to let the water enter the inside of the appliance
• In order to protect the enclosure, don't splash water onto the heater, and never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater.
• When you store the heater, let it cool down first and, keep it dry. Then cover it with a plastic bag, put it in the packing box and store it in a dry, ventilated place.

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Troubleshooting

Problem Cause Solution
The heater does not run, even when it is plugged in and the thermostat is switched on	1. The plug is loose, bad connection.	1. Pull out the plug, check the connection of the plug and socket. Then connect again.
The heating element is glowing	1. The input voltage is too high or too low2. The air inlet grill is blocked.	1. Use correct power supply stated on the rating label.2. Keep the heater away from items such as; plastic bags, paper, and other items that can cover the air inlet.
The appliance didn't heat up, only the ventilator worked.	1. The switch was not on a heat setting2. Desired room temperature reached3. The self-resetting cut-out initiated	1. Turn the switch to the desired heat setting2. Thermostat will shut off once desired room temperature is reached.Heater is operating correctly.3. Turn the heater off and inspect the blockage of inlet or outlet. Disconnect the plug and wait at least 10 minutes for the protection system to reset before attempting to restart the heater.
Abnormal noise.	1. The appliance is not standing upright.	1. Place the heater on a level surface.

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): ST-23-240-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	3.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.5	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
					Electronic heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	3.0	kW		fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ekB	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

STANLEY®

SERVICE

Belgique et LuxemburgBelgié en Luxembourg	E. Walschaertstraat 142800 MechelenBelgium	[e-mail]-NL= [phone]BE-FR = [phone]BE Fax: [phone]
Danmark Roskildevej 22	2620 Albertslund	[e-mail]: 70224910
Deutschland Richard Klinger Str. 1165510 Idstein		[e-mail]: 06126-21-1Fax: [phone]
Ελλάς Ημερος Τόπος 2 - Χόνι Αδάμ Ασπρόπυργος-19300 -Αττική - Αττικής		[e-mail]Τηλ: [phone]Φαξ: [phone]
España Parque de Negocios "Mas Blau"Edificio Muntadas, c/Bergadá, 1, Of. A608820 El Prat de Llobregat (Barcelona)		[e-mail]: 934 797 400Fax: [phone]
France 5, allée des hêtresBP 30084, 69579 Limonest Cedex		[e-mail]: 04 72 20 39 77Fax: [phone]
SchweizSuisseSvizzeraIn der Luberzen 428902 Urdorf		[e-mail]: 044 - 755 60 70Fax: 044 - 730 70 67
Ireland 210 Bath Road; Slough, Berks SL1 3YD UK www.stanleytools.co.uk		Tel: [phone]Fax: [phone]
Italia Energypark-Building 03 sud, Via Energy Park6 20871 Vimercate (MB)		www.stanley.itTel. 039-9590-200Fax [phone]
Nederlands Stanley Black & Decker Netherlands B.V.Postbus 836120 AD Born		[e-mail]: [phone]NL Fax: [phone]
Norge Postboks 4613, Nydalen0405 Oslo		[e-mail]: 45 25 08 00
Österreich Oberlaaerstrasse 248A-1230 Wien		[e-mail]: 01 - 66116 - 0Fax: 01 - 66116 - 14
Portugal Quinta da Fonte - Edificio Q55 D. DinizRua dos Malhões, 2 e 2A - Piso 2 Esquerdo2770 - 071 Paço de Arcos		[e-mail]: 214 66 75 00Fax: [phone]
Suomi PL 4700521 Helsinki		[e-mail]: 010 400 4333
Sverige Box 94431 22 Mölndal		[e-mail]: 31 68 60 08

United Kingdom	210 Bath Road; Slough, Berks SL1 3YD	www.stanleytools.co.ukTel: [phone]Fax: [phone]
Hungary Rotel Kft.	1163 Budapest,Thököly út 17.	[e-mail] [phone]Fax[phone]
Czech Republic	BAND SERVIS CZ s.r.o.K Pasekam 4440760 01 Zlin, Czech Republic	www.stanleyworks.czhttp://www.bandservis.czTel.: [phone]Fax.: [phone]
Slovakia	BAND SERVIS s.r.o.Paulinska 22917 01 Trnava, Slovakia	www.bandservis.skTel.: [phone]Fax.: [phone]
Poland Erpatech	ul. Bakaliowa 2605-080 Mościska	www.stanleyworks.plTel.: [phone]Fax.: [phone]
Slovenia G-M&M d.o.o.	Brvace 111290 Grosuplje Slovenija	[e-mail]: [phone]F: [phone]
Cyprus	IOANNOU J.4A Ath.Diakou street1046- Nicosia -Cyprus	[e-mail]: [phone]Fax: [phone]
Bosnia-Herzegovina	G-M&M d.o.o.Brvace 111290 GrosupljeSlovenija	[e-mail]: [phone]F: [phone]
Bulgaria	TASHEV-GALVING LTD68 KLIMENT OHRIDSKI BLVD.1756 Sofia, Bulgaria	www.tashev-galving.comT: [phone]F: [phone]
Croatia G-M&M d.o.o.	Brvace 111290 GrosupljeSlovenija	[e-mail]: [phone]F: [phone]
Estonia AS Tallmac	Mustame tee 44,EE-10621 Tallinn	www.tallmac.ee/estT: [phone]F: [phone]
Latvia LIC GOTUS SIA	Ullbrokas Str.LT - 1021 Riga	www.licgotus.lvT: [phone]F: [phone]
Lithuania	UAB ELREMTA OUNeries kr. 16ELT - 48402 Kaunas	[e-mail]: [phone]F: [phone]
Malta Energypark-Building	03 sud, Via Energy Park6 20871 Vimercate (MB)	www.stanley.itTel. 039-9590-200Fax [phone]
Romania	Stanley Black & DeckerPhoenicia Business CenterStrada Turturelelor, nr 11A, Etaj 6, Modul 15,Sector 3 Bucuresti	www.stanleyworks.roT: +4021.320.61.04/05F: +4037.225.36.84
Serbia	G-M&M d.o.o.Brvace 111290 GrosupljeSlovenija	[e-mail]: [phone]F: [phone]

STANLEY®

Art.-Nr.: 957071

Celler Straße 47, D-29614 Soltau

www.hagebau.de

STANLEY®

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A.

Registered Address:

1030 Brussels, Belgium

STANLEY®

Black electric heating fan with grid grille and yellow handle (no visible text or symbols)

Prohibition sign with a diagonal line and document icon, indicating no text or document.

Technical diagram of a portable air conditioner with numbered parts labeled 1 through 8

DE

Celler Straße 47, D-29614 Soltau

www.hagebau.de

STANLEY®

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A.

Registered Address:

1030 Brussels, Belgium

STANLEY®

Black electric heating fan with heat sink and yellow handle (no visible text or symbols)

Prohibition sign with crossed-out document and paper icon, indicating no text or document restrictions

Celler Straße 47, D-29614 Soltau

www.hagebau.de

STANLEY®

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A.

Registered Address:

1030 Brussels, Belgium
