Masterchef Gourmet+ QA613DB1 - Food Processor MOULINEX - Free user manual and instructions

Product type	Multifunction food processor
Brand	Moulinex
Model	Masterchef Gourmet+ QA613DB1
Dimensions (L x D x H)	Approximately 40 x 30 x 35 cm
Weight	Approximately 8 kg
Power supply	220-240 V, 50/60 Hz
Power	1500 W
Main bowl capacity	5 L
Blender bowl capacity	1.5 L
Main functions	Knead, whisk, mix, chop, blend, cut, grate, slice, juice (citrus depending on model)
Included accessories	Whisk, flat beater, dough hook, blender bowl, metal knife, vegetable cutting discs, grating drum, pusher
Materials	Die-cast aluminum alloy body, stainless steel bowl, food-grade plastic and stainless steel accessories
Speeds	Variable speed + pulse function
Safety	Automatic shutdown in case of overload, head lock, start safety if accessories incorrectly assembled
Cleaning	Bowl and accessories dishwasher safe, wipe body with a damp cloth
Maintenance	Very sharp blades: handle with care
Spare parts	Available at Moulinex authorized service centers
Repairability	Repairability index: 7.5/10 (estimated)
Warranty	2 years (excluding wear parts)
Use	Household only, indoors, altitude < 2000 m
Standards	Complies with European directives

Frequently Asked Questions - Masterchef Gourmet+ QA613DB1 MOULINEX

What to do if the appliance does not start?

Check that the multifunction head is properly locked in the down position and that the bowl is correctly engaged. Make sure the speed selector is on a position other than 0. If the problem persists, contact an authorized service center.

Can I use hot liquids in the blender bowl?

No, never pour boiling liquid (above 80°C) into the blender bowl. Wait for the liquid to cool to avoid splashes and risk of burns.

How to clean the blender bowl blades?

The blades are very sharp. Remove the metal knife by its drive shaft before emptying the bowl. Wash it by hand with a brush or in the dishwasher (top rack). Handle with care to avoid injury.

Can children use this appliance?

Children under 8 years old should not use the appliance. Children aged 8 and above may use the whisk and grating accessories only under adult supervision. Cleaning should not be done by children under 8.

Which accessories can I use simultaneously?

Only one accessory at a time. Never use the appliance with multiple accessories at the same time. Before changing an accessory, turn off and unplug the appliance.

Can I put the plastic bowl in the microwave?

No, the bowls and accessories are not designed for cooking, freezing or microwave. Use them only for food preparation.

How to set the speed for kneading bread dough?

Use the dough hook and select speed 1 or 2 for heavy doughs. Do not exceed the maximum amount of flour indicated in the user manual (generally 500 g).

What to do if the appliance stops during use?

This may be due to overload. The appliance is equipped with a safety device that cuts off the power. Let it cool for a few minutes, reduce the quantity of ingredients and restart.

Can I wash the appliance body with water?

No, never immerse the motor unit, cord or plug in water. Wipe it with a damp cloth. Accessories and bowl can go in the dishwasher.

Where to find spare parts?

Spare parts (bowls, blades, whisks, etc.) are available at Moulinex authorized service centers. Consult the list in the service booklet provided with the appliance.

USER MANUAL Masterchef Gourmet+ QA613DB1 MOULINEX

SOLO PARA LOS MERCADOS EUROPEOS

Symbol image showing a trash bin with crossed lines and a recycling symbol, indicating waste sorting or recycling.

SOLO PER I MERCATI EUROPEI

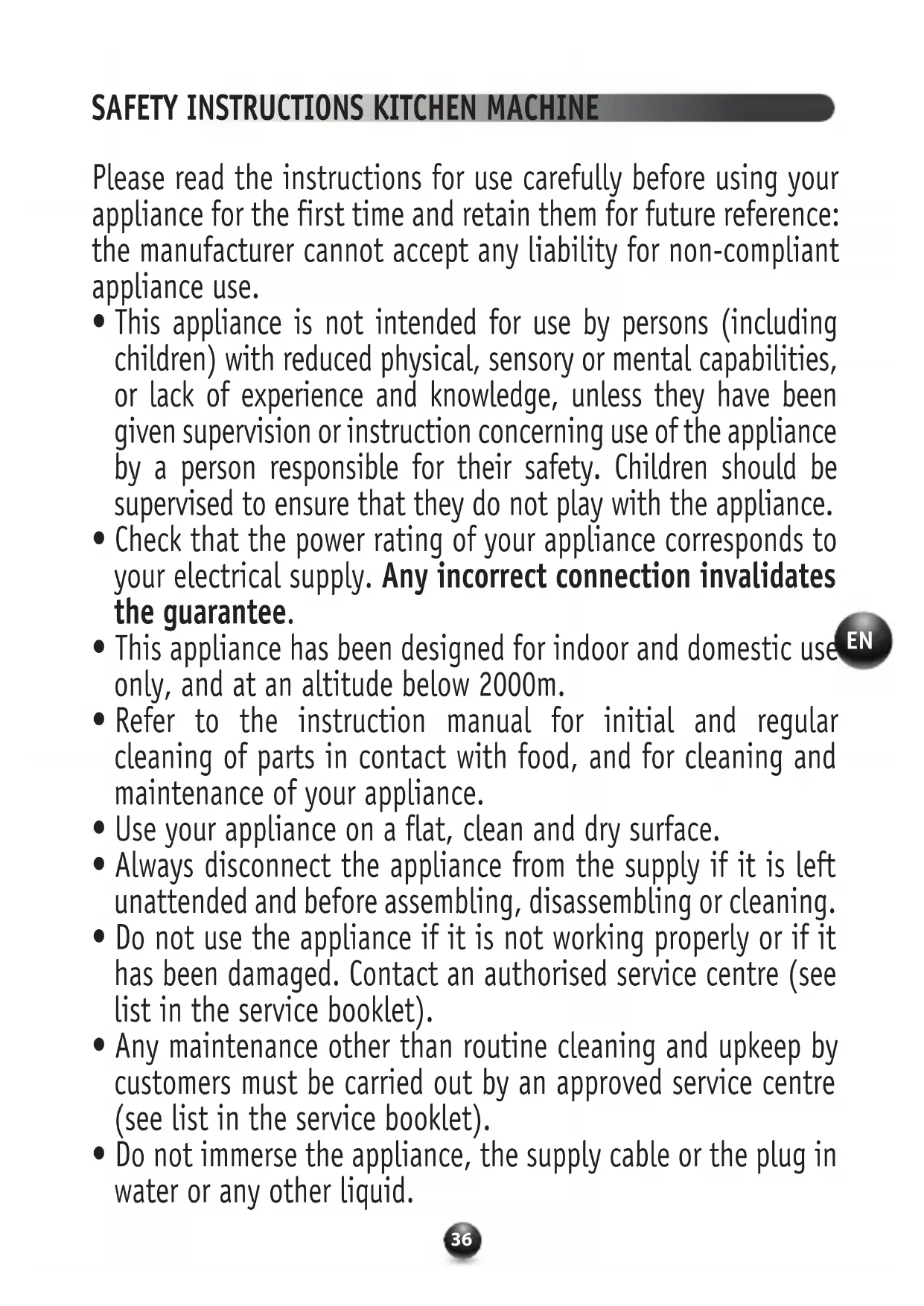

SAFETY INSTRUCTIONS KITCHEN MACHINE

Please read the instructions for use carefully before using your appliance for the first time and retain them for future reference: the manufacturer cannot accept any liability for non-compliant appliance use.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Check that the power rating of your appliance corresponds to your electrical supply. Any incorrect connection invalidates the guarantee.
• This appliance has been designed for indoor and domestic use only, and at an altitude below 2000m.
• Refer to the instruction manual for initial and regular cleaning of parts in contact with food, and for cleaning and maintenance of your appliance.
• Use your appliance on a flat, clean and dry surface.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Do not use the appliance if it is not working properly or if it has been damaged. Contact an authorised service centre (see list in the service booklet).
• Any maintenance other than routine cleaning and upkeep by customers must be carried out by an approved service centre (see list in the service booklet).

• Do not immerse the appliance, the supply cable or the plug in water or any other liquid.

• The power cord must be kept out of the reach of children and must not be placed near or come into contact with the hot parts of the appliance, sources of heat or sharp corners.

• Do not pull on the power cord to unplug the appliance.
• Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by an authorized service center (see the list in the service booklet) in order to avoid danger.
• For your own safety, use only accessories and spare parts designed for your appliance and sold in an approved service centre.
• Remember: you may injure yourself if you use the appliance incorrectly.
• The blades of the mixing bowls, the mincing head, the mini-chopper, the grinder, the drums, the vegetable-cutting discs, the metal knife (depending on the model) are very sharp: please ensure you handle these parts with extreme caution to avoid injury.
• You must remove the metal knife from its drive before you empty the bowl of its contents (depending on the model).
• All accessories that can be mounted in the upper part of the multifunctional head must be removed prior to operating the release button for this head.
• Never touch moving parts and always wait for the appliance to come to a complete halt before removing the accessories.
• Do not touch the beaters, the mixer, nor the kneader when the appliance is in operation.
• Do not allow long hair, scarves, ties etc. to dangle over the appliance during operation.

• Never push utensils (spoon, spatula, etc.) or your finger or any other object through the funnel of the lid, body and tray as well as the drum chamber (G1) (accessories depending on model). Always use the pusher provided to guide the food.

• Do not operate the mixing bowl without its lid.

• Only use one accessory at a time.
• Never fill the mixing bowl with a boiling liquid (above 80°C, 176°F).
• Do not use any of the accessories when the bowl is empty or mix solid ingredients only.
• Never remove the lid until the appliance has come to a complete halt.
• When using the mixing bowl, always put in the liquid ingredients before the solid ingredients.
• Do not use the accessories as containers (freezing, cooking, sterilisation, microwave, etc.)
• Never use this appliance with items other than food ingredients. In order to avoid overflowing, do not go over the maximum level of the bowl or the maximum quantity indicated in the user instructions.
• Do not use the appliance if the rotating sieve or the protecting cover of the juice extractor (according to model) is damaged or has a visible crack.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• This device is intended for use for domestic use only and is not intended for:

– staff kitchen areas in shops, offices and other working environments;

- farm houses;

– by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

• Refer to the instruction manual for the assembly and disassembly of the accessories on the appliance.
• Refer to the user instructions for speed control and time of use for each accessory.

EUROPEAN MARKETS ONLY

• For all accessories except whisk and graters: This device should not be used by children. Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.
• The beating, grating and reibekuchen accessories can be used by children aged 8 years and over if they have been given supervision or instruction on how to use the appliance in a safe way and if they understand the hazards involved. Cleaning and maintenance of the appliance must not be performed by children, unless they are 8 years of age or older and under the supervision of an adult. Keep the appliance and its cord out of the reach of children under the age of 8.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

The packaging is comprised exclusively of materials that present no danger for the environment and which may therefore be disposed of in accordance with the recycling measures in force in your area.

For disposing of the appliance itself, please contact the appropriate service of your local authority.
