Product Type	Freestanding fridge-freezer
Brand	Thomson
Model	THD421NFSL
Dimensions (H x W x D)	1780 x 700 x 680 mm
Net weight	70 kg
Total volume	415 L
Fridge volume	321 L
Freezer volume	94 L (4 stars)
Energy efficiency class	E
Annual consumption	244 kWh/year
Climate class	Temperate, subtropical, tropical (16°C to 43°C)
Refrigerant	R600a (isobutane) / 56 g
Defrost system	Automatic frost-free (No Frost)
Lighting	LED, class G (professional replacement)
Fridge temperature settings	5 settings: 2°C, 3°C, 4°C, 6°C, 8°C
Freezer temperature settings	3 settings: COLD, COLDER (recommended), COLDEST
Power Cool function	Yes (rapid cooling, 3 hours)
Button lock	Yes (long press 3 seconds, auto-lock after 1 min)
Power failure autonomy	14 hours
Freezing capacity	4.4 kg/24h
Rated power	140 W
Voltage / Frequency	220-240 V ~ 50 Hz
Rated current	1.3 A
Reversible doors	Yes (reversal possible by technician)
Adjustable feet	Yes (front)
Warranty	2 years

Frequently Asked Questions - THD421NFSL THOMSON

How to adjust the fridge temperature?

Press the FRIDGE button repeatedly to select the desired temperature from the 5 settings: 2°C, 3°C, 4°C, 6°C, 8°C. The corresponding indicator light turns on.

How to adjust the freezer temperature?

Turn the control knob inside the freezer compartment to one of the 3 positions: COLD (cold), COLDER (colder, recommended), COLDEST (coldest).

What to do in case of a power cut?

Do not open the appliance door. Frozen food will stay intact for up to 14 hours. Do not refreeze fully thawed food, as consuming it could be dangerous.

How to clean the inside of the fridge?

Unplug the appliance and remove the food. Use a soft cloth with warm water and a little liquid detergent. Do not use solvent or abrasive cleaner. Clean the door seals with clear water. The shelves and door bins can be washed with soapy water.

How to activate the Power Cool function?

Make sure the keypad is unlocked (press LOCK 3s for 3 seconds if necessary). Then press POWER COOL; the indicator lights up. The function automatically deactivates after 3 hours. To deactivate it manually, press POWER COOL again.

How to reverse the door opening direction?

This operation is delicate and requires a qualified technician. You can also do it yourself by following the detailed procedure in the manual: disassembly of hinges, transfer of pins, and repositioning of doors. Make sure the appliance is unplugged and empty.

What to do if the appliance is not cooling enough?

First check the temperature setting. Make sure the doors are not opened too frequently. If a large amount of food has been added recently, allow time for the temperature to stabilize. Avoid overloading the appliance.

How to optimize energy consumption?

Place the appliance in a ventilated area, away from sunlight and heat sources. Let warm food cool down before storing. Thaw frozen food in the fridge to use its cold. Open the doors as little and as briefly as possible.

What is the coldest zone of the fridge?

The coldest zone is at the bottom, above the vegetable drawer. On No Frost models (like the THD421NFSL), the temperature is homogeneous, so the coldest zone symbol is not shown. Use the provided temperature indicator to check the setting.

How to make ice cubes?

Fill an ice cube tray (not supplied) 3/4 full with drinking water and place it in a freezer drawer. To unmold, twist the tray slightly or briefly run it under cold water. Only use drinking water.

USER MANUAL THD421NFSL THOMSON

Interior view of a modern stainless steel refrigerator with two doors open, showing empty shelves and doors (no visible text or symbols)

Table des matières

AVERTISSEMENTS....2

CONSIGNES DE SÉCURITÉ IMPORTANTES ....8

DESCRIPTION DE L'APPAREIL....8

AVANT D'INSTALLER L'APPAREIL 10

INSTALLATION ....10

TEMPÉRATURE AMBIANTE....10

AVANT DE PLACER DES ALIMENTS DANS L'APPAREIL....10

COUPURE DE COURANT....10

RÉGLAGE DES TEMPÉRATURES ET DES FONCTIONS....11

DÉPLACER VOTRE APPAREIL....13

CONSERVATION DES ALIMENTS DANS LE COMPARTIMENT DE RÉFRIGÉRATION ....13

CONGÉLATION ET CONSERVATION DES ALIMENTS DANS LE COMPARTIMENT DE CONGÉLATION .....17

FABRICATION DE GLAÇONS....21

DÉGIVRAGE 21

INVERSION DES PORTES 22

CONSEILS D'ÉCONOMIE D'ÉNERGIE....25

BRUITS DE FONCTIONNEMENT....25

NETTOYAGE ET ENTRETIEN 25

GUIDE DE DÉPANNAGE 26

SPÉCIFICATIONS 27

FICHE D'INFORMATION SUR LE PRODUIT....28

SERVICE DE RÉPARATION ET PIÈCES DE RECHANGE....30

MISE AU REBUT....31

MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT AVANT L'UTILISATION DE L'APPAREIL ET DE LES CONSERVER POUR CONSULTATION ULTERIEURE.

AVERTISSEMENTS

Illustration of a milk carton with eggs and a plate of cheese (no text or symbols)

Viande rouge

Simple line drawing of a biological or geological cross-section (no text or symbols)

Volaille

Simple line drawing of a roasted chicken with legs and decorative base (no text or symbols)

Illustration of a fish with fins and scales (no text or symbols)

Simple line drawing of a four-pipe with toppings (no text or symbols)

Illustration of fresh vegetables including carrots, tomatoes, and a gourd (no text or symbols)

Technical line drawing showing a mechanical assembly before and after modification (no text or symbols)

Technical line drawing showing two views of a table frame with a handle and a load, no text or symbols present.

Technical line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Simple line drawing of a mechanical structure with pulleys and a circular inset showing a component (no text or symbols)

Simple line drawing of a crane support structure with an inset circular detail showing a vertical joint (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a flat electronic device with a cable inserted, showing no text or symbols

Line drawing of a rectangular electronic device with a slot and cable inserted (no text or symbols)

Simple line drawing of a person climbing a ladder (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with no text or symbols

CONSEILS D'ÉCONOMIE D'ÉNERGIE

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/347281

SERVICE DE RÉPARATION ET PIÈCES DE RECHANGE

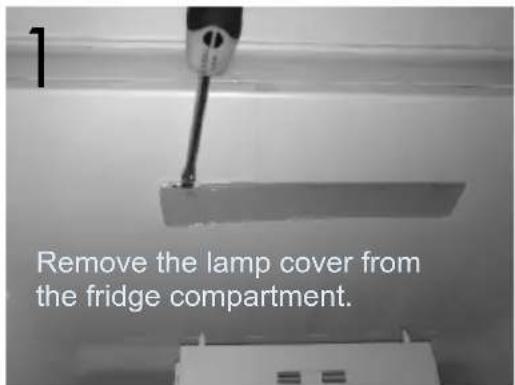

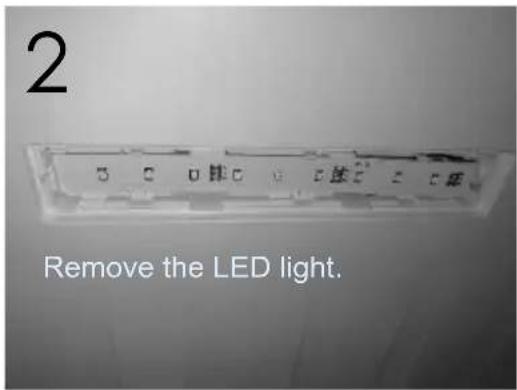

2 Retirez la lampe LED.

Warning symbol with exclamation mark inside a downward arrow (no text or numbers)

Diagram showing a refrigerator with an open door and a labeled component, illustrating the internal structure and assembly.

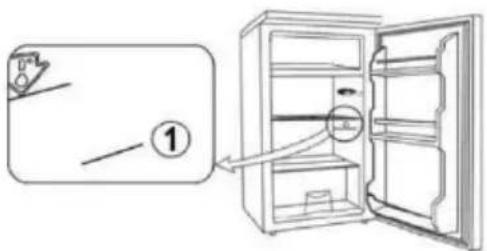

VERIFICATION DE LA TEMPERATURE DANS LA ZONE LA PLUS FROIDE

IMPORTANT SAFETY INSTRUCTIONS....6

NAMES OF PARTS 7

BEFORE INSTALLING THE APPLIANCE....8

INSTALLATION 8

AMBIENT TEMPERATURE 9

BEFORE PLACING FOOD IN THE APPLIANCE 9

POWER FAILURE 9

ADJUSTING THE TEMPERATURES AND FUNCTIONS....9

MOVING YOUR APPLIANCE 10

STORING FOOD IN THE FRIDGE COMPARTMENT 11

FREEZING AND STORING FOOD IN THE FREEZER COMPARTMENT 14

MAKING ICE CUBES 17

DEFROSTING 18

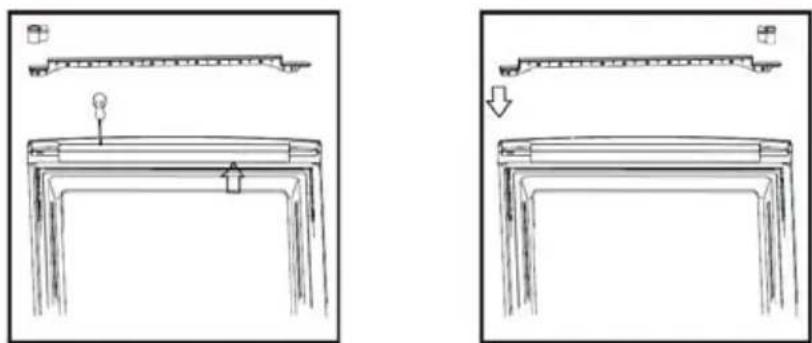

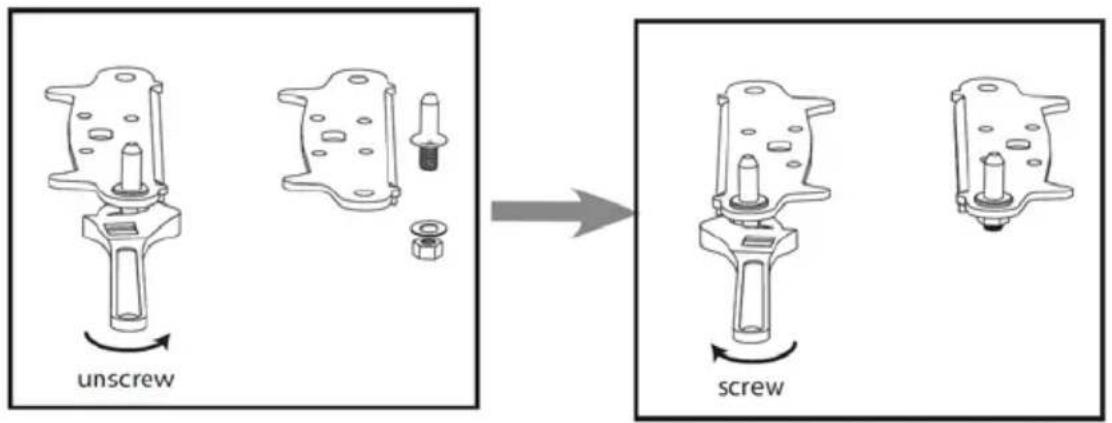

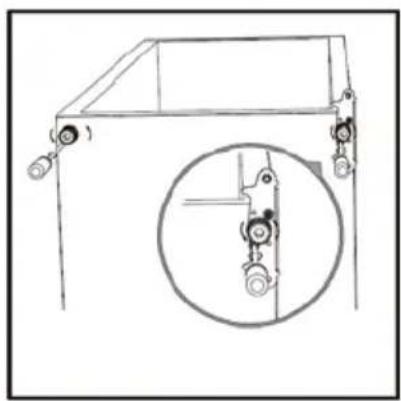

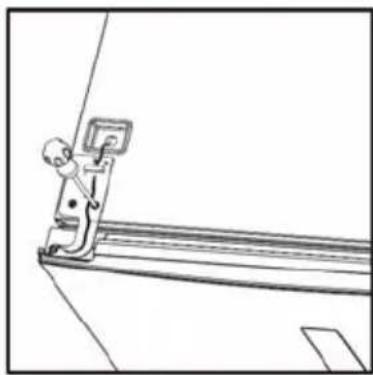

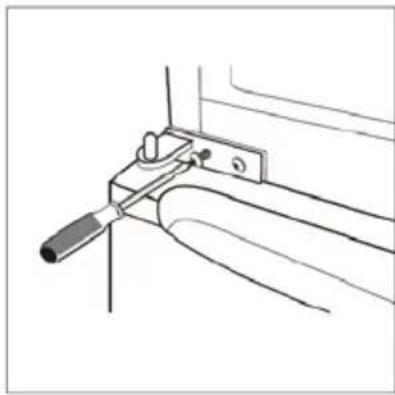

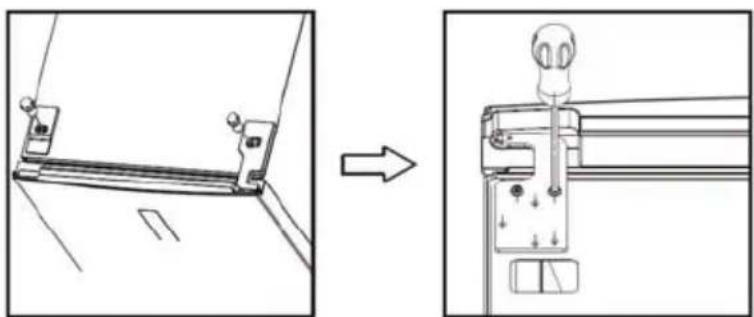

DOOR CONVERSION 18

TIPS FOR SAVING ENERGY 20

OPERATING NOISES....21

CLEANING AND MAINTENANCE 21

TROUBLESHOOTING 22

SPECIFICATIONS 23

PRODUCT INFORMATION SHEET....24

REPAIR AND SPARE PARTS SERVICE....26

DISPOSAL 27

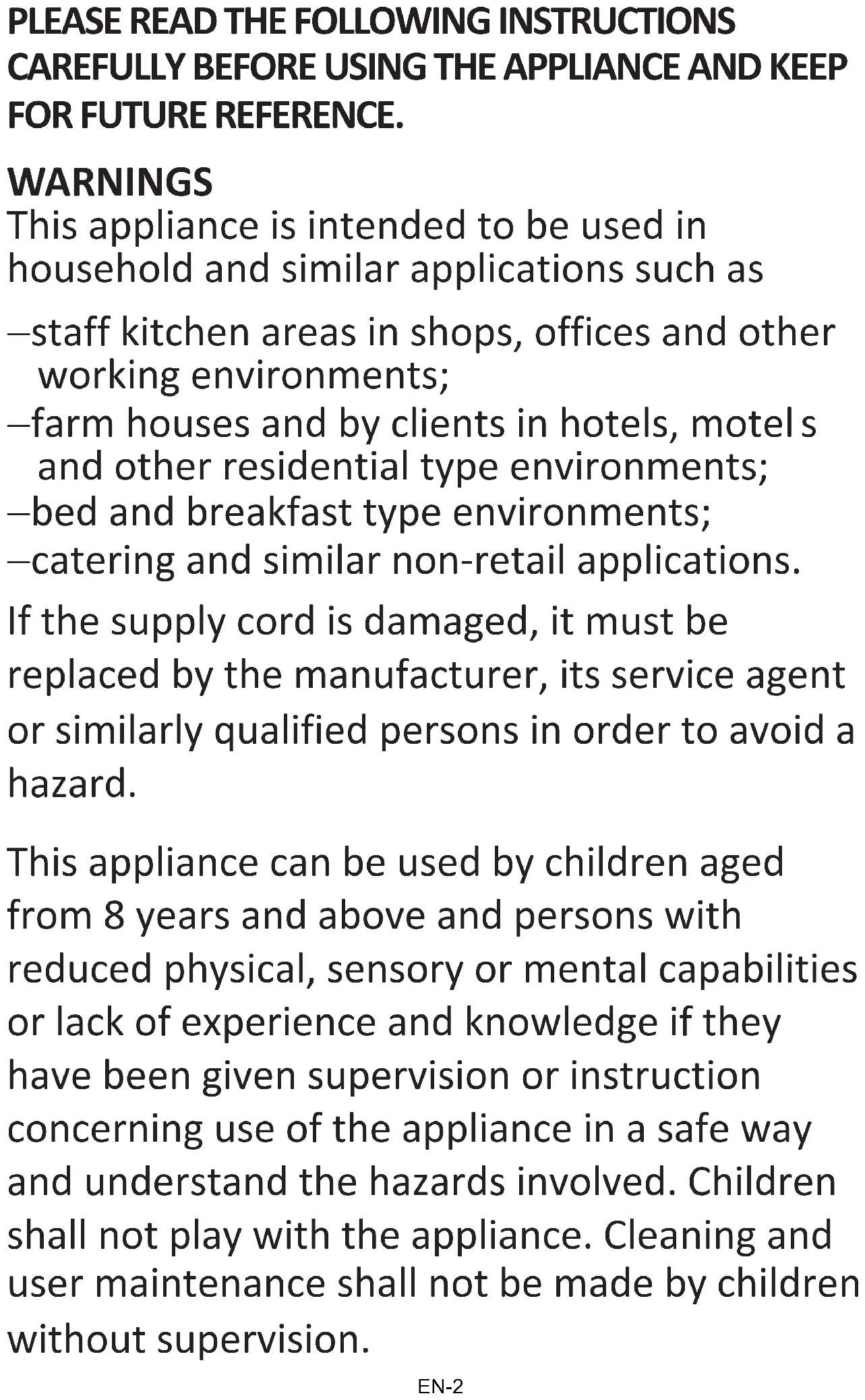

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNINGS

This appliance is intended to be used in household and similar applications such as

—staff kitchen areas in shops, offices and other working environments;
—farm houses and by clients in hotels, motels and other residential type environments;
—bed and breakfast type environments;
—catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section “Cleaning and Maintenance” in pages EN-21&22.

The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as 5&6+s+l cans with a flammable propellant in this 500li57c&.

WARNING: F+6 /5ki7g ic& (ic& cub&s), us& 0+"5bl& w5"&6 +7ly.

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done

through public collection points; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

For installation, servicing:

Appliance should be placed on a horizontal floor and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary.

For handling:

Always handle the appliance to avoid any damage.

Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

Warning; Risk of fire / flammable materials

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  • Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
  — One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

IMPORTANT SAFETY INSTRUCTIONS

• If you are discarding an old fridge freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause 'freezer burns' on the lips.
• Do not stand or support yourself on the base or door, etc.
• Effervescent drinks should not be stored in the freezer compartment.

Dispose of your old appliance

Fridge freezers contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

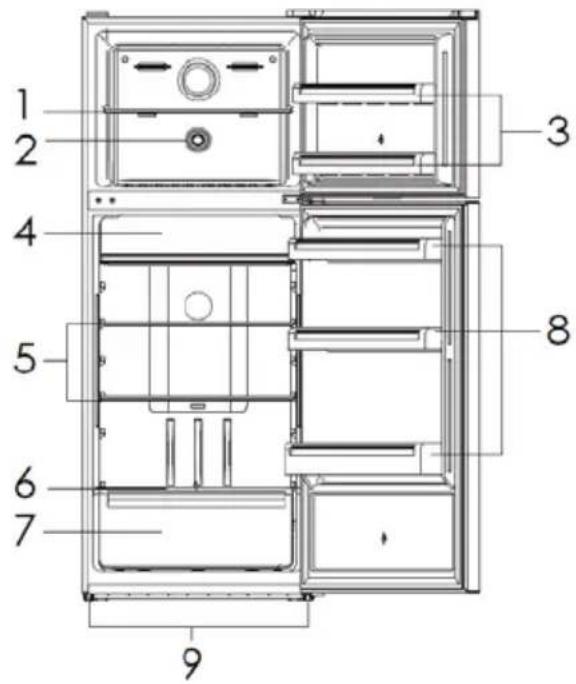

NAMES OF PARTS

1 2 3 4 5 6 7 8 9

Recommended food arrangement

Refrigerator compartment (2°C \~ 4°C)

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Top sectio n:	canned food, bread, cake... dairy
Middle section:	products, readymade food, desserts...
Bottom section:	meat, meat products, delicatessen ... fresh fruit, vegetables, salads...
Container:

Freezer compartment (-14°C \~ -22°C)

Freezer drawers:

Freezing, storage of frozen food

1. Freezer shelf
2. Freezer temperature control
3. Freezer door shelves
4. Cool box
5. Fridge shelves
6. Vegetable container cover with humidity control
7. Vegetable container
8. Fridge door shelves
9. Adjustable feet

Refrigerator door shelves (2°C \~ 8°C)

Top section:	eggs, butter, cheese...
Middle section:	beverages, cans, bottles...
Bottom section:	beverages, cans, bottles...

Recommended Food Arrangement

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Refrigerator compartment:

Top section: canned food, bread, cake...

Middle section: dairy products, readymade food, desserts...

Bottom section: meat, meat products, delicatessen ...

Containers: fresh fruit, vegetables, salads...

Refrigerator door shelves:

Top/middle section: eggs, butter, cheese...

Bottom section: beverages, cans, bottles...

Freezer compartment:

Freezing, storage of frozen food

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet.

For uneven surfaces, front feet can be aligned.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature between 16^ C and 43^ C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18^ C and food spoilage may occur.

BEFORE PLACING FOOD IN THE APPLIANCE

• Remove all packaging.
• Allow the appliance to run empty for 2 – 3 hours so the compartments can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

POWER FAILURE

If there is a power failure, do not open the doors of the appliance. Frozen food should not be affected if the power failure lasts for less than 14 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

ADJUSTING THE TEMPERATURES AND FUNCTIONS

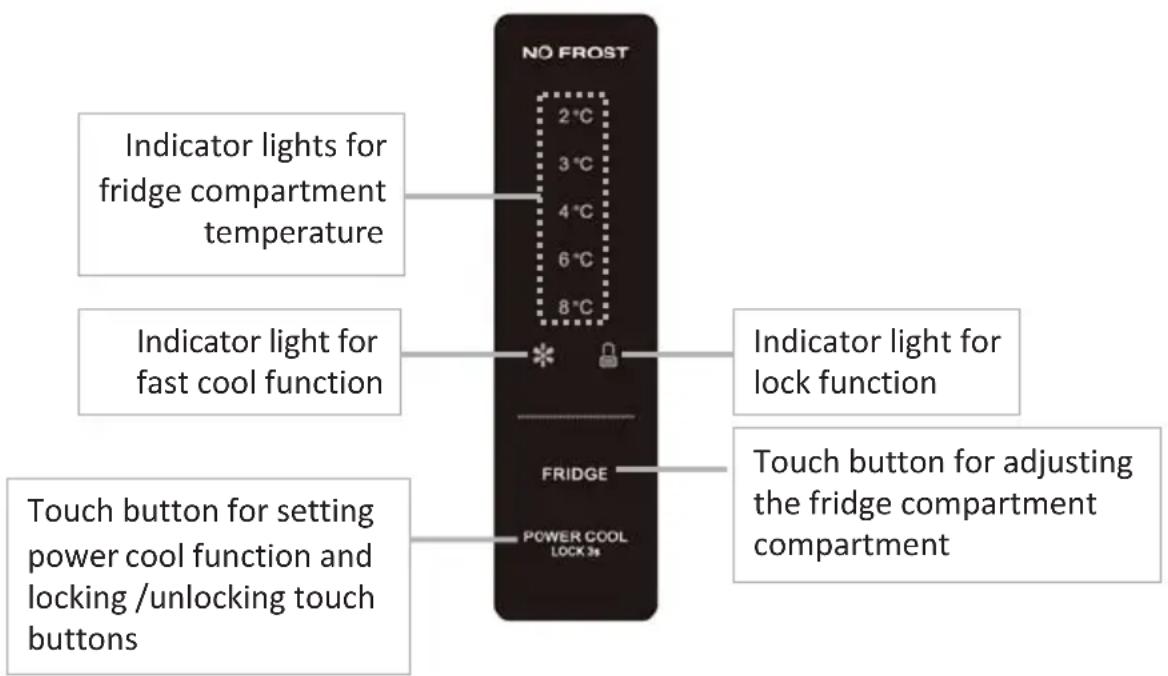

Control Panel and Display

NO FROST 2°C 3°C 4°C 6°C 8°C Indicator lights for fridge compartment temperature Indicator light for fast cool function Indicator light for lock function Touch button for setting power cool function and locking /unlocking touch buttons FRIDGE Power COOL LOCK 3# Touch button for adjusting the fridge compartment compartment

Setting the Fridge Compartment Temperature

Repeatedly touch to select the desired temperature.

• The corresponding temperature indicator light will i Iluminate.
• There are 5 temperature settings for choice: 2^ , 3^ , 4^ , 6^ and 8^ .

Setting the Freezer Compartment Temperature

There is a temperature control knob inside the freezer compartment.

You can set the freezer compartment temperature by turning this control knob.

There are 3 settings: COLD, COLDER and COLDEST.

It is recommended to turn this control knob to the COLDER position for normal use.

COLD COLDER RECOMMENDED COLLEST

Power cool function

You can use this function to increase the cooling capacity of the fridge compartment when placing larger amounts of food within it.

POWER COOL

- To activate this function, in unlock state press and the indicator light will illuminate.

- This function will be automatically deactivated after about 3 hours and the fridge compartment will return to the previous selected temperature setting.

POWER COOL

- To deactivate this function, in unlock state press out.

LOCK 3s and the indicator light will go

Lock/Unlock

POWER COOL

- To lock buttons, touch and hold for 3 Lockords. The lock indicator light will illuminate. In the lock state, all buttons will be disabled.

POWER COOL

- To unlock buttons, touch and hold LOCK 3s again for 3 seconds. The lock indicator light will go out.

NOTE: In the unlock state, if there is no operation of any button for about 1 minute, the system will automatically enter the lock state.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalize before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the appliance to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing

upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

STORING FOOD IN THE FRIDGE COMPARTMENT

The refrigerator compartment helps to extend the storage times of fresh perishable foods.

Fresh food care

For best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
• Cool hot foods down before placing them in the refrigerator compartment.

Dairy foods and eggs

• Most pre-packed dairy foods have a recommended ‘use by /best before/best by/’ date stamped on them. Store them in the refrigerator compartment and use within the recommended time.
• Butter can become tainted by strong smelling foods so it is best stored in a sealed container.
• Eggs can be stored in the refrigerator compartment.

Illustration of a milk carton with eggs and a glass, no text or symbols present

Red meat

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
• Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Simple line drawing of a bone structure (no text or labels)

Poultry

• Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.
• Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Line drawing of a whole roasted chicken with leafy sides (no text or symbols)

Fish and seafood

- Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.

- If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.

- Keep shellfish chilled at all times. Use within 1 – 2 days.

Illustration of a fish with scales and decorative elements (no text or symbols)

Precooked foods and leftovers

- These should be stored in suitable covered containers so that the food will not dry out.

- Keep for only 1 – 2 days.

- Reheat leftovers only once and until steaming hot.

Simple line drawing of a slice of pizza with visible toppings (no text or symbols)

Vegetable and fresh fruit

- The vegetable container is the optimum storage location for fresh fruit and vegetables.

•Take care not to store the following at temperatures of less than 7^ C for long periods:

Illustration of fresh vegetables including carrots, broccoli, and a squash (no text or symbols)

Citrus fruit, melons, aubergines, pineapple, papaya, courgettes, passion fruit, cucumber, peppers, tomatoes

• Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
• Do not refrigerate avocados (until they are ripe), bananas, and mangoes.

Adjusting the vegetable container humidity

The vegetable container cover has a humidity control slider. You can use this slider to adjust the desired humidity according to the humidity and cooling condition of your food in the vegetable container.

Fruits << LOW Vegetables

Move the slider towards Fruits for thicker vegetables or fruits with skin.

Move the slider towards vegetables for leafy vegetables or more delicate fruits.

FREEZING AND STORING FOOD IN THE FREEZER COOMPARTMENT

Using the freezer compartment

• To store deep-frozen food.
- To make ice cubes.
- To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the ‘use by /best before/best by/’ date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer drawers.

Storing frozen food

Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

● The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a ‘use by /best before/best by/’ date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

MAKING ICE CUBES

Fill the ice cube tray (not supplied) with 34 full of drinking water and place in the freezer drawer.

If the ice cube tray is stuck to the freezer drawer, loosen with a blunt tool only.

To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

DEFROSTING

This appliance is equipped with a frost free system.

This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer drawers will not defrost.

DOOR CONVERSION

If you need to hinge the doors on the opposite sides it is recommended that you call your local authorized service agent to make this conversion or ask a technician.

Before you reverse the doors, you should ensure the appliance is unplugged and empty. It is recommended to use screwdrivers and a spanner (both not supplied).

1. Remove the screw from the upper hinge cover and then remove the cover. Disconnect the terminal. Remove the screws from the upper hinge and then remove the upper hinge. Remove the cover on the opposite side.

Technical line drawing showing a mechanical assembly before and after modification (no text or symbols)

1. Remove the top cover and wire sleeve using a straight screwdriver. Be careful of the wire inside. Fit the wire with connector to the opposite side and install wire sleeve. Fix the top cover back to the top of the fridge door.

Technical line drawing showing two views of a mechanical component with mounting brackets and a downward arrow indicating motion (no text or symbols)

1. Lift the fridge compartment door and place it on a padded surface to prevent it from scratching.

2. Remove the screws from the middle hinge and then remove the middle hinge. Lift the freezer compartment door and place it on a padded surface to prevent it from scratching.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Remove the screws, bottom hinge and adjustable foot from the bottom of the appliance.

Technical line drawing of a mechanical frame with a magnified inset showing internal components (no text or symbols)

1. Remove and replace the pins on the reverse side of the bottom hinge.

unscrew screw

1. Refit the bottom hinge, screws and foot to the opposite side.

Simple line drawing of a person climbing a structure with a magnified inset showing a rope hanging from a vertical pole (no text or symbols)

1. After replacing the freezer compartment door, screw the middle hinge back onto the opposite side.

Ensure the door is aligned horizontally cally so that the seals are closed on all ore finally tightening the hinge.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Unscrew the blocks from the bottom of the fridge door and then fit them to the opposite side.

Line drawing of a rectangular electronic device with a cable and connector, showing internal components and a small attached component (no text or symbols)

Line drawing of a computer drive with a cable inserted, showing internal components and a slot (no text or symbols)

1. Fit the fridge compartment door back into place. Refit the upper hinge on the opposite side and connect the wire.

Ensure the door is aligned horizontally and so that the seals are closed on all sides nally tightening the hinge.

Simple line drawing of a person using a handheld device on a ladder (no text or symbols)

1. Fit the left hinge cover to the upper hinge and fit the top cover to the appliance using the screws.

Simple line drawing of a mechanical bracket or frame with two metal clips and a small rectangular object at the base (no text or symbols)

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance:

- Ensure your appliance has adequate ventilation as recommended in the installation instructions.

• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
• Keep door openings to a minimum.
• Open the appliance as briefly as possible.
• Ensure that the fridge and freezer doors are always closed properly.

OPERATING NOISES

Normal noises

• Motors are running.
  ●Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning reconnect and set the temperature as desired.
6. Put the food back into the appliance.

Cleaning Tips

• Remove all shelves, door shelves, vegetable containers, removable accessories (such as egg tray and ice cube tray if included) and/or drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch, temperature control knob and lamp cover) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wetsponge and soft brush (such as toothbrush) to remove any stuck-on food.

Wipe the humidify control, all drainage area and water evacuation port with a damp cloth.

The LED lights in the fridge and freezer compartments cannot be replaced by the user. If the LED lights stop working, please contact the local authorised service agent.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before contacting customer service.

Problem Possible causes Possible solution
Appliance does not operate.	No electricity at power outlet.	Check that the plug is correctly connected and power switched on.
Noises	Cabinet not stable or level.	See installation section.
Appliance not cool	Temperature setting not correct.Frequent door openings.Large amount of food recently added.	See Adjusting the Temperatures and Functions section.Minimise door openings to allow temperatures to stabilise.

SPECIFICATIONS

Temperature rise time	Power cut safe 14 h
Electric shock protection class Class I
Rated voltage and frequency 220-240V~	50Hz
Rated current 1.3A
Rated power input 140W
Defrosting power 190W
Lamp power	2.5W(R&96ig&65"+6), 2.5W(F6&&z&6)
Insulation blowing gas Cyclopentane
Refrigerant/Amount R600a/ 56g
Net weight 70	kg

Thomson and the Thomson logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by Fnac Darty (S.A.).

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: THD421NFSL
Type of refrigerating appliance:
Low-noise appliance:		no	Design type:		freestanding
Wine storage appliance:		no	Other refrigerating appliance:		yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimeter)	Height	1780	Total volume (dm3 or l)		415
	Width	700
	Depth 680
EEI		100	Energy efficiency class		E
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		244,00	Climate class:		temperate/subtropical/tropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		43
Winter setting		no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	—	—	—	—
Wine storage	no	—	—	—	—
Cellar	no	—	—	—	—
Fresh food	yes	321,0	4	—	A
Chill no — — — —
0-star or ice-making	no — — — —
1-star no — — — —
2-star no — — — —
3-star no — — — —
4-star	yes	94,0	-18	4,4	A
2-star section no — — — — —
Variable temperature compartment	no	— —		—	—
For 4-star compartments
Fast freeze facility no
For wine storage appliances
Number of standard wine bottles —
Light source parameters (a):
Type of light source LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer : 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

^(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

• Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.
• Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.
• Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'.

This refrigerating appliance is not intended to be used as a built-in appliance.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/347281

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

www.darty.com240978 970 97024 Hours7 Days a week9 Rue des Bateaux-Lavoirs,94200 Ivry-sur-Seine,France

Vanden Borrein alle vertrouwenwww.vandenborre.be02 334 00 008 AM – 6 PMMon to SatDasselSlesbroekstraat 1011600 Sint-Pieters-LeeuwBelgium

Vanden Borre

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Before disposing of your appliance, dismantling LED light from your appliance.

Remove the lamp cover from the fridge compartment.

2 Remove the LED light.

Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Warning symbol with exclamation mark and circular dot (no text)

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf.

In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR

Diagram showing a refrigerator with an open door and a labeled component, illustrating the internal structure and assembly.

CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should increase the thermostat and wait for 12 hours before checking the indicator again.

After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

Correct setting

Temperature too high – adjust the thermostat

Inhoudsopgave

WAARSCHUWINGEN....2

BELANGRIJKE VEILIGHEIDSINSTRUCTIES....8

BESCHRIJVING VAN DE ONDERDELEN 8

VOOR INSTALLATIE VAN HET APPARAAT 10

INSTALLATIE....10

OMGEVINGSTEMPERATUUR....10

ALVORENS LEVENSMIDDELEN IN HET APPARAAT TE PLAATSEN 10

STROOMUITVAL....10

UW APPARAAT VERPLAATSEN....12

LEVENSMIDDELEN IN DE KOELKAST BEWAREN 13

LEVENSMIDDELEN IN DE VRIESKAST INVRIEZEN EN BEWAREN ....17

IJSBLOKJES MAKEN 20

ONTDOOIEN....20

PROBLEEMOPLOSSING....25

PRODUCTINFORMATIEBLAD....27

SERVICE VOOR REPARATIES EN RESERVEONDERDELEN....29

VERWIJDERING 30

LEES DE VOLGENDE INSTRUCTIES AANDACHTIG DOOR ALVORENS HET APPARAAT TEGEBRUIKEN ENBEWAAR ZEVOOR LATERE RAADPLEGING.

WAARSCHUWINGEN

UW APPARAAT VERPLAATSEN

Illustration of dairy products including milk carton, cheese bowl, and plate of milk (no text or symbols)

Simple line drawing of a biological or geological cross-section (no text or symbols)

Pluimvee

Line drawing of a whole roasted chicken with legs and meat, resting on a leafy base (no text or symbols)

Illustration of a fish with scales and fins, no text or symbols present

Simple line drawing of a slice of pizza with visible toppings (no text or symbols)

Verse groente en fruit

Illustration of fresh vegetables including carrots, broccoli, and a gourd (no text or symbols)

Technical line drawing showing a mechanical assembly before and after modification, with no visible text or symbols.

Technical line drawings of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a mechanical structure with a circular inset showing a vertical component (no text or symbols)

Technical line drawing of a mechanical structure with an inset showing a pulley mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a flat electronic device with a cable and indicator lights, no text or symbols present

Line drawing of a device with a label and a small object inserted, showing no text or symbols.

Simple line drawing of a person standing on a ladder with a monitor, no text or symbols present

Simple line drawing of a rectangular frame with two side clips and a small rectangular block at the bottom (no text or symbols)

ENERGIEBESPARINGSTIPS

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/347281

SERVICE VOOR REPARATIES EN RESERVEONDERDELEN

Warning symbol with exclamation mark and circular dot (no text)

Diagram showing a refrigerator interior with a door, labeled with step number ① and directional arrows indicating movement.

VERIFICATIE VAN DE TEMPERATUUR IN DE KOUDSTE ZONE

EU Declaration of Conformity

Product Description:

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

Marque -

Brand /Merk /Marca:

THOMSON

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD :

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 60335-2-24:2010+A1:2019+A2:2019

EN 62233:2008

ErP :

(EU) 2019/2016

(EU) 2019/2019

(EU) 2021/340

(EU) 2021/341

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020

EN 60704-1:2010+A11:2012

EN 60704-2-14:2013+A11:2015+A1:2019

(EU) 2019/2015

(EU) 2019/2020

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, mars 7, 2022

C€

ASSURANCE SERVICE QUALITY FNAC DARTY
