61-517 GFCI - Measuring equipment IDEAL - Free user manual and instructions

Product Type	Voltage Detector and GFCI Outlet Tester
Brand	IDEAL
Model	61-517 GFCI
Rated Voltage	120 V AC, 50/60 Hz
Measured Voltage Range	85 to 150 V AC
GFCI Trip Current	6 to 9 mA at 120 V
AC Voltage Accuracy	±(3.0% + 2 digits)
Display	LCD (300 counts), permanent white backlight
Polarity Indicators	Green and red LEDs (3 LEDs)
High Voltage Alarm	Yes, for voltages ≥ 30 V AC/DC
Auto Power Off	After 3 minutes of inactivity
Power Supply	2 AAA 1.5 V batteries
Battery Life	Approximately 100 hours
Dimensions (L x W x H)	85 mm x 65 mm x 33 mm
Weight	0.1 kg (0.25 lb)
Overvoltage Category	CAT II 150 V
Double Insulation	Yes
Safety Standards	IEC 61010-1, UL 1436, CSA C22.2
Operating Temperature	0 °C to 40 °C, < 80 % RH
Storage Temperature	-10 °C to 50 °C, < 80 % RH
Maximum Altitude	2000 m
Maintenance	Clean with a damp cloth and mild detergent; replace batteries if low indicator shows
Replacement Parts	No user-serviceable parts (except batteries)
Warranty	2-year limited (defects in materials and workmanship)

Frequently Asked Questions - 61-517 GFCI IDEAL

What to do if the device does not turn on?

Check that the batteries are properly installed and not depleted. Replace them with new ones (2 x AAA 1.5 V) if necessary. If the problem persists, contact IDEAL customer service.

How to test a GFCI with the 61-517?

Turn on the device and insert it into a powered GFCI outlet. Verify that all three polarity LEDs are green. Press and hold the GFCI button for 6 seconds or until the GFCI trips. The indicator next to the button turns red. If the GFCI does not trip, it is likely defective or the grounding is poor.

What do the red LEDs mean?

Red LEDs indicate incorrect polarity or faulty outlet wiring. Refer to the polarity chart in the manual to identify the exact fault (open neutral, open ground, hot/neutral reverse, etc.).

Does the device stay on after unplugging from the outlet?

Yes, that is normal. The 61-517 retains the last measurement display for 5 seconds after unplugging, then automatically turns off after 3 minutes of inactivity to save battery.

What is the measured voltage range?

The detector measures AC voltages from 85 V to 150 V AC. Below 85 V, it displays 'LO'; above 150 V, it displays 'OL' (overload).

Can I use the device on an ungrounded outlet?

Yes, but the GFCI test may not work correctly if the ground is high impedance or missing. The 61-517 requires a low-impedance ground to trip a GFCI. Polarity detection remains possible.

How to clean the detector?

Use a damp cloth with mild detergent. Never use abrasives or solvents. Make sure the device is completely dry before using.

What to do if 'low battery' is displayed?

Replace the batteries immediately with new ones (2 x AAA). The low battery symbol flashes for 5 seconds, then the device automatically shuts off to prevent erroneous readings.

Is the device compatible with 240 V outlets?

No, the 61-517 is designed only for 120 V AC outlets (85-150 V). Do not use it on voltages above 150 V, as this could damage the device and pose an electric shock risk.

Where to find IDEAL customer service?

For the United States: 800-435-0705 or [e-mail]. For Canada: 905-683-3400 or [e-mail]. For Europe: [phone] or [e-mail]. For Australia: [phone] or [e-mail].

USER MANUAL 61-517 GFCI IDEAL

IDEAL® Test and Measurement

61-517 GFCI

Receptacle/VoltageTester Operation and Safety Manual

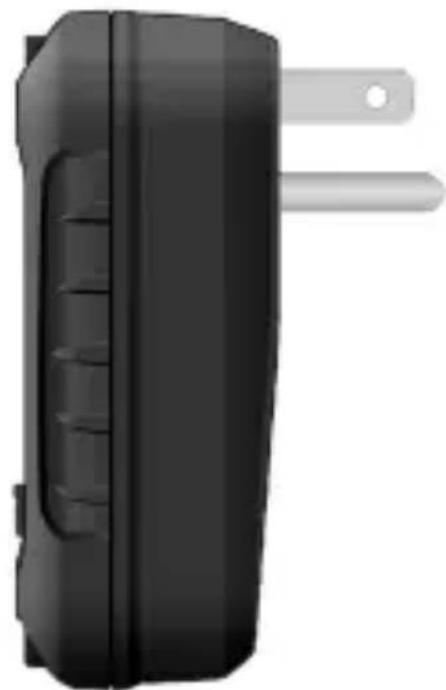

Black rectangular device with a metallic rod extending from its side, no visible text or symbols.

Contacting IDEAL INDUSTRIES, INC .... 3

Safety Information 4

Warnings....5-6

Cautions....6

Symbols 7

Operation.... 8-15

Identification and description of operating

controls and functions....8-9

Operating Features 10

Meter Operation 11-12

Voltage and Polarity 11

Testing a GFCI....12

Polarity Indications Table 13

Functions Operation Table....14

Functions Indication Table 14

Electrical Specifications ....15

Environmental Specifications....15

Mechanical ....16

EMC / EMI....16

FCC 16

Safety 16

Maintenance and Service ....17

Disposal and Warranty....18

Introduction

The IDEAL 61-517 GFCI Receptacle Tester is a 120V AC plug in outlet tester that indicates proper polarity or mis-wired outlets via Green and Red LEDs and line voltage via a LCD. It also tests for GFCI functioning.

Arc Flash and Shock Hazard, Proper PPE Required. Follow all safety procedures, wear proper PPE in accordance to NFPA 70E. Read and fully understand the instruction manual prior to using this product. Failure to comply can result in serious injury or death.

Contacting IDEAL INDUSTRIES, INC.

To contact IDEAL INDUSTRIES, INC., call one of the following telephone numbers:

IDEAL Industries USA Customer Service

• Phone Number: 800-435-0705
- Email: [e-mail]

IDEAL Industries Canada Customer Service

• Phone Number: 905-683-3400
- Email: [e-mail]

IDEAL Industries EMEA

• Phone Number: [phone]
- Email: [e-mail]

IDEAL Industries Australia

• Phone Number: [phone]
- Email: [e-mail]

Or visit the IDEAL Electrical Website at www.idealind.com

To register your product, find manuals, watch videos, simply scan this QR code.

Safety Information

Warning - Identifies conditions and actions that could result in possible death or serious injury if the hazard is realized.

Caution - Identifies conditions and actions that could result in damage, equipment under test damage or data loss if the is realized.

WARNING

Arc Flash and Shock Hazard, Proper PPE Required. Follow all safety procedures, wear proper PPE in accordance to NFPA 70E and follow the guidelines below and the instructions in this manual when operating the meter. Failure to comply can result in serious injury or death.

Choking Hazard, Small Parts. Keep Away from Children. Objects Hazard, This is not a toy. It is not for use or by children. Keep Away from Children. Failure to do so result in serious injury.

- Only experienced or technically competent consumers should use this equipment. When in doubt, call an experienced electrician to make any and all necessary repairs or installations. At all times, perform any necessary work on a de-energized circuit that has had its circuit breaker turned off and has been locked out.

- Use the Meter only as specified in this manual or protection provided by the Meter can be compromised.

- Before using or connecting the Meter, visually inspect it to ensure the cases are not cracked and the back case is securely in place. Do not use if the Meter appears damaged.

- This Meter is intended for use by qualified electricians. Follow NFPA 70E Standards for Electrical Safety in the Workplace when using this Meter.

- Do not use without the batteries correctly in place and the battery door closed and secured.

- Do not use Meter if it operates incorrectly as protection may be compromised. When in doubt, have the Meter serviced.

- When servicing the Meter, use only specified replacement parts.

WARNING

Arc Flash and Shock Hazard, Proper PPE Required. Follow all safety procedures, wear proper PPE in accordance to NFPA 70E and follow the guidelines below and the instructions in this manual when operating the meter. Failure to comply can result in serious injury or death.

• Have the Meter serviced only by qualified service personnel.
• Do not use the Meter around explosive gas, dust, or vapor, or during electrical storms, or in wet environments.
• Do not apply more than the rated voltage, as marked on the Meter, between the terminals or between any terminal and earth ground.
• To avoid false readings that can lead to electrical shock and injury, replace the batteries as soon as the low battery indicator ( ) appears.
• Voltages exceeding 30VAC or 60VDC pose a shock hazard so use caution.
• Do not work alone so that assistance can be rendered in an emergency.
• Use extreme caution when working around bare conductors. Contact with the conductor could result in electric shock.
• Adhere to local and national safety codes. Individual protective equipment must be used to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Never operate the Meter with the back cover removed or the case open.

• Cancer and Reproductive Harm - www.P65Warnings.ca.gov

CAUTION

Meter damage, equipment under test damage or data loss can occur if the following guidelines are not adhered to.

- Clean the case and accessories with a damp cloth and mild detergents only. Do not use abrasives or solvents. Make sure the meter is completely dry before use.

Symbols & Descriptions

SYMBOL DESCRIPTION
	Arc Flash and Shock Hazard
	Shock Hazard
	Warning or Caution
	Choking Hazard
	AC (Alternating Current)
	Low Battery Indicator
	Earth Ground
CAT II	IEC Measurement Category IICAT II has protection against transients in fixed and non-fixed powered devices including appliances, lighting, and 120V or 240V equipment inside a building.
VAC	Voltage AC
LCD Liquid Crystal Display
	Double Insulation
	Do not dispose of this product as unsorted municipal waste. It must be properly disposed of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org for additional information.
	Conforms to applicable North American Safety Standards

Operation

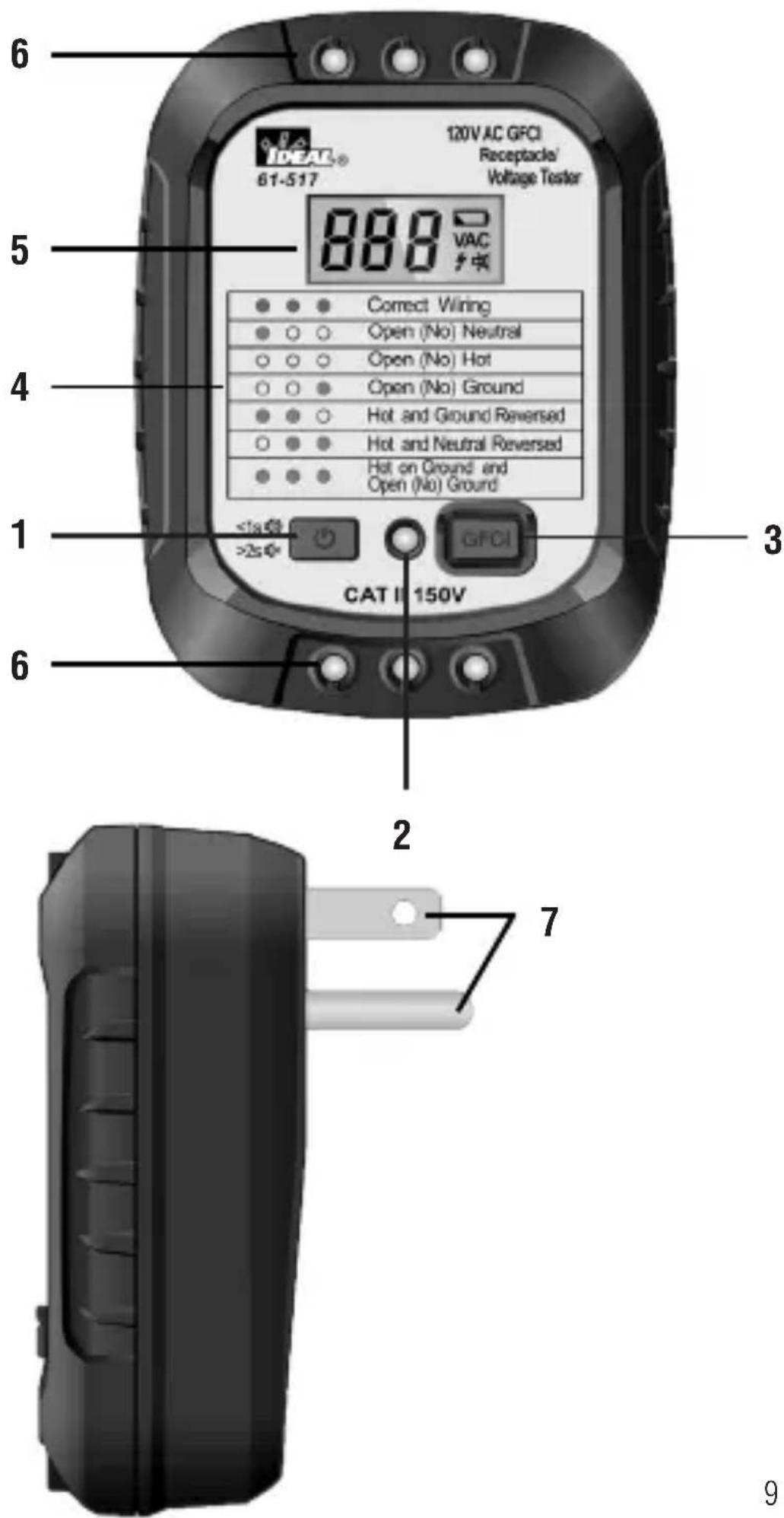

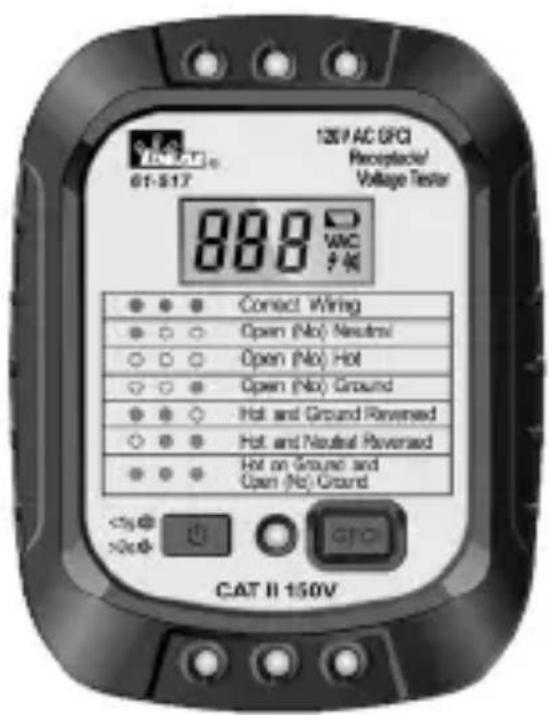

Identification and Description of Operating Controls and Functions for the 61-517 GFCI Receptacle/Voltage Tester:

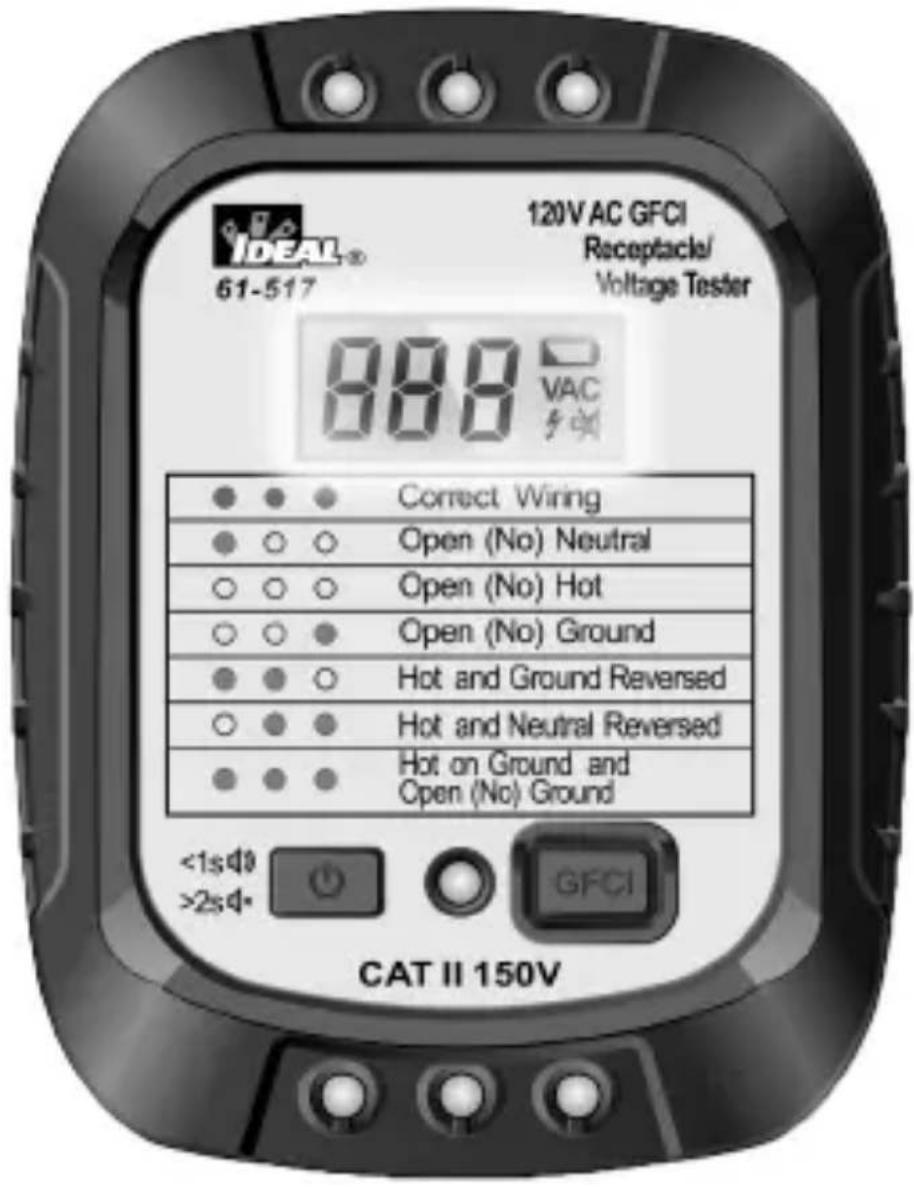

1. On Off Button
2. GFCI Test Active LED
3. GFCI Test Button
4. Polarity Legend
5. AC Voltage LCD
6. Red-Green Polarity Indicator LEDs

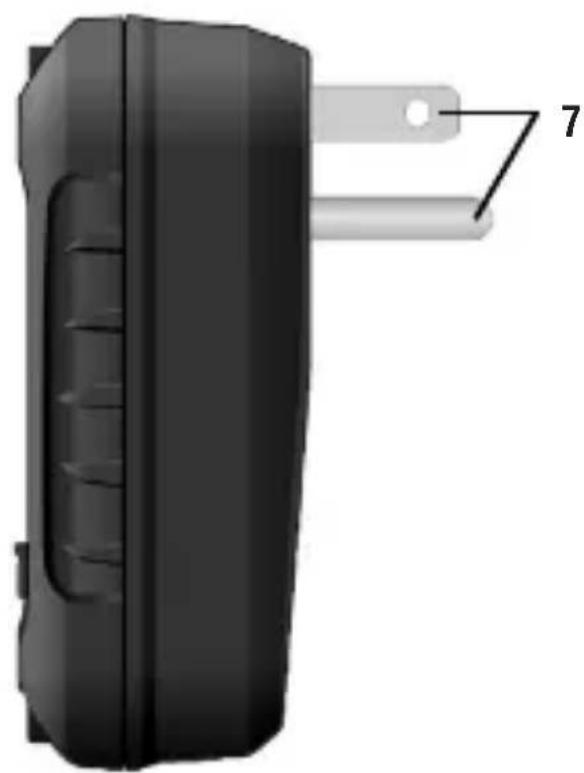

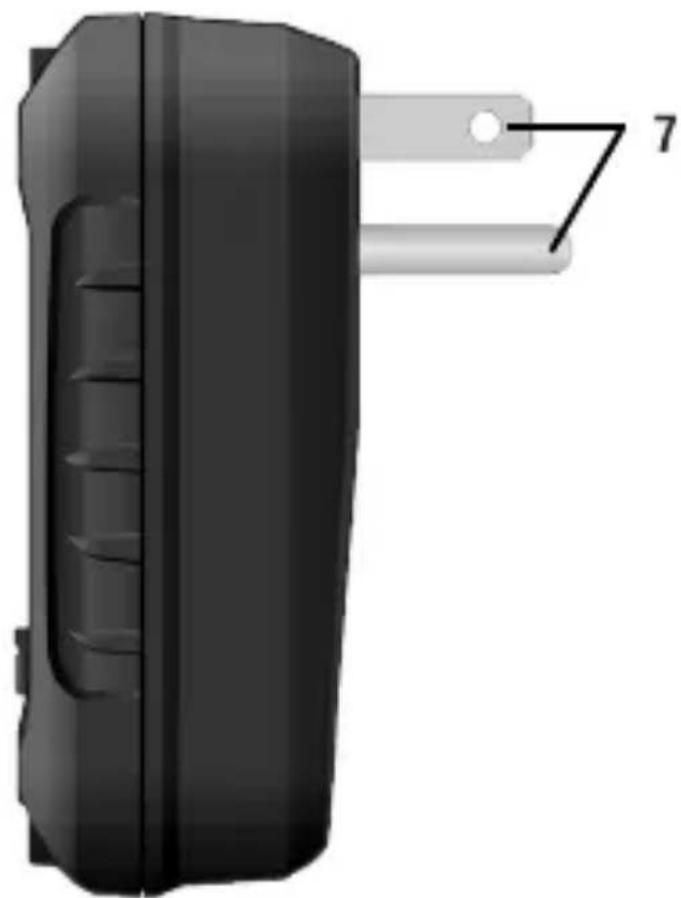

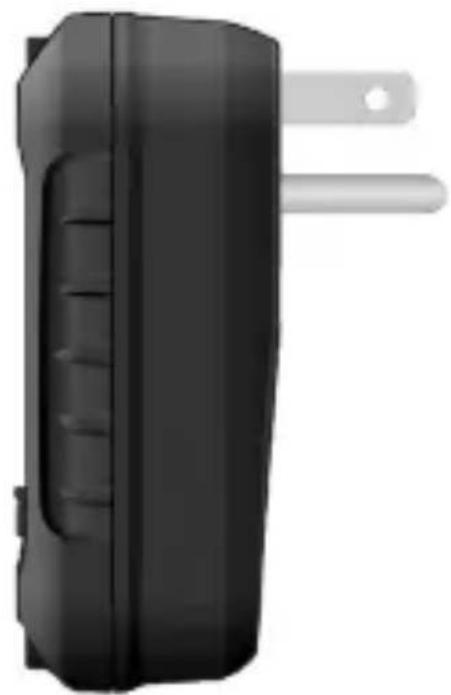

7. Hot-Neutral-Ground Prongs

Operating Features

High Voltage Warning (HI-V)

The meter indicates a

when measuring \~120V AC

Backlight

Backlight is always on when meter is functioning.

Meter Operation

Voltage and Polarity

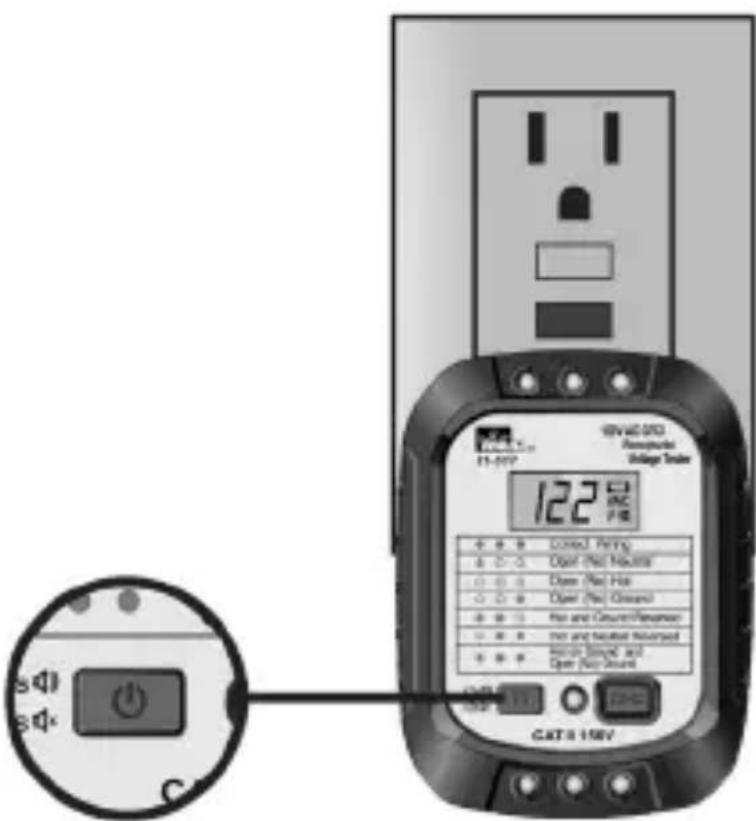

First, turn the meter on by pressing the ON/OFF Button and then insert into an outlet. If the batteries are good, the 61-517 will beep continuously to indicate live voltage, display the correct voltage, and indicate 3 bright green LEDs on the top and the bottom IF the HOT NEUTRAL and GROUND polarity of the outlet is correct. After removing the 61-517 from an outlet it will continue to display the polarity LED's and measured voltage value for 5 seconds and shut off after 3 minutes of inactivity. This gives the user time to unplug from hard to reach or limited access outlets such as those behind furniture and still have a clear indication of the outlets condition.

If any other polarity condition is encountered other than correct H-N-G, one or more red lights will illuminate. Refer to the legend to identify the incorrect wiring condition.

See table on page 13 for all conditions the 61-517 can detect.

NOTE: The 61-517 will automatically turn itself on when inserted into a live outlet. 11

Testing a GFCI

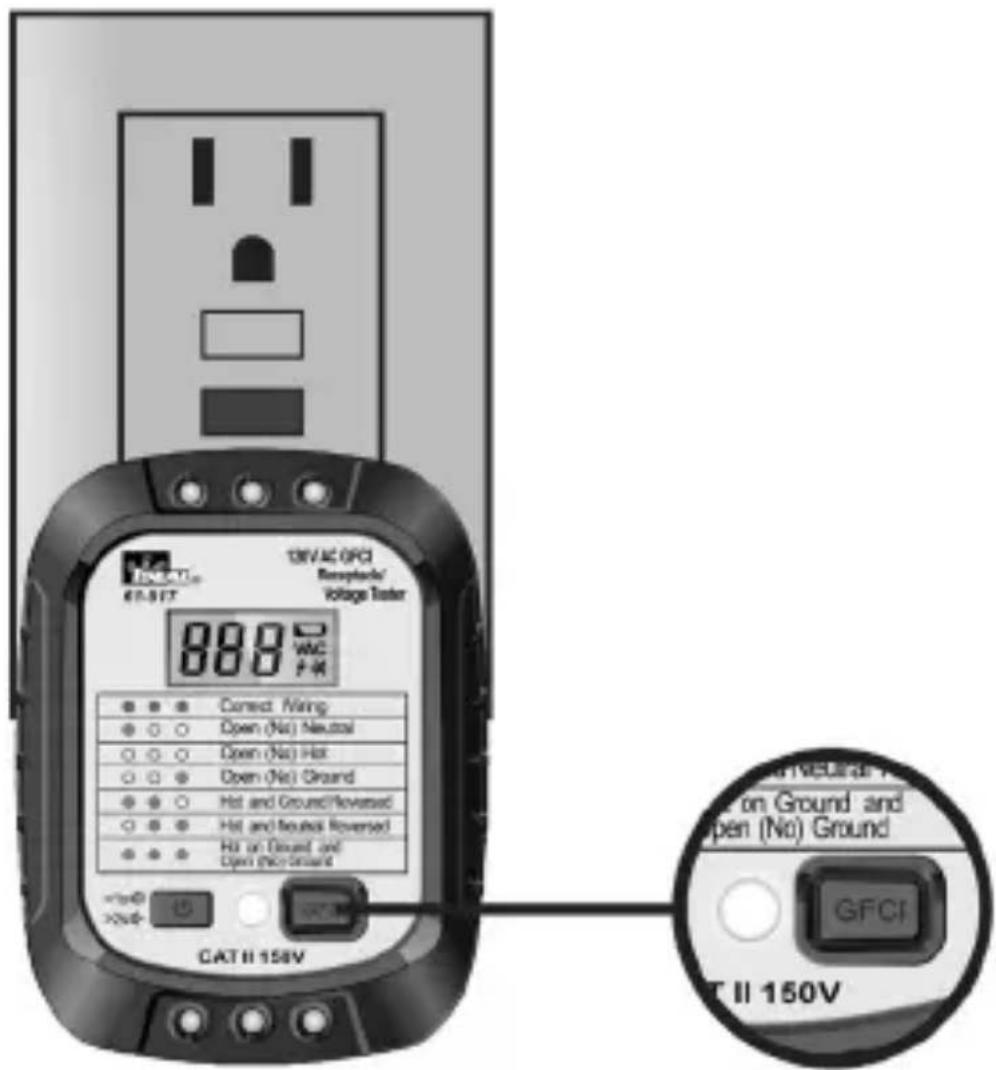

Turn the unit on. Insert the unit into a live GFCI receptacle. Confirm that the 3 polarity indicators are all green. Press and hold the GFCI button for 6 seconds or until the GFCI trips. The light next to the GFCI button will turn RED until the GFCI trips. If the GFCI DOES NOT trip then a defective GFCI or a wiring issue is likely the cause.

NOTE: Modern GFCI's will trip when self testing even without a ground connected. The 61-517 requires a low impedance ground to trip a GFCI. If the GFCI does not trip, pressing the GFCI repeatedly or for more than 6 seconds will not make it function and may cause damage to the 61-517.

Polarity Indications Table

Wire Condition	Indication When Plugged Into Outlet (Values Maintained for 5 Seconds After Unplugging from Outlet)
	LED Indication	Buzzer LCD display
Correct Wiring is indicated by 3 Green LED's		1. 5s continuous beep (if Voltage between 108 ~ 132 VAC(120+/- 10%))2. 5s intermittent beep if voltage <108VAC or >132VAC	1. If Voltage is between 85 ~ 150VAC, LCD Displays Live voltage2. If voltage is <85VAC, recycle displays “”85--LO- -85”; if >150VAC, LCD recycle displays “”150-- OL---150”
Open (No) Neutral		5s intermittent beep Err displayed on LCD
Open (No) Hot NA		LCD
Open (No) Ground		5s intermittent beep	1. If Voltage is between 85 ~ 150VAC, LCD Displays Live voltage2. If voltage is <85VAC, recycle displays “”85--LO- -85”; if >150VAC, LCD recycle displays “”150-- OL---150”
Hot and Ground Reversed		5s intermittent beep Err displayed on LCD
Hot and Neutral Reversed		5s intermittent beep	1. If Voltage is between 85 ~ 150VAC, LCD Displays Live voltage2. If voltage is <85VAC, recycle displays “”85--LO- -85”; if >150VAC, LCD recycle displays “”150-- OL---150”
Hot on Ground and Open (No) Ground		5s intermittent beep Err displayed on LCD
One or more red LED's indicates incorrect polarity and a miswired outlet.

Functions Operation Table

Button Response		Default Function	Operation
	Turns ON OFF		1) Press the on button for longer than 2 sec. The unit will turn on and be in the silent mode.2) Press the ON button for less than 1 sec. The unit will turn on and be in the audible mode.3) Press the ON/OFF button for longer than 2 seconds when unit is on to turn off. Unit will automatically power off after 2 minutes.4) Press the GFCI Button to test a GFCI.
	Silent Mode Audible
	RED LED OFF

Functions Indication Table

Function Description
LCD 300 count			LCD. Displays VAC and
LCD Backlight			White backlight.
High Voltage Alarm			1) Effective setting: ACV.2) In ACV/DCV, voltage measurement value: ACV/DCV ≥30V, LCD displays high voltage alarm is Simultaneously the buzzer emits a continuous tone.
Over Range Indication			LCD displays “OL” when over range is encountered.
Low Battery Indication			The “” symbol appears in the LCD display with insufficient voltage. The low battery icon will flash for 5 seconds and the unit will power off. This ensures accurate readings.
APO No button			presses for 3 minutes will be automatically cause the unit to shut down and enter the low-power state.
Function Range Resolution Accuracy
AC Voltage (V)	150V 1V ±(3.0%+2)
GFI (mA)	6mA~9mA 102V,>6.0mA ±(2.0%+5)

Environmental Specifications

Operating Temperature:	32°F to 104°F (0°C to 40°C) (<80%RH)
Operating Altitude:	6500 ft (2000 m)
Storage Temperature:	14°F to 122°F (-10°C to 50°C) (<80%RH)

Intended for indoor use.

Mechanical Specifications

Dimensions: (L x W x H)	3.25 in. x 2.6 in. x 1.25 in.(85 mm x 65 mm x 33 mm)
Weight: 0.25 LBS (0.1 KG)
Display: LCD
Display Count: 300
Power Source: 2 x 1.5V AAA
Battery Life: 100 Hours Typical

EMC/EMI

CISPR 22 3rd Edition. Class B Limits.

EN 55032

CISPR 32

CISPR 11

FCC 15.107 with reference to Section 15.109 (g).

ICES-003

EN 61326-2-2 Sec 6.4.2.101

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Safety

Complies with the following:

IEC 61010-1, Edition 3 (2010-06) +AMD1 (2016-12)

ANSI/UL/IEC EN 61010-1, Edition 3 (2016-04-29)

CSA-C22.2 No. 61010-1-12 Edition 3 (2019-07-19)

IEC 61010-031 Hand-held Probe Assemblies (2015-05)+AMD1(2018-05)

IEC 61010-2-033 (2019-06)

UL1436

Overvoltage CAT II 150V.

Any voltages exceeding the defined maximum voltage measurement categories described above are outside the normal use of the equipment and protection cannot be guaranteed.

Pollution Degree Class 2

Maintenance and Service

Equipment Maintenance and Service

Meter Inspection

Do not use if meter appears damaged. Visually inspect the meter to ensure case is not cracked.

Prong Inspection

Inspect the insertion prongs and ground pin for any signs of corrosion and for straightness. If the blades are bent, do no use the unit. Return to IDEAL for service.

Battery Inspection/Replacement

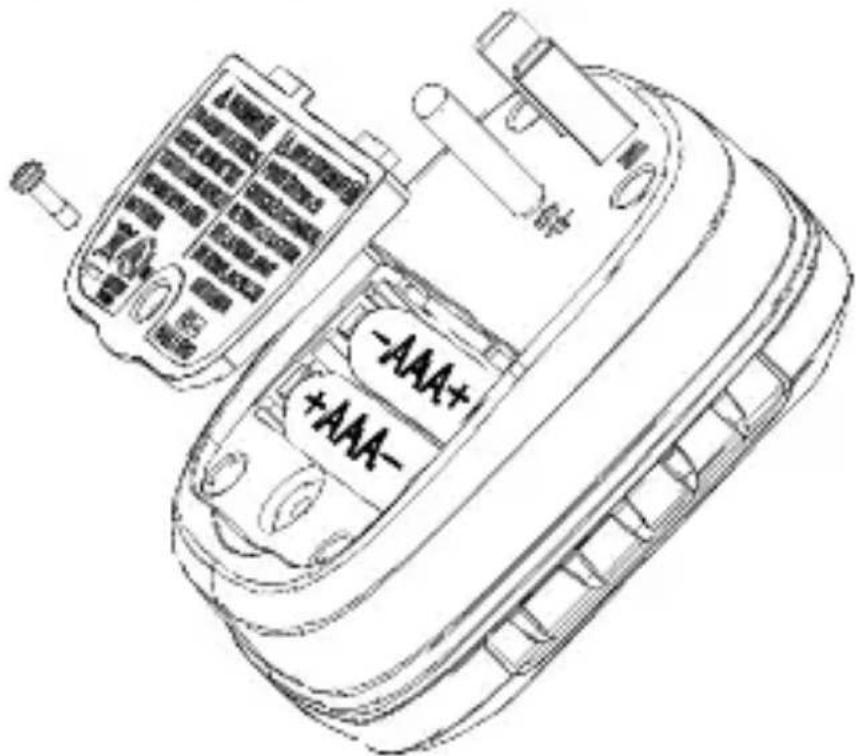

Inspect the battery compartment monthly for any signs of degradation. Low battery voltages will cause inaccuracies in readings. Remove the batteries for storage or if the meter will not be used for longer than one month. Battery leakage will compromise the safety of the meter and cause irreparable damage to internal components.

Maintenance and Storage

Switch off and disconnect the meter completely before carrying out any maintenance. Clean the case with a damp cloth and mild detergent. Do not use abrasives or solvents. Keep away from liquids and ensure the meter is completely dry before use.

Service and Replacement Parts

This unit has no user-serviceable parts.

Disposal of Waste, Electrical & Electronic Equipment

In order to preserve, protect and improve the quality of the environment, protect human health and utilize natural resources prudently and rationally, the user should return unserviceable product to relevant facilities in accordance with statutory regulations. The crossed-out wheeled bin indicates the product needs to be disposed separately and not as municipal waste.

Do not dispose of this product as unsorted municipal waste. It must be properly disposed of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org for additional information.

Disposal of Used Batteries/Accumulators

The user is legally obliged to return used batteries and accumulators. Disposing used batteries in household waste is prohibited! Batteries/accumulators containing hazardous substances are marked with the crossed-out wheeled bin. The symbol indicates that the product is forbidden to be disposed via domestic refuse. The chemical symbols for the respective hazardous substances are Cd = Cadmium, Hg = Mercury, Pb = Lead.

You can return used batteries/accumulators free of charge to any collecting point of your local authority, our stores, or where batteries/accumulators are sold. Consequently, you must comply with your legal obligations and contribute to environmental protection.

TWO YEAR LIMITED WARRANTY

This tester is warranted to the original purchaser against defects in material and workmanship for a period of two (2) years from date of purchase. With proof of purchase from an authorized IDEAL distributor, a defective tester will be repaired or replaced with the same product or a functionally equivalent product, at the option of IDEAL INDUSTRIES, INC. during the warranty period, subject to verification of the defect or malfunction. Warranty does not cover consumables such as fuses, batteries, and excludes defects caused by leakage from batteries, abuse, mishandling, dropping, ordinary wear and tear, misuse, neglect, unauthorized repair, improper use, alterations, accidents or any causes beyond IDEAL's reasonable control. Consequential or incidental damages are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This LIMITED WARRANTY gives you specific legal rights, which vary from state to state. This warranty constitutes the sole and exclusive remedy of the purchaser and the exclusive liability of IDEAL, and is in lieu of any and all other warranties, and expressly disclaims all other warranties, implied, or statutory as to merchantability, fitness for purpose sold, description, quality productiveness, or any other matter. No agent, distributor or other supplier has the authority to modify or amend this warranty or make other representations or warranties other than those contained in this warranty without express written authorization from IDEAL. For warranty service, call IDEAL customer service at 1-800-435-0705.

Made in China.

IDEAL INDUSTRIES, INC. Sycamore, IL 60178, U.S.A. 800-435-0705 www.idealind.com ND 9004-1
