EVFR5029 - Freezer Everglades - Free user manual and instructions
Find the device manual for free EVFR5029 Everglades in PDF.
| Product type | Freezer |
| Brand | Everglades |
| Model | EVFR5029 |
| Power supply | 220-240 V, 50 Hz, single phase |
| Climate class | SN, N, ST, T (from +10°C to +43°C) |
| Net freezer volume | 30 litres |
| Number of stars | 4 stars (****) |
| Freezing temperature range | Down to -18°C or lower |
| Defrost system | Manual |
| Refrigerant | R600a (isobutane) |
| Insulation foam gas | Flammable gas (cyclopentane) |
| Temperature control | Rotary thermostat (positions 1 to 5) |
| Ice cube tray | Yes, included |
| Freezer drawer | Yes, one drawer |
| Door reversal | Possible (right to left) |
| Warranty | 24 months |
| Recommended maintenance | Cleaning every 2 months, defrosting at least every month |
| Reparability | Original parts, authorized service center only |
| Child safety | Door can be locked during disposal (door removal) |
| Installation type | Not built-in, freestanding |
Frequently Asked Questions - EVFR5029 Everglades
User questions about EVFR5029 Everglades
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual EVFR5029 - Everglades and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EVFR5029 by Everglades.
USER MANUAL EVFR5029 Everglades
Gebruiksaanwijzing
User Manual
Gebrauchsanleitung
Mode dé Emploi
Inhoud
Technical line drawing of a mechanical assembly or enclosure with internal components and no visible text or symbols
Safety and warning information____2
Description of the appliance 8
Control panel 8
First use and installation 10
Daily use 11
Helpful hints and tips 11
Cleaning and care 12
What to do if 13
Reverse the door 14
Disposal of the appliance 15
Safety and warning information

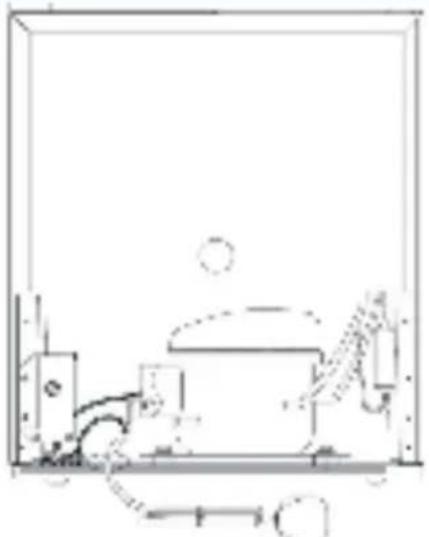

Description of the appliance
View of the appliance
Control panel
For optimum food preservation, a medium setting (3) is generally the most suitable.
NOTE: High temperature setting will accelerate food waste.
The thermostat control situated in the control panel regulates the temperature of the freezer compartment.
- IPosition "1" -Cold.
- IPosition "3" -Colder.normally, setting at this position.
- IPosition "5" -Coldest.
The temperature will be affected by:
- IRoom temperature
● How often the door is opened
● How much food is stored - Position of the appliance In determining the correct temperature
control setting, all these factors have to be considered and some experimentation may be necessary. Do not allow children to tamper with the controls or play with the product.
Important!
Normally, we advise you select a setting of 3 (medium setting); if you want the temperature higher or lower, please turn the knob to a warmer or colder setting accordingly.
When you turn the knob to a colder setting, this can lead to the more energy efficiency.
Otherwise, it would result the consumption of energy.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position max) can cause the compressor to run continuously or even non-stop!
Reason: when the ambient temperature is high, the compressor must run continuously to maintain the low temperature in the appliance.
The Freezer Compartment
The *** symbol means that your freezer will store frozen food at -18°C(-0.4F) or colder allowing for long term frozen food storage and freezing of fresh food. The freezer temperature is controlled automatically by the thermostat situated in the control panel. Due to the different installations, methods of usage and weather conditions, adjustments to the temperature settings may be required.
These are best assessed against a temperature reading on a thermometer buried in the frozen food. The reading must be taken quickly as the thermometer temperature will rise rapidly after removal.
Freezing fresh food
Place the fresh food on the top freezer evaporator part. Food may need rearranging to achieve this. During the freezing process the temperature of fresh food should be reduced quickly so that ice crystals are kept as small as possible to prevent damaging the structure of food. If freezing takes place slowly large ice crystals form and these will affect the quality of food once it has defrosted.
Frozen Food Storage
The appliance has the following net storage volume: 30 litres. This is a standard measurement and the actual capacity depends upon the density and sizes of the food.
Pre-packed commercially frozen food should be stored in accordance with the manufacturer's instructions for a 4 star frozen food compartment and should be put in the freezer as soon as possible after purchase. Your freezer provides for long term storage which generally means up to 3 months but the length of the time can vary and it is important to follow the recommended times shown on packets of commercially frozen food. Do not place sealed containers or carbonated liquids such as fizzy drinks into the freezer as it creates pressure on the container which may cause it to explode resulting to damage to the freezer. Ice cubes and ice lollies should not be consumed immediately after removal from the freezer as it may result in low temperature skin abrasions. Manufacturers storage times should be adhered to.
First use and installation
Cleaning before use
● Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
Installation Positioning
Warning! Before installing, read the instructions carefully for your safety e correct operation of the appliance.
- Position the appliance away from sources of heat such as stoves, radiators, direct sunlight, etc.

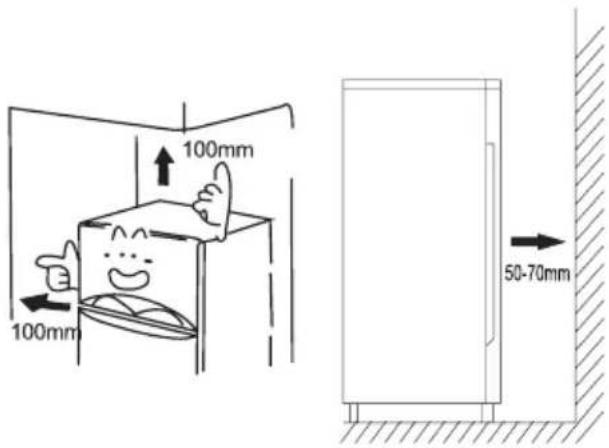

● Maximum performance and safety are guaranteed by maintaining the correct indoor temperature for the class of unit concerned, as specified on the rating plate. - This appliance performs well from N to ST. The appliance may not work properly if it is left for a longer period at a temperature above or below the indicated range.
Important! It is necessary to have good ventilation around the freezer to allow for the dissipation of heat, high efficiency, and low power consumption. For this reason, sufficiently cleared space should be available around the freezer. It is advisable for there to be 50-70mm separating the back of the freezer to the wall at least 100mm of space on its two sides, a height of over 100mm from its top and a clear space in front to allow the doors to open 160°.
| Climate class | Ambient temperature |
| SN | +10°C to +32°C |
| N | +16°C to +32°C |
| ST | +16°C to +38°C |
| T | +16°C to +43°C |
● Appliances must not be exposed to rain. Sufficient air must be allowed to circulate in the lower rear section of the appliance, as poor air circulation can affect performance. Built-in appliances should be positioned away from heat sources such as heaters and direct sunlight.
Leveling
● The appliance should be level in order to eliminate vibration. To make the appliance level, it should be upright and both adjusters should be in stable contact with the floor. You can also adjust the level by unscrewing the appropriate level adjustment in the front (use your fingers or a suitable spanner).
Electrical connection
Caution! Any electrical work required to install this appliance should be carried out by a qualified or authorized person.
Warning! This appliance must be grounded. The manufacturer declines any liability should these safety measures not be observed.
Daily use
Accessories 1)
Freezer Drawer
- For storing frozen food.
● For making ice and storing ice-cubes.
Ice-cube tray
Freezer food compartment 2)
- For freezing fresh food and storing frozen and deep-frozen food for a long time.
Thawing food 2)
- In the freezer compartment.
- At room temperature.
- In a microwave oven.
- In a conventional or fan oven.
● Food once thawed should be re-frozen only in exceptional cases.
1) If the appliance contains related accessories and functions.
2) If the appliance contains a freezer compartment.
NOTE: This refrigerating appliance is not intended to be used as a built-in appliance.
Helpful hints and tips
Noises during operation
Clicks- Whenever the compressor switches on or off, a click can be heard.
Humming- As soon as the compressor is in operation, you can hear it humming.
Bubbling- When refrigerant flows into thin tubes, you can hear bubbling or splashing noises.
Splashing- Even after the compressor has been switched off, this noise can be heard for a short time.
Energy saving tips
- Do not install the appliance near stoves, radiators or other sources of warmth.
- keep the time the appliance is open to a minimum.
- Do not set the temperature colder than necessary.
● Make sure the side plates and back plate of the appliance are at some distance from the wall, and follow the instructions relevant to installation. - If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as it would produce effect on energy consumption.
Hints for freezing
- When first starting-up or after a period out of use. Before putting the food in the compartment let the appliance run at least 2 hours on the higher settings.
● Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
- Wrap up the food in aluminum foil or polyethylene (plastic) and make sure that packages are airtight.
- Do not allow fresh, unfrozen food to touch food that is already frozen, thus avoiding a rise in temperature of the latter.
● Iced products, if consumed immediately after removal from the freezer compartment, can possibly cause skin to become freezer burnt.
- It is recommended to label and date each frozen package in order to keep track of the storage time.
Note: To get the best energy efficiency of this product, please place all shelves, drawers on their original position.
Hints for the storage of frozen food
● Make sure that the commercially frozen food was stored by the retailer.
- Once defrosted, foods deteriorate rapidly and can not be re-frozen.
- Do not exceed the storage period indicated by the food manufacturer.
Note: If the appliance contains related accessories and function.
Cleaning and Care
Cleaning and care
For hygienic reasons, the appliance interior, including interior accessories, should be cleaned regularly.
The appliance should be cleaned and maintained at least every two months.
Warning! Danger of electrical shock!
● The appliance should not be connected to the main power supply during cleaning. Before cleaning, switch the appliance off and remove the plug from the main power supply, switch off, or shut off the circuit breaker or fuse.
Notice!
- Remove the food from the appliance before cleaning. Store them in a cool place and keep well covered.
● Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components.
● Hot vapor can lead to the damage of plastic parts.
- Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from an orange peel, butyric acid, or cleansers that contain acetic acid. Do not allow such substances to come into contact with appliance parts.
- Do not use any abrasive cleansers.
- Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
● After cleaning, wipe with fresh water and a clean dish cloth.
- Accumulation of dust at the condenser increases energy consumption; clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.(Only for the outside-condenser product)
- Check the water drain hole on the rear wall of the refrigerator compartment.
- Clear a blocked drain hole with the aid of something like soft green peg, an be careful not to create any damage to the cabinet by sharp objects.
● After everything is dry, the appliance back into service.
Defrosting
Defrosting in frozen food storage compartment
● Defrosting in the freezer chamber is operated manually. Before defrosting, take the food out.
● Take the ice tray and drawers out or put them into the fresh food compartment temporarily.
- Leave the door of the refrigerator open until ice and frost dissolve thoroughly and accumulate at the bottom of the freezer chamber. Wipe out the water with soft cloth.
- In order to speed up the process of defrosting, you may put a bowl of warm water (about 50°C) into the freezer chamber and scrape away the ice and frost with a defrosting spatula. After doing so, be sure to set the knob of the temperature regulator to the original position.
- It is not advisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to avoid deformation of the inner case.
- It is also not advisable to scrape off ice and frost or separate foods from the containers which have been congealed together with the food with sharp tools or wooden bars, so as not to damage the inner casing or the surface of the evaporator.
Notice! The appliance should be defrosted at least once a month. During its usage, if the door has been opened frequently the appliance has been used in extreme humidity, we advise the user to defrost every two weeks.
Taking the appliance out of service
● Empty the appliance.
- Pull out the power plug.
● Clean thoroughly (see section: Cleaning and Care).
- Leave the door open to prevent odour.
What to do if...
Warning! Before trouble-shooting, disconnect the power supply. Only a qualified electrician of competent person must carry out the trouble-shooting that is not in the manual.
Important!
Repairs to the appliance may only be performed by competent service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or your local Customer Service Center.
| Problem | Possible cause | Solution |
| Appliance does not work. | Appliance is not switched on. | Switch on the appliance. |
| Main plug is not plugged in or is loose. | Plug the appliance into the electrical socket. | |
| Fuse has blown or is defective. | Check fuse, replace if necessary. | |
| Outlet is defective. | Defective parts need to be repaired by an electrician. | |
| Appliance cools too much. | Temperature is set too cold. | Turn the temperature regulator to a warmer setting temporarily. |
| The food is too warm. | Temperature is not properly adjusted. | Please refer to the “Initial Start Up” section. |
| Door was open for an extended period. | Open the door only as long as necessary. | |
| A large quantity of warm food was placed in the appliance within the last 24 hours. | Turn the temperature regulation to a colder setting temporarily. | |
| The appliance is near a heat source. | Please refer to the “Installation location” section. | |
| Heavy build-up of frost, possibly also on the door seal. | Door seal is not air-tight (possibly after reversing the door). | Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time, shape the warmed door seal by hand so that it sits correctly. |
| Unusual noises. | Appliance is not level. | Readjust the feet. |
| The appliance is touching the wall or other objects. | Move the appliance slightly. | |
| A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall. | If necessary, carefully bend the component out of the way. | |
| The compressor does not start immediately after changing the temperature setting. | This is normal, no error has occurred. | The compressor starts after a period of time. |
Reverse the door
The side in which the door opens can be changed from the right side (as supplied) to the left side, if the installation site allows for it. Tools you will need:
- 8mm socket driver
- Cross-shaped screwdriver
- Putty knife or thin-blade screwdriver
Before you begin, place the freezer on it's back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the freezer.
- Remove the upper hinge cover (3).
- Remove the two fastening components (4) that connect the upper hinge part (5) on the right side of the cabinet top.
- Carefully lift the door and place it on a padded surface to prevent scratching.
- Remove the screw hole cover(1) and transfer it to the uncovered hole on the right side of the unit. Be sure to press the button firmly into the hole.
- Remove the two special flange self-tapping screw(7) that hold the lower hinge part (6) on the right side of the unit.
- Remove the shockproof supporting leg part (2) and transfer it to the right side as shown in the adjacent figure.
- Set the door into it's new place making sure the pin enters the bushing at the lower frame section (hole).
-
Secure the upper hinge part (5) previously removed in step 3 on the left side of the unit. Make sure the pin enters the bushing on the upper frame section (hole).
-
Loosely secure the Lower hinge part (6) and do not tighten the bolts until the door is in the closed position and leveled.
- Insert shockproof supporting leg part (8) on the uncovered holes (right side).
- Replace the upper hinge cover (3).
- Screw hole cover
- Shockproof supporting leg part
- Upper hinge cover
- Adjustable Low Foot
- Upper hinge part
- Lower hinge part
- Special flange self-tapping screw
- Shockproof supporting leg part
- Decorative button
Disposal of the appliance
It is prohibited to dispose of this appliance in domestic household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging in a suitable waste collection container to recycle it.
Before disposal of the appliance.
- Disconnect the main plug from the main socket.
- Cut off the main cable and discard it.
 |
| 2 | 2 | 2 | ||||||||
Warranty Conditions
- The products of Everglades come with a 24-month full factory guarantee from the moment of purchase. This guarantee cannot be transferred under any circumstances.
- A guarantee is not offered on easy-to-break components like glass, plastic, rubbers, light bulbs, etc. A guarantee is also not offered if the device has been in contact with chemical and/or electro chemical or other unsuitable substances. It is also not possible to offer a guarantee if shortcomings in the device can be attributed to transport damage that is no fault of our own, improper installation and assembly, incorrect use, inappropriate use, sub-standard maintenance, failure to comply with operating and assembly instructions or normal wear and tear. Claims under the guarantee will expire if repairs or modifications to the device are carried out by people other than our service department, and also if the device is fitted with components or accessories that are not original, which subsequently result in a defect.
- The guarantee is offered under the condition that defect components will be repaired as we see fit or will be replaced by suitable components. Devices that can be transported normally (e.g. in a car) must be returned to the point of sale so that they can be serviced. Devices that cannot be transported normally will be repaired on-site. Valid proof of purchase must always be presented when repairs are carried out under the guarantee. Replaced components will become our property.
- If a complaint is deemed unfounded, all incurred costs will be charged to the consumer.
- Repairs during the guarantee period will not result in the guarantee period being extended.
- Additional or other claims, particularly compensation claims for damage incurred outside the device, are excluded unless such liability has been prescribed by law.
- Furthermore, in accordance with legal provisions, we bear unlimited liability for damage that falls under product liability laws and for all damage caused by deliberate contractual breaches, gross negligence and malice on our part or the part of our legal representatives or persons we have appointed.
Service number for the Netherlands : 0900-0404040 www.everglades.nl
Service number for Belgium : 0032-(0)38080919
Contenus

