HCW58F18EWMP - Fridge HAIER - Free user manual and instructions

Product type	Double-door refrigerator-freezer
Brand	Haier
Model	HCW58F18EWMP
Dimensions (H × W × D)	1775 × 830 × 705 mm
Total volume	507 L
Refrigerator volume	321 L
Freezer volume	87 L
Switch Zone volume	99 L
Energy efficiency class	E
Annual consumption	297 kWh/year
Freezing capacity	6 kg/24h
Frost-free system	Yes
Refrigerant	R600a (isobutane)
Voltage / Frequency	220-240 V ~ / 50 Hz
Input current	1.5 A
Climate class	SN (10 °C) to T (43 °C)
Noise level	38 dB(A) – Class C
Temperature rise time	9 h
Special functions	Super Cool, Super Freeze, Holiday Mode, Switch Zone, Water dispenser, Ice maker, Wi-Fi
Lighting	LED (replaceable by a professional)
Control panel lock	Yes
Door alarm	Yes

Frequently Asked Questions - HCW58F18EWMP HAIER

How to set the refrigerator temperature?

Unlock the panel by pressing the Q button for 3 seconds. Then, press K to select the refrigerator compartment (indicator A lights up). Use J (-) or L (+) to set the temperature between 1 °C and 9 °C. The value blinks then settles.

What to do in case of door alarm?

The audible alarm triggers if a door remains open too long or is not properly closed. Fully close the door to stop the alarm.

How to use the Super Cool function?

Unlock the panel, then press the M button. The indicator E lights up. The refrigerator cools quickly for 6 hours, then automatically returns to normal mode. To exit manually, press M again.

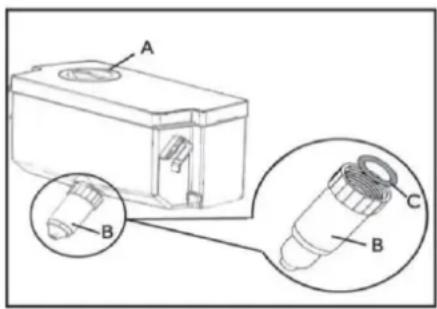

How to clean the water reservoir of the dispenser?

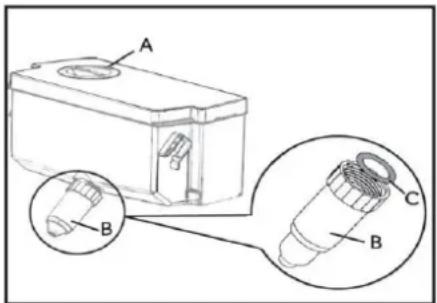

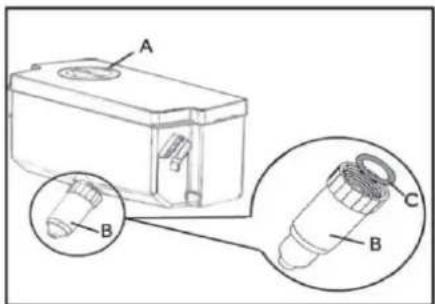

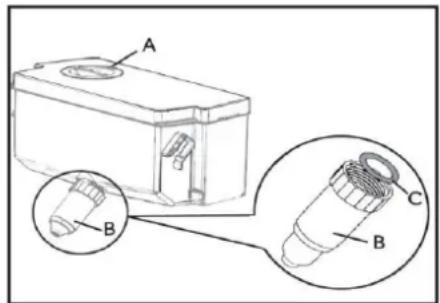

Remove the reservoir from the appliance. Open the cover (A) and unscrew the spout (B). Wash the reservoir and spout with warm water and dish soap, rinse thoroughly. Reassemble the spout (check the white O-ring), close the cover and reinstall the reservoir ensuring it is locked securely.

What is the temperature range of the Switch Zone?

The Switch Zone temperature can be set from -18 °C to 5 °C in increments of 1 °C. Select the Switch Zone compartment (indicator B) then use the + or - buttons.

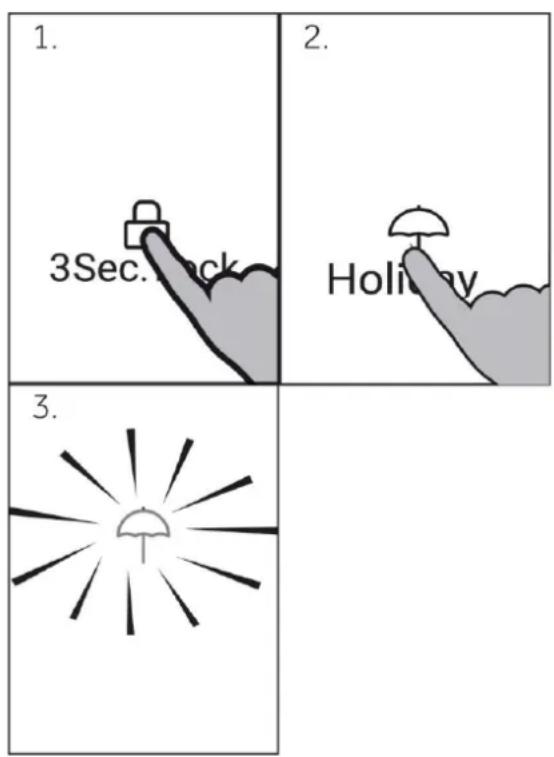

How to activate Holiday mode?

Unlock the panel, press the O button. The indicator G lights up. The refrigerator switches to 17 °C (energy saving), the freezer and Switch Zone operate normally. To deactivate, press O again.

What to do if the refrigerator does not cool enough?

Check that the set temperature is not too high, that hot foods have cooled before placing them, that the doors seal properly, and that air circulation is not blocked. Wait 24 hours for the temperature to stabilize. If the problem persists, refer to the Troubleshooting chapter.

How to quickly freeze large quantities of food?

Activate the Super Freeze function 24 hours before placing the food. Unlock the panel, press N (indicator F lights up). The function lasts 50 hours then automatically stops. Do not exceed the freezing capacity (6 kg/24h).

How to maintain the door seals?

Clean the seals regularly with a soft cloth and warm soapy water. Check that they are not cracked or worn. Dirty or damaged seals can cause air leaks and increase energy consumption.

The control panel screen turns off, is this normal?

Yes, the screen turns off automatically after 30 seconds of inactivity to save energy. It turns back on when you press a button or open a door. The panel also locks automatically; to change a setting, unlock it by pressing Q for 3 seconds.

USER MANUAL HCW58F18EWMP HAIER

Interior view of a modern kitchen appliance with white shelves and glass bottles (no visible text or symbols)

Refrigerator

User Guide

Chladnička

EN WARNING: Risk of fire/flammable material.

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning - Important Safety information

General information and tips

Environmental information

Disposal

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Safety information....4

Product description....10

Control panel 11

Use 12

Equipment 26

Care and cleaning 29

Troubleshooting 32

Installation 35

Technical data 38

Customer service 40

Accessories

Check the accessories and literature in accordance with this list:

Ice maker with ice scoop

3 spacers

Energy lable

Warranty card

User manual "OK" Sticker User manual

Note: Only for model HCW58F18EWMP

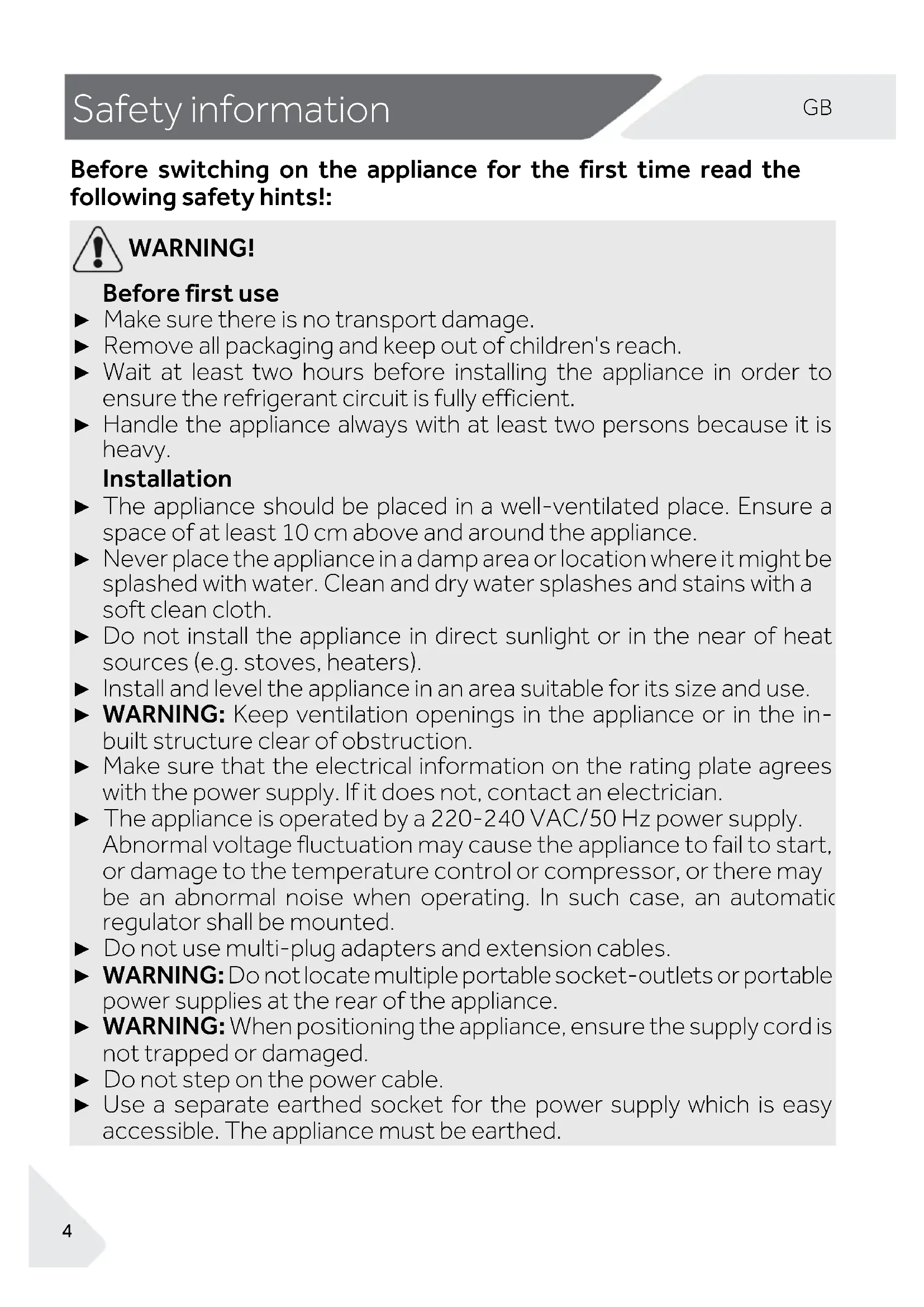

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶ Make sure there is no transport damage.
▶ Remove all packaging and keep out of children's reach.
▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.

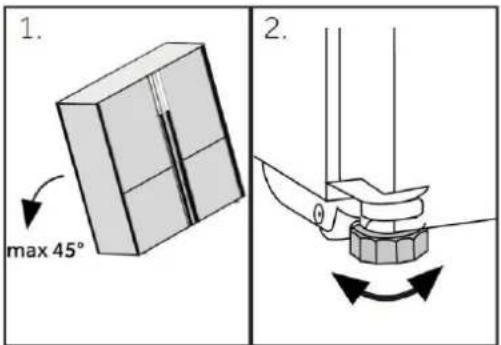

▶ Handle the appliance always with at least two persons because it is heavy.

Installation

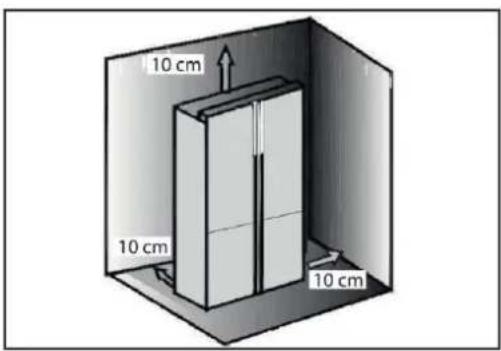

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.

▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.

▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

▶ Install and level the appliance in an area suitable for its size and use.

▶ WARNING: Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.

▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.

The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

▶ Do not use multi-plug adapters and extension cables.

▶ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

▶ Do not step on the power cable.

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

WARNING!

▶ Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
▶ WARNING: Do not damage the refrigerant circuit.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
▶ Cleaning and user maintenance shall not be made by children without supervision.
The appliance must be positioned so that the plug is accessible.
If coal gas of other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the refrigerator/freezer or any other appliance.
▶ Notice that the appliance is set for operation at the specific ambient range between 10 and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator/freezer, to avoid personal injury caused by falling or electric shock caused by contact with water.
▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple.
▶ Open and close the door only with handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these ares to avoid pinching your fingers. Open or close the refrigerator/freezer doors only when there are no children standing within the range of door movement.

Daily use

WARNING!

▶ To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Clean water tanks if they have not been used for 48 ~h ; flush the water system connected to a water supply if water has not been drawn for 5 days.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
- One-, two- and three-star compartments are not suitable for the freezing of fresh food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
▶ Never store bottled beer or beverages, liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention Bottles can burst
▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!

WARNING!

▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Maintenance / cleaning

▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator /freeze detergent to avoid damage. Eventually use warm water and baking soda solution – about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.
▶ Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING!

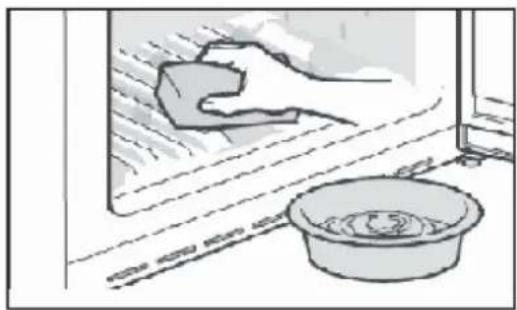

▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves or glass door with hot water. Sudden temperature change may cause the glass to break.
▶ If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.

WARNING!

For refrigerators with ice-water function, please pay attention to the following warning:

For appliances not intended to be connected to the water supply:

WARNING: fill with portable water only.

For appliances intended to be connected to the water supply:

WARNING: connect to potable water supply only.

If you want to clean the water system, please refer to the User Manual. If you have any questions, please contact the after-sales service.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE and UKCA marking.

CAUTION!

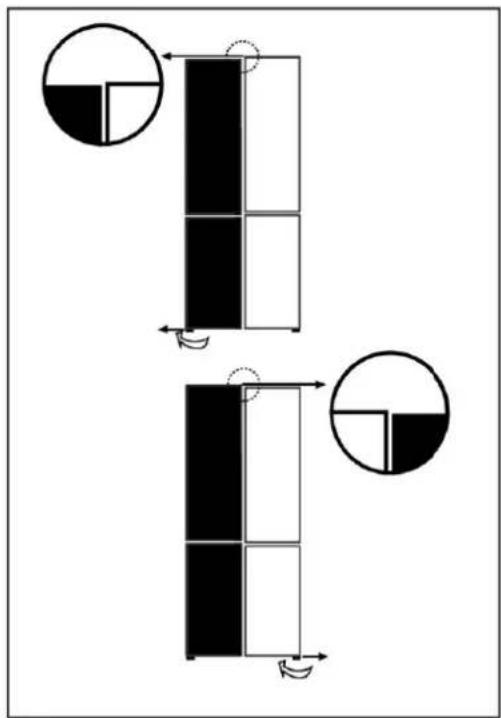

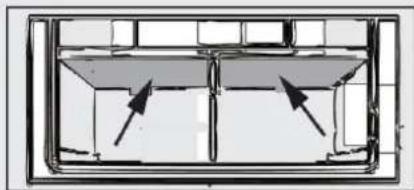

When you close the door, the vertical door strip on the fridge left door should be bent inside (1).

If you try to close the left door and the vertical door strip is unbent (2), you should bend it firstly, otherwise the door strip will hit the fixing shaft or right door. Thus a damage to the door slip or a leak will occur.

There is a heating thread inside the frame. The temperature of the surface will rise a little, which is normal and won't affect the function of appliance.

Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

Model (HCW58F18EWMP)

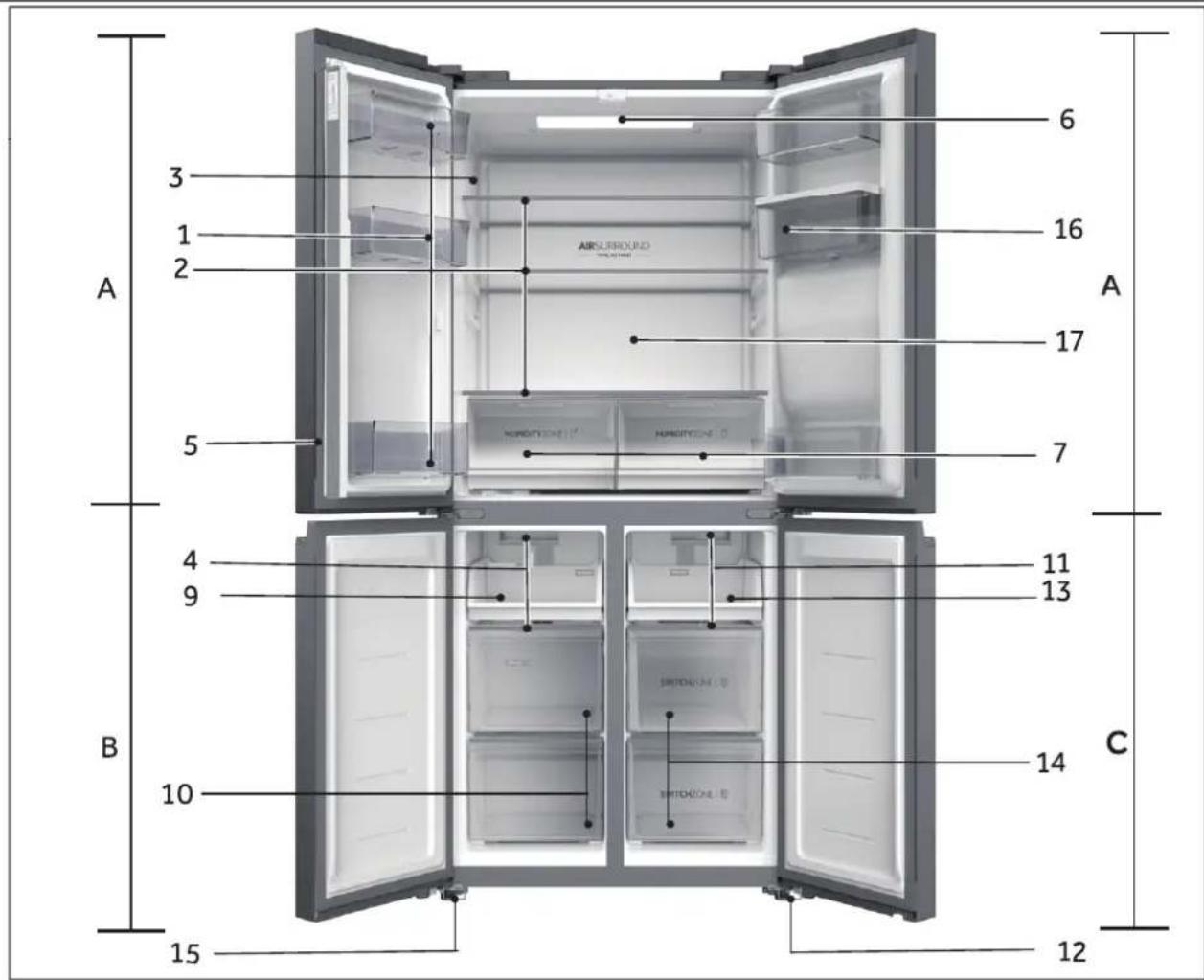

Line drawing of a four-door refrigerator with a door and label '8' pointing to the front panel (no text or symbols on the cabinet itself)

A: Refrigerator compartment

1 Door shelf
2 Cabinet shelf
3 Rating plate
5 Door strip
6 Ceiling light
7 Humidity zone drawer
8 Water dispenser
16 Water tank
17 Air duct

B: Freezer compartment

4 Air duct
9 Storage tray
10 Storage drawer
15 Adjustable feet

C: Switch Zone compartment

11 Air duct
12 Adjustable feet
13 Storage tray
14 Switch Zone storage drawer

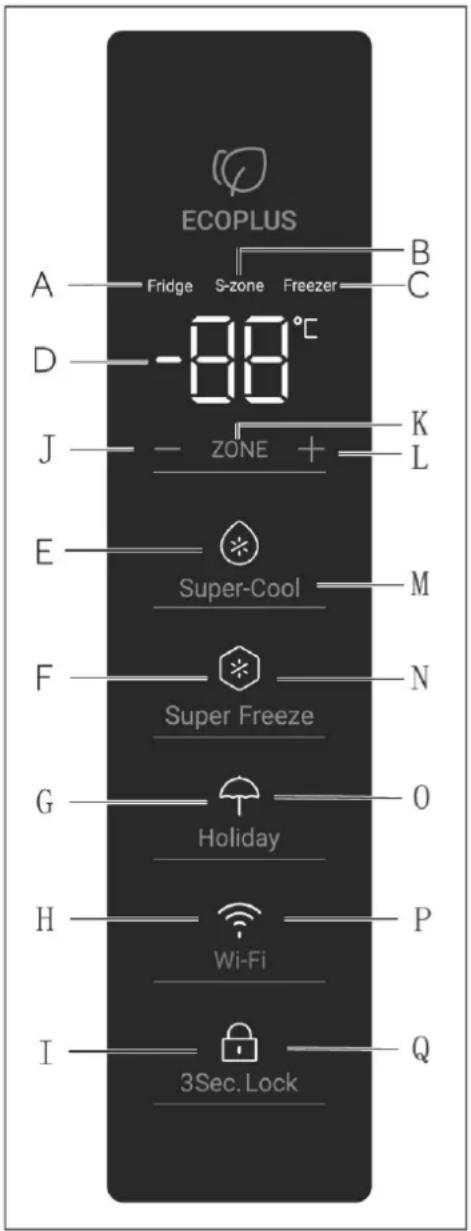

Control panel (HCW58F18EWMP)

Indicator:

A Fridge Compartment
B Switch Zone
C Freezer Compartment
D Temperature display
E Super Cool function
F Super Freeze function
G Holiday mode
H Wi-Fi function
I Panellock

Buttons:

J Temperature control "-"
K Compartment selection
L Temperature control "+"
M Super Cool function selector
N Super Freeze function selector
O Holiday mode selector
P Wi-Fi function on/off
Q Panel lock selector

Before first use

Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.
- Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.

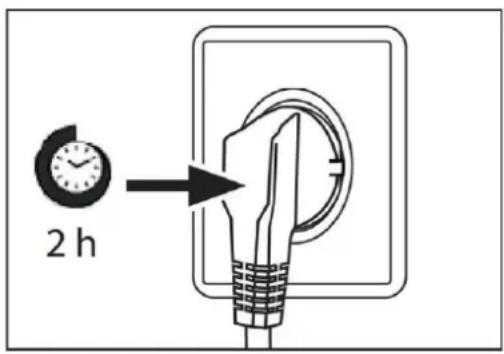

▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the compartments quickly.
The refrigerator temperature, Switch Zone temperature and freezer temperature are automatically set to 5°C, -18°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on /off the appliance

The appliance is in operation as soon as it is connected to the power supply. When the refrigerator is first powered on, the indicator "D" (Temperature display) illuminates. The fridge temperature, Switch Zone temperature and freezer temperature are automatically set to 5°C, -18°C and -18°C respectively.

Maybe the panel lock is active.

Notice

The appliance is preset to the recommended temperature of 5^ C (refrigerator), -18^ C, (Switch Zone) and -18^ C (freezer). Under normal ambient condition you need not to set a temperature.

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

Lock/unlock panel

The display screen turns off automatically 30 seconds after pressing a key. The display will be automatically locked. It lights up automatically when pressing any key or opening any door.

Notice

Fridge temperature, Switch Zone temperature, Freezer temperature, Super Cool function, Super Freeze function, Holiday mode, Wi-Fi function can't be adjusted under the lock state.

Standby-mode

The display screen turns off automatically 30 seconds after pressing a key. The display will be automatically locked. It lights up automatically by touching any key or opening the door. (Alarm does not light up the display screen).

Manual adjusting mode

If you want to manually adjust the temperature of the appliance, you can set the temperature adjust button (refer to ADJUST THE TEMPERATURE)

Adjust the temperature

The indoor temperatures are influenced by the following factors:

▶ Ambient temperature
▶ Frequency of door opening
▶ Amount of stored foods
▶ Installation of the appliance

Door alarm

Door alarm will trigger when door opens for long time or not closed properly, as a reminder.

Adjust the temperature for Fridge

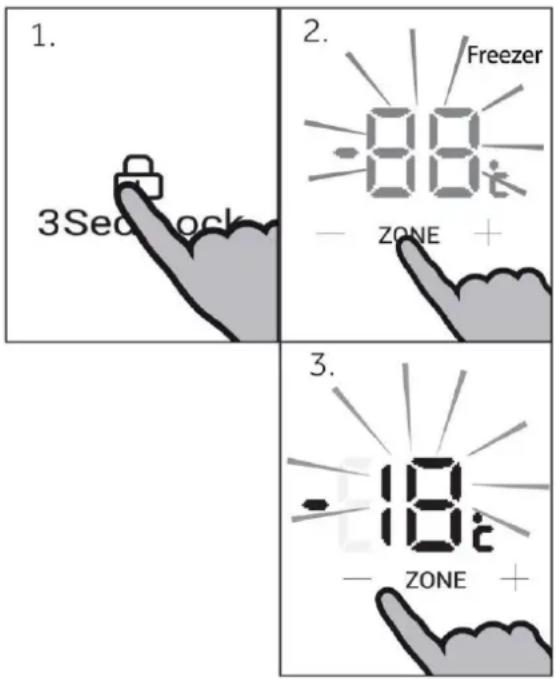

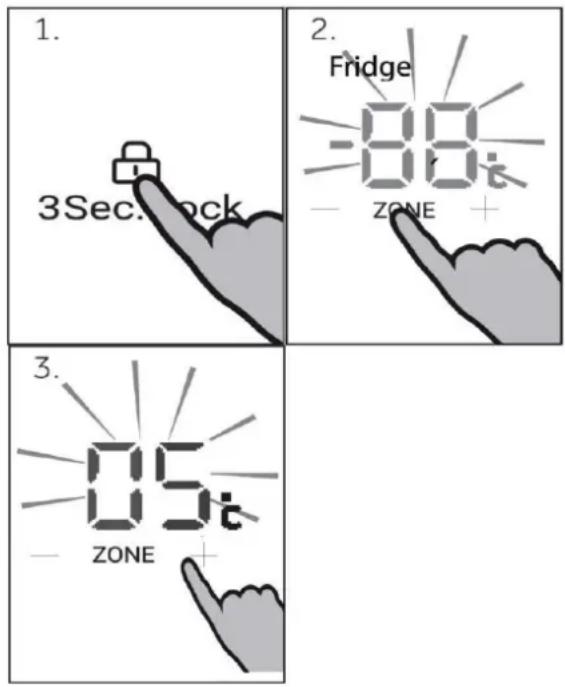

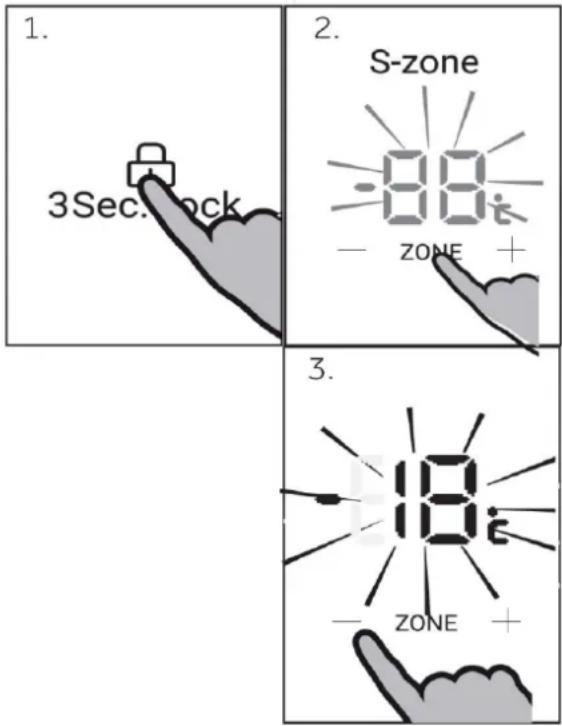

Unlock the settings by long pressing key "Q" for 3 seconds.

Under unlock state, press key "K" (Compartment selection) to toggle across compartments. When indicator "A" (Fridge compartment indicator) lights up, press key "J" (Temperature control or key "L" (Temperatur control "+") to adjust the fridge compartment temperature. Value displayed on indicator "D" decreases by 1 °C when key "J" is pressed each time.

The display flashes and turns solid with the set temperature, then goes off after a few seconds. Accordingly, value displayed on indicator "D" increases by 1 °C when key "L" is pressed each time. The display flashes and turns solid with the set temperature, then goes off after a few seconds. Fridge compartment temperature can be adjusted from 1 °C to 9°C with 1°C incremental.

Notice

Fridge temperature can't be adjusted under Super Cool, Holiday and lock state.

Adjust the temperature for Freezer

Unlock the settings by long pressing key "Q" for 3 seconds.

Under unlock state, press key "K" (Compartment selection) to toggle across compartments. When indicator "C" (Freezer Compartment indicator) light up, press key "J" (Temperature control "-" or key "L (Temperature control "+") to adjust Freezer compartment temperature. Value displayed on indicator "D" decreases by 1 °C when key "J" is pressed each time. The display flashes and turns solid with the set temperature, then goes off after a few seconds. Accordingly, value displayed on indicator "D" increases by 1 °C when key "L" is pressed each time. The display flashes and turns solid with the set temperature, then goes off after a few seconds. Freezer compartment temperature can be adjusted from -14°C to -24 °C with 1 °C incremental.

Notice

Freezer temperature can't be adjusted under Super Freeze and lock state.

Adjust Switch Zone temperature

Unlock the settings by long pressing key "Q" for 3 seconds.

Under unlock state, press key "K" (Compartment selection) to toggle across compartments. When indicator "B" (Switch Zone indicator) lights up, press key "J" (Temperature control "-" or key "L" (Temperature control "+") to adjust Switch Zone compartment temperature. Value displayed on indicator "D decreases by 1 °C when key "J" is pressed each time. The display flashes and turns solid with the set temperature, then goes off after a few seconds. Accordingly, value displayed on indicator "D" increases by 1 °C when key "L" is pressed each time. The display flashes and turns solid with the set temperature, then goes off after a few seconds. Switch Zone compartment temperature can be adjusted from 5 °C to -18 °C with 1 °C incremental.

Notice

Switch Zone temperature can't be adjusted under lock state.

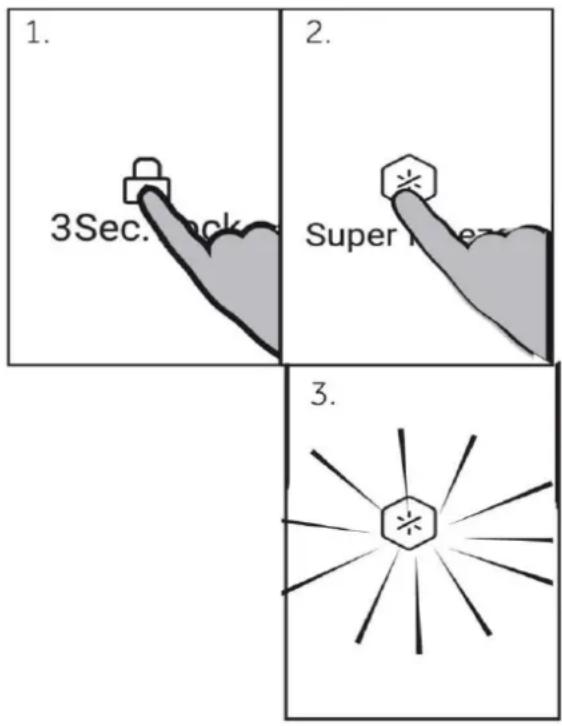

Super Freeze function

Super Freeze function can freeze the fresh food as soon as possible to the core by accelerating the freezing to preserve the best nutritional value appearance and taste of food. If you need to freeze a large amount of food once, it is recommended to set the Super Freeze function on ahead for 24 hours before the usage of freezer compartment.

Unlock the settings by long pressing key "Q" for 3 seconds.

Under unlock state, press key "N" (Super Freeze function selector), indicator "F" (Super Freeze function indicator) lights up, product enters Super Freeze mode. Product automatically exits Super Freeze mode after 50 hours of activation. For manually exiting Super Freeze mode, press key "N" (Super Freeze function selector) under unlock state, indicator "F" (Super Freeze function indicator) goes off, product exits Super Freeze mode

Notice

Under Super Freeze mode, key "J" (Temperature control "-" & key "L" (Temperature control "+") are locked when freezer compartment is selected and freezer compartment temperature cannot be adjusted.

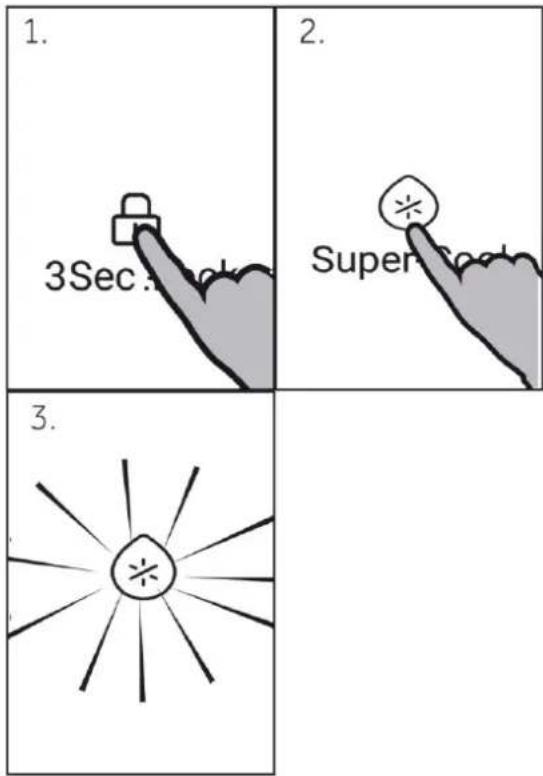

Super Cool function

After putting food into fridge compartment, if you want to cool it down quickly, you can enable the Super Cool function.

Unlock the settings by long pressing key "Q" for 3 seconds.

Under unlock state, press key "M" (Super Cool function selector), indicator "E" (Super Cool function indicator) lights up, product enters Super Cool mode. Product automatically exits Super Cool mode after 6 hours of activation. For manually exiting Super Cool mode, press key "M" (Super Cool function selector) under unlock state indicator "E" (Super Cool function indicator) goes off, product exits Super Cool mode.

Notice

Super Cool function deactivates automatically when Holiday mode is selected. Under Super Cool mode, key T (Temperature control "-" & key "L" (Temperature control "+") are locked when fridge compartment is selected and fridge compartment temperature cannot be adjusted.

Holiday Mode

Under Holiday mode, fridge compartment automatically sets to 17^ C (for energy saving), while Switch Zone and freezer compartment operate at normal temperature settings.

Unlock the settings by long pressing key "Q" for 3 seconds.

Under unlock state, press key "O" (Holiday mode selector), indicator "G" (Holiday mode indicator) lights up, product enters Holiday mode; to exit, press key "O" (Holiday mode selector), indicator "O goes off, and the product exits Holiday mode.

Notice

Holiday mode exits automatically when Super Cool function is activated.

Under Holiday mode, key "J" (Temperature control "-" & key "L" (Temperature control "+") are locked when fridge compartment is selected and fridge compartment temperature cannot be adjusted.

Wi-Fi mode setting

IN APP PAIRING PROCEDURE

Step 1 • Download the hOn app on the stores

Step 2 Create your account on the hOn App or log in if you already have an account

Step 3 Follow pairing instructions in the hOn App

Wi-Fi Function

If the Wi-Fi has not been configured yet, when the refrigerator turns on for the first time, it will automatically enter the configuration mode and keep this status for 30 minutes.

The Wi-Fi icon "H" blinks quickly and product enrollment can start.

1. Follow in app instructions to configure the Wi-Fi.
2. Once the Wi-Fi is configured and the connection established, the Wi-Fi icon "H" is on and fixed.
3. After 30 minutes without performing any operation, the Wi-Fi will automatically exit the configuration mode.
4. If the Wi-Fi has already been configured, it will automatically reconnect reconnect according to the configuration information if turns on the Wi-Fi.

Notice

1. This product is not intended for commercial use.
2. Transmitter working frequency: 2400 MHz\~2483.5MHz
3. Transmitter maximum output power:20dBm

Notice

1. To turn off the Wi-Fi, press Wi-Fi key "P" and the Wi-Fi icon "H" turns off.
2. To turn on the Wi-Fi and start the configuration, press Wi-Fi key "P" and the Wi-Fi icon "H" starts blinkly slowly. If want to turn off the Wi-Fi function, press key "P" once. If want to configure Wi-Fi function, press the key "P" for 3 sec but less than 20s, and an acoustic signal is made, the Wi-Fi icon blinks quickly and enters the configuration mode. The above steps are repeated.
3. if the product has been configured and the Wi-Fi function was turn off, the refrigerator will not enter the configuration mode once it is reconnected to the power.
4. Once the Wi-Fi is configured and the connection established, the Wi-Fi icon "H" is on and fixed.

Door alarm

Door alarm will trigger when door opens for long time or not closed properly, as a reminder.

REFRIGERATOR DOOR FOR LEFT

REFRIGERATOR DOOR FOR RIGHT

FREEZER DOOR

SWITCH ZONE DOOR

Water dispenser

With the water disperse cool drinking water can be tapped.

The water tank should be cleaned before first use (see CARE AND CLEANING).

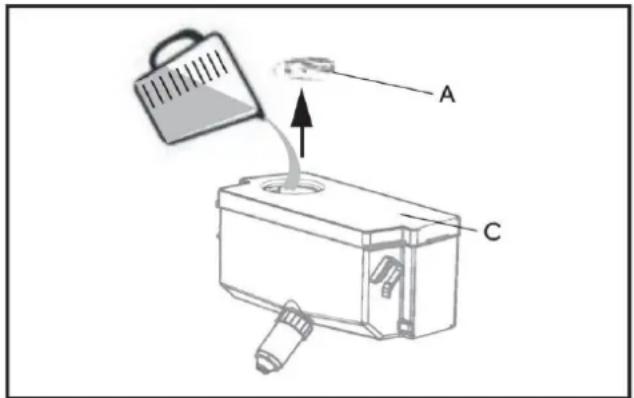

Filling the water tank

WARNING!

Fill with potable water only.

1. Ensure that the water is properly inserted (see EQUIPMENT)
2. Rotate and lift the round lid (A) and fill the water tank up with fresh drinking water.
3. Fill water only up to the mark (2.51), as it could overflow when the door opens and closes.
4. Close the round lid (A) until it clicks into place.

Notice: Water dispenser

Before refiling dispose residual water and clean the tank.

When you don't need water for a long time, please empty the water tank and insert the cleaned tank.

The cover (C) on the water tank is additionally used to save energy. If you do not want to get water from the water dispenser for a long period, please still install the cover because of better insulating and saving energy.

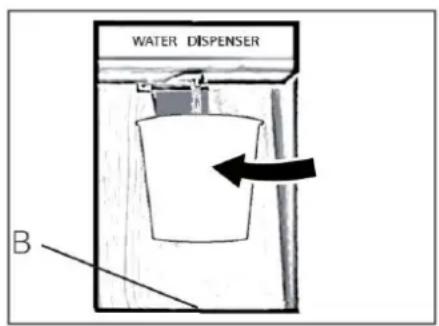

Getting water from the dispenser

1. Place a glass underneath the water outlet.
2. Push it gently against the water dispenser lever. Make sure the glass is in line with the dispenser to prevent the water from splashing out.
3. Water in the tray (B) should be removed in time, as it could overflow when the door opens and closes.

Tips on storing fresh food

Storing into the refrigerator compartment

▶ Keep your fridge temperature below 5°C.
▶ Hot food must be cooled to room temperature before storing in the appliance.
▶ Foods stored in the refrigerator should be washed and dried before storing
▶ Food to be stored should be properly sealed to avoid odour or taste alterations.
▶ Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogeneous cooling.
▶ Foods eaten daily should be stored at the front of the shelf.
Leave a gap between foods and the inner walls, allowing air flowing. In special way don't store foods against the rear wall: foods could freeze against rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.
▶ Defreeze frozen food in the fridge storage compartment. This way, you can use the frozen food to decrease the temperature in the compartment and save energy.
The ageing process of fruit and vegetables such as courgettes, melons, papaya, banana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.
▶ Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See CARE AND CLEANING.

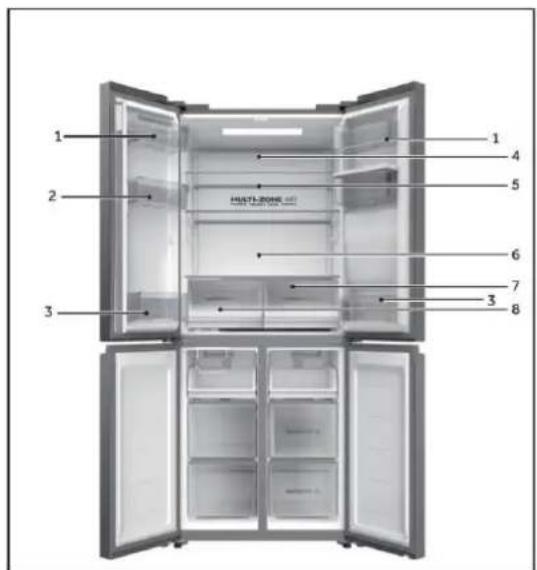

▶ Different foods should be placed in different areas according to their properties:

Notice

Please keep the distance more than 10 mm between the food placed and air duct or sensors to ensure the cooling effect.

1 Butter, cheese, etc.
2 Eggs, cans, canned food, spices, etc.
3 Drinks and bottled foods.
4 Pickled foods, canned food, etc.
5 Meat products, snack foods, pasta, canned food, milk, tofu, dairy etc.
6 Cooked meat, sausages, etc.
7 Humidity zone drawer: Fruit, vegetables, salad, etc.
8 Humidity zone drawer: Fruit, vegetables, salad, etc.

Storage into the Switch Zone compartment

Switch Zone compartment allows you to adjust the temperature between -18^ C to 5^ C according to the demand of food storage and provide you with further flexibility in storage options for your convenience.

-18°C	For general frozen food items that require storage between 1-12 months.	Meat, poultry, seafood, pre-cooked foods and leftovers, some fruits and vegetable, ice cream, and other frozen desserts.
-7°C	Allows easy portioning of food and the ability to heat, cook or serve foods straight from the compartment without waiting for it to thaw.	Meats, seafood, soups, sauces, pureed foods, bread, desserts and pastries.Note: Recommended for storage of creamy desserts such as ice cream.
0°C	Providing the perfect storage zone for highly perishable food to ensure they retain their vital freshness and quality.	Highly perishable meats, poultry and seafood. Alcoholic beverages such as beer.
5°C	The ideal mode for fresh foods such as fruit and vegetables, dairy products, meats and drinks.	Fruit and vegetables, dairy products, jams and chutneys/preserves, meats and drinks.

Storage into the freezer compartment

▶ Keep the freezer temperature at- 18°C.
▶ 24 hours before freezing switch on the Super-freeze function; -for small quantities of food 4-6 hours are sufficient.
▶ Hot food must be cooled to room temperature before storing in the freezer compartment.
▶ Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg
It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic.
In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.
▶ WARNING!: Acid, alkali and salt etc. could erode the internal surface of the freezer. Do not place the food having these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately.
▶ Do not exceed the food storage times recommended by the manufacturers. Only take the required amount of food out of the freezer.
▶ Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may bless edible.
- Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or data at the type plate.
▶ Food can be stored in the freezer at a temperature of at least -18^ for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months)
- When freezing fresh food, avoid bringing it in contact with already frozen food. Risk of thawing!

When storing commercially frozen foods, please follow these guidelines:

▶ Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines!
▶ Try to keep the length of time between purchase and storage as short as possible to preserve food quality.
▶ Buy frozen foods, which have been stored at a temperature of -18^ or below.
- Avoid buying food which has ice or frost on the packaging - This indicates that the products might have been partially defrosted and refrozen at some point - temperature rises affect the quality of food.

Notice

▶ Please keep the distance more than 10 mm between the food placed and air duct to ensure the cooling effect.

Diagram of a double door with internal air circulation arrows, no text or symbols present

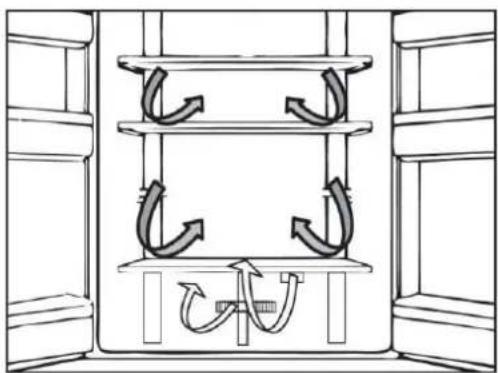

Multi-air-flow

The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Adjustable shelves

The height of the shelves can be adjusted to fit you storage needs.

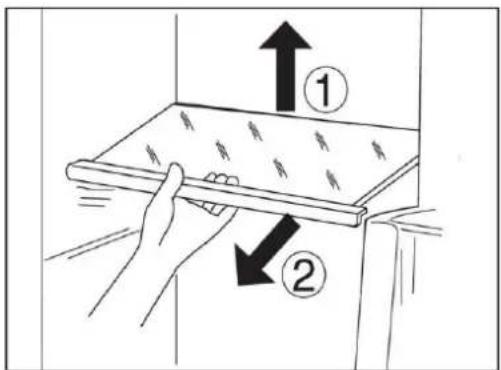

1. To relocate a shelf, remove it first by uplifting its hind edge (1) and pulling it out (2).
2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

Notice:

Ensure that all ends of a shelf are level.

Humidity zone drawer

In this compartment the humidity level is around 85%. It is controlled automatically by the system and is suitable to store fruits, vegetables, salads etc.

Notice:

▶ Do not remove the plastic cover inside the two zones. They maintain the humidity.

- Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits and vegetables such as potatoes, aubergines, beans, cucumbers, zucchini and tomatoes and cheese should not be stored in these two drawers.

Architectural cross-section diagram of a two-story building facade with windows and structural elements (no text or symbols)

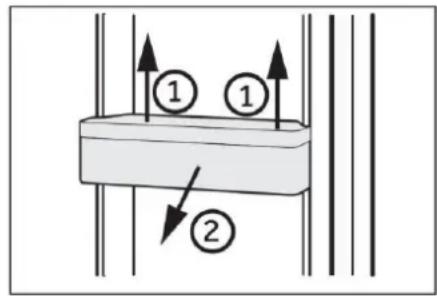

Removable door shelves

The door racks can be removed for cleaning:

Place hands on each side of the rack, lift it upwards (1) and pull it out (2).

In order to insert the door rack, the above steps are carried out in reverse order.

Removable water tank

The water tank can be removed and reinstalled for cleanir in the same way as the door shelves.

Insert water tank

Place the water tank in the position that the water outlet (fits into the opening the door. Makes sure that the water tank is locked.

Notice: Water tank

Make sure the spout is firmly screwed to the water tank and the white O-ring (C) is in position.

If the water tank is not properly inserted, water can drip from the connection.

Do not use excessive force when removing or installing the water tank, to avoid damaging the tank.

Removable freezer drawer

To remove the drawer out, pull out to the maximum extent (1), lift and remove (2).

In order to insert the drawer, the above steps are carried out in reverse order.

OPTIONAL: OK-temperature indicator

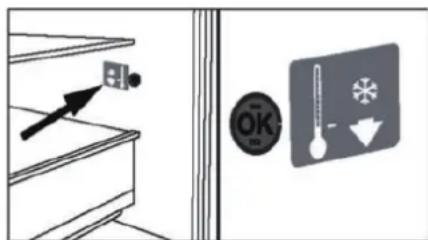

The OK-temperature indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate OK".

The Light

The LED interior light comes on when the door is opened and it will automatically goes off if the door is left open for more than 7 minutes. The performance of the lights is not affected by any of the appliances other settings.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Functions like Super- Freeze consume more energy.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
▶ Do not overfill the appliance to avoid obstructing the air flow.
▶ Avoid air within the food packaging.
▶ Keep door seals clean so that the door always closes correctly.
▶ Defreeze frozen food in the fridge storage compartment.
The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

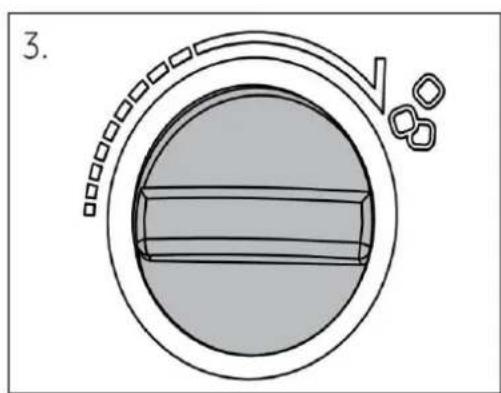

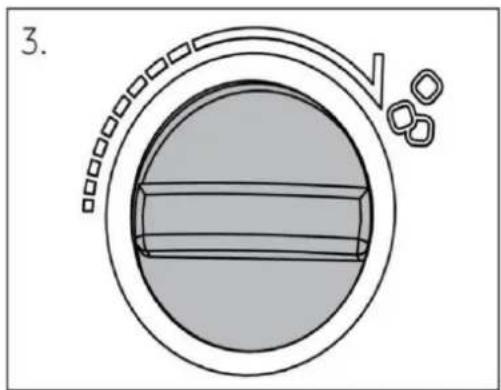

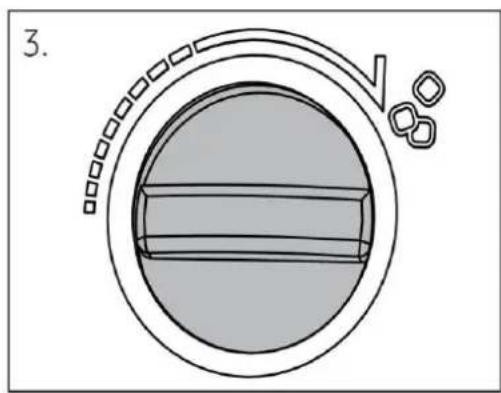

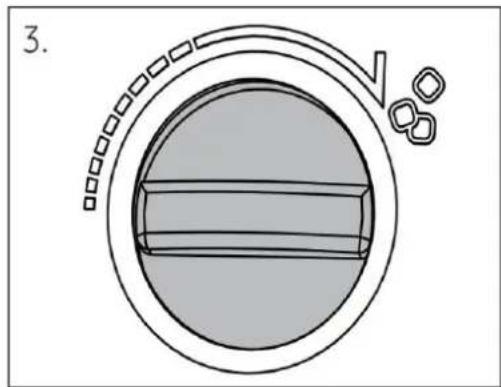

Ice cube make

Technical line drawing of a mechanical component with two circular cavities and two arrows indicating features (no text or symbols)

Diagram of a circular structure with internal bands and a separate irregular shape, no text or symbols present

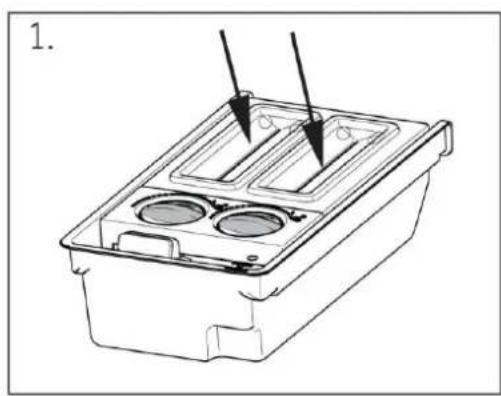

1. Pour fresh drinking water into each ice-making box as per the scale mark inside the measuring cup, do not exceed the scale mark

Notice:

Do not bring water between the 2 buttons, otherwise the buttons maybe frozen and the ice cubes cannot drop into the storage box.

1. Put the box into the freezing compartment.
2. After water becomes ice, take off the ice maker out of the appliance and rotate the button by hand. Then, ice blocks will fall into the ice box automatically. Remove the cover and fetch the ice cubs.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
▶ In case of heating check the condition of frozen goods.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.

1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.

3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40^ C for some time, then rinse with the flow water, dry and place it back into the fridge.
4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service

▶ Rinse and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a dishwasher.
▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the fridge and the freezer compartment are done automatically; no manual operation is needed.

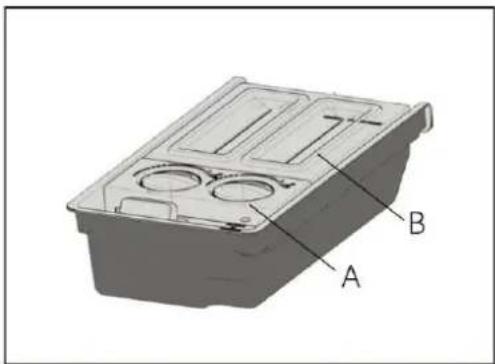

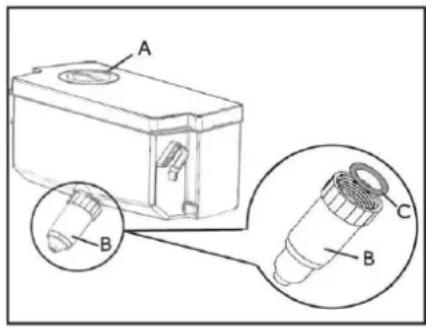

Cleaning the water tank

1. Jake off the water tank out of the appliance
2. Remove the cover (A).
3. Unscrew the dispenser spout (B).
4. Clean the tank and dispenser spout with warm water and liquid dishwashing detergent. Make sure all soap is rinsed off.
5. Mount the dispenser out (B) and take care that it is firmly screwed to the water tank and the white O-ring (C) is in position.
6. Close the cover (A) and replace the tank inside the appliance.

Notice: Water tank

If the water tank is not properly inserted, water can drip from the connection. Do not use excessive force when removing or installing the water tank, to avoid damaging.

Replacing the LED-lamps

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G

compartment	Voltage	max Power	Energy efficiency class	Model
Refrigerator	DC 12V	5 W	G	HCW58F18EWMP

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use only the Holiday-function or the fridge off function for the refrigerator:

▶ Take out the food.
▶ Unplug the power cord.
▶ Empty and clean the water tank
▶ Clean the appliance as described above.
- Keep the doors open to prevent the creation of bad odours inside.

Notice

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Cleaning the ice cube maker

1. Take off the ice cube maker out of the appliance.
2. Remove cover (A) and (B).
3. Clean the ice cube maker with warm water and liquid dishwashing detergent. Make sure all soap is rinsed off.
4. Close the covers, refill with drinking water and replac the ice cube maker inside the appliance.

3D mechanical part diagram with labeled points A and B, showing internal cavities and mounting holes (no text or symbols beyond labels)

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem	Possible Cause	Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle	Connect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the custom er service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/ or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly..
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods before storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appliance.	The temperature is set too low.The Super-Frz/Super-Coolfunction is activated or is running too long.	Reset the temperature.Switch off the Super-Frz/Super-Cool function
Moisture formation or the inside of the refrigerator compartment.	The climate is too warm and too-damp.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that the door/drawer is tightly shut.
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.	Always pack the goods well.Close the door/drawer.Do not open the door/drawer too frequently.Clean the door/drawer gasket or replace them by new ones.Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	-	This is normal.
The appliance makes abnormal sounds.	The appliance is not located on level ground.The appliance touches some object around it.	Adjust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	-	This is normal.
You will hear an alarm beep.	The fridge storage compartment door is open.	Close the door.
You will hear a faint hum.	The anti-condensation system is working	This prevents condensation and is normal
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible.
▶ Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
▶ An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.

▶ Take the appliance out of the packaging.

▶ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space requirement

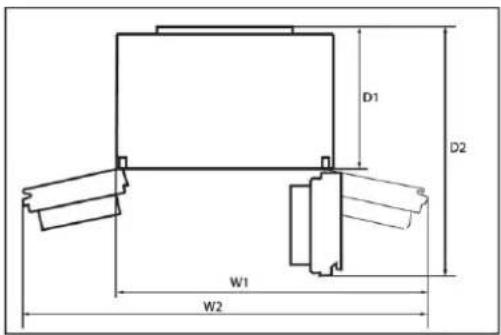

Required space when door is opened:

W1=1076 mm

W2=1360 mm

D1=628 mm

D2=1064mm

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safe reasons, the information of the required ventilation cross sections must be observed.

Aigning the appliance

The appliance should be placed on a flat and solid surface

1. Tilt the refrigerator slightly backwards.
2. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 10 cm for the door to open properly.

Notice:

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

1. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Fine tuning of the doors

If the doors are not in one level, this mismatch can be remedied by following:

Using adjustable foot

Rotate the adjustable foot according to the direction of arrow to turn up or down the foot.

Contact after-sale service if needed.

Notice:

In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above methods.

Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.

▶ the power socket is earthed and no multi-plug or extension.

▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand	Haier
Model name / identifier	HCW58F18EWMP
Category of the model	Refrigerator-freezer
Energy efficiency class	E
Annual energy consumption (kWh/year)(1)	297
Total volume(L)	507
Volume refrigerator(L)	321
Volume freezer(L)	87
Volume variable temperature compartment(L)	99
Star rating	***
Temperature of other compartments>14°C	Non applicable
Frost-free system	Yes
Freezing capacity(kg/24h)	6
Climate rating(2)	SN-N-ST
Noise emission class and airborne acoustical noise emissions (db(A) re 1pW)	C(38)
Temperature rise time (h)	9
Type of appliance	freestanding
Others	-

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C

Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C

Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C

Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency	220-240V ~/50Hz
Input current (A)	1.5
Main fuse (A)	16
Coolant	R600a
Dimensions (H/W/D in mm)	1775 / 830 / 705

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or
▶ our European Call Service-Center (see listed phone numbers below) or
▶ the Service & Support area at www.haier.com where you can activate the service
▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number	Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 5 39 39 99	14 Ct/Min Landline max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	14,53 Ct/Min Landline max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Chladnička-mraznička

HCW58F18EWMP

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Line drawing of a four-door refrigerator with a door and label '8' pointing to the front panel (no text or symbols on the cabinet itself)

A: Prostor chladničky

Indikátor:

POSTUP PÁROVÁNÍ S APLIKACÍ

Funkce Wi-Fi

Diagram of a double door with internal air flow arrows, no text or symbols present

Nastavitelné police

Technical diagram of a mechanical assembly with two arrows indicating directional components (no text or symbols present)

Světlo

Technical line drawing of a mechanical component with two circular cavities and two arrows indicating features (no text or symbols)

Simple line drawing of a circular object with horizontal bands and a curved line, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D mechanical part diagram with labeled points A and B, showing internal cavities and mounting holes (no text or symbols beyond labels)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Benutzerhandbuch

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Line drawing of a four-panel refrigerator with a door and front panel, labeled with the number 8 (no text or symbols on the refrigerator itself)

Anzeige:

WLAN-Funktion

Diagram of a double door with internal air circulation arrows, no text or symbols present

Mehrfach-Luftstrom

Diagram of a container with two arrows indicating flow or movement, no text or symbols present

Hinweis: Wassertank

Das Licht

Technical line drawing of a mechanical component with two circular cavities and two arrows indicating features (no text or symbols)

Simple line drawing of a circular object with internal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D mechanical part diagram with labeled points A and B, showing internal cavities and mounting holes (no text or symbols beyond labels)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric shapes with dark and light gray tones, no text or symbols present

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Εγχειρίδιο χρήσης

Ψυγείο-καταψύκτης

HCW58F18EWMP

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Line drawing of a four-panel refrigerator with a door and front panel, labeled with number 8 (no text or symbols on the cabinet itself)

A: Θάλαμος ψυγείου

'Ενδειξη:

Λειτουργία Wi Fi

Diagram of a double door with internal air circulation arrows, no text or symbols present

Πολλαπλή ροή αέρα

Ρυθμιζόμενα ράφια

Diagram of a mechanical or architectural component with two arrows indicating direction, no visible text or symbols

Το φως

Technical line drawing of a mechanical component with two circular cavities and an upper plate, labeled '1.' (no text or symbols on the diagram itself)

Illustration of a hand washing a soap block near a window with a basin (no text or symbols)

3D mechanical part diagram with labeled points A and B, showing internal cavities and housing (no text or symbols beyond labels)

Geometric diagram of a 3D rectangular prism with dashed internal lines and directional arrows, no text or symbols present

Diagram showing two vertical structural components with circular arrows indicating rotation or movement, no text or symbols present.

Ρύθμιση των θυρών

Westgate House, Westgate, Ealing

Λονδίνο, W5 1YY

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Manual de usuario

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Line drawing of a four-door refrigerator with a door and front panel, labeled with number 8 (no text or symbols on the refrigerator itself)

Indicador:

Función Wi-Fi

Diagram of a double door with internal air circulation arrows, no text or symbols present

Estantes ajustables

Diagram of a mechanical or architectural component with two arrows indicating direction (no text or symbols present)

Luz

Technical line drawing of a mechanical device with two internal compartments and mounting holes (no text or symbols)

Simple line drawing of a circular object with internal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D model of a mechanical housing component with labeled parts A and B (no text or symbols beyond labels)

Diagram showing two vertical structural components with circular arrows indicating rotation or movement, no text or symbols present.

Westgate House, Westgate, Ealing

Londres, W5 1YY

Abstract geometric shapes with dark and light gray tones, no text or symbols present

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Line drawing of a four-door refrigerator with a door and front panel, labeled with number 8 (no text or symbols on the refrigerator itself)

C: Compartiment Switch Zone

Indicateur :

Fonction Wi-Fi

Diagram of a double door with internal air circulation arrows, no text or symbols present

Flux multi-air

Clayettes réglables

Diagram of a two-panel window with arrows indicating direction (no text or symbols)

Lumière

Technical line drawing of a mechanical device with two internal compartments and mounting holes (no text or symbols)

Simple line drawing of a circular object with internal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D mechanical part diagram with labeled points A and B, showing internal cavities and mounting holes (no text or symbols beyond labels)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Westgate House, Westgate, Ealing

Londres, W5 1YY

Abstract geometric shapes with dark and light gray tones, no text or symbols present

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Line drawing of a four-door refrigerator with a door and front panel, labeled with number 8 (no text or symbols on the refrigerator itself)

Jelzőfény:

Wi-Fi funkció

Diagram of a double door with internal air circulation arrows, no text or symbols present

Állítható polcok

Diagram of a two-panel window with arrows indicating direction (no text or symbols)

Levehető ajtópolcok

A világítás

Technical line drawing of a mechanical component with four circular cavities and two arrows indicating features (no text or symbols)

Simple line drawing of a circular object with horizontal bands and a curved line, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D mechanical part diagram with labeled points A, B, and C (no text or symbols beyond labels)

Diagram of a 3D geometric structure with dashed lines and arrows indicating direction (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric shapes with dark and light gray tones, no text or symbols present

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Manuale dell'utente

Frigorifero-Congelatore

HCW58F18EWMP

Symbol of a trash bin crossed with no text or labels

Simple architectural diagram showing a window with a checkmark and label '1.' (no text or symbols beyond the label)

Line drawing of a four-panel refrigerator with a door and front panel, labeled with the number 8 (no text or symbols on the refrigerator itself)

A: Comparto frigorifero

Indicatore:

Funzione Wi-Fi

Diagram of a double door with internal air circulation arrows, no text or symbols present

Ripiani regolabili

Diagram of a two-panel air vent system with directional arrows indicating flow or movement (no text or labels)

Illuminazione

Technical line drawing of a mechanical device with two internal compartments and mounting holes (no text or symbols)

Simple line drawing of a circular object with internal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D model of a mechanical housing component with labeled parts A and B (no text or symbols beyond labels)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric shapes with dark and light gray tones, no text or symbols present

2022 Versione B

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Symbol of a trash bin crossed with no text or labels

Klantenservice....40

Accessoires

WAARSCHUWING: Vul alleen met drinkwater.

Line drawing of a four-panel refrigerator with a door and front panel, labeled with the number 8 (no text or symbols on the cabinet itself)

A: Koelkastgedeelte

1 Deursbak
2 Koelkastplank
3 Typeplaatje
5 Deurstrip
6 Plafondlamp
7 Humidity Zone-lade
8 Waterdispenser
16 Waterreservoir
17 Luchtkanaal

B: Vriezergedeelte

4 Luchtkanaal
9 Opbergbak
10 Opberglade
15 Verstelbare pootjes

C: Switch Zone-gedeelte

11 Luchtkanaal
12 Verstelbare pootjes
13 Opbergbak
14 Switch Zone-opberglade

Bedieningspaneel (HCW58F18EWMP)

Indicator:

Wififunctie

Let op: Waterdispenser

Diagram of a double door with internal air circulation arrows, no text or symbols present

Verstelbare planken

Diagram of a mechanical or architectural component with two arrows pointing to a central panel (no text or symbols present)

Let op: Waterreservoir

De verlichting

Technical line drawing of a mechanical device with two internal compartments and mounting holes (no text or symbols)

Simple line drawing of a circular object with internal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Let op: Waterreservoir

3D mechanical part diagram with labeled points A and B, showing internal cavities and mounting holes (no text or symbols beyond labels)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Westgate House, Westgate, Ealing

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Instrukcja obsługi

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Line drawing of a four-panel refrigerator with a door and front panel, labeled with the number 8 (no text or symbols on the refrigerator itself)

Wskaźnik:

Funkcja Wi-Fi

Diagram of a double door with internal air circulation arrows, no text or symbols present

Regulowane półki

Diagram of a two-panel air vent system with directional arrows indicating flow or movement (no text or labels)

The OK-temperature indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate OK".

Światło

Technical line drawing of a mechanical device with two internal compartments and mounting holes (no text or symbols)

Simple line drawing of a circular object with internal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D model of a mechanical housing component with labeled parts A and B (no text or symbols beyond labels)

Diagram of a 3D geometric structure with dashed lines and arrows indicating direction (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Regulowanie drzwi

Westgate House, Westgate, Ealing

Londyn, W5 1YY

Abstract geometric shapes with dark and light gray tones, no text or symbols present

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Manual do Utilizador

Symbol of a trash bin crossed with no visible text or labels

Line drawing of a four-door refrigerator with a door and front panel, labeled with the number 8 (no text or symbols on the refrigerator itself)

A: Compartimento do frigorífico

Indicador:

Função Wi-Fi

Diagram of a double door with internal air circulation arrows, no text or symbols present

Diagram of a mechanical or architectural component with two arrows pointing to internal features (no text or symbols present)

A luz

Technical line drawing of a mechanical device with two internal compartments and mounting holes (no text or symbols)

Simple line drawing of a circular object with internal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Substituir as lâmpadas LED

3D model of a mechanical housing component with labeled parts A and B (no text or symbols beyond labels)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray shapes arranged radially (no text or symbols)

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Haier

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Line drawing of a four-door refrigerator with a door and front panel, labeled with the number 8 (no text or symbols on the refrigerator itself)

A: Compartiment frigider

B: Compartiment congelator

C: Compartiment Switch Zone

Indicator:

A Compartiment frigider

B Switch Zone

C Compartiment congelator

K Selectare compartiment

Q Selector blocare panoul

Funcția Wi-Fi

Diagram of a double door with internal air circulation arrows, no text or symbols present

Flux de aer multiplu

Rafturi ajustabile

Diagram of a mechanical or architectural component with two arrows indicating direction (no text or symbols present)

Lumina

Technical line drawing of a mechanical device with two internal compartments and mounting holes (no text or symbols)

Simple line drawing of a circular object with internal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D mechanical part diagram with labeled points A and B, showing internal cavities and mounting holes (no text or symbols beyond labels)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Westgate House, Westgate, Ealing

Londra, W5 1YY

Abstract geometric shapes with varying shades of gray and white, no text or symbols present

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

MADE IN CHINA

Kullanım Kılavuzu

Buzdolabı-Dondurucu

HCW58F18EWMP

Symbol of a trash bin crossed with no visible text or labels

Line drawing of a four-tier refrigerator with a door and front panel, labeled with the number 8 (no text or symbols on the refrigerator itself)

A: Soğutucu bölmesi

Gösterge:

WiFi İşlevi

Diagram of a double-free refrigerator with curved arrows indicating airflow or circulation (no text or symbols)

Çoklu hava akışı

Diagram of a mechanical or architectural component with two horizontal panels and directional arrows, no visible text or symbols.

Açıklama: Su tankı

Işık

Technical line drawing of a mechanical component with two circular cavities and a central lid (no text or symbols)

Simple line drawing of a circular object with horizontal bands and a separate irregular shape, no text or symbols present.

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

3D rendering of a mechanical housing component with labeled parts A and B (no text or symbols beyond labels)

Pure geometric diagram of a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Pure mechanical diagram showing two vertical structural components with circular arrows indicating motion, no text or symbols present.

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray triangular shapes arranged symmetrically (no text or symbols)

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, Çin

ÇİN MALI

Haier

Návod na použitie

Chladnička s mrazničkou

HCW58F18EWMP

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a four-tier refrigerator with a door and label '8' (no text or symbols on the cabinet itself)

A: Chladiaci priestor

C: Priestor Switch Zone

11 Vzduchové potrubie
12 Nastavitelné nožičky
13 Zásobník na uskladnenie
14 Zásuvka na skladovanie Switch Zone

Kontrolka:

A Chladiaci priestor
B Switch Zone
C Mraziaci priestor
D Displej teploty
E Funkcia Super Cool
F Funkcia Super Freeze
G Režim Holiday
H Funkcia Wi-Fi
I Zamknutie panelu

Tlačidlá:

Funkcia Wi-Fi

1 Maslo, syr, atd'.
2 Vajcia, konzervy, zaváraniny, koreniny atd'.
3 Nápoje a potraviny vo fl'ašiach.
4 Potraviny v pohároch, konzervované potraviny atd'.
5 Mäsové výrobky, lahôdky, cestoviny, zaváraniny, mlieko, tofu, mliečne výrobky atd'.
6 Varené mäso, klobásy atd'.
7 Zásuvka Humidity zone: Ovocie, zelenina, šalát, atd'.
8 Zásuvka Humidity zone: Ovocie, zelenina, šalát, atd'.

Skladovanie v priestore Switch Zone

Diagram of a double-bushe electrical cabinet with internal circuit connections (no text or labels)

Nastavitelné police

Diagram of a container with two arrows indicating flow or movement, no text or symbols present

Osvetlenie

Technical line drawing of a mechanical component with two circular cavities and an upper housing (no text or symbols)

Diagram of a circular object with internal bands and a separate irregular shape, no text or symbols present

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

3D rendering of a mechanical housing component with labeled parts A and B (no text or symbols beyond labels)

Geometric diagram showing a 3D solid with dashed lines and arrows indicating direction (no text or symbols)

Diagram showing two vertical structural components with circular arrows indicating rotation, no text or symbols present

Abstract geometric shapes with varying shades of gray, no text or symbols present

Haier Smart Home Co., Ltd.

No.1 Haier Road, Haier Industry Park, Hi-Tech Zone,

266103 Qingdao, Shandong, China

VYROBENÉ V ČÍNE

Haier
