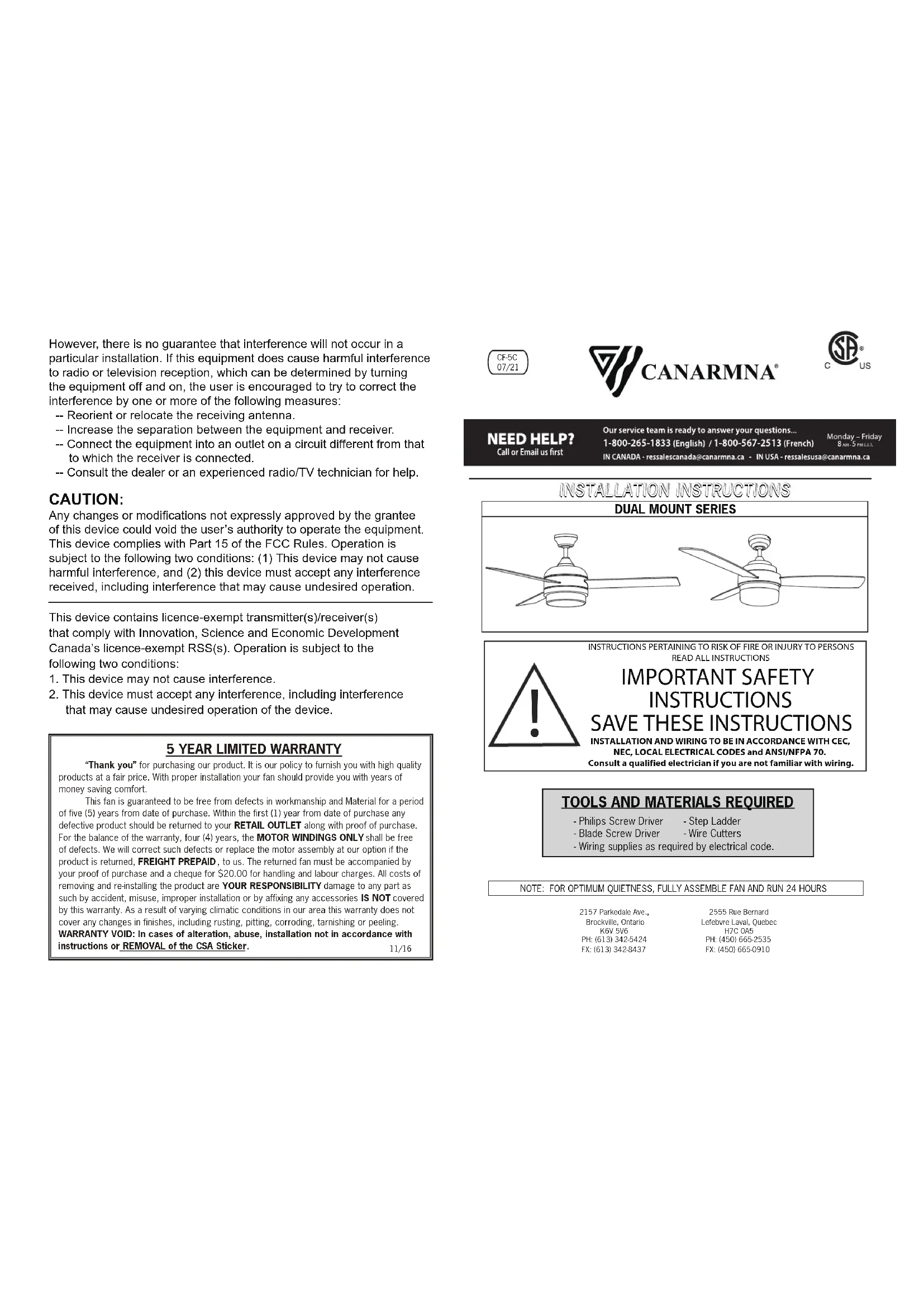

- Philips Screw Driver- Blade Screw Driver- Step Ladder- Wire Cutters- Wiring supplies as required by electrical code. INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONSREAD ALL INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70. Consult a qualified electrician if you are not familiar with wiring.

“Thank you” for purchasing our product. It is our policy to furnish you with high quality products at a fair price. With proper installation your fan should provide you with years of money saving comfort. This fan is guaranteed to be free from defects in workmanship and Material for a period of five (5) years from date of purchase. Within the first (1) year from date of purchase any defective product should be returned to your RETAIL OUTLET along with proof of purchase. For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free of defects. We will correct such defects or replace the motor assembly at our option if the product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as such by accident, misuse, improper installation or by affixing any accessories IS NOT covered by this warranty. As a result of varying climatic conditions in our area this warranty does not cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling. WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with

5 YEAR LIMITED WARRANTY

11/16 .rekcitS AS C eht fo LAVOMER ro snoitcurtsni 2555 Rue Bernard Lefebvre Laval, Quebec H7C 0A5 PH: [phone] FX: [phone] 2157 Parkedale Ave., Brockville, Ontario K6V 5V6 PH: [phone] FX: [phone] However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference

that may cause undesired operation of the device.Pg. #2Pg. #11 - To r

chain WARNING educe the risk of fire or electrical shock, ONLY use model CQ005 remote control for optional remote control adaptability. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.

with the lowest moving parts at least 2.10 Meters (7 Feet) above grade level. NOT operate reversing switch while fan blades are in motion. Fan must turned off and rotating blades stopped, reverse chain pulled, the speed pulled again

the opposite direction.- WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS, ENSURE THE FAN LOWER COVER IS SECURELY ATTACHED ON THE FAN UPPER COVER BEFORE USE. TROUBLESHOOTING TROUBLESUGGESTIONS- Check fuses and circuit breakers.1. Fan will not start - Check wiring connections to fan.- Check wiring connections in switch housing.CAUTION: Turn power off for last two items.

2. Fan sounds noisy - Check to make sure that all screws in motor housing are snug.

- Check to make sure that blade bracket screws are tight.- Check to make sure that marrettes in switch housing are not rattling against wall of switch housing.- If fan has a light kit make sure switch housing screws and set screws are tight.- Some fan motors are sensitive to signals from solid state variable controls. If solid state controller isused, change to an alternative control. (See a representative for a list of available controls.)- Allow a 24 hour break in period to eliminate most noises.

Fan wobbles - Check that all blades are screwed firmly into blade brackets.or shakes excessively.- Check that blade brackets are secured firmly to motor.- Check distance from tip of blades to ceiling. - Check distance between blade tip to blade tip. All measurements should be equal. Loosen blade screws and position blade until even then re-tighten.- Check that the downrod hemisphere notch is engaged in canopy- Check to make sure that jam screws in downrod are tightened.- Make sure canopy and mounting bracket are tightened securely to wooden joist.- Make sure warpage has not occurred in wooden blades. If so, contact the customer service department for replacement parts. INSTRUCTIONS The slide switch

for forward/reverse rotation.

warm weather: Set to forward rotation (counter-clockwise). Airflow will

directed downward, circulating cold air.

reverse rotation (clockwise). Airflow will

directed upward,circulating warm air.. REMOTE CONTROL Install DC1.5V/AAA*2pcs battery (not included).Operation buttons on the remote:*Hold down

decrease the light. The light has

was turned off. LIGHT ON/OFF: Press and release immediately to turn on or off the light. DIMMER- Press and hold to dim or brighten lights to the desired level and release. (Incandescent light bulbs or dimmable LED bulb only). HI : Turn on the fan at high speed MED : Turn on the fan at medium speedLOW : Turn on the fan at low speed OFF : Turn off the ceiling fan This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: CANARMNA Responsible Party CanarmInc. 709 East Main Street, Teutopolis, Illinois, USA 62467

SAFETY PRECAUTIONS 1. Turn off power at main electrical service box before starting installation2. Electrical connections must comply with local code ordinances, national electrical codes, CEC, NEC and ANSI/NFPA 70.3. Make sure the installation site you choose allows the fan blades to rotate freely without any obstructions.4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for Canada and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT". Ensure the outlet box is securely installed in place such that it is able to support at least the fan weight.5. WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount fan only on an outlet box or supporting system marked acceptable for fan support of 35 lbs (15,9 kg) or less and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.6. Total Fan Weight For Reference: 48"approximate 8.0 kgs(17.63lbs), 52"approximate 9.0 kgs(19.84lbs).ASSEMBLY DRAWING A. Mounting Bracket B. Canopy C. Downrod Assembly D. Yoke Cover E. Fan Motor Assembly

Fig.1 Pg. #10 Pg. #3 Light Kit

- Place glass onto the fan and turn to secure. Fig.9 Bulb MotorGlassLight KitWARNING: Ensure that all connections, set screws and screws are securely tightened before the next step.To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture with a clean, soft cloth. - Install proper wattage and type of bulb identified on light housing or shade.1

Pg. #4 Pg. #9 - Attach the blades to the fan motor assembly using the screws and flat washers. Fig.2a Fibre WasherMetal WasherBlade Bracket ScrewBladeBlade Bracket Fig.2b ScrewLight KitRed or BlueWiresWhiteWiresBlackorBlue Wires - Install the light kit to the fan motor assembly by tightening three screws - Connect polarized connectors of light kit to corresponding connectors found in switch housing.Light Kit

MOUNTING FAN ASSEMBLY

- Place two screws and washers on mounting plate (marked B on diagram) which correspond with slots in canopy. Screw in two turns.- Position canopy to mounting plate aligning slots to screws (marked B on diagram) then turn to lock.- Position and tighten the two screws and washers (marked A on diagram) then tighten the two screws (marked B on diagram).

ENGAGE HEMISPHERE (Downrod Mount Only) - Carefully rotate fan assembly until groove in hemisphere locks over tab of canopy assembly.WARNING: Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard. NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket faces towards the top of the slope. Depending on the slope, a longer downrod may

Fig.7b ANTENNA(Leave unconnectedand do not cut)VIEW AFTER INSTALLATIONPg. #8Pg. #5 INST INST ALLA ALLA TION TION NOTE: All set screws must be checked and retightened where necessary, before and after installation.

MOUNTING DOWNROD MOUNT

- Insert bolt through hole in shaft and downrod. Be careful not to damage or cut the fan wires.- Tighten flat washer and bolt. Secure with cotter pin through hole in the end of the bolt.- Secure downrod in position by tightening jam screws. Slide yoke cover down so it is flush with the motor housing.- Take out fan motor housing.- Remove cotter pin and bolt from yoke.- Loosen jam screw in yoke until it is flush with the inside surface.- Obtain downrod, canopy and yoke cover.- Place downrod inside canopy and yoke cover.

- Push all connected wires up into ceiling box. Position the receiver into the canopy as shown direction.

Mounting Plate Reciever Fig.7a BLACK BLUE WHITE Canopy ANTENNA WHITE BLACK 120V SUPPLY CIRCUIT Fan BLACK WHITE BLUE LEARNING PROCESS -. After installation of the fan, power on the fan. Open battery cover and install battery, DC1.5V/ AAA*2 pcs that are not included. Use a ball pen to press and hold the “LEARN” key for 1-3 seconds. -. FAN will be turned “OFF” and then “ON” at medium speed. This indicates the learning process is completed. -. Please GO through this learning process within 30 seconds after power on. -. If just replace batteries, no need to re-learn.-. Please note that the transmitter can learn in multiple receiver while doing learning process. -. Please make sure NOT to turn on other fans while learning.

- Install J-Hook through centre of outlet box and into the wooden joist.- Secure mounting bracket and rubber gaskets to outlet box.- Hang the safety cable onto the J-hook.WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To UL/CSA Listed Outlet Box Marked Acceptable for Fan Support And Use Mounting Screws Provided With The Outlet Box.CanopyRubber RingMotorCanopyYoke Screws& WashersRubber Bushing FLUSH MOUNT - Remove rubber ring from canopy.- Place canopy on fan housing by alinging 3 larger holes of canopy over 3 existing screws on the motor housing.- Secure canopy to motor housing by placing 3 screws and washers (supplied in hardware package) in the 3 smaller holes in the canopy.

- Hang fan on temporary hook or mounting bracket.CeilingOutlet box Screws (not provided) Fig.4a Tomporary Hook CanopySafetyCableFig.4c J-Hook Safety Cable CanopyFig.4b J-Hook Wood Joist Outlet Box Rubber Gasket Mounting Bracket Diagram Fig.4b is for Downrod Mount.Diagram Fig.4c is for Flush Mount. ELECTRICAL HOOK-UP

Make the following wire connections to the receiver unit (see fig. 5) using the wire nuts supplied.

connect BLACK receiver unit wire to BLACK supply wire. - connect WHITE receiver unit wire to WHITE supply wire. - connect WHITE receiver unit wire (MOTOR N) to WHITE fan wire. - connect BLACK receiver unit wire (MOTOR L) to BLACK fan wire. - connect BLUE receiver unit wire (FOR LIGHT) to BLUE light wire. - After making the wire connections, ensure the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box and the ungrounded conductor on the other side of the outlet box. - Ensure the splices after being made should be turned upward and pushed carefully up into the outlet box. NOTE: Once ground wires are connected, carefully tuck all wires and marrettes into the metal outlet box making sure that the wires are clear of the hemisphere and downrod when positioned in mounting bracket. In Quebec, the installation of this product must be carried out by a qualified electrician.
