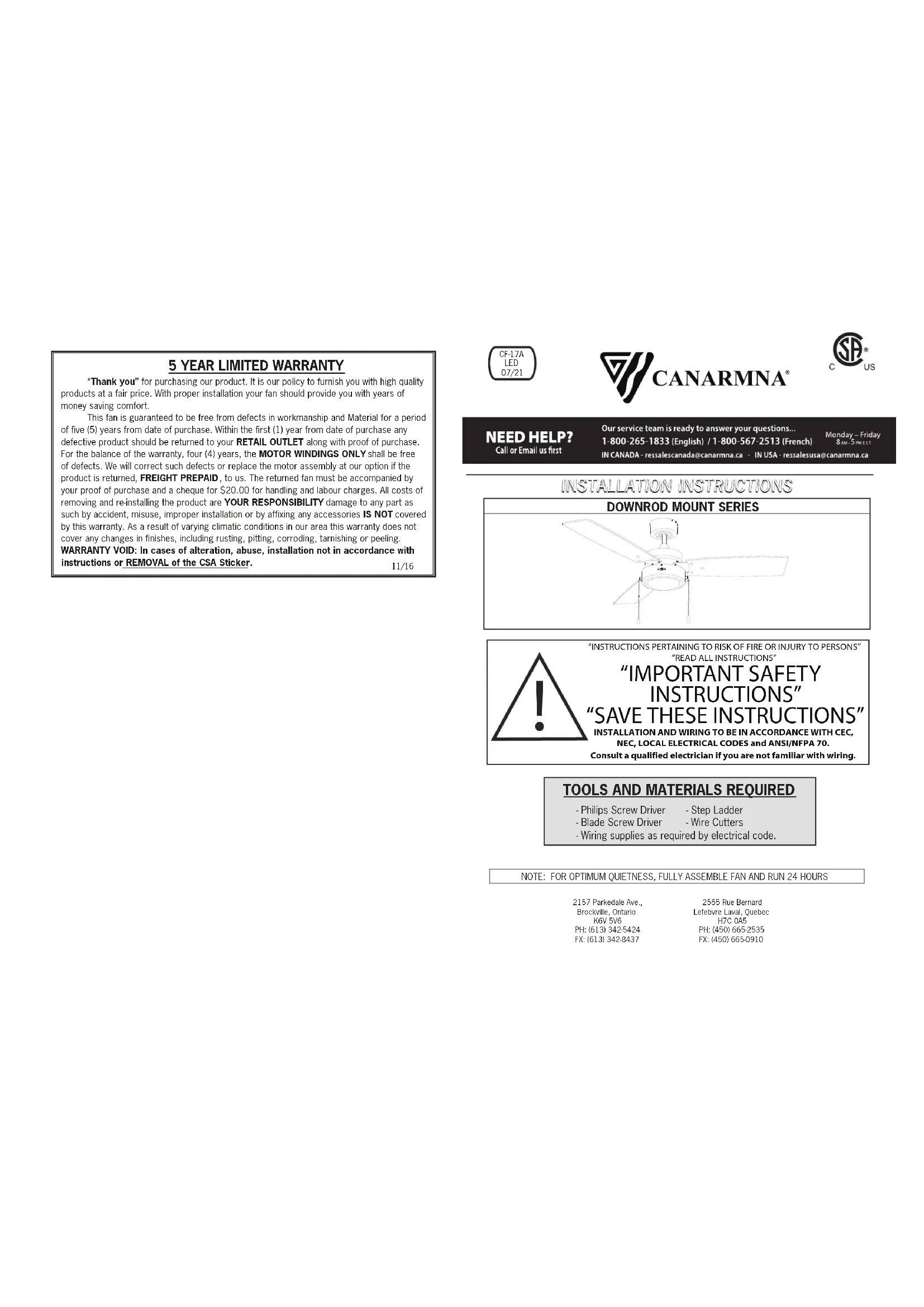

USER MANUAL Wallis Canarm

“SAVE THESE INSTRUCTIONS”

TOOLS AND MATERIALS REQUIRED

- Philips Screw Driver- Blade Screw Driver- Step Ladder- Wire Cutters- Wiring supplies as required by electrical code.DOWNROD MOUNT SERIES “Thank you” for purchasing our product. It is our policy to furnish you with high quality products at a fair price. With proper installation your fan should provide you with years of money saving comfort. This fan is guaranteed to be free from defects in workmanship and Material for a period of five (5) years from date of purchase. Within the first (1) year from date of purchase any defective product should be returned to your RETAIL OUTLET along with proof of purchase. For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free of defects. We will correct such defects or replace the motor assembly at our option if the product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as such by accident, misuse, improper installation or by affixing any accessories IS NOT covered by this warranty. As a result of varying climatic conditions in our area this warranty does not cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling. WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with

chain WARNING educe the risk of fire or electrical shock, ONLY use model CQ006 remote control for optional remote control adaptability.

with the lowest moving parts at least 2.10 Meters (7 Feet) above grade level. NOT operate reversing switch while fan blades are in motion. Fan must turned off and rotating blades stopped, reverse chain pulled, the speed pulled again

the opposite direction. INSTRUCTIONS way

pull chains.On a fan/light combination, three pull chains will exist: One for light,

and off. The second is for fan speeds. This will be marked (SPEED) on the fanswitch housing. 1st Pull will give fan High Speed 2nd Pull will give fan Medium Speed 3rd Pull will give fan Low Speed 4th Pull will Shut Fan Off The third pull chain

for Forward/Reverse#(Note: Some models come with

pull chain). This setting would usually

changed twice per year. Downdraft

circulate the hot stratified air off the and back down

the floorwithout creating

wind chill.A ceilling fan has a completeky internal switchung system for total operation by Updraftceilling This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference

that may cause undesired operation of the device. Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: CANARMNA Responsible Party CanarmInc. 709 East Main Street, Teutopolis, Illinois, USA 62467

SAFETY PRECAUTIONS 1. Turn off power at main electrical service box before starting installation2. Electrical connections must comply with local code ordinances, national electrical codes, CEC, NEC and ANSI/NFPA 70.3. Make sure the installation site you choose allows the fan blades to rotate freely without any obstructions.4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for Canada and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT". Ensure the outlet box is securely installed in place such that it is able to support at least the fan weight.5. WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount fan only on an outlet box or supporting system marked acceptable for fan support of 35 lbs (15,9 kg) or less and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.6. Total Fan Weight For Reference: 42"approximate 7.5 kgs(16.53lbs).Pg. #3

2. Approved (CSA for Canada

and UL for U.S.) ceiling fan box (not provided)

8. Outlet Box Screws (not provided)

ASSEMBLY DRAWING Pg. #10 Fig. 1 TROUBLESHOOTING TROUBLE SUGGESTIONS - Check fuses and circuit breakers.

1. Fan will not start - Check wiring connections to fan.

- Check wiring connections in switch housing. CAUTION: Turn power off for last two items.

2. Fan sounds noisy - Check to make sure that all screws in motor housing are snug.

- Check to make sure that blade bracket screws are tight. - Check to make sure that marrettes in switch housing are not rattling against wall of switch housing. - If fan has a light kit make sure switch housing screws and set screws are tight. - Some fan motors are sensitive to signals from solid state variable controls. If solid state controller is used, change to an alternative control. - Allow a 24- hour break- in period to eliminate most noises.

3. Fan wobbles - Check that all blades are screwed firmly into blade brackets.

or shakes excessively. - Check that blade brackets are secured firmly to motor. - Check distance from tip of blades to ceiling. - Check distance between blade tip to blade tip. All measurements should be equal. Loosen blade screws and position blade until even then re-tighten. - Check that the downrod hemisphere notch is engaged in canopy. - Check to make sure that jam screws in downrod are tightened. - Make sure canopy and mounting bracket are tightened securely to wooden joist. Stamped Blade Brackets

- Make sure warpage has not occurred in wooden blades. If so, contact the customer service department for replacement parts.Pg. #4 NOTE: All set screws must be checked and retightened where necessary, before and after installation. MOUNTING INST INST ALLA ALLA TION TION - Using a Phillips screwdriver loosen the two upper jam screws on the yoke. - Position downrod inside canopy. - Route wires exiting yoke on motor through ceiling canopy and downrod. - Position downrod/canopy into yoke and align holes in yoke and downrod. - Insert bolt through hole in yoke and downrod. Be careful not to damage or cut the fan wires. - Tighten flat washer, lock washer, and nut and bolt (not included on some models). Secure with cotter pin through hole in the end of the bolt. - Secure downrod in position by tightening upper jam screws.

Pg. #9 Fig.9 LIGHT KITS (Optional in some fans)

- Remove light kit screws and washers. - Connect polarized connectors of light kit to corresponding connectors found in switch housing.

WARNING: BE SURE TO TURN OFF POWER

BEFORE INSTALLING - Carefully tuck electrical wires back into switch housing, align light kit with switch housing and secure with three light kit screws and washers. MotorLight KitScrew Star WasherLight Kit Bolt Yoke Jam Screw Bolt Flat WasherCotter Pin Yoke Jam ScrewCotterFlat Washer Pin Fig.2bFig.2a CAUTION Do not loosen twolower jam screws Fig.2c

WARNING: Check all connections, set screws and screws are securely tightened

before the next step. To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture with a clean, soft cloth.Pg. #8 Pg. #5

INSTALL MOUNTING BRACKET

- Install J-Hook through centre of outlet box and into the wooden joist. - Secure mounting bracket and rubber gaskets to metal outlet box. - Hang the safety cable onto the J-hook. - Hang fan on temporary hook and install safety cable.

WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal

Injury, Mount To UL/CSA Listed Outlet Box Marked Acceptable for Fan Support And Use Mounting Screws Provided With The Outlet Box.

MOUNT BLADE BRACKETS TO BLADES

Cast Blade Brackets - Tack out hardware package. - Place blade bracket screw through flat washer, fibre washer and blade. - Align with corresponding hole in blade bracket. - Repeat with (2) remaining screws and tighten. MOUNTING BLADES

Tack out hardware containing motor screws, lock washers and gaskets.

Place lock washers over motor screws, position motor screws

blade brackets, place fibre bracket gaskets over screws and secure to motor. Make sure all screws are tightened securely.

J-HookCeiling Wood Joist Outlet Box Rubber Gasket Mounting Bracket Outlet boxScrews (not provided) J- Hook Safety Cable Canopy Fig.3b Fig.3aPg. #6 Pg. #7

MOUNTING FAN ASSEMBLY

.kcol ot nrut neht )a7 .giF - Position and tighten the two screws and washers (marked A on Fig. 7a)then tighten the two screws (marked B on Fig. 7a). ENGAGE HEMISPHERE (Downrod Mount Only) - Carefully rotate fan assembly until groove in hemisphere locks over tab of canopy assembly.

NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket faces towards the top of the slope. Depending on the slope, a longer downrod may be required to prevent fan blades from hitting the ceiling.

WARNING: Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard.

ELECTRICAL HOOK UP (Continued) CONNECTING BLACK, WHITE, AND (RED OR BLUE) WIRES NOTE: Once wires are connected, carefully tuck wires and marettes into the metal outlet box making sure that the wires are clear of the hemisphere and downrod when positioned in mounting bracket (Downrod Mount Only).Red or Blue Wire Black WireWhite Wire

NOTE: Once ground wires are connected, carefully tuck wires and marette into the metal outlet box making sure that the wires are clear of the hemisphere and downrod when positioned in mounting bracket (Downrod Mount Only). CAUTION

- There are several different wiring combinations that can be used to .stnemeriuqer cificeps ruoy no gnidneped naf gniliec ruoy lortnoc

Groove (A) (B) (B) Washers (A) Fig.6b Fig.6a DownrodHemisphere- Connect ground wire from outlet box to green wire from mounting bracket and downrod using a(not supplied). DOWNROD MOUNT Fig.4Marette maretteM
