USER MANUAL P2500iEBT (2022) POLARIS

For Maintenance and Safety

OWNER'S MANUAL

P2500iEBT Inverter Generator

WARNING

Read, understand, and follow all of the instructions and safety precautions in this manual and on all product labels.

Failure to follow the safety precautions could result in serious injury or death.

WARNING

Operating, servicing, and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, soots, mineral oils, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary. Service your equipment in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle.

For more information go to www.P65Warnings.ca.gov.

FOR MAINTENANCE AND SAFETY

OWNER'S MANUAL

P2500iEBT

POLARIS® and POLARIS POWER® are trademarks of POLARIS Industries Inc.

Copyright 2021 Polaris Industries Inc. All information contained within this publication is based on the latest product information at the time of publication. Due to constant improvements in the design and quality of production components, some minor discrepancies may result between the actual product and the information presented in this publication. Depictions and/or procedures in this publication are intended for reference use only. No liability can be accepted for omissions or inaccuracies. Any reprinting or reuse of the depictions and/or procedures contained within, whether whole or in part, is expressly prohibited.

The original instructions for this product are in English. Other languages are provided as translations of the original instructions.

Printed in China

9940362 R01

Black-and-white winter forest scene with snow-covered trees and distant hills, featuring a Polaris logo in the corner (no text or symbols on the main scene)

Designed in our labs, put to the test in yours.

Power for everything, for everyone. We've designed Polaris Power® with that simple principle in mind. From long weekend camping trips and tailgating to construction sites and power while you wait out the storm, we've got you covered.

Our line of generators are built for it all. No detail too small, no spec overlook We've redefined the definition of limits, so you can keep redefining yours.

• P2000i Inverter Generator
• P2500iEBT Inverter Generator
• P3200iE Inverter Generator
• P5500 Open Frame Generator
• P6500 Open Frame Generator

Your owner's manual contains instructions for minor maintenance, but information about major repairs is outlined in the POLARIS Service Manual and can be performed by a factory certified Master Service Dealer® (MSD) Technician.

Your POLARIS dealer knows your generator best and is interested in your total satisfaction. Your POLARIS dealership can perform all of your service needs during, and after, the warranty period.

Introduction . . . . . . . . . . . . . . . . . . . . . . .
Safety

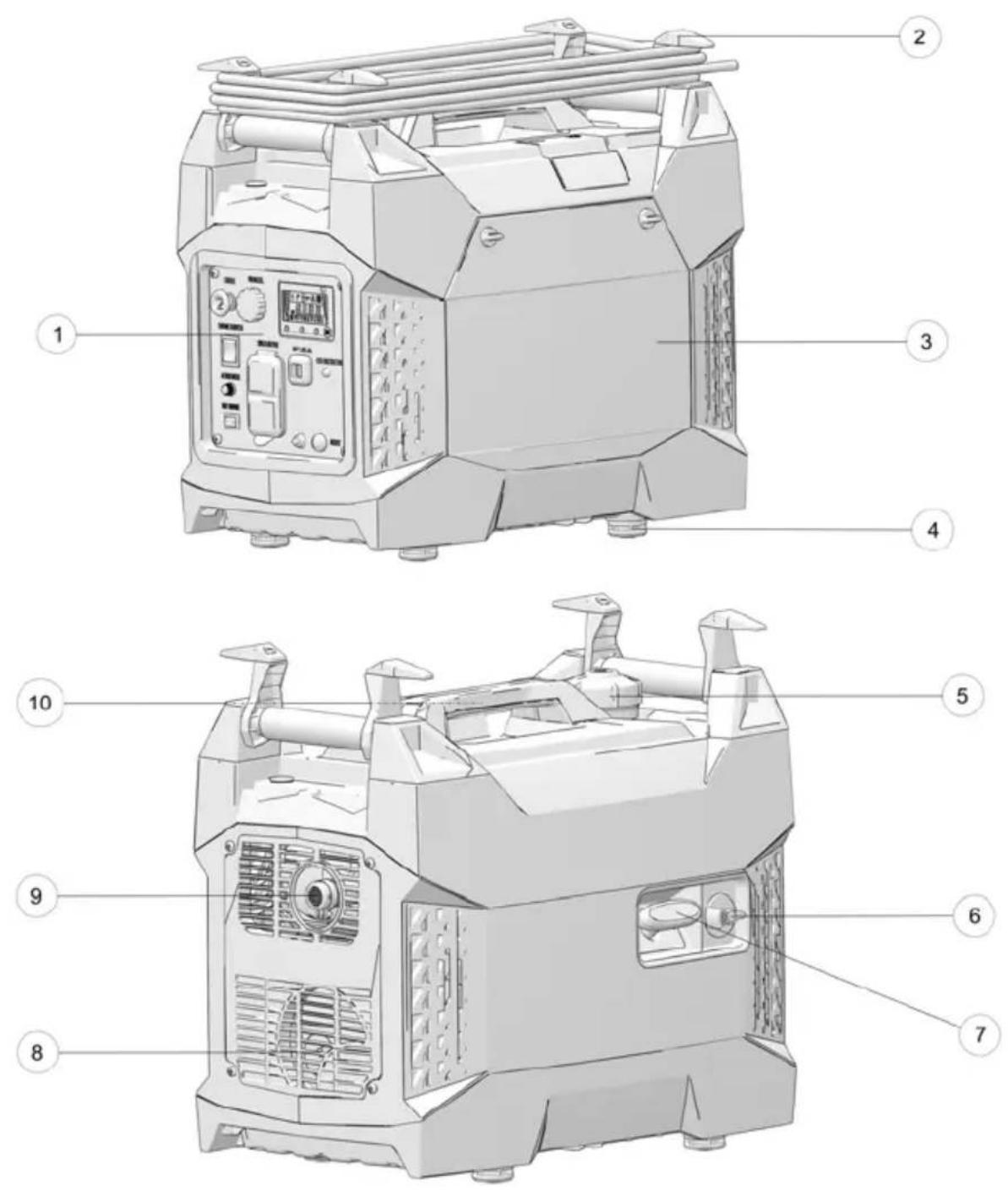

Features and Controls ..... 2
First Use Instructions . . . . . . . . . . . . . . . . . 3
Polaris Mobile App . . . . . . . . . . . . . . . .
Operation 4
Emission Control Systems . . . . . . . . . . . . . .
Maintenance 57
Specifications 81
Polaris Products 8
Troubleshooting 85
Warranty 89
Maintenance Log 9

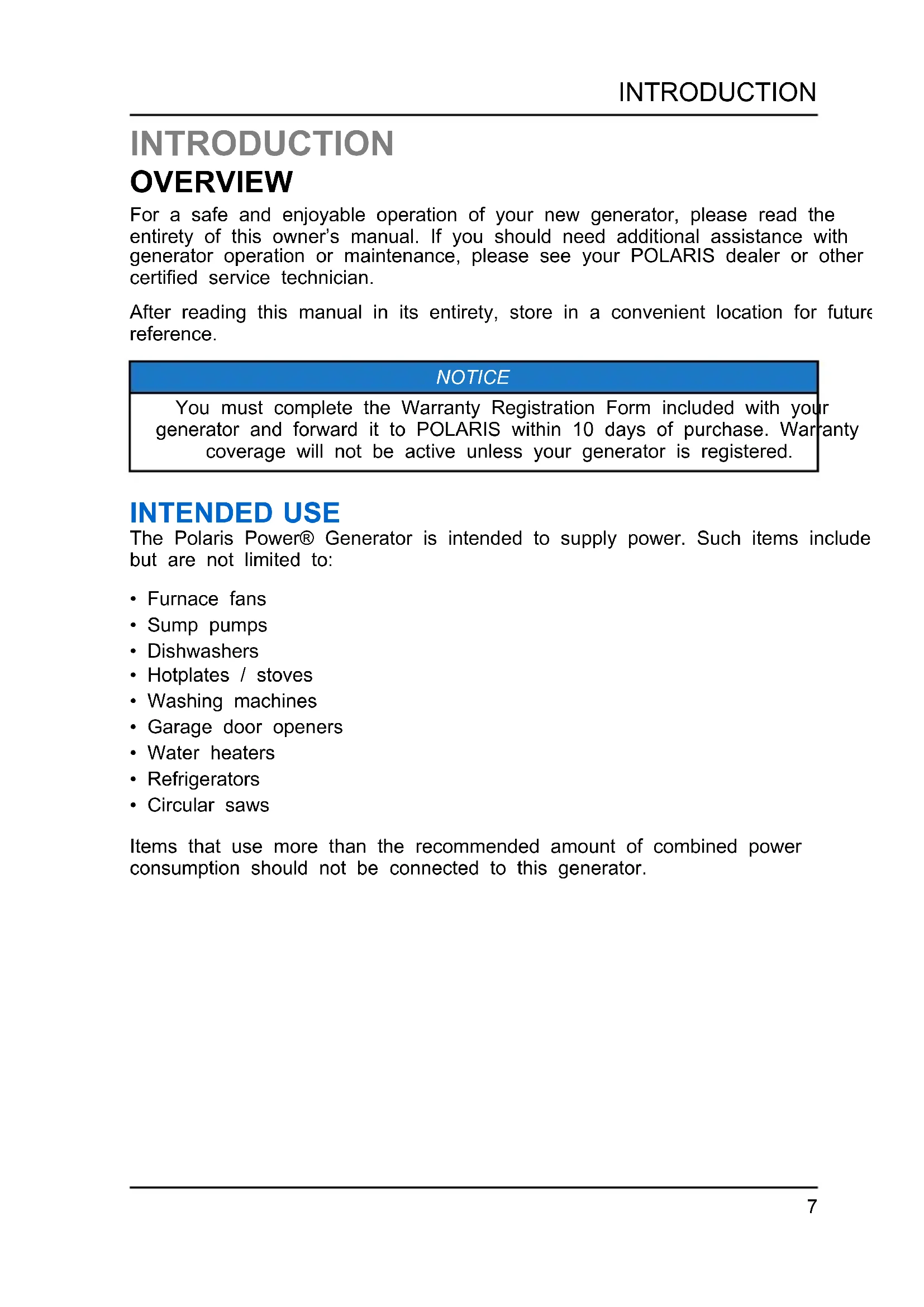

INTRODUCTION

OVERVIEW

For a safe and enjoyable operation of your new generator, please read the entirety of this owner's manual. If you should need additional assistance with generator operation or maintenance, please see your POLARIS dealer or other certified service technician.

After reading this manual in its entirety, store in a convenient location for future reference.

NOTICE

You must complete the Warranty Registration Form included with your generator and forward it to POLARIS within 10 days of purchase. Warranty coverage will not be active unless your generator is registered.

INTENDED USE

The Polaris Power® Generator is intended to supply power. Such items include but are not limited to:

• Furnace fans
• Sump pumps
• Dishwashers
• Hotplates / stoves
• Washing machines
• Garage door openers
• Water heaters
• Refrigerators
• Circular saws

Items that use more than the recommended amount of combined power consumption should not be connected to this generator.

SAFETY SYMBOLS AND SIGNAL WORDS

The following signal words and symbols appear throughout this manual and on your generator. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.

! DANGER

DANGER indicates a hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, COULD result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, COULD result in minor to moderate injury.

NOTICE

NOTICE provides key information by clarifying instructions.

IMPORTANT

IMPORTANT provides key reminders during disassembly, assembly, and inspection of components.

The Prohibition Safety Sign indicates an action NOT to take in order to avoid a hazard.

e in

The Mandatory Action Sign indicates an action that NEEDS to be taken to avoid a hazard.

to

GENERATOR IDENTIFICATION NUMBERS

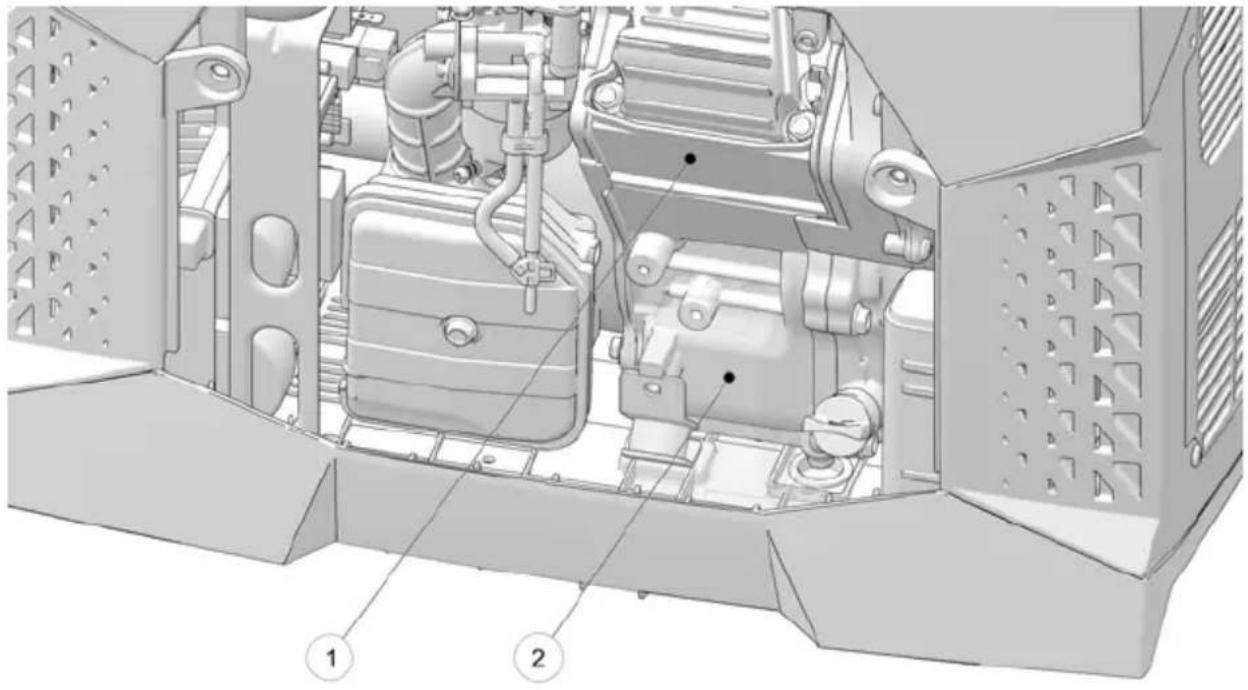

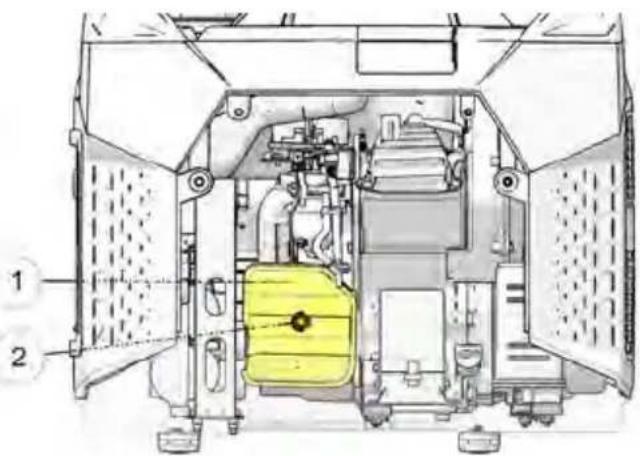

To view your generator's identification numbers, first remove the maintenance panel from the right side of the generator. The generator serial number be found stamped on the crankcase above the oil drain. The engine serial number ② is adhered to the side of the engine above the crankcase.

Technical diagram of an industrial machine with labeled components (no text or symbols present)

Record your generator's serial numbers and purchase date in the spaces provided.

Serial Number
Generator Serial Number
Purchase Date

SAFETY

SAFETY WARNINGS

WARNING

Failure to follow recommended precautions and procedures could result in severe injury or death. Always follow all safety warnings on the product, and follow all operation, inspection, and maintenance procedures outlined in this manual.

Read and understand all of the safety and operating information in this manual and on the product before using the machine. Use the generator only as described in this manual.

Understand and follow all inspection and maintenance procedures outlined in this manual. Following these procedures will ensure that the generator remains in safe operating condition.

Turn the Engine switch to the OFF position. Turn off the fuel valve when the generator is not in use for an extended period of time.

WARNING

It is the responsibility of the owner to ensure that all users of this generator are fully informed of the safety and operating information prior to use.

OPERATOR SAFETY

WARNING

Operating the generator with worn, damaged, or malfunctioning components could result in serious injury or death. Never start the engine without checking all of the generator components to be sure of proper operation.

Please take the following precautions, which are essential for proper and safe operation:

• Read and understand all of the safety and operating information in this manual and on all warning and instruction labels before using the generator. Use the generator only as described in this manual and on the product.
• Know how to stop the generator quickly in case of emergency, see for information on stopping the unit quickly.
• Keep children, pets, and bystanders at a safe distance from the generator.

• Review and understand the use of all generator controls, output receptacles, and connections.

• Be sure that anyone who operates the generator receives proper instruction and reads this manual completely. Do not let children operate the generator.

• Use the generator only for intended purposes.
• Turn off the generator immediately if the unit begins to operate abnormally. After the generator has cooled, disconnect the generator and take to your authorized Polaris dealer.
• While operating the generator, if you experience a headache, fatigue, nausea / vomiting, confusion, or seizures, immediately get to fresh air. Do not delay and do not attempt to shut down the unit.

OPERATING WITHOUT INSTRUCTION

WARNING

Operating this generator without proper instruction increases the risk of severe injury or death.

The operator must understand how to operate the generator safely in proper conditions and environments.

All operators must read and understand the owner's manual and all warning and instruction labels before operating the generator.

Blue circular icon with a white human figure reading a book (no text or symbols)

FAILURE TO INSPECT BEFORE OPERATING

WARNING

Failure to inspect and verify that the generator is in safe operating condition before operating increases the risk of an accident resulting in severe injury or death.

Always perform the pre-operation inspection before each use of your generator to make sure it's in safe operating condition.

Always follow the inspection and maintenance procedures and schedules described in this owner's manual.

USING ALCOHOL OR DRUGS

WARNING

Never consume alcohol or drugs before or while operating this generator. Operating this generator after consuming alcohol or drugs could adversely affect operator judgment.

BEE BEER

CARBON MONOXIDE SAFETY

WARNING

Generator exhaust contains Carbon Monoxide (CO) vapors. Exposure to Carbon Monoxide by people or pets can result in SEVERE INJURY or DEATH-ALWAYS operate generator according to all warning and instruction labels and this manual.

• This portable generator runs on gasoline. The generator exhaust vapor contains carbon monoxide (CO).
  • Carbon monoxide is odorless. You cannot smell it.
• Carbon monoxide is colorless. You cannot see it.
• The generator is for outdoor use only. Never run the generator in an enclose area. Exhaust contains poisonous carbon monoxide vapor that can cause loss of consciousness or death. Operate the generator in an open, and well ventilated area.
• Do not use the generator indoors in garages, basements, crawl spaces, sheds, portable buildings, or similar areas even if doors and windows are open or if ventilating fans are used to circulate air.
• Do not use the generator near windows, doors, vents or any other building openings even if they are closed. Poor seals on a door, as one example, could still permit high levels of carbon monoxide to infiltrate the living area of home.
• Be sure to install approved carbon monoxide detectors in your home that have battery back-up systems that will continue to detect the presence of carbon monoxide during electric-power outages. Test these devices and replace batteries as recommended by their respective manufacturers.

IMPORTANT

If you experience a headache, fatigue, nausea / vomiting, confusion, or seizures, immediately get to fresh air and away from the unit. Do not delay if any reason.

ELECTRICAL SAFETY

! DANGER

This generator produces high voltage electricity sufficient to cause death by electrocution.

• The generator produces enough electric power to cause serious shock or electrocution if misused.
• Always connect the generator to a suitable ground circuit.
• When servicing the generator, disconnect the spark plug wire and place it where it cannot contact the plug. Turn the engine switch to the OFF position.
• Do not check for a spark with the plug removed. Use only approved spark plug testers.
• Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in severe shock or electrocution. Keep the generator dry and away from all sources of moisture.
• If the generator is stored outdoors, unprotected from the weather, check all electrical components on the control panel before each use. Moisture or ice can cause a malfunction or short circuit in electrical components that could result in electrocution.
• Do not connect the generator to a building's electrical system unless an isolation switch has been installed that meets applicable electrical codes and regulations.
• To avoid overloading the generator, ensure load is kept within the rated power range stated on the generator. Overloading will damage the unit and / or shorten its operating lifespan.

NOTICE

Do not attempt to connect generators in parallel.

EXTENSION CORD USE

Read the manufacturer starting and running wattage details and operating instructions for the device(s) and appliance(s) that will be used. Often this information can be found in the owner's manual or on specification decals on t device or appliance.

CHOOSING A PROPER EXTENSION CORD

Polaris recommends using only U.L. (Underwriters Laboratories, Inc.) approved extension cords labeled with the use, size, and wattage rating.

Only use heavy-duty extension cords with a three-prong (grounded) plug for your safety.

Decide on what length extension cord is required as cord length determines the extension cord gauge. Remember, as the cord gets longer, the current capacity of the cord decreases.

Never use an extension cord outdoors that is designated as "indoor use only".

EXTENSION CORD SAFETY

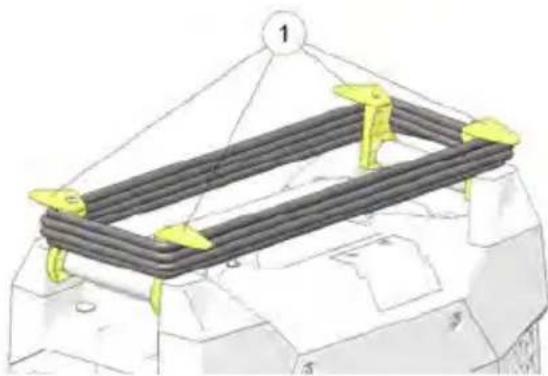

Your generator is equipped with optional cord holder hook for storage of an extension cord.

Store all extension cords indoors when not in use. Outdoor conditions can deteriorate a cord over time.

Before plugging an extension cord or power cord into the generator, check the cord for signs of damage.

3D diagram of a mechanical structure with yellow connectors and layered gray components, no visible text or symbols

CAUTION

Do not store an extension cord on the generator while the generator is in us. Hot surfaces from the engine could result in damage to the cord. Wait until generator has been turned off and cooled before storing an extension cord or the hooks.

IMPORTANT

The cord will still conduct electricity until it is unplugged from the outlet.

FIRE SAFETY

WARNING

Gasoline is extremely flammable and is explosive under certain conditions. Do not smoke or allow flames or sparks where generator is refueled or where gasoline is stored. Refuel in a well-ventilated area with the engine OFF.

CAUTION

Generator exhaust system gets hot enough to ignite some materials and burn skin if touched.

• Keep the generator at least 3 feet (1 m) away from buildings, other equipment, and combustible materials during operation.
• Do not enclose the generator in any structure.
• Keep children and pets away from generator.
• Exhaust system components are very hot during and after use. Hot components can cause burns and fire. Do not touch the hot exhaust system components. Always keep combustible materials away from the exhaust system.
• Ensure that any spilled fuel is properly wiped up prior to using the generator as fuel vapors are flammable.

EXPOSURE TO EXHAUST

WARNING

Exhaust fumes from your generator are poisonous and can cause loss of consciousness or death in a short time. Never start the generator or let it run in an enclosed area. Only operate this generator while outdoors.

HOT EXHAUST SYSTEMS

WARNING

Exhaust system components are very hot during and after use of the vehicle. Hot components can cause burns and fire. Do not touch hot exhaust system components. Always keep combustible materials away from the exhaust system.

Use caution when traveling through tall grass, especially dry grass and when traveling through muddy conditions. Always inspect the underside of the vehicle and areas near the exhaust system after driving through tall grass, weeds, brush, other tall ground cover, and muddy conditions. Promptly remove any grass, debris or foreign matter clinging to the vehicle and pay particular attention to the exhaust system area.

RUNNING GENERATORS IN PARALLEL

WARNING

Only connect in parallel with a Polaris Power P3200iE, P2500iEBT, or P2000i generator using an approved parallel cable (sold separately). Attempting to connect other brands or models will void your warranty and could cause severe injury.

EQUIPMENT MODIFICATIONS

Your POLARIS generator is designed to provide safe operation when used as directed. Modifications to your generator may negatively impact generator stability. Failure of critical machine components may result from operation with any modifications, especially those that increase power.

Do not install any non-POLARIS-approved accessory or modify the generator for the purpose of increasing power output. Any modifications or installation of non-POLARIS-approved accessories could create a substantial safety hazard and increase the risk of bodily injury.

Modifying the generator by adding or removing any parts, components, or any modifications not approved by Polaris may void the warranty. Such modifications may make the generator unsafe to operate and could result in severe injury to operators and bystanders, as well as damage to the generator. Some modifications may not be legal in your area. If in doubt, contact your authorized POLARIS dealer.

NOTICE

For more information about safety, call POLARIS at 1-800-342-3764.

HANDLING GASOLINE

WARNING

Gasoline is highly flammable and gasoline vapor is explosive under certain conditions. Always use caution when handling gasoline.

• If the generator has been in operation, allow engine to cool completely before refueling.
  • Always store gasoline in an approved container.
  • Always refuel outdoors or in a well-ventilated area away from any combustible materials.
• Do not smoke or allow open flames or sparks in or near the area where refueling is performed or where gasoline is stored.
• Never permit children to handle gasoline.
• Never refuel around bystanders, pets, and flammable objects.
• Loosen the fuel cap slowly to relieve pressure in the tank.
  • Take care not to overfull or spill any fuel on the generator or muffler when refueling.
• If spills occur, wipe up with a clean, dry cloth and let generator sit for 10 minutes in a well-ventilated area to allow fumes to evaporate completely.
• If gasoline spills on skin or clothing, immediately wash it off with soap and water and change clothing.
• Do not use the generator if you observe leaking gasoline. Have the generator serviced immediately and before using it again.
• When operating or transporting the generator, be sure it is kept upright. If it tilts, fuel may leak. Be sure the fuel tank cap is tightened when transporting the generator.
• Do not refuel using gas station pumps.
• Remove fuel from the generator before transporting in a vehicle.

WARNING

Always operate generator on level surface. If the generator is tilted, fuel may spill or the generator may tip over, causing hazardous conditions. Do not swallow gasoline, inhale gasoline vapors, or spill gasoline. If you swallow gasoline, inhale more than a few breaths of gasoline vapor, or splash gasoline in your eyes, see a physician immediately. If gasoline spills on skin or clothing, immediately wash it off with soap and water and change clothing.

OPERATION RULES

• Perform all Pre-Operation Inspection activities as shown on of this manual. Inspect and tighten all parts before each use. Ensure the generator does not have any damaged, loose, or missing parts before use. All defects should be corrected before use. Do not operate the generator if it has been dropped or damaged until all defective parts have been repaired.
• Do not place any flammable materials near the generator.
• Never start the generator or let it run in an enclosed area. Exhaust vapors a poisonous and can cause loss of consciousness or death in a short time. Keep the generator away from buildings and other equipment during operation.
• Do not operate the generator in exposed locations where it will be subjected to wet conditions.
• Do not touch the generator with wet hands, as this may cause severe electri shocks.
• Do not pour water directly over the generator or wash it.
• Do not use or store the generator in the rain or snow.
• Do not cover the generator when in use.
• Always operate the generator on a firm, flat, and level surface, as the generator will vibrate on an irregular surface.
• If the generator is tilted, fuel may spill or the generator may tip over, causing hazardous situation.
• Do not connect the generator to another power supply source.
• The engine becomes extremely hot during and immediately after it has been in use. Be careful not to touch any parts of the hot engine, especially the muffler or muffler cover, or serious burns may result.
• Do not connect external equipment to the generator before starting the engine.
• Do not use for life support, or life sustaining systems.

NOISE LEVEL

The following noise chart lists average decibel levels for everyday sounds and appliances.

DANGER LEVEL	SOUND DECIBEL	LEVEL	PERMISSIBLE EXPOSURE TIME	SAFETY RECOMMENDATION
Painful Impulse Noise	Fireworks (3 ft) / Shotgun Blast	150 dBP Not safe for any period of time.		Avoid exposure. Not safe for any period of time.
	Firearms 140 dBP	Not safe for any period of time.
Painful Steady Noise	Jackhammer 130 c	B(A) Not safe for any period of time.
	Jet Plane Takeoff / Siren	120 dB(A) Not safe for any period of time.
Extremely Loud	MP3 Player Max Output / Rock Concert	112 dB(A) ~ 1 minute Wear earplugs or earmuffs.
	Leaf Blower / Snow Blower	106 dB(A) > 4 minutes
	Hair Dryer / Blender	94 dB(A) 1 hour
Very Loud Passing	Passing motorcycle / Gas Lawn Mower	91 dB(A) 2 hours
Loud Busy Traffic / Vacuum Cleaner		85 dB(A) 8 hours No protection		required.
Moderate Generator / Group Conversation		70 dB(A) Unlimited
		Dishwasher / Clothes Dryer	60 dB(A) Unlimited
		Moderate Rainfall	50 dB(A) Unlimited
		Raindrop / Quiet Room	40 dB(A) Unlimited
Faint Whispering	30 dB(A)	Unlimited

HEARING PROTECTION

Earmuffs are worn over the ears. They must completely surround the ear and snugly to reduce sound. Quality earmuffs, worn properly, can block up to 30 decibels of noise.

Earplugs are inserted into the ear to completely block the ear canal. Quality earplugs can reduce noise by up to 30 decibels.

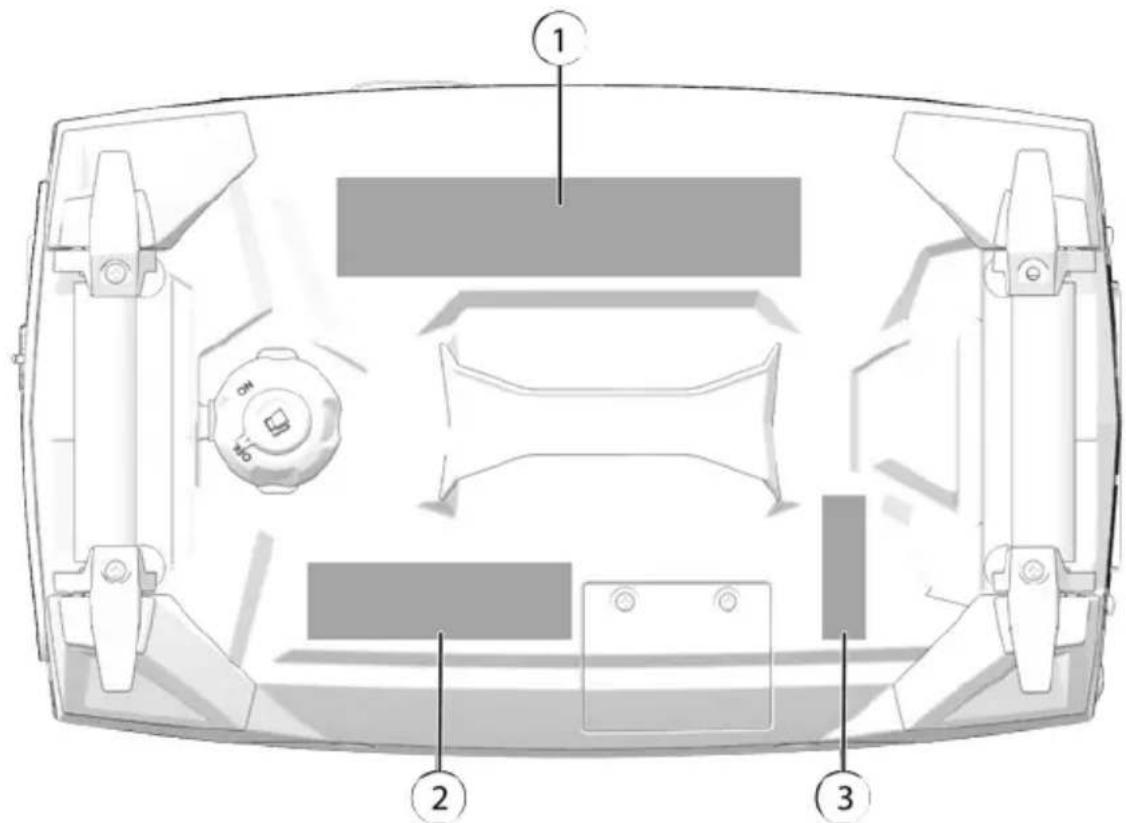

SAFETY LABELS AND LOCATIONS

Warning labels have been placed on the generator for your protection. Read an follow the instructions on each label carefully. If any of the labels shown in this manual differ from the labels on your generator, always read and follow the instructions of the labels on the generator.

If an informational or graphic label becomes illegible or comes off, contact your POLARIS dealer to purchase a replacement. Replacement safety labels are provided by POLARIS at no charge. The part number is printed on the label.

Technical diagram of a vehicle front panel with labeled components and control buttons

① General Warning

② Carbon Monoxide Danger

③ Hot Exhaust Caution

GENERAL WARNING

The general warning is located on the top side of the generator near the fuel volume indicator.

WARNING

Improper generator use can result in SEVERE INJURY or DEATH. Read the owner's manual. Follow all instructions and warnings.

Gasoline is flammable and explosive. Severe burns can result.

ALWAYS stop the engine and let cool down before refueling.

ALWAYS check for fuel leaks and wipe up any spills.

ALWAYS turn the fuel to OFF when not in use.

NEVER handle gasoline indoors. NEVER overfill the fuel tank.

Generator exhaust contains poisonous Carbon Monoxide (CO) vapors.

ALWAYS operate in a well-ventilated area.

NEVER operate in a home, garage, enclosed area of near windows, doors, or people.

NEVER operate near flammable objects.

Black silhouette of a flame with flame-like patterns (no text or symbols)

Abstract black-and-white illustration of a human head with a dotted pattern around it, no text or symbols present.

Electrocution can result from using generator in rain, snow, near water, with wet hands, or with improper connections.

ALWAYS keep generator and surrounding area dry.

NEVER connect generator to any building without electrical-isolation protection that meets applicable codes and regulations.

CARBON MONOXIDE WARNING

The carbon monoxide warning label is located on the top side of the generator near the fuel level indicator.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage. EVEN IF doors and windows are open.

Diagram showing two scenarios of a house with a printer and car, both marked with prohibition symbols.

Only use OUTSIDE and far away from windows, doors, and vents.

Simple line drawing of a house with a window and a printer icon showing an arrow (no text or symbols)

HOT EXHAUST CAUTION

The hot exhaust caution is located on the top side of the gas tank near the fu volume indicator.

CAUTION

Contacting a hot exhaust system can cause serious burns. Do not touch if generator is or has been running.

Silhouette of a hand with fingers extended (no text or symbols)

FEATURES AND CONTROLS OVERVIEW

COMPONENT DESCRIPTION

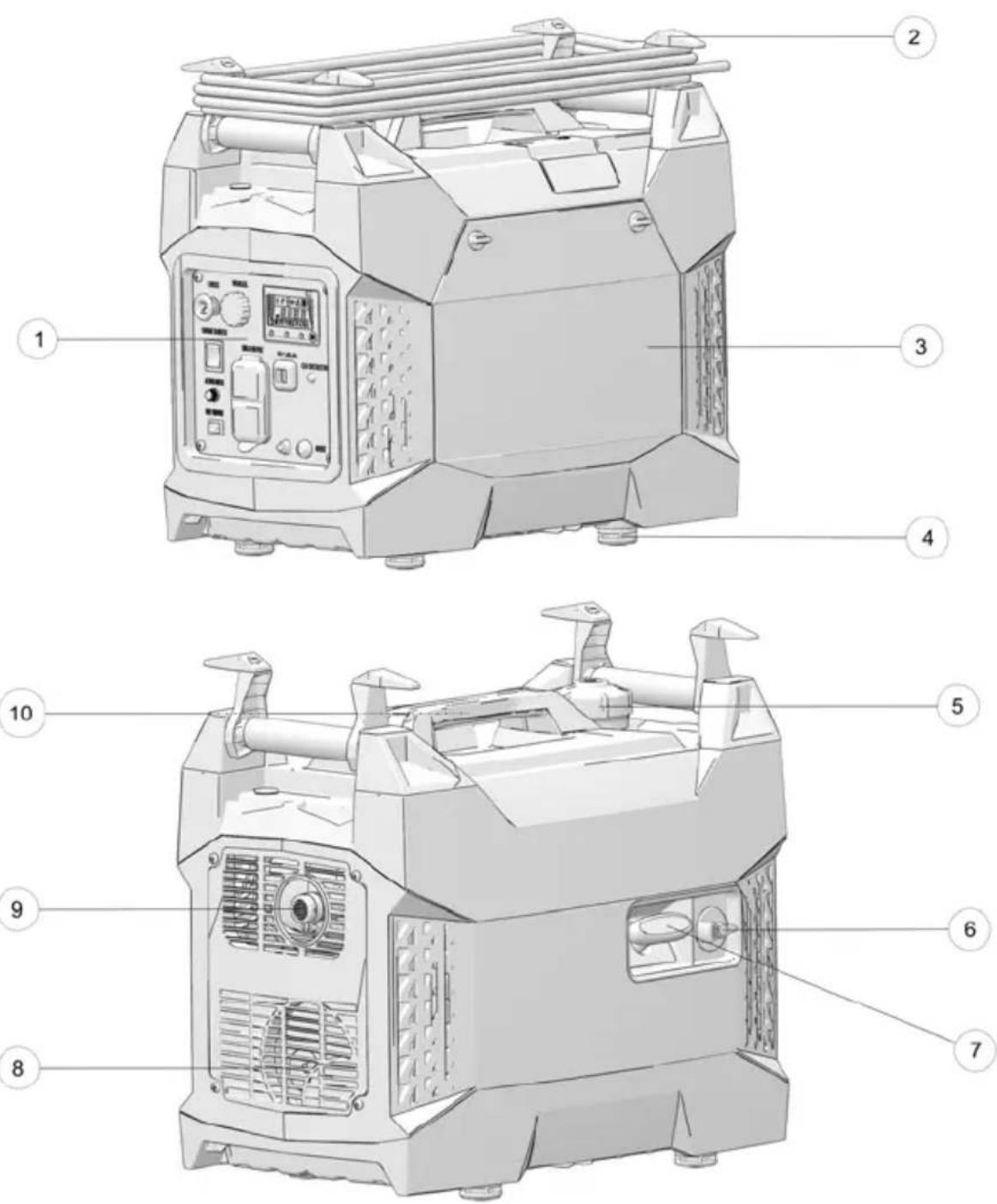

1 Control Panel	Contains the switches, buttons, indicator panel, and receptacles for proper operation of the generator.
2 Cord Hooks	Allows for storage of extension cords when generator is not in use.

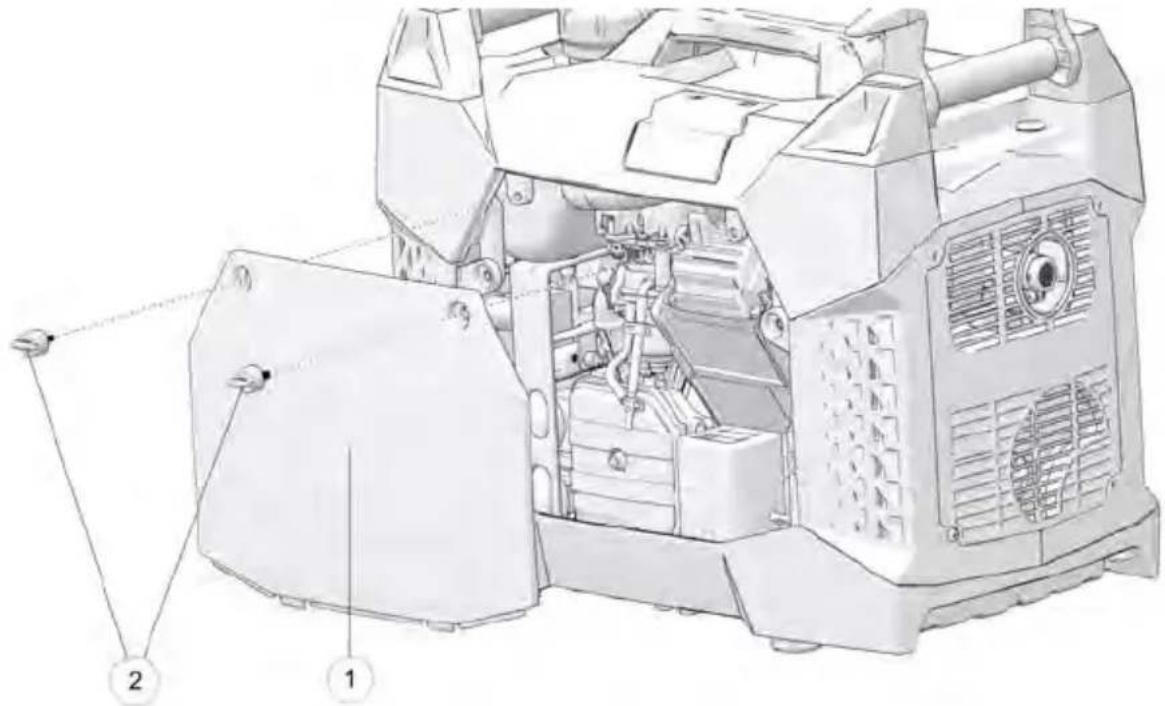

3 Maintenance Cover	Provides access to inner components for routine maintenance and repair.
4 Feet	Used in combination with folding handle to roll generator across flat surface.
5 Fuel Tank Cap	Provides access to the fuel tank.
6 Fuel Valve Switch	Opens the fuel valve and prevents flooding and dilution.
7 Starter Grip	Causes the recoil starter to crank the engine when pulled.
8 Air Intake	Provides air to cool the engine.
9 Muffler	Reduces noise and emissions from engine combustion.
10 Handle	Allows for carry of the generator.

CONTROL PANEL

CHOKE PARALLEL ENGINE SWITCH START ON OFF AC BREAKER SMART THROTTLE 120V AC OUTPUT USB 3.0 CO WARNING 5W/3.6A 0W/2.5A 12W/2A CO DETECTION CARBON MONOXIDE AUTO SHUT OFF NEUTRAL FLOATING RESET 1 2 3 4 5 6 7 8 9 10 11

① Choke

② Parallel Socket

③ Indicator Panel

④ Carbon Monoxide Warning

⑤ USB and USB-C Ports

⑥ Ground Terminal

⑦ Overload Reset Button

⑧ AC Outlets

⑨ Smart Throttle Switch

⑩ AC Circuit Breaker

⑪ Engine Switch

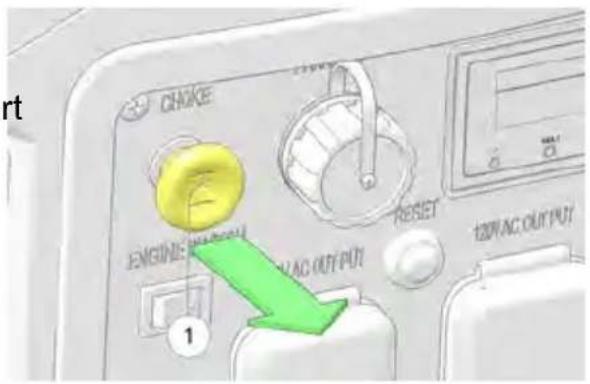

CHOKE LEVER

Pulling the choke level provides proper fuel-starting mixture when the engine is cold. When attempting to start a cold engine, pull the choke lever outward to close. Slowly return the choke to the open position as the engine warms.

CHAKE ENGINEER 120V AC OUTPUT 1 RESET AC OUTPUT

PARALLEL SOCKET

Two Polaris parallel-ready generators can be connected together to increase the total power available to a load, using the parallel socket. The system matches frequency and automatically distributes the load to each generator evenly so neither is overloaded.

Contact your dealer to purchase a Polaris parallel kit.

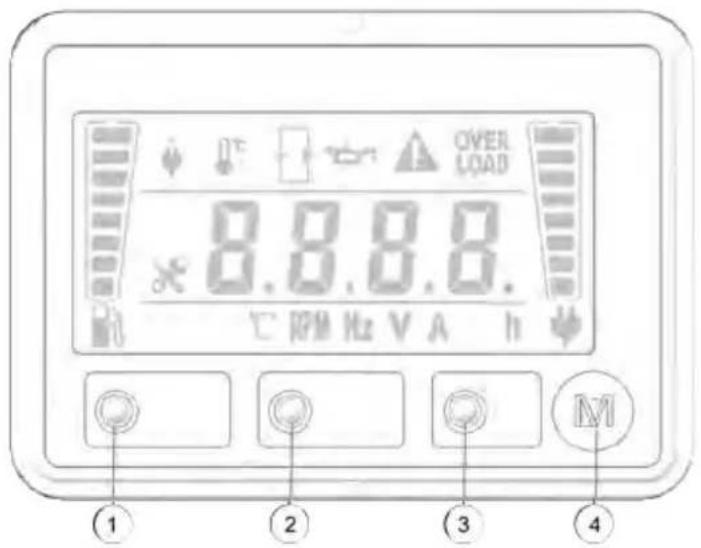

INDICATOR PANEL

① Low Oil Indicator
② Overload Indicator
③ Load Stability Indicator
④ Mode Button

OVER LOAD 8.8.8. °C RPM Hz V A h ① ② ③ ④

INDICATOR LAMPS

INDICATOR LIGHT DESCRIPTION
	Fuel Level Indicates how much fuel remains in the generator.
	No Inverter Output Illuminates when no output is detected.
	Engine Temperature Illuminates if engine is over-temperature.
	Short Circuit Indicator	Illuminates when a short circuit event has occurred.Stop generator and check all connections and cords before attempting to restart.
	Connection Disruption	No connection detected between inverter and indicator panel.
	Overload Indicator Illuminates when engine is overloaded. Seepage 31 for overload reset instructions.
	Output Level Indicates the level of power output being generated by the engine.
	Total Run Time Displays generator run time.	Total Operation Run Time = Press Mode button once. Current Operation Run Time = Press Mode button twice.
	AC Wattage Displays current available wattage.
	AC Voltage Displays current available voltage. <110 / >130 volts
	Engine RPM Displays actual engine RPM.
	Service Required Illuminates when a service interval is reached. To turn off this lamp, press and hold the panel reset button for 8 seconds The lamp will turn off and begin counting down to the next service interval.

CARBON MONOXIDE ALARM

If carbon monoxide is detected, the generator will automatically shut off and the CO Warning light will illuminate. Wait 10 minutes before attempting to restart the engine.

USB FAST CHARGE

This generator is equipped with one USB and one USB-C fast charging port. These charge ports adapt voltage to the needs of your device battery by initially delivering a faster charge rate and increased power flow. Once the device approaches a full charge, the charger will decrease voltage to prevent overheating and overcharging.

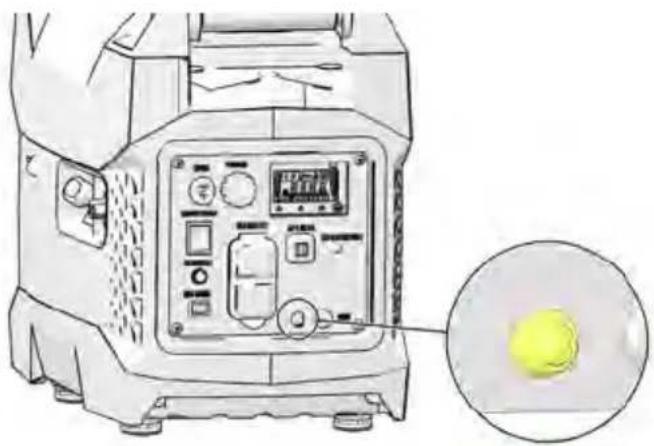

GROUND TERMINAL

The ground terminal is located on the control panel, beside the overload reset button. The terminal connects to the frame of the generator, metal parts that do not conduct current, and ground terminals of each receptacle.

NOTICE

Consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances for the intended use of the generator before using the ground terminal.

OVERLOAD RESET BUTTON

The overload reset button is used in the case of sudden engine shutdown resulting from prolonged engine overload. Should the generator overload, AC power will be cut off but the engine will stay running. Correct the overload condition and then press the overload reset switch on the front panel. AC power will be restored immediately.

In the case of engine overload:

1. Disconnect all electrical appliances.
2. Hold reset button for 1 second to reset the engine.
3. If overload indicator light has turned off and output light has re-illuminated, reconnect electrical appliances.
4. If overload indicator light is still illuminated, set power switch to OFF and check generator.

IMPORTANT

The overload reset button is available for a maximum of 5 times for each fu start of the generator. Shut down the generator and restart using power switch in order to refresh number of resets.

AC RECEPTACLE

The AC receptacle provides two connections for properly rated AC appliances.

SMART THROTTLE SWITCH

IMPORTANT

Fuel efficiency is increased when Smart Throttle is ON, and decreased when OFF. Smart Throttle cannot be operated using the Ride Command app.

The Smart Throttle switch allows the generator to adjust the throttle based on the applied load and automatically reduces engine speed when loads are shut off or disconnected. The engine returns to the proper speed to power the electrical load when appliances are turned ON or reconnected.

Press the Smart Throttle switch to the OFF position to reduce voltage changes when high electrical loads are simultaneously connected. When Smart Throttle is off, the generator operates at high idle/high throttle.

AC CIRCUIT BREAKER

The circuit breaker automatically switches OFF if a short circuit or significant overload occurs to one or more of the receptacles. To reset the circuit breaker, push button in to ON position.

NOTICE

Prior to resetting the circuit breaker, check appliances for proper operation and that rated load capacity has not been exceeded.

ENGINE SWITCH

Before starting the generator, turn the fuel valve switch to the OPEN position. Press the engine switch into the START position to start the generator. Press the switch to the OFF position to shut off the engine.

ELECTRIC START

To start the generator using the electric start function, do the following:

1. Ensure the generator is away from the fueling source.
2. Unplug all power cords and extension cords from the generator.
3. Turn the fuel valve switch to ON.
4. Momentarily press down on the top of the ignition switch to the START position. The switch will default back to the RUN position. To stop the engine, press the bottom of the switch to the OFF position.

NOTICE

If the electric starter fails, the battery is likely drained. Use the recoil handle to manually start.

COLD STARTING

For a cold engine start, pull out the choke lever to the CLOSED position. To restart a warm engine, leave the choke lever in the OPEN position. In mild climates, the electric choke will activate automatically when starting the generator using the engine switch, provided the battery is charged.

NOTICE

If the ambient temperature is colder than 5^ Fahrenheit, manual starting may be required.

FUEL VALVE SWITCH

CAUTION

Always close the fuel valve when the generator is not in use. Forgetting to share the fuel valve increases the risk of flooding, dilution, and hydraulic lock leading to possible engine damage or failure.

The fuel valve switch controls the fuel valve. When the engine is well-cooled a not in use, the fuel valve must be placed in the OFF position to reduce the possibility of fuel leakage.

The switch must be in the ON position to allow the engine to operate.

Two circular mechanical components with internal features, labeled 1 and 2, shown side by side (no text or symbols on the parts themselves)

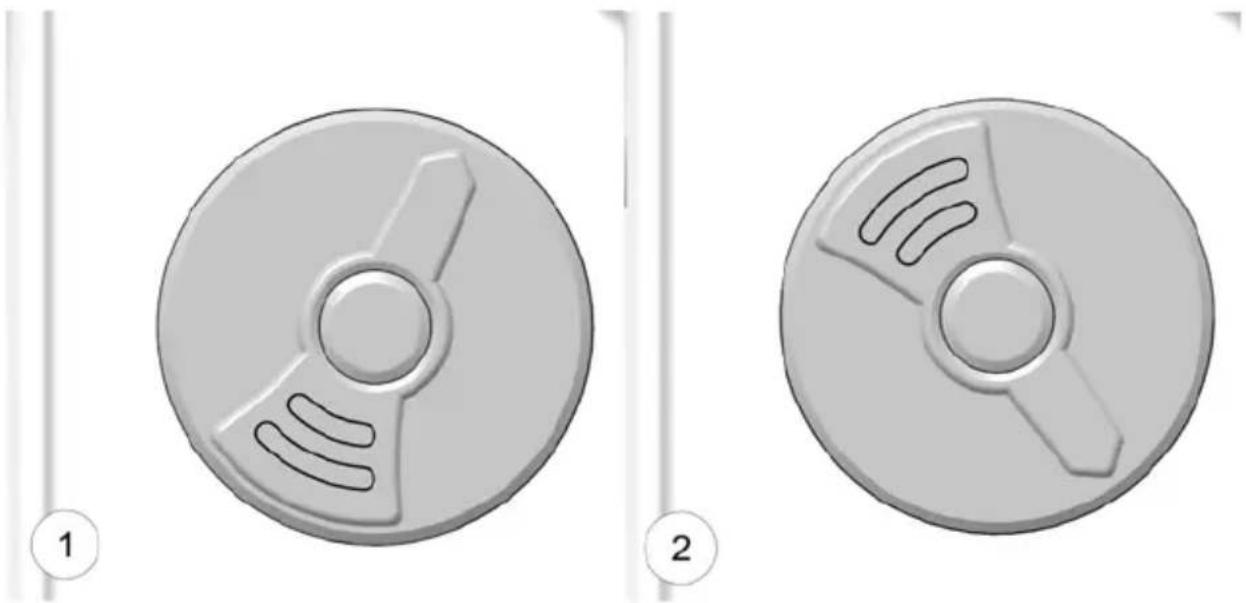

① ON: opens the fuel valve.
② OFF: closes the fuel valve.

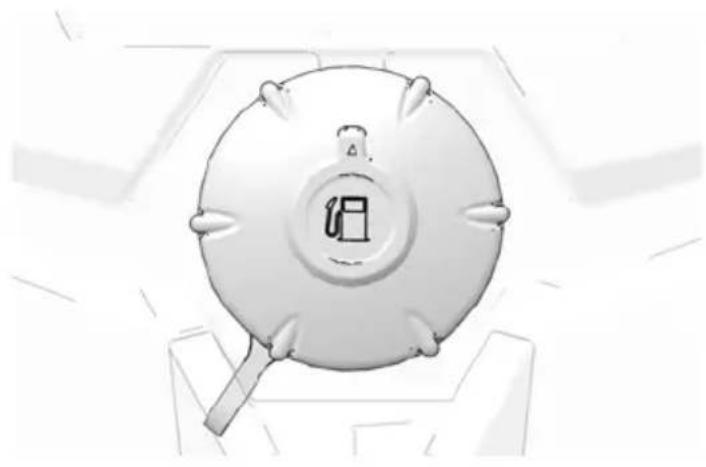

FUEL TANK CAP

WARNING

Always ensure the fuel cap is tightly closed after refueling and before moving or transporting the generator.

Gasoline is highly flammable and gasoline vapor is explosive under certain conditions. Improper gasoline handling could result in severe energy injury or death.

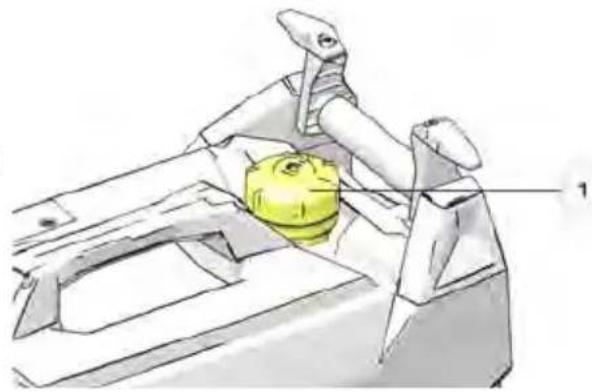

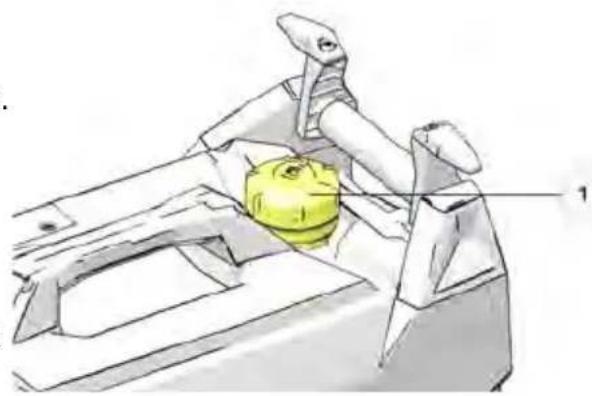

The fuel cap is located on the topside of the generator.

Top-down sketch of a circular mechanical component with a central symbol and mounting feet (no text or labels)

STARTER RECOIL GRIP

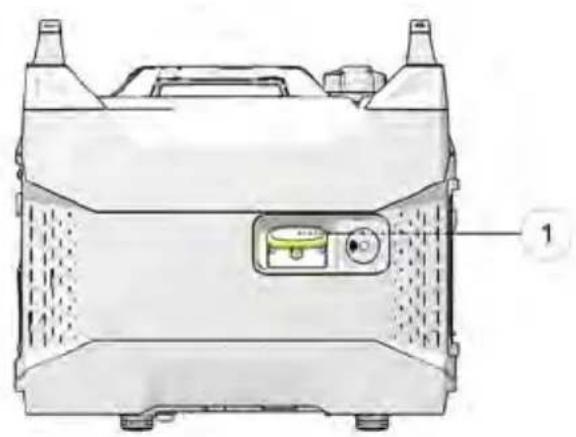

The starter recoil grip is located on the left side of the generator next to the fuel valve switch. It is used to start the engine by pulling the recoil cord straight out from the frame.

Technical line drawing of a mechanical device with labeled component (no text or symbols beyond label)

NOTICE

Do not allow starter grip to snap back against the generator. Return it gently to prevent damage to the starter. The starter recoil⑩puses the recoil starter to crank the engine when pulled.

FIRST USE INSTRUCTIONS

ADDING ENGINE OIL

NOTICE

This engine uses SAE 5W-30 generator engine oil. Failure to use the recommended 4-stroke engine oil may result in engine damage, see the Specifications section for oil capacity.

1. Place generator on flat, level surface. Remove the maintenance cover.
2. Remove the oil filler cap / dipstick.
3. Fill the engine crankcase with the specified amount of recommended engine oil.

Technical illustration of a mechanical assembly with internal components and a red cylindrical component (no text or symbols)

Oil Recommendation

POLARIS 5W-30 Generator Oil

1. Insert the dipstick into the filler neck, without screwing it in.
2. Remove the dipstick and verify that the oil level is at the upper limit. Add additional oil and inspect the level as needed until the upper limit has been reached.
3. Re-install the dipstick. Use a clean shop rag to clean any spilled oil.
4. Re-install the maintenance cover.

FUEL

WARNING

Gasoline is highly flammable and explosive and can cause serious injury or death. Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately.

CAUTION

Never use stale or contaminated gasoline or an oil /gasoline mixture. Avoid getting dirt or water in the fuel tank.

Do not spill fuel when filling the fuel tank. Damage caused by spilled fuel is not covered under warranty. Spilled fuel is a fire hazard, causes environmental damage, and can damage paint and plastic. Wipe up spills immediately. Do not fill above bottom of strainer.

Refuel in a well ventilated area before starting the engine. If the engine has been running, allow it to cool.

Never refuel the engine inside a building where vapors may reach flames or sparks. Keep fuel vapors away from electrical appliances.

Operating the generator with an obstructed fuel system will result in serious engine damage. Perform maintenance as recommended. Thoroughly read “Safety” section and all safety information when handling fuel. In order to insure the optimum output and the maximum service life of the generator, the generator should run at a 50% load for the first 20 hours.

FUEL RECOMMENDATION

Fuel Recommendation

87 Unleaded Gasoline (Up to 10% Oxygenated)

Fuel Tank Capacity

1.3 gal (4.92 L)

CAUTION

Do not use fuel containing more than 10% ethanol. If the content of ethanol exceeds the specified limits, it may cause starting or performance problems. It may also damage metal, rubber, and plastic parts of the fuel system. Do not use gasoline containing methanol. Damage due to ethanol or methanol is not covered under warranty.

ADDING FUEL

WARNING

Gasoline is highly flammable and gasoline vapor is explosive under certain conditions. Improper gasoline handling could result in severe injury or death. Always use caution when handling gasoline.

1. Remove the fuel tank cap.
2. Fill carefully to avoid spilling fuel on the fuel tank strainer. Do not overfill the fuel tank (there should be no fuel above the upper limit mark).

WARNING

Do not overfill. Fuel overflow may spill onto a hot engine and result in fire or explosion.

Illustration of a person operating a yellow object on a boat, with no visible text or symbols

1. Tighten fuel tank cap securely.

2. Position fuel switch to OFF for storage or ON to operate the generator.

3. Move generator away from fueling source and site before starting engine.

CONNECTING THE BATTERY

WARNING

ALWAYS ensure the fuel valve switch and engine switch are both set to OFI before attempting to connect the battery. Connecting or disconnecting the battery while the engine is running could lead to component damage.

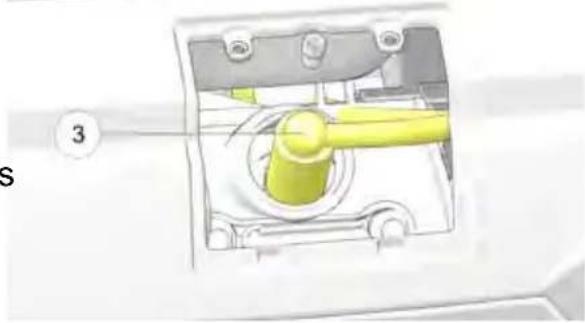

The battery is shipped unconnected from the electrical harness. Connect the battery before starting your generator for the first time. The battery is not required for manual starting procedure.

To connect the battery, do the following:

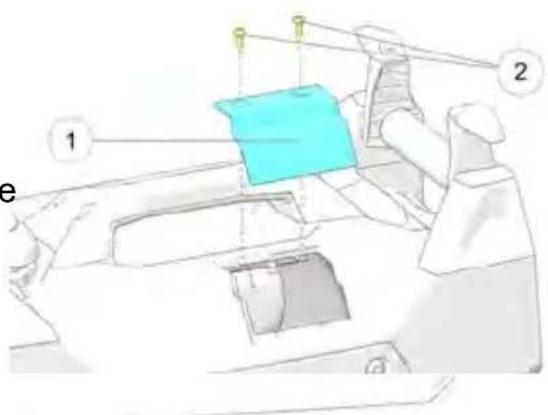

1. Remove the maintenance panel by unscrewing the two fasteners. See page 62.
2. Ensure the battery is securely locked into place. To unlock the battery, squeeze the tabs on either side and lift upward. To re-install, set the battery into the holder and press down firmly.
3. Plug the battery connector into the electrical harness.
4. Gently tuck the cable leads into the space above the battery for easier clearance to other components.
5. Re-install the maintenance panel and secure the two fasteners.

NOTICE

If battery is dead or electric start fails, use the recoil starting handle to manually start the generator. Running the generator will recharge the battery.

Gasoline is highly flammable and explosive and can cause serious injury or death. Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately.

CAUTION

Failure to perform the recommended pre-operation inspections could result in minor or moderate injury or property damage. When inspection reveals the need for adjustment, replacement, or repair, perform service promptly or visit your authorized Polaris dealer for assistance.

CAUTION

If the engine has been running, the muffler will be very hot. Allow the muffler to cool before servicing.

IMPORTANT

Always perform the recommended pre-operation inspections before each use and when removing the generator from storage.

ITEM REMARKS PAGE
Engine Oil Check and add oil, as needed. See and page 65.
Fuel Level Check the fuel level and refuel, as needed.		See page 45.
Exhaust System		Inspect the exhaust system for leakage.Tighten or replace gasket, as needed. See page 72.
Carburetor Inspect choke knob operation. See page 28.
ITEM REMARKS PAGE
Level Ground Ensure the generator is resting on a level surface to prevent spills or tipover.		-
Grass and Leaves	Remove grass, leaves, and other flammable material or debris, especially near the HOT exhaust system.	See page 17.

POLARIS MOBILE APP

DEVICE OPERATING REQUIREMENTS

Phone functionality is dependent on the capabilities of your cell phone.

NOTICE

Some cell phones or operating systems will not work as shown in this manual

OVERVIEW

WARNING

If you are unboxing or about to start the generator for the first time, see page 35 for proper set up and fluids before attempting to use the Polaris app.

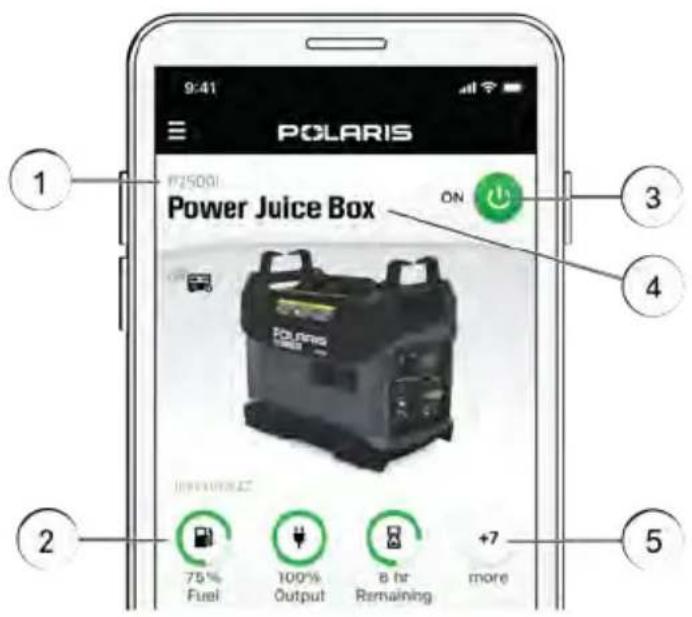

This generator utilizes the Polaris app for digital gauge readings and remote start features. For optimum use of your generator, follow the directions below to download the Polaris app, available for both Apple® and Android® smartphones.

Scan the QR Code® on the side of your generator to download the Polaris app from the Apple® or Google Play® store and create or log into you Polaris account. If the Polaris app is already installed on your smartphone, scanning the QR Code® will open the app automatically.

POLARIS POWER PZ5001 0-41 0-41 Polaris What's New Rise Plaments Rise Polarisk is not found all users using the Spot of E-T and and Page to 3 or more. Rise PLAMENS SFF-RSSE OR IS Other your S&P gains will be used.

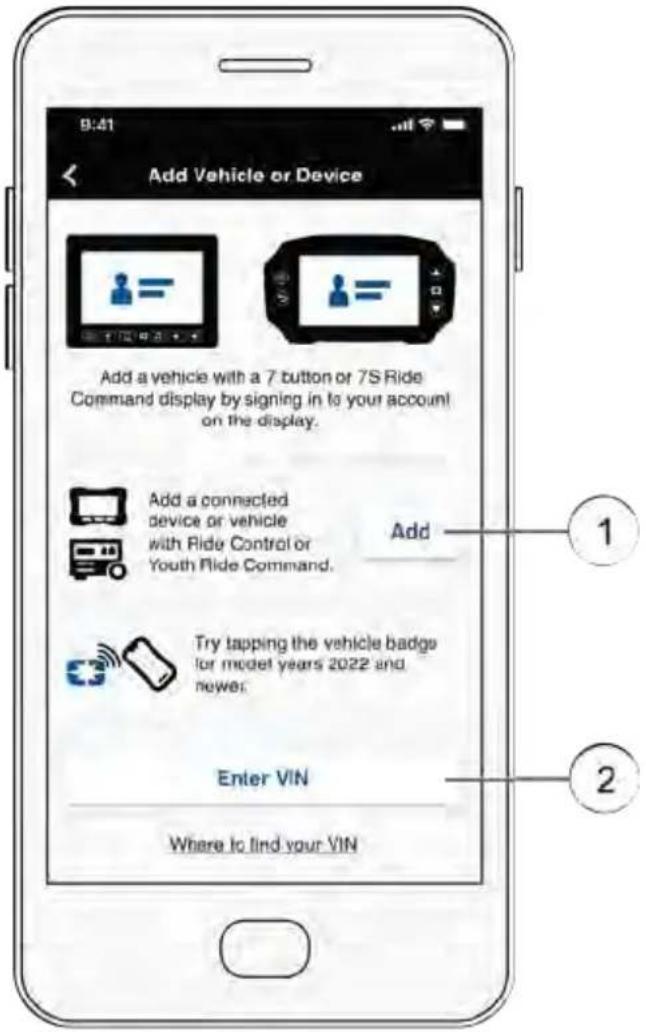

ADD GENERATOR TO GARAGE

Do the following to add the generator to your virtual Polaris Garage:

1. From the home screen, press the More button from the bottom menu bar, then click on Garage.

2. Add your generator, by using a Bluetooth® connection. Using Bluetooth®:

a. Turn on the Bluetooth® feature in your smartphone settings.
b. Open the fuel valve and set the engine switch to ON. Do not start the generator.
c. When the generator model number appears on the phone screen, click to add.

1. Customize the name of your generator for easy reference within the app.

Add Vehicle or Device Add a vehicle with a 7 button or 7S Ride Command display by signing in to your account on the display. Add a connected device or vehicle with Ride Control or Youth Ride Command. Add Try tapping the vehicle badge for model years 2022 and newer. Enter VIN Where to find your VIN

FEATURES

① Model Number
② Widgets
③ Power Button
④ Generator Name
⑤ Additional Widgets

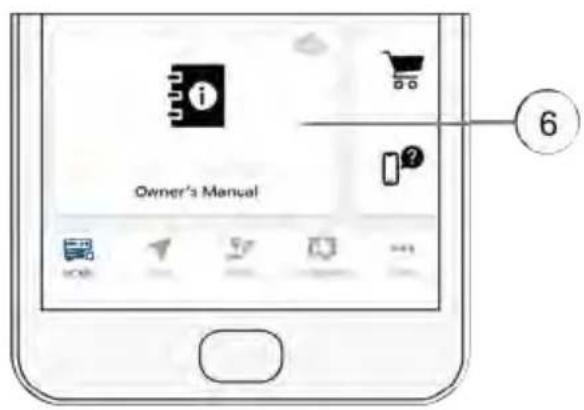

⑥ Owner's Manual

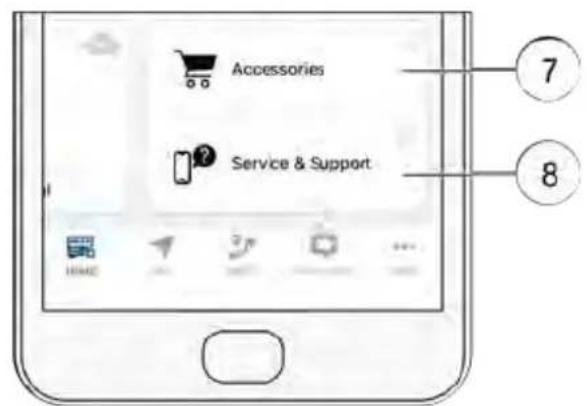

⑦ Accessories Store

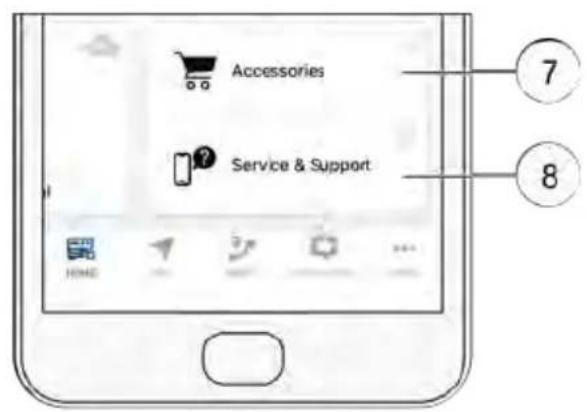

⑧ Service and Support Menu

9:41 POLARIS P25001 Power Juice Box ON 3 4 2 75% Fuel 100% Output 8 hr Remaining +7 more 5

Owner's Manual 6

Accessories Service & Support

The generator utilizes Bluetooth® for remote operation using the Polaris app. To start the generator using the Polaris app, the fuel valve must be open and the engine switch set to ON. Press the power button the app to start or stop the generator.

NOTICE

The Smart Throttle switch cannot be activated using the Polaris app. To the Smart Throttle, manually press the switch on the front control panel generator.

enabl of the

NOTICE

The widget information displays generator data obtained through a Bluetooth® connection. If the Bluetooth® connection between the generator and your smartphone is disabled, the widgets will reflect the data from the last known Bluetooth® connection.

OPERATION

SAFE OPERATING PRECAUTIONS

REFUELING

WARNING

Gasoline is highly flammable and explosive and can cause serious injury or death. Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately. Thoroughly read the Safety chapter of this manual before handling fuel.

CAUTION

Do not spill fuel when filling the fuel tank. Damage caused by spilled fuel is recovered under warranty. Spilled fuel is a fire hazard, caused environmental damage, and can damage paint and plastic. Wipe up spills immediately. Do not fill above bottom of strainer.

Refuel in a well ventilated area before starting the engine. If the engine has been running, allow to cool before refueling.

Never refuel the engine inside a building where vapors may reach flames or sparks. Keep fuel vapors away from electrical appliances.

Do not overfill the fuel tank (there should be no fuel in the filler neck). After refueling, make sure the fuel filler cap is closed properly and securely.

To safely refuel the gas tank, perform the following steps.

1. Remove fuel tank cap ^① .
2. Fill carefully to avoid spilling fuel or exceeding the bottom of the fuel tank strainer.
3. Securely tighten fuel tank cap.
4. Before starting the generator, move generator away from the fueling site and fuel source.

Illustration of a yellow object on a white surface with a numbered label (1) pointing to it, no text or symbols present.

STARTING THE ENGINE

DANGER

Never operate a generator indoors. Engine exhaust contains carbon monoxide, an odorless, colorless gas that can kill you within minutes. Always use this generator outdoors in a well-ventilated area.

WARNING

Before starting the engine, take the following precautions:

• Ensure the generator is away from the fueling source.
• The generator will vibrate during operation. Place the generator in a dry location and on a flat, level surface.
• Unplug all power cords and extension cords from the generator.
• Engage the wheel locks (if installed).
• Perform an oil, fuel, and air filter check.

ELECTRIC START

1. Ensure the generator is away from the fueling source.
2. Unplug all power cords and extension cords from the generator.
3. Turn the fuel valve switch to ON.
4. For a cold engine start, position the choke lever (if equipped) to CLOSE. To restart a warm engine, leave the choke lever in OPEN.

ENGINE SWITCH

START ON OFF

1. To start the generator using electric start, momentarily press down on the top of the ignition switch to the START position. The switch will default back to the RUN position. To stop the engine, press the bottom of the switch to the OFF position.

NOTICE

If the electric starter fails, the battery is likely drained. Charge the battery before attempting to restart.

RECOIL START

1. To start the generator using the recoil, lightly pull the starter recoil grip until resistance is felt. Then, firmly pull straight out.

NOTICE

Do not allow starter grip to snap back against the generator. Return it gently to prevent damage to the starter.

Technical line drawing of a mechanical device with labeled component (no text or symbols beyond label)

1. For a cold engine start, pull out the choke lever (if equipped) to CLOSED position.
2. If the choke lever was positioned to CLOSED to start the engine, move it to OPEN as the engine warms up.

STOPPING THE ENGINE

NOTICE

Continually stopping the generator with a load applied can lead to damage of the control module.

In case of emergency, turn ignition switch to OFF position to stop the engine. Under normal conditions, perform the following procedure:

1. Shut off or disconnect all appliances connected to the generator.
2. Press engine switch to OFF.
3. Turn fuel valve switch to OFF.

AC OPERATION

WARNING

Before connecting a device or power cord to the generator, ensure it is in good condition. Faulty appliances or power cords can create a potential for electrical shock.

If an appliance begins to operate abnormally, becomes sluggish, or suddenly stops, immediately shut it off. Disconnect the appliance and determine whether the problem is the appliance or if the rated load capacity of the generator has been exceeded.

Ensure the combined electrical rating of the device or appliance does not exceed the maximum allowed by the generator. Never exceed the maximum power rating of the generator. Do not exceed the current limit specified for any one receptacle. Power levels between rated and maximum may be used for no more than 30 minutes.

IMPORTANT

Before connecting a device or power cord to the generator, ensure the device or cord is in good condition and electrical rating does not exceed the maximum amount allowed by the generator.

1. Start engine. See page 46 for additional instruction.

2. Confirm the desired appliance is switched off. Then plug the appliance or extension cord into one of the AC receptacles.

3. Turn on the appliance.

NOTICE

Should the generator's maximum load of 25 amps be exceeded, the circuit protection device will trip and cut all current to the receptacles. The engine will continue to run. Correct the load by unplugging all appliances from the receptacles and press-in the circuit protector button to reset, followed by the Overload Reset button. AC power will be restored immediately.

AC CAPACITY

MODEL RATED POWER	MAX POWER
P2000i 1600 W 2000 W
P2500iEBT 2000 W 2500 W
P3200iE 2800 W 3200 W
P5500 5000 W 5500 W
P6500 6000 W 6500 W

NOTICE

In case of substantial overloading, the electronic circuit protector will activate. Slightly overloading the generator or running at maximum power operation (30 minutes) may not switch the circuit ON, but will shorten the service life of the generator.

Consider total power requirements of all connected devices. Appliance and power-tool manufacturers typically list rating information near the model or serial number.

After plugging in a device, allow the generator to stabilize before plugging in additional items. Always consider generator capacity before plugging in any device.

Typical wattages are listed in the table below. Before plugging any device into the generator, verify the manufacturer-listed wattage on the device.

WATTAGE REFERENCE TABLE

DEVICE RUNNING (RATED) W	WATTS ADDITIONAL STARTING	(SURGE) WATTS
Table Saw / Radial Arm Saw 10"	-2000 2000
Space / Wall Heater 1800 0
Central Air Conditioning 1500	4500
Circular Saw - 7 1/4" 1400 2300
Hair Dryer 300 - 1200 0
Sump Pump - 1/2 HP 1050 2200
Microwave Oven - 100 Watt 1000 1400
Coffee Maker 1000 0
Garage Door Opener 1/2 HP	875	2350
Personal Computer w/ 17" Monitor	800	0
Refrigerator	400 - 800	2200
Dehumidifier	650	800
Color Television - 27" 500	0
Electric Drill - 3/8", 4 amps	440	600
Paint Sprayer	360	1080
Radio	300	300
Oven	60	7500
Light Bulb - 75 Watt	75	0

POWER MANAGEMENT EXAMPLE

DEVICE RUNNING (RATED) W	WATTS ADDITIONAL STARTING	(SURGE) WATTS
Radio	300	300
Personal Computer w/ 17" Monitor	800	0
Light Bulb (75 W)	75	0

1175 = Total Running (Rated) Watts

300 = Additional Starting (Surge) Watts

1475 = Total Generator Output Required

CAUTION

Ensure the combined electrical rating of the powered device(s) do not exceed the maximum output allowed by the generator. Never exceed the maximum power rating of the generator. Power levels between rated and maximum may be used for no more than 30 minutes.

AIR CONDITIONING OPERATION

Bring the generator to a normal operating temperature before applying the air conditioning load. Always allow a two-minute wait period when manually cycling an air conditioner off and on.

A longer wait period may be required under unusually hot weather conditions. A other loads should be turned off until the air conditioner has started and is performing normally.

Before applying an air conditioning load, ensure that your generator is rated to handle to the load. Use the table below and the formula included in the AC Operation chapter for reference.

AC OUTPUT RUNNING (RATED) WATTS ADDITIONAL STARTING(SURGE) WATTS
Window AC - 10,000 BTU 1200 3600
Window AC - 12,000 BTU 3250 9750
Central AC - 10,000 BTU 1500 4500
Central AC - 24,000 BTU 3800 11400
Central AC - 40,000 BTU 6000 18000

NOTICE

Follow the air conditioner manufacturer's instructions for starting and restarting for proper operation. Some air conditioner manufacturers offer a start capacitor as an extra cost option.

The lack of a start capacitor can cause the air conditioner to draw too high starting current and overload the generator. Contact your air conditioner dealer if you consistently have problems starting your air conditioner with the generator.

STANDBY POWER

CONNECTIONS TO A BUILDING ELECTRICAL SYSTEM

WARNING

Improper connection to a building electrical system can allow current from the generator to back feed into the utility lines. Such back feed may electrocute utility company workers or others who contact the lines during a power outage. Additionally, the generator may explode, burn, or cause fires when utility power is restored. Consult the utility company or a qualified electrician prior to making any power connections.

Connections for standby power to a building's electrical system must be made by a qualified electrician and must comply with all applicable laws and electrical codes. Improper connections can allow electrical current from the generator to back feed into the utility lines.

Such back feed may electrocute utility company workers or others who contact the lines during a power outage; when utility power is restored, the generator may explode, burn, or cause fires in the building's electrical system. Do not connect this generator to an automatic transfer switch. Serious damage to the engine and inverter module may result.

In some areas, generators are lawfully required to be registered with local utility companies. Check local regulations for proper registration and usage procedures.

GROUND SYSTEM

This generator is equipped with a system ground to prevent electrical shock from faulty appliances.

To ground this generator, perform the following steps:

1. Ensure engine is OFF and fuel valve switch is OFF.

2. Using a mallet, drive a grounding rod 4 ft. into the ground.

3. Wrap a length of bare copper grounding wire tightly around the grounding rod or use a grounding clamp.

4. Slightly loosen bolt on ground terminal. Allow enough space to wrap copper wire.

5. Using the other end of the copper wire, tightly wrap the wire around the terminal.

Line drawing of a medical device with an inset showing a yellow spherical object (no text or symbols)

SYSTEM REQUIREMENTS

There may be federal or state Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction.

If the generator is used at a construction site, there may be additional regulatory requirements.

HIGH ALTITUDE USE

CARBURETOR MODIFICATION

NOTICE

When carburetor has been modified for high altitude operation, the air-fuel mixture will be too lean for low altitude use and may cause engine damage.

At high altitude, the standard carburetor air-fuel mixture will be excessively rich. Performance will decrease and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude different than that which this engine was certified, for extended periods of time, may increase emissions.

High altitude operation can be improved by specific modifications to the carburetor. If always operating the generator at altitudes above 3000 feet (915 meters), have an authorized Polaris servicing dealer perform the carburetor modification. The engine will meet each emission standard throughout its life when operated at high altitude with the carburetor modifications for high altitude operation.

With the carburetor modification, engine horsepower will decrease by about 3.5% for every 1000 feet (300 meters) increase in altitude. The effect of altitude on horsepower will be greater if no carburetor modification is made.

CAUTION

Operation of the generator at an altitude lower than the carburetor is jetted for may result in reduced performance, overheating, and serious engine damage caused by an excessively lean air/fuel mixture. Be sure to have any modification reversed at lower altitudes.

ALTITUDE KITS

For added convenience, POLARIS offers high altitude kits which optimize performance and fuel consumption at various altitude ranges. For installation instruction, see page 66.

MODEL PART NUMBER DESCRIPTION

P2000i 2884865 K-HIGH,ALT,3-8K,P2000I

P2500iEBT 2889540 K-HIGH,ALT,3-8K,P2500

P3200iE 2884866 K-HIGH,ALT,3-8K,P3200IE

P5500 / P6500 2884867 K-HIGH,ALT,3-8K,P5500/6500

Exhaust gas contains carbon monoxide, nitrous oxide (NOx), and hydrocarbons. It is very important to control the emissions of NOx and hydrocarbons as they are a major contributor to air pollution. Carbon monoxide is a poisonous gas. The emission of fuel vapors is a source of pollution as well. The generator engine utilizes a precise air-fuel ratio and emission control system to reduce the emissions of carbon monoxide, NOx, hydrocarbons, and evaporative fuel emissions.

Polaris utilizes appropriate air-fuel ratios and other emissions control systems to reduce the emissions of carbon monoxide, oxides of nitrogen, and hydrocarbons. In addition, Polaris fuel systems utilize components and control technologies to reduce evaporative emissions.

U.S. AND CALIFORNIA CLEAN AIR ACTS

Your engine has been designed to meet current Environmental Protection Agency (EPA) and the California Air Resources Board (CARB) clean air standards. The regulations dictate that the manufacturers provide operation and maintenance standards regarding the emission control system. Tune up specifications are provided in the Maintenance section. Adherence to the specified maintenance instructions is essential for your engine to meet the emission control standards.

ALTERATIONS

Altering the emission control system may increase emissions beyond the legal limit. Some possible alterations are removal or alteration of any part of the intake, fuel, or exhaust systems.

PROBLEMS AFFECTING EMISSIONS

If aware of any of the following, have the engine inspected and repaired by an authorized Polaris dealer:

• Hard starting or stalling after starting
• Rough idle
• Shut down or backfire after applying an electrical load
  • Afterburning (backfiring)
• Black exhaust smoke or high fuel consumption

REPLACEMENT PARTS

The emission control system on the engine was designed, built, and certified to conform to applicable emission regulations. We recommend the use of Polaris Genuine parts whenever maintenance is performed. These original-design replacement parts are manufactured to the same standards as the original parts. The use of replacement parts that are not of the original design and quality may impair the effectiveness of the emission control system.

Aftermarket part manufacturers assume the responsibility that the part will not adversely affect emission performance. The manufacturer or re-builder of the part must certify that use of the part will not result in a failure of the engine to comply with emission regulations.

MAINTENANCE

IMPORTANCE OF MAINTENANCE

Good maintenance is essential for safe and economical operation. Proper maintenance will also help reduce air pollution. Always follow the recommendations for inspection and maintenance as specified in this manual.

WARNING

Improper maintenance, or failure to fix problems prior to operation, could lead to generator malfunction resulting in serious injury or death.

The following chapter includes a periodic maintenance schedule, including proper inspection and maintenance procedure. The maintenance schedule applies to normal operating conditions. This maintenance is essential to the longevity of your generator.

Any qualified repair shop or person may maintain, replace or repair the emissic control devices or systems on your generator. POLARIS also recommends POLARIS parts for emissions-related service, however equivalent parts can be used.

IMPORTANT

It is a potential violation of the Clean Air Act if a part, supplied by an aftermarket parts manufacturer, reduces the effectiveness of the generator's emission controls. Tampering with emission controls is prohibited by federal law.

Owners are responsible for performing the scheduled maintenance identified in this owner's manual. Careful periodic maintenance will help keep your generator in safe, reliable condition. Inspect, clean, lubricate, adjust and replace parts as necessary. Other, more difficult tasks, require special tools and expertise provided by an authorized Polaris technician or other qualified mechanic.

If the generator is operated under unusual conditions, such as sustained high load or high temperature, or dusty conditions, consult the servicing dealer for applicable recommendations.

All necessary replacement parts and labor incurred, with the exception of authorized warranty repairs, become the responsibility of the registered owner. If, during the course of the warranty period, part failures occur as a result of owner neglect in performing recommended regular maintenance, the cost of repairs are the responsibility of the owner.

MAINTENANCE SAFETY

CAUTION

After any maintenance is performed, wash skin immediately using soap and clean water as exposure to lubricant may cause skin irritation.

WARNING

Personal safety is critical when attempting to service the generator. Improperly installed or adjusted components can make the generator unstable or dangerous. Improperly installed electrical components can cause engine or electrical systems failure. In either event, damage or serious injury could result. If you do not have the time, tools, and/or expertise necessary to complete a procedure properly, please see your Polaris dealer or other certified technician for service.

Failure to correct a problem before operation and improper maintenance can cause a malfunction resulting in injury or death. Always follow the inspection and maintenance schedules and requirements in this manual.

The following important safety precautions cannot warn of every possible hazard from maintenance. The decision to perform a given task must be evaluated by the individual performing it.

SAFETY PRECAUTIONS

Read the safety section of this manual.

Ensure the engine is off before performing any maintenance or repairs to minimize the potential for exposure to the following hazards:

• Fuel and fire - Avoid flames, sparks, and smoking during service.
• Carbon monoxide poisoning - Do not operate engine indoors. When operating outdoors, avoid open windows and doors.
• Burns - Allow the engine and exhaust system to cool before touching. Exercise caution when working around hazardous materials.
• Injury from moving parts - Avoid running the engine unless specifically instructed.

Follow the instructions and ensure the required tools are used.

Exercise caution when working around gasoline to reduce the possibility of fire or explosion. Use only non-flammable solvents to clean parts. Keep cigarettes, sparks, and flames away from all fuel-related components.

PERIODIC MAINTENANCE

Prior to performing any maintenance on your generator,

- Always stop the engine before servicing. Disconnect all devices and extension cords to avoid receiving an electrical shock.

- Periodic checks and maintenance are very important for keeping the generator in good condition.

- Inspect, clean, lubricate, adjust, and replace parts as necessary. When inspection reveals the need for replacement parts, use Polaris Genuine parts available from your Polaris dealer.

- Before beginning any maintenance procedure, read the instructions for the entire procedure. During some procedures, potentially hazardous products may be used. Always follow the instructions and warnings on the product packaging.

PERIODIC MAINTENANCE CHART

ITEM REMARKS PRE-OP-		ERATION CHECK (DAILY)	INITIAL 1 MONTH OR 20 HOURS	EVERY 3 MONTHS OR 50 HOURS	EVERY 6 MONTHS OR 100 HOURS	EVERY 12 MONTHS OR 300 HOURS
Battery
Spark Plug	Check condition. Adjust gap and clean. Replace as needed.				X
Spark Arrester	Clean the carbon deposits.				X
Engine Oil	Check the oil level.	X
	Replace oil.		X		X
Air Filter	Check filter.	X
	Clean. Replace as needed.			X_2
Fuel Sediment Cup	Clean.				X
Fuel Tank and Strainer	Clean.					X_3
Valve Clearance	Check and adjust when engine is cold.					X_3
Fuel Line	Check fuel line for twists, cracks, or damage. Replace as needed.	Every 2 years (Replace as necessary) _3
1. Log hours of operation to determine proper maintenance.2. Service more frequently when used in dusty conditions.3. These items should be serviced by an authorized Polaris dealer unless the owner has the tools and is mechanically proficient. Refer to the Polaris Service manuals.

TOOL KIT

This generator is packaged with a tool kit to help with basic repair and maintenance.

• Oil Fill Funnel
• Spark Plug Wrench and Handle
• Screwdriver

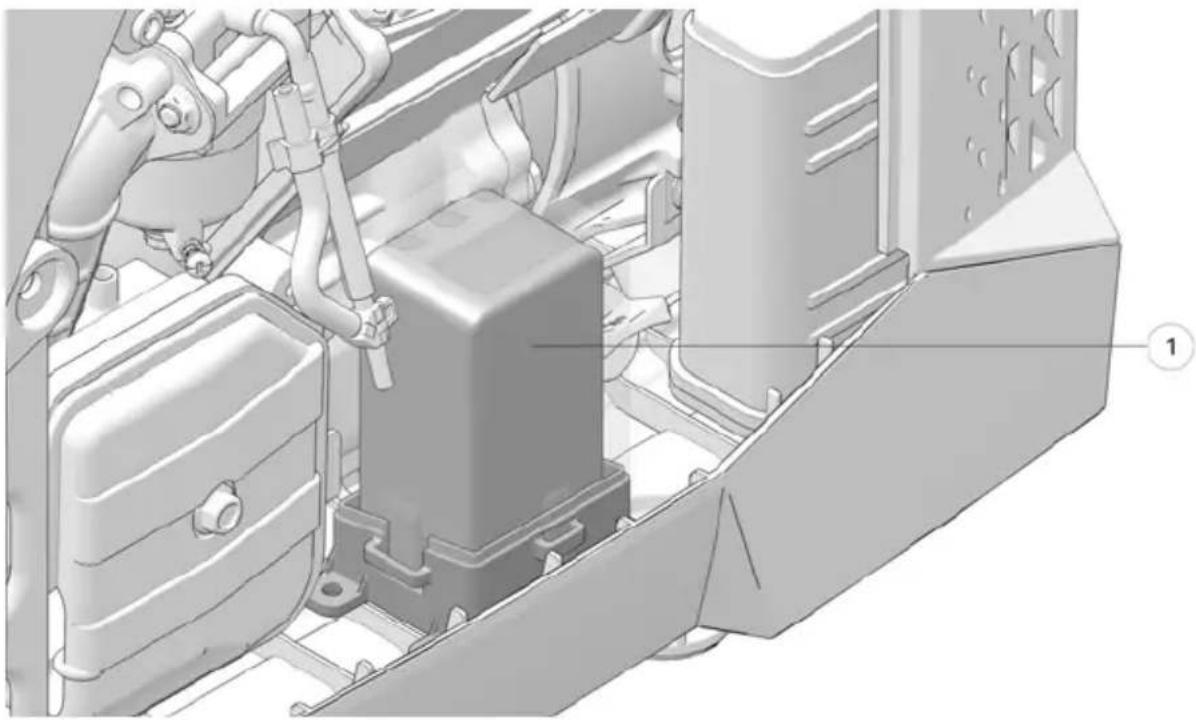

REMOVING THE MAINTENANCE COVER

Use the following steps to remove the generator maintenance cover and gain access to the inner components. Before performing any maintenance, the engine switch should be positioned to OFF.

Technical diagram of a mechanical device with labeled parts 1 and 2, showing internal components and structural details.

1. Position the engine switch and fuel valve switch to OFF.
2. Twist off the two fasteners from the maintenance cover.
3. Remove the cover to expose the inner components of the generator.
4. Perform maintenance as needed.
5. Upon completion of maintenance, replace cover by inserting the bottom edge into the grooves and replacing the two fasteners.

FUEL SYSTEM

WARNING

Gasoline is highly flammable and explosive, and can cause serious injury or death. Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately.

FUEL LINE INSPECTION

Inspect the fuel line to ensure absence of twists, cracks, and / or damage. Replace as needed.

GAS TANK STRAINER

1. Remove the fuel tank cap.
2. Remove the fuel tank strainer from the fuel tank.
3. Remove any foreign objects or debris from the fuel tank strainer.
4. Inspect the fuel tank strainer for damage. Replace as needed.
5. Install the fuel tank strainer into the fuel tank.
6. Securely tighten the fuel tank cap.
7. Position the fuel valve switch OFF for storage or transport, or ON to run the generator.

ENGINE OIL

OIL RECOMMENDATION

Oil Recommendation

POLARIS 5W-30 Generator Oil

Oil directly affects performance and service life. Use a 4-stroke automotive detergent oil, see page 83 for recommended oil. Other viscosities may be used when the applicable average temperature is within the recommended range.

The SAE oil viscosity and service category are in the API label on the oil container. Polaris recommends the use of API service category "SJ" or later, equivalent oil.

OIL LEVEL INSPECTION

IMPORTANT

Failure to use the proper 4-stroke engine oil may result in engine damage.

Using non-recommended oil may cause serious engine damage. Never substitute or mix oil brands.

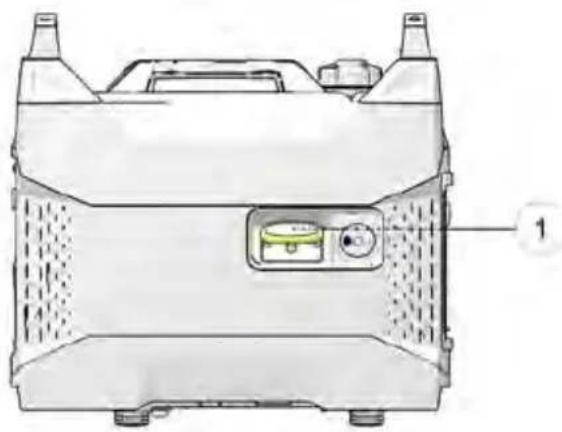

Inspect the oil level before each use with the engine stopped and the generator on a level surface.

1. Remove the oil filler cap / dipstick and wipe it clean.
2. Insert the dipstick into filler neck, without screwing it in, to inspect the oil level.
3. Remove the dipstick and verify that the oil is at the upper limit. Add additional oil and inspect the level as needed until the upper limit has been reached.
4. Re-install the dipstick. Use a clean shop rag to clean any spilled oil.

NOTICE

• Do not tilt generator when adding engine oil. This could result in overfilling and damage to the engine.
• Use high quality 4-stroke engine oil, certified to meet or exceed API standard SG, SF, SAE ratings with strong detergents. Using non-detergent or 2-stroke oil could shorten the engine's working life.
• Do not mix different engine oils.
• Handle and store the engine oil with care, avoid getting dirt or dust into the engine oil.
• Before the engine oil falls below the safety margin, the low oil alert system will automatically shut off the engine. The low oil light (RED) will illuminate.
• To avoid the inconvenience of unexpected engine shutdown, check oil level before each use.

OIL CHANGE

WARNING

Oil may be hot. Do not allow hot oil to come into contact with skin, as serio burns may result.

NOTICE

Drain the oil while the engine is warm to assure rapid and complete draining

IMPORTANT

Improper disposal of engine oil can be harmful to the environment and is unlawful. Properly dispose of used oil.

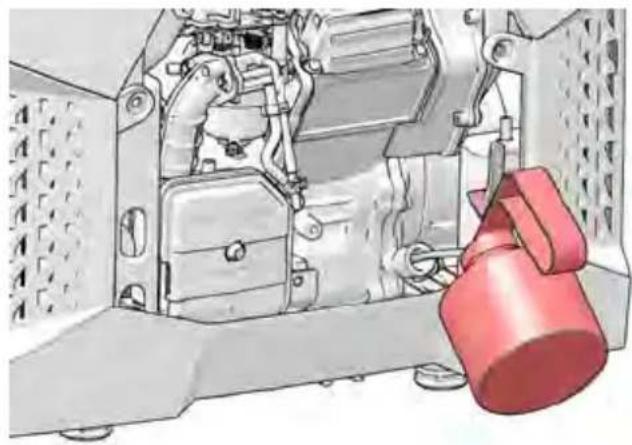

1. Start the engine and allow it to run for a few minutes. Stop the engine.
2. Position the fuel valve switch to OFF.
3. Elevate the generator several inches to allow access to the drain bolt under the bottom tray.
4. Remove the oil filler cap / dipstick.

5. Place a drain pan under the generator.

6. Remove the rubber grommet from the bottom of the tray.

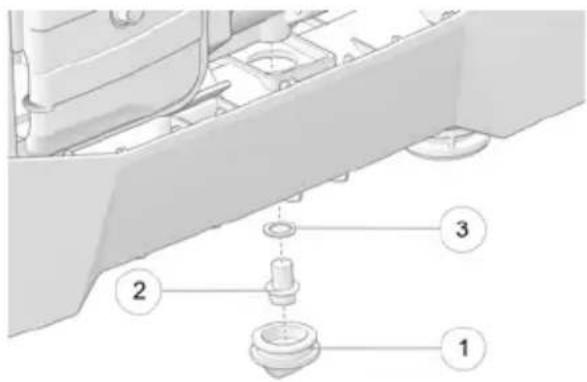

7. Unscrew drain bolt ^② and remove the washer ^③ .

8. Drain the used oil into a sealed container and take it to a recycling center. Do not discard the oil in a trash can, dump it on the ground, or pour it down the drain.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

1. Re-install the oil drain bolt and torque to specification.

TORQUE

Oil Drain Bolt

18.4 ft-lbs (25 N·m)

1. Replace the rubber plug.

2. Optional: Place provided funnel into fill valve.

3. Fill oil to the high limit mark on the dipstick. Ensure that the oil level does no rise past the threading of the cap.

MEASUREMENT

Oil Capacity

12.8 oz (380 mL)

1. Remove funnel and re-install the dipstick.
2. Start the engine and let it run for 1 or 2 minutes. Stop the engine and look for leaks.
3. Re-check the oil level on the dipstick and add oil as needed to bring the level to the upper mark on the dipstick.
4. Re-install the dipstick.
5. Wash hands with soap and water after handling used oil.

HIGH ALTITUDE JETS

WARNING

Gasoline is highly flammable and is explosive. You can be burned or seriously injured when handling fuel. Keep heat, sparks, and flame away. Wipe up spills immediately.

NOTICE

Using the wrong carburetor main jet may cause poor engine performance. If too lean of a main jet is used, severe engine damage may result

ALTITUDE KITS

MODEL PART	NUMBER	DESCRIPTION
P2000i 2884865	K-HIGH,ALT,3-8K	,P2000I
P2500iEBT 2889	540 K-HIGH,ALT	3-8K,P2500
P3200iE 288486	6 K-HIGH,ALT,3-8K	,P3200IE
P5500 / P6500	2884867 K-HIGH	ALT,3-8K,P5500/6500

ALTITUDE JET SPECIFICATIONS

MODEL ENGINE ALTITUDE JET MARK
P2000i 79cc		3000-6000 ft 68
		6000-8000 ft 67
P2500iEBT 98cc		3000-6000 ft 66
		6000-8000 ft 65
P3200iE 208cc		3000-6000 ft 74
		6000-8000 ft 73
P5500 389cc		3000-6000 ft 103
		6000-8000 ft 101
P6500 420cc		3000-6000 ft 107
		6000-8000 ft 105

JET INSTALLATION

To change the carburetor main jet, follow this procedure:

1. Turn off the fuel supply.
2. Access the carburetor drain screw. Drain the fuel from the carburetor into a suitable container.
3. Remove the float bowl and chamber bolt.
4. Remove the electric solenoid valve.
5. Remove the main jet from the carburetor.
6. Install the correct main jet for the altitude in which the generator is operating. Do not over-tighten the jet.
7. Re-install the float bowl and chamber bolt.
8. Close carburetor drain screw.
9. Turn on fuel supply. Start generator and let engine run for several minutes.
10. Turn off generator. Verify there are no fuel leaks.

AIR FILTER

WARNING

Do not use gasoline or low flash point solvents for cleaning. They are flammable and explosive under certain conditions.

NOTICE

An obstructed air filter restricts air flow to the carburetor. To prevent carburetor malfunction, regularly service the air filter. Service more frequently when operating the generator in extremely dusty areas.

1. Remove the maintenance cover and locate the air box ①.
2. Remove the screw ^② from the front of the air box cover.
3. Remove the air filter.
4. If the filter is dirty or torn, replace it with a new one. Do not attempt to clean the element.

Technical diagram of a vehicle engine compartment with numbered components and internal structure

1. Re-install the air filter cover and screw.

IMPORTANT

When replacing the filter, ensure that the filter is not pinched between the covers to secure a proper seal.

FOAM FILTERS

If using a foam air filter, follow the steps below to clean the filter before replacing it in the air box.

1. Submerge the filter in a solution of warm water and household detergent.
2. Let the filter soak in the solution for a few minutes and then squeeze out the excess water.

3. Repeat step 2 several times to ensure the water coming from the filter is clean. Then let the filter dry completely.

4. Once dry, pour air filter oil onto the filter and distribute evenly. Be sure to the filter of excess oil.

NOTICE

The use of air filter oil allows the filter to catch even the smallest particles of and dust.

1. If at any point during the cleaning process, the filter becomes damaged, the it must be replaced prior to operating your generator.

SPARK PLUG

SPARK PLUG INSPECTION

Using a non-recommended spark plug can result in serious engine damage. Always use recommended spark plugs. Refer to the Specification section for the recommended spark plug type. Always torque spark plugs to the specification.

In order to service the spark plug, the provided spark plug wrench is required.

CAUTION

A hot exhaust system and engine can cause burns. Wear protective gloves when removing a spark plug for inspection.

IMPORTANT

To ensure proper engine operation, the spark plug must be free of deposits and properly gapped. If the engine has been running, allow it to cool before servicing.

The spark plug can be accessed through the spark plug access do the top of the generator, or by removing the maintenance panel.

1. Remove two screws ^② from spark plug access door.

2. Remove the spark plug cap.

3. Clean any dirt from around the base of the spark plug.

4. Using the provided park plug wrench, remove the spark plug.

5. Inspect the electrode for wear and carbon buildup. Look for a sharp outer edge with no rounding or erosion of the electrode.

6. Inspect spark plug. Replace if electrodes are worn or if insulator is cracked, chipped, or fouled.

7. Clean the spark plug with a wire brush if it is to be reused.

Diagram of a car interior with labeled parts, showing a highlighted component and numbered parts.

Mechanical assembly diagram showing a yellow component inserted into a housing (no text or symbols visible)

NORMAL PLUG

The normal insulator tip is gray, tan or light brown. There will be few combustion deposits. The electrodes are not burned or eroded.

This indicates the proper type and heat range for the engine and the service.

WET FOULED PLUG

The wet fouled insulator tip is black. A damp oil film covers the firing end. There may be a carbon layer over the entire nose. Generally, the electrodes are not worn. Fouling may be caused by excessive oil or by frequent short trips, especially in cold weather.

SPARK PLUG REPLACEMENT

IMPORTANT

Prior to replacing the spark plug, complete the inspection steps outlined on page 69.

1. Open the maintenance cover.
2. Remove the spark plug cap.
3. Clean any dirt from around the base of the spark plug.
4. Using the provided park plug wrench, remove the spark plug.

Mechanical assembly diagram showing a yellow component inserted into a white housing (no text or symbols visible)

1. Using a wire-type feeler gauge, measure the spark plug electrode gap. If necessary, correct the gap by carefully bending the side electrode.

MEASUREMENT

Spark Plug Gap

0.024- 0.028 in (0.6-0.7 mm)

1. Ensure the spark plug sealing washer is in good condition and thread the spark plug in by hand to prevent cross-threading.
2. After a new spark plug has been seated by hand, it should be tightened 1/2 turn with a wrench to compress the sealing washer. If a used plug is being reinstalled, it should only require 1/8 to 1/4 turn after being seated.
3. Re-install the spark plug cap and close the maintenance cover.

NOTICE

A loose spark plug can overheat and damage the engine. Over tightening the spark plug can damage the plug threads.

Never use a spark plug with an improper heat range.

SPARK ARRESTER

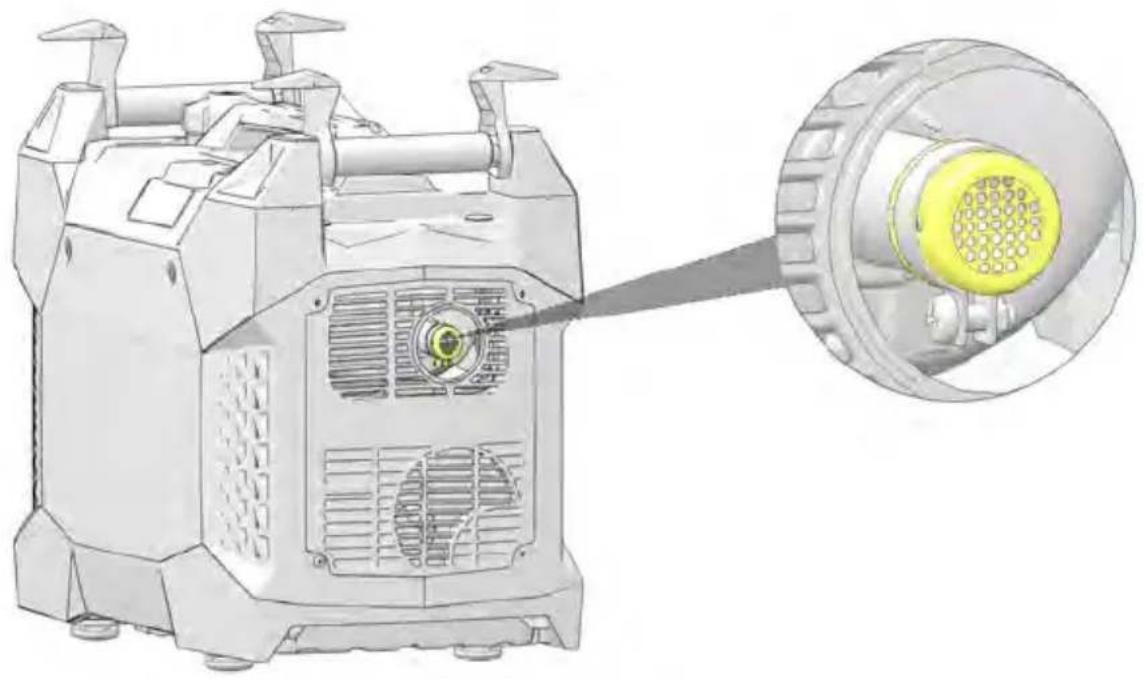

The spark arrester ^① is located on the end of the muffler.

Technical illustration of a mechanical device with a close-up view showing internal components (no text or symbols)

WARNING

Generator exhaust system gets hot enough to ignite some materials and burn skin if touched.

Allow generator and exhaust to cool before performing spark arrestor maintenance.

CAUTION

The spark arrester must be serviced every 100 hours to maintain its efficiency.

Before performing any inspection or maintenance on the battery, ignition switch should be positioned to OFF.

REMOVING THE SPARK ARRESTER

1. Remove screw holding the spark arrester to the muffler.
2. Pull the end cap off to remove the arrester screen.
3. Clean the spark arrestor with a stiff wire brush.
4. Replace if the wire mesh is perforated or torn.
5. Reinstall screen and cap. Secure cap to the muffler with the screw.

BATTERY

WARNING

This generator uses a lithium ion battery. The overheating of lithium batteries may result in a fire or explosion, leading to severe injury or death. Stop charging if the battery becomes very warm to the touch. Allow battery to completely cool before resuming charging.

IMPORTANT

Always keep battery terminals and connections free of corrosion. Do not place batteries in direct sunlight or keep them in hot vehicles. batteries at room temperature.

Keep

If cleaning is necessary, remove corrosion with a stiff wire brush. Wash solution of one tablespoon baking soda and one cup water. Rinse well water and dry off with clean shop towels.

with

Always store batteries away from anything that can catch fire.

To access the battery, remove the maintenance panel.

Mechanical assembly diagram showing components like springs, motors, and housing (no text or labels)

BATTERY REMOVAL

WARNING

ALWAYS ensure the fuel valve switch and engine switch are both set to OFF before attempting to disconnect the battery. Disconnecting the battery while the engine is running could lead to component damage.

To disconnect the battery, do the following:

1. Remove the maintenance panel by unscrewing the two fasteners. See page 62.

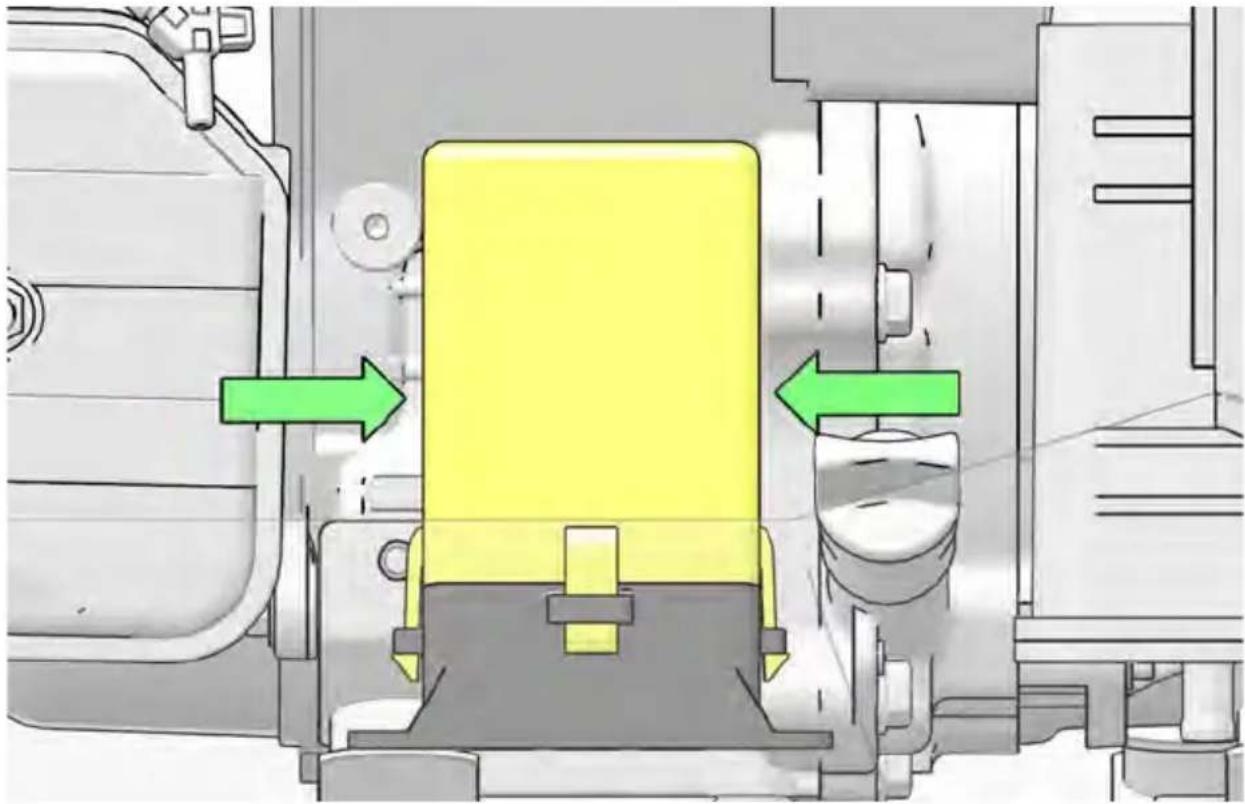

2. Unlock the battery cover by squeezing both sides of the cover to release the tabs. Lift upward to remove.
3. Unplug the battery connector from the electrical harness.
4. Remove battery from the generator frame.

Diagram of a vehicle interior showing a yellow vehicle with green directional arrows indicating flow or movement (no text or symbols present)

BATTERY INSTALLATION

WARNING

ALWAYS ensure the fuel valve switch and engine switch are both set to OFI before attempting to connect the battery. Connecting the battery while the engine is running could lead to component damage.

To connect the battery, do the following

1. Remove the maintenance panel by unscrewing the two fasteners. See page 62.
2. Set the battery into the holder and press down firmly until the battery locks into place.
3. Plug the battery connector into the electrical harness.
4. Gently tuck the cable leads into the space above the battery for easier clearance to other components.

NOTICE

If battery is dead or electric start fails, use the recoil starting handle to manual start the generator. Running the generator will recharge the battery.

BATTERY MAINTENANCE AND CHARGING

WARNING

An overheated lithium ion battery may overheat, catch fire, or explode, causing severe injury or death. Always watch charging times carefully. Stop charging if the battery becomes very warm to the touch. Allow it to cool before resuming charging.

BATTERY STORAGE

If storing your generator for an extended amount of time, Polaris recommends starting the generator once a month to charge the battery. Use the table below determine how long the generator must run to fully charge the battery dependir on the battery's current state of charge. Always verify battery condition before and 1-2 hours after charge completion. Store the generator and battery in a co dry place.

State of Charge	Voltage (DC)	Action	Charge Time*
100% 13 -	13.3 V	No action; check monthly	None required
75%-100% 12.7	- 13 V	May need charge; if no charge given, check again in 2 weeks	0.5 - 1 hour
50%-75% 12.3	- 12.7 V	Needs charge	1 - 1.5 hours
25%-50% 12	- 12.3 V	Needs charge	1.5 - 2 hours
0%-25% 12 V	or less	Needs charge	2 - 2.5 hours

CLEANING AND STORAGE

CLEANING THE GENERATOR

WARNING

Never pour water directly onto the generator or wash it with water. Contact with water could result in severe shock or electrocution. Keep generator dry and away from all sources of moisture.

To clean the generator, wipe down with a dry shop rag. Always use clean cloths and pads for cleaning and polishing.

If an informational or graphic label becomes illegible or comes off, contact your POLARIS dealer to procure a replacement. Replacement safety labels are provided by POLARIS at no charge.

STORAGE PREPARATION

WARNING

Gasoline is highly flammable and explosive and can cause serious injury. Stop the engine and keep heat, sparks, and flame away. Only handle fuel outdoors. Wipe up spills immediately.

Long-term storage of the generator will require some additional preventative measures to guard against deterioration. If fuel is kept in the generator, run the engine for at least 30 minutes each month to ensure an easy start during the next operation. Be sure the storage area is free of excessive humidity and dust.

1. If the generator will be stored with fuel, add fuel stabilizer. See page 77.

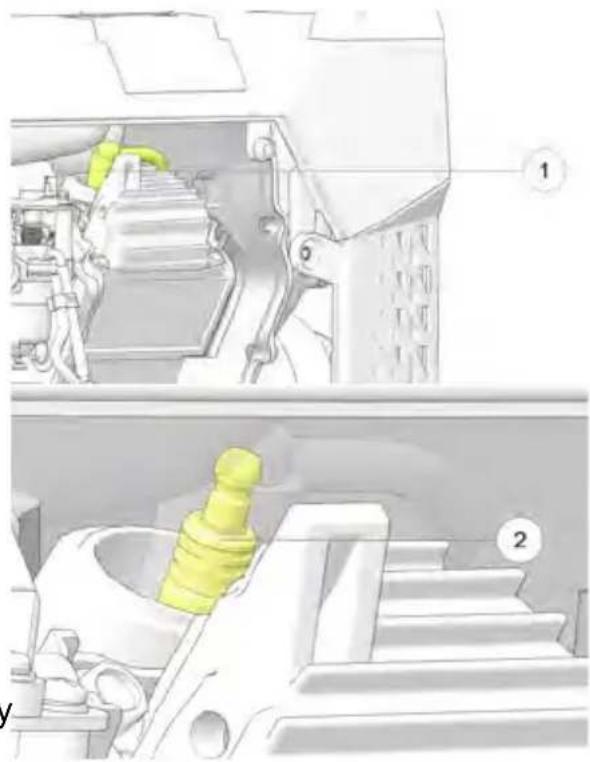

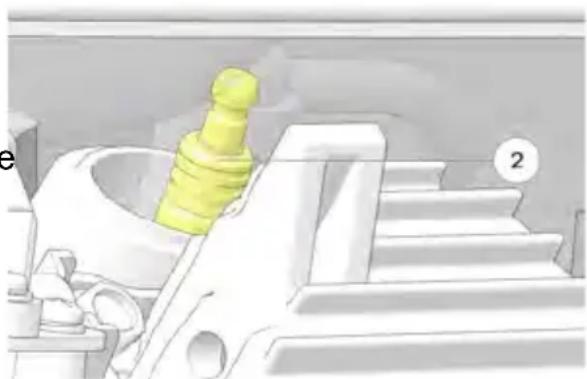

2. If the generator will be stored dry of fuel, drain all fuel and fog the engine prior to storage. See page 78 and page 79.

3. Change engine oil. See page 65.

4. Remove battery and store in cool, dry location. Use a battery trickle charger to maintain battery charge.
5. Clean exterior of the generator with a clean, dry cloth.

WARNING

Do not pour water directly on to the generator or wash it with water.

1. Turn fuel valve switch to OFF.

ACCESSING THE FUEL TANK

1. Remove fuel tank cap ^1 .
2. Remove fuel completely from tank.
3. Remove top and side panel plastic.

4. Remove fuel line clamp and line from output. Fuel strainer is located at the bottom of fuel tank outlet.

5. Remove debris, as needed.

6. When maintenance is complete, re-install fuel tank strainer into fuel tank outlet and reconnect fuel line and clamp.

7. Reinstall top and side panel plastics.

8. Add fuel to generator.

9. Securely tighten fuel tank cap until click is heard.

Illustration of a person assembling or assembling a yellow spherical object (no text or symbols visible)

STABILIZING THE FUEL

WARNING

A hot engine or exhaust system can cause severe burns and ignite flammable material. Ensure adequate time for cooling before storage or transportation.

This procedure applies if keeping gasoline in fuel tank during storage. Drain the carburetor bowl prior to any storage period longer than 30 days. See page 91 for suitable fuel stabilizer.

1. Access the fuel tank.
2. Add a suitable fuel stabilizer.

DRAINING THE FUEL

WARNING

Gasoline is highly flammable and explosive and can cause serious injury or death. Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately. Do not spill fuel when draining the fuel tank. Spilled fuel is a fire hazard, causes environmental damage, and can cause damage to paint and plastic. Wipe up spills immediately.

Perform this procedure if fuel will NOT be kept in the fuel tank during storage or before transportation.

1. Access the fuel tank and remove the gas cap.
2. Empty fuel tank into an approved gasoline container. Polaris recommends using a commercially available gasoline hand pump to empty the tank. Do not use an electric pump.
3. Re-install gas cap onto the tank and securely tighten.

FOGGING THE ENGINE

1. Turn the engine switch to the OFF position.
2. Remove the spark plug cap.
3. Using the provided park plug wrench, remove the spark plug.
4. Pour a tablespoon of clean engine oil into the cylinder. Crank the engine several revolutions to distribute the oil and then reinstall the spark plug.
5. Ensure that the spark plug sealing washer is in good condition and hand-tighten the spark plug to prevent cross-threading.
6. Using a spark plug wrench, carefully tighten the spark plug. For instruction on how to properly install a new spark plug, see page 70.

Technical illustration of a mechanical assembly showing internal components and a yellow component (no text or symbols)

1. Slowly pull the starter grip until resistance is felt. At this point, the piston is coming up on its compression stroke and both the intake and exhaust valve are closed. Storing the engine in this position will help protect it from internal corrosion.

2. Re-install the spark plug cap.

3. Cover the generator and store indoors, in a dry, well-ventilated area.

STORAGE PRECAUTIONS

NOTICE

Do not store the generator outdoors in the cold weather when not in use.

• Select a well-ventilated storage area away from any flame-operated appliance (i.e., furnace, water heater, or clothes dryer). Avoid areas containing a spark-producing electric motor, or where power tools are operated.
• Be sure storage area is free of excessive humidity and dust.
• Place generator on a level surface. Tilting can cause fuel or oil leakage.
• With the engine and exhaust system cooled, cover the generator to prevent dust contamination. Do not use a plastic sheet as a dust cover. Nonporous covers trap moisture around the generator, promoting rust and corrosion.

REMOVAL FROM STORAGE

NOTICE

If the cylinder was coated with oil during storage preparation, the engine may smoke briefly at startup. This is normal.

1. Re-install battery. See page 75.
2. Perform all steps in the Pre-Operation Inspection. See page 38.
3. If fuel was drained during storage preparation, fill tank with fresh gasoline. See page 45. If gasoline is stored in a container, ensure the gasoline is fresh Gasoline oxidizes and deteriorates over time, causing hard starting.

TRANSPORTING THE GENERATOR

WARNING

A hot engine or exhaust system can cause severe burns and ignite flammable material. Ensure adequate time for cooling before storage or transportation. When operating or transporting the generator, be sure it is kept upright. If the generator tilts, fuel may leak. Be sure the fuel tank cap is tight during transportation.

CAUTION

Transporting the generator with gasoline in the fuel tank is prohibited. Transporting the generator with fuel in the tank could result in severe generator damage as well as serious injury or death.

IMPORTANT

Take care not to drop or strike the generator when transporting. Do not place heavy objects on the generator. When transporting, firmly secure the generator to the transport vehicle.

1. Press the engine switch to OFF.
2. Turn the fuel valve switch to OFF.
3. Keep generator level to reduce possibility of fuel leakage.

SPECIFICATIONS

P2500IEBT

SPECIFICATIONS
ALTERNATOR
Model P2500iEBT
AC Output Voltage 120V
Rated Output 2000 W
Maximum Output 2500 W
Frequency 60 Hz
Type Inverter
ENGINE
Type Gasoline, Four-Stroke, Air-Cooled, Single Cylinder
Displacement 98cc
Engine Speed 3200 - 5000 RPM
Cooling System Forced Air
Ignition System Transistorized
Engine Oil SAE 5W-30
Engine Oil Capacity 12.8 fl oz (378.5 mL)
Intake Valve Clearance-Cold 0.004 in (0.10 mm)
Exhaust Valve Clearance-Cold	0.006 in (0.15 mm)
Spark Plug Gap 0.024 - 0.028 in (0.6 - 0.7 mm)
GENERATOR
Fuel	87 Unleaded Gasoline (Up to 10% Oxygenated)
Fuel Tank Capacity	1.3 gal (4.92 L)
Noise Level dB(A) range*	62 - 66 dB(A) *dB(A) measured outdoors at 23 feet (7 meters) from control panel side
Starting System	Recoil Starter
Dimensions (L x W x H)	23.6 in (59.94 cm)
	16.6 in (42.16 cm)
	19.2 in (48.77 cm)
Dry Weight 57 (25.85 kg)
Full Tank Run Time Hours @ 25% Load	8 hrs
Full Tank Run Time Hours @ 100% Load	4 hrs
Operating Temperature -30 - 110 °F (-34 - 43 °C)
Max. Altitude (Unmodified) 3280 ft	(1000 m)
AC/DC Simultaneously Usage Yes
Parallel Function Yes

POLARIS PRODUCTS

OIL AND LUBRICANTS

POLARIS PRODUCTS
PART NUMBER DESCRIPTION
ENGINE OIL
2879383 Polaris 5W-30	Generator Oil (1 Quart) (32 oz.)
ADDITIVES
2881413 Premium Carbon Clean / Fuel Stabilizer (12 oz.) (12 count)
2870791 Polaris Fogging Oil (12 oz. Aerosol Can)

TROUBLESHOOTING

ENGINE WILL NOT TURN OVER

POSSIBLE CAUSE SOLUTION
Starter recoil damage Take the generator to an authorized Polaris servicing dealer or refer to the service manual.
Low battery voltage Recharge the battery to 12.8V DC or restart the engine manually to charge the battery.
Starter motor damaged Take the generator to an authorized Polaris servicing dealer or refer to the service manual.
Internal engine damage Take the generator to an authorized Polaris servicing dealer or refer to the service manual.

ENGINE TURNS OVER, BUT WILL NOT START

POSSIBLE CAUSE SOLUTION
Engine is flooded Wait 15 minutes before restarting. Use recoil.
Out of fuel Refuel.
Low Oil Repeat Pre-operation Inspection.
Water is present in fuel Drain fuel system and refuel.
Old or non-recommended fuel Drain fuel system and refuel.
Fouled or defective spark plug	Inspect spark plug and replace, if needed.
No spark to spark plug	Inspect spark plug. Verify engine switch is ON.
Water or fuel in crankcase	Take the generator to an authorized Polaris servicing dealer or refer to service manual.
Low battery voltage	Recharge the battery to 12.8V DC or start the engine manually to recharge the battery.
Mechanical failure	Take the generator to an authorized Polaris servicing dealer or refer to service manual.
Fuel valve is OFF	Turn fuel valve ON.

ENGINE LACKS POWER

POSSIBLE CAUSE SOLUTION
Air filter restricted Clean or replace air filter.
Bad fuel; generator stored without treating or draining gasoline, or refueled with bad gasoline	Drain the fuel system and refuel.
Mechanical failure Take the generator to an authorized Polaris servicing dealer or refer to the service manual

ENGINE BACKFIRES

POSSIBLE CAUSES SOLUTION
Weak spark from spark plug Inspect, clean, and / or replace spark plug.
Incorrect spark plug gap or heat range Set gap to specification or replace spark plug.
Old or non-recommended fuel Drain the fuel system and refuel.
Incorrectly installed spark plug wires Take the generator to an authorized Polaris servicing dealer or refer to the service manual
Incorrect ignition timing Take the generator to an authorized Polaris servicing dealer or refer to the service manual
Mechanical failure Take the generator to an authorized Polaris servicing dealer or refer to the service manual
Loose ignition connections Check all connections and tighten.
Water present in fuel Drain the fuel system and refuel.

ENGINE PINGS OR KNOCKS

POSSIBLE CAUSE SOLUTION
Poor quality or low octane fuel Drain the fuel	system and refuel.
Incorrect ignition timing Take the generator to	an authorized Polaris servicing dealer or refer to the service manual
Incorrect spark plug gap or heat range Set gap	to specification or replace spark plugs.

ENGINE RUNS IRREGULARLY, STALLS OR MISFIRES

POSSIBLE CAUSE SOLUTIONS
Fouled or defective spark plug Inspect, clean,	and / or replace spark plug.
Worn or defective spark plug Take the generator to an authorized Polaris servicing dealer or refer to the service manual.
Incorrect spark plug gap or heat range Set gap to specification or replace spark plug.
Loose ignition connections Check all connections and tighten.
Water present in fuel Drain the fuel system and refuel.
Low battery voltage Recharge battery to 12.8 Vdc or start the engine manually to recharge the battery.
Incorrect fuel Drain the fuel system and refuel.
Economy throttle control malfunction Take the generator to an authorized Polaris servicing dealer or refer to the service manual.
Other mechanical failure	Take the generator to an authorized Polaris servicing dealer or refer to the service manual.

LEAN FUEL

POSSIBLE LEAN FUEL CAUSE	SOLUTION
Low or contaminated fuel	Add fuel, or drain fuel system and refuel.
Low octane fuel	Drain fuel system and refuel.
Carburetor jetting incorrectly	Take generator to an authorized Polaris servicing dealer or refer to service manual.

RICH FUEL

POSSIBLE RICH FUEL CAUSE	SOLUTION
Incorrect fuel Drain fuel system and refuel.
Stopping / starting without adequate warm-up	Allow engine to warm up before operating and / or stopping.
Incorrect spark plug	Inspect and replace with correct plug.
Clogged air filter	Inspect and clean or replace.

ENGINE STOPS OR LOSES POWER

POSSIBLE CAUSE SOLUTION
Out of fuel Refuel.
Fouled, worn, incorrect, or defective spark plug;Inspect, clean, and / or replace the spark plug incorrect spark plug gap or heat range set the spark plug gap to specification.
Loose ignition connections Check all connections and tighten.
Water present in fuel / incorrect fuel Drain the fuel system and refuel.
Economy throttle control malfunction Take the generator to an authorized Polaris servicing dealer or refer to the service manual
No / low oil in the engine Check / replace oil.
Clogged air filter Clean or replace the air filter.
Mechanical failure Take the generator to an authorized Polaris servicing dealer or refer to the service manual

NO POWER AT AC RECEPTACLES

POSSIBLE CAUSE SOLUTION
Output indicator is OFF, and overload indicator is ON	Take the generator to a Polaris servicing dealer or refer to the service manual.
AC circuit protector tripped Check AC load and reset circuit protector.
Overload protector tripped	Push the Overload Restart switch.
Faulty power tool or appliance	Replace or repair power tool or appliance; stop and restart the engine.
Faulty generator Take the generator to an authorized Polaris servicing dealer or refer to the service manual.

WARRANTY

LIMITED WARRANTY

POLARIS Sales Inc., 2100 Highway 55, Medina, MN 55340 gives a THREE YEAR LIMITED WARRANTY for consumer use and a ONE YEAR LIMITED WARRANTY for commercial use on all components of your POLARIS generator against defects in material or workmanship. This warranty covers parts and labor charges for repair or replacement of defective parts and begins on the date of purchase.

This warranty is transferable to another owner during the warranty period through a POLARIS dealer, but any such transfer will not extend the original term of the warranty.

REGISTRATION

The Warranty Registration Form must be completed by the purchaser and submitted to POLARIS within ten days of purchase. Upon receipt of this registration, POLARIS will record the registration information for warranty. No verification of registration will be sent to the purchaser. Registration cards can be found in the original box of the product and can be mailed into POLARIS at the address listed on the card, or completed at www.polarispower.com/warranty. NO WARRANTY COVERAGE WILL BE ALLOWED UNLESS YOUR GENERATOR IS REGISTERED WITH POLARIS.

WARRANTY COVERAGE AND EXCLUSIONS LIMITATION OF WARRANTIES AND REMEDIES

This POLARIS limited warranty excludes any failures that are not caused by a defect in material or workmanship. This warranty does not cover claims of defective design. This warranty also does not cover accidental damage, normal wear and tear, abuse or improper handling. This warranty also does not cover any unit that has been altered structurally, modified, neglected, improperly maintained, or used for purposes other than for which it was designed.

This warranty excludes damages or failures resulting from improper lubrication; improper engine timing; improper fuel; surface imperfections caused by external stress, heat, cold or contamination; operator error or abuse; improper component alignment, tension, adjustment or altitude compensation; failure due to snow, water, dirt or other foreign substance ingestion/contamination; improper maintenance; modified components; use of aftermarket components resulting in failure; unauthorized repairs; repairs made after the warranty period expires or by an unauthorized repair center. This warranty will not apply to any product which has been damaged by abuse, accident, fire, or any other casualty not determined to be a defect or materials or workmanship.

LUBRICANTS AND FLUIDS

1. Mixing oil brands or using non-recommended oil may cause engine damage. We recommend the use of POLARIS engine oil.
2. Damage or failure resulting from the use of non-recommended lubricants or fluids is not covered by this warranty.

Some items are considered “consumable” meaning they are considered part of normal maintenance or part of completing an effective repair. The following items are excluded from warranty coverage in the event of a warranty claim: spark plugs, filters, sealants, and lubricants.

This warranty does not allow for coverage of personal loss and provides no coverage for mileage, transportation costs, shipping or handling fees, product pick-up or delivery, replacement rentals, loss of product use or profits, or loss of vacation or personal time.

THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE, AT POLARIS' OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS ESSENTIAL PURPOSE.

THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS EXCLUDED FROM THIS LIMITED WARRANTY. ALL OTHER IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY) ARE LIMITED IN DURATION TO THE ABOVE SIX MONTH WARRANTY PERIOD. POLARIS DISCLAIMS ALL EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. SOME STATES DO NOT PERMIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU IF INCONSISTENT WITH CONTROLLING STATE LAW.

HOW TO OBTAIN WARRANTY SERVICE

If your generator requires warranty service, you must take it to a POLARIS Servicing Dealer. When requesting warranty service you must present your copy of the Warranty Registration from the dealer. (THE COST OF TRANSPORTATION TO AND FROM THE DEALER IS YOUR RESPONSIBILITY). POLARIS suggests that you use your original selling dealer; however, you may use any POLARIS Servicing Dealer to perform warranty service.

IN THE COUNTRY WHERE YOUR PRODUCT WAS PURCHASED:

Warranty or Service Bulletin repairs must be done by an authorized POLARIS dealer, or other qualified person. If you move or are traveling within the country where your product was purchased, Warranty and Service Bulletin repairs may be requested from any authorized POLARIS dealer, or other qualified person, that sells the same line as your product.

OUTSIDE THE COUNTRY WHERE YOUR PRODUCT WAS PURCHASED:

If you are traveling temporarily outside the country where your product was purchased, you should take your product to an authorized POLARIS dealer, or other qualified person. You must show the dealer photo identification from the country of the selling dealer's authorized location as proof of residence. Upon residence verification, the servicing dealer will be authorized to perform the warranty repair.

IF YOU MOVE:

If you move to another country, be sure to contact POLARIS Customer Assistance and the customs department of the destination country before you move. Product importation rules vary considerably from country to country. You may be required to present documentation of your move to POLARIS in order to continue your warranty coverage. You may also be required to obtain documentation from POLARIS in order to register your product in your new country. You should warranty register your product at a local POLARIS dealer in your new country immediately after you move to continue your warranty coverage and to ensure that you receive information and notices regarding your product.

IF YOU PURCHASE FROM A PRIVATE PARTY:

If you purchase a POLARIS product from a private party, to be kept and used outside of the country in which the product was originally purchased, all warranty coverage will be denied. You must nonetheless register your product under your name and address with a local POLARIS dealer in your country to ensure that you receive safety information and notices regarding your product.

EXPORTED PRODUCTS

EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT IS SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER'S AUTHORIZED LOCATION. This policy does not apply to products that have received authorization for export from POLARIS. Dealers may not give authorization for export. You should consult an authorized dealer to determine this product's warranty or service coverage if you have any questions. This policy does not apply to products registered to government officials or military personnel on assignment outside the country of the selling dealer's authorized location. This policy does not apply to Safety Bulletins.

NOTICE

If your product is registered outside of the country where it was purchased and you have not followed the procedure set above, your product will no longer be eligible for warranty or service bulletin coverage of any kind, other than safety bulletins. Products registered to government officials or military personnel on assignment outside of the country where the product was purchased will continue to be covered by the Limited Warranty.

Please work with your dealer to resolve any warranty issues. Dealership contacts can be found via this website, if needed:

www.polaris.com/en-us/contact

Should your dealer require any additional assistance, they will contact the appropriate person at POLARIS.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or in different countries. If any of the above terr are void because of federal, state, local law, all other warranty terms will remain in effect.

For questions call POLARIS Customer Assistance:

United States & Canada: 1-800-POLARIS (1-800-765-2747)

French: 1-800-268-6334

EMISSION CONTROL SYSTEM LIMITED WARRANTY

This emissions limited warranty is in addition to the POLARIS standard limited warranty for your product.

YOUR WARRANTY RIGHTS AND OBLIGATIONS UNITED STATES & CANADA

POLARIS must warrant the emission control system on your generator for the periods of time listed in the Warranty Coverage section below provided there has been no abuse, neglect or improper maintenance of your small off-road engine. POLARIS Industries Inc. warrants that at the time it is first purchased, this emissions-certified product is designed, built and equipped to conform with the requirements of the U.S. Environmental Protection Agency and the Environment and Climate Change Canada regulations. POLARIS warrants that the product is free from defects in materials or workmanship that would cause it to fail to meet these regulations. Where a warrantable condition exists, POLARIS will repair your generator engine at no cost to you including diagnosis, parts and labor.

Your emission control system may include parts such as the carburetor or fuel-injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies. Additional covered parts are listed in the Warranty Coverage section below.

CALIFORNIA RESIDENTS

The California Air Resources Board and POLARIS are pleased to explain the emission control system's warranty on your model year 2020 and later generator engine. In California, new small off-road engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. POLARIS Industries Inc. warrants that at the time it is first purchased, this emissions-certified product is designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant to its authority in Chapters 1 and 2, Part 5, Division 26 of the Health and Safety Code. POLARIS warrants that the engine is free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects to the part as described in the engine manufacturer's application for certification for a minimum period of time as listed in the Warranty Coverage section below.

OWNER'S WARRANTY RESPONSIBILITIES

As the generator engine owner, you are responsible for performance of the required maintenance listed in your owner's manual. POLARIS recommends that you retain all receipts covering maintenance on your generator engine, but POLARIS cannot deny warranty coverage solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

As the generator engine owner, you should be aware that POLARIS may deny you warranty coverage if your engine or a part has failed due to abuse, neglected or improper maintenance or unapproved modifications.

You are responsible for presenting your generator engine to a POLARIS dealer or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time, not to exceed 30 days.

WARRANTY COVERAGE

The warranty period for this emission-certified product sold in the United States and Canada starts on the date the equipment is delivered to the original retail purchaser and continues for a period of 24 calendar months. This warranty is transferable to each subsequent purchaser for the duration of the warranty period.

This emissions limited warranty covers components whose failure increases emissions, and it covers components of systems whose only purpose is to control emissions. Repairing or replacing other components not covered by this warranty is the responsibility of the product owner. This emissions limited warranty does not cover components whose failure does not increase the product's regulated emissions.

For exhaust emissions, emission-related components include any engine parts related to the following systems:

• Air-induction system
- Fuel system
- Ignition system
- Exhaust gas recirculation system

The following parts are also considered emission-related components for exhaust emissions:

• Aftertreatment devices
• Crankcase ventilation valves
- Sensors
• Electronic control units

The following parts are considered emission-related components for evaporation emissions:

• Fuel Tank
• Fuel Cap
• Fuel Line
• Fuel Line Fittings
• Clamps*
• Pressure Relief Valves*
• Control Valves*
  • Control Solenoids*
• Electronic Controls*
  • Vacuum Control Diaphragms*
• Control Cables*
• Control Linkages*
• Purge Valves
• Vapor Hoses
• Liquid/Vapor Separator
• Carbon Canister
• Canister Mounting Brackets
  • Carburetor Purge Port Connector

*As related to the evaporative emission control system

Emission-related components also include any other part whose only purpose is to reduce emissions or whose failure will increase emissions without significantly degrading engine/equipment performance.

If any emissions related component on your engine is defective, POLARIS will repair or replace the defective component without any charge for diagnosis, parts, or labor. All defective parts replaced under this warranty become the property of POLARIS.

EXCLUSIONS

This limited warranty excludes failures not caused by a defect in material or workmanship. This limited warranty does not cover damage due to accidents, abuse or improper handling, maintenance or use. This limited warranty also does not cover any engine that has been structurally altered. This limited warranty also does not cover physical damage, corrosion or defects caused by fire, explosions or other similar causes beyond the control of POLARIS. Owners are responsible for performing the scheduled maintenance identified in the owner's manual. POLARIS may deny warranty claims for failures that have been caused by the owner's or operator's improper maintenance or use, by accidents for which POLARIS has no responsibility, or by acts of God.

TO OBTAIN WARRANTY SERVICE

The generator engine owner must, at their own expense, take the small off-road engine, or the product on which it is installed, along with the sales registration card or other proof of original purchase date, to any qualified repair shop or qualified person. Any qualified repair shop or person may maintain, replace, or repair the emission control devices or systems on your product. An authorized POLARIS dealer can perform any service that may be necessary for your product. POLARIS also recommends POLARIS parts, however equivalent parts may be used for such service. It is a potential violation of the Clean Air act if a part supplied by an aftermarket parts manufacturer reduces the effectiveness of the product's emission controls. Tampering with emission controls is prohibited by federal law.

DISCLAIMER

The exclusive remedy for breach of this limited warranty shall be, at the exclusive option of POLARIS, repair or replacement of any defective materials, components or products. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE OR OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS ESSENTIAL PURPOSE.

ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO THE WARRANTY PERIOD DESCRIBED HEREIN. POLARIS DISCLAIMS ALL EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply if it is inconsistent with the controlling state law.

SPARK ARRESTOR LIMITED WARRANTY

POLARIS warrants that the spark arrestor in this product will meet the efficiency requirements of USFS standard 5100-1C for at least 1000 hours when subject to normal use and when maintenance and installation are in accordance with POLARIS recommendations.

CONTACT INFORMATION

If you have any questions regarding your warranty rights and responsibilities, please contact POLARIS Customer Assistance at 1-800-POLARIS (1-800-765-2747). If your questions regard the emissions warranty in California, you may also contact the California Air Resources Board at 9528 Telstar Avenue, El Monte, CA 91731.

United States & Canada: 1-800-POLARIS (1-800-765-2747)

French: 1-800-268-6334

MAINTENANCE LOG

MAINTENANCE LOG

Use the following chart to record periodic maintenance.

DATE MILES (KM)OR HOURS	TECHNICIAN SERVICE PERFORMED / COMMENTS

A

AC Circuit Breaker 32

AC Operation.... 48

AC Receptacle.... 31

Adding Fuel.... 36

Air Conditioning Operation...... 51

Air Filter.... 68

Alterations 55

B

Battery 73

Charging 75

First Use.... 37

Installation 75

Maintenance 75

Removal.... 74

BatteryMINDer®.... 75

F

Failure to Inspect Before

Operating 12

Features and Controls 25

Fire Safety 16

Fogging the Engine.... 79

Fuel.... 35

Cap 34

Drain Fuel 78

Fuel System 63

Fuel Tank

Access 77

Fuel Valve Switch 33

G

Ground System 53

Ground Terminal.... 31

C

Carbon Monoxide 13

Alarm.... 30

Carbon Monoxide Warning 23

Carburetor Modification.... 54

Choke Lever.... 28

Cleaning.... 76

Connection to Building

Electrical System 52

Control Panel.... 27

H

Handling Gasoline 18

High Altitude Jets 66

Hot Exhaust Caution 23

Hot Exhaust Systems 17

How To Obtain Warranty

Service 91-92

|

Indicator Panel 28

Introduction 7

E

Ear Protection.... 21

Emission Control System

Limited Warranty.... 94

Engine Oil 35

Engine Switch.... 32

Exported Products 93

Exposure to Exhaust 16

L

Lubricants.... 83

M

Maintenance 57

Periodic Maintenance Chart..... 60

Safety 58

Maintenance Cover 62

Maintenance Log.... 99

Mobile app Features...... 41

Mobile App Download .... 41 Operation .... 41

Modifications 17

N

Noise 20

Normal Spark Plug.... 70

O

Oil 83

Oil Change.... 65

Oil Level Inspection.... 64

Oil Recommendation.... 63

Operation Rules 19

Operator Safety...... 11

Overload Reset Button 31

P

Parallel Socket.... 28

Periodic Maintenance 58

Pre-Operation Inspection 38

Problems Affecting Emissions ..... 55

R

Refueling 45

Replacement Parts 56

S

Safety 11

Electrical 14

Extension Cords.... 15

Operating Without Instruction .... 12

Parallel Use.... 17

Precautions.... 58

Safety Labels General Warning 22

Safety Labels and Locations ..... 21

Safety Symbols 8

Signal Words 8

Smart Throttle Switch 32

Source of Emissions 55

Spark Arrester 72

Spark Plug Inspection.... 69

Spark Plug Replacement.... 70

Specifications 81

Starter Recoil Grip 34

Starting the Engine 46

Electric.... 32, 46

Recoil 47

Stopping the Engine.... 47

Storage

Drain Fuel 78

Precautions.... 79

Removal.... 80

Stabilize Fuel.... 77

Storage Preparation 76

Switches

Fuel Valve 33

Smart Throttle.... 32

System Requirements

Standby Power 53

T

Tool Kit 61

Trademarks......2

Transporting 80

Troubleshooting

Engine Backfires 86

Engine Lacks Power 86

Engine Loses Power 88

Engine Misfires 87

Engine Pings or Knocks 86

Engine Runs Irregularly 87

Engine Stalls 87

Engine Stops 88

Engine Turns Over But Will Not Start.... 85

Engine Will Not Turn Over ..... 85

Lean Fuel 87

No Power at AC Receptacles .... 88

Rich Fuel 87

U

U.S. and California Clean Air

Acts 55

USB

Fast Charger 31

V

Vehicle Identification Numbers .....9

W

Warning Symbols 8

Warranty

Fluids.... 91

Limitations 90

Limited Warranty 89

Lubricants.... 91

Registration.... 89

Remedies 90

Wet Fouled Plug.... 70

POUR L'ENTRETIEN ET LA SÉCURITÉ

MANUEL D'UTILISATION

P2500iEBT

Black-and-white winter forest scene with snow-covered trees and distant hills, featuring a Polaris logo in the corner (no readable text or symbols on the main scene)

Red prohibition symbol with circle and diagonal line, commonly used to indicate no smoking or anti-smoking.

Blue circular warning symbol with an exclamation mark (no text or numbers)

NUMÉROS D'IDENTIFICATION DE LA GÉNÉRATRICE

Technical diagram of an industrial machine with labeled components (no readable text or symbols)

Blue circular icon with a white human figure reading a book (no text or symbols)

ABSENCE D'INSPECTION AVANT LA CONDUITE

AVERTISSEMENT

3D diagram of a mechanical structure with layered components and a numbered component (no text or symbols)

ATTENTION

MANUTENTION DE L'ESSENCE

AVERTISSEMENT

Technical diagram of a vehicle front panel with labeled components and directional arrows indicating movement or positioning.

Pure electrical hazard symbol diagram with flame, lightning bolt, and human figure (no text or labels)

Silhouette of a hand with fingers extended (no text or symbols)

CARACTÉRISTIQUES ET COMMANDES APERÇU

CARACTÉRISTIQUES ET COMMANDES

Two identical circular mechanical components with internal slots, labeled 1 and 2, shown from different angles (no text or symbols on the parts themselves)

Top-down sketch of a circular mechanical component with a central hole and a handle, no text or symbols present.

POIGNÉE DE DÉMARREUR

Technical line drawing of a mechanical device with labeled component (no text or symbols beyond label)

AVIS

Technical illustration of a mechanical assembly with internal components and a red 3D model (no text or symbols)

Illustration of a person seated in a boat with a yellow object on the hull, no text or symbols present

POLARIS POWER F20081 Digital Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care Health Care

AJOUTER LA GÉNÉRATRICE AU GARAGE

Add Vehicle or Device Add a vehicle with a 7 button or 7S Ride Command display by signing in to your account on the display. Add a connected device or vehicle with Ride Control or Youth Ride Command. Add Try tapping the vehicle badge for model years 2022 and newer. Enter VIN Where to find your VIN

CARACTÉRISTIQUES

9:41 Polaris Power Juice Box ON 75% Fuel 100% Output 8 hr Remaining +7 more 1 2 3 4 5

Owner's Manual 6

Accessories Service & Support

FONCTIONNEMENT À PARTIR DE L'APPLICATION

Illustration of a yellow object on a mechanical component, possibly a device or tool, with no visible text or symbols.

DÉMARRAGE DU MOTEUR

! DANGER

Technical line drawing of a mechanical device with labeled component (no text or symbols beyond label)

FONCTIONNEMENT

Illustration of a portable electronic device with control panel and display screen, plus an inset showing a yellow spherical object (no text or symbols)

EXIGENCES RELATIVES AU SYSTÈME

Technical diagram of a mechanical device with numbered annotations pointing to internal components

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram of a mechanical device with numbered components, likely an engine or motor assembly.

Technical diagram showing car interior components with numbered labels and a highlighted component in the lower panel.

BOUGIE NORMALE

REPLACEMENT DE LA BOUGIE

IMPORTANT

Mechanical assembly diagram showing a yellow cylindrical component inserted into a housing (no text or symbols visible)

Technical illustration of a mechanical device with a highlighted circular component (no text or symbols present)

AVERTISSEMENT

Mechanical assembly diagram showing components like springs, dampers, and housing (no text or labels)

RETRAIT DE LA BATTERIE

! AVERTISSEMENT

Mechanical assembly diagram showing a yellow component with green directional arrows indicating flow or movement (no text or symbols present)

INSTALLATION DE LA BATTERIE

AVERTISSEMENT

Illustration of a person assembling a yellow mechanical component (no text or symbols visible)

STABILISATION DU CARBURANT

AVERTISSEMENT

Mechanical assembly diagram showing internal components and a yellow component (no text or labels)

AUCUNE ALIMENTATION AU NIVEAU DES PRISES C.A.

GARANTIE ET EXCLUSIONS

LIMITATIONS DE GARANTIE ET RECOURS

Lubrifiants. 103 vehicule

Recours 102

Black-and-white landscape photo showing rolling hills and sparse vegetation under a cloudy sky (no text or symbols visible)

For your nearest Polaris dealer, call 1-800-POLARIS (765-2747) or visit www.polaris.com

Polaris Inc. 2100 Highway 55 Medina, MN 55340

Part No. 9940362 Rev 01 Printed in USA
