USER MANUAL M18 2717-20 MILWAUKEE

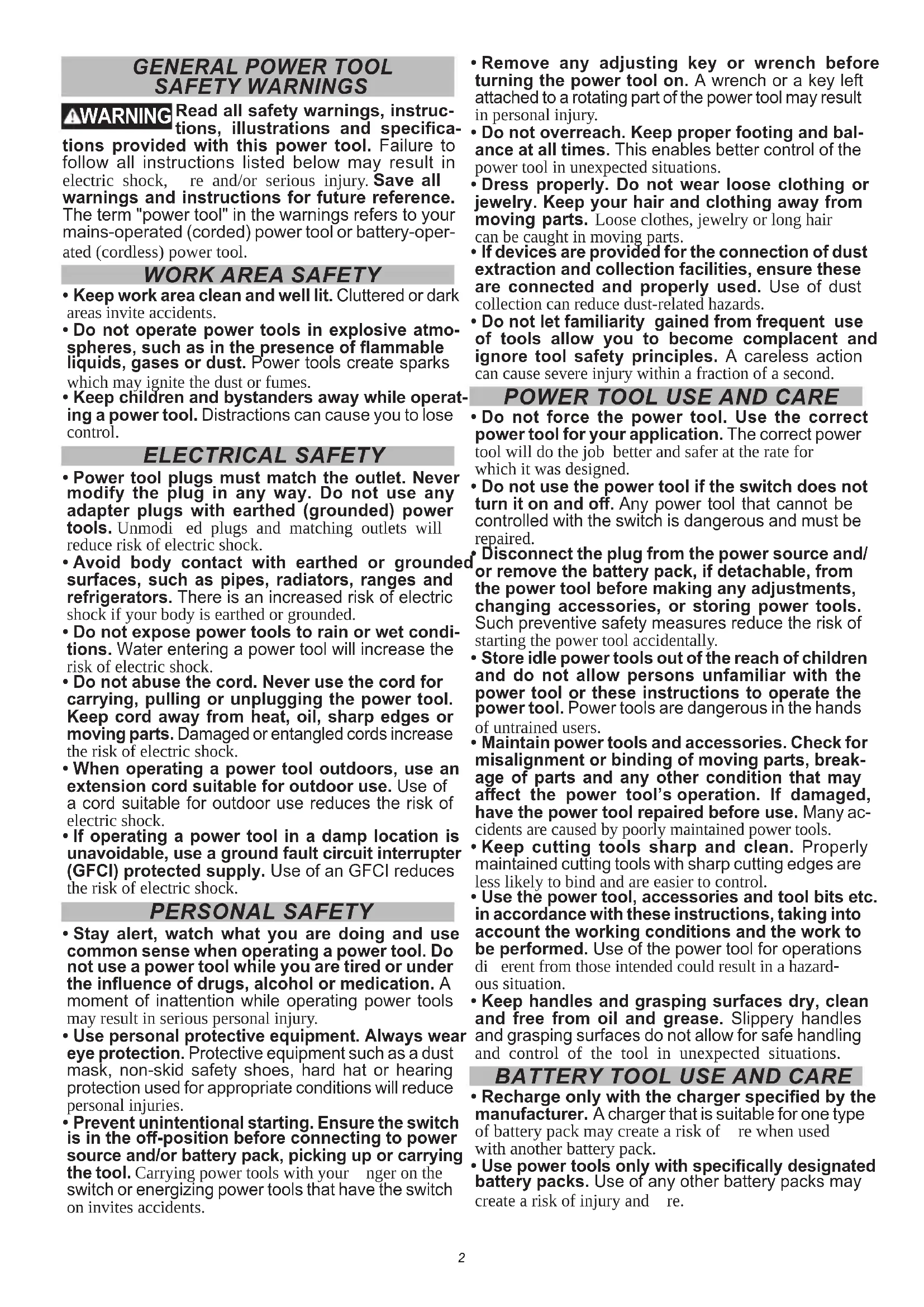

SAFETY WARNINGS WARNING Read all safety warnings, instruc- tions, illustrations and specica- tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-oper- ated (cordless) power tool.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operat- ing a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and bal- ance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, break- age of parts and any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired before use. Many ac- cidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazard- ous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.3

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact ac- cidentally occurs, ush with water. If liquid con- tacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is dam- aged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or tem- perature above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES FOR

ROTARY HAMMERS Safety instructions for all operations

• Wear ear protectors. Exposure to noise can cause hearing loss.

• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

• Hold the power tool by insulated gripping sur- faces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• Keep hands away from all cutting edges and moving parts. Safety instructions when using long drill bits

• Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

• Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend, causing breakage or loss of control, resulting in personal injury.

WARNING To reduce the risk of injury, when working in dusty situations, wear appropriate respiratory protection or use an OSHA compliant dust extraction solution.

• Cut embedded rebar only if this operation does not a󰀨ect the integrity of the building. If in doubt, consult a structural engineer. Tool operator fully responsible for adverse structural e󰀨ects.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sand- ing, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other repro- ductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are spe- cially designed to lter out microscopic particles. SYMBOLOGY Volts Direct Current No-Load Revolutions per Minute (RPM) BPM Blows per Minute (BPM) Read Operator's Manual

1. Remove battery pack

2. Insert the bit or chisel into the nose of the tool.

3. Push bit into tool until it locks.

4. Check to see that the bit is locked by tugging on it.

5. To remove bits and chisels, pull back on the bit

release collar and remove bit. OPERATION WARNING To reduce the risk of injury, always remove battery pack before chang- ing or removing accessories. Only use acces- sories specically recommended for this tool. Others may be hazardous. Keep hands away from the bit and all moving parts. Always wear proper eye protection marked to comply with ANSI Z87.1. When working in dusty situations, wear appro- priate respiratory protection or use an OSHA compliant dust extraction solution. Always use a side handle when using this tool. Always brace or hold securely. Cut embedded rebar only if this operation does not a󰀨ect the integrity of the building. If in doubt, consult a structural engineer. Tool operator fully responsible for adverse structural e󰀨ects. Selecting Action These MILWAUKEE Rotary Hammers have three settings: hammering with rotation, hammering-only, and chisel adjustment.

1. Hammering with rotation. Use this

setting for drilling holes with drill bits.

2. Hammering only. For use with

“hammering-only” accessories. Use this setting for chiseling or setting self-drilling anchors.

3. Chisel adjustment. Use this setting

to adjust the angle of the chisel blade in relation to the tool. With a chisel mounted in the tool:

• turn the knob to this setting

• rotate the chisel to the desired angle

• turn the knob to "hammering-only". NOTE: To engage the hammering mechanism, main- tain pressure on the bit. When the pressure on the bit is released, the hammering will stop. Starting and Stopping

1. To start the tool, grasp the handle(s) rmly and

pull the trigger. NOTE: An LED is turned on when the trigger is pulled and will go o󰀨 shortly after the trigger is released.

2. To stop the tool, release the trigger. Make sure

the tool comes to a complete stop before laying the tool down. FUNCTIONAL DESCRIPTION

3. Bit release collar

ASSEMBLY WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator’s manual supplied with your charger and battery. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always lock the trigger or remove the battery pack any time the tool is not in use. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Only use accessories specically recommended for this tool. Others may be hazardous. To reduce the risk of injury, always use a side handle when using this tool. Always brace or hold securely. Adjusting the Side Handle Position

1. Loosen the side handle by unscrewing the side

handle grip until the side handle rotates freely.

2. Rotate the side handle to the desired position.

3. Tighten the side handle grip securely.

Installing Bits and Chisels Be sure that the shank of the bit is clean. Dirt particles may cause the bit to line up improperly. Do not use bits larger than the maximum recommended capacity of the drill because gear damage or motor overload- ing may result. For best performance, be sure that the bit is properly sharpened and the shank is lightly greased before use. Use caution when handling hot bits and chisels.5 Operating Position the tool, grasp the handles rmly and pull the trigger. Always hold the tool securely using both handles to maintain control. This tool has been de- signed to achieve top performance with only moder- ate pressure. Let the tool do the work. If the speed begins to drop o󰀨 when drilling large or deep holes, pull the bit partially out of the hole while the tool is running to help clear dust. Do not use water to settle the dust since it will clog the bit utes and tend to make the bit bind in the hole. If the bit should bind, a built-in, non-adjustable slip clutch prevents the bit from turning. If this occurs, stop the tool, free the bit and begin again. Cold Starting If this tool is stored for a long period of time or at cold temperatures, it may not hammer ini- tially because the lubrication has become stiff. To warm up the tool:

1. Insert and lock a bit or chisel into the tool.

2. Pull the trigger and apply force to the bit or chisel

against a concrete or wood surface for a few seconds. Release the trigger

3. Repeat until the tool starts hammering. The colder

the tool is, the longer it will take to warm up. Using Rotary Percussion Core Bits Core Bits are useful for drilling large or long holes in concrete. MILWAUKEE Heavy-Duty Core Bits have heat-treated steel bodies with durable carbide tips. These core bits are specially designed for fast, accurate drilling with combined hammering and rotary action.

1. Clean and lubricate the

threads on the adapter and core bit to make later removal easier. Thread the adapter shank to the rear of the core bit.

2. Push the guide plate

onto the pointed end of the center pin. Insert the center pin and guide plate assembly into the core bit. Be sure the small end of the center pin is securely placed into the hole in the cen- ter of the core bit. For LHS systems, screw the threaded end of the centering bit into the core bit. NOTE: If using an extension, first thread the adapter shank to the extension. Then thread the core bit to the extension.

3. Insert the adapter into the nose of the tool as

described in “Installing Bits and Chisels”. Set the knob to the "hammering with rotation" setting.

4. Press the centering bit

rmly against your cen- ter mark, hold the tool rmly and pull the trig- ger. NOTE: If the 48-20-5099 threaded stud is used, or a cen- ter pin and guide plate are not available, use a template or notched board to start the hole.

5. Start the tool. After drill-

ing to about the depth of the core bit teeth, remove the center pin and guide plate from the core bit (not nece- sary for LHS system). Resume drilling.

6. To change the core bit, hold the tool upwards,

pointing it away from your body, and run it briey in forward to loosen the core bit from the adapter. NOTE: To make deeper holes, remove the core bit, break and remove the core, then resume drilling. When drilling long or deep holes, after each inch of penetration pull the bit partially out of the hole while the tool is running, to help clear dust from the bit utes. Dust can clog the bit utes and can make the bit bind in the hole. If this occurs, stop the tool, free the bit and begin again. Drilling Large Diameter Holes with Core Bits When drilling holes with large diameter core bits, dust may build up in the cut and can cause the tool to stall, bind, or cut slowly. By creating an opening for the dust to escape, drilling time, bit stress, and tool stress can be reduced.

1. Start the cut as normal.

2. Once the bit is rmly established in

Cut approximately 1/4" deep with a core bit. Drill a hole through the work. Dust and debris will fall through the hole. Top view Cut approximately 1/4" deep with a core bit. Drill a hole through the work. Dust and debris will fall through the hole. Top view Cut approximately 1/4" deep with a core bit. Drill a hole through the work. Dust and debris will fall through the hole. Top view the hole. Dust and debris will fall through the cut (about 1/4" deep), remove the bit from the cut.

3. Remove the bit from the tool.

4. Install a standard uted bit, ap-

proximately 7/8" in diameter, onto the tool.

5. Drill a perpendicular hole through

the kerf of the large hole.

• Depending on the location of the work, the hole should either break through the other side of the hole/ oor or extend 4"-5" past the end of the workpiece (such as into the dirt below a concrete slab).

• If dust builds up in the hole,vacuum it out and continue drilling.

• If drilling through a wall, the hole for dust should be drilled on the Side vie

of slab lowest part of the large hole kerf as the dust will fall there when drilling and can be evacuated more easily.

6. Reinstall the core bit and con-

tinue drilling. Dust and debris will fall through the hole and optimize the cutting ability of the bit.6 NOTE: If unable to drill a hole Pull bit out as far as possible onc

drilled. in the kerf, pull back on the bit with the hammer running. This will remove some of the dust and debris from the cut. Repeat this for every inch of drilling. If necessary, vacuum dust and debris from the cut and sur- rounding area.

7. For core bits, once the maximum

core bit depth is drilled, the core must be broken and removed.

• Install a chisel bit.

• Place the chisel into the hole kerf.

• Chisel down into the kerf at several points until the core is loose or broken.

• Remove the core and vacuum/remove any remaining dust and debris.

• Install the core bit and continue the cut. WARNING To reduce the risk of personal in- jury and damage to the tool or work:

• Always use the “hammering-only” setting to set the anchor. Never use the “hammering-with- rotation” setting to set the anchor.

• Never switch the tool to “hammering-with- rotation” until after the anchor has been set and the tooth anchor chuck has been removed from the anchor. Setting Self-Drilling Anchors MILWAUKEE Tooth Anchor Chucks require a “B” taper adapter.

1. Place the proper size tooth anchor chuck into the

“B” taper adapter. Then insert the “B” taper adapter into the tool and lock it into place as described. See “Installing Bits and Chisels”.

2. Insert the anchor into

1/8" the tooth anchor chuck. Set the knob for hammering only. Set the anchor on your mark and ham- mer until the teeth have penetrated the concrete.

3. Set the knob for ham-

mering with rotation and drill until the chuck is 1/8" above the concrete. NOTE: It may be nec- essary to clean dust and cuttings from the anchor several times while drilling the hole.

4. Remove the anchor

from the hole while the tool is running. Clean the dust and cuttings from the anchor by pointing it downward and turning the tool on and o󰀨 several times. Clean the dust out of the hole with a vacuum cleaner or blowout bulb.

5. Place the expansion

plug into the anchor and insert the anchor into the hole. Switch the knob back to ham- mering only, and ham- mer the anchor rmly into the hole.

6. Snap the head o󰀨 of

theanchor. To remove the head of anchors up to 5/8", grasp the han- dles rmly and pull the tool sharply towards you or snap o󰀨 the an- chor head with a hand hammer as shown. The anchor is now ready to receive a bolt.

7. To remove the anchor head wedged in the tooth

“B” taper adapter from the nose of the tool. Insert the drift pin supplied with the adapter into the hole on the side of the “B” taper adapter and strike it sharply to force out the tooth anchor chuck. Chiseling and Chipping MILWAUKEE Rotary Hammers may be used for chipping and chiseling. When chiseling, hold the tool at an angle to the workpiece. Work from a corner or close to the edge of the workpiece, breaking o󰀨 one small area at a time rather than attempting too large an area. A variety of accessories are available. Scaling Chisels For removing weld spatter or scale and cutting straight lines. Bushing Tools Used to surface concrete. Mortar Cutting Chisels (Seam Tools) For removing old mortar for tuck pointing or caulking. Bull Points For demolition work and starting holes in concrete slabs. Flat Chisels For edging, chipping or channeling. Slotting Chisel For slotting and cutting between drilled holes in concrete and masonry.7 MAINTENANCE WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs. Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may a󰀨ect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work prop- erly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs. WARNING To reduce the risk of personal in- jury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them. Cleaning Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean- ing agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter- gents containing ammonia. Never use ammable or combustible solvents around tools. Repairs For repairs, return the tool, battery pack and charger to the nearest authorized service center. ACCESSORIES WARNING Always remove battery pack before changing or removing accesso- ries. Only use accessories specically recom- mended for this tool. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a local distributor.
