USER MANUAL CERA532NFIXD CONTINENTAL EDISON

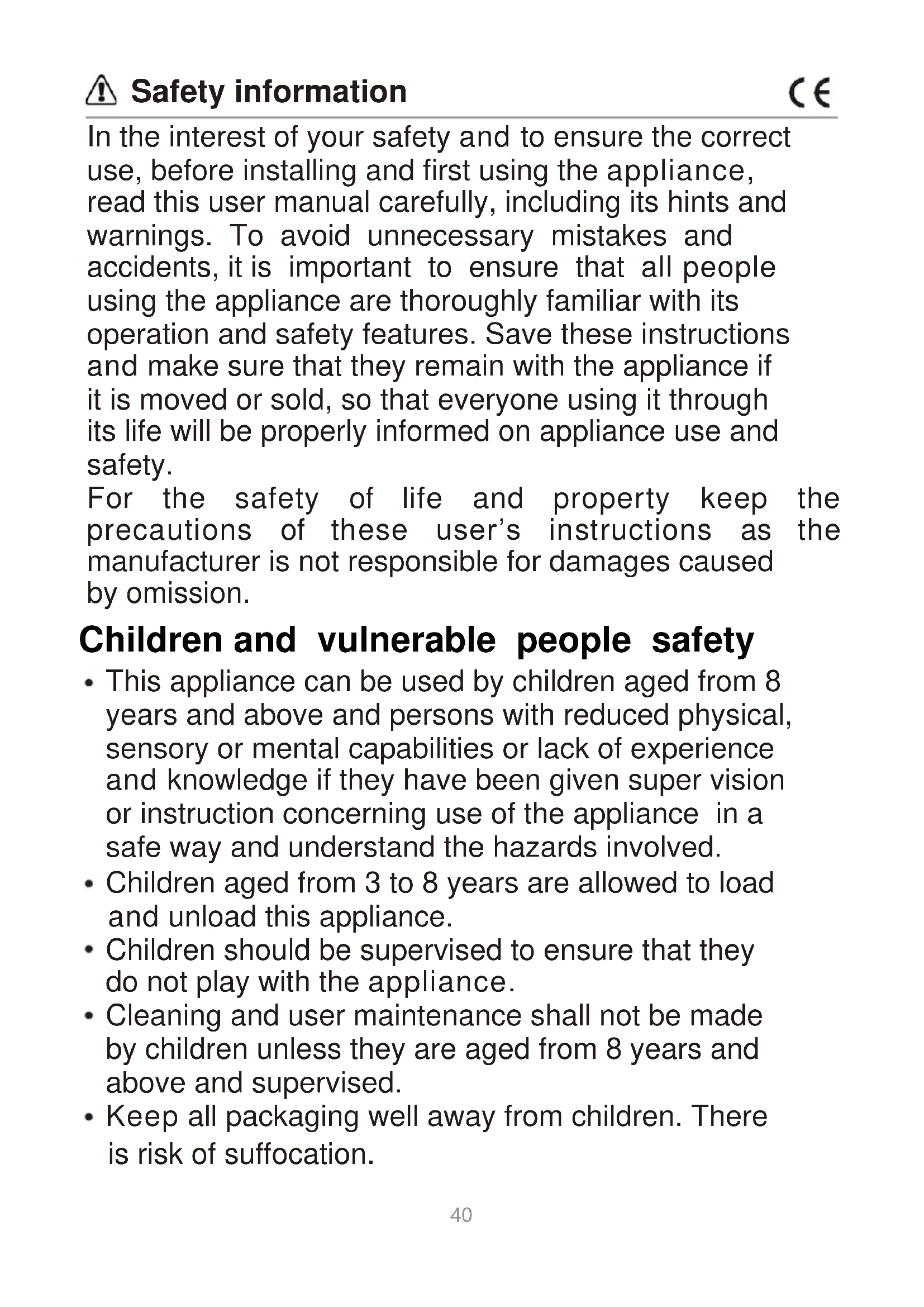

Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. For the safety of life and property keep the precautions of these user’s instructions as the manufacturer is not responsible for damages caused by omission. Children and vulnerable people safety This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload this appliance. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep all packaging well away from children. There is risk of suffocation.41

Safety information If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it. If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock ( latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNI N G! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING! circuit. Do not damage the refrigerant WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture. WARNING! Do not touch the light bulb if it has been on for a long be very hot.

1)If there is a light in the compartment period of time because it could42

Safety information WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNIN G! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. The refrigerant isobutane (R-600a)is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged. - avoid open flames and sources of ignition - thoroughly ventilate the room in which the appliance is situated It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock. This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments ; - farm houses and by clients in hotels, motels and other residential type environments ; - bed and breakfast type environments ; - catering and similar non-retail applications.43

Safety information WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualifed service personnel. WARNING! The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp " is not usable for domestic lighting.

Power cord must not be lengthened. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire. Make sure that you can come to the mains plug of the appliance. Do not pull the mains cable. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire. You must not operate the appliance without the lamp. This appliance is heavy. Care should be taken when moving it. Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. Avoid prolonged exposure of the appliance to direct sunlight. Daily use

not place food products directly against the rear wall. 1)If there is a light in the compartment44

Safety information Frozen food must not be re-frozen once it has been thawed out.

Store pre-packed frozen food in accordance with the frozen food manufacture

s manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

Ice lollies can cause frost burns if consumed straight from the appliance.

To avoid contamination of food, please respect the following instructions Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Two-star frozen-food compartments (if they are presented in the appliance)are suitable for storing pre(frozen food, storing or making ice(cream and making ice cubes.45

Safety information One-, two- and three-star compartments(if they are presented in the appliance) are not suitable for the freezing of fresh food. If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance. Care and cleaning Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance.

Installation Important! For electrical connection carefully follow the instructions given in specific paragraphs. Unpack the appliance and check if there are damages on it.

not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

1) If there is a freezer compartment 2) If there is a fresh-food storage compartment46

Safety information It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation. Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con- denser) to prevent possible burn. The appliance must not be located close to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance. Service

ny electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person. This product must be serviced by an authorized Service Center, and only genuine spare parts must be used. Energy saving Don’t put hot food in the appliance ; Don’t pack food close together as this prevents air circulating ; Make sure food don’t touch the back of the compartment(s) ;47

Safety information If electricity goes off, don’t open the door(s) ; Don’t open the door(s) fre quently ; Don’t keep the door(s) open for too long time ; Don’t set the thermostat on exceeding cold temperatures ; All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption. Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases : the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol a re recyclable. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,48

Safety information which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Packaging materials The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

isposal of the appliance *. )isconnect the mains plug from the mains socket.

2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It’s risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.49

This illustration is only for hinting, the detail please check your appliance.50

Category of household refrigeration appliance

Energy consumption (*) kWh per year (*) Calculated on the basis of the result obtained for 24 hours under standardized test conditions. The actual energy consumption depends on the conditions of use and the location of the device. 250 kWh / year This device is designed for use at an ambient temperature between 10 and 38 ° C. Autonomy in the event of a power cut

Defrost Automatic Useful volume Refrigerator capacity = 344L Freezer capacity = 185L Freezing Capacity 14 kg/24h Climate Class SN, N, ST. Noise Level 39 dB (A) The product information sheet, according to EU Regulation No. 2019/2016 on the energy labeling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product: CERA532NFIXD: https://eprel.ec.europa.eu/qr/1393600 CERA532NBD : https://eprel.ec.europa.eu/qr/1393602 II-TECHNICAL CHARACTERISTICS5152

Remove the doors Tool required: Philips screwdriver! Flat bladed screwdriver.

Ensure the unit is unplugged and empty.

To take the door off! it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door removing process.

All parts removed must be saved to do the reinstallation of the door.

not lay the unit flat as this may damage the coolant system.

It’s better that 2 people handle the unit during assembly

1. Unscrew hinge cover by Philips screwdriver.

Disconnect the harness.

4. Lift the door and place it on a soft pad. &hen remove another door as

6. After the appliance is positioned! install the doors as reversed process.54

Installation If kitchen door is not wide enough to pass the refrigerator! handle and doors can be removed according to below process.

Remove the handles Tool requi1ed: Hex wrench in accessary bag.

Ensure the unit is unplugged and empty.

All parts removed must be saved to do the reinstallation of the door.

1. Unscrew handles with Hex wrench.

2. Pull the handles to remove them.

3. After the appliance is positioned! install the handles as reversed process.55

Keep enough space of door open.

Keep at least 50mm gap at two sides and back.56

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: for refrigerating appliances with climate class: - extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN) - temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C;(N) - subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C;(ST)

This refrigerating appliance is not intended to be used as a built-in appliance;57

Buttons Press to select running mode from ECO- Holiday- Super freezing - User’s setting Freezer temperature adjustment: it is valid in user’s setting mode and holiday mode. Press this key to enter the temperature setting of the freezer. At this time, the icon of the freezing temperature lights up, and the temperature digital tube flashes. Press this button continuously and the temperature will cycle between -14°C and -22°C in sequence; after selection, it will be confirmed after flashing for 5s. Fridge temperature adjustment : it is valid in the user’s setting mode and the super freezing mode. Press this button to enter the temperature setting of the fridge compartment. At this time, the icon of the fridge temperature lights up, and the temperature digital tube flashes. Press this button continuously and the temperature will cycle between “2

” in sequence ; after selection, it will be confirmed after flashing for 5s. Long press this button to enter/exit the lock function. Unlock function: In locked state, press and hold for 3 seconds, the buzzer will beep for a long time, and all buttons will be unlocked. Lock function: In the unlocked state, press and hold for 3 seconds, the buzzer will beep for a long time, and all buttons will be locked. DisIay ECO mode, the refrigerator runs in lowest energy consumption setting. Holiday mode, turn off the fridge compartment, only turn on the freezer compartment to cool its temperature, which will save the energy consumption. Display the temperature of freezer or fridge SUPER FREEZING cools the freezer compartment to the lowest temperature for approx.6 hours. Then the temperature set before super mode is automatically restored. LOCK, the symbol will light on if buttons are locked. Display the setting temperature of freezer compartment Display the setting temperature of fridge compartment.

Door Open Aiarm If the door is opened for 60 seconds, the buzzer will sound the alarm according to the following rules: Beep 5 times at 1Hz frequency, stop for 30 seconds; repeat this cycle until the door closes. Mode Icon Freezer temperature display Fridge temperature display ECO

Smart settings based on ambient temperature Holiday

Keep the original temperature setting

Lock or unlock Long press this button to enter/exit the lock function. Unlock function: In locked state, press and hold for 3 seconds, the buzzer will beep for a long time, and all buttons will be unlocked. (Lock icon lights off)59

DaiIy Use Before using the water dispenser for the first time, remove and clean the water tank located inside the fridge compartment.

1. Lift and take off tank balcony first, then take off water tank with cover. Detach the cover to wash and clean the

2. After cleaning, reposition water tank, cover and tank balcony as below process.

3. Clean the dispenser pad outside the fridge door.

Filing the water tank with water

2. Fill the water tank with drinkable water up to 2,5 L line.

3. Close the small lid on the cover

Dispensing To dispense water, push the dispenser pad gently, using a glass or container. To stop the flow of water, pull your glass away from the dispenser pad.

If the supply LED bulb is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This product contains a light source of energy efficiency class G.60

Position different food in different compartments according to be below table Refrigerator compartments Type of food Door or balconies of fridge compartment

Foods with natural preservatives, such as jams,juices, drinks, condiments.

Do not store perishable foods. Crisper drawer (salad drawer) ⚫ Fruits, herbs and vegetables should be placed separately in the crisper bin. ⚫ Do not store bananas, onions, potatoes, garlic in Fridge shelf – middle ⚫ Dairy products, eggs Fridge shelf – top ⚫ Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers. Freezer drawer(s)/shelf ⚫ Foods for long-term storage. ⚫ Bottom drawer/shelf for raw meat, poultry, fish. ⚫ Middle drawer/shelf for frozen vegetables, chips. ⚫ Top drawer/shelf for ice cream, frozen fruit, frozen61

DaiIy Use Temperature setting recommendation Temperature Setting Recommendation Environment Temperature Temperature Setting

Summer Fridge set on 4℃ Freezer set on -18℃

Normal Fridge set on 4℃

Fridge set on 4℃ Freezer set on -18℃

Information above give users recommendation of temperature setting. Impact on Food Storage

Under Recommended setting, the best storage time of fridge is no more than 3 days.

Under Recommended setting, the best storage time of freezer is no more than 1 month.

The best storage time may reduce under other settings.62

The interior temperature of the refrigerator is influenced by several factors such as the ambient temperature of the room, the amount of food stored and how often the door is opened. Take these factors into account when setting the temperature. For the proper conservation of food in your refrigerator and in particular in the coldest area, make sure that the temperature indicator appears "OK". If “OK” does not appear, the temperature of the zone is too high. Set the thermostat to a higher position. Wait at least 12 hours before readjusting the thermostat. After loading fresh food into the appliance or after repeated openings (or extended opening) of the door, it is normal for the temperature indicator not to display "OK".6364

It’ s normal. Heat exchange is in the side panels.

Take gloves to touch side panels if need.65

Guarantee Your refrigerating appliance is guaranteed by the manufacturer during a period of 24 months from the purchasing date (The dated invoice as proof). Exclusions of guarantee : The guarantee do not cover the normal wear of the product, nor the problems or damages resulting from : (1) superficial deteriorations due to the normal wear of the product ; (2) defect or deteriorations due to contact with food or liquids and due to the corrosion generated by rust ; (3) any incident, abuse, misuse, modification, disassembly or unauthorized repairs ; (4) any wrong maintenance operation, use not conforming to the instruction for use of the product and connection to an unproper power supply ; (5) any use of not initially provided accessories or approved by the manufacturer. Information : The guarantee won't be applicable in case of missing rating plate or/and product serial number. repairs Services In case of malfunction during the guarantee period of the manufacturer: any repairs request must be addressed to the professional retailer you purchase your product to. After the expiry of the manufacturer guarantee period : refer to the document « Spare parts and repairs » in the documentation related to your refrigerating appliance available on the website "www.continentaledison.fr" Spare parts The necessary spare parts for your product repairs are available at least 7 years, in conformity with the European regulation related to the eco-design of refrigerating appliances. Refer to the document « spare parts and repairs » inside the documentation related to your refrigerating appliance, available on the website "www.continentaledison.fr" it will inform you about : - the availability for each spare part; - the spare parts purchasing terms; - some professional repairs services.66

stiv device bears tte selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be taken into

selective collection system in accordance with European Directive 2012 /19 / EU vo that it can either be dismantled or be recycled , and thus reduce the impact on the environment. For more information , you can contact your local ( town tall) or regional administration. Electronic products that have not been sorted are potentially dangerous for the environment due to the presence of hazardous substances. When this device reaches the end of its useful life, you must take it to a selective collection center for it to be destroyed and/or recycled. Under no circumstance should you throw the device on the public highway.
