USER MANUAL CERA4D464B CONTINENTAL EDISON

CAUSES ET SOLUTIONS POSSIBLES

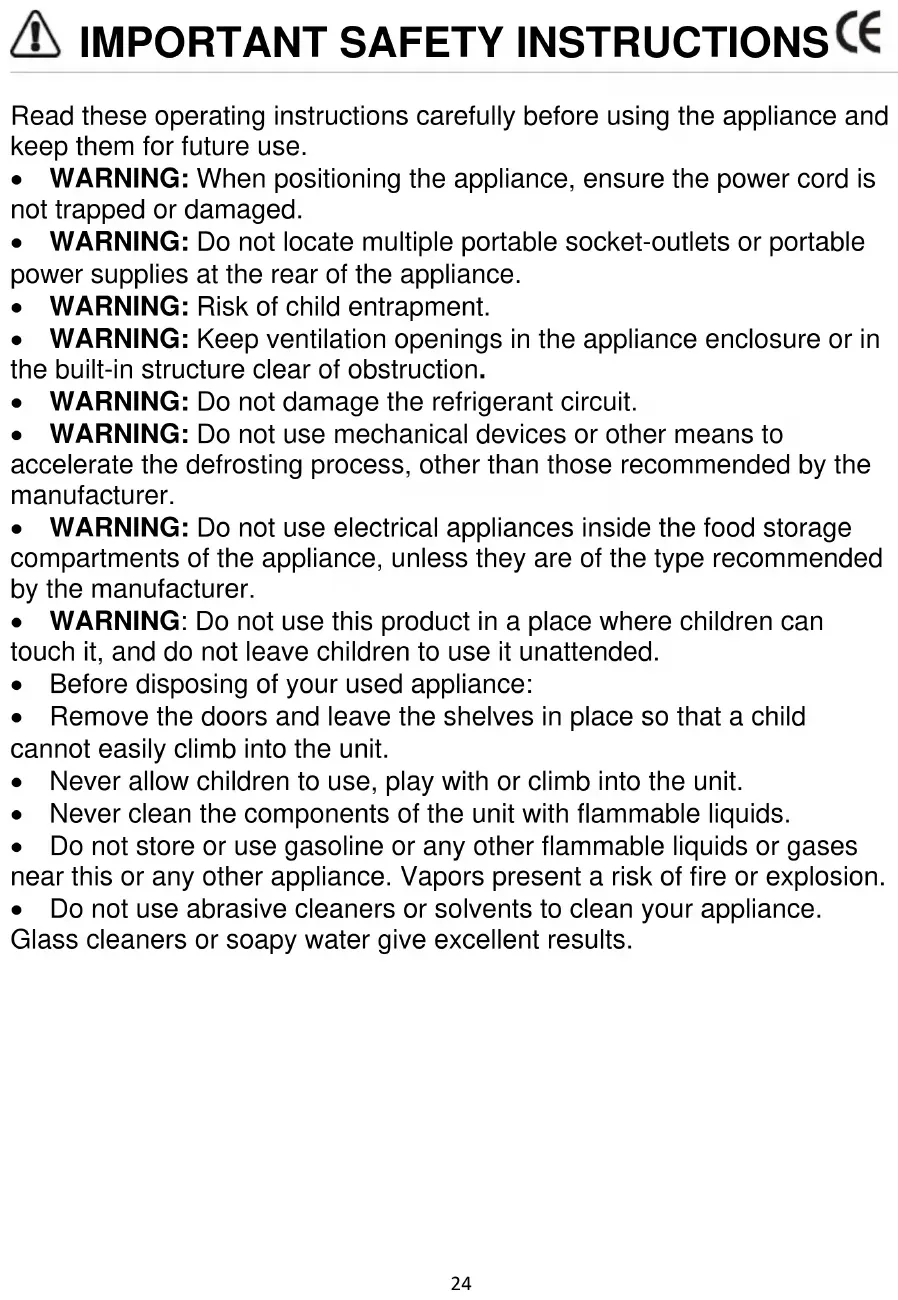

Read these operating instructions carefully before using the appliance and keep them for future use.

• WARNING: When positioning the appliance, ensure the power cord is not trapped or damaged.

• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• WARNING: Risk of child entrapment.

• WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.

• WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• WARNING: Do not use this product in a place where children can touch it, and do not leave children to use it unattended.

• Before disposing of your used appliance:

• Remove the doors and leave the shelves in place so that a child cannot easily climb into the unit.

• Never allow children to use, play with or climb into the unit.

• Never clean the components of the unit with flammable liquids.

• Do not store or use gasoline or any other flammable liquids or gases near this or any other appliance. Vapors present a risk of fire or explosion.

• Do not use abrasive cleaners or solvents to clean your appliance. Glass cleaners or soapy water give excellent results.25 Symbol ISO 7010 W021 This symbol indicates a fire hazard.

• Leave 10 cm of free space at the back of the unit to allow for ventilation of the cooling system.

• In order to store your food at a stable temperature, avoid leaving the door open for too long.

• Do not install your appliance near a heat source, and avoid direct sunlight.

• Install your appliance on a flat, clean and stable floor.

• Do not install any other electrical equipment on your appliance.

• To ensure your safety, do not place your appliance in damp places.

• This appliance is intended to be used in household and similar applications, but not in the following cases: – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications.

• This appliance is designed for use inside a house or apartment. For optimal use, it is essential that the temperature of the room in which it is used is not lower than 16° C or higher than 43°C.

• Children aged between 3 and 8 years are allowed to load and unload refrigerating appliances.

• This appliance may be used by children 8 years of age or

• older and by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, provided that they are properly supervised or have received instructions on the safe use of the appliance and the associated risks.

• Children must not play with the appliance.

• Cleaning and user maintenance must not be done by children without supervision.

• To avoid contamination of food, please respect the following instructions:26 – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. – Regularly clean surfaces that may come into contact with food and accessible drainage systems. – Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. – Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with and cannot drip onto other food. – Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. – One-, two- and three-star compartments are not suitable for the freezing of fresh food. – If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This refrigerating appliance is not intended to be used as built-in appliance.

• If the supply LED bulb is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Disposal of waste To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle the appliance responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose. Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.27 INSTALLATION INSTRUCTIONS Before putting your appliance into service

• Remove all inner and outer packaging components.

• Check that none of the following parts are missing: NO. Contents

Operation manual 1 copy

• Before connecting your appliance to a power supply, allow it to stand upright for about 2 hours. This reduces the risk of malfunction of the refrigeration system due to handling during transport.

• Clean the inner surfaces of the unit with a soft cloth and warm water.

• Place your unit on a floor strong enough to support the weight of the fully filled unit.

• Make sure the unit is level by adjusting the front feet underneath the unit. Make sure that the appliance rests on its feet in a stable manner.

• Install the appliance away from direct sunlight and heat sources (radiator, hot plate, etc.). Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.

• The unit is not designed to be installed in a basement or appliance.

• Caution: Make sure that the unit is kept away from any substance that may cause combustion.

• Check that the water tank is in place before connecting the unit.28 POWER FAILURE If there is a power failure, do not open the appliance door. Frozen food should not be affected if the power failure lasts for less than 15 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

CLEANING AND MAINTENANCE

Cleaning your appliance

• Unplug your appliance and remove all the food.

• Clean the inner surfaces with warm water and a mild detergent.

• Remove the water tank at the bottom of the unit, then wash it. Moving your appliance

• Remove food and disconnect the appliance.

• Tape all loose parts inside your appliance.

• To avoid damage, turn the feet to adjust their height to the minimum.

• Tighten the door to keep it closed.

• Be sure to keep the appliance upright during transport.29

Insulation blowing gas R600a(70g) Dimensions (W*H*D/mm) 790x1800x730mm Energy class

Energy consumption of 298 kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit. Total volume 464 L Fresh food compartment volume 289 L 4-star storage volume 175 L Climate class SN, N, ST, T This unit is designed for use at an ambient temperature between +10°C and +43°C Noise emissions 39 dB 2019/2016 on the energy labelling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product. https://eprel.ec.europa.eu/qr/1393606

Insulation blowing gas R600a(70g) Dimensions (W*H*D/mm) 790x1800x730mm Energy class

Energy consumption of 298 kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit. Total volume 464 L Fresh food compartment volume 289 L 4-star storage volume 175 L Climate class SN, N, ST, T This unit is designed for use at an ambient temperature between +10°C and +43°C Noise emissions 39 dB 2019/2016 on the energy labelling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product. https://eprel.ec.europa.eu/qr/1393605

SPACE REQUIREMENT. Please keep enough space of door open.

135° Note: This fridge cannot be used as a built-in appliance.33

1.0 Using the control panel

Adjusting the temperatures and functions Buttons A. Fridge Temp. Setting B. Convertible Zone Temp. setting C. Freezer Temp. Setting D. Press to select running mode from (ECO, Holiday, Super freezing) E. Control panel lock/unlocking setting. Display 1.Temperature, of Fridge compartment 2.Temperature, of Freezer compartment 3.Temperature of Convertible compartment

2.11 Temperature control of the Fridge compartment.

This key is workable both in user defined mode as well as super mode. After entering the tempetaure control of the fridge compartment, this key flashes. By touching the key consecutively, the temperature would change in a circle of ‘‘2℃, 3℃, 4℃, 5℃, 6℃, 7℃, 8℃’’, after which 5-second flashing means the secelction of temperature settled.

2.12 Temperature control of the Freezer compartment.

This key is workable both in user defined mode as well as Holiday mode. After entering the tempetaure control of the freezer compartment, this key flashes. By touching the key consecutively, the temperature would change in a circle of ‘‘-14℃, -15℃, -16℃, -17℃, - 18℃, -19℃, -20℃, -21℃, -22℃’’, after which 5-second flashing means the secelction of temperature settled

2.13 Temperature control of the convertible compartment.

this key is workable both in user defined mode as well as other mode. After entering the tempetaure control of the freezer compartment, this key flashes. By touching the key consecutively, the temperature would change in a circle of ‘‘5℃, 4℃, 3℃, 2℃, 1℃, 0℃, -1℃, -2℃, -3℃’’, after which 5-second flashing means the secelction of temperature settled

2.14 Mode / Locking / Unlocking

a. By touching this key consercutively, the operation mode of the refrigerator will change in a circle of ‘‘ECO, Holiday, Super, User defined mode ’’, after which 5-second flashing means the secelction of temperature settled b. Long press to Enter / Exit locking mode.

• Unlocking : Press for 3 seconds in the mode of locking, all the keys would be unlocked after a sound ‘‘beep’’

• Locking : Press for 3 seconds in the mode of locking, all the keys would be locker after a sound ‘‘beep’’

No operation in 25 sec will lock the display automatically

Press mode to choose ECO Mode, ECO icon keeps bright after 5 sec flashing. Temperature fix 6℃ in fridge compartment and -16℃ in freezer compartment under ECO Mode, “Freezer” & “Fridge“button in vain while ECO icon will flash three times in alarm. The temperature of convertible compartment can be adjusted freely by operating the convertible zone temp. setting. Exit ECO Mode: Choose mode,exit ECO Mode after 5 sec, entering the selected mode.

Press mode to choose holiday mode, the icon keeps bright after 5 sec flashing, entering holiday mode. Temperature fix 17℃ in fridge compartment, ‘‘Fridge’’ button in vain, while Holiday icon will flash three times in alarm. Temperature of freezer compartment and convertible compartment can can be adjusted freely. Exit Hodliday mode : choose mode, exit Holiday mode after 5 sec, entering the selected mode.

2.19 Super Freezing mode

Press mode to choose mode, the icon keeps bright after 5 sec flashing, entering Freezing Mode. Temperature fix -25℃ in freezing compartment, “freezer” button in vain, while freezing icon will flash three times in alarm. Temperature of fridge compartment and convertible compartment can be adjusted freely. Exit Freezing Mode : meeting below conditions

• manually exit Freezing Mode.

• freezing period more than 50 hours Noted : Mode remains the same before entering super freezing mode.

2.20 Door open alarm

If fridge (upper) door keeps open for 60 seconds, periodical alarm will be arisen until the door is closed.36

4.0 Temperature setting recommendation

Environment Temperature Temperature setting Summer (Above 38℃) Fridge set on 2℃ Freezer set on -20℃ Normal Fridge set on 4℃ Freezer set on -18℃ Winter (Below 16℃) Fridge set on 5℃ Freezer set on -18℃ The combination of drawers, baskets and shelves that result in the most efficient use of energy for the appliance is the default configuration after you open the package.38

5.0 FOOD CONSERVATION

Carefully wrap fresh foods to ensure that they keep their flavor, color, moisture and freshness. This also prevents the taste of some foods contaminating the taste of others. Only vegetables, fruit and salad vegetables can be stored in the vegetable compartment without being packed. Let hot dishes and drinks cool down outside the appliance. Remove the cardboard packs from around yoghurt pots. Check the consume-by dates on the products you have bought. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with and cannot drip onto other food.

6.0 ARRANGING FOOD IN YOUR REFRIGERATOR

The temperature inside your refrigerator is not uniform. Some areas are colder than others, and you must store your food in the appropriate areas according to their type to ensure that they can be kept safely. Leave a space between food items to allow the air to circulate freely and prevent different products contaminating each other. Do not put packages and food in contact with the wall at the back of the appliance; this is a particularly cold and damp area of the appliance and water droplets and frost condense there as part of your refrigerator's normal operation. The coldest area, at the bottom of the fridge, is designed for delicate, sensitive and highly perishable food such as meat, poultry, fish, cooked meats, prepared dishes, ready-made salads, egg or cream based dishes and pastries, fresh pasta, pastry, pizza/quiches, fresh produce and raw milk cheese, ready-to-use vegetables sold in plastic bags and, more generally, any fresh product whose consume-by date is linked to its storage at a temperature of +4°C or below. If the food cannot be stored in a suitable area and at a proper temperature, it might perish.39 The following symbol shows the coolest zone in the refrigerator. This zone is between the fruit and vegetable glass shelf and the symbol, or the shelf located at the same height. To guarantee temperatures in this zone, do not modify the positioning of the shelves. Temperature indicator To help you set your refrigerator, it should be equipped with a temperature indicator which will help to control the average temperature in the coolest zone. This indicator is provided with the product. CAUTION: this indicator is set to work with this refrigerator. Do not use it in another refrigerator or for another purpose. Temperature check in the coolest zone This indicator allows you to check that the temperature in the coolest zone is correct. The temperature inside the refrigerator differs according to several factors such as the ambient temperature, the quantity of food loaded in the refrigerator and the frequency with which the door is opened. Take these factors into consideration when setting the temperature of the appliance. When the indicator reads OK, it means that your thermostat is set correctly, and that the indoor temperature is correct. If there is no color on the indicator, this means that the temperature is too high. In this case, increase the setting of the thermostat and wait for a while before performing another visual check of the indicator. After loading or opening the door, the indicator may show no color for a while.40

7.0 FROZEN AND DEEP-FROZEN FOOD

Your domestic appliance can be used to freeze food, as it lowers the core temperature of the food rapidly, allowing you to keep it for longer. This appliance with a four-star freezer compartment is suitable for the long- term storage of frozen food items. It can also be used for freezing and storing fresh food items. Always follow the storage guidelines printed on the food packaging. To avoid food waste, the following information is provided as a general guide for the maximum storage life of frozen items: We suggest you use the temperature setting we suggest.

• Fresh meat and poultry - up to 12 months

• Cooked meats - up to 2 months

• Fresh fish - up to 6 months

• Fruit and vegetables - up to 12 months

• Bread and cakes - up to 6 months

8.0 PREPARING FOOD FOR FREEZING

Freezing does not sterilize. It is therefore important to observe some simple hygiene rules. When preparing your food for freezing, wash your hands before touching the food and clean the kitchen tools you have just used before using them again. Only freeze fresh, good quality food. Refer to the "Food Freezing Guide" to know which products you can freeze and how long you can keep them. Blanch fruit and vegetables (plunge them in boiling water for few moments) before freezing to preserve their color, smell, taste and vitamins. Divide the food you wish to freeze into small individual portions. Small portions freeze quicker at their core. Pack the food hermetically so that they do not lose their flavor or dry up. Use plastic bags, polyethylene film, aluminum foil or special freezer containers for this. If you are using plastic bags, compress them to eliminate the air before sealing them hermetically.41 Note on each package: – The freezing date – The consume-by date – The type of food contained – The number of portions contained If you are purchasing deep-frozen food, pick it up last when you are shopping. Check that: The packaging isn't damaged They are not covered in a layer of frost (which means that they have partially defrosted). Pack them in an isotherm bag or in newspaper. Transport them quickly and store them immediately. Comply with the maximum storage dates shown on the packaging. Your appliance has a **** freezer compartment, which enables you to store deep-frozen food.42

Some malfunctions can be easily resolved. Before calling customer service or a technician, please consult the following table. If the issue persists, you need to access professional repair services. PROBLEM

POSSIBLE CAUSES & SOLUTIONS

The appliance does not work. The appliance is not connected to a power supply. The circuit-breaker is tripped, or the fuse is damaged. Check if the outlet is powered by connecting another electrical device. The appliance is not cold enough. Check the temperature setting. A high ambient temperature may require setting the appliance to a colder temperature. The door is being opened too often. The door is not completely closed. The door seal is not properly positioned. There is not enough space around the appliance to allow ventilation. The appliance operates continuously. The room temperature is higher than the maximum supported. There is too much food inside the appliance. The door is being opened too often. The door is not completely closed. The temperature control is not calibrated correctly. The door seal is not properly positioned. The light doesn't work. The appliance is not plugged in. The circuit-breaker has been tripped or a fuse is damaged. The LED light doesn’t work. The light button is set to "OFF". The appliance vibrates. Check to make sure the appliance is level. The appliance seems to be making too much noise. The appliance is not level, or a foot is incorrectly adjusted. The door does not close properly. The appliance is not level. The shelves are out of position and blocking the door closure. There is water under the appliance. Water is being collected incorrectly in the water tank on the back of the unit. Check that the water tank is in place. Empty the water tank.

GUARANTEE Your refrigerating appliance is guaranteed by the manufacturer for a period of 24 months from the purchase date (as stated on the purchase receipt). EXCLUSIONS OF GUARANTEE: The guarantee does not cover the normal wear of the product, nor problems or damages resulting from: (1) superficial deteriorations due to the normal wear of the product; (2) defects or deteriorations due to contact with food or liquids or corrosion generated by rust; (3) any incident, abuse, misuse, modification, disassembly or unauthorized repairs; (4) any incorrect maintenance operations, improper use and connection to an incorrect power supply; (5) any use of unofficial or unapproved accessories. Note: Removing the rating plate or/and product serial number will void the guarantee. REPAIR SERVICES In case of a malfunction during the guarantee period, repair requests must be addressed to the retailer from which you purchased the appliance. After the expiry of the guarantee period, refer to the document “Spare parts and repairs” in the documentation related to your refrigerating appliance available on the website " www.continentaledison.fr " SPARE PARTS Spare parts for your product are available for at least 7 years, in accordance with the European regulation related to the eco-design of refrigerating appliances. Refer to the document “Spare parts and repairs” in the documentation related to your refrigerating appliance, which is available on the website " www.continentaledison.fr ". This will inform you about: – the availability of each spare part; – the spare part purchasing terms; – professional repair services. V – GUARANTEE44 Disposal of the appliance To avoid any harm to the environment or human health caused by improper disposal of electrical waste, recycle the appliance responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose. Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures. Disposal of the device Continental Edison 120-126 Quai de Bacalan CS11584 33000 Bordeaux IMPORTE PAR A.M.C 123 quai Jules Guesde, 94400, VITRY SUR SEINE, France000-" %"-# CKCEN-W03
