| Product type | Professional food processor (vegetable cutter) |
| Brand | Robot Coupe |
| Model | CL 52 E |
| Power supply | 120 V, 60 Hz, 1 phase, 13.5 A |
| Power | ~1620 W |
| Rotation speed | 475 rpm |
| Dimensions (W x D x H) | 13 x 14 x 27 in (33 x 35.6 x 68.6 cm) |
| Net weight | 56.2 lb (25.5 kg) |
| Packed weight | 61.7 lb (28 kg) |
| Motor block material | Stainless steel |
| Bowl material | Aluminum |
| Cut types | Sliced, grated, julienne, dice, french fries, waffle cuts |
| Safety | Magnetic stop when cover is opened, thermal protector, safety lock |
| Noise level | < 70 dB(A) |
| Warranty | 1 year (parts and labor) |
| Certifications | ETL, NSF/ANSI Std 8, CAN/CSA C22.2 No.195 |
| Included accessories | Loading cone, cabbage corer, removable wall, black evacuation disc, cabbage ejector, disassembly key |
| Maintenance | Manual cleaning recommended, regularly oil the sealing ring |
Frequently Asked Questions - CL 52 E Robot Coupe
User questions about CL 52 E Robot Coupe
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Food Processor in PDF format for free! Find your manual CL 52 E - Robot Coupe and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CL 52 E by Robot Coupe.
USER MANUAL CL 52 E Robot Coupe
Robot-Coupe® USA Inc.
P.O. Box 16625, Jackson, MS 39236-6625
264 South Perkins St., Ridgeland, MS 39157
We reserve the right to alter at any time without notice the technical specifications of this appliance.
None of the information contained in this document is of a contractual nature. Modifications may be made at any time. © All rights reserved for all countries by: ROBOT-COUPE s.n.c.
KEEP THESE INSTRUCTIONS
IN A SAFE PLACE
WARNING: In order to limit accidents such as electric shocks, personal injury or fire, and in order to limit material damage due to misuse of the appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know your appliance and enable you to use the equipment correctly. The operation manual should be kept within easy access to all users for reference and should be read completely by all first time users of the machine.
UNPACKING
- Carefully remove the equipment from the packaging and take out all the boxes or packets containing attachments or specific items.
- WARNING-some of the parts are very sharp e. g. blades, discs... etc.
INSTALLATION
• Install your machine on a stable solid base of convenient operating height.
CONNECTION
- The CL 52 "E" must be attached to standard 120 Volt 60 Hz grounded outlet NEMA 5-15. Robot Coupe recommends ground fault type outlet be used.
HANDLING
• Always take care when handling the blades, as they are extremely sharp.

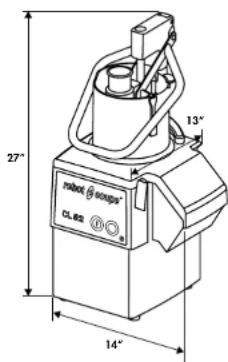

DIMENSIONS (in inches)
USE
- Never try to override the locking and safety systems.
- Never insert any object into the container where the food is being processed.
- Never push the ingredients down with your hand.
- Do not overload the appliance.
- Never switch the appliance on when it is empty.
CLEANING
- As a precaution, always unplug your appliance before cleaning it.
• Always clean the appliance and its attachments at the end of each cycle. - Never immerse the motor unit in water.
- For parts made from aluminum, use cleaning detergents intended for aluminum.
- For plastic parts, do not use detergents that are too alkaline (e.g., containing too much caustic soda or ammonia).
- Robot-Coupe can in no way be held responsible for the user's failure to follow the basic rules of cleaning and hygiene.
MAINTENANCE
- Before opening the motor housing, it is absolutely vital to unplug the appliance.
- Check the seals and washers regularly and ensure that the safety devices are in good working order.
- It is particularly important to maintain and check the attachments since most vegetables contain corrosive agents, e.g. citric acid.
- Never operate the appliance if the power cord or plug has been damaged or if the appliance fails to work properly or has been damaged in any way.
- Do not hesitate to contact your local Maintenance Service if something appears to be wrong.
SUMMARY
WARRANTY
IMPORTANT WARNING
INTRODUCTION TO YOUR NEW VEGETABLE PREPARATION MACHINE CL 52 "E" Version
SWITCHING ON THE MACHINE
THE LEVER-OPERATED HOPPER AND ITS TOOLS
HOPPER USE AND DISC CHOICE
CLEANING
MAINTENANCE
- Motor seal
- Blades and plates
- Grating discs
TECHNICAL SPECIFICATIONS
• Weight
- Working height
- Noise level
SAFETY
SERVICE
TECHNICAL DATA (page 27)
- Exploded views

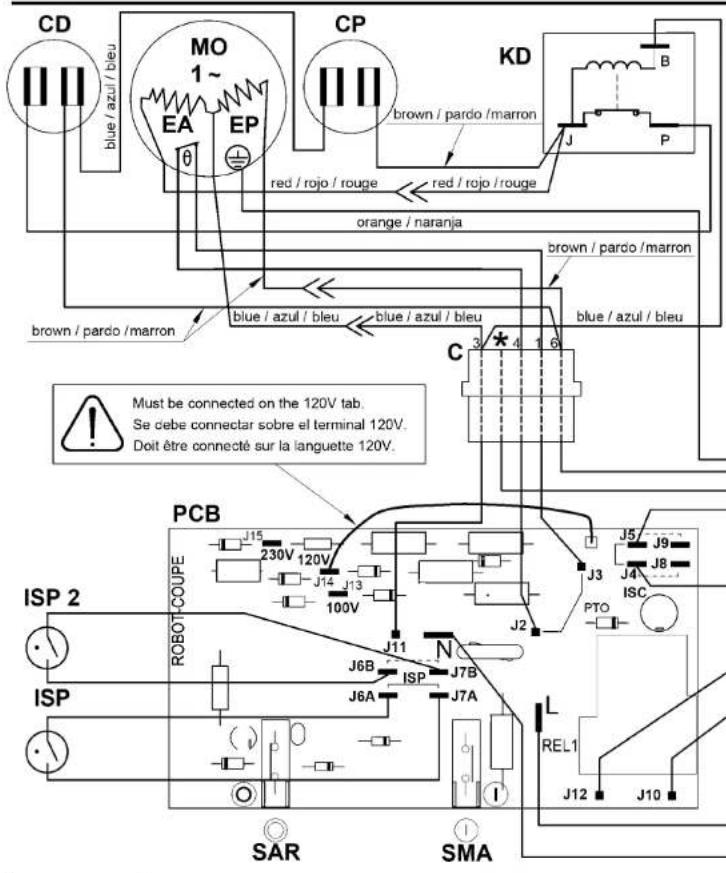

• Electric and wiring diagrams
ROBOT COUPE U.S.A., Inc. LIMITED WARRANTY
YOUR NEW ROBOT COUPE PRODUCT IS WARRANTED TO THE ORIGINAL PURCHASER FOR A PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE.
This LIMITED WARRANTY is against defects in the material and/or workmanship, and includes labor for replacement of defective parts, provided repairs are performed by an authorized service agency (see attached list).
The Customer must inform the Service Agency of the possibility of warranty coverage and provide a copy of the dated sales or delivery receipt BEFORE WARRANTY REPAIRS ARE BEGUN.
Replacement parts and accessories are warranted for ninety (90) days from the date of purchase when purchased separately and will be verified by dated sales receipt OR packing slip which lists that item.
All parts or accessories replaced under warranty must be returned to the Service Agency.
THE FOLLOWING ARE NOT COVERED BY THE ROBOT COUPE U.S.A., Inc. LIMITED WARRANTY:
1 - Damage caused by abuse, misuse, dropping, or other similar damage caused by or resulting from failure to follow assembly, operating, cleaning, user maintenance or storage instructions.
2 - Labor to sharpen and/or replacements for blades that have become blunt, chipped or worn after a normal or excessive period of use.
3 - Materials or labor to replace or repair scratched, stained, chipped, pitted, dented or discolored surfaces, blades, knives, attachments or accessories.
4 - Any alteration, addition, or repair that has not been carried out by the company or an approved service agency.
5 - Transportation of the appliance to or from an approved service agency.
6 - Labor charges to install or test new attachments or accessories (i.e., bowls, plates, blades, attachments), which have been replaced for any reason.
7 - The cost of changing direction-of-rotation of three-phase electric motors (Installer is responsible).
8 - SHIPPING DAMAGES. Visible and/or hidden damage is the responsibility of the freight carrier. The consignee must inform the carrier and consignor immediately, or upon discovery in the case of hidden defects.
KEEP ALL ORIGINAL CONTAINERS AND PACKING MATERIALS FOR CARRIER INSPECTION.
Neither ROBOT COUPE U.S.A., Inc. nor its affiliated companies or any of its distributors, directors, agents, employees, or insurers will be liable for indirect damage, losses, or expenses linked to the appliance or the inability to use it.
The ROBOT COUPE U.S.A., Inc. warranty is given expressly and in lieu of all other warranties, expressed or implied, for merchantability and for fitness toward a particular purpose and constitutes the only warranty made by ROBOT COUPE U.S.A., Inc.
IMPORTANT WARNING
WARNING
KEEP THESE INSTRUCTIONS
IN A SAFE PLACE
WARNING: In order to limit accidents such as electric shocks, personal injury or fire, and in order to limit material damage due to misuse of the appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know your appliance and enable you to use the equipment correctly. The operation manual should be kept within easy access to all users for reference and should be read completely by all first time users of the machine.
UNPACKING
- Carefully remove the equipment from the packaging and take out all the boxes or packets containing attachments or specific items.
- WARNING-some of the parts are very sharp e. g. blades, discs... etc.
INSTALLATION
• Install your machine on a stable solid base of convenient operating height.
CONNECTION
- The CL 52 "E" must be attached to standard 120 Volt 60 Hz grounded outlet NEMA 5-15. Robot Coupe recommends ground fault type outlet be used.
HANDLING
• Always take care when handling the blades, as they are extremely sharp.
DIMENSIONS (in inches)
USE
- Never try to override the locking and safety systems.
- Never insert any object into the container where the food is being processed.
- Never push the ingredients down with your hand.
- Do not overload the appliance.
- Never switch the appliance on when it is empty.
CLEANING
- As a precaution, always unplug your appliance before cleaning it.
• Always clean the appliance and its attachments at the end of each cycle. - Never immerse the motor unit in water.
- For parts made from aluminum, use cleaning detergents intended for aluminum.
- For plastic parts, do not use detergents that are too alkaline (e.g., containing too much caustic soda or ammonia).
- Robot-Coupe can in no way be held responsible for the user's failure to follow the basic rules of cleaning and hygiene.
MAINTENANCE
- Before opening the motor housing, it is absolutely vital to unplug the appliance.
- Check the seals and washers regularly and ensure that the safety devices are in good working order.
- It is particularly important to maintain and check the attachments since most vegetables contain corrosive agents, e.g. citric acid.
- Never operate the appliance if the power cord or plug has been damaged or if the appliance fails to work properly or has been damaged in any way.
- Do not hesitate to contact your local Maintenance Service if something appears to be wrong.
INTRODUCTION TO YOUR NEW VEGETABLE PREPARATION MACHINE CL 52 "E" Version
The CL 52 is perfectly geared for professional needs. It can perform a number of tasks, which you will gradually discover as you use it.
The CL 52 is equipped with a removable lid, metal bowl and stainless steel motor base. The full moon hopper is ideal for cutting large products.
For CL 52 a wide range of disk and grids are available to satisfy even the most demanding chefs when it comes to cutting up fruit and vegetables, i.e. slicing, grating, julienne, dicing and French fries discs. The head has been specially designed to handle bulky vegetables.
Thanks to its simple design, all components requiring frequent handling for maintenance or cleaning can be fitted and removed in a few moments without special tools.
To make things easier for you, this manual gives a breakdown of all the various fitting operations.
This manual contains important information designed to help the user get the most out of this vegetable preparation machine.
We therefore recommend that you read it carefully before using your machine.
We have also included a few examples to help you get the feel of your new machine and appreciate its numerous advantages.
SWITCHING ON THE MACHINE
Before plugging in, check that your power supply corresponds to that indicated on the machine's identificationplate.
WARNING
This appliance must be plugged into an grounded socket (risk of electrocution).
The machine comes with a power supply cord having an integrally molded plug.
The CL 52 should be connected to a grounded:
120 V/ 60 Hz /1 Phase power outlet.
Robot-Coupe recommends a ground fault type outlet be used.
THE LEVER-OPERATED HOPPER AND ITS TOOLS
This hopper allows you to prepare all types of vegetables:
- the large feed hopper is used to prepare bulky vegetables such as cabbage, celery, lettuce, etc.,
- the tube is used to prepare long or fragile fruit or vegetables.
Two types of tool are designed for the lever-operated hopper:
1) the loading cone
Always use the cone except for large sized vegetables when the removable divider is not in place.
2) Cabbage cutter used to prepare cabbage and lettuce and to prepare large sized vegetables such as potatoes and onions or other oversized vegetables.
Wrench:
Use this tool to safely remove the cabbage cutter.
① Assembly
With the motor unit facing you, slot the black or white ejection tool onto the drive shaft and check that it is correctly positioned at the bottom of the bowl.
The CL 52 is supplied with two ejection tools. The white ejector has been specially designed to cope with cabbage. For all other vegetables, use the black discharge plate.
Discharge plateCabbage exec
② Position your chosen disc:
position the disc on the motor shaft. To ensure that it is correctly positioned, turn it in a clockwise direction.
b) You have chosen a dicing equipment:
i.e. a grid and a special slicing disc for diced vegetables.
Slicing discs and dicing grids can be mounted in the following combinations:
Gray shaded areas are acceptable combinations of slicing plate plus dicing grid.
| Sliver\Diring grid | 5x5 mm(3/16"x 3/14") | 8x8 mm(5/16"x 3/14") | 10x10 mm(3/8"x 3/8") | 14x14 mm(9/16"x 9/14") | 20x20 mm(15/31"x 25/32") | 25x25 mm(1"x 1") |
| 5 mm (3/16") | ● | |||||
| 8 mm (5/16") | ● | |||||
| 10 mm (3/8") | ● | |||||
| 14 mm (9/16") | ● | |||||
| 20 mm (15/32") | ||||||
| 25 mm (1") | ● |
You will find all the combinations marked • on our machines and accessories price list.
The dimensions of the dicing grid should always be equal to or greater than those of the slicing disc.
Place the dicing grid in the bowl of the vegetable processor.
Make sure that the tab on the grid is fully engaged in the locking slot of the motor unit.
c) If you want to use the French fries equipment:
This equipment comprises a French fries grid and a special French fries slicing disc.
WARNING
To avoid build-up of product between disk and grid cutting French fries, remember to insert the removable divider in the hopper and load the potatoes into the left-hand compartment (see photo opposite).
Position the French fries grid in the vegetable preparation bowl.
Make sure that the French fries plate is correctly positioned in the locking slot of the motor unit.
Fit the removable divider into the feel lid when the French Fry kit is used. Do not use loading cone or
cabbage cutter with French Fry cutter.
③ Then, screw the loading cone or the cabbage cutter onto the motor shaft according to the type of vegetable to be prepared (unless using the removable divider).
It should be remembered that the loading cone is suitable for all types of vegetables except for cabbage and vegetables larger than 3 inches diameter. The cabbage cutter is designed for that purpose.
Loading cone Cabbage cutter
CAUTION: use the wrench supplied with the appliance to remove the cabbage corer.
The locking handle should now be facing you, on the right.
TO CHANGE THE DISC:
1) With the motor unit facing you, release the aluminium locking handle used to lock the veg prep head onto the motor unit.
2) Remove the disc by lifting it from underneath using the hub and if necessary, turn in anti-clockwise direction to release...
If you have been using a dicing unit, we recommend you remove the grid and the disc at the same time.
This will be easier if you first rotate the discharge plate.
3) When fitting dicing equipment, we recommend that you clean the inside of the bowl with a sponge, particularly the part onto which the grid is to be fitted.
Always use a properly cleaned grid.
Never process soft foodstuffs after hard ones without properly cleaning the grid beforehand.
Use our D-Clean Kit (ref. 39881) to clean your:
- 5 x 5 mm - 3/16" x 3/16" inch,
- 8 x 8 mm - 5/16" x 5/16" inch,
- 10 x 10 mm - 3/8" x 3/8" inch
dicing grids quickly and easily.
4) Fit the discharge plate, disc or dicing equipment as indicated in "assembly procedures" in points ① and ②.
5) Close the veg prep lid and lock it onto the motor unit with the locking handle.
HOPPER USE AND DISC CHOICE
The lid of the vegetable processor features two feed openings:
- One large hopper for cutting vegetables such as cabbage, celeriac, etc...
This hopper can be partitioned with the divider. This makes it easier to deal with round or oval vegetables. - One cylindrical hopper for long vegetables and high-precision cutting. Cutting quality can be optimized if the compartment is used as a cutting guide.
- Raise the pusher to gain access to the feed opening.
HOW TO USE THE LARGE HOPPER
WARNING
To avoid buildup between disk and grid cutting French fries, remember to insert the removable divider in the hopper and load the potatoes into the left-hand compartment (see photo opposite).
Push with firm pressure to get full slice and consistent size French fries.
Depending on the application, use the removable divider to prevent the more fragile ones (e.g. tomatoes) from being damaged by the loading cone.
- Fill the hopper right up to the top with vegetables.
- Lower the pusher so that it is flush with the top of the feed opening.
- Press the pusher down to guide the food through the machine. The exact amount of pressure required will depend on the nature of the cut, bearing in mind that too much force reduces cutting quality without increasing throughput.
- Cut cabbages in half and remove the core before processing, in order to avoid unnecessary strain and ensure an end-product of a higher quality.
HOW TO USE THE CYLINDRICAL HOPPER
Fill the cylindrical hopper right up to the top with vegetables. Apply a downwards pressure on the pusher and maintain it until all the vegetables have been processed.
Always press the vegetables down with a pusher to improve cutting efficiency.
| SLICERS | ||
| S 0.8 8/31" | cabbage | |
| S 1 1/32" | carrot/cabbage/cucumber/onion/potato/leek | |
| S 2 5/44" / S 3 1/8" | lemon/carrot/mushroom/cabbage/potato/cucumber/zucchini/onion/leek/bell pepper | |
| S 4 3/32" / S 5 3/16" | eggplant/beetroot/carrot/mushroom/cucumber/bell pepper/radish/lettuce/potato/leek/tomato | |
| S 8 5/16" / S 10 3/8" | eggplant/potato/zucchini/carrot | |
| S 14 9/16 | potato/zucchini/carrot | |
| RIPPLE CUT SLICER | ||
| R 2 5/44" | beetroot/potato/carrot/zucchini | |
| R 3 1/8" | beetroot/potato/carrot/zucchini | |
| R 5 3/16" | beetroot/potato/carrot/zucchini | |
| GRATERS | ||
| G 1.5 1/16" | celeriac/cheese | G 7 9/32" cabbage/cheese |
| G 2 5/44" | carrot/celeriac/cheese | G 9 11/32" cabbage/cheese |
| G 3 1/8" | carrot | Parmeson/chocolate |
| G 6 1/4" | cabbage/cheese | Radish |
| JULIENNE | ||
| J 2x2 5/64"x 5/16" | carrot/celeriac/potato | |
| J 2x4 5/64"x 5/32" | carrot/beetroot/zucchini/potato | |
| J 2x6 5/64"x 1/4" | carrot/beetroot/zucchini/potato | |
| J 4x4 5/32"x 5/32" | eggplant/beetroot/zucchini/potato | |
| J 6x6 1/4"x 1/4" | eggplant/beetroot/celeriac/zucchini/potato | |
| J 8x8 5/16"x 5/16" | celeriac/potato | |
| DICE | ||
| D 5x5 3/16"x 3/16" | carrot/zucchini/cucumber/céleriac | |
| D 8x8 5/16"x 5/16" | potato/carrot/zucchini/beetroot | |
| D 10x10 1/8"x 3/16" | potato/carrot/zucchini/beetroot/turnip/oignon/apple | |
| D 14x14 9/16"x 9/16" | potato/carrot/zucchini/beetroot/céleri | |
| D 20x20 25/32"x 25/32" | potato/carrot/zucchini/pineapple/turnip | |
| D 25x25 1"x 1" | potato/courgette/turnip/apple/melon/watermelon | |
| FRENCH FRIES | ||
| F 8x8 5/16"x 5/16" | potato | |
| F 10x10 3/8"x 3/8" | potato | |
CLEANING
MAINTENANCE
WARNING
As a precaution, always unplug your appliance before cleaning it (risk of electrocution).
After removing the head of the vegetable preparation machine, take off the disc, followed by the grid and discharge plate where necessary.
Dishwashers are best avoided in order to prevent the aluminium parts from becoming tarnished.
Instead we recommend that you clean the machine and disk by hand using washing-up liquid.
If you do put your machine in a dishwasher, we suggest that you use a detergent designed specially foraluminium.
Metal-Safe detergents are available from detergent suppliers.
Never immerse the motor base in water.
Clean it with a sponge.
IMPORTANT
Check that the detergent you use is suitable for cleaning aluminium parts. Popular less expensive washing agents are highly alkaline (e.g. high caustic soda or ammonia content) and therefore totally incompatible with aluminium, causing the parts to blacken.
• MOTOR SEAL
The motor seal on the shaft should be lubricated regularly using a food safe lubricant.
In order to keep the motor completely watertight, it is advisable to check the motor seal regularly for wear and tear and replace if necessary.
The motor seal can be easily replaced without having to remove the motor, so we strongly advise you to ensure that it is in good condition.
- BLADES AND PLATES
The blades on all our discs and dicing grids are wearing parts that need to be replaced from time to time, in order to maintain a constant high cutting quality.
- GRATING DISCS
Grating discs deteriorate over time. We recommend you replace them from time to time, in order to maintain a constant high cutting quality.
TECHNICAL SPECIFICATIONS
- WEIGHT (lbs)
Net Gross
CL 52 "E" complete 56.2 61.7
Average weight
of one disc 1.1 1.3
• WORKING HEIGHT
We recommend that you position the CL 52 on a stable worktop so that the upper edge of the large feed hopper is at a height of between 46 inches and 52 inches.
- NOISE LEVEL
The equivalent continuous sound level when the CL 52 is operating on no-load is less than 70 dB (A).
SAFETY
The CL 52 is equipped with a magnetic safety system which stops the motor when either the large pusher or the feed head is opened.
To restart your machine, relock simply the feed head.
In addition, the cover locking latch is equipped with a safety mechanism which prevents the processor from being used if the cover is not correctly positioned.
The CL 52 is equipped with a thermal protection system which automatically stops the motor if it has been overloaded.
If this happens, allow the machine to cool completely before restarting.
WARNING
The discs are very sharp, handle with care.
REMINDER
Do not open the feed head until the motor has come to a complete stop.
Never tamper with the locking and safety systems.
Never put hand or any object in the bowl while the machine is operating.
Never force the ingredients down with your hands always use the food pusher.
SERVICE
See warranty first then;
Should your unit requires service, check with your distributor to see where local service is available.
If not or if you wish your unit to be serviced at the factory, call for return instructions and ship the unit prepaid to our factory address.
PH:1-800-824-1646
Service Department Repair
264 South Perkins Street
Ridgeland, MS 39157
For service in Canada contact the Robot-Coupe USA factory for repair instructions.
INDICE
Close-up of a hand pouring liquid into a metal container with a rotating stand (no visible text or symbols)natural_image
Close-up of a mechanical component with a circular grille and a curved arrow indicating rotation (no text or symbols visible)
Close-up of a mechanical component with a circular top and central hole (no visible text or symbols)natural_image
Close-up of a hand holding a circular object with a central hole, possibly a lid or disc (no visible text or symbols)natural_image
Close-up of a hand operating a kitchen mixer with a handle (no visible text or symbols)natural_image
Close-up of a kitchen mixer with a visible side panel and handle (no text or symbols)264 South Perkins St.,
Ridgeland, MS 39157
Close-up of a hand pouring liquid into a metal container with a perforated lid (no visible text or symbols)natural_image
Close-up of a mechanical component with a circular grille and arrow indicating rotation (no text or symbols)
Close-up of a circular mechanical component with a central hole and side grooves (no visible text or symbols)natural_image
Close-up of a hand holding a circular mechanical component with a central hole (no visible text or symbols)natural_image
Close-up of a kitchen mixer with a hand adjusting the lever (no visible text or symbols)natural_image
Close-up of a kitchen mixer with visible control knob and side arm (no text or symbols)- 5 x 5 mm - 3/16" x 3/16" pouce,
- 8 x 8 mm - 5/16" x 5/16" pouce,
- 10 x 10 mm - 3/8" x 3/8" pouce
264 South Perkins St.,
Ridgeland, MS 39157
CL 52 Series E - CL 55 Series E
120V-60Hz Single phase
ELECTRIC DIAGRAM
ESQUEMA CONEXIONES
SCHEMA ELECTRIQUE
Serial #: CL 52 Series E: Serial #: CL 55 Series E:
from 453XXXXX 03 F - MM
from 457XXXXX 03 G - MM
| English | Espanol | Français | |
| C | Connector | Connector | Connecteur |
| CD | Starting capacitor | Condensador d'arranque | Condensateur de Démarrage |
| CP | Permanent capacitor | Condensador permanente | Condensateur Permanent |
| DT | Circuit-breaker 15 A | Disyuntor 15 A | Coupe-circuit 15 A |
| EA | Starting phase | Fase auxiliar | Phase Auxiliaire |
| EP | Main phase | Fase principale | Phase Principale |
| ISC | Lid safety switch | Interruptor de securidad tapa | Interrupteur Sécurité Couvercle |
| ISP | Pusher safety switch | Interruptor de securidad boton | Interrupteur Sécurité Poussoir |
| ISP2 | Pusher safety switchOnly CL55 Series E | Interruptor de securidad botonUnicamente CL55 Series E | Interrupteur Sécurité Poussoiruniquement CL55 Series E |
| KD | Starting relay | Rele d'arranque | Relais de Démarrage |
| MO | Single phase Motor | Motor monofasico | Moteur monophasé |
| PCB | Control Board # 102481 | Platina Réf. 102481 | Carte de Commande Réf. 102481 |
| SAR | Off switch | Boton pulsador de parada | Bouton Poussoir Arrêt |
| SMA | On switch | Boton pulsador d'arranque | Bouton Poussoir Marche |
| Motor thermal protector | Protector termico del motor | Protecteur thermique moteur |
robot coupe®
N° 410343 c
Maj : 09/13

