XM-8ES 5-049-076-12(1) 8-Channel Power Amplifier Owner’s Record The model and serial numbers are located on the bottom of the unit.Record the serial number in the space provided below.Refer to these numbers whenever you call upon your Sony dealer regarding this product.Model No. XM-8ESSerial No. Operating Instructions

Bruksanvisning SE2EN Made in Thailand The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area) and Switzerland. The validity of the UKCA marking is restricted to only those countries where it is legally enforced, mainly in the UK. Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives This product has been manufactured by or on behalf of Sony Corporation. EU Importer: Sony Europe B.V. Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium. Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other countries with separate collection systems) This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004% lead. By ensuring that these products and batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the appropriate collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer. For your safety, be sure to install this unit inside the trunk (boot) or under the seat. For details, see “Installation and Connection” (page 8).3EN Features

• Rated power output of 100 W (at 4 Ω) and 165 W (at 2 Ω).

• For car audio units without a line output, direct connection (High Level Input Connection) to the speaker output of your car audio unit can be made using a speaker-wire-to-RCA adaptor (not supplied).

• High-level sensing turn-on feature allows this unit to be activated without the need for a REMOTE connection.

• Built-in HP (high-pass), LP (low-pass), and BP (band-pass) filter for CH 1/2, CH 3/4, CH 5/6, and CH 7/8.

• Protection circuit and indicator provided.

• for stable and regulated output power. *1 Class D Technology The Class D Technology is a method to convert and amplify music signals with MOSFETs to high-speed pulse signals. Furthermore, it features high efficiency and low heat generation. *2 Pulse power supply This unit has a built-in power regulator which converts the power supplied by the 12 V DC car battery into high- speed pulses using a semiconductor switch. These pulses are stepped up by the built-in pulse transformer and separated into both positive and negative power supplies before being converted into direct current again. This is to regulate fluctuating voltage from the car battery. This lightweight power supply system provides a highly efficient power supply with a low impedance output.4EN Table of Contents Features p. 3
• Guide to Parts and Controls Power Amplifier p. 5
• Installation and Connection Parts for Installation and Connection p. 8
• Installation p. 8
• Connection p. 9
• Additional Information Precautions p. 15
• Maintenance p. 15
• Specifications p. 16
• Troubleshooting p. 17

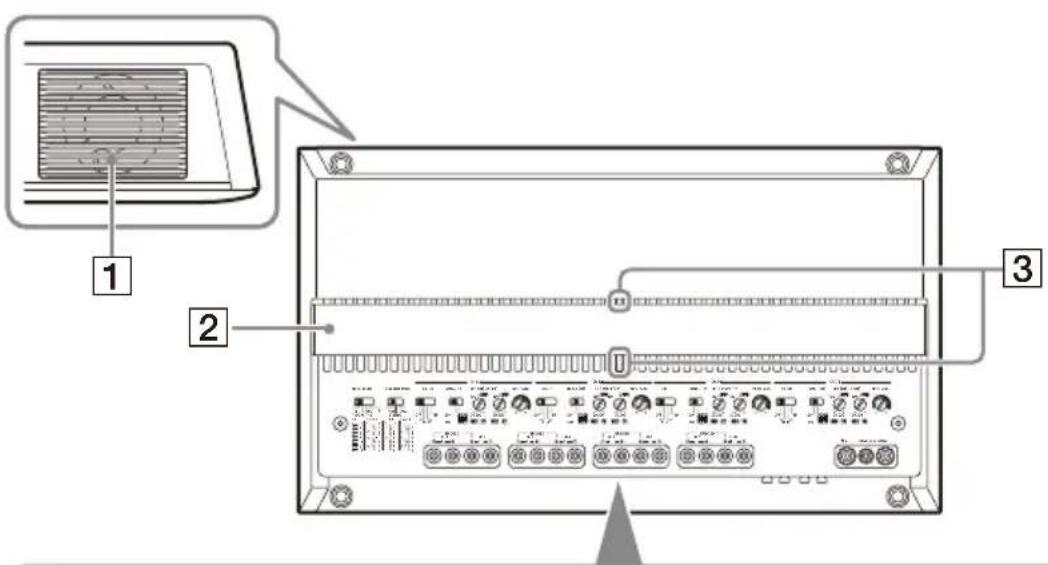

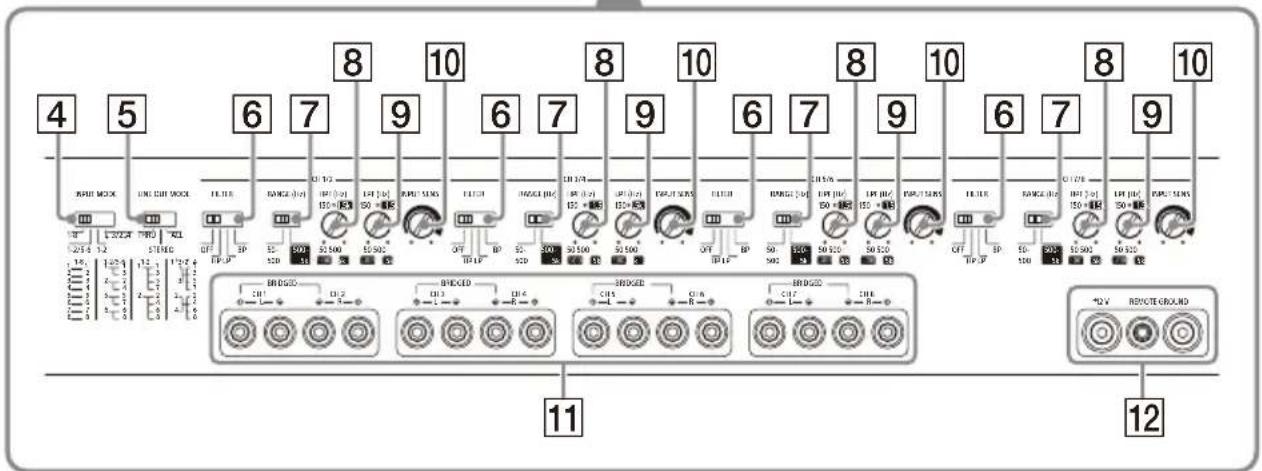

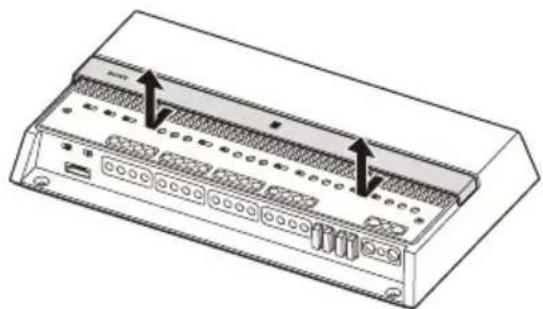

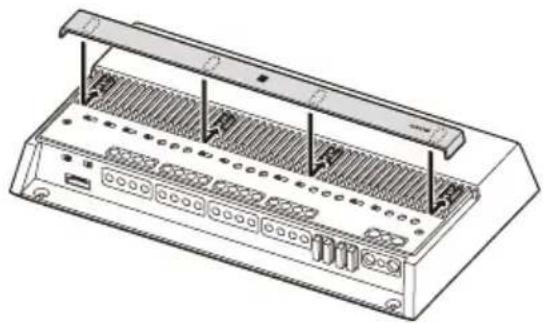

• Support Site EN Power Amplifier Ventilation outlet Dissipates heat. Depending on the temperature of the amplifier, the fan operates in one of the three statuses: stopped, low-speed, high-speed. Heat sink cover The direction of the heat sink cover can be changed according to your preference (page 9). Status indicator light Lights up in white during operation. If the protection circuit activates, the status indicator light changes from white to red. For details, see “Troubleshooting” (page 17). INPUT MODE switch Selects the input mode. p. 175

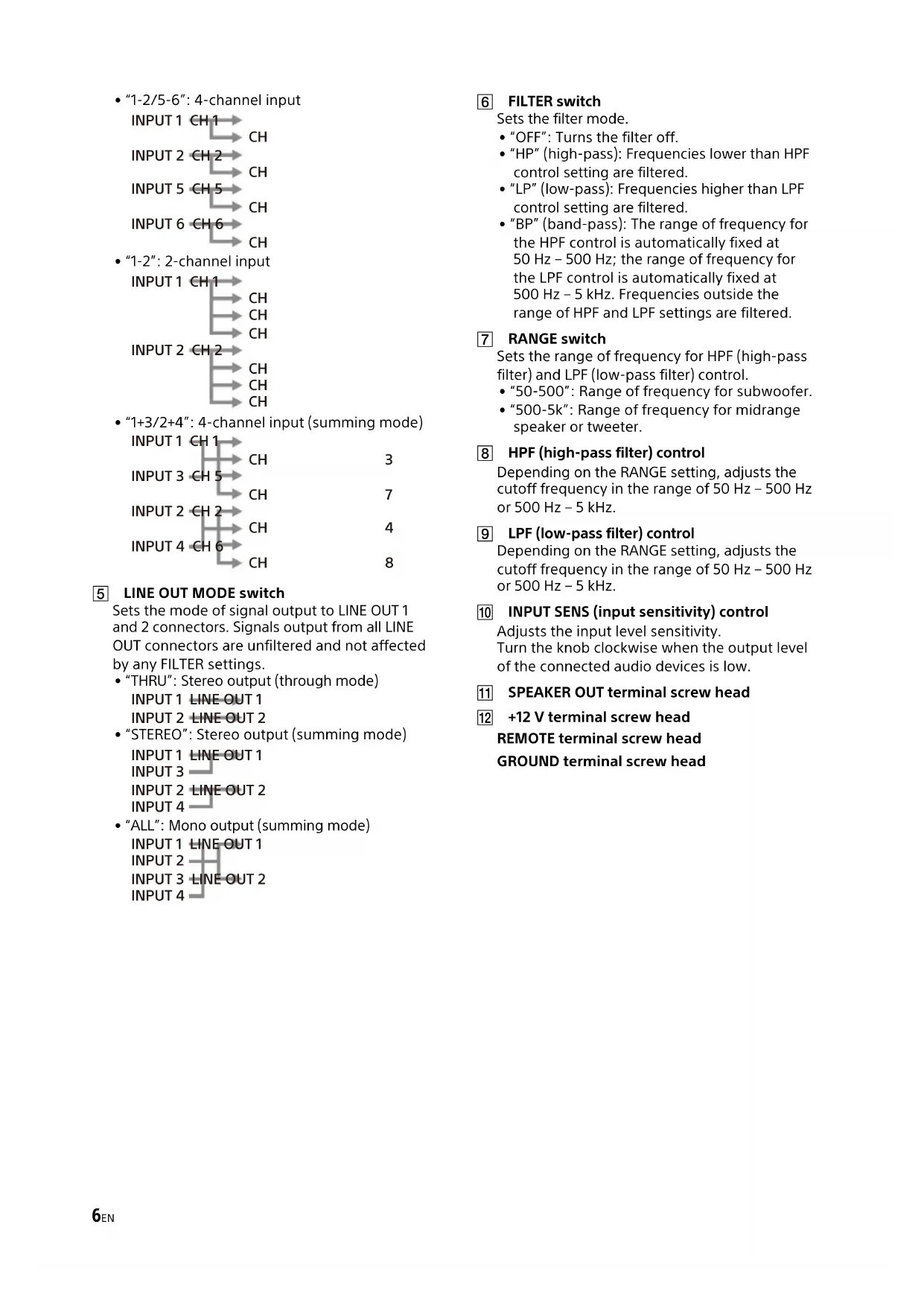

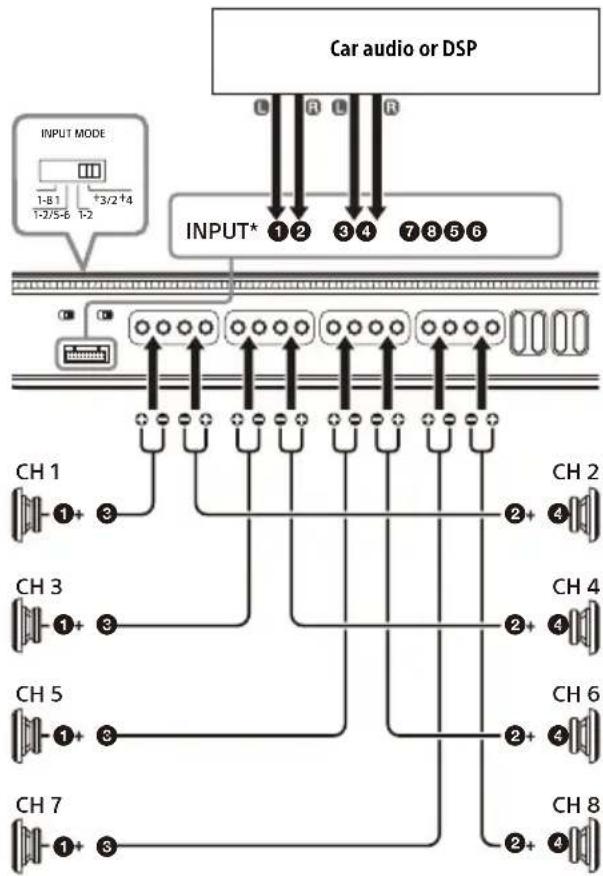

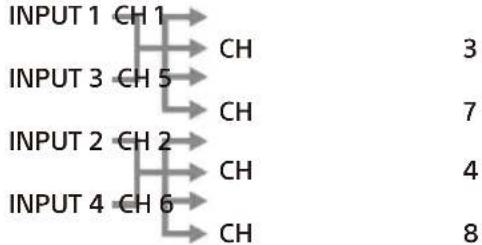

• “1+3/2+4”: 4-channel input (summing mode) LINE OUT MODE switch Sets the mode of signal output to LINE OUT 1 and 2 connectors. Signals output from all LINE OUT connectors are unfiltered and not affected by any FILTER settings.

• “THRU”: Stereo output (through mode)

• “STEREO”: Stereo output (summing mode)

• “ALL”: Mono output (summing mode) FILTER switch Sets the filter mode.

• “OFF”: Turns the filter off.

• “HP” (high-pass): Frequencies lower than HPF control setting are filtered.

• “LP” (low-pass): Frequencies higher than LPF control setting are filtered.

• “BP” (band-pass): The range of frequency for the HPF control is automatically fixed at 50 Hz – 500 Hz; the range of frequency for the LPF control is automatically fixed at 500 Hz – 5 kHz. Frequencies outside the range of HPF and LPF settings are filtered. RANGE switch Sets the range of frequency for HPF (high-pass filter) and LPF (low-pass filter) control.

• “50-500”: Range of frequency for subwoofer.

• “500-5k”: Range of frequency for midrange speaker or tweeter. HPF (high-pass filter) control Depending on the RANGE setting, adjusts the cutoff frequency in the range of 50 Hz – 500 Hz or 500 Hz – 5 kHz. LPF (low-pass filter) control Depending on the RANGE setting, adjusts the cutoff frequency in the range of 50 Hz – 500 Hz or 500 Hz – 5 kHz. INPUT SENS (input sensitivity) control Adjusts the input level sensitivity. Turn the knob clockwise when the output level of the connected audio devices is low. SPEAKER OUT terminal screw head +12 V terminal screw head REMOTE terminal screw head GROUND terminal screw head INPUT 1 CH 1 CH 3 INPUT 2 CH 2 CH 4 INPUT 5 CH 5 CH 7 INPUT 6 CH 6 CH 8 INPUT 1 CH 1 CH 3 CH 5 CH 7 INPUT 2 CH 2 CH 4 CH 6 CH 8 INPUT 1 CH 1 CH 3 INPUT 3 CH 5 CH 7 INPUT 2 CH 2 CH 4 INPUT 4 CH 6 CH 8

• “REMOTE”: Select this for remote turn-on mode. The amplifier turns on when a turn-on signal is received from the REMOTE terminal. For details, see “REMOTE terminal” (page 10).

• “SIGNAL”: Select this for high-level sensing turn-on mode. The amplifier turns on when a turn-on signal is received from the INPUT connector. This feature is only available for high-level (speaker level) input connection. For details, see “REMOTE terminal” (page 10). INPUT/LINE OUT connector Connector for the INPUT and LINE OUT connection cable. For details, see “Input Connection” (page 11) and “Output Connection” (page 14). INPUT VOLTAGE switch Selects the type of input connection.

• “LOW”: Select this for low-level (line level) input connection using RCA extension cables (not supplied).

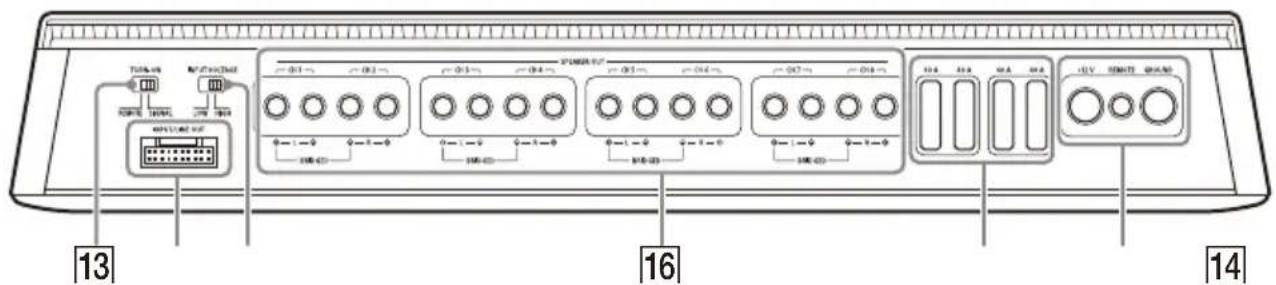

• “HIGH”: Select this for high-level (speaker level) input connection using a speaker-wire- to-RCA adaptor (not supplied). SPEAKER OUT terminal For details about the connection, see “System Connection” (page 12). Fuse (40 A) +12 V terminal REMOTE terminal GROUND terminal Connector Panel (Front Panel) ȵȸȶȷ Ⱥȹ8EN Parts for Installation and Connection This parts list does not include all the package contents. Installation

• Mount the amplifier either inside the trunk (boot) or under a seat.

• For your safety, choose a mounting location that will not interfere with any driving operations.

• Do not install the amplifier near the heater, in areas that get exposed to direct sunlight, or subject to high temperature.

• Do not install the amplifier under a floor carpet where the heat dissipation from the amplifier will be considerably impaired.

• Avoid installing the amplifier in areas subject to rain, moisture, dust and dirt. Mounting the amplifier

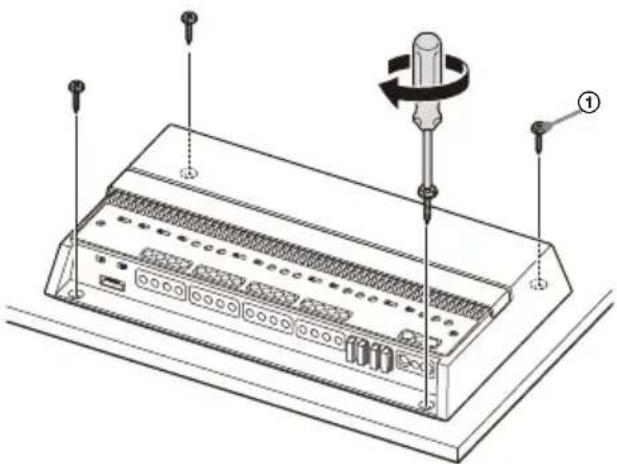

Place the amplifier on your selected mounting location, then mark the position of the 4 screw holes on a mounting board (not supplied). 2 Drill a 3 mm (

/8 in) pilot hole at each mark and mount the amplifier onto the board with the mounting screws . The mounting screws are 20 mm (

/16 in) long, so make sure that the mounting board is thicker than 20 mm (

/16 in). Installation and Connection Mounting screw(5 × 20 mm ( /32 × /16 in)) (4) Hex key (2.5 mm ( /32 in)) (1) Connection cable (1) Installing the Amplifier 9EN Changing the heat sink cover direction The direction of the heat sink cover can be changed according to your preference. 1 Slide the cover forward, then lift to remove it. 2 Rotate the cover to your desired direction. 3 Align the cover to the catches on the amplifier, then slide the cover back until it clicks into place. Connection

• Before making any connections, disconnect the ground (earth) terminal of the car battery to avoid short circuits. Connect this amplifier to the +12 V power supply lead only after all other leads have been connected.

• This amplifier is designed for negative ground (earth) 12 V DC operation only.

• Do not operate the amplifier on a weak battery as the amplifier requires a good power supply for optimum performance.

• If your car is equipped with a computer system for purposes such as navigation, disconnecting the ground (earth) terminal of the car battery may damage the computer memory. Leave the ground (earth) lead connected and connect this amplifier to the +12 V power supply lead only after all other leads have been connected to prevent short circuits.

• When connecting and installing the input and output cables, keep them away from the +12 V power supply lead. Running them close together may generate interference noise. Notes on making connections

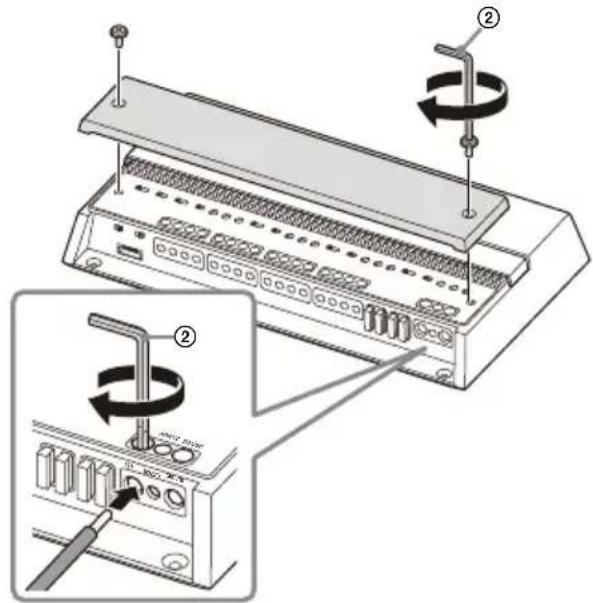

• To connect to the terminals on the connector panel and to adjust various settings, remove the top cover to access the control panel (top panel).

• When you tighten the screw, be careful not to apply too much torque as doing so may damage the terminals or cables. REMOTE

10EN *1 If you have the factory original or some other car audio or DSP (digital signal processor) without a remote output for the amplifier, connect the remote input (REMOTE) terminal to the ACC power supply. In high level input connection, the amplifier can also be activated without a need for REMOTE connection. However, this function is not guaranteed for all car audio or DSP.*2 Ground (earth) to the car chassis. +12 V terminal

• Connect the +12 V power supply lead to the +12 V terminal only after all the other connections have been completed.

• Use a +12 V power supply lead with a 160 A fuse attached.

• During full-power operation, a current of more than 160 A will run through the system. Therefore, make sure the leads to be connected to the +12 V terminal are at least 0-Gauge (AWG-1/0) or have a sectional area of more than 55 mm² (2

• All power leads connected to the positive battery post should be fused within 450 mm (17

/4 in) of the battery post before they pass through any metal.

• Make sure the leads connecting from the car battery to the metal point on the car chassis are at least of a lead gauge equal to that of the +12 V power supply lead connected from the battery to the amplifier.

• Make sure the leads connecting from the car battery to the metal point on the car chassis are not more than 0-Gauge (AWG-1/0) or sectional area of 55 mm² (2

/16 in²), and at least of a lead gauge equal to that of the +12 V power supply lead connected from the battery to the amplifier. GROUND terminal

• Be sure to connect the ground (earth) lead securely to a metal point on the car chassis. A loose connection may cause the amplifier to malfunction.

• During full-power operation, a current of more than 160 A will run through the system. Therefore, make sure the leads to be connected to the GROUND terminal are at least 0-Gauge (AWG-1/0) or have a sectional area of more than 55 mm²

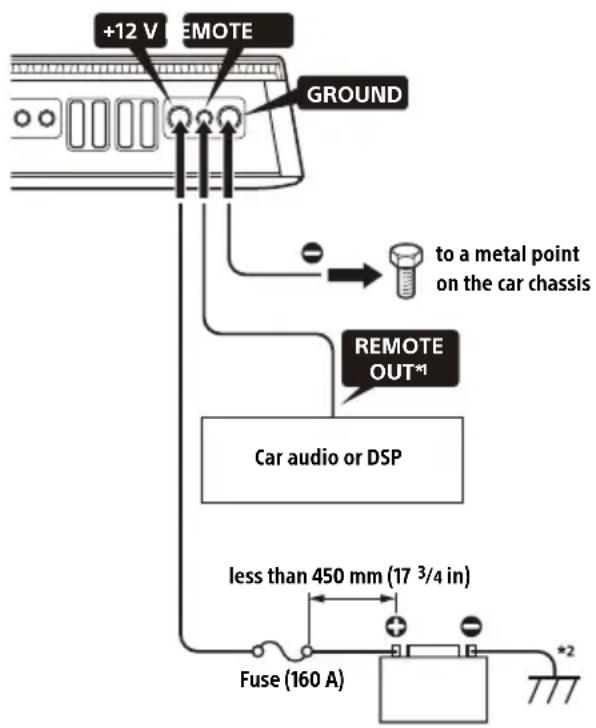

• To turn on the amplifier using a dedicated remote turn-on lead, set the TURN-ON switch to “REMOTE”, then connect the remote output (REMOTE OUT) of your car audio or DSP to the REMOTE terminal.

• When using a car audio or DSP without a remote output (REMOTE OUT) for the amplifier, connect the REMOTE terminal to the ACC power supply of your car or use the signal sensing turn-on setting instead.

• Use a remote turn-on lead with a thickness from AWG-8 to AWG-18 or a sectional area from

• In high level input connection, the amplifier can also be activated without the need for a REMOTE connection. However, this function is not guaranteed for all car audio or DSP.

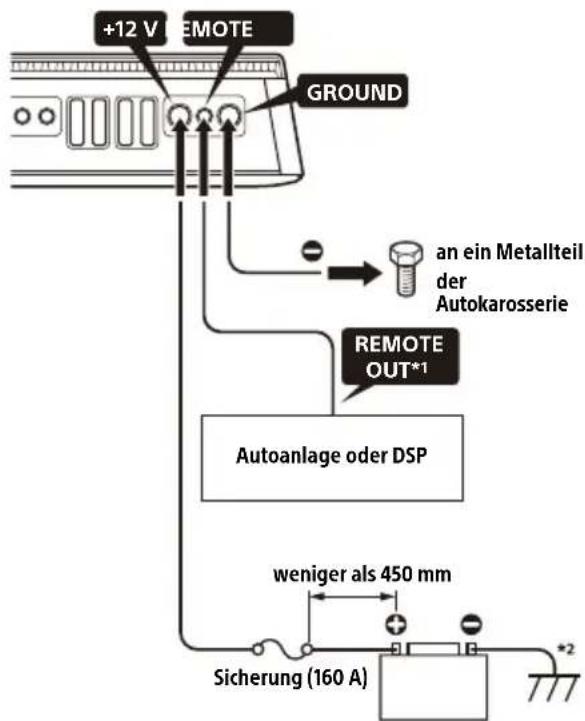

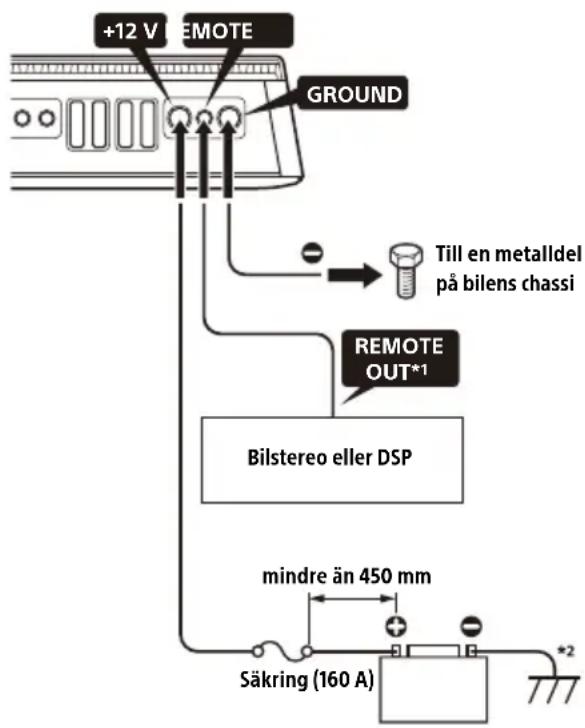

• By setting the TURN-ON switch to “SIGNAL”, the amplifier operates automatically when a turn-on signal is received from the INPUT connector. Power Connections +12 V REMOTE REMOTE OUT*

GROUND Fuse (160 A)to a metal point on the car chassisless than 450 mm (17 /4 in)Car audio or DSP11EN Connect to the INPUT connector of the connection cable . Use a low-level input connection or high-level input connection depending on your car audio or DSP. Low-level input connection Set the INPUT VOLTAGE switch to “LOW” and connect the RCA extension cable (not supplied) from your car audio or DSP to the INPUT connector. The example below shows the connection when connect ing to INPUT 1 and INPUT 2.

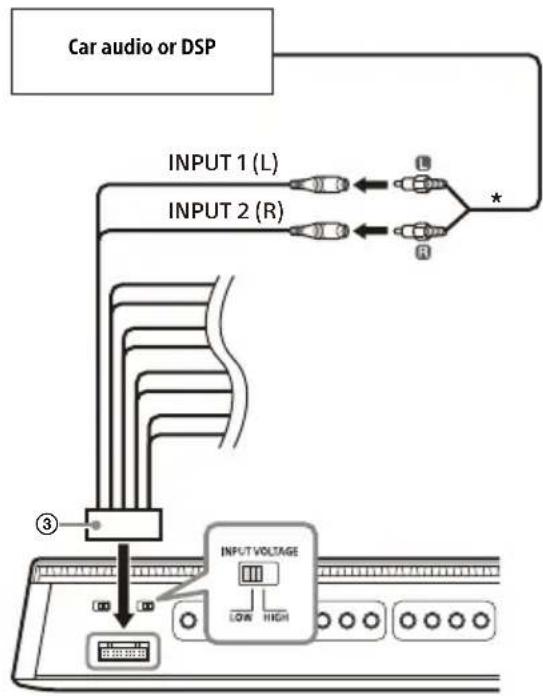

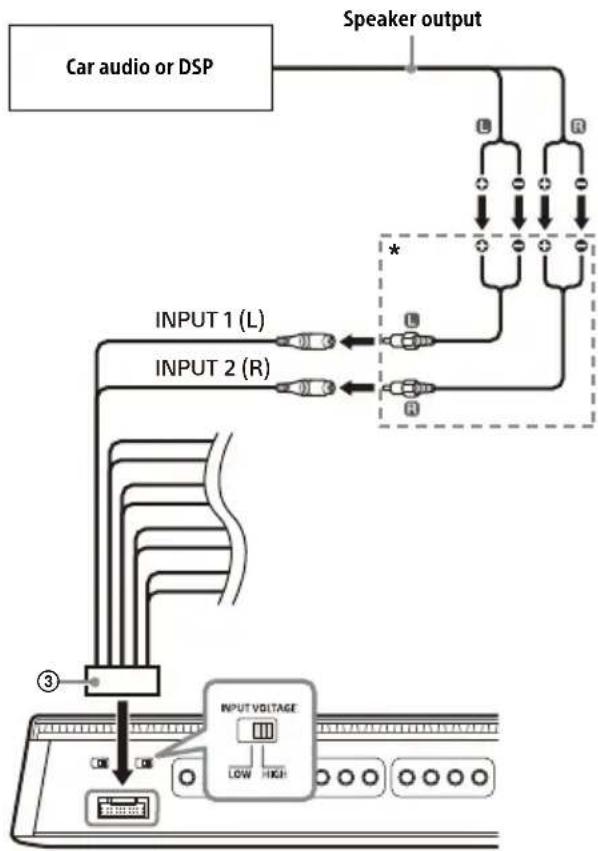

• RCA extension cable (not supplied) High-level input connection Set the INPUT VOLTAGE switch to “HIGH” and use a speaker-wire-to-RCA adaptor (not supplied) to connect the speaker wire from your car audio or DSP to the INPUT connector. The example below shows the connection when conn ecting to INPUT 1 and INPUT 2.
• Speaker-wire-to-RCA adaptor (not supplied) Input Connection INPUT 1 (L)INPUT 2 (R)

• Be sure to use speakers with an adequate power rating. If you use small capacity speakers, they may be damaged.

• Do not connect any active speakers (with built-in amplifiers) to the speaker terminals of the amplifier. Doing so may damage the active speakers.

• Use speakers with an appropriate impedance rating. – 2 Ω to 8 Ω (stereo) – 4 Ω to 8 Ω (bridged connection)

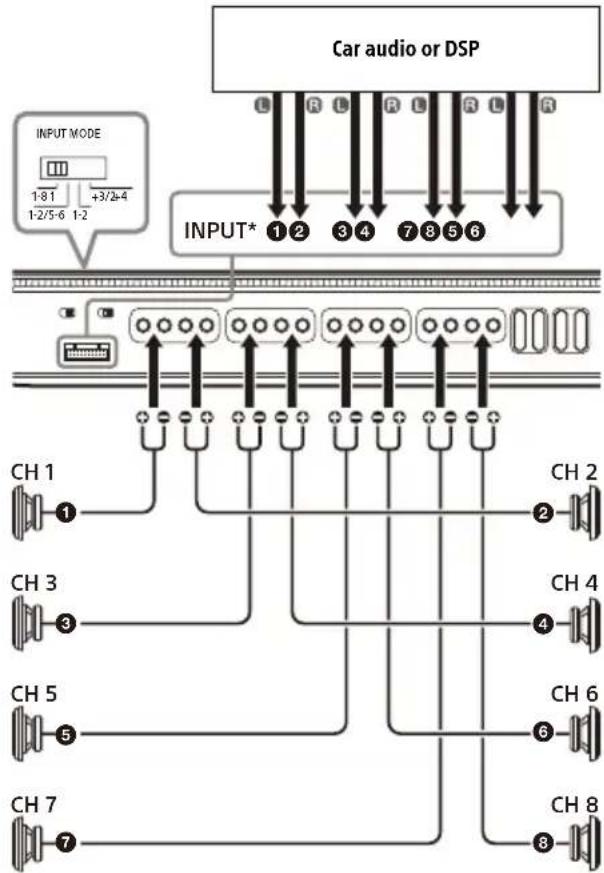

• Do not connect the terminal of the speaker system to the car chassis, and do not connect the terminal of the right speaker with that of the left speaker. The following shows the system typically used when connecting this amplifier. Refer to the operating instructions supplied with each of your connecting equipment for more details about connection. 8-channel input Set the INPUT MODE switch to “1-8”.
• Connect to the INPUT/LINE OUT connector using the connection cable . For details, see “Input Connection” (page 11). Notes
• Use speakers with an impedance rating of 2 Ω – 8 Ω for this connection.• When connecting the subwoofer to a channel, set the FILTER to “LP” and the RANGE to “50-500”.When connecting another type of speaker, set the FILTER and RANGE of the channel to the appropriate settings according to your needs.• You can bridge CH 1/2, CH 3/4, CH 5/6, and CH 7/8 of this amplifier for more powerful output. For details, see “Bridging the amplifier channels” (page 14). 4-channel input Set the INPUT MODE switch to “1-2/5-6”. *1 Filtered signal. Front audio output or HPF output from the car audio.*2 Filtered signal. Rear audio output or LPF output from the car audio.*3 Connect to the INPUT/LINE OUT connector using the connection cable . For details, see “Input Connection” (page 11). Notes
• Use speakers with an impedance rating of 2 Ω – 8 Ω for this connection.• When connecting the subwoofer to a channel, set the FILTER to “LP” and the RANGE to “50-500”.When connecting another type of speaker, set the FILTER and RANGE of the channel to the appropriate settings according to your needs.• You can bridge CH 1/2, CH 3/4, CH 5/6, and CH 7/8 of this amplifier for more powerful output. For details, see “Bridging the amplifier channels” (page 14). System Connection CH 1 CH 3 CH 5 CH 2 CH 4 CH 6

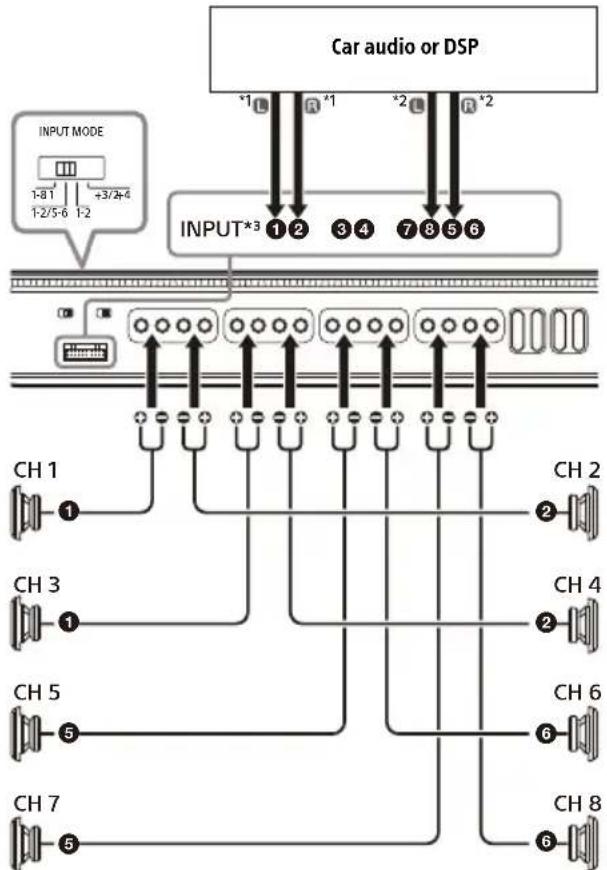

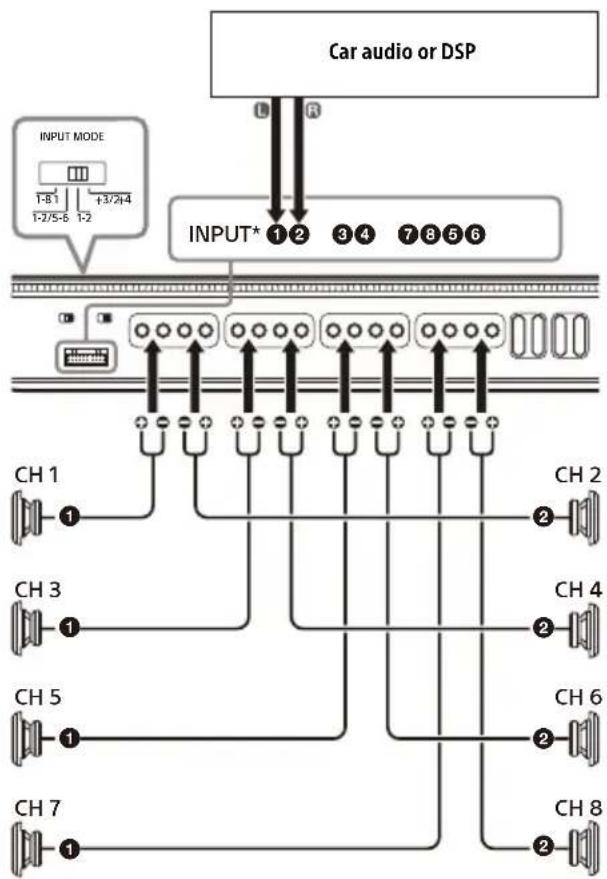

1-2/5-6 1-2 Car audio or DSP13EN 2-channel input Set the INPUT MODE switch to “1-2”.

• Connect to the INPUT/LINE OUT connector using the connection cable . For details, see “Input Connection” (page 11). Notes
• Use speakers with an impedance rating of 2 Ω – 8 Ω for this connection.• When connecting the subwoofer to a channel, set the FILTER to “LP” and the RANGE to “50-500”.When connecting another type of speaker, set the FILTER and RANGE of the channel to the appropriate settings according to your needs.• You can bridge CH 1/2, CH 3/4, CH 5/6, and CH 7/8 of this amplifier for more powerful output. For details, see “Bridging the amplifier channels” (page 14). 4-channel input (summing mode) Set the INPUT MODE switch to “1+3/2+4”.
• Connect to the INPUT/LINE OUT connector using the connection cable . For details, see “Input Connection” (page 11). Notes
• Use speakers with an impedance rating of 2 Ω – 8 Ω for this connection.• When connecting the subwoofer to a channel, set the FILTER to “LP” and the RANGE to “50-500”.When connecting another type of speaker, set the FILTER and RANGE of the channel to the appropriate settings according to your needs.• You can bridge CH 1/2, CH 3/4, CH 5/6, and CH 7/8 of this amplifier for more powerful output. For details, see “Bridging the amplifier channels” (page 14). CH 1 CH 3 CH 5 CH 2 CH 4 CH 6

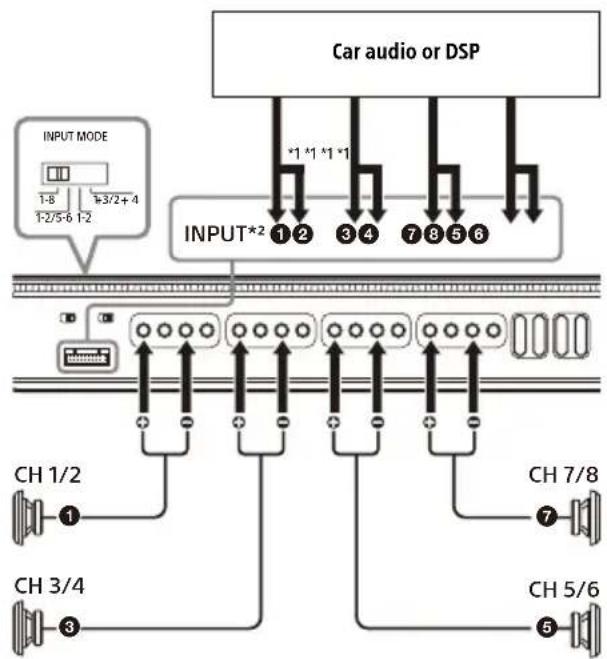

• By bridging the amplifier channels, you can use a Y-cable (not supplied) to connect to both INPUT connectors for more powerful output.

• The channels of the amplifier that can be bridged are the pair of CH 1/2, CH 3/4, CH 5/6, and CH 7/8.

• The example below shows the connection when bridging CH 1/2, CH 3/4, CH 5/6, and CH 7/8. *1 Y-cable (not supplied). When bridging the amplifier channels, use a Y-cable to connect to both INPUT connectors.*2 Connect to the INPUT/LINE OUT connector using the connection cable . For details, see “Input Connection” (page 11). Notes
• Use speakers with an impedance rating of 4 Ω – 8 Ω for this connection.• When connecting the subwoofer to a channel, set the FILTER to “LP” and the RANGE to “50-500”.When connecting another type of speaker, set the FILTER and RANGE of the channel to the appropriate settings according to your needs.
• For how to set the INPUT MODE switch, see to under “System Connection” (page 12). Through the LINE OUT connector of the connection cable , this amplifier can output signals to an additional amplifier. This allows a flexible system connection that utilizes multiple amplifiers. Set the LINE OUT MODE switch on the control panel (top panel) according to your needs.

• “THRU”: Stereo output (through mode)

• “STEREO”: Stereo output (summing mode)

• “ALL”: Mono output (summing mode) Notes
• The amplifier only outputs audio signals from INPUT 1, INPUT 2, INPUT 3, and INPUT 4 to the LINE OUT connector.• Audio signals output from LINE OUT connectors are not affected by any signal processing, such as the HPF and LPF settings.• Refer to the operating instructions supplied with your additional amplifier for connection details. CH 1/2

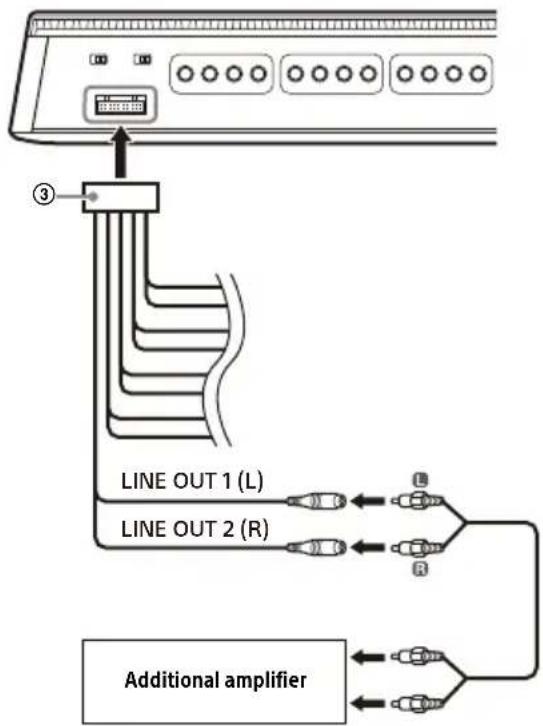

1-2/5-6 1-2 Car audio or DSP Output Connection LINE OUT 1 (L) LINE OUT 2 (R) Additional amplifier

• This power amplifier employs a protection circuit* to protect the transistors and speakers if the amplifier malfunctions. Do not attempt to test the protection circuits by covering the heat sink or connecting improper loads.

• If your car is parked in direct sunlight and there is a considerable rise in temperature inside the car, wait until the unit cools down before use.

• For safety, keep the volume of the unit at a moderate level that allows you to sufficiently hear the sound of traffic outside the vehicle.

• Do not splash liquid onto the amplifier.

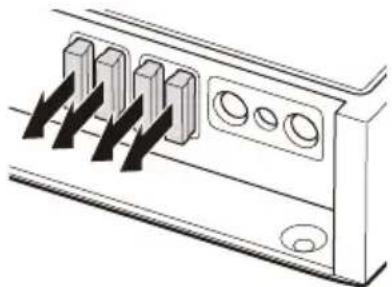

• Protection circuit This amplifier is provided with a protection circuit that operates in the following cases: – When the unit overheats – When a DC current is generated – When the speaker terminals are short-circuited The status indicator light changes from white to red, and this unit will shut down. If this happens, stop the media playback, turn off the connected equipment and determine the cause of the malfunction. If this unit has overheated, wait until it cools down before use. If you have any questions or problems concerning your unit that are not covered in this Operating Instruction, consult your nearest Sony dealer. Maintenance When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and rep lace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. If this happens, consult your nearest Sony dealer. Additional Information Fuse Replacement Warning Never use a fuse with an amperage rating exceeding the one supplied with the amplifier as this could damage the amplifier.16EN Specifications FOR THE CUSTOMERS IN THE USA. POUR LES CLIENTS AUX ÉTATS-UNIS.

AUDIO POWER SPECIFICATIONS

CTA2006 Standard Continuous Power Output: 100 W RMS × 8 Channels at 4 Ω and ≤ 1% THD+N 165 W RMS × 8 Channels at 2 Ω and ≤ 1% THD+N Signal to Noise: 76 dBA reference 1 Watt RMS Circuit system: Class D Technology circuit Pulse power supply Inputs: RCA pin jacks Input level adjustment range:

0.2 V – 8 V (RCA pin jacks)

3 V – 16 V (high-level input) Outputs: Speaker terminals RCA pin jacks Speaker impedance: 2 Ω – 8 Ω (stereo) 4 Ω – 8 Ω (when used as a bridging amplifier) Maximum output: 8 Speakers: 280 W × 8 (at 2 Ω) / Total 2 240 W Rated output (supply voltage at 14.4 V, 1 kHz, 1% THD): 4 Speakers: 330 W × 4 (at 4 Ω) 8 Speakers: 165 W × 8 (at 2 Ω), 100 W × 8 (at 4 Ω) Frequency response: 10 Hz – 40 kHz ( dB) THD (total harmonic distortion): 0.05% or less (at 1 kHz, 4 Ω) Low-pass filter: 50 Hz – 500 Hz, 12 dB/oct 500 Hz – 5 kHz, 12 dB/oct High-pass filter: 50 Hz – 500 Hz, 12 dB/oct 500 Hz – 5 kHz, 12 dB/oct Power requirements: 12 V DC car battery (negative ground (earth)) Power supply voltage:

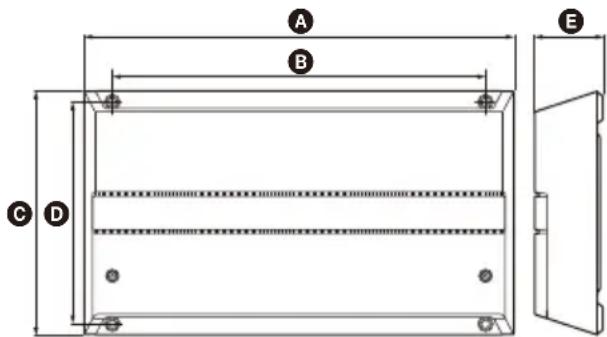

Current drain: At rated output: 70 A (4 Ω, 100 W × 8) Remote input: 4 mA Dimensions: Approx. 380 mm × 60 mm × 215 mm (15 in × 2

/8 in) Mass: Approx. 4.17 kg (9 lb 3 oz) not incl. accessories Package contents: Main unit (1) Parts for installation and connection (1 set) Design and specifications are subject to change without notice.

ɹ17EN Troubleshooting The following checklist will assist in the correction of most of the problems you may encounter with your unit. Please refer to the connection and operating procedures before going through the checklist below. The status indicator light does not light up. The fuse is blown. – Replace the fuse with a new one. The ground (earth) lead is not securely connected. – Fasten the ground (earth) lead securely to a metal point on the car chassis. The voltage going into the remote input (REMOTE) terminal is too low. – Turn on the car audio unit if it is not turned on. – Use a relay if the system employs too many amplifiers. Check the battery voltage (10.5 V – 16 V). The status indicator light changes from white to red. Turn off the amplifier. The speaker outputs have shorted. – Rectify the cause of the short. Turn off the amplifier. Make sure the speaker lead and ground (earth) lead are securely connected. The amplifier becomes abnormally hot. The amplifier heats up abnormally. – Use speakers with suitable impedance: 2 Ω – 8 Ω (stereo) or 4 Ω – 8 Ω (when used as a bridging amplifier). Make sure to place the amplifier in a well ventilated location. The sound is interrupted. The thermal protector has activated. – Reduce the volume. Alternator noise is heard. The power connecting leads are installed too close to the RCA pin cables. – Keep the leads away from the cables. The ground (earth) lead is not securely connected. – Fasten the ground (earth) lead securely to a metal point on the car chassis. Negative speaker wires are touching the car chassis. – Keep the wires away from the car chassis. The sound is muffled. The FILTER switch is set to “HP” or “OFF”. – When connecting the subwoofer, set to “LP”. The FILTER switch is set to “LP”. – When connecting the full range speaker, set to “OFF” or “HP”. The sound is too quiet. The INPUT SENS control setting is not appropriate. Turn the INPUT SENS control in the clockwise direction. If these solutions do not help improve the situation, consult your nearest Sony dealer. Support Site If you have any questions for the latest support information on this product, please visit the website below: Customers in the USA/Canada/Latin America: https://www.sony.com/am/support Customers in European countries: https://www.sony.eu/support Customers in other countries/regions: https://www.sony-asia.com/support使用前注意事項
