AD420A - Receiver Audizio - Free user manual and instructions

Product type	Stereo Receiver
Brand	Audizio
Model	AD420A
Power supply	220-240 V AC, 50 Hz
Fuse	10-16 A (type, replace with identical fuse)
Power consumption	Check label on back (not specified in manual)
Audio inputs	Optical, coaxial, RCA (Line, DVD), AUX 3.5 mm, Bluetooth
Audio outputs	Speakers A/B (binding posts), subwoofer (RCA), headphone 6.35 mm, line (RCA)
Sound adjustments	Volume, Balance, Bass, Mid, Treble
Input selection	AUX, LINE, DVD, OPT, COAX, BT buttons
Speaker selection	Groups A and B (buttons on front panel and remote control)
Remote control	Yes, with basic functions (volume, tracks, inputs)
Bluetooth	Yes, version not specified, range approx. 10 m
Operating temperature	5°C to 35°C
Cleaning	Use a dry cloth, no chemicals
Safety	Do not open, do not expose to moisture, use indoors
Warranty	Void if modified or repaired by unauthorized personnel
Spare parts	Use original parts for repairs

Frequently Asked Questions - AD420A Audizio

How to connect a Bluetooth device?

Press the BT select button on the front of the device until 'BT' appears. Enable Bluetooth on your device (smartphone, tablet) and search for 'Audizio AD Amplifier' in the list. Select it to pair. The connection will automatically re-establish on subsequent uses if both devices are in range.

How to use the front AUX input?

Connect a 3.5 mm male-to-male audio cable to the front AUX input of the device and to the headphone or line output of your source (smartphone, MP3 player). Press AUX select to select this input. Start playback on your source device.

How to adjust bass, mid, and treble?

Use the Bass, Mid, and Treble knobs on the front panel. Turn them clockwise to increase the corresponding frequency, counterclockwise to decrease. Adjust according to your sound preferences.

What to do if the device does not turn on?

First check the power cord and wall outlet. Make sure the fuse is not blown. To replace the fuse, unplug the device, open the fuse holder on the back panel with a small screwdriver, remove the old fuse and replace it with an identical fuse (same type and rating, 10-16 A).
If the problem persists, contact a qualified technician.

How to switch between speakers A and B?

On the front panel, press the buttons corresponding to speaker groups A or B. You can activate both groups simultaneously or just one. The remote control also has A and B buttons for this function.

Can I connect headphones to this amplifier?

Yes, a 6.35 mm headphone jack is available on the front panel. Connect your headphones, and the speaker sound will be automatically muted. Use the Volume knob to adjust the listening level.

How to connect a subwoofer?

Use the Subwoofer output on the back of the device (RCA jack). Connect an RCA cable between this output and the input of your active subwoofer. Adjust the subwoofer level via its own control.

Does the device get hot normally?

Slight heat is normal during prolonged use. Ensure the ventilation slots are not obstructed and that the device is placed in a well-ventilated area, away from heat sources. If the temperature becomes excessive, turn off the device and let it cool down.

How to clean the device?

Use a soft, dry cloth to clean the casing. Never use chemicals, solvents, or abrasive cleaners that could damage the surface. Make sure the device is unplugged before cleaning.

What to do in case of storm or prolonged non-use?

Unplug the device from the power outlet to avoid damage from lightning or power surges. For non-use longer than three months, if the device contains an integrated lead-acid battery (optional), recharge it every three months to prevent irreversible damage.

USER MANUAL AD420A Audizio

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

NAVOD K POUZITI

INDEX

ENGLISH 4

UNPACKING INSTRUCTION. 5

POWER SUPPLY 5

CONTROL 5

REAR PANEL 5

REPLACING THE FUSE 6

BT PLAYBACK 6

AUX IN 6

REMOTE CONTROL 6

NEDERLANDS 7

UITPAKKEN 8

AANSLUITSPANNING 8

BEDIENING 8

ACHTERPANEL 8

VERVANGEN ZEKERING. 9

BTAFSPELEN 9

AUX IN 9

AFSTANDBEDIENING. 9

DEUTSCH 10

AUSPACKEN 11

NETZANSCHLUSS 11

BEDIENUNG 11

Rückseite 11

REEMPLACEMENT DU FUSIBLE 18

LECTURE BT 18

AUX IN. 18

TELECOMMANDE 18

POLSKI 19

INSTRUKCJA ROZPAKOWANIA 20

ZASILANIE 20

STEROWANIE 20

PANEL TYLNY. 20

WYMIANA BEZPIECZNIKA 21

ODTWARZANIE BT. 21

AUX IN 21

ZDALNE STEROWANIE 21

CESKY 22

POKNY PO VYBALENI 23

NAPAJENI 23

OVLADANI 23

ZADNI PANEL 23

VYMENA POJISTKY 24

PRAHAVANI BT 24

AUX IN 24

DALKOVÉ OVLADÁNÍ 24

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TECNICAS /

SPECIFICATIONS TECHNIQUES / TECHNICKÁ SPECIFIKACE / TECHNICKÁ SPECIFIKACE 26

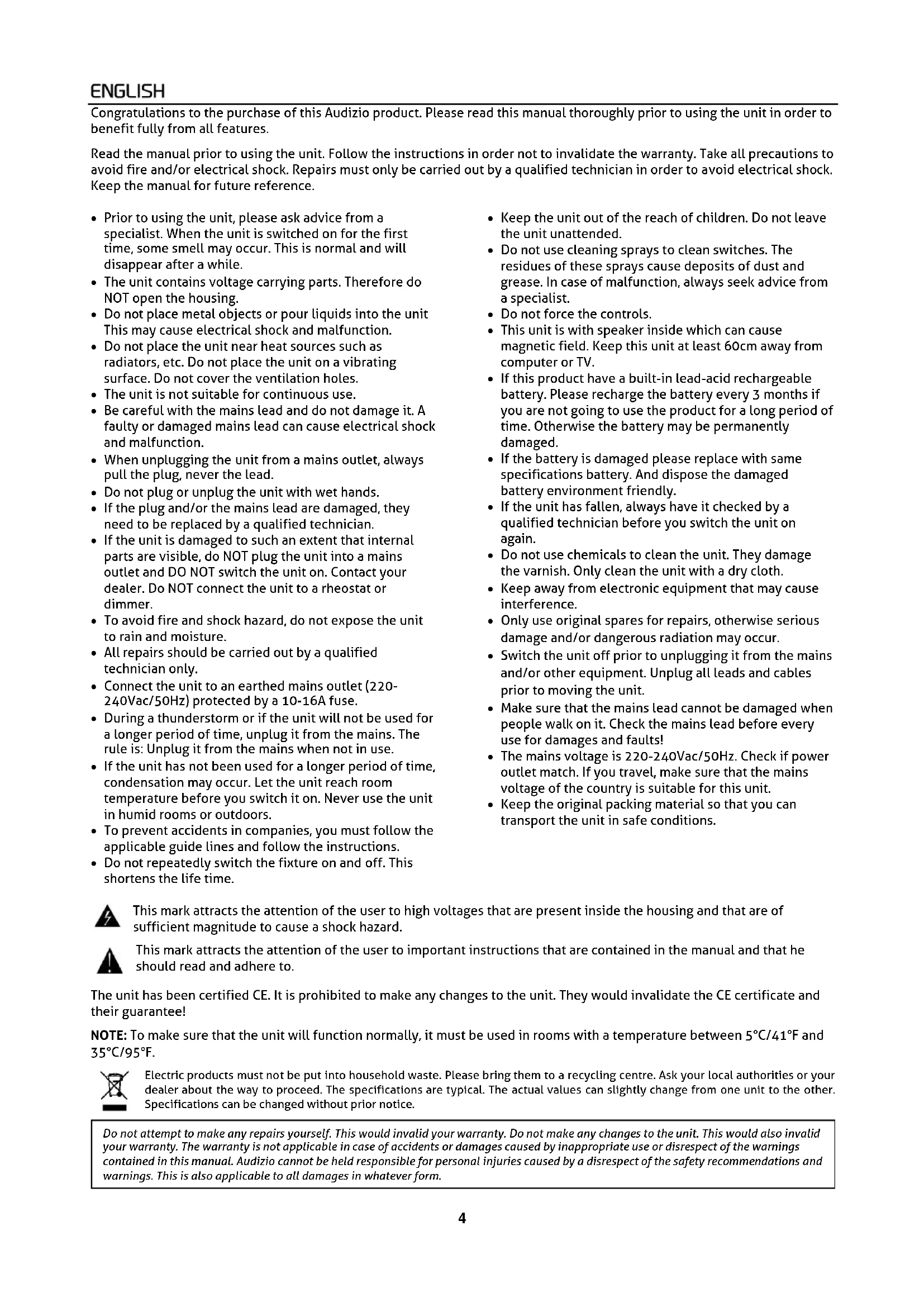

ENGLISH

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.

• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWER SUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the device can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CONTROL

1. Power

Press to switch the device on/off

1. Headphone output jack 6.35 mm

2. Aux in jack 3.5 mm

3. Treble

Rotate to adjust the high frequencies

1. Mid

Rotate to adjust the mid frequencies

1. Bass

Rotate to adjust the low frequencies

1. Balance

Rotate to adjust the balance between L and R channel

1. Volume

Rotate to adjust the volume level

1. Infrared remote control sensor

10.AUX select

Press to select AUX input

1. LINE select

Press to select LINE input

1. DVD select

Press to select DVD input

1. OPT select

Press to select optical input

1. COAX select

Press to select coax input

1. BT select

Press to select BT input

1. Speaker selection

Buttons to select speaker group A or B

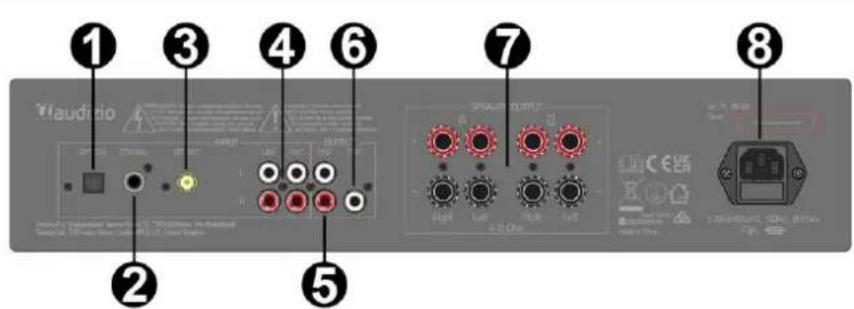

REAR PANEL

1. Optical input connector

2. Coaxial input connector

3. BT antenna connector

4.RCA input

RCA line and -DVD input sockets

1. Line output

RCA line output sockets

1. Subwoofer output

Output for connecting a separate

subwoofer

1. Speaker output

Binding post speaker output connectors

1. AC input and fuse holder

Socket for plugging in the supplied power cord (top). For instructions on how to change the fuse (bottom), see "REPLACING THE FUSE"

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead. Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder

Step 4: Replace the fuse holder in the housing.

BT PLAYBACH

Before transmission between your BT device and the radio is possible, both devices must be coupled. This process is called "pairing". The radio is served as a receiver, to receive the music stream to be played on the radio. If you have already coupled to a BT device before, this connection will be restored automatically when both devices are in range and BT operation has been selected on the radio. "Pairing" does not have to be repeated. This function may need to be activated in your BT device, however.

• Press [BT select] to enter BT mode.
• Turn on BT streaming on your device. The device will scan for pairable BT devices in the reception range.
• Select "Audizio AD Amplifier" from the list with found devices.
• Start playback on your BT device. Playback now takes place emitting sound from the radio.

AUX IN

You can listen to the music stored in other audio device or smart phone via the radio, through the connection to the 3.5mm aux-in jack on the front panel. Use a cable with 3.5mm pins at both ends, one end connected to the aux-in jack on the radio, the other end connected to the earphone jack on the audio device (or line out socket if available). Press [AUX select].

Play music on the connected device, the sound will be emitted from the radio.

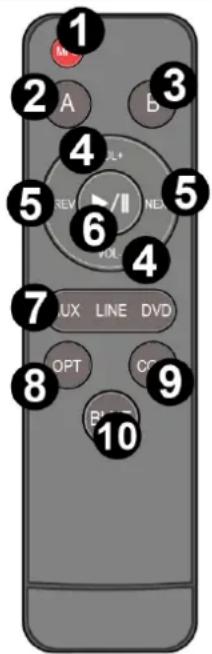

REMOTE CONTROL

1. MP3

Press to turn on/shut off the MP3 module

2.A

Press to select speaker group A

3.B

Press to select speaker group B

1. Volume

Press to increase or decrease the volume level in BT mode

1. Track selection

Press to go to previous- or next track in BT mode

1. Play/pause

Press to (re)start/pause play in BT mode

1. Input

3 choice button. Press to switch between AUX, LINE and DVD input modes

8.

Press to switch to optical input mode

1. Coa

Press to switch to coaxial input mode

1. Blue

Press to switch to BT input mode

NEDERLANDS

REEMPLACEMENT DU FUSIBLE

RCA Line a DVD vtsup

1. Linkovy vystup

RCA line vystupni konektory

1. Vystup pro subwoofer

Vystup pro pripojen samostatneho subwooferu

1. Vystup pro reproductory

Input connections : 3.5mm Jack, Optical, RCA

Output connections : RCA

Speaker connections : Speaker screw terminal

Output power:Max :4x100W

Impedance : 4 Ohm, 8 Ohm

Power supply : 100-240VAC 50/60Hz

Dimensions (L × W × H) : 315 × 430 × 97 ~mm

Weight : 4.20kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Trionios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.l. 2016:1101

S.l. 2016:1091

S.l. 2012:3032

S.l. 2017:1206

Specifications and design are subject to change without prior notice.
