211-370 - Heating Hortus - Free user manual and instructions

Product type	Supplementary heater
Brand	Hortus
Model	211-370
Power supply	Mains (230 V, 50/60 Hz)
Power	1200 W
Heat source	Halogen lamp
Functions	On/off, overheat protection
Safety	Automatic shut-off in case of overheating, grounded plug
Use surface	Flat and stable surface
Minimum under-table clearance	5 cm between the tabletop and the top of the product
Usage prohibitions	Under a tablecloth overhanging more than 5 cm, near curtains
Maintenance	Unplug, wait 60 min, clean with a damp cloth
Cleaning	Do not spray liquid directly
Cord inspection	Regularly
Cord replacement	Only by a professional
Troubleshooting	Check connection, switch, bulb, overheat sensor
Disposal	Compliant with WEEE, do not discard with household waste
Warranty	In accordance with sales law, from the date of purchase
Warranty conditions	Return with valid receipt, not covered in case of incorrect use
Standards	CE, RoHS, EN 60335-2-30:2009, EN 60335-1:2012

Frequently Asked Questions - 211-370 Hortus

How do I clean my Hortus 211-370 heater?

Unplug the device and wait at least 60 minutes after the last use. Clean with a damp cloth applied to the product, without spraying liquid directly.

What to do if the device does not turn on?

Check that the device is properly plugged in, the cord is not damaged, and the switch is in the on position. Also inspect the bulb (it may have burned out).

Can I use the heater under a table?

Yes, but only if the tablecloth does not overhang by more than 5 cm from the edge of the table and a clearance of at least 5 cm is maintained between the tabletop and the top of the product.

How does the overheat protection work?

If overheating is detected, the device automatically shuts off. Unplug it and let it cool down for 30 minutes before using it again.

Can I program the heater with a timer?

No, it is forbidden to use a timer or programmer, as this could cause a fire if the device is covered or incorrectly positioned.

Where can I dispose of the device at the end of its life?

In accordance with the WEEE directive (2002/96/EC), do not discard the device with household waste. Contact your retailer, municipality, or waste collection service.

Does the warranty cover damage due to incorrect use?

No, the warranty does not cover damage resulting from incorrect use, nor acts of God such as lightning, floods, or fires.

Can I replace the power cord myself?

No, cord replacement must be carried out only by an authorized professional.

What to do if the bulb no longer works?

Check that the bulb has not burned out. If so, contact your retailer for replacement. Ensure the device is unplugged before any inspection.

What are the essential safety precautions?

Use on a flat and stable surface, never cover the heating grille, keep away from curtains, plug into a grounded outlet and do not place under a socket.

USER MANUAL 211-370 Hortus

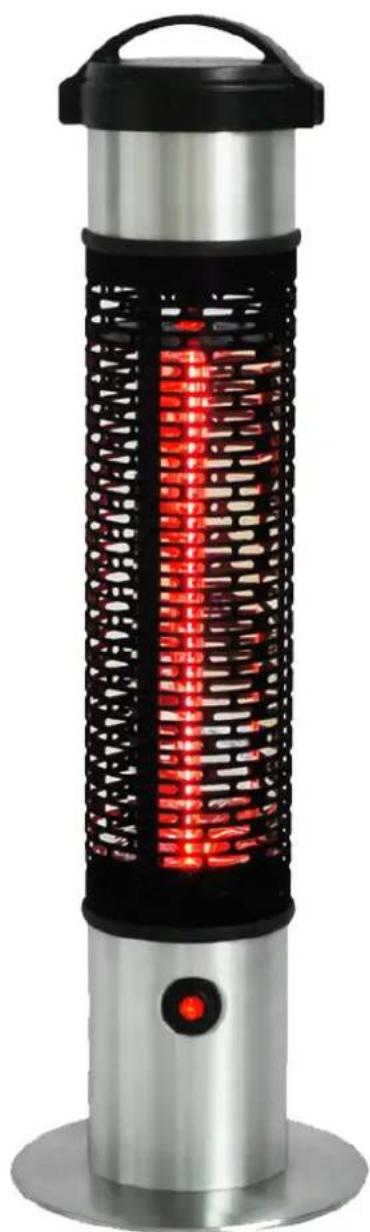

Exterior view of a black cylindrical heating tower with illuminated red LED lights (no text or symbols visible)

Exterior view of a vertical outdoor heat exchanger with red LED lighting and black cooling cover (no text or symbols visible)

Golden Tube

DA

Brugsanvisning

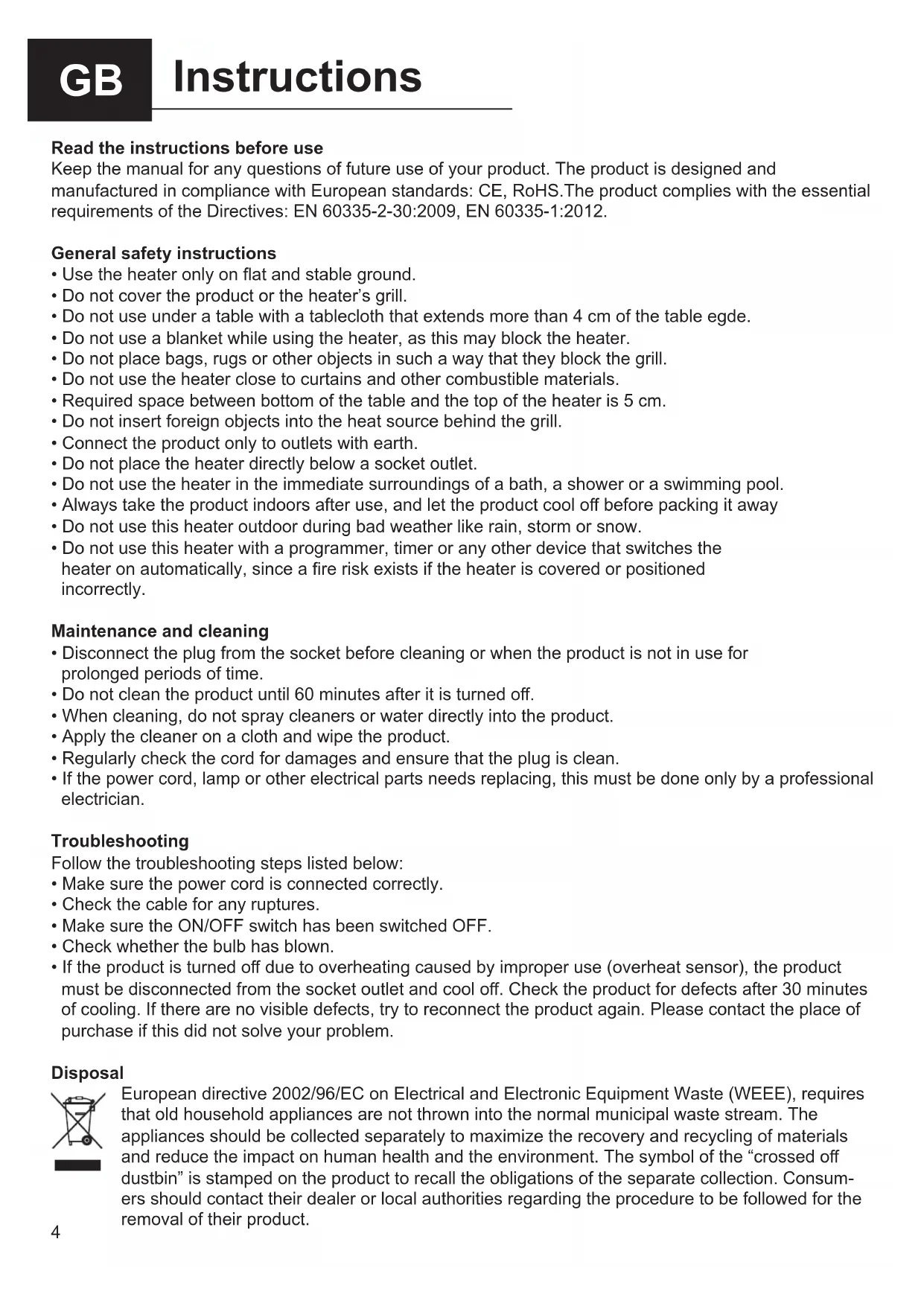

Read the instructions before use

Keep the manual for any questions of future use of your product. The product is designed and manufactured in compliance with European standards: CE, RoHS. The product complies with the essential requirements of the Directives: EN 60335-2-30:2009, EN 60335-1:2012.

General safety instructions

• Use the heater only on flat and stable ground.
• Do not cover the product or the heater's grill.
• Do not use under a table with a tablecloth that extends more than 4 cm of the table egde.
• Do not use a blanket while using the heater, as this may block the heater.
• Do not place bags, rugs or other objects in such a way that they block the grill.
• Do not use the heater close to curtains and other combustible materials.
• Required space between bottom of the table and the top of the heater is 5cm .
• Do not insert foreign objects into the heat source behind the grill.
• Connect the product only to outlets with earth.
• Do not place the heater directly below a socket outlet.
• Do not use the heater in the immediate surroundings of a bath, a shower or a swimming pool.
  • Always take the product indoors after use, and let the product cool off before packing it away
• Do not use this heater outdoor during bad weather like rain, storm or snow.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

Maintenance and cleaning

• Disconnect the plug from the socket before cleaning or when the product is not in use for prolonged periods of time.
• Do not clean the product until 60 minutes after it is turned off.
• When cleaning, do not spray cleaners or water directly into the product.
• Apply the cleaner on a cloth and wipe the product.
• Regularly check the cord for damages and ensure that the plug is clean.
• If the power cord, lamp or other electrical parts needs replacing, this must be done only by a professional electrician.

Troubleshooting

Follow the troubleshooting steps listed below:

• Make sure the power cord is connected correctly.
• Check the cable for any ruptures.
• Make sure the ON/OFF switch has been switched OFF.
• Check whether the bulb has blown.

- If the product is turned off due to overheating caused by improper use (overheat sensor), the product must be disconnected from the socket outlet and cool off. Check the product for defects after 30 minutes of cooling. If there are no visible defects, try to reconnect the product again. Please contact the place of purchase if this did not solve your problem.

Disposal

European directive 2002/96/EC on Electrical and Electronic Equipment Waste (WEEE), requires that old household appliances are not thrown into the normal municipal waste stream. The appliances should be collected separately to maximize the recovery and recycling of materials and reduce the impact on human health and the environment. The symbol of the “crossed off dustbin” is stamped on the product to recall the obligations of the separate collection. Consumers should contact their dealer or local authorities regarding the procedure to be followed for the removal of their product.

Warranty

The product warranty is pursuant to the Danish Sale of Goods Act. The warranty period starts on the day the product was purchased.

Warranty handling

A defective product must be returned to the place of purchase along with a valid receipt. If the product becomes defective during the warranty period, the product must be returned to the place of purchase.

Warranty disclaimer

Damage or defects resulting from neglect or improper use of the product is not covered by the warranty. The warranty does not cover force majeure such as lightning, flood, fire or damage occurred during transport. Warranty cover will be void, if the product's serial number has been changed, if any modifications have been made or if a repair has been attempted by any unauthorized service centre.

Product specifications
Model no.	ZHQ1288-HD-65
Art no.	211-368
Power source	230V AC ~ 50 Hz
Consumption	1200W
Protection class	IP55

Product specifications
Model no.	ZHQ1288-HD-65
Art no.	211-370
Power source	230V AC ~ 50 Hz
Consumption	1200W
Protection class	IP55

OPERATING INSTSTRUCTIONS

1. Connect the heater to a 230V \~ 50Hz power outlet.
2. Use the ON/OFF switch to turn on and turn off the patio heater.

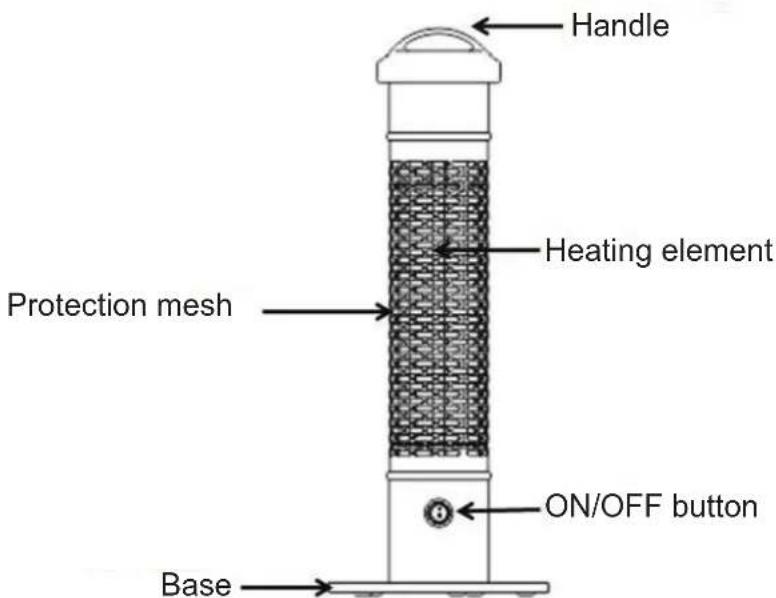

Handle Heating element Protection mesh ON/OFF button Base

General safety instructions

• Bruk kun produktet på flatt og stabilt underlag.
• Produktet og ovnens gitter, må ikke tildekkes.
• Bruk ikke produktet under et bord med duk, som går mer enn 5 cm nedover bordkanten.
• Plasser ikke vesker, duk, poser eller andre objekter på en måte hvor de blokkerer gitteret.
• Bruk ikke produktet tett på gardiner og andre brennbare materialer.
• Nødvendig plass mellom bordplaten og toppen av produktet, er minimum 5 cm.
• Før ikke inn fremmedobjekter i varmekilden bak gitteret.
• Produktet må kun brukes med jordet strømuttak.
• Bruk ikke produktet ved dårlig vær som regn, storm eller snø.
• Bruk ikke produktet med en tidsstyring, timer eller annet automatisk utstyr som tenner og slår av produktet. Dette kan øke risikoen for brann, hvis produktet er tildekket eller plassert feil.
• Plasser ikke ovnen direkte under et strømuttak.
• Plasser ikke ovnen rett ved badebasseng, bad eller våtrom.
• Produktet må alltid tas inn etter bruk og la produktet avkjøle seg før eventuell nedpakking av produktet.
