USER MANUAL DFAV230 SANUS
Sanus Systems 2221 Hwy 36 West Saint Paul, MN 55113 USA Customer Service Americas: 800-359-5520 • 651-484-7988 • info@sanus.com Europe, Middle East, and Africa: + 31 40 2324700 • europe.sanus@milestone.com Asia Pacic: 86 755 8996 9226 • sanus.ap@milestone.com sanus.com ©2010 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Sanus is a division of Milestone. All other brand names or marks are used for identication purposes and are trademarks of their respective owners. DFAV230 (6901-002063 <01>)6901-002063<01>
WARNING: This product contains

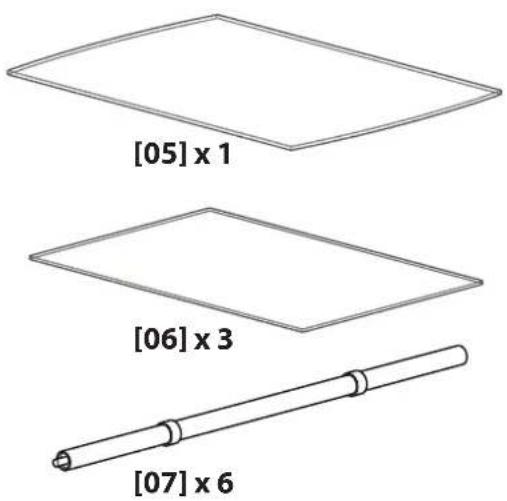

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCTSpecificationsWeight capacities: Ù Top shelf [05]: 50 kg (110 lbs) Ù Middle shelves [06]: 27 kg (60 lbs) Ù Bottom shelf [06]: 27 kg (60 lbs) CAUTION: Avoid potential personal injuries and property damage! Ù This product is desinged for use with flat panel TVs ONLY. Ù Do not use this product for any purpose not explicitly specified by manufacturer. Ù If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer Customer Service or call a qualified contractor. Ù Manufacturer is not responsible for damage or injury caused by incorrect assembly or use. CAUTION: Supplied Parts and Hardware. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!NOTE: Not all hardware included will be used. OPT OPT English6901-002063<01>

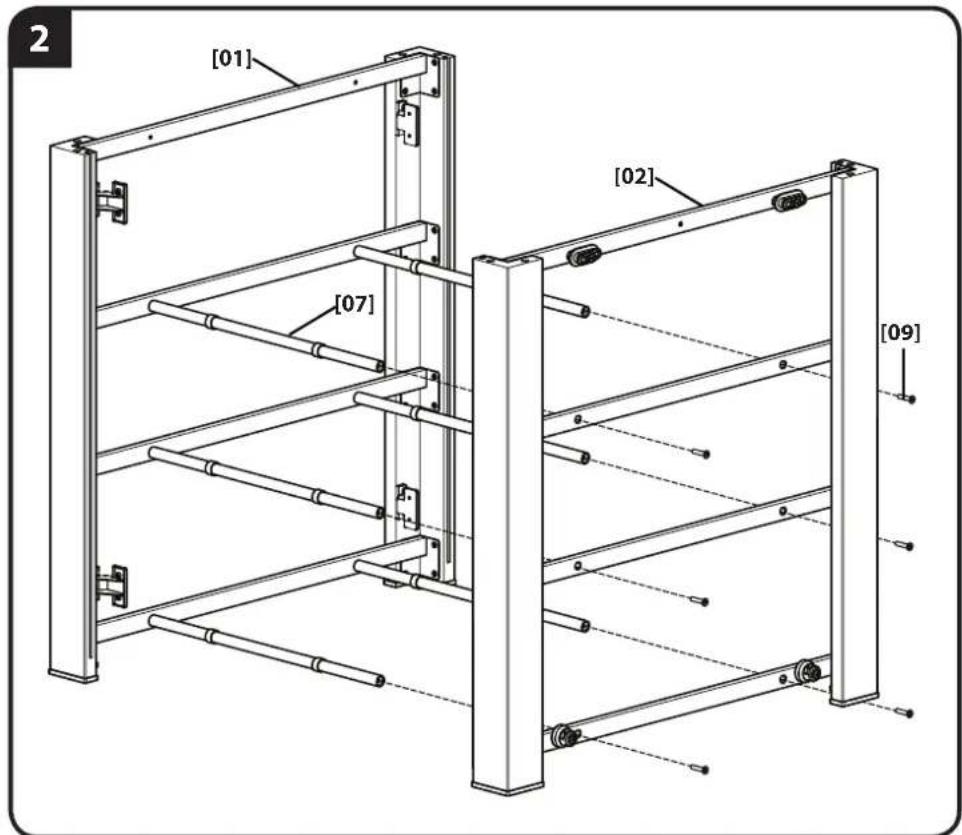

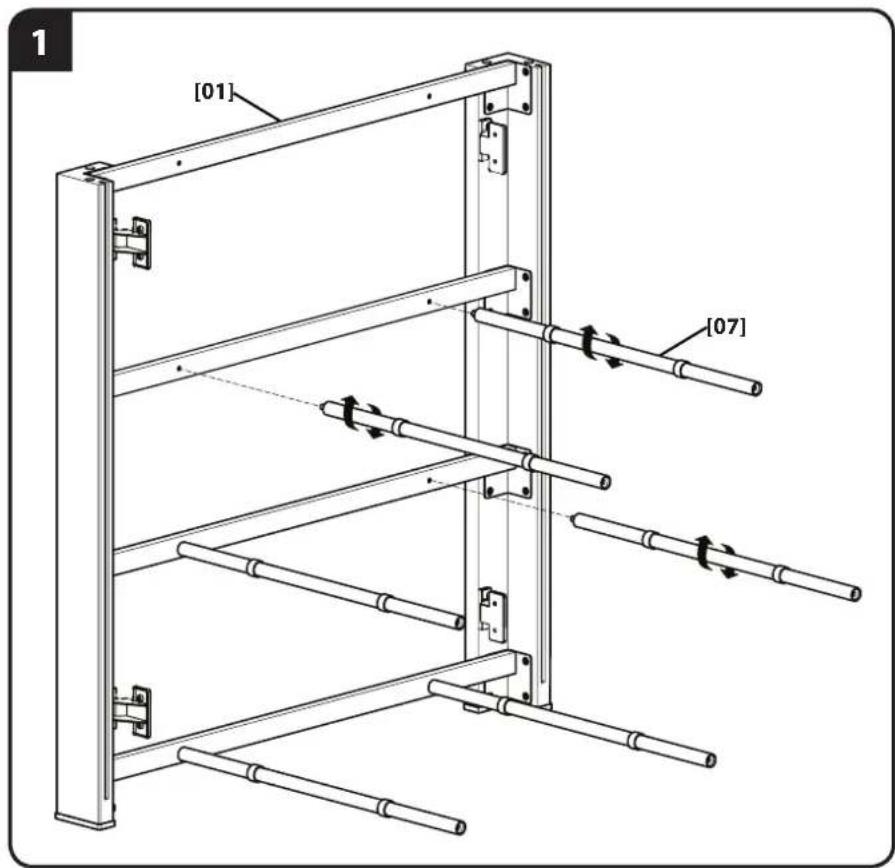

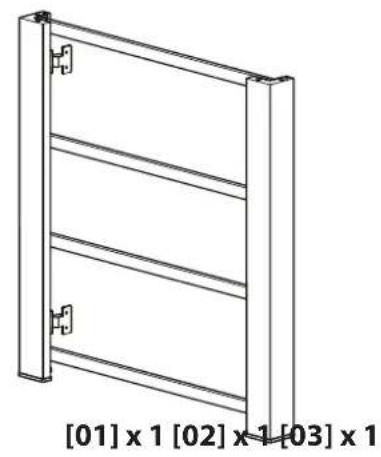

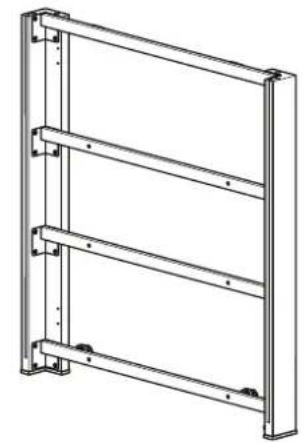

1. Insert shelf tubes [07] to the front assembly [01]. Turn clockwise to tighten.2. Secure back assembly to the tubes using screws [09]. [07] [01] [02] [09] [07] [01]

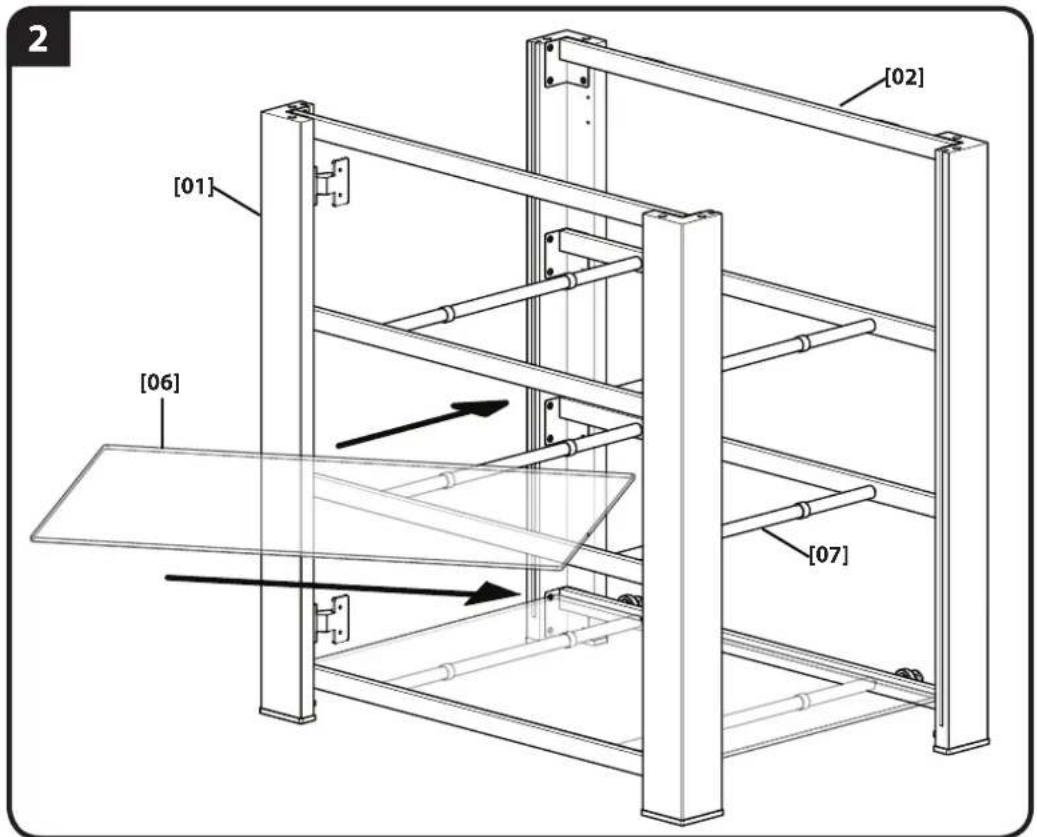

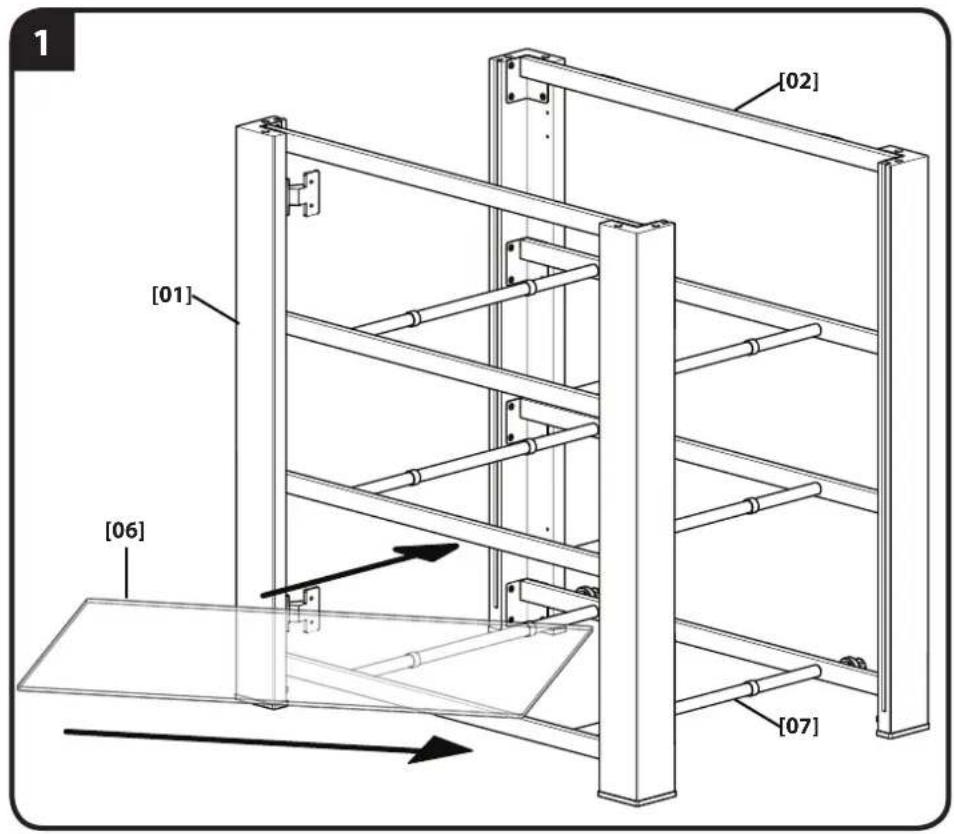

[06] [01] [07] [02] 1. Insert the narrow end of the bottom shelf [06] first, then gently move it into place onto the shelf tubes. 2. Insert the narrow end of the lower middle shelf [06] first, then gently move it into place.6901-002063<01>

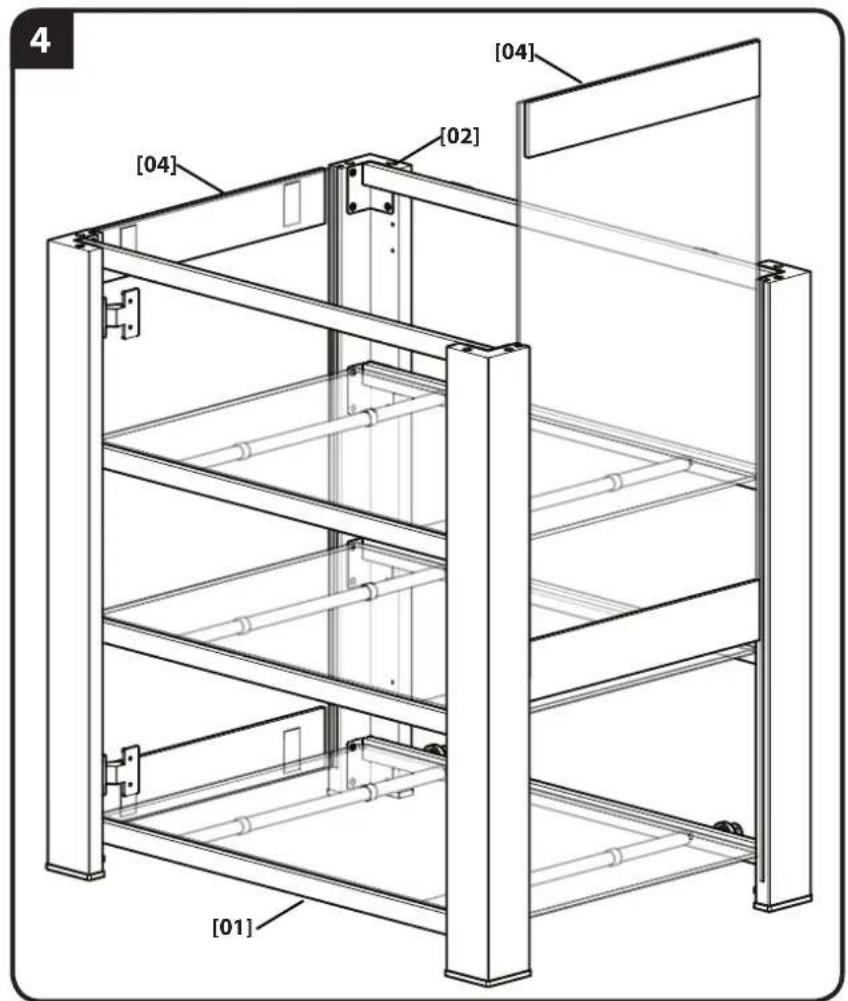

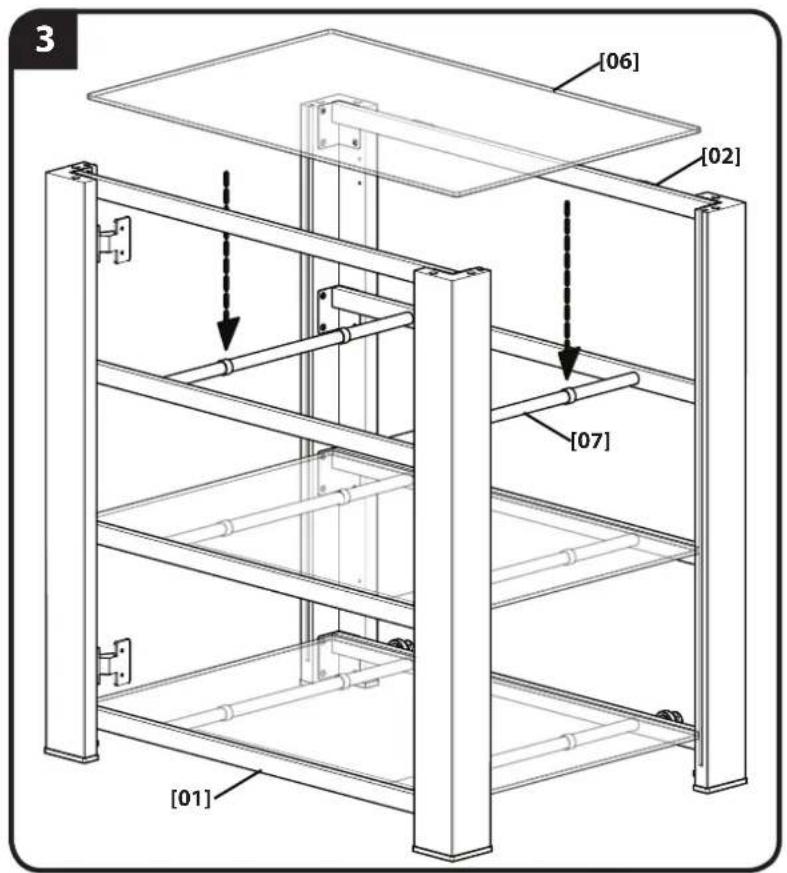

[06] [01] [07] [02] 3. Gently lower the upper middle shelf [06] onto the shelf tubes. 4. Gently slide the two side assemlies [04] into place.6901-002063<01>

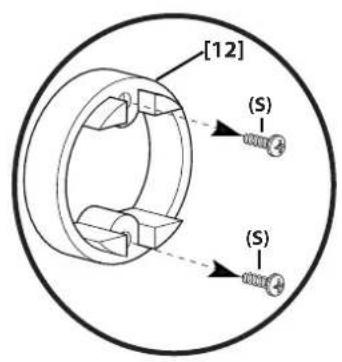

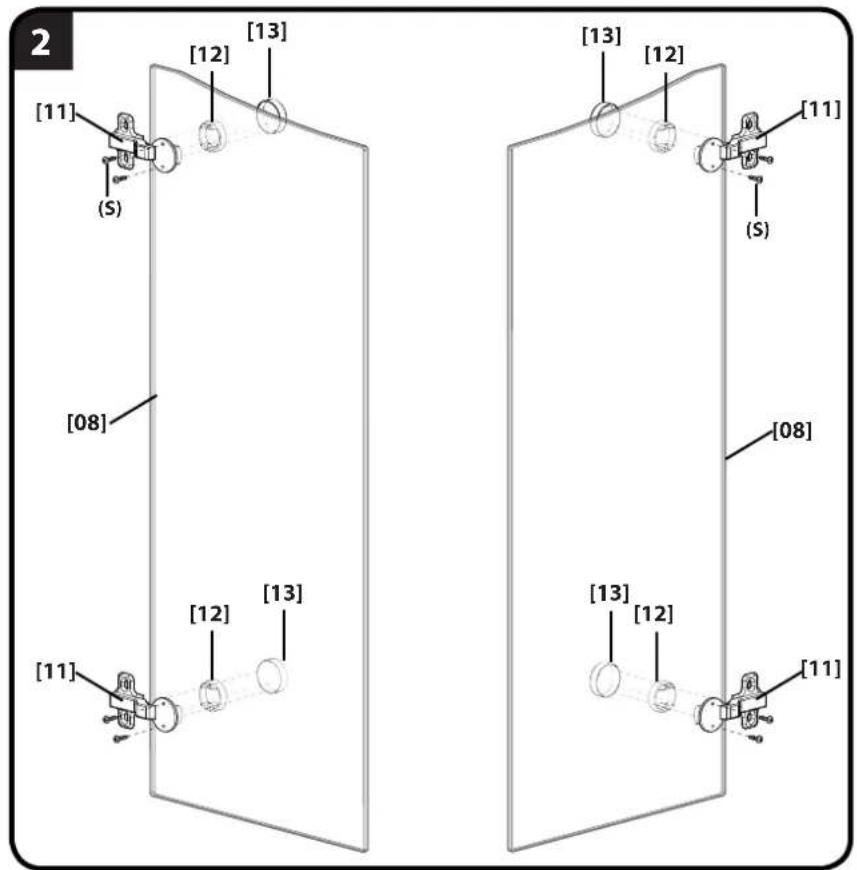

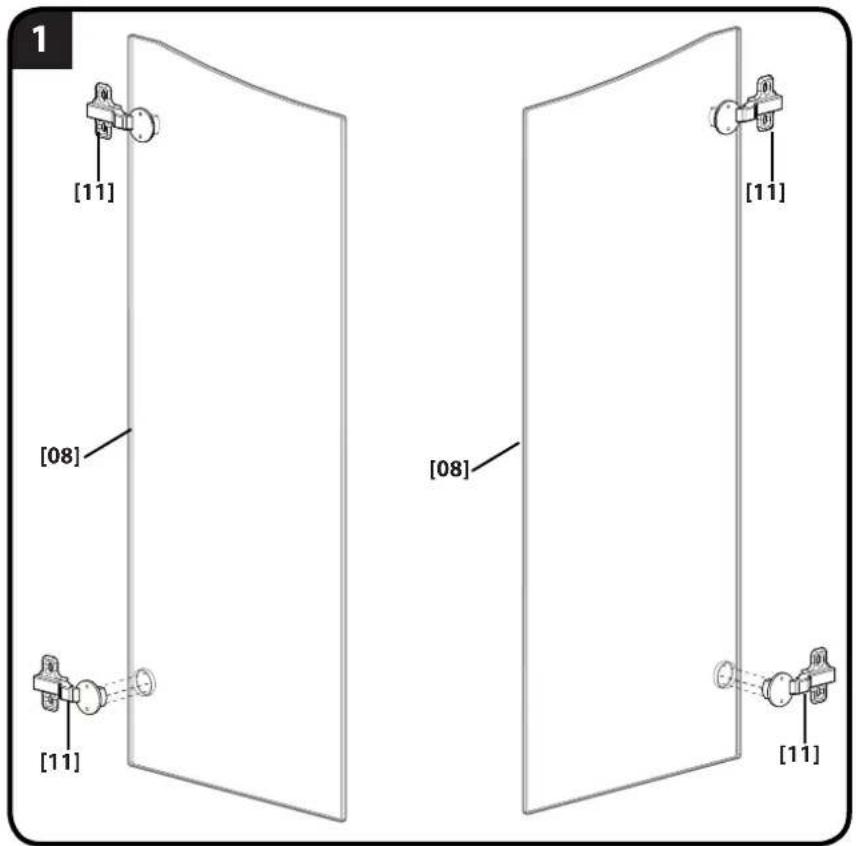

(S) (S) 1. Gently push the hinges [11] through the holes in the doors [08]. 2. Remove the screws (S) from the the glass clamp [12]. Attach the glass clamp [12] to the hinge [11] using the screws (S), as shown. Cover the clamps [12] with the caps [13].

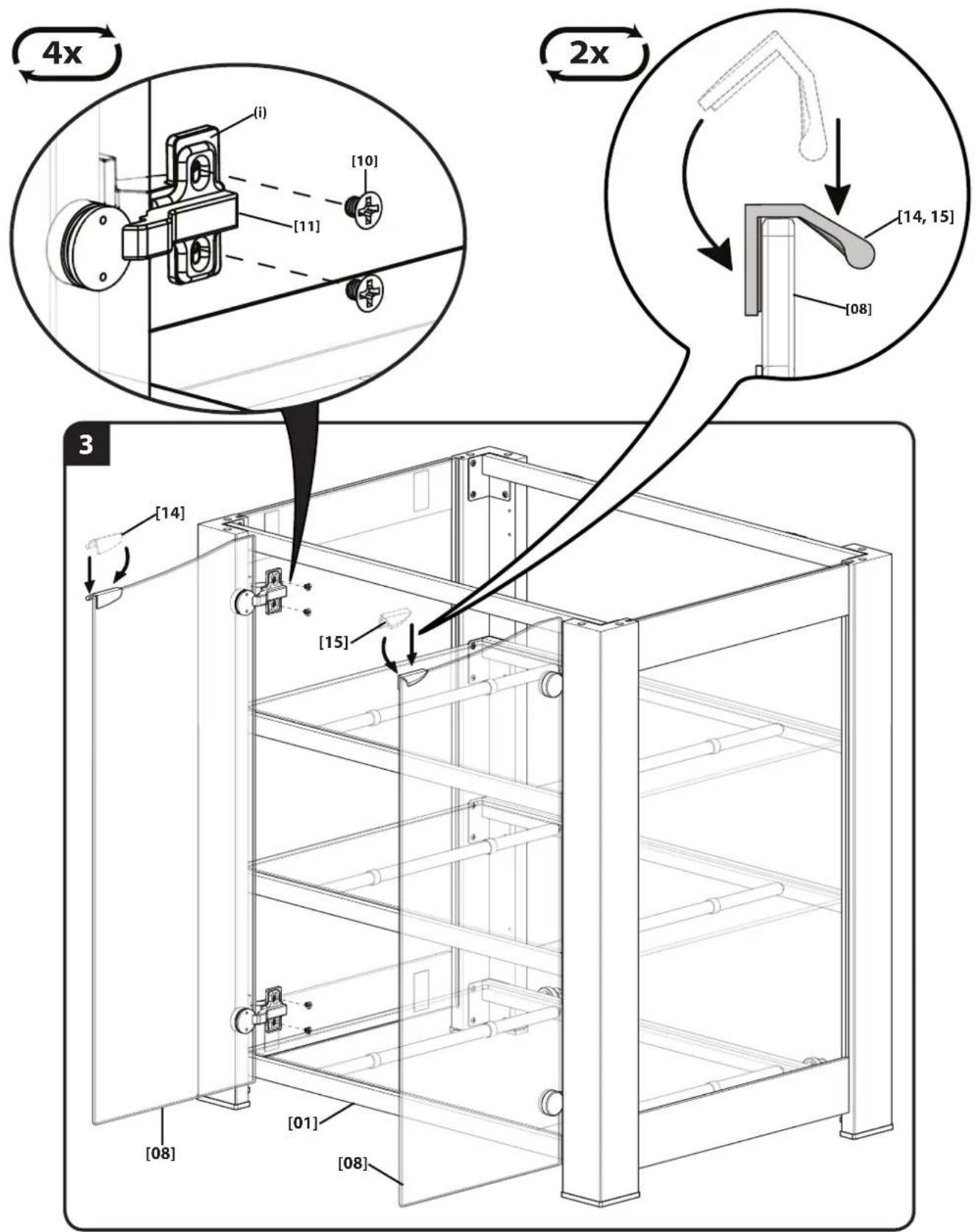

3. Attach the doors [08] and hinges [11] to the hinge
backers (i) using screws [10]. Remove adhesive backing form the door handles [14, 15]. Apply handles front first to the doors [08]. Then press the adhesive back of the handles onto the doors.
1. Attach back panel [03] by putting the bottom of the panel into the
bottom spacers (b) as shown.

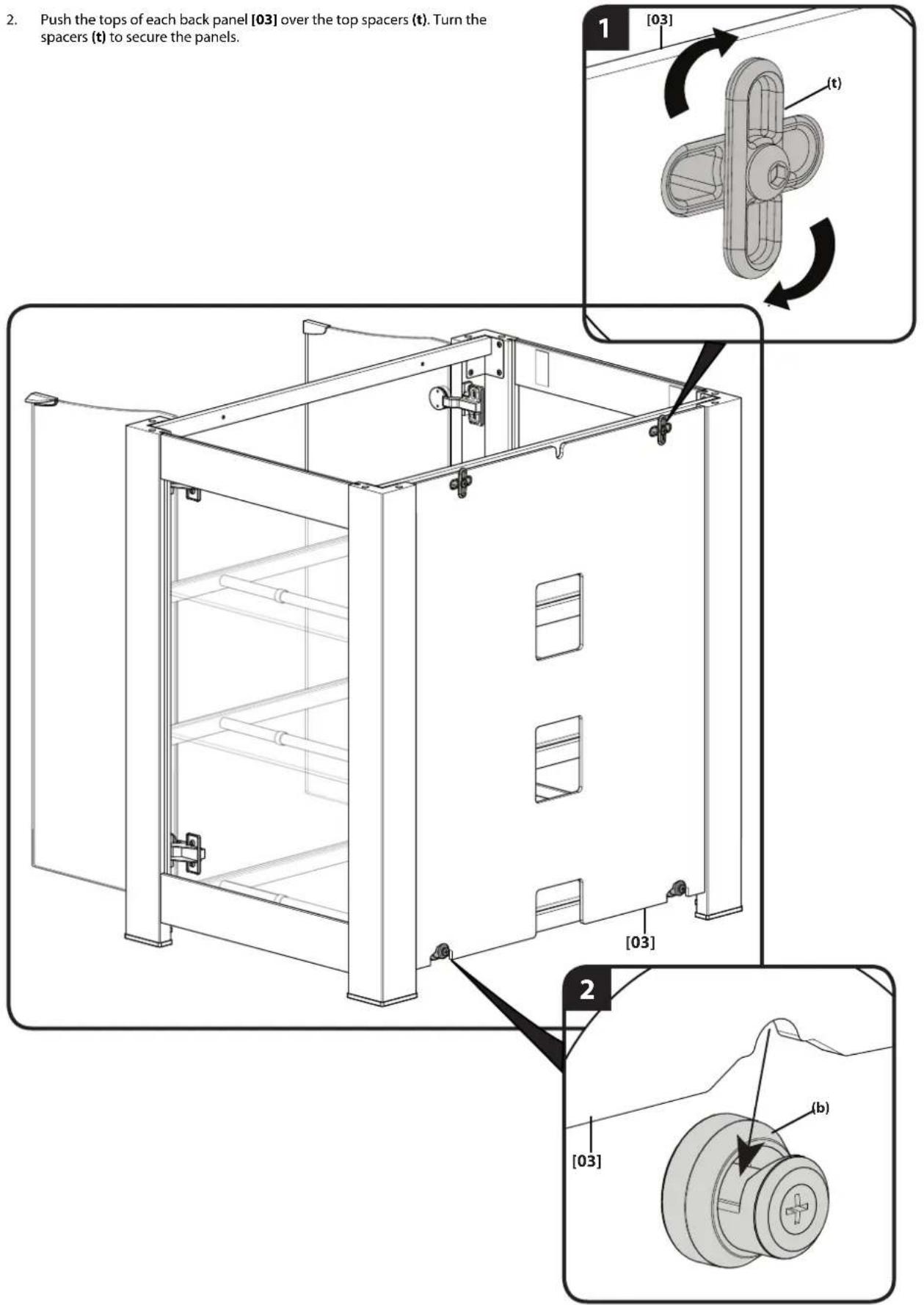

2. Push the tops of each back panel [03] over the top spacers (t). Turn the
spacers (t) to secure the panels. [03] [03] [03] (t) (b)

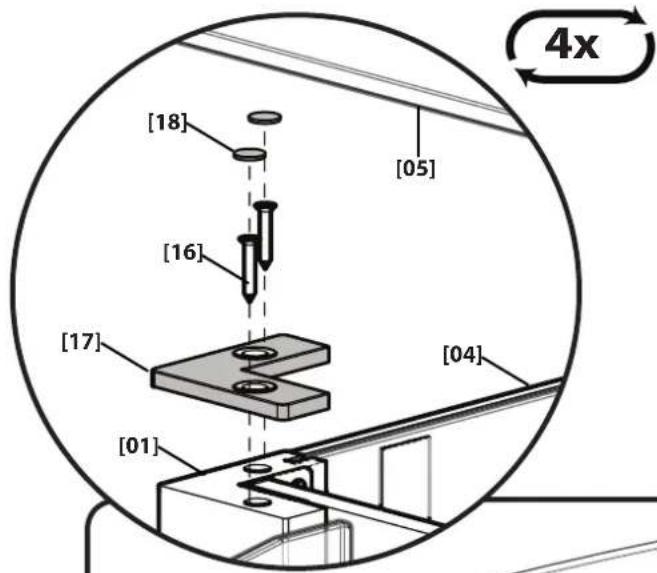

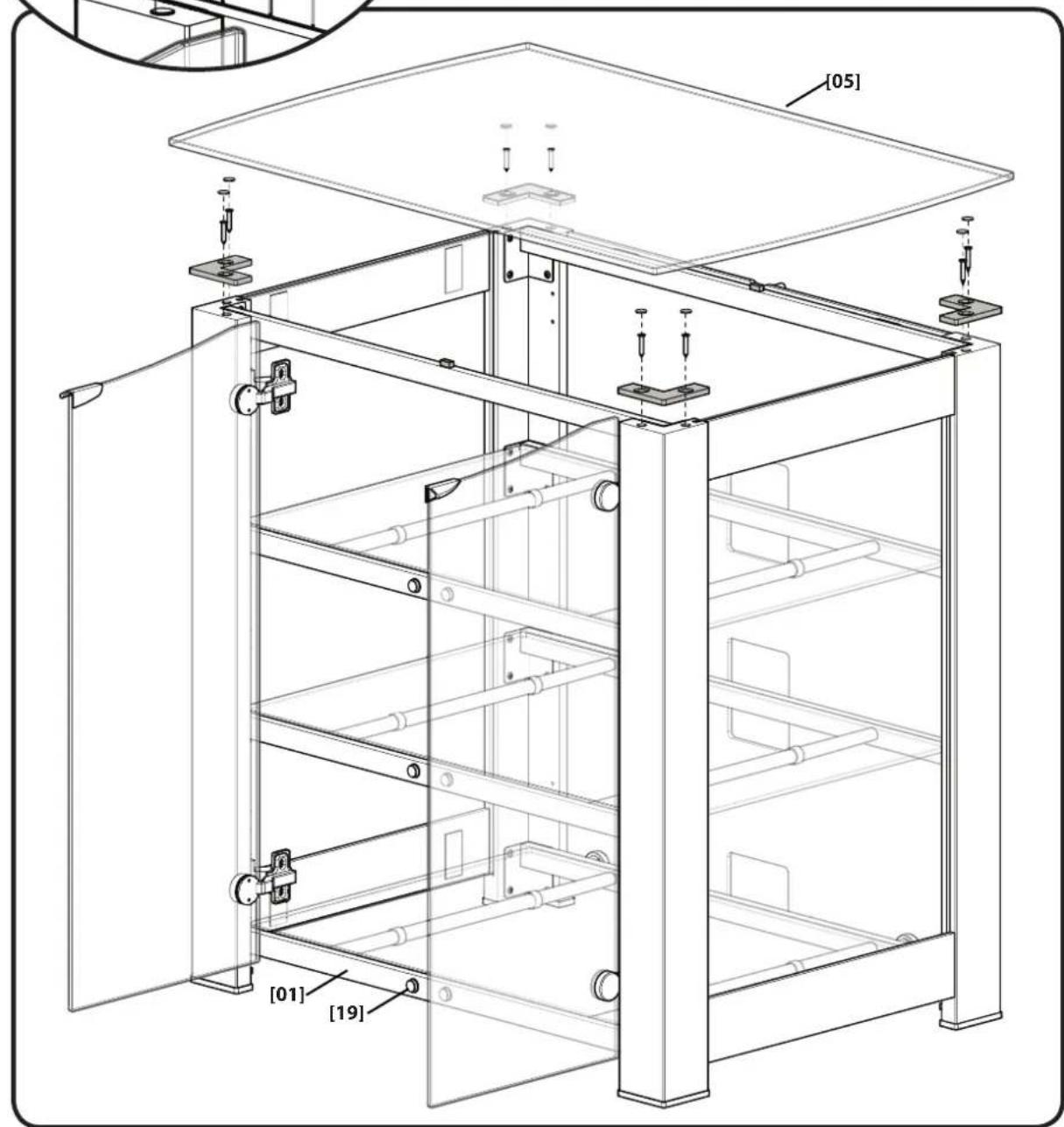

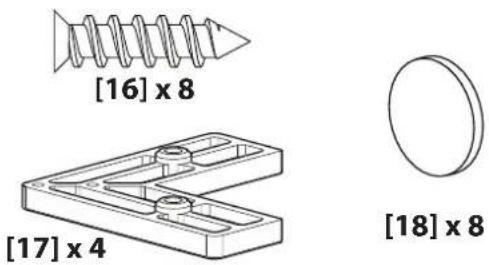

Secure the cap [17] to the front assembly [01] with screws [16]. Affix glass pads [18] over the holes in the cap [17]. Attach door pads [19] to front assembly [01]. [17] [16] [18] [04] [01]

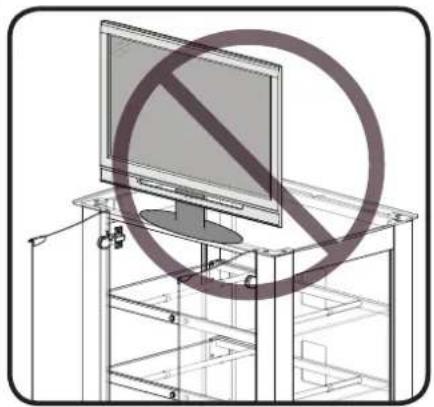

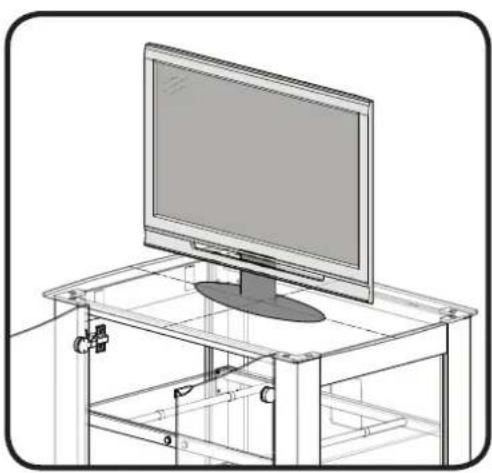

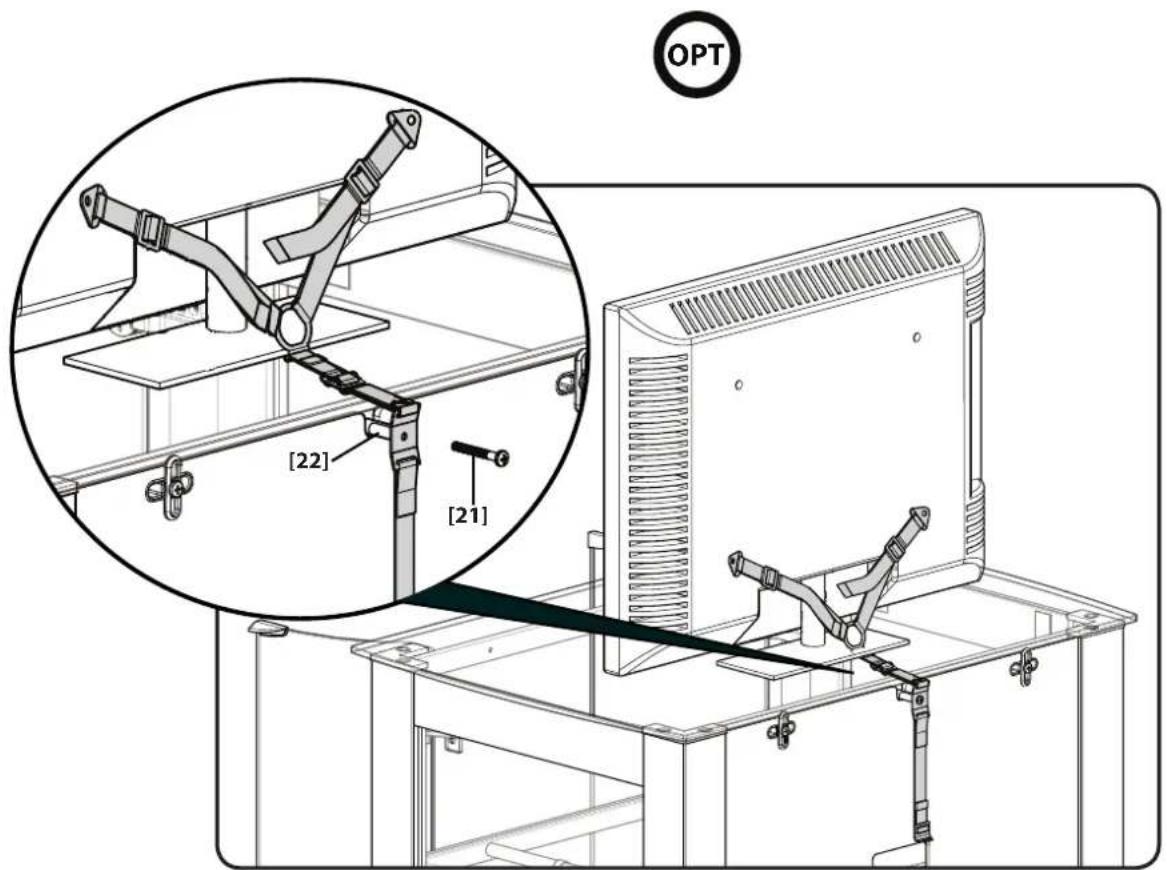

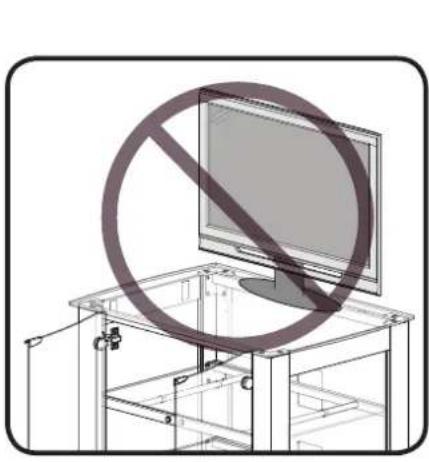

Attach the ELM701 Anti-tip Strap Hardware included, strap sold separately. OPT OPT [22] [21] CAUTION: CAUTION: Ù This product is desinged for use with flat panel TVs ONLY. Ù To prevent tipping, be sure to center your flat panel TV (NO CRTs) on top of your furniture.6901-002063<01>
