Product type	Blender
Brand	Fritel
Model	BL 4270
Jug capacity	2 liters
Jug material	BPA-free plastic
Blade material	Stainless steel
Main functions	Mix, ice crush, pulse, smoothie/juice, continuous speed adjustment 1-10
Control type	Rotary knob + 3 buttons (ice crush, interval/pulse, smoothie/juice)
Safety	Safety switch (jug correctly assembled), overheating protection (automatic stop with cooling ~30 min), lid safety
Cleaning	Bowl washable with water without detergent, motor unit dry cloth, blades cleaned with brush
Maximum continuous use	10 minutes
Included accessories	Graduated cup, lid, 2L jug, motor unit, pusher rod
Power supply	Alternating current (voltage on rating plate)
Use	Household use only
Hot liquids compatibility	Yes, but do not exceed the maximum level
Warranty	Legal, detailed conditions on www.fritel.com
Repairability	Repair by authorized service, return to point of sale

Frequently Asked Questions - BL 4270 FRITEL

How to use the blender for the first time?

Remove all packaging and stickers. Clean the jug, lid and graduated cup with water without detergent. Dry thoroughly. Make sure the mains voltage matches that indicated on the appliance. Correctly mount the jug on the motor unit before use.

What to do if the blender does not start?

Check that the jug is correctly mounted on the motor unit (safety switch). Make sure the lid is properly in place. If the appliance has overheated, wait about 30 minutes for it to cool down. Also check that very hard pieces are not blocking the blades.

Can I blend hot liquids?

Yes, the BPA-free plastic jug supports hot liquids. However, fill the jug a little less than the maximum level to avoid overflowing. Never exceed the 2 liter capacity.

How to clean the blender?

Unplug the appliance. Clean the jug with water without detergent. The motor unit should be cleaned only with a dry cloth. The blades should be cleaned with a brush carefully. Tip: after use, pour a little warm water into the jug and run the blender for 10 seconds for easy cleaning.

What to do if the motor stops suddenly?

The blender is equipped with overheat protection. If the appliance has been used for too long, it stops automatically. Wait about 30 minutes (sometimes longer depending on ambient temperature) for the motor to cool down. Reduce the quantity or hardness of ingredients to prevent this from happening again.

Can I blend ice cubes?

Yes, use the 'ice crush' function to blend ice cubes. Make sure not to put pieces that are too large or too hard that could block the blades.

What is the maximum capacity of the jug?

The maximum capacity is 2 liters. Never exceed the maximum level indication on the jug to avoid overflowing.

How to use the pulse function?

First set the rotary knob to 'Program'. Then press the 'interval (pulse)' button for short bursts. Release to stop. Ideal for chopping or mixing without over-liquefying.

Is the appliance under warranty?

Yes, the legal warranty applies from the date of purchase. The duration and conditions depend on national legislation. For more details, visit www.fritel.com or contact your seller with proof of purchase.

Can I use accessories from other brands?

No, never use accessories from another brand. Use only the accessories supplied with the FRITEL blender to ensure safety and proper operation.

USER MANUAL BL 4270 FRITEL

Fritel FAMILY

HIGH EFFICIENCY BLENDER BL 4270

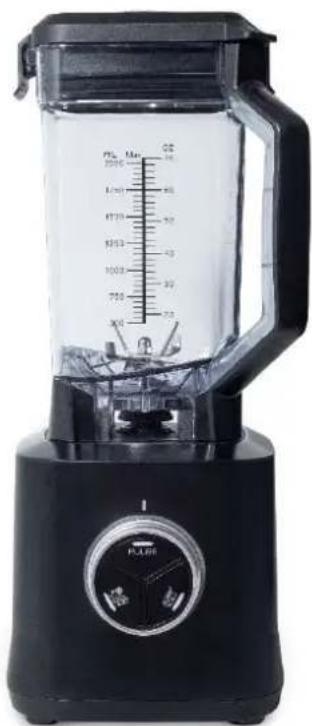

Black blender with visible control knob and measurement scale (no text or symbols on body)

GEBRUIKSAANWIJZING

Attentively read the user manual before using the appliance!

Keep the manual carefully.

GEBRAUCHSANLEITUNG

A. B. C. D E.

Description of the control panel

A. LED light
B. Manual speed control MIN-MAX
C. 3 fonction buttons

6. CONDITIONS DE GARANTIE

Congratulations! You have just bought a high quality appliance, which will warranty you years of pleasure. Please read the instruction manual carefully before you take the appliance into use. Save these instructions carefully!

All persons who have not read the instruction manual are not allowed to use this appliance.

Pay ATTENTION to the warranty conditions.

1. SAFETY REGULATIONS

This appliance has been built in accordance with the European CE safety standards and is compliant with the general recognized standards and prescriptions with regard to the safety of appliances. As for all electrical appliances, the necessary precautions need to be taken in order to avoid accidents or damages.

• This appliance may not be used by children from 0 to 8 years old. This appliance may be used by children of min. 8 years old, only under continuous supervision. This may be used by persons with reduced physical, sensory or mental capabilities experience and knowledge provided they are supervised or instructed to appliance in a safe way and understand the hazards involved. Keep the appliance cord out of reach of children less than 8 years. Cleaning and maintenance shall made by children.
• The appliance is only intended for household use and similar applications, excluding: staff kitchens in shops, offices and other work environments; farms; clients in motels and other residential environments; bed & breakfast environments.
• This appliance can only be used in-house, and is meant for household use.
• NEVER touch the control button, electrical power cord and plug with wet hands. NEVER immerse the appliance, the power cord or the plug in water (or any other liquid). They are only to be cleaned with a damp cloth. In case the appliance does go moist, immediately disconnect the plug from the power socket.
• A damaged power cord can cause electric shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are done all these cases return the appliance to your sales point or recognized after sa
• After use, immediately turn off the appliance and wait until the motor has completely stopped. Then remove the plug from the socket. Also remove the plug when cleaning and when you move it.
• NEVER use separate timers or remote control systems.
• Only use this appliance for what it is intended, which is blending food.
• Only use the appliance with the correct mains voltage, as mentioned on the rating plate.
• ATTENTION: the blades are very sharp!
• NEVER touch the blades with your hands.
• NEVER leave the appliance unattended when plugged in.
• NEVER use extension cords and ALWAYS unroll the cord completely.
• NEVER use the appliance in the proximity of sharp sources or sources of heat, such as ovens, stoves or heating.
• NEVER let the cord hang over the side of the table.

• NEVER use accessories from other appliances.

• The blender is equipped with a safety switch, meaning that the blender jar must be placed correctly on the main unit, otherwise the blender will not work. NEVER remove the blender jar during operation, as this can cause very dangerous situations.

• The blender is equipped with an overheat safety, meaning that if the blender is used for too long, a safety will automatically switch off the blender, to prevent the motor from overheating. If this happens, wait for 30 min. until the motor has cooled off. In some cases, this might take longer, i.e. a high ambient temperature, hard ingredients being used....
• If very hard ingredients are being used (or big chunks), the appliance might block. In that case, unplug the blender, remove the hard and/or big chunks and replug the appliance.
• If the appliance doesn't work, bring it back to your point of sale for servicing. Attention: please check first if the safety function has switched off the appliance, i.e. overheating, incorrect assembly, blockage caused by big/hard chunks.
• Always make sure to assemble the appliance correctly for your own safety.
• Always place the appliance on a stable surface, like a kitchen table so that the appliance cannot shift or fall.
• NEVER pull the cord to unplug the appliance, only use the plug.
• NEVER open the appliance and NEVER put strange objects in the appliance.
• Do not use aggressive cleaning products.
• Repairs can only be done by a recognized repair shop.

2. TECHNICAL INFORMATION

• You will find the technical information on the rating label at the bottom of the appliance.
• Use the appliance for a maximum time of 10 minutes at the time.

3. BEFORE THE FIRST USE

• Remove all packaging and stickers.
• Keep packaging away from children.
• First check your appliances for possible damages. If it is damaged, do NOT use the appliance but bring it back to your sales point.
• Before the first use we recommend to clean all components thoroughly (see 5. 'Cleaning').
• All parts should be dry!
• Ensure that the voltage marked on the appliance is the same as your main voltage

4. USE OF THE HIGH EFFICIENCY BLENDER

• With the high efficiency blender from FRITEL you can blend fruit, vegetables, ice, nuts, soups, milkshakes, mashed potatoes,...
• The appliance is not meant to be used for blending hard objects such as wood, bones, cans, or other non-food items.
• Thanks to the plastic jug (BPA-free), hot liquids can be used. However, we always recommend filling the blender slightly less full.
• The max. capacity of the blender jar is 2 L. Do not exceed the max. level marked on the jar.
• NEVER plug in the appliance if the blender jar is empty.
• Rotating button "o" means Power off, "program" means standby mode. The speed is adjustable between the 1 and 10.
• 3 function buttons: "ice crusch", "interval (pulse)", "smoothie (juice)". To select these functions, turn the rotating button to "Program" and press the selected function, i.e; "smoothie (juice)".
• Make sure the blender is always correctly assembled, otherwise the blender will not work. This is for your own safety.
• An additional safety is built into the lid so that the blender will not work if the lid is not fully fitted.
• Do not use too hard or too big chunks. This could block the blades.

5. MAINTENANCE AND CLEANING

• Switch off the appliance and remove the plug from the socket.
• Clean the blender jug with water without detergents.
• Clean the main unit with a dry cloth, do not use water or a damp cloth.
• NEVER immerge the motor housing in water or any other liquid.
• Tip: After use, add some lukewarm water to the blender jar, let it work for about 10 sec. and rinse it.

6. WARRANTY CONDITIONS

The legal warranty is valid from the date of purchase. The proof of purchase determines the date of purchase. The duration and conditions of the warranty depend on the national legislation of the country of purchase. If you have a defective appliance, contact your seller with your proof of purchase.

The user is responsible for cleaning and proper packaging of the defective appliance before presenting it for repair. It is insufficient to wrap the device in cardboard packaging with paper. Fritel is not liable for damage resulting from insufficient packaging, which also irrevocably invalidates the warranty.

Determination of the warranty

• The warranty covers every repair and/or replacement free of charge of the motor unit recognized defective by our technical department and if the damage is due to faulty manufacture, construction or material. The knives are not covered by the guarantee, as they are subject to wear and tear.
• The warranty is only valid for the first/original user.
• The transport costs, in case of reparation, are at the expenses of the purchaser.
• The warranty is only granted after presentation of your purchase invoice.
• The warranty cannot be invoked for normal wear and tear.

The warranty expires in the following cases:

• Incorrect connection, e.g. electric voltages.
• Abnormal or professional use or misuse handling.
• In case of insufficient packaging and bad transport in case of return shipping.
• Lack of care and cleaning.
• Modifications or repairs made to the appliance by persons not authorized by us as a manufacturer.
• When reference numbers have been altered or been removed.
• For faults not due to the appliance itself, but to an external cause, collision, damage, fire, earthquake, flood, lightning, etc.
• When not respecting the instructions in the user instructions.

For appliances that are not under warranty for any of the above reasons, all costs (transport, administration, research, handling) will be charged.

The most recent version of the detailed legal warranty conditions, as well as the detailed commercial warranty conditions can always be consulted on www.fritel.com.

7. PRACTICAL TIPS IN CASE OF MALFUNCTIONS

Do not use the appliance in case of a malfunction or when the power cord is damaged. Please address to your sales point. THE APPLIANCE HAS BEEN DESIGNED FOR DOMESTIC USE. THE WARRANTY CONDITIONS EXPIRE UPON PROFESSIONAL USE. DEFECTS AND/OF DAMAGES FOLLOWING TO THE NON OBSERVANCE OF THE USER MANUAL ARE NOT COVERED BY THE WARRANTY.

We are entitled to make technical modifications at all times.

8. ENVIRONMENT

Do not throw the appliance away with the normal household waste at the end of it's life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

9. LIABILITIES

All liabilities, towards both consumer(s) and third parties, that could result from not observing all the safety regulations prescribed in this user manual, can under no circumstances be charged to the manufacturer. In case of non-observance of these safety regulations, the user of the appliance, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

10. ACCESSORIES, SPARE PARTS AND OTHER FRITEL PRODUCTS

Visit our webshop on www.fritel.com and discover our FAQ's, available spare parts and accessories, as well as all other products in the FRITEL range for even more FRITEL fun!
