USER MANUAL HB2879 FRITEL

Fritel FAMILY

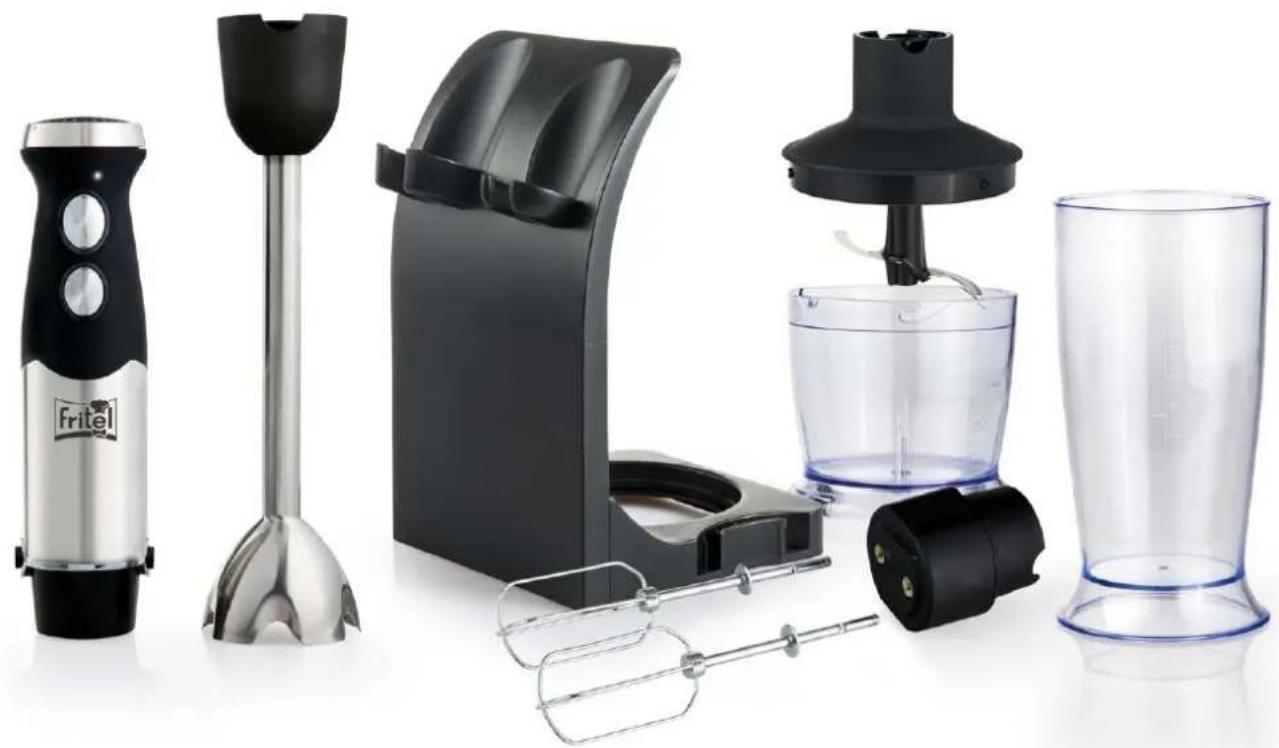

HAND BLENDER SET XXL HB 2879

Product display of a French blender with various kitchen utensils including a spatula, blender, and blender (no visible text or labels)

GEBRUIKSAANWIJZING

Attentively read the user manual before using the appliance!

Keep the manual carefully.

GEBRAUCHSANLEITUNG

A. Rotating speed button
B. Working position 1
C. Working position 2
D. Release button accessory
E. Blender stick
F. Lid chopper
G. Blade chopper
H. Chopper 500 ml
I. Mayonaise recipient
J. Whisk set

Diagram showing four stages of a hairdryer tool: mixing, cleaning, washing, and blending.

5. HAND BLENDER MET KLOPPERSET

Technical line drawings of five different mechanical or electrical components with no visible text or symbols

6. HAND BLENDER MET HAKMOLEN

Technical line drawings of four different mechanical or electrical components with no visible text or symbols

6. BLENDER AVEC HACHOIR

Congratulations! You have just bought a high quality appliance, which will warranty you years of pleasure. Please read the instruction manual carefully before you take the appliance into use. Save these instructions carefully! All persons who have not read the instruction manual are not allowed to use this appliance.

Pay ATTENTION to the warranty conditions.

1. SAFETY REGULATIONS

This appliance has been built in accordance with the European CE safety standards and is compliant with the general recognized standards and prescriptions with regard to the safety of appliances. As for all electrical appliances, the necessary precautions need to be taken in order to avoid accidents or damages.

- This appliance may not be used by children from 0 to 8 years old. This appliance may be used by children of min. 8 years old, only under continuous supervising appliance may be used by persons with reduced physical, sensory or smart capabilities or lack of experience and knowledge on condition they are superintected to use the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children less than 8 years. Clean user maintenance shall NOT be made by children.

- The appliance is only intended for household use and similar applications: staff kitchens in shops, offices and other work environments; farms; clients in hot and other residential environments; bed & breakfast environments.

- This appliance can only be used in-house and is meant for household use.

- NEVER touch the control button, electrical power cord and plug with wet hands. NEVER immerse the appliance, the power cord or the plug in water (or any liquid). They are only to be cleaned with a damp cloth. In case the appliance wet or moist, immediately disconnect the plug from the power socket.

- A damaged power cord can cause electric shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are dar all these cases return the appliance to your sales point or recognized after sa

- After use, immediately turn off the appliance and wait until the motor has completely stopped. Then remove the plug from the socket. Also remove the plug when use, when cleaning and when you move it.

- NEVER use separate timers or remote control systems.

- Only use this appliance for what it is intended, namely for mixing or blending food, such as dips, sauces, soups, mayonnaise, babyfood, milkshakes, ...

- Only use the appliance with the correct mains voltage, as mentioned on the rating plate.

- ATTENTION: the knives are very sharp!

- NEVER touch the knife with your hands.

- NEVER leave the appliance unattended when plugged in.

- NEVER use extension cords and ALWAYS unroll the cord completely

- NEVER use the appliance in the proximity of sharp sources or sources of heat, such as ovens, stoves, heatings...

• NEVER let the cord hang over the side of the table.
• NEVER use accessories from other appliances.
• Always make sure to assemble the appliance correctly for your own safety.
• Always place the appliance on a stable surface, like a kitchen table so that the appliance cannot shift of fall.
• NEVER pull the cord to unplug the appliance, only use the plug.
• NEVER open the appliance and NEVER put strange objects in the appliance.
• Do not use aggressive cleaning products.
• If the appliance doesn't work, please return it to your point of sales. Repairs can only be done by and recognized repair shop.

2. TECHNICAL INFORMATION

• You will find the technical information on the rating label at the bottom of the appliance.
• Use the appliance for a maximum time of 10 minutes at the time.

3. BEFORE THE FIRST USE

• Remove all packaging and stickers.
• Keep packaging away from children.
• First check your appliances for possible damages. If it is damaged, do NOT use the appliance but bring it back to your sales point.
  Before the first use we recommend to clean all components thoroughly (see 5. 'Cleaning').
• All parts should be dry!
• Ensure that the voltage marked on the appliance is the same as your main voltage. According to the safety law: only use earthed sockets.

4. USE OF THE HAND BLENDER

• Use the FRITEL Hand Blender to prepare sauces, soups, purees, mayonnaise, babyfood...
• The appliance is not meant to be used for blending hard objects such as wood, bones, cans, or other non-food items.
• Only use the appliance for soft ingredients and do not let the hand blender work for more than 1 minute at a time. Let the appliance rest for 1 minute, and then let it work again for 1 minute.
• Do not let the appliance blend without being in contact with food.
• Do not shake the appliance while it is in use.

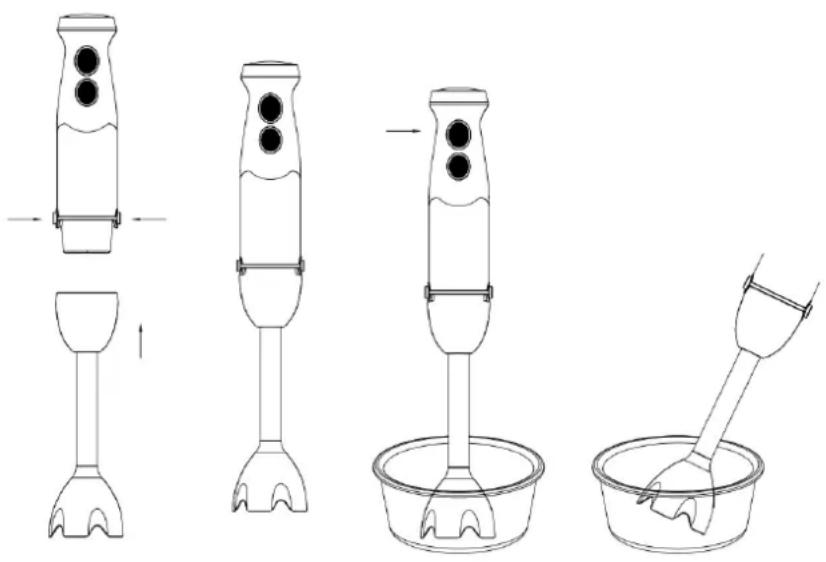

• Very user friendly: click the mixing bar onto the motor base so that it is fixed. Plunge the mixing bar in the bowl, cup, kettle, and press button I or II.
• When ready, unplug the appliance, press the unlocking button to release the mixing bar from the motor base.

Diagram showing four stages of a hairdryer tool: before, mid, after, and after mixing.

5. HAND BLENDER WITH WHISK SET

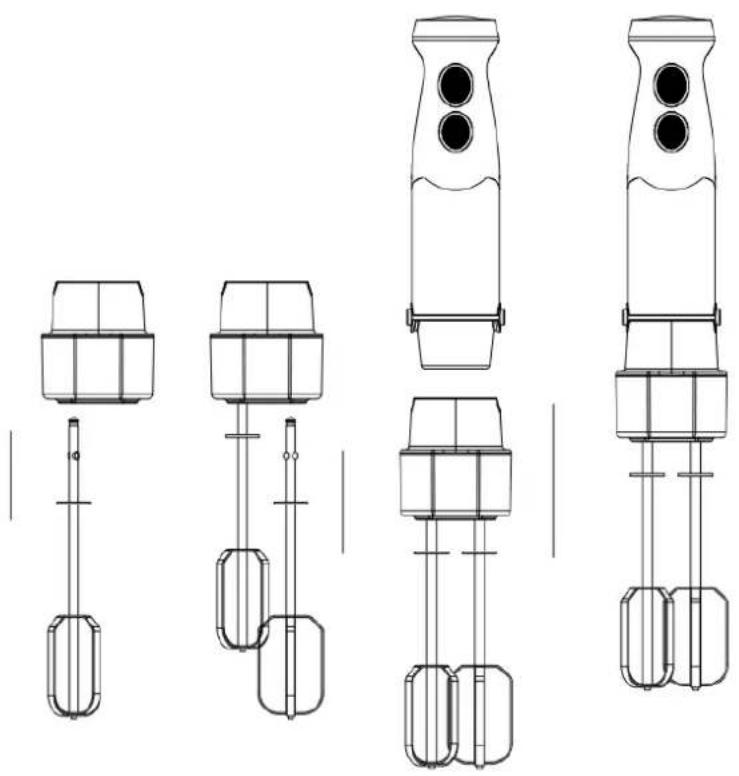

• FRITEL's whisk set is suited for whipping up cream, egg white, mixing dough and ready-mix desserts.
• Click the whisk set onto the motor block so that they are fixed.
• Put the ingredients in the recipient or in a bowl.
• Place the handblender with whisk set in the recipient or bowl and press button II or press button I at the same time to start the appliance.
• Remove the whisk set from the motor block by pressing the release buttons.

Technical line drawings of four different mechanical or electrical components with no visible text or symbols

6. HAND BLENDER WITH CHOPPER

• FRITEL's chopper is suited for food such as meat, cheese, onion, herbs, garlic, carrots, nuts, ...
• Do not use very hard ingredients such as ice cubes, nutmeg, coffee beans, grains, ...

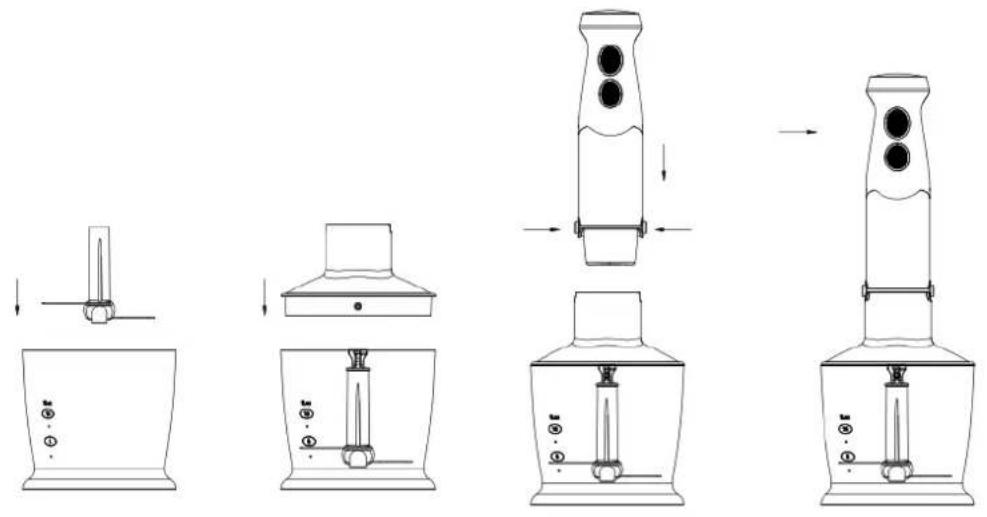

• Before the first use, remove the plastic foil from the blade. Attention: the blade is very sharp, only touch it by the upper plastic part.
• Place the blade on the central pin in the chopper to fix it. Always place the chopper on the non-skid feet.
• Add the ingredients to the chopper and close off with the plastic lid.
• Place the motor block on the chopper and make sure it is well fixed.
• Press the command button to start the chopper. During operation, hold one hand around the motor block and one hand on the chopper.
• After use, click on the release buttons to remove the chopper from the motor block.
• Then remove the lid from the chopper and carefully remove the blade. Attention: Only touch the blade by the plastic part.
• Then remove the chopped ingredients from the chopper.

User guide for chopper 500 ml

Ingredients	Maximum	Time
Meat	250 g	15 sec
Herbs	50 g	10 sec
Nuts	150 g	15 sec
Cheese	100 g	10 sec
Bread	80 g	10 sec
Onions	200 g	10 sec
Cookies	150 g	10 sec
Soft fruit	200 g	10 sec
Yeast, dough	250 g	10 sec

7. MAINTENANCE AND CLEANING

• Switch off the appliance and remove the plug from the socket.
• Clean the motor vase with a damp cloth, never immers it in water.
• The mixing bar is dishwasher safe.
• Careful: the knives are very sharp

8. WARRANTY CONDITIONS

Your warranty starts on the day of purchase and is valid for 2 years and will only apply after submitting the purchasing invoice.

Determination of the warranty

• The warranty covers every repair and/or replacement free of charge of the parts recognized defective by our technical department and if the damage is due to faulty manufacture, construction or material. The knives are not covered by the guarantee, as they are subject to ware and tear
• The warranty is only valid for the first/original user.
• The transport costs are at the expenses of the purchaser.
• The warranty is only granted after presentation of your purchase invoice.
• The warranty cannot be invoked for normal wear and tear.

The warranty expires in the following cases:

• Not respecting the safety instructions
• Incorrect connection, e.g. electric voltages.
• Abnormal or professional use or misuse handling
• Lack of care and cleaning

- Modifications or repairs made to the appliance by persons not authorized by us as a manufacturer.

• When reference numbers have been altered or been removed.
• When not respecting the instructions in the user instructions

9. PRACTICAL TIPS IN CASE OF MALFUNCTIONS

Do not use the appliance in case of a malfunction of when the power cord is damaged. Please address to your sales point.

THE APPLIANCE HAS BEEN DESIGNED FOR DOMESTIC USE.

THE WARRANTY CONDITIONS EXPIRE UPON PROFESSIONAL USE.

DEFECTS AND/OF DAMAGES FOLLOWING TO THE NON OBSERVANCE OF THE

USER MANUAL ARE NOT COVERED BY THE WARRANTY.

We are entitled to make technical modifications at all times.

10. ENVIRONMENT

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

11. LIABILITIES

All liabilities, towards both consumer(s) and third parties, that could result from not observing all the safety regulations prescribed in this user manual, can under no circumstances be charged to the manufacturer. In case of non-observation of these safety regulations, the user of the deep fryer, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

12. ACCESSORIES, SPARE PARTS AND OTHER FRITEL PRODUCTS

Visit our webshop on www.fritel.com and discover our FAQ's, available spare parts and accessories, as well as all other products in the FRITEL range for even more FRITEL fun!
