Product Type	Blender
Brand	Ninja
Model	BL610
Power	120 V, 60 Hz, 1000 W
Pitcher Capacity	2.1 L (72 oz)
Pitcher Material	BPA-free
Technology	Total Crushing™
Speeds	3 speeds (low, medium, high) + pulse
Main functions	Crush ice, chop, blend, liquefy, puree
Safety	Lid lock, polarized plug, thermal fuse, automatic shut-off in case of overheating
Maintenance	Lid, pitcher and blade assembly dishwasher safe (blades on top rack). Motor base cleaned with a damp cloth.
Spare parts	Available at www.ninjakitchen.com or call 1-877-646-5288
Warranty	1 year against defects in material and workmanship
Use	Household only
Cord storage	Yes, at the back of the appliance

Frequently Asked Questions - BL610 NINJA

How to assemble the Ninja BL610 blender?

Place the pitcher on the motor base by rotating it to the left until it stops. Insert the blade assembly holding the shaft. Add ingredients, then put the lid aligning the arrows and lower the locking handle.

What are the available speeds and what are they used for?

LOW for chopping and blending, MEDIUM for blending and crushing ice, HIGH for pureeing and liquefying, PULSE for precise mixing.

Can I wash the parts in the dishwasher?

Yes, the lid, pitcher and blade assembly are dishwasher safe. It is recommended to place the lid and blades on the top rack.

What to do if the motor does not start?

Check that the pitcher and lid are properly installed and locked. Make sure the appliance is plugged in and the power button is on. If the appliance overheated, unplug it and wait 15 minutes.

Can I blend hot liquids?

No, do not blend hot liquids. This could damage the appliance or cause injury.

How to quickly clean the pitcher?

Fill the pitcher three-quarters full with warm water and a drop of detergent, then use the pulse function a few times. Rinse with clear water.

What is the maximum capacity of the pitcher?

The capacity is 2.1 L (72 oz). Do not exceed the maximum fill line.

Are the blades removable?

Yes, the blade assembly is removed by holding it by the shaft. Be careful as the blades are very sharp.

How to get spare parts?

Visit www.ninjakitchen.com or call 1-877-646-5288.

What to do if food is not chopped evenly?

Reduce the amount of food or cut it into smaller pieces before blending. Use the pulse function for better control.

USER MANUAL BL610 NINJA

Black Ninja 1000W blender with control buttons and a clear glass interior (no visible text or symbols on the device body)

IMPORTANT SAFETY INSTRUCTIONS

For Household Use Only

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING YOUR NINJA® PROFESSIONAL BLENDER 1000.

POLARIZED PLUG

WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. DO NOT modify the plug in any way.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

1. To protect against electrical shock, do not submerge the blender or allow the power cord to come into contact with water or any other liquid.
2. Close supervision is necessary when any appliance is used by or near children.
3. Never leave an appliance unattended when in use.
4. Turn the appliance Off and remove the power cord from the electrical outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the electrical outlet. Never pull from the power cord.
5. DO NOT abuse the power cord. Never carry the appliance by the power cord or yank it to disconnect from electrical outlet; instead grasp the plug and pull to disconnect.
6. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, has been dropped or damaged in any manner. Return the appliance to EURO-PRO Operating LLC for examination, repair or adjustment.

7. DO NOT let the power cord hang over the edge of table or counter or touch hot surfaces such as the stove.

8. Always use appliance on a dry, level surface.

9. Keep hands, hair, clothing, as well as utensils out of container while blending to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the blender is not running.
10. CAUTION: Blade assembly is sharp, handle with care. When handling the blade assembly, always hold by the shaft.
11. Avoid contact with moving parts.
12. DO NOT attempt to sharpen blades.
13. DO NOT use the appliance if blade assembly is bent or damaged.
14. To reduce risk of injury, never place the blade assembly on base without pitcher properly attached.
15. DO NOT operate this appliance on or near any hot surfaces (such as gas or electric burner or in a heated oven).
16. The use of attachments or accessories not included with the unit such as canning jars, is not recommended by the manufacturer and may result in fire, electric shock or personal injury.

17. DO NOT remove the pitcher from the motor base while the blender is in operation.

18. To reduce the risk of injury, NEVER operate the appliance without the lid in place; DO NOT try to defeat the interlock mechanism; make sure that the cutting blades are properly installed before operating the appliance.

19. DO NOT expose pitcher to extreme temperature changes.

20. CAUTION: DO NOT BLEND HOT LIQUIDS.

21. DO NOT overfill.

22. DO NOT operate the appliance empty.

23. To reduce the risk of burns, always allow the appliance to cool before taking off parts and before cleaning.

24. If the appliance overheats, a thermal switch will become activated and shut off the motor. To reset, unplug the appliance and let it cool down for approximately 15 minutes before using again.

25. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. Do not use this appliance for anything other than its intended use. Do not use outdoors.

⚠ WARNING: Extension cords are not recommended for use with this product.

SAVE THESE INSTRUCTIONS

MESURES DE SÉCURITÉ IMPORTANTES

THIS BOOK COVERS MODEL NUMBER:

BL610 30

TECHNICAL SPECIFICATIONS

Voltage: 120V., 60Hz.

Power: 1000 Watts

Pitcher Capacity: 72 ounces (2.1 L)

Euro-Pro and Ninja are trademarks of Euro-Pro Operating LLC.

CE MANUEL CONCERNE LE MODÈLE :

BL610 30

Thank you for purchasing the Ninja® Professional Blender 1000.

Getting Started ....6
Using the Ninja® Professional Blender 1000....8
Care & Maintenance....11
Replacement Parts 11
Blending Chart....12
Troubleshooting Guide....12
Warranty 34

Table des matières

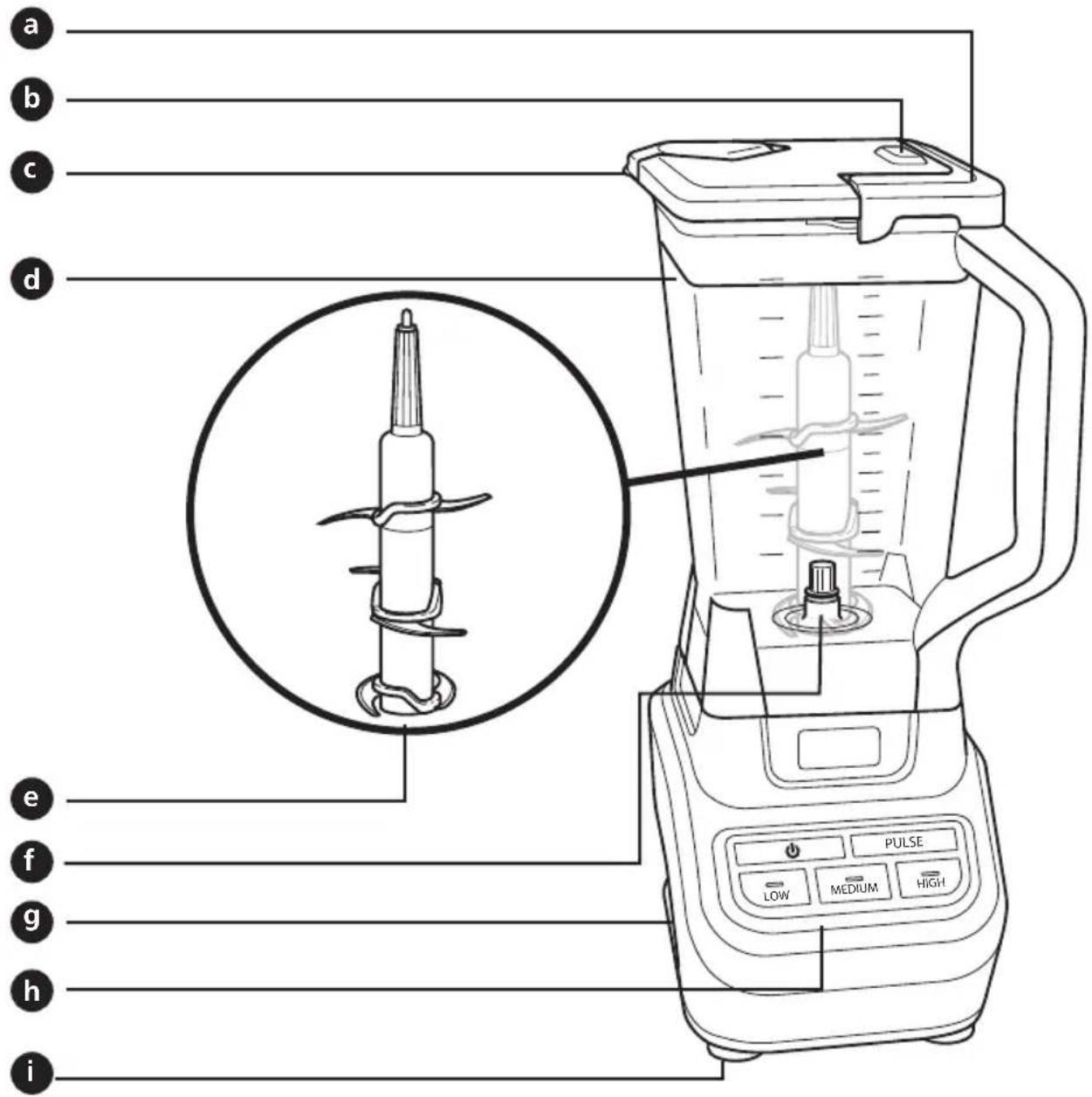

a Lid with Locking Handle

b Locking Handle Release Button

c Pouring Spout with Cap

d Pitcher

e Ninja® Stacked Blade

f Gear Shaft

g Motor Base

h Control Panel

i Non Slip Bottom

j Power Cord (not shown)

k Cord Storage (in back) (not shown)

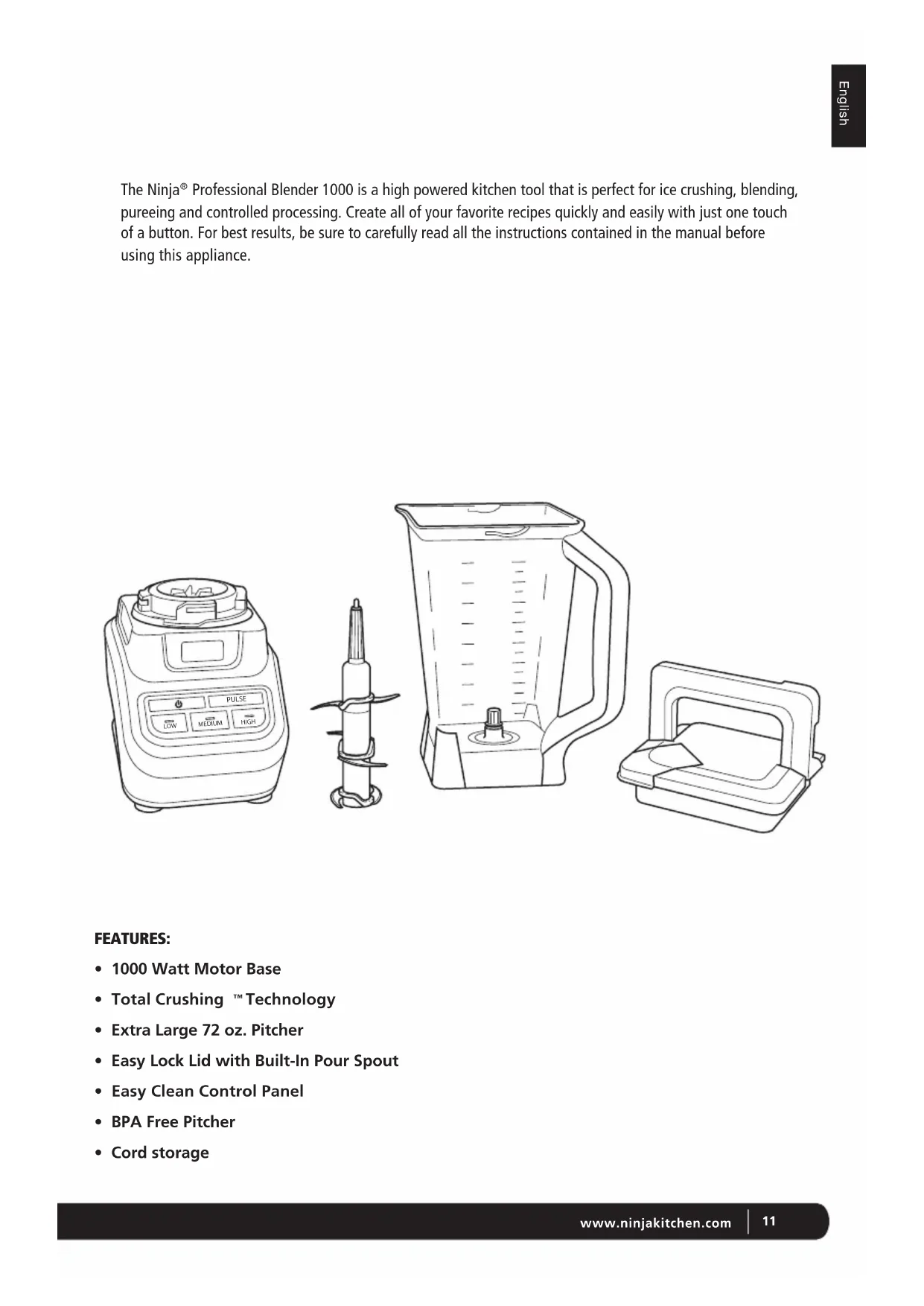

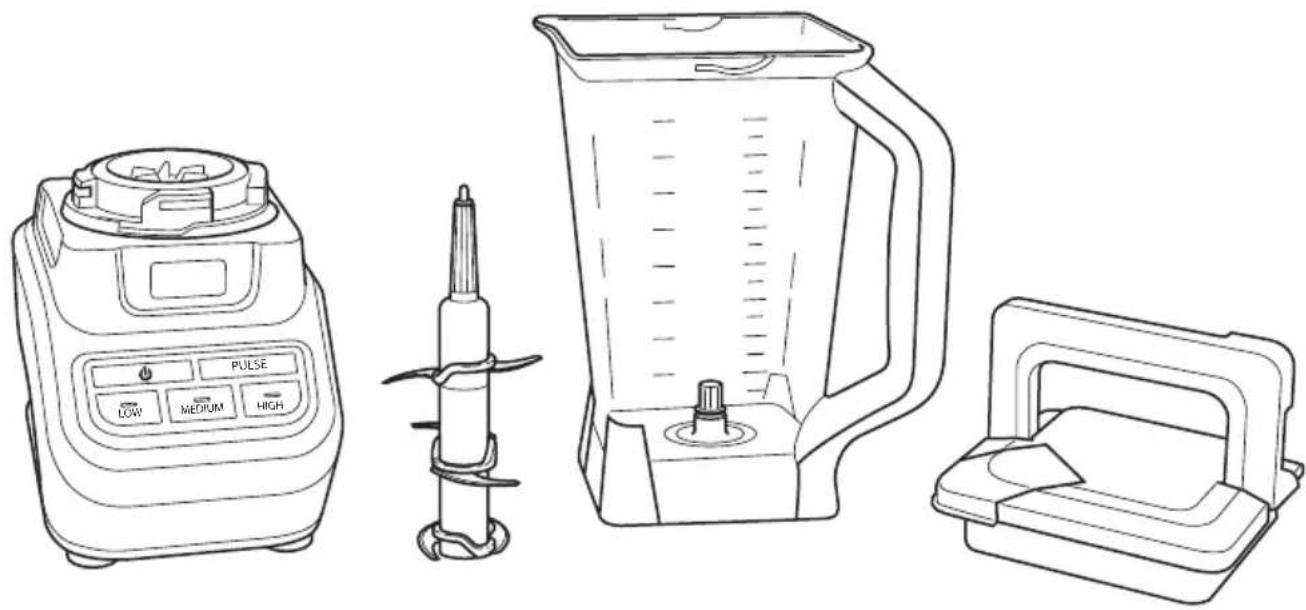

The Ninja® Professional Blender 1000 is a high powered kitchen tool that is perfect for ice crushing, blending, pureeing and controlled processing. Create all of your favorite recipes quickly and easily with just one touch of a button. For best results, be sure to carefully read all the instructions contained in the manual before using this appliance.

Line drawings of kitchen appliances including a blender, a spatula, and a blender with control panel (no text or symbols)

FEATURES:

• 1000 Watt Motor Base
• Total Crushing ^TM Technology
• Extra Large 72 oz. Pitcher
- Easy Lock Lid with Built-In Pour Spout
- Easy Clean Control Panel
• BPA Free Pitcher
- Cord storage

BEFORE FIRST USE

1 Remove all packaging material and labels from the appliance.
2 Wash the lid, pitcher and blade assembly in warm, soapy water with a soft cloth. Use caution when washing the blade assembly as the blades are very sharp.
3 Rinse and dry thoroughly.
4 The pitcher, lid and blade assembly are all dishwasher safe. It is recommended that the lid and blade assembly go on the top rack. Ensure that the blade assembly is removed from the pitcher before placing in the dishwasher.
5 The motor base can be wiped clean with a damp cloth. Make sure the unit is not plugged into the electrical outlet when using the damp cloth to clean the base.

HOW TO ASSEMBLE

CAUTION: Make sure that the motor base is unplugged from the power source.

1 Place the motor base on a clean, dry, level surface.

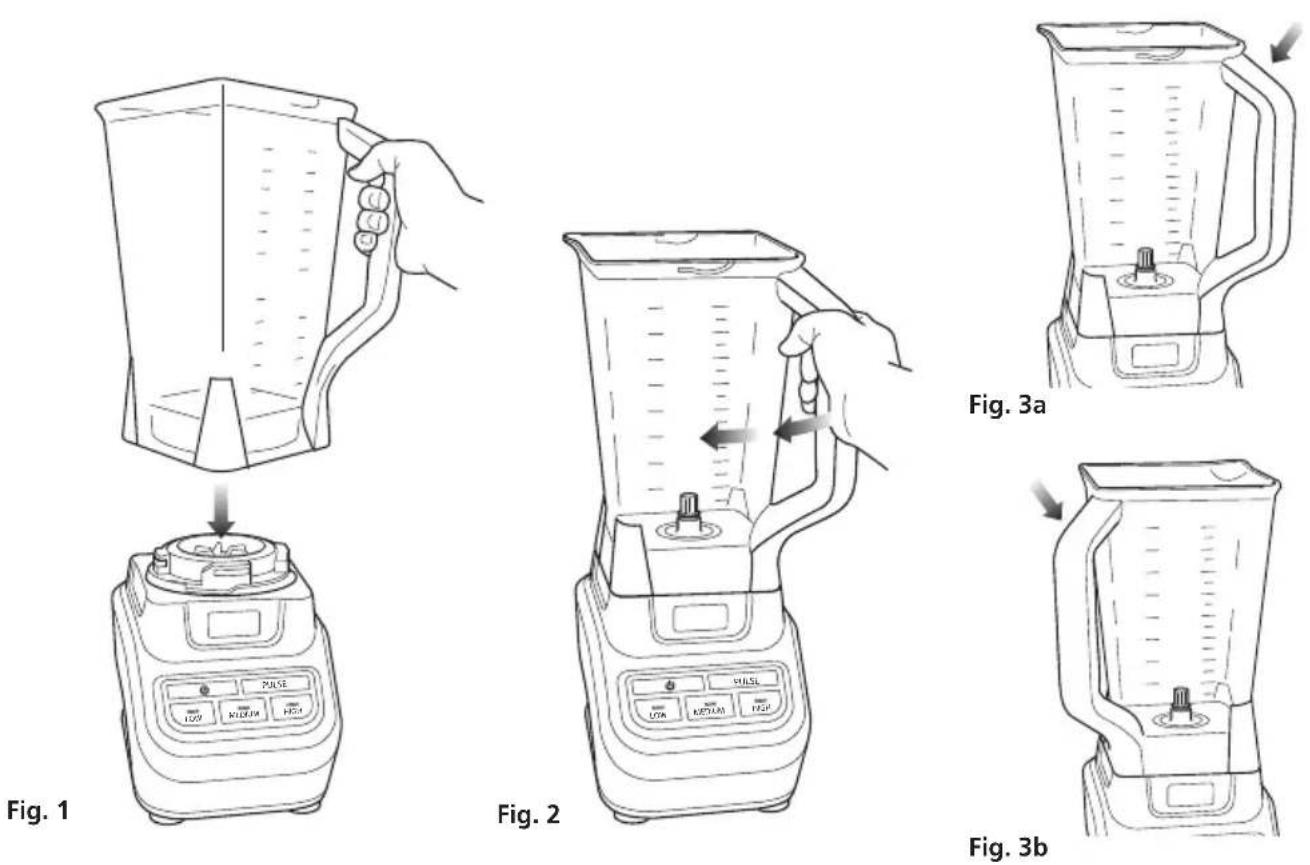

2 Lower the pitcher onto the motor base. (Fig. 1)
3 Rotate the pitcher to the left as far as it will go. As the pitcher rotates, it will lower and the safety tabs on the bottom of the pitcher will slide under the safety tabs on the top of the motor base. (Fig. 2)
4 The pitcher can be placed on the motor base two ways; the handle can be on the front right corner or the front left corner. (Fig. 3a, Fig. 3b)

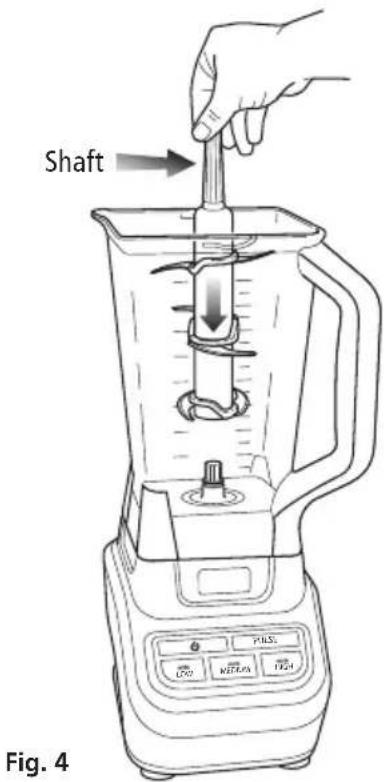

5 Holding the blade assembly by the shaft, place it onto the gear shaft inside the pitcher. (Fig. 4) Ensure that the blade assembly fits around the gear shaft and that the blade shaft is standing straight.
CAUTION: Blades are sharp! Use extreme caution when handling the blades. Always hold them by the shaft.

Shaft Fig. 4

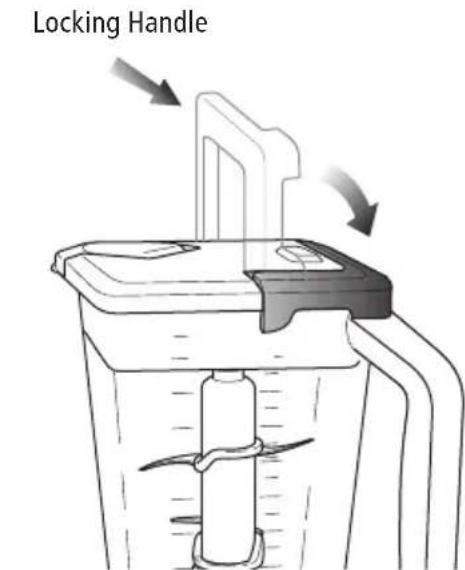

Locking Handle

Fig. 5

HOW TO USE

IMPORTANT: DO NOT attempt to operate the appliance without the lid on.

1 Place pitcher on motor base and insert the blade assembly. (See 'HOW TO ASSEMBLE'.)
2 Add the ingredients to the pitcher. Make sure your total of ingredients don't go higher than the highest measured marking line on the side of the pitcher.
▲ IMPORTANT: Never add ingredients into the pitcher before placing the blades in first.
3 Place the lid onto the pitcher with the locking handle in the upright position and the pouring spout on the corner opposite the pitcher handle. Align the arrows (▼) located on the lid and pitcher handle. Ensure that the lid is completely seated and press the lid down into the pitcher. Press the locking handle down so that the latches on the lid fit under the tabs on the pitcher. (Fig. 5)

NOTE: If you need to add additional ingredients while the blender is processing, open the pouring spout cap and pour the ingredients in through the opening.

4 Plug the power cord into the electrical outlet and press on the power button ( ⏻ ).

NOTE: As a safety feature, the power button (☐) will flash and the motor will not work if the pitcher and lid are not installed correctly. When the pitcher and lid are installed properly, the power button (☐) will be solid, indicating that the blender is ready for use.

5 Select the speed according to your blending requirements*:

• Use the LOW setting for processing and mixing.
• Use the MEDIUM setting for blending and ice crushing.
• Use the HIGH setting for pureeing and liquefying.

- Use the PULSE button for controlled chopping and processing.

* See Blending Chart.

Using the Ninja® Professional Blender 1000 - cont'd

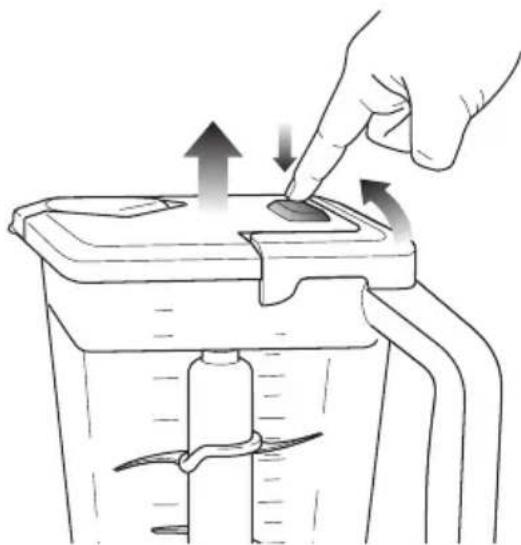

Illustration of a hand pressing down on a mechanical component with directional arrows indicating motion (no text or symbols)

Fig. 6 Fig. 7

Line drawing of a blender with directional arrows indicating motion, labeled with control buttons like LOW, MEDIUM, HIGH.

6 Press power button ( ⏻) or the same speed button a second time to stop the blades or press a different button to change the speed.

7 If the ingredients stick to the side of the pitcher, stop the appliance by pressing the power button (☐) and wait for the blades to stop turning. Then remove the lid by pressing the release button, lifting the handle up and pulling straight up. (Fig. 6) Use a rubber spatula to dislodge the pieces, replace the lid and continue processing.

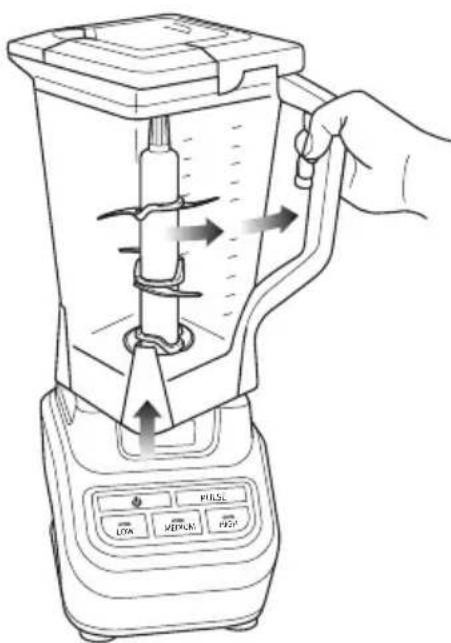

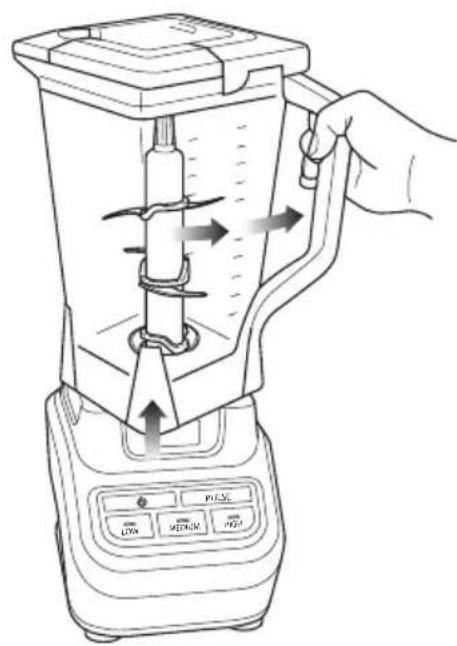

8 To remove the pitcher, press the power button (⊕) to turn the appliance 'Off'. Wait for the blades to stop moving before removing. (Fig. 7)

CAUTION: Never remove the pitcher while the blender is still running.

9 Depending on the consistency of the contents, open the pouring spout cap and use the spout to empty liquid contents. For thicker consistencies, remove the lid and blade assembly carefully (by its shaft), then empty contents of the pitcher.

10 Unplug the appliance after use.

IMPORTANT: Never run the appliance empty.

CAUTION: DO NOT BLEND HOT LIQUIDS.

⚠ WARNING: Secure the blender while in use by pressing down on the lid with one hand.

⚠ WARNING: Never leave the blender unattended while in use.

HOW TO CLEAN

CAUTION: Make sure that the motor base is unplugged from the power source before inserting or removing any attachment and before cleaning.
CAUTION: DO NOT immerse the motor base into water or any other liquid. Clean with a damp sponge or cloth and wipe dry.

1 The pitcher, lid and blade assembly are all dishwasher safe. It is recommended that the lid and blade assembly be placed on the top rack.

2 You may also wash the blender by filling 34 of the pitcher with warm water and a drop of dish washing detergent, placing the lid on the pitcher and pressing the pulse button a few times. Once clean, remove the pitcher from the motor base. Rinse the pitcher, blade assembly and lid under running water. Allow all the parts to dry before storing.

Use extreme caution when handling the blade assembly as blades are very sharp.

Please call customer service if any servicing needs to be performed on the appliance at 1-877-646-5288.

HOW TO STORE

1 Store the Ninja ^® Professional Blender 1000 upright with the pitcher, blade assembly and cover on the motor base. Do not place anything on top.
2 Wrap the power cord around the cord storage hook in the back of the unit.

ORDERING REPLACEMENT PARTS

To order additional parts and accessories, please visit our website: www.ninjakitchen.com or feel free to contact customer service at 1-877-646-5288.

Blending Chart

BUTTON FUNCTION USE
POWER ⏻	On/Off Always turn appliance 'Off' when not in use.
LOW	Processing & Mixing	Use to mix thin batters, gravies and marinades, scramble eggs, puree cooked foods and uncooked fruits and chop vegetables for dips and salsa.
MEDIUM	Blending & Ice Crushing	Use to grate hard cheeses, cream soups, beat dips, grind nuts, thorough chopping, blend sauces and spreads. Blend mixed drinks, powdered drinks or milk shakes. Crush ice cubes for snow cones, chilled beverages or frozen slushes.
HIGH	Pureeing & Liquefying	Use to mix smoothies, frappes, liquefy thick mixtures and blend whole fruits and vegetables.
PULSE	Controlled Processing & Bursts of Power	Use to control chopping and processing.

Troubleshooting Guide

PROBLEMS POSSIBLE REASONS & SOLUTIONS
Motor Doesn’t Start or Blades Don’t Rotate.	Make sure the pitcher is securely placed on motor base.Make sure the lid is securely on pitcher in the correct position (align arrows).The blender is turned 'Off'. Press the power button ()do turn 'On'.Check that the plug is securely inserted into the electrical outlet.Check the fuse or circuit breaker.The unit has overheated. Unplug and wait approximately 15 minutes before using again.
Food is Unevenly Chopped.	Either you are chopping too much food at one time, or the pieces are not of even size and processing smaller amounts per batch.
Food is Chopped Too Fine or is Too Watery.	The food has been over-processed. Use PULSE button for controlled processing.
Food Collects On Lid or On the Sides of the Pitcher.	The mixture is too thick. Add more liquid.
You Cannot Achieve Snow From Solid Ice.	Do not use ice that has been sitting out or has started to melt. Use ice straight from the freezer and make sure that the pitcher is completely dry before adding ice.

Notes

À faire au début

a b c d e f g h i PULSE LOW MEDIUM HIGH

Line drawings of kitchen appliances including a blender, a blender with a brush, and a tray (no text or symbols present)

CARACTÉRISTIQUES :

Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Fig. 6 Fig. 7

Line drawing of a blender with hand operating the blade and control buttons labeled LOW, MEDIUM, HIGH (no text or symbols on device)

Line drawings of four kitchen appliances: a blender, a spatula, a blender with a side panel, and a tray (no text or symbols present)

CARACTERÍSTICAS:

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Fig. 5

USO

Illustration of a hand pressing down on a kitchen appliance with arrows indicating motion (no text or symbols)

Fig. 6

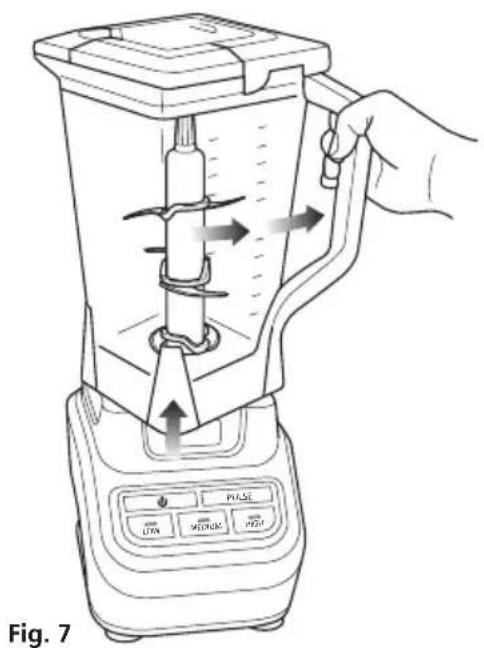

PULSE LTA MEDIUM FEEF Fig. 7

EURO-PRO Operating LLC warrants this product to be free from material defects and workmanship for a period of one (1) year from the date of purchase when utilized for normal household use, subject to the following conditions, exclusions and exceptions.

The liability of EURO-PRO Operating LLC is limited solely to the cost of the repair or replacement of the unit at our option. This Limited Warranty does not cover normal wear of parts and does not apply to any unit that has been tampered with or used for commercial purposes. This Limited Warranty does not cover damage caused by misuse, abuse, negligent handling or damage due to faulty packaging or mishandling in transit. This Limited Warranty does not cover damage or defects caused by or resulting from damages from shipping or repairs, service or alteration to the product or any of its parts, which have been performed by a repair person not authorized by EURO-PRO Operating LLC.

If your appliance fails to operate properly while in use under normal household conditions within the Limited Warranty period, you may return the complete appliance and accessories with proof of purchase and date, freight prepaid. For Customer Service support, call 1-877-646-5288 or visit our website www.ninjakitchen.com.

If the appliance is found by EURO-PRO Operating LLC to be defective, in EURO-PRO Operating LLC's sole discretion, we will repair or replace it free of charge. Proof of purchase date and a check made payable to EURO-PRO Operating LLC in the amount of \$19.95 to cover the cost of return shipping and handling must be included.*

This Limited Warranty is extended to the original purchaser of the unit and excludes all other legal, implied and/or conventional warranties. The responsibility of EURO-PRO Operating LLC if any, is limited to the specific obligations expressly assumed by it under the terms of this Limited Warranty. In no event is EURO-PRO Operating LLC liable for incidental or consequential damages to anyone of any nature whatsoever. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or from province to province.

*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase date and to attach tag to item before packing with your name, complete address and phone number with a note giving purchase information, model number and what you believe is the problem with the item. We recommend you insure the package (as damage in shipping is not covered by your Limited Warranty). Mark the outside of your package "ATTENTION CUSTOMER SERVICE". We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.

Product Registration

Please visit www.ninjakitchen.com or call 1-877-646-5288 to register your new Ninja® product within ten (10) days of purchase. You will be asked to provide the store name, date of purchase and model number along with your name and address.

The registration will enable us to contact you in the unlikely event of a product safety notification. By registering you acknowledge to have read and understood the instructions for use, and warnings set forth in the accompanying instructions.
