| Product type | Gas grill griddle |
| Brand | CHAR BROIL |
| Model | 463614023 |
| Fuel | Liquid propane gas (LPG) – disposable 16.4 oz or 20 lb cylinder |
| Ignition | Piezoelectric ignition button or match |

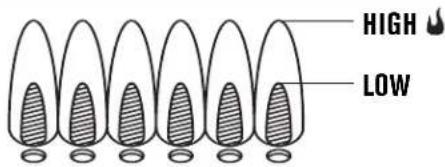

| Flame control | HI (max) and LOW (min) position on each burner |
| Number of burners | Not specified (standard grill) |
| Cooking surface | Steel plate with non-stick coating |
| Dimensions | Not specified (portable model) |
| Weight | Not specified |
| Material | Stainless steel, porcelain, plastic |
| Color | Black (typical) |
| Main functions | Grilling, searing, flat cooking |
| Maintenance and cleaning | Regular cleaning of the burner and plate; oil seasoning to prevent rust |
| Safety | Outdoor use only, 3 m safety distance from combustible materials, leak test mandatory |
| Spare parts and repairability | Burner, valve, regulator, electrode; availability via customer service |
| Warranty | 2 years burner (perforation/defect), 1 year other parts |
| General information | Residential use only, made in China |
Frequently Asked Questions - 463614023 CHAR BROIL
How to light the grill griddle?
Press the burner control knob and turn it slowly (2 to 3 seconds) to the high (HI) position. The ignition device should emit several clicks. If ignition does not occur after 5 seconds, turn off the burner, wait 5 minutes and repeat. You can also use a match placed in the match holder.
What to do if there is a gas smell?
Immediately shut off the gas supply to the appliance, extinguish any open flame, open the lid. If the smell persists, move away and call the gas supplier or fire department. Do not attempt to repair yourself.
How to perform a leak test?
After each cylinder replacement or storage, perform the test outdoors. Prepare a 50/50 soapy water solution, brush the connection between the cylinder and regulator. If bubbles appear, tighten the connection or replace damaged parts.
Can the grill griddle be used indoors?
No, the appliance is designed for outdoor use only in a well-ventilated area. Never use it in a garage, carport, veranda, or under any type of overhanging surface.
How to clean the cooking plate?
After use, brush the residues into the grease drip tray. For a deep clean, use a mild detergent and hot water. Do not use abrasive products on painted or plastic surfaces. Renew the oil seasoning regularly to prevent rust.
Why is the flame weak?
Check that the cylinder is not empty, that the regulator and valve are properly connected, and that the burner is not obstructed by spider webs or debris. Clean the burner with a wire brush or compressed air.
How to maintain the burner?
Disconnect the cylinder, remove the plate, disassemble the burner. Clean the tubes with a wire hook or brush, and the ports with a paperclip. Check for damage and reassemble correctly by aligning the tube with the valve. Perform a leak test after reassembly.
The plate is rusting, what to do?
Rust indicates insufficient seasoning. Scrub the spot with a hard brush or steel wool, apply a thin layer of high smoke point cooking oil (avocado, olive, canola), then heat on high for 20-30 minutes with the lid closed. Renew seasoning frequently.
What is the product warranty?
The burner is warranted for 2 years against perforation and manufacturing defects. Other parts are warranted for 1 year. Warranty is valid for the original purchaser, requires proof of purchase, and does not cover cosmetic damage, surface rust, or commercial use.

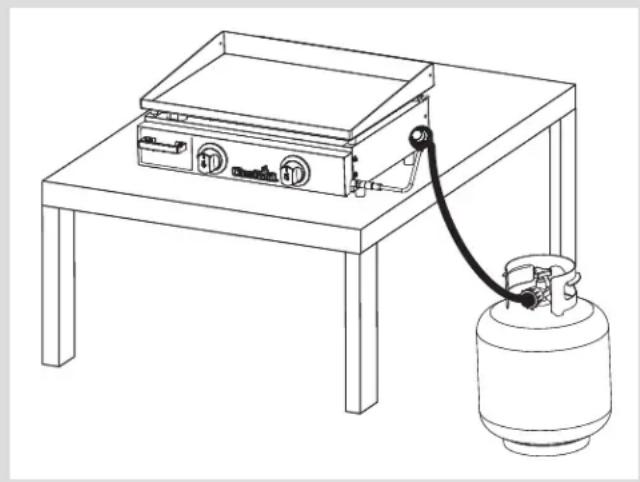

Can I use a 20 lb propane cylinder?
Yes, the grill is designed to operate with a 20 lb LPG cylinder. Ensure you use the supplied regulator and follow installation instructions. Never use a damaged cylinder or one without a safety cap.
