CHAR BROIL Performance 463655421 - Grill plate

Performance 463655421 - Grill plate CHAR BROIL - Free user manual and instructions

Find the device manual for free Performance 463655421 CHAR BROIL in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

View the manual : Français FR English EN Español ES
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Gas grill (grill plate)
Brand CHAR BROIL
Model 463655421
Fuel type Propane gas (LP)
Number of main burners 2
Side burner Not included (some models may have one)
Ignition Electronic (AA 1.5V battery) and match
Burner material Stainless steel
Cooking surfaces Porcelain-coated steel grates
Compatible tank type 20 lb LP tank (dia. 30.5 cm x height 45.7 cm)
Regulator Included, with Type 1 connection
Usage Outdoor only, residential
Safety distance 1 m from walls, 3 m from flammable materials
Cleaning function CLEAN setting (12-15 min at high temperature)
Maintenance Regular cleaning, check burners and rubber gasket
Stainless steel burner warranty 5 years (puncture, defects)
Body and lid warranty 2 years
Other parts warranty 1 year
Batteries required 1 AA battery (4 transformed)
Weight Not specified, approximately 20-30 kg (estimate)

Frequently Asked Questions - Performance 463655421 CHAR BROIL

What type of gas to use for this grill?
This grill operates only with liquid propane (LP) gas. Do not use natural gas without a conversion kit.
How to light the grill?
Open the lid, open the tank valve, push and turn the ignition burner knob to HIGH, then press the electronic ignition button. If no ignition in 5 seconds, wait 5 minutes before trying again. Match lighting is also possible.
Why are the flames low or uneven?
Possible causes: low tank, overfill protection device triggered, clogged burner. Check gas level, wait 30 seconds after opening valve, or clean burners.
How to clean the grill?
Use the CLEAN setting after cooking (12-15 min at high temperature) to burn off residue. After cooling, brush the grates. Regularly clean burners and grease tray.
How far to install the grill?
Maintain a distance of at least 1 meter from walls and 3 meters from any flammable materials or ignition sources.
What to do in case of gas smell?
Immediately turn off gas supply at the tank, extinguish any flame, open the lid. If smell persists, move away and call the fire department.
How to test for gas leaks?
Mix water and mild soap, apply to connections and valve. If bubbles appear, turn off gas and tighten connections. If leak persists, contact customer service.
Can I use the grill in an apartment?
No, this grill is designed for outdoor use only. Never use it in a garage, enclosed balcony, or under an awning.
What is the warranty of this product?
Limited warranty: stainless steel burner 5 years, body and lid 2 years, other parts 1 year (subject to registration and proof of purchase).
How to replace the igniter battery?
Remove the ignition button cap, insert an AA alkaline battery respecting polarity (+ side up). Screw the cap back on.

User questions about Performance 463655421 CHAR BROIL

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Grill plate in PDF format for free! Find your manual Performance 463655421 - CHAR BROIL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Performance 463655421 by CHAR BROIL.

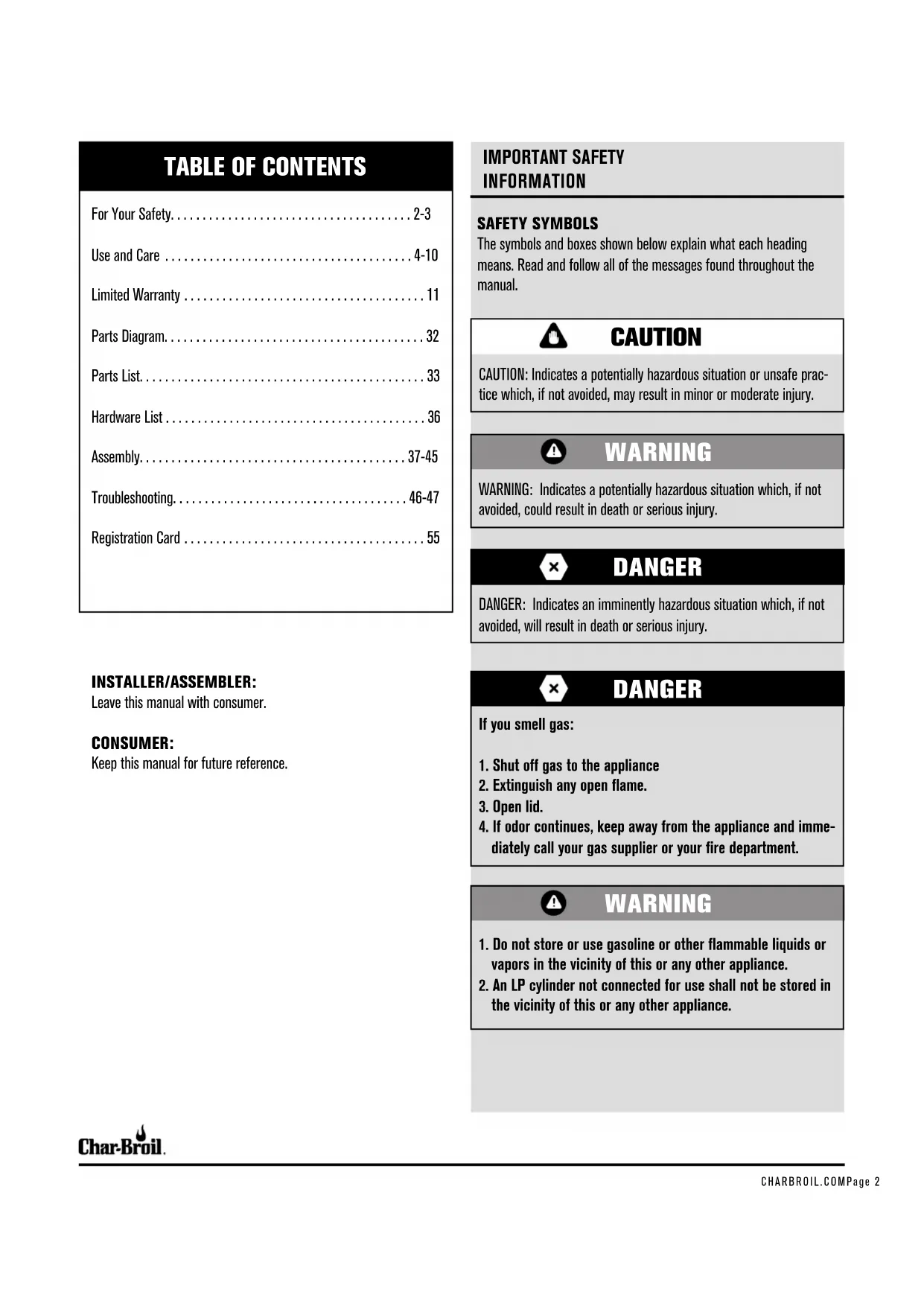

USER MANUAL Performance 463655421 CHAR BROIL
