See page 2 for a complete model listing.Tripp Lite’s industrial connectivity solutions comply with the IP44 standard for protection against water intrusion on all sides, as well the IP68 standard for protection against invasive dust, dirt and sand, and submersion in up to 1.5 m of water for up to 60 minutes.Note: Certain product combinations are needed to achieve IP44 and/or IP68 standards. See section 4. Product Combinations for IP44 and IP68 Protection for more information. IP68 Protection rating is based on manufacturer’s guarantee.1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/supportCopyright © 2021 Tripp Lite. All rights reserved. WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR

4. Product Combinations for IP44 and IP68 Protection 10

Bulkhead Couplers and Keystone Jacks

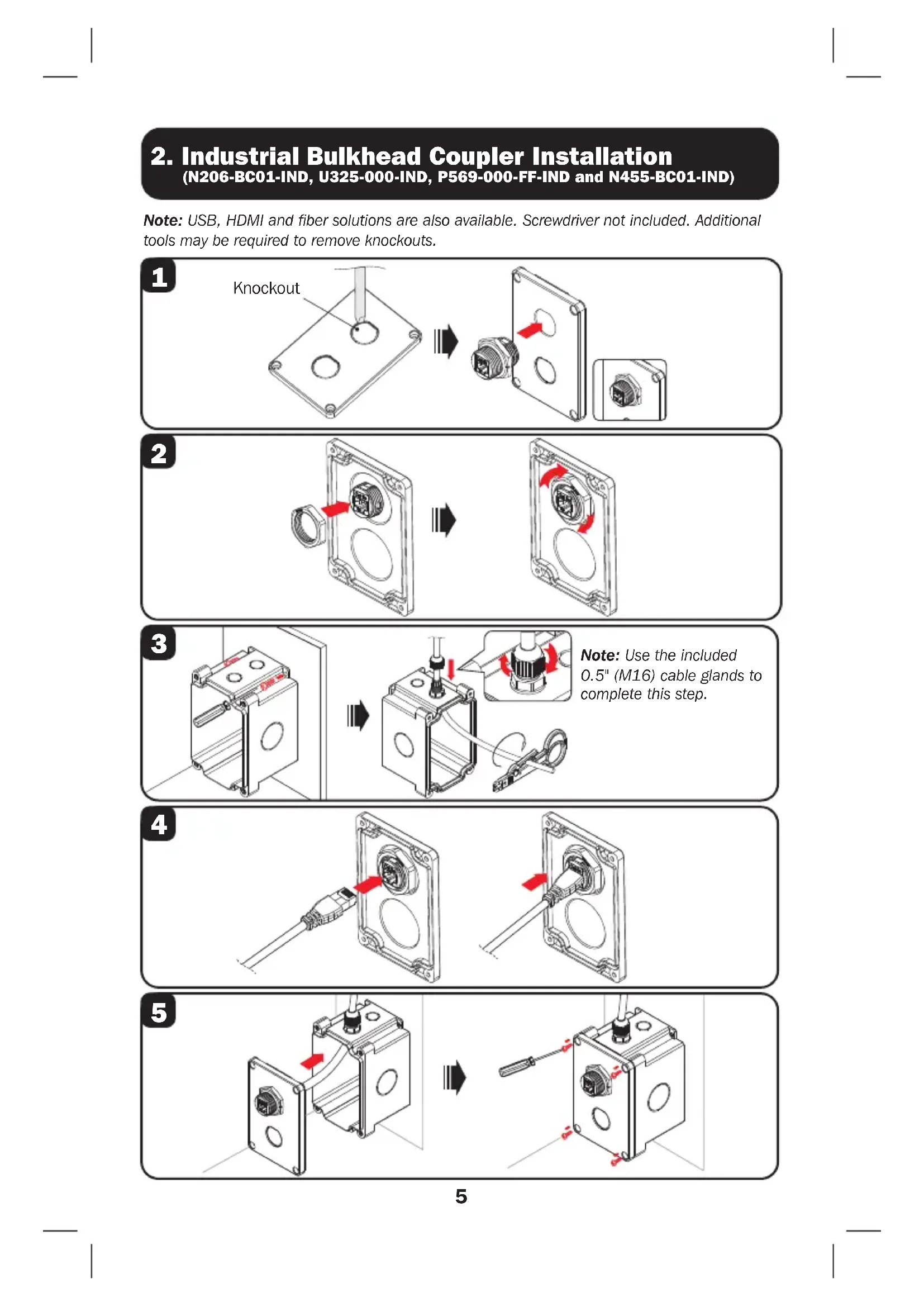

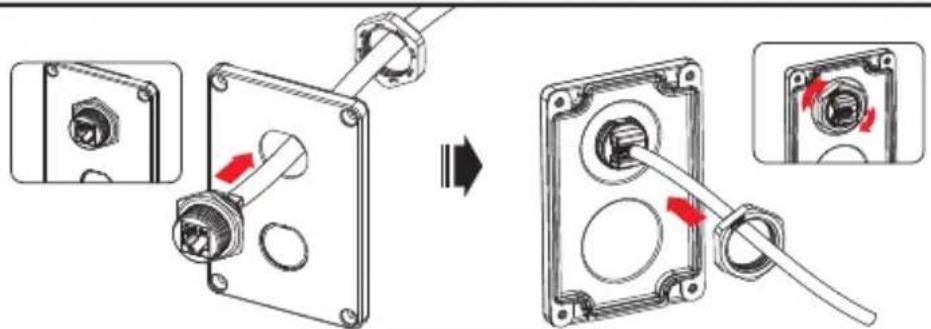

2. Industrial Bulkhead Coupler Installation

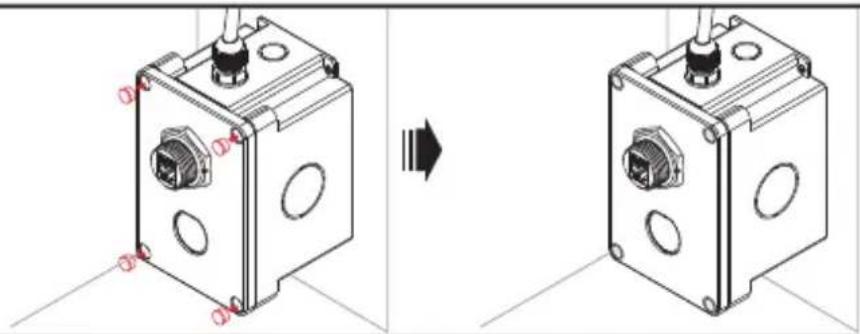

(N206-BC01-IND, U325-000-IND, P569-000-FF-IND and N455-BC01-IND) Note: USB, HDMI and fiber solutions are also available. Screwdriver not included. Additional tools may be required to remove knockouts.

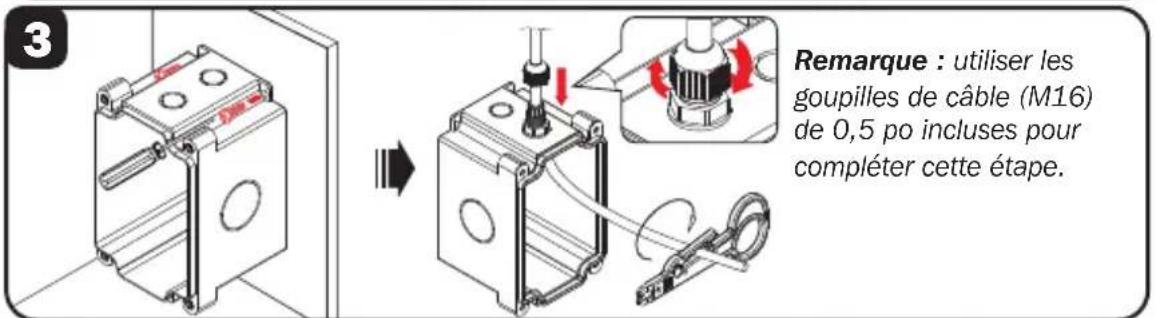

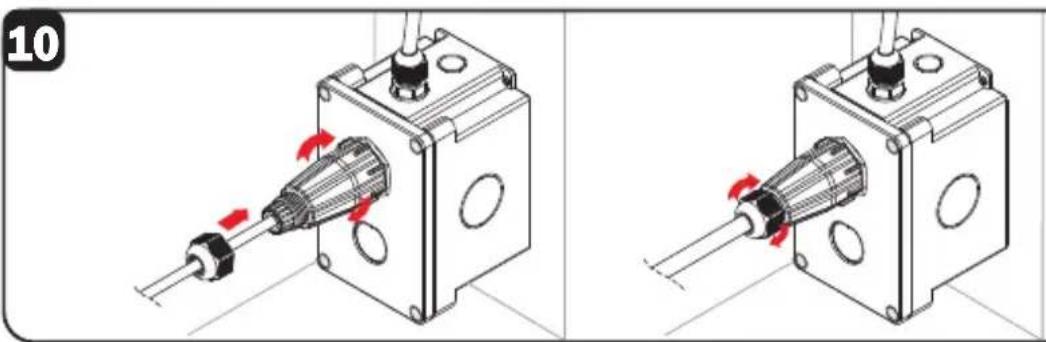

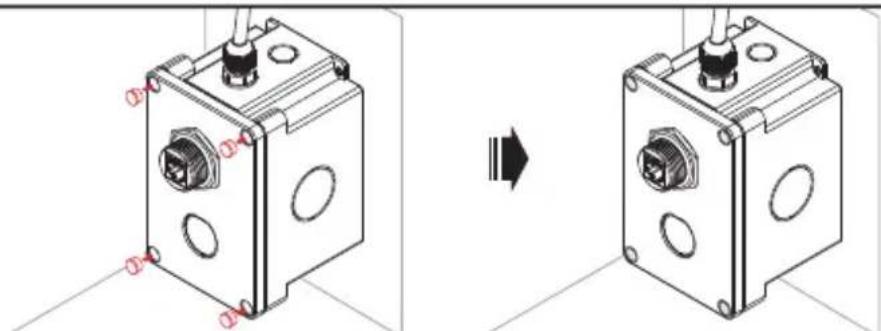

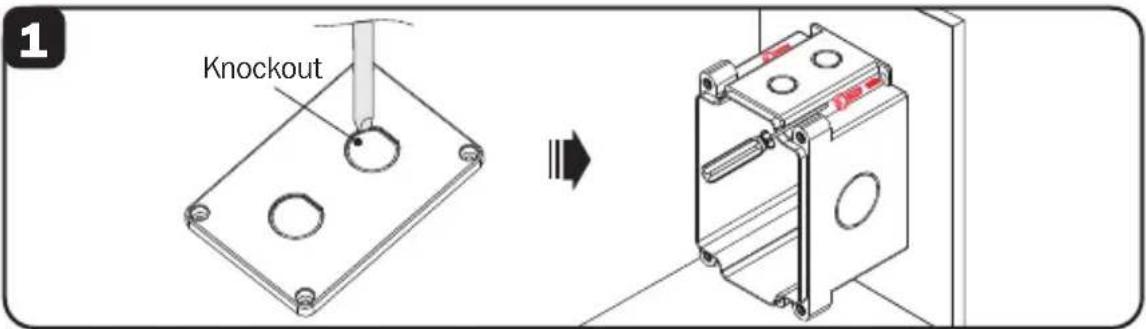

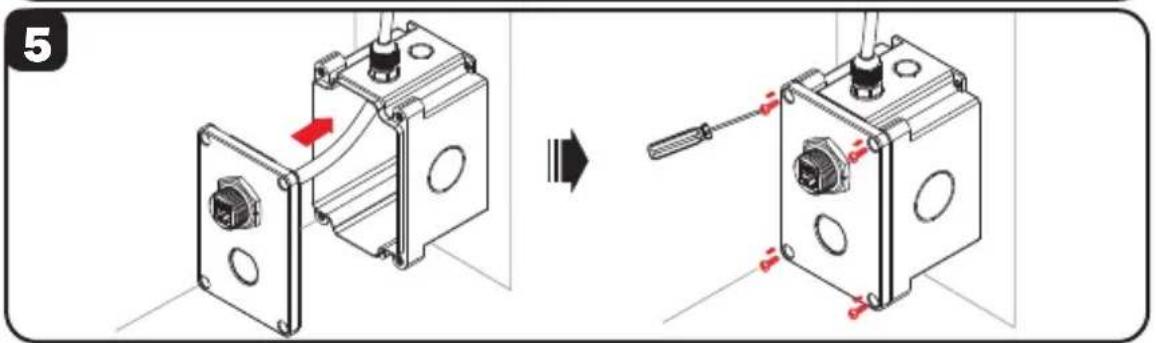

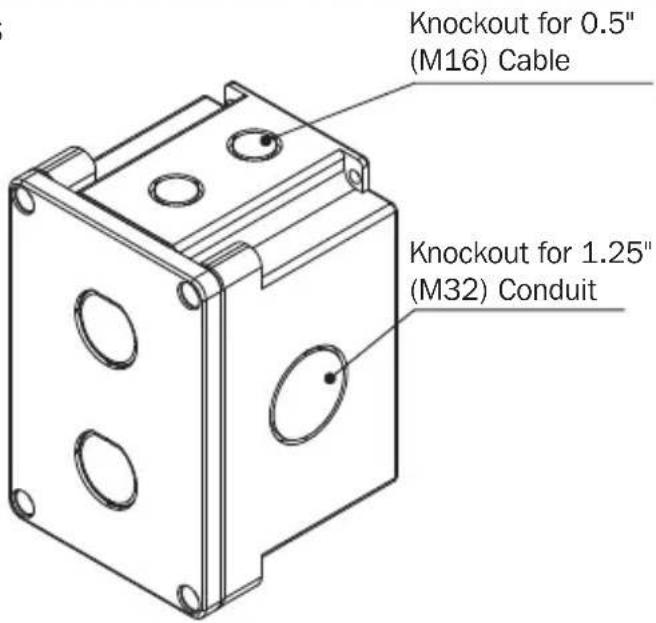

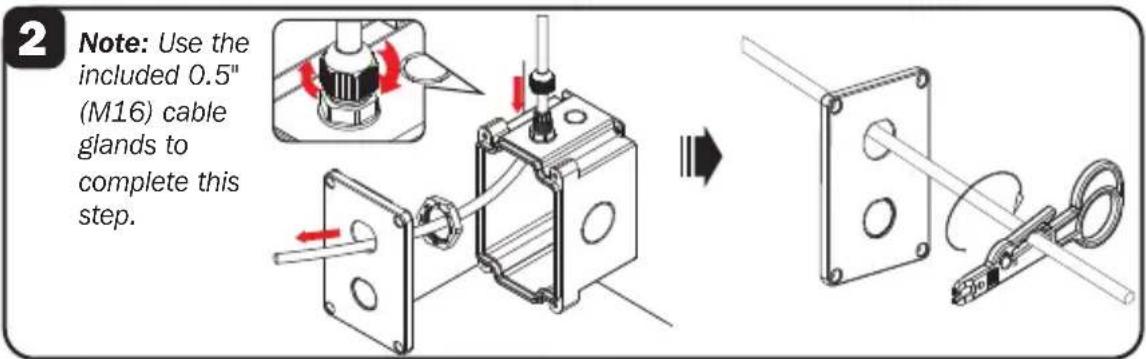

Knockout Note: Use the included 0.5" (M16) cable glands to complete this step.6

2. Industrial Bulkhead Coupler Installation

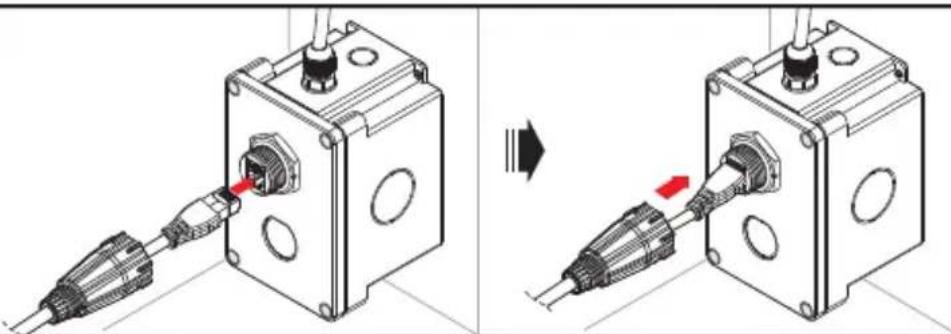

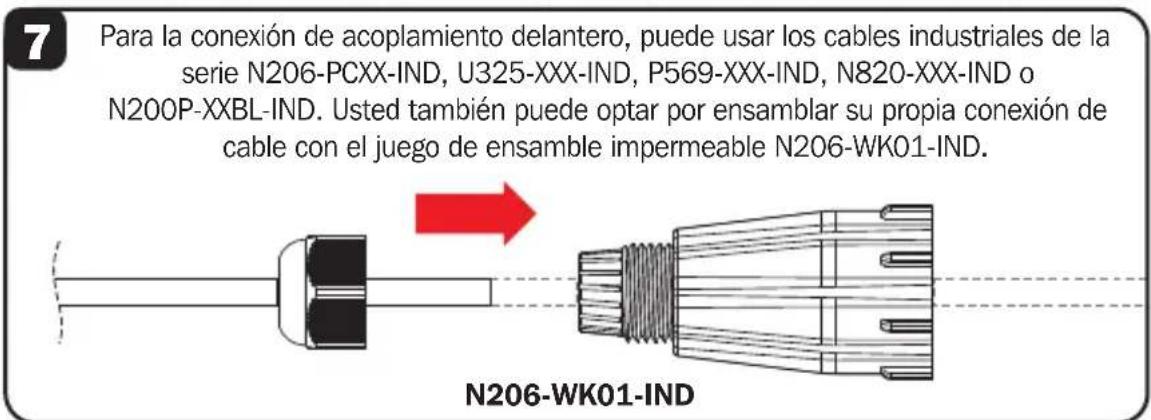

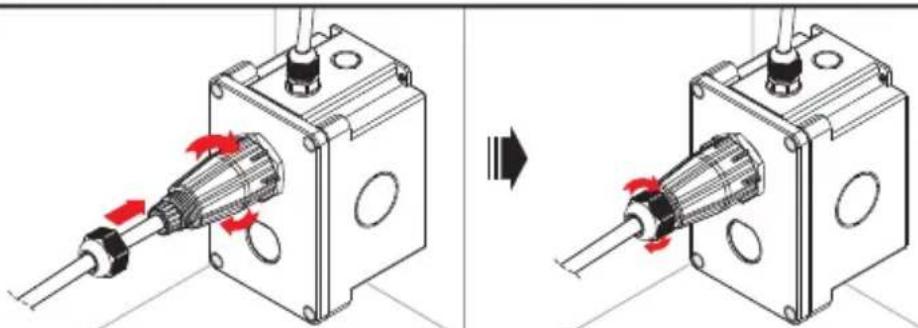

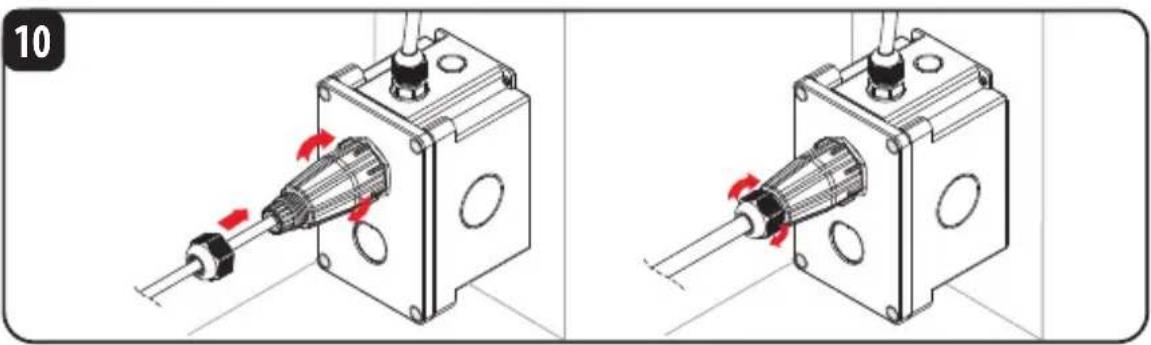

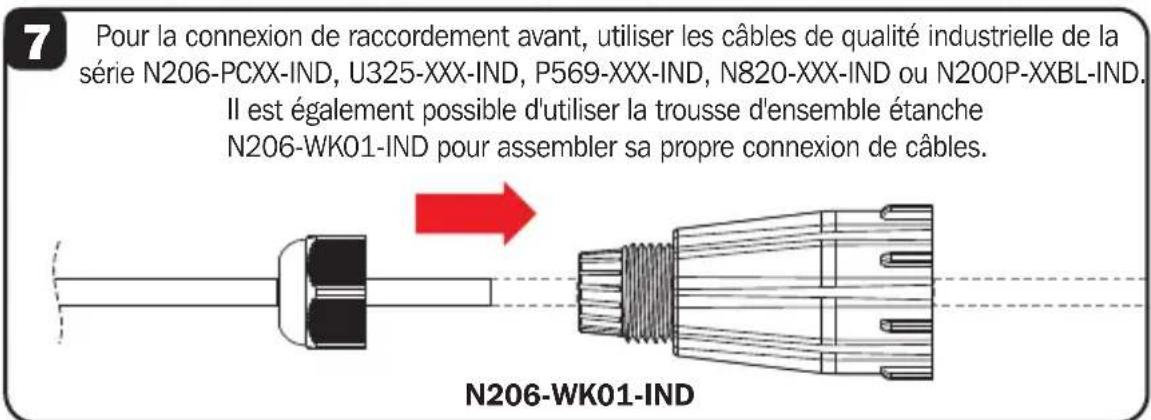

For the front mating connection, you can use the N206-PCXX-IND, U325-XXX-IND, P569-XXX-IND, N820-XXX-IND or N200P-XXBL-IND Series industrial cables. You can also choose to assemble your own cable connection using the N206-WK01-IND waterproof assembly kit.

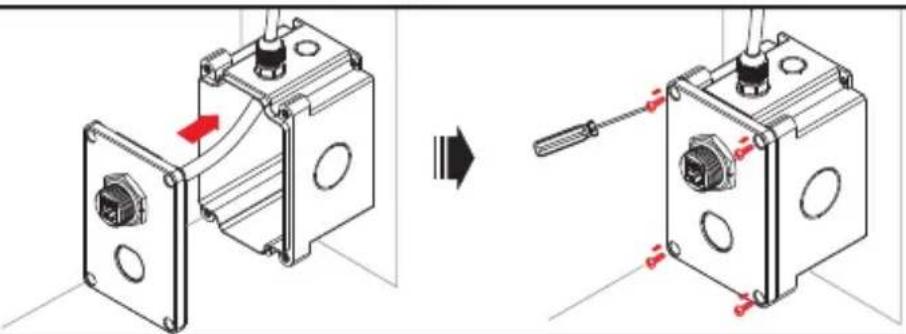

Note: Additional tools may be required to remove knockouts.

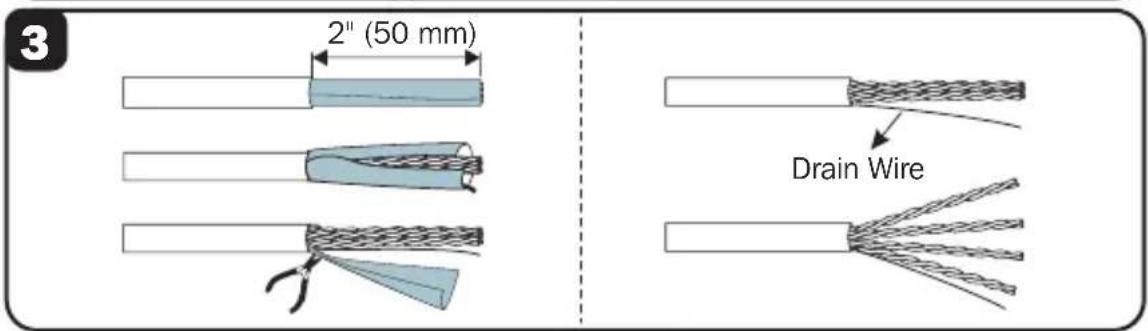

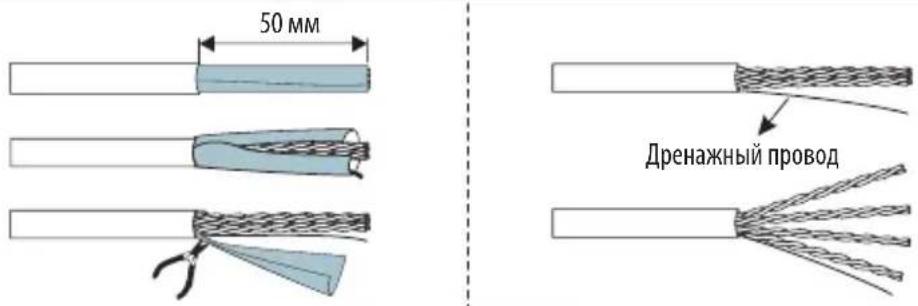

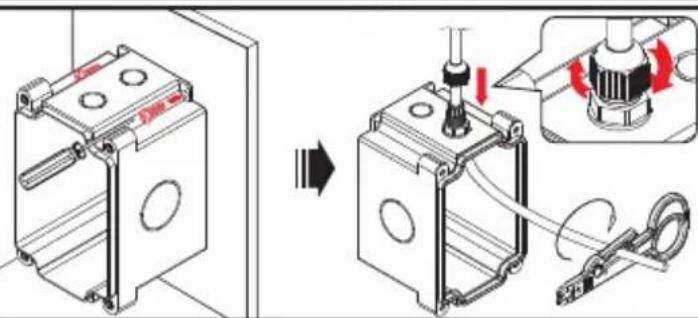

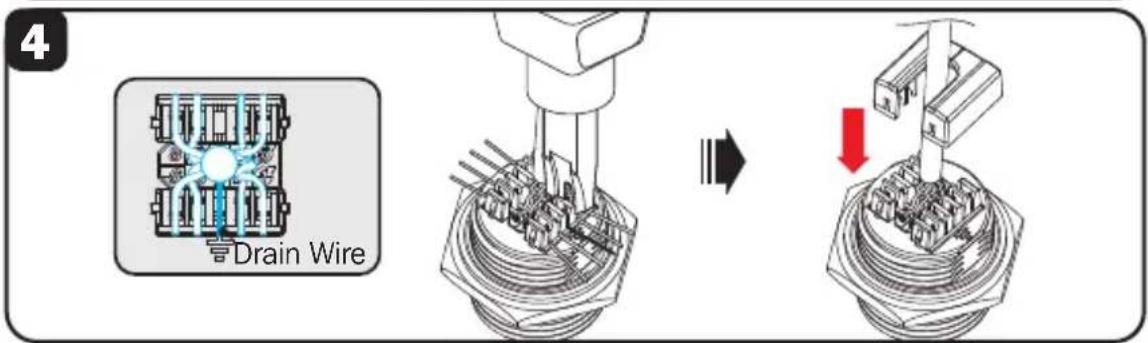

Knockout Note: Use the included 0.5" (M16) cable glands to complete this step. 2" (50 mm) Drain Wire Drain Wire

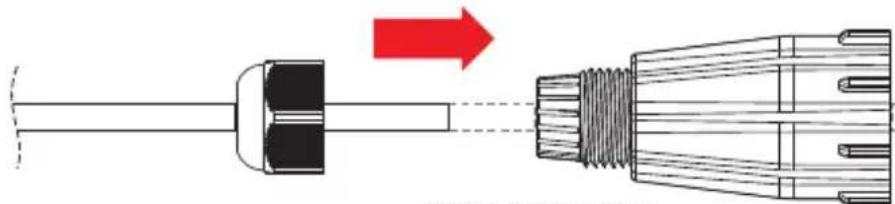

For the front mating connection, you can use N206-PCXX-IND Series industrial cables. You can also choose to assemble your own cable connection using the N206-WK01-IND waterproof assembly kit.

4. Product Combinations for IP44 and

IP68 Protection Note: For IP68 environments (submersion in up to 1.5 m of water for 60 minutes), the N206-SB01-IND should be used (not the N206-FPXX-IND). IP68 rating of up to 1.5 m of water for up to 60 minutes is based on manufacturer’s guarantee. Faceplate Bulkhead Couplers/ Keystone Jacks Industrial Patch Cables/ Industrial USB 3.0 Cables Waterproof Cable Assembly Kit

(LC/LC Fiber Coupler) N820-XXM-IND (LC/LC Fiber Cable) Surface Mount Box Bulkhead Couplers/ Keystone Jacks Industrial Patch Cables/ Industrial USB 3.0 Cables Waterproof Cable Assembly Kit

(LC/LC Fiber Coupler) N820-XXM-IND (LC/LC Fiber Cable)11 Warranty and Product Registration Limited Lifetime Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. Service under this Warranty can only be obtained by Buyer delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges. Visit tripplite.com/support before sending any equipment back for repair. THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).
