Product type	43-inch LED TV
Screen size	43 inches (109 cm)
Resolution	Full HD (1920 x 1080 pixels)
Power supply	220-240 V AC, 50 Hz
Power consumption (max)	Approximately 70 W
Weight (with stand)	Approximately 7.5 kg
Dimensions (with stand)	Approximately 96 x 62 x 22 cm
Operating system	Android TV
Tuner standard	DVB-T2/C/S2
HDR	HDR10, HLG, Dolby Vision
Network connectivity	Built-in Wi-Fi (802.11 a/b/g/n/ac), Ethernet
Bluetooth	Version 4.2
HDMI inputs	3 x HDMI 2.0 (1 with ARC)
USB ports	2 x USB 2.0
Digital audio output	1 x optical
Audio power	2 x 8 W
Smart functions	Google Cast, YouTube, Netflix, HbbTV
USB recording	Yes
Electronic program guide	Yes
Common interface (CI+)	Yes
Energy class	A+ (estimated)
Included accessories	RC4390 remote control, AAA batteries (2), quick start guide
Care and cleaning	Unplug before cleaning, use a soft dry cloth
Safety	Class II, wall mount recommended (bracket not included)

Frequently Asked Questions - LT-43VA3035 JVC

How to insert batteries into the remote control?

Remove the battery compartment cover on the back of the remote control. Insert two 1.5 V AAA batteries observing polarity (+/-). Replace the cover. If a screw is present, remove it first.

How to connect an antenna to the TV?

Connect the antenna cable to the ANT/CABLE INPUT jack on the back of the TV. Make sure the cable is firmly inserted.

How to turn on the TV for the first time?

Plug the TV into a power outlet. Press the Standby button on the remote control or the control button located on the back left of the TV. Follow the on-screen instructions for initial setup.

How to connect an HDMI device?

Make sure both devices are turned off. Connect the HDMI cable to one of the TV's HDMI ports. Turn on the devices. Press the Source button on the remote control and select the corresponding HDMI input.

How to use the USB recording function?

Connect a USB flash drive or hard drive formatted in FAT32 or NTFS to the USB port. In live TV mode, press the Record button on the remote control to start recording the current program.

How to cast content from a smartphone with Google Cast?

Make sure the TV and smartphone are connected to the same Wi-Fi network. Open a Cast-compatible app on your smartphone (e.g., YouTube, Netflix). Tap the Cast icon and select your JVC TV.

How to adjust the picture for Dolby Vision content?

When Dolby Vision content is detected, go to Settings > Device Preferences > Picture > Picture Mode. Choose between Dolby Vision Bright (bright room) or Dolby Vision Dark (dark room).

What are the safety precautions for wall mounting?

Use a VESA 200x200 compatible wall mount (not included). Read the instructions of the kit. Ensure the wall can support the weight of the TV. Do not mount on the ceiling or on a sloping wall. Tighten the screws without over-tightening.

How to recycle the TV and batteries?

Do not dispose of the device or batteries with household waste. Take the TV to a collection point for electronic waste. Batteries must be recycled separately. Contact your local municipality or the retailer.

What to do if the remote control does not work?

Check the battery polarity and replace them if necessary. Make sure there is no obstacle between the remote control and the TV. If the problem persists, reset the remote control by removing the batteries and pressing a button for 3 seconds.

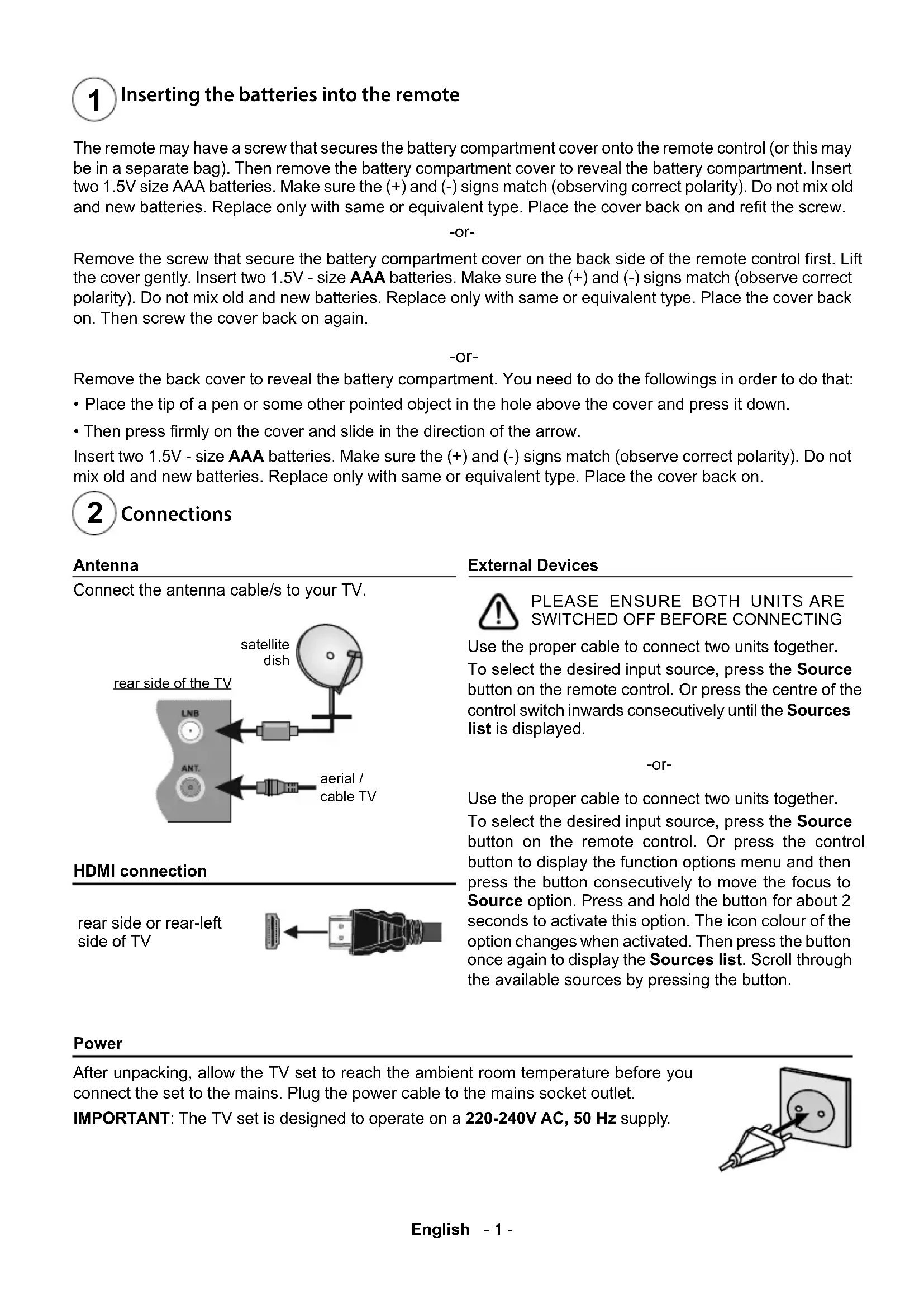

USER MANUAL LT-43VA3035 JVC

1 Inserting the batteries into the remote

The remote may have a screw that secures the battery compartment cover onto the remote control (or this may be in a separate bag). Then remove the battery compartment cover to reveal the battery compartment. Insert two 1.5V size AAA batteries. Make sure the (+) and (-) signs match (observing correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on and refit the screw.

-or-

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two 1.5V - size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

-or-

Remove the back cover to reveal the battery compartment. You need to do the followings in order to do that:

• Place the tip of a pen or some other pointed object in the hole above the cover and press it down.
• Then press firmly on the cover and slide in the direction of the arrow.

Insert two 1.5V - size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on.

2 Connections

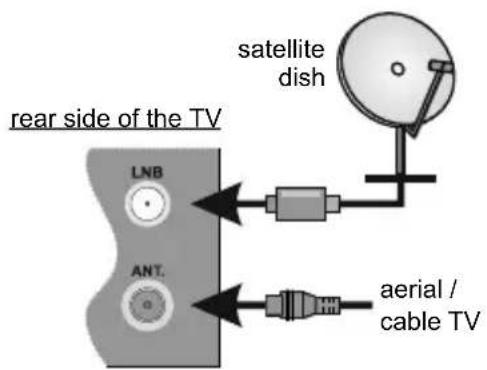

Antenna

Connect the antenna cable/s to your TV.

HDMI connection

rear side or rear-left side of TV

External Devices

PLEASE ENSURE BOTH UNITS ARE SWITCHED OFF BEFORE CONNECTING

Use the proper cable to connect two units together. To select the desired input source, press the Source button on the remote control. Or press the centre of the control switch inwards consecutively until the Sources list is displayed.

-or-

Use the proper cable to connect two units together. To select the desired input source, press the Source button on the remote control. Or press the control button to display the function options menu and then press the button consecutively to move the focus to Source option. Press and hold the button for about 2 seconds to activate this option. The icon colour of the option changes when activated. Then press the button once again to display the Sources list. Scroll through the available sources by pressing the button.

Power

After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

IMPORTANT: The TV set is designed to operate on a 220-240V AC, 50 Hz supply.

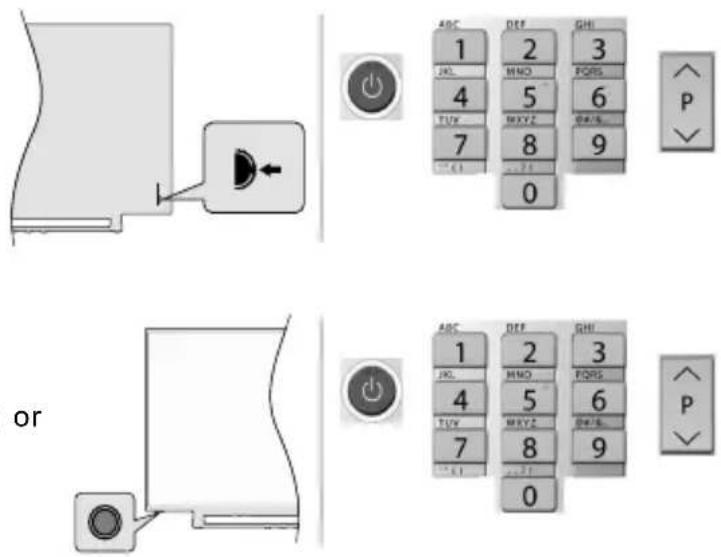

3 Switching on the TV

In order to turn the TV on from standby mode:

• Press the Standby button, a numeric button or Programme +/- button on the remote control
• Press the centre of the control switch inwards, located at the rear left hand side of the TV

-or-

In order to turn the TV on from standby mode:

• Press the Standby button, a numeric button on Programme +/- button on the remote control
• Press the control button on the TV

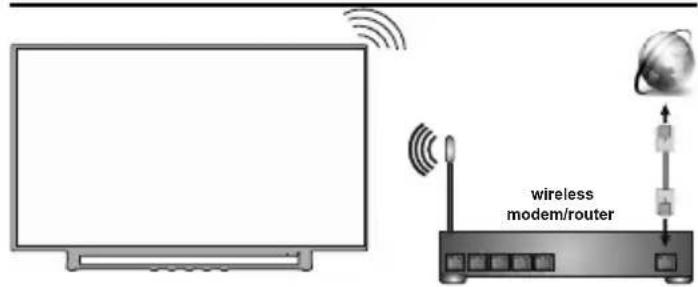

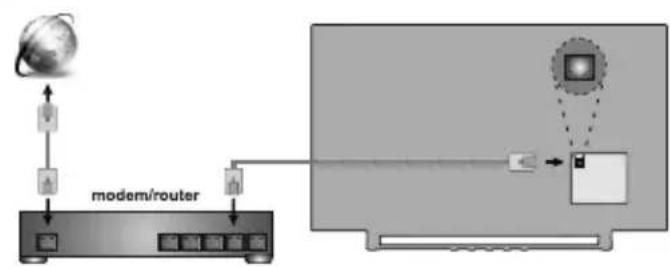

4 Internet connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection. Refer to full user manual for detailed instructions.

Wired Wireless

Note: The figures are for representation only

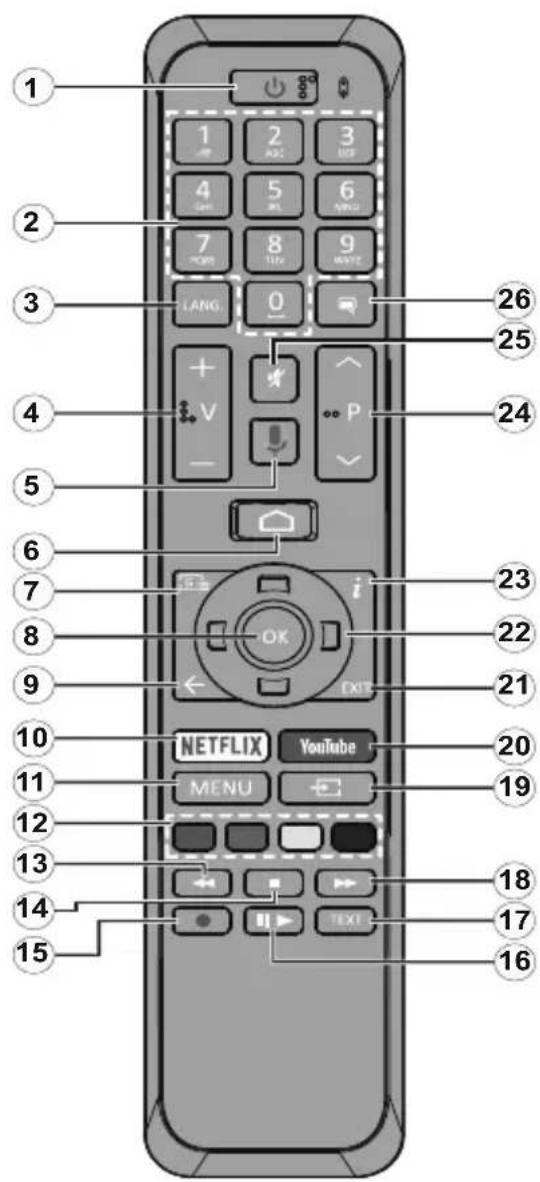

1. Standby: Quick Standby / Stanby / On
2. Numeric buttons: Switches the channel in Live TV mode, enters a number or a letter in the text box on the screen
3. Language: Switches among sound modes (analogue TV), displays and changes audio language (digital TV, where available)
4. Volume +/-
5. Microphone: Activates the microphone on the remote
6. Home: Opens the Home Screen
7. Guide: Displays the electronic programme guide in Live TV mode
8. OK: Confirms selections, enters to sub-menus, views channel list (in Live TV mode)
9. Back/Return: Returns to previous menu screen, goes one step back, closes open windows, closes teletext (in Live TV-Teletext mode)
10. Netflix: Launches the Netflix application
11. Menu: Displays Live TV Settings menu in Live TV mode
12. Coloured Buttons: Follow the on-screen instructions for coloured button functions
13. Rewind: Moves frames backwards in media such as movies
14. Stop: Stops the media being played
15. Record: Records programmes in Live TV mode**
16. Pause: Pauses the media being played, starts timeshift recording in Live TV mode** Play: Starts to play selected media
17. Text: Opens and closes teletext (where available in Live TV mode)
18. Fast forward: Moves frames forward in media such as movies
19. Source: Shows all available broadcast and content sources in Live TV mode
20. YouTube: Launches the YouTube application
21. Exit: Closes and exits from displayed Live TV Settings menus, closes the Home Screen
22. Directional buttons: Navigates menus, setting options, moves the focus or cursor etc., sets record time and displays the subpages in Live TV-Teletext mode when pressed Right or Left. Follow the on-screen instructions.
23. Info: Displays information about on-screen content
24. Programme +/-: Increases/Decreases channel number in Live TV mode
25. Mute: Completely turns off the volume of the TV
26. Subtitles: Turns subtitles on and off (where available)
    (^**) If this feature is supported by your TV.

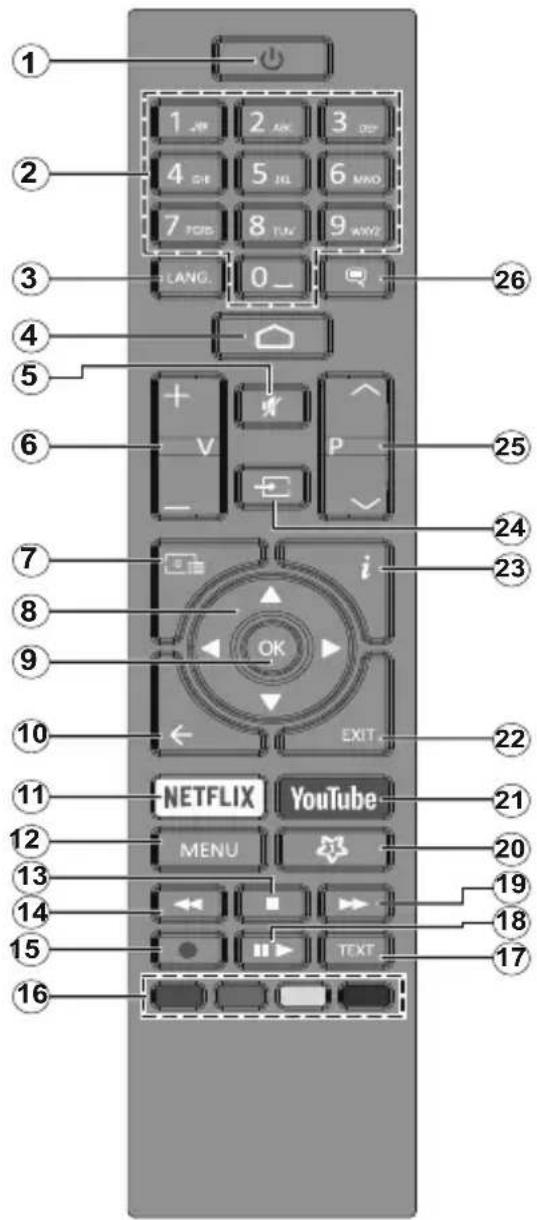

1. Standby: Quick Standby / Standby / On
2. Numeric buttons: Switches the channel in Live TV mode, enters a number or a letter in the text box on the screen
3. Language: Switches among sound modes (analogue TV), displays and changes audio language (digital TV, where available)
4. Home: Opens the Home Screen
5. Mute: Completely turns off the volume of the TV
6. Volume +/-
7. Guide: Displays the electronic programme guide in Live TV mode
8. Directional buttons: Navigates menus, setting options, moves the focus or cursor etc., sets record time and displays the subpages in Live TV-Teletext mode when pressed Right or Left. Follow the on-screen instructions.
9. OK: Confirms selections, enters sub-menus, views channel list (in Live TV mode)
10. Back/Return: Returns to previous menu screen, goes one step back, closes open windows, closes teletext (in Live TV-Teletext mode)
11. Netflix: Launches the Netflix application
12. Menu: Displays Live TV Settings menu in Live TV mode, displays available setting options such as sound and picture
13. Stop: Stops the media being played
14. Rewind: Moves frames backwards in media such as movies
15. Record: Records programmes in Live TV mode**
16. Coloured Buttons: Follow the on-screen instructions for coloured button functions
17. Text: Opens and closes teletext (where available in Live TV mode)
18. Pause: Pauses the media being played, starts timeshift recording in Live TV mode** Play: Starts to play selected media
19. Fast forward: Moves frames forward in media such as movies
20. MyButton1: Opens the picture mode setting menu on available sources
21. YouTube: Launches the YouTube application
22. Exit: Closes and exits from displayed Live TV Settings menus, closes running applications and/or the Home Screen and switches to last set source
23. Info: Displays information about on-screen content
24. Source: Shows all available broadcast and content sources, closes the Home Screen and switches to last set source
25. Programme +/-: Increases/Decreases channel number in Live TV mode
    26.Subtitles:Turns subtitles on and off (where available)
    (^**) If this feature is supported by your TV.

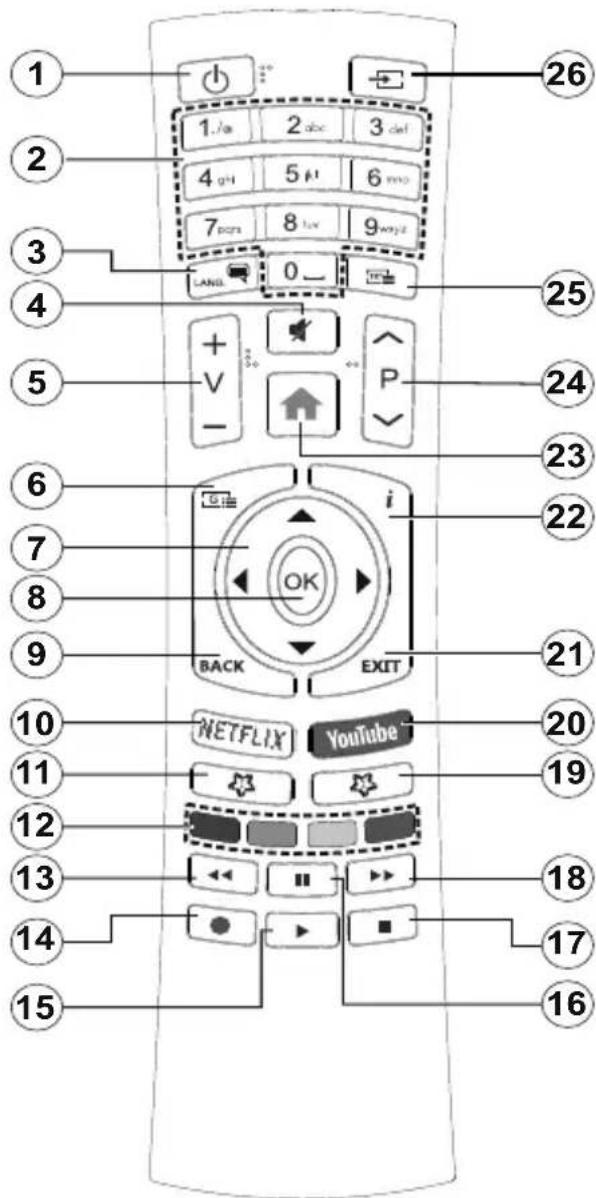

1. Standby: Quick Standby / Standby / On
2. Numeric buttons: Switches the channel in Live TV mode, enters a number or a letter in the text box on the screen
3. Language: Switches among sound modes (analogue TV), displays and changes audio language (digital TV, where available)
4. Mute: Completely turns off the volume of the TV
5. Volume +/-
6. Menu: Displays Live TV Settings menu in Live TV mode, displays available setting options such as sound and picture
7. Directional buttons: Navigates menus, setting options, moves the focus or cursor etc., sets record time and displays the subpages in Live TV-Teletext mode when pressed Right or Left. Follow the on-screen instructions.
8. OK: Confirms selections, enters sub-menus, views channel list (in Live TV mode)
9. Back/Return: Returns to previous menu screen, goes one step back, closes open windows, closes teletext (in Live TV-Teletext mode)
10. Netflix: Launches the Netflix application
11. MyButton1: Opens the picture mode setting menu on available sources
12. Coloured Buttons: Follow the on-screen instructions for coloured button functions
13. Rewind: Moves frames backwards in media such as movies
14. Record: Records programmes in Live TV mode**
15. Play/Pause button (*)
16. Play/Pause button (*)
17. Stop: Stops the media being played
18. Fast forward: Moves frames forward in media such as movies
19. Guide: Displays the electronic programme guide in Live TV mode
20. YouTube: Launches the YouTube application
21. Exit: Closes and exits from displayed Live TV Settings menus, closes running applications and/or the Home Screen and switches to last set source
22. Info: Displays information about on-screen content
23. Home: Opens the Home Screen
24. Programme +/-: Increases/Decreases channel number in Live TV mode
25. Text: Opens and closes teletext (where available in Live TV mode)
26. Source: Shows all available broadcast and content sources, closes the Home Screen and switches to last set source
    () Play - Starts to play selected media
    Pause - Pauses the media being played, starts timeshift recording in Live TV mode**
    (^*) If this feature is supported by your TV.

When turned on for the first time, a search for accessories will be performed before the initial setup starts. Follow the on-screen informations to pair your remote control and other wireless accessories with your TV. To pair your remote press and hold the Source button for about 5 seconds. Press Exit to end adding accessories and start the setup. After that welcome screen will be displayed. Select your language and press OK. Follow the on screen instructions to set your TV and install channels. The installation wizard will guide you through the setup process. You can perform initial setup anytime using the Reset option in the Settings>Device Preferences menu. You can access the Settings menu from the Home Screen or from the TV options menu in Live TV mode.

Accessories Included

Remote Control
- Batteries: 2 x AAA
Quick Start Guide
Product Fiche

Feature Overview

Multi Media Player

Browse the media content stored on USB devices that are connected to your TV or on mobile devices that are connected to the same network as your TV using the MMP app

Common Interface

Decode encrypted digital TV channels with a Conditional Access Module(CAM) and a card provided by a digital TV service operator

USB Recording\*\*

Record your favourite TV programmes

Electronic Programme Guide

Display the scheduled digital TV programmes CEC

Control basic functions of the connected HDMI-CEC compatible audio/video devices with the remote control of the TV

HbbTV

Access to HbbTV services (services are dependant on broadcast)

Apps

Access the applications installed on your TV, add more from the market

Google Cast

With the built-in Google Cast technology you can cast the content from your mobile device straight to your TV.

Voice Search (^**)

You can start a voice search using your remote's built-in microphone

Bluetooth ^® (^**)

Connect audio devices or remote controller wirelessly to your TV.

(^**) Limited Models Only

High Dynamic Range (HDR) / Hybrid Log-Gamma (HLG)

Using this feature the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. HDR/HLG promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements. It delivers the look that filmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail. HDR/HLG contents are supported via native and market applications, HDMI, USB inputs and over DVB-S broadcasts. Set the related HDMI source input as EDID 2.0 or Auto EDID from the HDMI EDID Version option in the Settings>Device Preferences>Inputs menu in order to watch HDR/HLG content, if the HDR/HLG content is received through an HDMI input. The source device should also be at least HDMI 2.0a compatible in this case.

Dolby Vision

Dolby VisionTM delivers a dramatic visual experience, astonishing brightness, exceptional contrast, and vivid colour, that brings entertainment to life. It achieves this stunning image quality by combining HDR and wide colour gamut imaging technologies. By increasing the brightness of the original signal and using a higher dynamic colour and contrast range, Dolby Vision presents amazing true-to-life images with stunning detail that other post-processing technologies in the TV aren't able to produce. Dolby Vision is supported via native and market applications, HDMI and USB inputs. Set the related HDMI source input as EDID 2.0 or Auto EDID from the HDMI EDID Version option in the Settings>Device Preferences>Inputs menu in order to watch Dolby Vision content, if the Dolby Vision content is received through an HDMI input. The source device should also be at least HDMI 2.0a compatible in this case. In the Settings>Device Preferences>Picture>Picture Mode menu two predefined picture modes will be available if Dolby Vision content is detected: Dolby Vision Bright and Dolby Vision Dark. Both allow the user to experience the content in the way the creator originally intended with different ambient lighting conditions. While watching Dolby

Vision Content via an internet streaming application you will not be able to access the Picture menu and set the Picture Mode.

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: This device is intended to be used by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.

• Use this TV set at an altitude of less than 20 meters above the sea level, in dry locations and in regions with moderate or tropical climates.
• The TV set is intended for household and similar general use but may also be used in public places.
• For ventilation purposes, leave at least 5cm of free space around the TV.
• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

• Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).

• Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
• Do not place the TV on the floor and inclined surfaces.
• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.
• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.
• Do not dispose of the batteries in fire or with hazardous or flammable materials.

WARNING

• Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
• Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

A television may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television set.
• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.
• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.
• The equipment is only suitable for mounting at heights ≤ 2m .

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator)

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

The set should be operated only from a 220-240 V AC 50 Hz outlet. Ensure that the television is not standing on the mains lead. Do not cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. It should only be replaced by a correctly rated and approved type. IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do not install the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

Figures and illustrations in this user manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may be changed without notice.

Licenses

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2020 Dolby Laboratories. All rights reserved.

Google, Android, Android TV, Chromecast, Google Play and YouTube are trademarks of Google LLC.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vestel Elektronik Sanayi ve Ticaret A.S. is under license. Other trademarks and trade names are those of their respective owners.

DVB is a registered trademark of the DVB Project.

[1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth digital content protection, which is being standardized for reception of high-definition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the television.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content.

If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

The "CI Plus" Logo is a trademark of CI Plus LLP.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Wireless LAN Transmitter Specifications

Frequency Ranges	Max Output Power
2400 - 2483,5 MHz (CH1-CH13) < 100	mW
5150 - 5250 MHz (CH36 - CH48) < 200	mW
5250 - 5350 MHz (CH52 - CH64) < 200	mW
5470 - 5725 MHz (CH100 - CH140) < 200	mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation	In-door use only
Israel	5 GHz band only for 5180 MHz - 5320 MHz range

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for 5 GHz wireless LAN's.

Disposal Information

[European Union]

These symbols indicate that the electrical and electronic equipment and the battery with this symbol should not be disposed of as general household waste at its end-of-life. Instead, the products should be handed over to the applicable collection points for the recycling of electrical and electronic equipment as well as batteries for proper treatment, recovery and recycling in accordance with your national legislation and the Directive 2012/19/EU and 2013/56/EU.

By disposing of these products correctly, you will help to conserve natural resources and will help to prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of these products.

For more information about collection points and recycling of these products, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

[Business users]

If you wish to dispose of this product, please contact your supplier and check the terms and conditions of the purchase contract.

[Other Countries outside the European Union]

These symbols are only valid in the European Union.

Contact your local authority to learn about disposal and recycling.

The product and packaging should be taken to your local collection point for recycling.

Some collection points accept products free of charge.

Note: The sign Pb below the symbol for batteries indicates that this battery contains lead.

1. Products
2. Battery

SIGNATUREMULTIMEDIAINTERFAGE

Docbnpnnoxehnra, nHCTanipaHa Baunr TeleBn3Op, do6abRe He OT mara3nHa

Google Cast

C BrpaDeHata TexHoIorna Google Cast MoKeTe Da npedabate CbDpbXaHHeTo OT MOBnHOTo CNYCTPOINCTBO HAnpaboKbM Baunr TeNeBu3Op.

ΓnacobTbpcHe\*\*

Mokete da 3anoHete rnaCobo TbpceHe, KATO n3noJ3BaTe Brpaedn MmKpOph Ha DnCTaHcNOHOTo Cn

Bluetooth ^()

BkIIOUeTe ayDNOyCTPOiCTBOTo nIN dNCTaHcNoHHOT OynpaBHeHne, 6e3 Da n3nO3BaTe BaSInr TeJIeBn3Op.

(^**) Camo 3a orpaHneH moJeH

BnCok DnHaMnueH 06XBaT (HDR) / Hybrid Log-Gamma (HLG)

C NOMOHTa Ha Ta3n FyHKUHa TeJIeBn3opa MoKe Da Ce Bb3npo3BExJa No-TOJAM DInHAMuHcN O6XbaT Ha OCBeTeHOCT, KaTo yJNaBn I CNeI TOBa KOM6HnHa HAKOLKO p3NIChn EKcNo3nU. HDR/HLG o6euaBa NO-dO6pKaueCTBO Ha KapTHaTa, 6NaIOrApEHe Na PO-RPKN I NO-peAINCTNUHn AkJeHTN, NO-peAINCTNUe HCBRT N DpyrN NOO6peHn. Toi OcnrypBa BVda, KOITo Cb3dATEtne Ha FmMa ce CTpeMrt Da NocTnHaT, NOKa3BaIKn CkPHTte Oblactn Ha TBMHNTe CeHN N CbHueBa CBETnHa C NbHa RCHota, ZBRT N DeTaN. HDR/HLG CbDpbXaHnra Tce NODbPkaTt HAP3 HA TINBn Hn PnIOXeHn, HDMI, USB BXoIDoe nnn Ype3 DVB-S n3NbYBaHn. 3aJaTe Cbbp3AHn BxOd 3a HDMI n3TochNK KaTO EDID 2.0 nnn Auto EDID ot OnuHrta HDMI EDID BepCnB MeHOTo HAcTPOKn> PpeDnoHTAnHn Ha ycTpoNCTBOTo> BxOdn DaHHn, 3a da rJeDAte HDR / HLG CbDbPkaHne, Ako CbDpbXaHneTo Ha HDR / HLG ce nOnyuaba npe3 HDMI BxoD. B To3n cnyauyycTPOINCTBOTo-N3TOUHKn Tpr6Ba Da e Hau-MaNko HDMI 2.0a CbBMecTmo.

Dolby Vision

Dolby Vision™ ocnrypba dpaMaTNUHO B3yAnHNo n3- jKIBBAHe, yINBNTeJIHa rPKoCT, HecpaBHm KOHTpact n 3aBnaIaBaU cBt, KOTo BDbXbA JNBOr. ToI NOCTra TOBa 3aWeMeTBAUO KaueCTBO Ha n3o6paKeHneTO, KaTo KOM6HnHa HDR n WnpokooXBaTHn TexHOJOrn 3a n3o6pa3BaHe Ha cBeTOB. Upe3 yBeJIuYBaHe Ha rPKocTTa Ha opunHaHNs CnHaN I n3NOJ3BaHETo Ha no-BnCOK DnHAMuYe HcBt N O6XBaT Ha KOHTpacta, Dolby Vision npedctabr 3aWemetBaUu n3o6paKeHnB peanHO BpeMe C HeBepoarTHn NOpO6HoCTn, KOTo dpyrn TEXHOJOrn 3a NoCJeDAuza o6pa6tKa B TeNEBu3opa He Morat. Dolby Vision ce NODbPka Upe3 ecTeCTBeHn I Na3apHn npInOKeHn, HDMI u USB BXoOBe. 3aDaIte CBp3aHn BxOd Ha HDMI n3ToUHK kato EDID 2.0 nnn Auto EDID ot OnuTa HDMI EDID Bercn B MeHIO To HAcTpOKn> PpeIOuHTAHn Ha ycTpoiCTBOTO> BxoDNn daHHN, 3a Da rIeIate cbDbpxkAnHeTo Ha Dolby Vision, ako cbDbpxkAnHeTo Ha Dolby Vision ce noLyuaba npe3 HDMI BXoD. B To3n cnuya YcTPOiCTBOTo-n3TOUHnk

Tp6Ba Da e Han-MAIko HDMI 2.0a CbBMeCTMIO.B MeHIO HAcTPOKn>3o6paXeHne>Pexm HaNlue Ⅲe 6bDat DBA npedBapntEnHO onpeJeHn peKIma Ha KapTHa, aKO ot Dolby Vision 6bJe OTkpNTO cbDpbXaHne: Dolby Vision Bright n Dolby Vision Dark. I DBete No3BOJRABat Ha notpe6ntela Da npexnBeec CBDbPxAHHeTO B HauHa, NO KOITo Cb3dAteJIr TnpboBOHaJAnHO e npedHa3HaueH npn pa3nUHN yCNOBna Ha ocBETHeHne. Dokato rIeDate Dolby Vision Content 4pe3 INTEpHET CTpnIMnHr npINoxHne, HMa da MoKeTe Da BnE3eTe B MeHTo Picture n Da 3aJaTepeKIM Picture.

HΦopmaun 3a 6e3oanchoct

BHHMAHNE

ONACHOCT OT TOKOB yAP HE OTBAPYI

BHIMAHNE:3A DA HAMAJNTE ONACHOCTTA OT TOKOB YJAPHE CBALJNE KANAKA (NJIN TBPBA). BbTPE HRA MAA CACTN, KONTO NOTPBEBNTEJIY T A CEPBU3INA. INPEDOCTABETE PEOHTIPAHETO HA KBAJNFUUPAHNA CEPBU3EH NEPCOHAI.

Pn loo BpeMe (6yn, rpbMOTeBnCn) n Dbltn nepnoDn 6e3 non3BaHe (3aMHabaHe B NOuVBKa), N3KNUoyTe TeJeBu3Opa ot 3axpaHbAHeto.

IeNceJbT Ha Ka6eNa ce N3NoJ3Ba 3a N3KJIIOUbaHe Ha TeNeBn3Opa OT eNEKtpnueckata MpeXa N 3aTOBa ToI Tp8Ba Da e BnHaru rOden 3a yN0Tppe6a. Ako TeNeBn3OpbT He e N3KJIIOUeH OT eNEKtpnueckata MpeXa, ToI BCE OSe Ie KOHCymipa eNEKTPoEHePnra BB BCNUKn CNTyaCm, DOpn TeNeBn3OpbT Da e B peXm Ha rotOBHOCT nIN da e N3KJIIOUeH

3a6eJekka: CnedeBaumue uHcmpykuuume Ha ekpaHa, 3a da 3adeucmbame cbombemHume yHKuuu.

BAЖHO - Моля поче TeВнмателноTe3и Инструкци пpeДа ИнсталпатeИл n3рОЛЗВaTe урEDA

PNEyIPEKJEHNE：ToBa e npedHa3NayeHo 3a ynoTpe6aOTnla（BkIOUHTeJIHOdeua），KoNTO ca cnocO6HN/IMaTOnNTaDaN3NOJ3BaTakINBa ycTpoiCTBa6e3HaD3Op，OCBeH aKOHe ca 6NJn Ha6JIIOdaBAHH Nn HnCTpyKTupAHN OTHOCHO yNoTpe6aTaHaycTPOIcTBOTOOTnue，OTROBOPHO 3a TExHATA6e3OnacHOCT.

-ИЗПОЛЗВайтTo3иТeЛeВиЗОрHa BИСочинHaHаМалкоOT2000MeTpHaNДHAДМорСКОТpaBнИSe,Ha cyxN MeCTa И paIOnHcУмЕрENIIITpOПЧeCKN KJIIMaT.
TeIeBn3OpbTe npedHa3Haueh 3a DomaknHcN n noDobHa o6ua ynoTpe6a, Ho MoKe da ce n3NoJ3Ba n Ha o6ueCTBeH MeCTa.
3a Do6pa BeHTnlaun, OCTaBeTe noHe 5 cm CBO6oJHO npocTpaHCTBO OKOTo TeJeBn3opa.
- BeHTnlaZraTa He 6nBa Da ce npeKbCba Upe3 NoCTaBHe Ha npEdMeTu KaTo BEcTHnU, NOKpNBKn, JIeKa Me6eI, nepDeTa, KJIIMM IN pOpye BbPxy IIN 6JokpaHe Ha BeHTnlaZauOHHIne OTBOpN.

He n3Iarai Te TJeBn3Opa Ha KaIKN I npbckn OT TeuHocTn H He NoCTaBraIte PpeDMeTN, PbLNH C TeuHOCTn, KATO HApPIMep Ba3N, YaShN, N T.H. Bbpxy nn Na TeJeBn3Opa (Ha npimep Ha paTOBe Ha TeJeBn3Opa).

He n3naTe TeIeBn3opa Ha npka CtBHeBa CBETnHa Nn He NoCTaBnTe OTKpNTn PnAmbU, KaTo HAnpImep 3ananeHn CBeuN, Bbpxy rOpHata Yact Ha Nn 6n3o Do TeIeBn

He nocTabRyTe n3ToUHnCn Ha TOnJnHa, KaTo HanpImep eIeKtpnueckn neuKn, paDnAtOpn np. 6JIn30 do TeJIeBn3Opa.
He noctabraIte TeIeBn3opa Ha noDa IIN BbpxHy HAKIOHEn NOBbpxHOCTN.
3a da n36erHete onacHOCTTa ot 3aDyUbaHe, DpbjXTe HauNoHOBNTe TopbNcKn Ha MeCTa, TpydnoOCTbNH 3a 6e6eta, Deua N Domaunn KINBOTNI.
BHNMaTeJIHO npIKpeIe TcOIIKaTc KbM TeJIeBUN3OpA. AKO cToIkaTa ce DoCTABc 6oNTObE, 3aTeHHeTe 6oNTOBeTe 3dpaBO, 3a da npedna3nTe TneBUN3Opa OT naJaHe. He npe3aTgAitE 6oNTOBeTe mOHTnpaIte npabINHO rymEnTe NOJIOKKn.
- He n3xBbpyraTe 6aTeepnTe B orbH nIIN 3aeDHO C onaCHN 3anaJIIMM MaTepeNaII.

BHHMAHNE

• BaTePnIte He Tp6Ba Da ce n3Iarat Ha npEkoMePha ToJIHa, KaTo CJIbHcEBA CBeTJIHa, OrBn I pyrN noO6Hn.
• -преекомерно 3BykoBO HaЯгане OT Сушалкite може дл пчини загьа на суха.

PPEIN BCNUKO - HNKORA He no3BOJBAuTe Ha HNKoro, ocObeHo Ha deca, da HATNCKaT NIn ydpT ekpaHa, da NOCTABT PpeDMeTN BdyKNITE, cNOTOBete NN OTBOPHTe Ha KyTnTA.

MapknpoBKn Bbpxny npOdykTa

CJIeHNHe CnMBOJN Ce n3noJ3BaT Bbpxy npOdykTa KaTo MapKeP 3a OrpaHnueHn I npEJa3Hn MepKn N yKa3aHnra 3a 6e3oNaChocT. BcAko oBcSHeHne Tp8Ba Da ce B3eMe npEdBnD cAmO TaM, KbTeTO Bbpxy npOdykTa nMa cBoTBeTHaTa mApKnPoBka. B3emTe Ta3n INΦOpMaunr npEdBnD OT cbo6paXeHn 3a CNrpyHOCT.

ObopydBahe Knac II:To3n ypeJe npoeKtupan no TaKbB NaunH,Ye da He n3NCKBa npedna3Ha Bpb3Ka KbM 3a

6e30nachocK bM eJektpueckcTo 3a3emBaHe.

Опасен Термнани на Хиво: Маркupaнг(Te) ИЗВOD(n) e/ca onaceH(n) Фаз(a)(n) пи Нормални условnia Ha ekспноацURA.

BHHMaHHe, BHXTe HNCTpyKcunnte 3a yNoTpe6a: MapknpaHaTa(nte) 3oHa(n) cbDbpxka(T) batepn c opMaTa Ha konue/

KJTeTka, KOnTO NOTpeBnTeJIaT MoKe Da 3aMeHra.

Ja3epen npo4yKT Klac 1:To3n npo4yKT cblbpka Ja3epen n3TOUHnik Klac 1, KOITo e 6e30aee npi HopMaJIHN ycIOBna Ha ynoTpe6a.

PPEyPPEXDEHNE

He bIaTe 6aTeepnTa, cIeCTByBa onaCHOcOT XIMNuecko n3raprHe

To3 npOdyKT, nIb BkIIOUeHNe B O6ema Ha DoCTaBkaTa My akcecoapn, Morat Da CbIbpxKAT 6atepna TnT Ta6JETKa/6yTOH. Ako 6atepnaTa 6bJe NOrbJIHaT, TOBa MoKe Da ppeN3BnKa TeKKn BbTpEshn N3rApAHHa B paMKInTe Ha 2 Yaca n MoKe Da DoBeDe Do CMBpt.

Ia3eTe HOBInTe I yNtpe6BaHInTe 6aTePm nn daJeue o deua.

Ako OTdeneHneTo 3a 6atepnaTHe ce 3aTBapra Do6pe, cnpTe Da n3noJ3BaTe npOdykTa I ro DpbKTe daanee ot deca.

Ako Mucnnte, ye cTe nOrbHnHaBn 6aTepeHnTe nn CTe rN NOCTabuIN, KbDeTo I Da 6Ino B TAnOTo CN, NtbpCte He3a6abHO MeunHnHcKa NOMou.

---

TeneBn3OpbT MoKe Da NaHe N Da npuHn CepNo3Hn HapaHraBaHn nn CmBpT. MHOr HapaHraBaHn, Oc06eHo npn DeaTa, MoRat Da 6bDat N36erHaTn C B3ImaHe Ha npocTn PpeDna3Hn MepKn, KATO Hanp.;

BINHAN n3noJ3BaIte 8kaΦOBe nn CToKn nn MeToOn 3a MOHTax, npenOpbuaHH OT npOn3BOJTeJI Ha TeJeBu3Opa.
BUNHAFN u3noJ3BaIte Me6eNi, KOnTO cNoKoHOMorat Da noDdbPkaT TeJeBu3opa.
BINHANCe yBepTe,Ye TeIeBn3OpbT He HaDbNCBa p6aHa Hocceata Me6en.
BINHAGn obyabaTe deaTa 3a onacHocnte OT KaTepeHEno Mo6en, 3a Da DoCTurHaT Do TeNeBu3Opa IIN KOHTPOJNTe My.
BINHAGN Cbbp3BaIte MappTyHn IpyrKa6eJN KbMaBaaTneBtOp, Taka Ye Da He MoaT Da Ce CnBbAT, N3dbpNBaNTnn XBaUaT.
- HNKORA He nocTaBnTe TeIeBn3Opa Ha HeCTa6nHa OCHOBa.
- HNKOΓA He NOCTABYIe TeIeBn3Opa Bbpxy BucOKMe6eJI (Hanp. ⅢkaΦObe IIN 6u6JInoTeKn), 6e3 da CTe3aXBaHaII NHeIOBnKHO Camnte Me6eJI IN CTouKaTaHa TeIeBn3Opa.
- HNKORA He nocTabaIte TeneBn3opa Bbpxy nlaTnIn DpyrMaTepeNaJIN, NoCTaBeHm Mekdy TeneBn3opa m6eJInte, KOnTO cIyKaT 3a HerOba Onopa.
- HNKOFA He noctabraTe IpedmETn, KOtO 6nxMa MoJIn Da n3kyuata DecaTa da ce KaTepeT, KaTo ngpaKn NDCtAHcUNOHNo ynpaBJeHne, Bbpy rOpHaTa YacT Ha TeNeBn30pa nn Me6eJIte, Bbpy KOnTO e NoCTaBeH TeNeBn3OpbT.
- O6OpyDBAHHeTo e noDxOJaIcMo 3a MoHTax Ha BnCOuHa ≤ 2 M.

Ako cBuecTBByBaunrTeIeBn3Op 6bde 3ana3EH npemeCTen, Tpa6Ba Da ce npunaRaT cbuTe cbo6paxHn KaTO no-rope.

Upei, KOITo e Cbbp3aH CbC 3aUnTHOTo 3aEMBaHe Ha crpaHaTaNCTaJauJype3 Ka6JIHa BpB3ka NnI ppe3 dpyr ypei, IMaAu 3aUnTHO 3aEMeBAHe , KaKTo i KbM TeJeBn3IOHHa pa3npedeJya CnCTeMa, n3NoJ3BaJca KoAKcnaJen Ka6e, MoKe B HnKo Cnyan Da Cb3daJe onaCHOCT OT noXap. Cbbp3BaHTo KbM CNCTeMa 3a TeJeBn3NcIeOBATeJHO Tpr6Ba Da ce OcnYpru Ype3 ycTPOIcTB0, KoEt OcnYprBa eEnKTPnuecka N3OJaJn IOd ONpeDeneH YecTOteH DnAna3OH (raJIbaHnueH n3OJaTOP).

Bb3MOxHO e n3nOJ3BaHeTo Ha cneuHaHInTe fynKU 3a npomHa pa3Mepa Ha n3BeXdaHn Ha ekpan o6pa3 (T.e. npomHa Ha cboTHoWeHnETo BnCOunHa/ unpHa) 3a ceNtHe Ha npoxeKTnpaHe nped ny6nka nn TbPROBcKO pa3npocTpAneHne da DoBeDe do HapuShaBaHe Ha aBTOpCKn Nn CpOHN ppBa.

Диспente c Teuн Крисалу ca npoиЗveDEHуpe3 Bucoko npeuzha texhoIorna. Bbnpekn ToBa,NOHAKORA B HЯКо уacTbUHa Ha DnCpIeMORaT daJINCBaT qactn OT KapTuHHaTa NJI NbK Da ce NOBByCTBeTIn NeHa.Toba He e npu3HaK Ha DeΦeKT.

AnapaTbT Tp6Ba Da pa60Tu cMo C HanpeXeHne 220-240V AC n YecToTA Ha ToKa 50Hz. YBepTe ce, ye TeIeBn3OpbT He e NocTaBeH Bbpxy 3axpaHbAunia Ka6en. HE maxaIte Ka6enHna Uencen ot ypeDa, Toi CbIbPjka paIIO-nHTepFepeHTen FmITbp, Be3 KOto ypeDbT Hma Da pa60Tu npabInHo. Tp6Ba Da ce 3aMeHn C TnK a6en Cbc CbOTBeTHoN Odo6peHo HOMHaJIHO HanpeXeHne. AKO HE CTE CNYPHN, CBbPXETE CE C BAJIA EJEKTPOTEXHIK.

ИНСТРУКЦИ 3A MOHTИРАЕ HA CTEHA

• Пюочетete Инстукципte, пpeи дa моHTираTe TeJIeBn3Opa Ha CTeHata.
  KOMnIeKtBt 3a MOHTax Ha CTeHa He e 3aDbIxKnteJen. MoXeTe Da ro 3akynite ot MecTHNIAINbP, Tb Kato He E BKNIOueH B OBeMa Ha DoCTaBka Ha TeNeBu3Opa.
• He MONTpaIte TeJeBn3opa Ha TaBaHa IJIN Ha HAKNoHeHa CTeHa.
• I3noI3BaIte cneuIaIIHITe 6oIIOBe 3a MoHTaK Ha CTeHaTa, KaKTo N dpyrIte akcecoapn.
  3aterheTe 3pabo6oNTOBete 3a MOHTax Ha cteHata, 3a Da npedna3nte TeIeBn3opa ot naDaHe. He npe3atraTe 6oTobete.

Φnrgypte n nIIOCTpaunTe B TOBa pIbKOBOcTBO 3a ekCnloataqna ca cAmO 3a cnpaBka N MoRat Da ce pa3nUaBAT OT DeIcTBNTeHNr Bn Ha npOdykTa. IIn3aHbT n CneuNfKaunTe Ha npOdykTa Morat Da 6bDat npOMeHn H63 npEdu3BeCTne.

IinueH3n

TepMNHTe HDMI n HDMI High-Definition Multimedia Interface, Ioroto ha HDMI n High-Definition Multimedia Interface ca TbproBcKn MapKn nn peRncTpnpaHn TbproBcKn MapKn Ha HDMI Licensing Administrator, Inc. B CbeDInHeHtE 7aTn n B dpYr n cTpaHn.

Dolby, Dolby Vision, Doly Audio, Inc. CBMOBbT C BoHa D ca TbproBcKn MapKn Ha Dolby Laboratories. Licensing Corporation. Ppoun3BeDen no NmceH3 Ha Dolby Laboratories. NobepuTeHNn Heny6nkyBaHn npoun3BeDenn. Copyright © 1992-2020 Dolby Laboratories. Bcnckn npaba 3ana3eHn.

Dolby Vision

Dolby Audio

Google, Android, Android TV, Chromecast, Google Play and YouTube ca TBproBckn Mapk n Ha Google LLC. 3a DTS nateHTnte BuxTe http://patents.dts.com. Ipon3BeDen noJnueH3a Ha DTS Licensing Limited. DTS, CmBOJbT, DTS n CmBOJbT 3aeDnO, DTS-HD n Noroto DTS-HD ca pernctpupaH TbproBckn Mapk n nn TBproBckn MapKn Ha DTS, Inc. B CbeDInHeHnte uatn / nn npytn cTpaHn. © DTS, Inc. BcnKn npaba 3ana3eHn.

dtshD

CnoBhata Mapka n IoroTnInTe Bluetooth® ca pernctpnpaHn TbproBckn MapKn, co6ctBeHoCT Ha Bluetooth SIG, Inc. n BcraKO n3non3BaHe ha TaknBa MapKn ot Vestel Elektronik Sanayi ve Ticaret A.S. e no liueH3. Dpyr n TbproBckn MapKn n TbproBCKn HAnMeHOBAHn Ca Te3n Ha CbOTBeTHInTe NM Co6CTBeHnU.

DVB e pernctpupaHa TbproBcKa Mapka Ha DVB Project.

[1] EIA/CEA-861-D cneuФиkaunTa obXbaa npedabaHe Ha HeKOMnpescnPaHO uPpOBO BnDeo C c uPpOBA 3aUHTa Ha YeCTOTHaT a JeHTo KoT o c TaHdApTN3PpAHa 3a npEMaHe Ha BnDeo CnHann C BnCoka pa3dIeNTHa cnOCobocT. Tb' KaTO ToBa e pa3BnBaUca Ce TEXHOJOrN, Bb3MOxHo e HЯKOn yCTpoiCTBa Da He pa6OTr Do6pe C TeNeBn3Opa.

To3n npOdyKT cbDbPjka TexHOnIOrn, 06eKt Ha onpeDeJIeHN npaba Ha nHTeJIeKTyaIIHaTc CO6CTBeHOCT Ha Microsoft. N3noJ3BaHeTO nn pa3npocTpaeHHeNo Ta3n TexHOnIOrn n3BbH To3n npOdyKT e 3a6paHeHa 6e3 cBoTBetTHN(Te) liueH3(u) ot Microsoft.

Co6CTBHeHnCHTe Ha CbDbPxHaHne H3NoJ3BaT Microsoft PlayReadyTM TexHoNOrnTa 3a DoCTbN Do CbDbPxAHHe, 3a Da 3aUnTAT INTEKeKTyAnHaT aCn Co6CTBeHOCT, BKNIOUHTeJIHO CbDbPxAHne 3a ABTOpCKOTO npABO. ToBA yCTpoiCTBO N3NOJ3Ba PlayReady TexHoNOrn 3a DoCTbN Do PlayReady-3aunTeHO CbDbPxAHne n/nn WMDRM-3aunTeHO CbDbPxAHne. Ako yCTpoiCTBOTO He ycnee da npINLOXn PpaBNHO ORpaHNueHnra TBApxy N3NOJ3BaHeto Ha CbDbPxAHne, Co6CTBHeHnCtHe Ha CbDbPxAHneTO MoRat Da n3NcKaT OT Microsoft Da npemaxHe Bb3MOXHOCTTA Ha yCTpoiCTBOTO

da n3no13Ba PlayReady-3aunTeHO cbdbpXaHne. OTMnHaTHe Tpr6Ba Da 3acra He3aunTeHO cbdbpXaHne nn CbDbPxaHne, 3aunTeHO OT dpyrtn TexHoIOnrnn 3a DoCTbn Do cbDbPxaHne. Co6ctBeHnUte Ha cbDbPxaHne Morat Da n3NCKBaT ot Bac da aKtyaInn3npate PlayReady 3a DoCTbn Do TxAHOTo CbDbPxaHne.AKO OTkaxeTe Da HnPaBnTe aKtyaInn3auJrTa, HMa Da nOlyuHtE DoCTbn Do cbDbPxaHne, KOETO N3NCKBa aKtyaInn3auJrTa.

Joroto "CI Plus" e TbproBcKa Mapka Ha CI Plus LLP.

To3n npOdyKT e 3aunTeH OT onpeJeHn npBaHa nHTeJIekTyajHn Ha c6cTBHeoCT Ha MicrosoftCorporation. N3noJ3BaHeTo nn pa3npocTpaHeHneToHa TaKINb TExHOJOrnN n3BbH To3n npOdyKT e3a6paHeNo 6e3 JnueH3 OT Microsoft nn OToPn3npanOT Microsoft dbuepHo dpyxecTBO.

CneuФикauи Ha 6e3xuHnA LAN TpaHcMntep

Чектоchnу спektыри	Мakс. ИсторICAL MOULTHOCT
2400 - 2483,5 MHz (CH1-CH13) < 100 mW
5150 - 5250 MHz (CH36 - CH48) < 200 mW
5250 - 5350 MHz (CH52 - CH64) < 200 mW
5470 - 5725 MHz (CH100 - CH140) < 200 mW

ДьркавиOrpaHnueHn

ToBa yCtpoiCTBO e npEHa3HaueHo 3a DoMaUHa n oOfnc yNtpe6a BbB BCnKn DbPkaBn OT EC (uB dpyrn DbPkaBN B pe3yIITat Ha cBoTBeTHaT DaIpeKTNaBa Ha EC) 6e3 HnKaBO orpaHnueHne, C n3KnUoyHne Ha DbPkaBNTe, NocOueHn No-DoNY.

CLASS1 LASER PRODUCT

Laserski proizvod klase 1: Ovaj proizvod sadrži laserski izvor Klase 1 koji je siguran u razumno previdljivim uvjetima funkcioniranja.

UPOZORENJE

Nemojte gutati bateriju, opasnost od kemijsikh opekotina

Ovaj proizvod ili dodatna oprema isporučena uz ovaj proizvod mogu da sadrže dugmasti bateriju. Ukoliko se baterija proguta, moze dovesti do teške unutrasnje opekotine u samo 2 sata i moze dovesti do smrti. Držite stare i nove baterije dalje od djece. Ako se odjeljak baterije ne zatvara dobro, prekinuti upotrebu proizvoda i držati ga dalje od djece.
