Product type	Full-suspension bike (Cross-country MTB)
Brand	Trek
Model	Supercaliber
Frame material	Carbon
Suspension	Front and rear suspension
Seatpost	Bontrager Drop Line dropper post
Seatpost diameter	31.6 mm (standard estimate)
Approximate weight	10.5 kg
Actuation	Mechanical (cable and housing)
Main function	Quick lowering and raising of the saddle while riding
Routine maintenance	Clean the seatpost before each ride with a soft cloth and water
Monthly maintenance	Check cable and housing, tighten screws
Lubrication	Once a year: grease on metal post, no lubricant on carbon post
Safety	Do not disassemble the cartridge; extend only while seated
Available spare parts	Cable, housing, remote lever, cartridge (via dealer)
Warranty	Manufacturer's warranty (see bontrager.com)
User manual	Available at trekbikes.com/manuals

Frequently Asked Questions - Supercaliber TREK

How to lower the saddle of the dropper post?

Sit on the saddle, press the remote lever and hold it down. Once the desired height is reached, release the lever.

How to raise the saddle?

Stay seated, push on the pedals to reduce weight on the saddle, press and hold the lever. The saddle rises; release the lever at the desired height.

Can I disassemble the seatpost myself?

No, disassembly must only be performed by an authorized dealer. The cartridge spring is under pressure and sudden release could damage the post or cause injury.

When should the seatpost be extended?

Extension (raising) should only be done while seated on the saddle. The extension is fast and forceful; without the rider's weight, it could cause a slap or pinch.

How to clean the seatpost?

Before each ride, clean the post with a soft cloth and a little water. If necessary, add a bike cleaner or light degreaser, tilting the bike to prevent the product from entering the seal.

How often should the cable and housing be checked?

Once a month, check that the cable slides smoothly in the housing and that the housing has no kinks, cracks, or worn areas. Replace if necessary.

Should the seatpost be greased?

Do not grease the moving parts of the post. Once a year, grease the part of the post inside the frame if the frame is metal. For a carbon frame, clean and dry without lubricant.

What is the torque for the seatpost collar?

The main collar should be hand-tightened, but the collar bolt should be torqued to the specification in the owner's manual. Do not exceed 6.7 Nm for the dropper post.

How to install the remote lever?

Install the lever on the handlebar (usually left side, after the brake lever). Tighten the collar bolt to torque: 4 Nm for aluminum handlebars, 3 Nm for carbon.

Where to find the complete bike manual?

The Owner's Manual is available at trekbikes.com/manuals. The seatpost instructions are included in the Supercaliber bike manual.

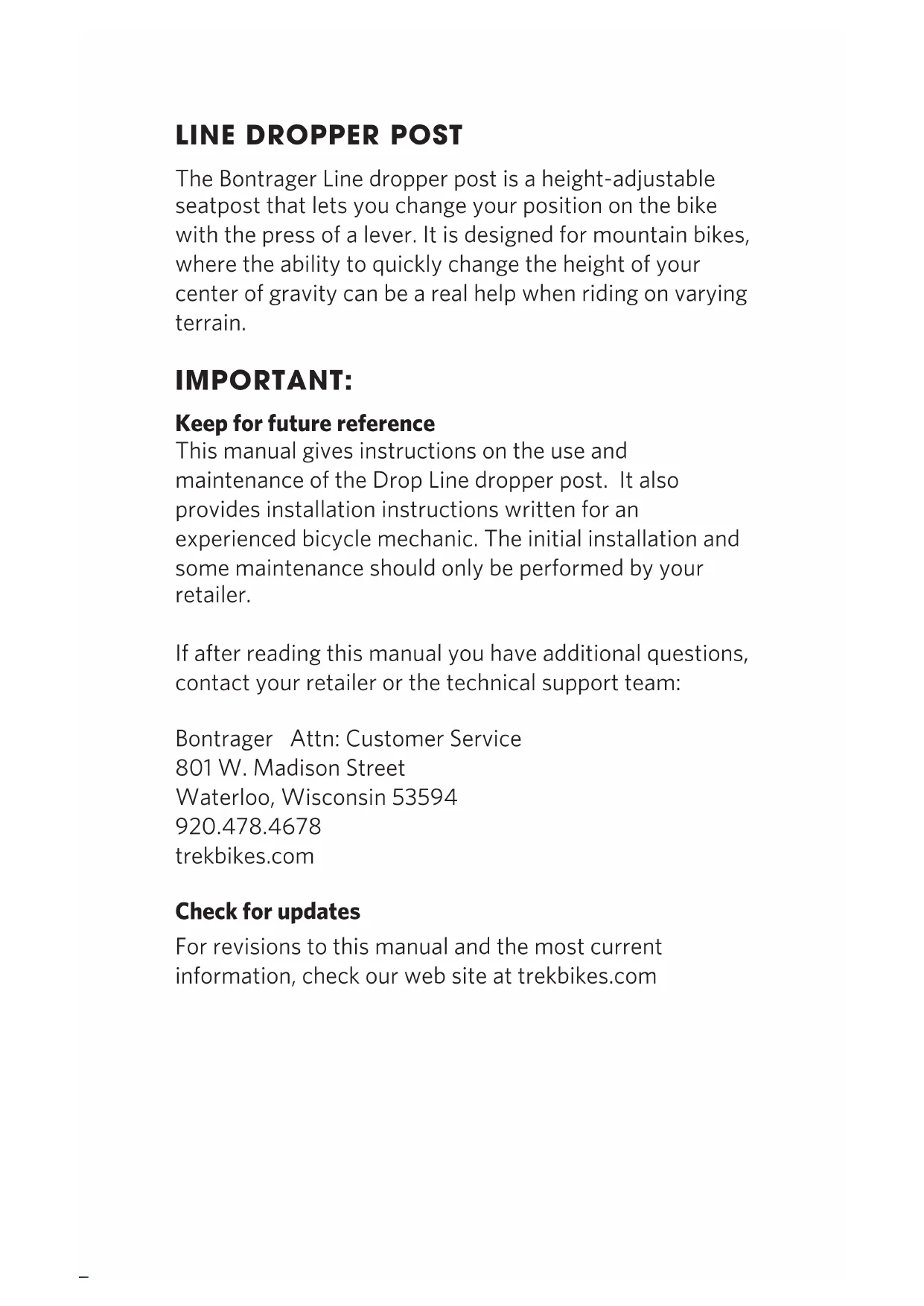

USER MANUAL Supercaliber TREK

The Bontrager Line dropper post is a height-adjustable seatpost that lets you change your position on the bike with the press of a lever. It is designed for mountain bikes, where the ability to quickly change the height of your center of gravity can be a real help when riding on varying terrain.

IMPORTANT:

Keep for future reference

This manual gives instructions on the use and maintenance of the Drop Line dropper post. It also provides installation instructions written for an experienced bicycle mechanic. The initial installation and some maintenance should only be performed by your retailer.

If after reading this manual you have additional questions, contact your retailer or the technical support team:

Bontrager Attn: Customer Service

801 W. Madison Street

Waterloo, Wisconsin 53594

920.478.4678

trekbikes.com

Check for updates

For revisions to this manual and the most current information, check our web site at trekbikes.com

BE SAFE

A bicycle can be fun when used for transportation, recreation, exercise, or competition. However, a bicycle can also be dangerous, for example, if you try to ride beyond the limits of your bicycle or the limits of your ability. This manual does not provide all the safety information needed for a person riding a bicycle. Please read the safety information in your bicycle owner's manual before using this seatpost. If you do not have a bicycle owner's manual, visit trekbikes.com/manuals

Meaning of safety signs and language

In this manual the Safety Alert symbol, a triangle with an exclamation mark, shows a hazardous situation which, if not avoided, could cause injury.

'WARNING' indicates the possibility of serious or death.

USING THE SEAT POST

Before you ride fast or in difficult conditions, learn the operation and performance of your Drop Line seatpost. Practice at slower speeds in a flat, empty parking area.

General safety information

Do not disassemble the seatpost. Only your retailer should do this. The cartridge spring is under pressure. A sudden release of pressure could damage the post or cause injury. See the note that follows.

Do not release the spring (extend the seatpost) unless you are sitting on the saddle. The seatpost extends quickly and strongly, which could punch or pinch someone if the seatpost extends without the control of your weight on the saddle.

NOTE

Lifting or hanging the bike by the saddle should ONLY be done with the dropper post in the fully extended position. Always leave the post fully extended when shipping, storing or traveling. Performing any of these actions with the post compressed could cause damage.

To lower the saddle

1. Sit on the saddle.
2. Press and hold the remote lever.
3. When the saddle is at the desired height, release the lever.

To raise the saddle

1. Sit on the saddle, but lightly.

2. Press and hold the remote lever.

3. Lift off the saddle.

The saddle height increases.

1. When the saddle is at the desired height, release the lever.

MAINTAINING THE SEAT POST

Before every ride

Clean the seatpost with a soft cloth and water. If this does not remove debris, try a bicycle cleaner or a small amount of degreaser. When using a cleaner or degreaser, lay the bike flat or place it upside down to prevent degreaser from contacting and entering the seal. Never use an abrasive cleaner.

Check the main collar on post for tightness. It should be as tight as possible with bare hands.

Once a month

Inspect the cable and housing. The cable should move smoothly in the housing, and the housing should have no kinks, cracks, or worn spots. If there is a problem with the cable or housing, replace them.

Check the seatpost bolts for tightness.

• Tighten the seatpost clamp bolt to the specifications in the bicycle owner's manual.
• Tighten the saddle clamp bolts to manufactures specifications.

LUBRICATION

Do not lubricate the moving parts of the seatpost. If the seatpost operation seems sticky, follow the cleaning instructions in Maintaining the Seatpost.

Once a year, apply lubricant to the part of the seatpost inside the bike frame. Use the procedure for your frame and seatpost materials:

For a metal frame

1. Loosen the seatpost binder bolt and remove the seatpost from the frame.
2. Clean the used grease off the seatpost.
3. Apply a thin layer of grease to the section of the seatpost that will be in the frame.
4. Put the seatpost into the frame.
5. Adjust the saddle to the correct height and align it. Tighten the seatpost binder bolt.

For a carbon composite frame

1. Loosen the seatpost binder bolt and remove the seatpost from the frame.
2. Clean the seatpost and the inner surface of the seat tube with a soft cloth and clean water.
3. Let the seatpost dry. Then put it into the frame.
4. Adjust the saddle to the correct height and align it. Tighten the seatpost binder bolt.

WARNING: Incorrect mechanical work can make your bicycle unsafe. Read your bicycle owner's manual for more information, or consult your retailer.

INSTALLING THE SEAT POST

This section explains how to install the Line dropper post. These instructions are written for an experienced bicycle mechanic at an authorized retailer.

Bike requirements

The cable from the remote lever to the seatpost travels inside the seat tube of the bike frame. To function, the bike frame must have an opening for the cable to exit the frame. If the frame does not have an opening for the cable, this seatpost is incompatible. DO NOT modify the frame.

Before you begin the installation, make sure the diameter of the Drop Line seatpost correctly fits the frame. Over tightening seat binder can affect post performance. Do not exceed 6.7 N-m torque.

Contents of package

• Line dropper post
• Cable housing (shift type), 150cm, with two housing end caps
• Remote lever
• Shift cable, 1600mm

NOTE: Optional universal lever (available separately)

Tools required

• Measuring device (tape measure)
• 2.5mm hex wrench
• 4mm hex wrench
• Torque wrench
• Tool for seatpost clamp bolt
• SIS-type housing cutters/cable cutters
• Bicycle cable lube or light oil

INSTALLING THE REMOTE LEVER

1. Remove the grip and lever(s) from one side of the handlebar.

NOTE

Most riders prefer the lever on the left side of the handlebar, just inboard from the brake lever.

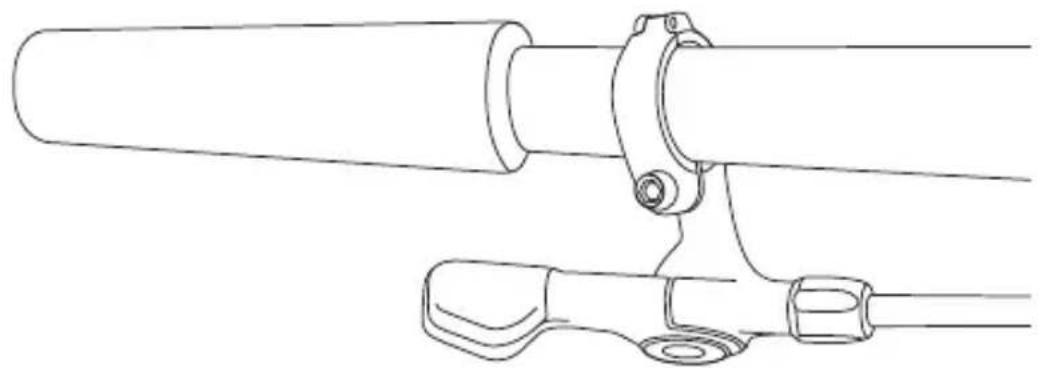

1. Place the lever on the handlebar. Tighten the clamp bolt according to the handlebar material:

2. Aluminum: 4 Nm

3. Carbon composite: 3 Nm

4. Re-install the parts you removed in Step 1.

Technical line drawing of a mechanical assembly with two cylindrical components and a base mount (no text or symbols)

Line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Also works with Bontrager Universal lever

INSTALLING THE SEATPOST AND HOUSING

1. Remove the old seatpost, and determine the position of the new one.

NOTE

Make sure the minimum-insertion mark on the seatpost cannot be seen above the bicycle frame.

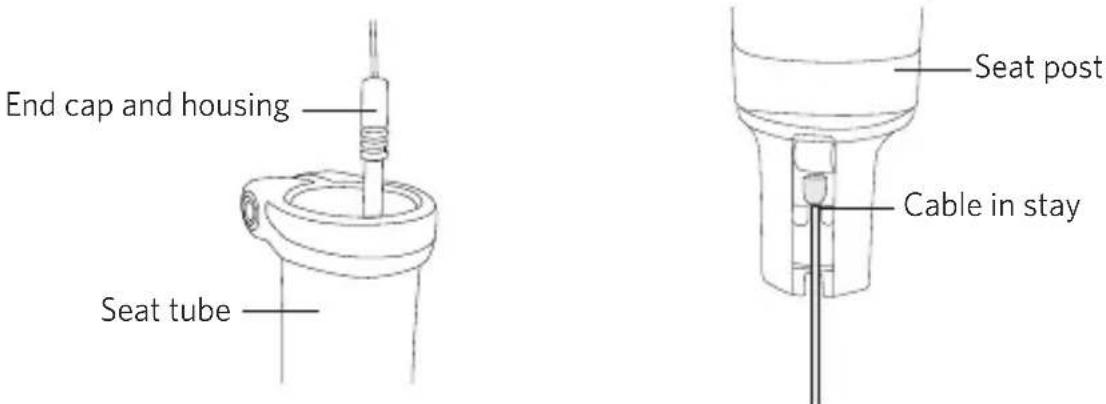

1. Pass the housing through the frame.
2. At the seat tube, attach an end cap on the housing.
3. Pass the cable through the end cap and housing.

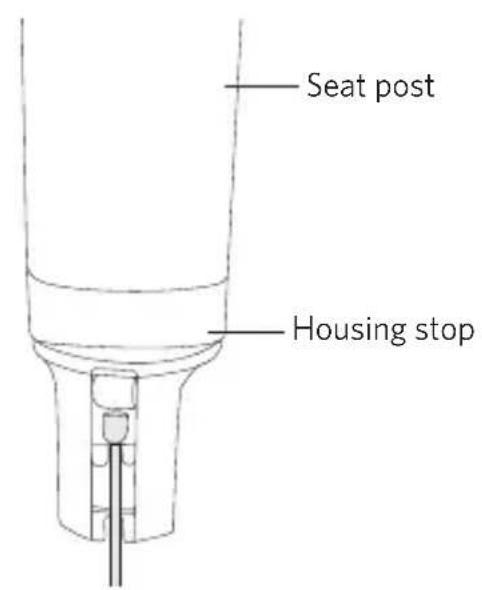

4. Attach the cable head to the bottom of the seatpost, and seat the housing in its stop.
5. Insert the seatpost into the frame to the position determined in Step 1.
6. Determine the length of the housing. At the lever, mark the spot to cut the housing.

NOTE

Make sure the housing will not interfere with any other bike part and that the housing will not get caught on any bike part when rotating the handlebar.

1. Remove the seatpost and retract the cable so that it does not go past the cut mark on the housing.

2. Cut the housing and install the other end cap.

INSTALLING THE CABLE

1. Slide the cable back through the housing, and install the seatpost again.

TIP

For a metal frame, apply a thin layer of grease to the section of the seatpost that will be in the frame. For a carbon composite frame, wipe the seatpost and the inside of the seat tube with a clean cloth. Do not apply lubricant.

1. Pass the cable through the remote lever.
2. Place the lever in the position where the cable will be its shortest, pull the cable taut, and tighten the set screw so that the cable cannot slip.
3. Cut the cable so that there is no more than 1.5mm of cable extending past the cable clamp.

Line drawing of a mechanical clamp or lever assembly (no text or symbols)

NOTE

The cable clamp fulfills the function of a cable end cap, so no cable end cap is necessary.

1. If needed, secure the housing to the frame.
2. Turn the barrel adjuster to remove all slack.

INSTALLING THE SADDLE

1. Place the flat section of the saddle rails in the saddle clamp. The clamp must remain completely on the flat section of the rails.
2. Tighten the saddle clamp bolts to manufactures specifications.

WARNING: An incorrectly positioned seatpost or incorrect clamp design can break the saddle rails or the saddle-clamp bolt, and cause you to fall. Only clamp the flat portion of the rails of a correctly fitted saddle in the saddle-clamp.

FINISHING UP

1. Check the operation of the seatpost (see Using the seatpost).

WARRANTY

The Bontrager Drop Line dropper post is covered by a warranty. For details, visit www.bontrager.com

TIJA TELESCÓPICA LINE

Technical line drawing of a mechanical assembly with two cylindrical components and a base mount (no text or symbols)

Line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

NOTA

Technical line drawing of a mechanical assembly with two cylindrical components and a base mount (no text or symbols)

Line drawing of a mechanical clamp or bracket (no text or symbols)

Line drawing of a mechanical clamp or tool with two parallel rods (no text or symbols)

REMARQUE

Bontrager Attn: Customer Service 801 W. Madison Street Waterloo, Wisconsin 53594 920.478.4678 www.trekbikes.com

Technical line drawing of a mechanical assembly with two cylindrical components and a base mount (no text or symbols)

Line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Line drawing of a mechanical clamp or tool assembly (no text or symbols)

HINWEIS

This is the manual for your Bontrager Drop Line seat post. Check for updates at trekbikes.com.
