USER MANUAL WGen10500TFc WESTINGHOUSE

DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571. USER MANUAL2 | English

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment. DANGER Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death. UPDATES The latest User Manual for your Westinghouse products can be found under our support tab. wpowereq.com/pages/manuals Or scan the following QR code with your smartphone camera to be directed to the link. PRODUCT REGISTRATION For trouble-free warranty coverage, it is important to register your Westinghouse product. You can register by: lCompleting and mailing the product registration card included in the carton. lRegistering your product on-line at: wpowereq.com/ pages/warranty-registration lScanning the above QR code with your smartphone camera to be directed to the mobile registration link. For Your Records Date of Purchase: Model Number: Serial Number: Place of Purchase: lSending the following product information to: Westinghouse Outdoor Power Warranty registration 777 Manor Park Drive Columbus, OH 43228 IMPORTANT: Keep your purchase receipt for trouble- free warranty coverage.English | 3 INTRODUCTION SPECIFICATIONS AC Voltage........................................................120V/240V Power (Running)..... 10500W (Gasoline), 9500 (Propane), 8500 (Natural Gas) Power (Peak) ........ 13000W (Gasoline), 12000 (Propane), 10000 (Natural Gas) AC Current......................................87.5/43.8A (Gasoline), 79.2/39.6A (Propane), 70.8/35.4A (Natural Gas) DC Voltage ....................................................................5V DC Current ............................................................. 2x2.1A Frequency.................................................................60 Hz Phase ...................................................................... Single RPM ........................................................................... 3600 Power Factor ................................................................ 1.0 Insulation Class ...............................................................H Maximum Ambient Temperature ....................104°F (40°C) Fuel Type .................... Unleaded gasoline (87–93 Octane) Do not use E15 or E85 fuel in this product. Fuel Capacity.................................... 9.5 gallons (36 liters) Oil Capacity .....................................1.26 quarts (1.2 liters) Oil Type .........................................................SAE 10W-30 Spark Plug .................................................................F7TC Spark Plug Gap .................................... 0.03 in. (0.70 mm) Valve Intake Clearance ........................0.0031 – 0.0047 in. (0.08 – 0.12 mm) Valve Exhaust Clearance ....................0.0051 – 0.0067 in. (0.13 – 0.17 mm) AC Grounding System .............................Bonded to frame NOTICE The effect of altitude on horsepower will be greater if no carburetor modication is made. A decrease in engine horsepower will decrease the power output of the generator. Contact our service team to order altitude kits. NOTICE Thank you for choosing Westinghouse! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON. If you have a question or experience a problem with your Westinghouse purchase, call us at 1-855-944-3571 to speak with an agent. SAVE THIS MANUAL FOR FUTURE REFERENCE. NOTICE This product is designed and rated for continuous operation at ambient temperatures betweem 23°F (-5°C) and 104°F (40°C). If needed, this product can be operated in extremely hot or extremely cold temperatures for short periods. If the product is exposed to extreme temperatures during storage, it should be brought back within the optimal temperature range before operation. This product must always be operated outdoors in a well-ventilated area and far away from doors, windows, and other vents. Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10°F (6°C) above 60°F (16°C) ambient temperature. HAVE QUESTIONS? Email us at [e-mail] or call 1-855-944-35714 | English SAFETY SAFETY SYMBOLS Follow all safety information contained in this user’s manual as well as the information on the product labeling. Symbol Description Safety Alert Symbol Fire Hazard Electrical Shock Hazard Burn Hazard. Do not touch hot surfaces. Asphyxiation Hazard Do Not Operate in Wet Conditions Read Manufacturer’s Instructions 5 FEET (1.5m)MINIMUMFROM OBJECTS Maintain Safe Distance Ground. Consult with electrician to determine grounding requirements before operation. CARBON MONOXIDE

Carbon Monoxide SAFETY DEFINITIONS The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator. This safety alert symbol appears with most safety statements. It means attention, become alert, your safety is involved! Please read and abide by the message that follows the safety alerts symbol. DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly. NOTE: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended.English | 5 SAFETY

IMPORTANT SAFETY INSTRUCTIONS

DANGER Generator exhaust contains high levels of carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas. If you smell exhaust fumes, you are breathing carbon monoxide. But, even if you do not smell exhaust fumes you may be inhaling CO. ONLY operate generators outside, in a well- ventilated area. NEVER operate generators indoors, doing so CAN KILL YOU IN MINUTES.

• Correct Use- ONLY use generators outside and downwind, far away from windows, doors and vents. ALWAYS direct exhaust away from occupied spaces. ALWAYS install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. See Figure 1.

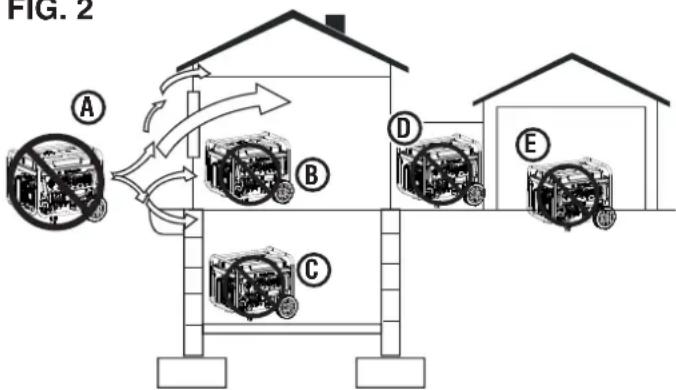

• Incorrect Use- NEVER use a generator in your home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. An open door or a run- ning fan WILL NOT provide adequate ventilation. See Figure 2. If you start feeling dizzy, weak, or sick while using the generator, move to fresh air IMMEDIATELY. Contact a doctor. You may be experiencing carbon monoxide poisoning. DANGER Fire and electrocution hazard. DO NOT connect to a building’s electrical system unless the generator and a transfer switch have been properly installed and the electrical output has been veried by a qualied electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Failure to properly isolate the generator power could cause property damage and create a dangerous backfeed of electricity which could kill or seriously injure utility workers. DANGER Electrocution hazard. NEVER use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. WARNING Familiarize yourself with all the instructions, safety warnings, illustrations, and specications provided with this product. Failure to follow the manufacturer’s instructions may result in electric shock, re, and/or carbon monoxide poisoning that can lead to death or serious injury. NOTICE Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. lThis product should ONLY be used outdoors. lNEVER use a generator in your home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. Carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas CAN KILL YOU IN MINUTES. lOnly use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specic home and/or wind conditions may require additional distance. lThe National Electrical Code requires the use of a transfer switch or other suitable transfer equipment whenever a portable generator is connected to a building’s electrical system. Transfer switches isolate generator power from utility power and prevent backfeeding of electric power into the utility system. FIG. 1 FIG. 2 A - Exhaust (CO) B - Only use OUTSIDE and FAR AWAY from windows, doors, and vents C - CO detectors in living areas A - Exhaust (CO) B - Living Area C - Basement Crawlspace D - Entryway/Porch/Mudroom E - Garage

E6 | English SAFETY NOTE: A transfer switch must be installed by a qualied electrician in accordance with applicable electrical codes. Some jurisdictions may require the installation to be inspected by local authorities. Keep all relevant installation, inspection, and maintenance information. lNever use the generator to power medical support equipment. lNever expose the generator to rain, snow, water spray, or standing water while in use. Store and operate the unit in a dry or covered (but not enclosed) location. lDo not let children or untrained individuals operate the generator. lKeep children, bystanders, and pets a minimum of 10 ft. away from a running generator. lMaintain Safe Distance. While operating and storing, keep at least ve feet of clearance on all sides of the generator, including overhead. Turn the unit off and allow it to cool a minimum of 30 minutes before storage. Heat created by the mufer and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects. lDo not operate the unit in areas where combustible or hazardous materials are stored including gasoline and natural gas lling stations. lDo not operate the generator while barefoot, with wet hands or feet, while standing in water or in wet conditions. lDo not use this unit when you are tired or under the inuence of drugs, alcohol, or medication. lBurn Hazard. Do not touch hot surfaces. lDo not contact the mufer or engine. They are very HOT and will cause severe burns. Do not put body parts or any ammable or combustible materials in the direct path of the exhaust. lKeep hands, ngers, feet, and other body parts away from all moving parts of the generator. lDo not connect worn or damaged electrical cords to the generator. NEVER touch frayed or exposed wires. lDo not operate the generator on an incline. The unit should always be placed on a at stable surface. lCheck the physical condition of the product prior to each use. Look for loose bolts, uid leaks, and other signs of wear. Replace all damaged items. For replacement parts or assistance, contact our customer service team. lFor optimal performance, use the generator in temperatures between 23°F (-5

) and 104°F (40°C) with a maximum relative humidity of 90%. lBefore starting the generator, check all uids (oil and gasoline). lDo not remove the oil dipstick or fuel cap when the generator is running. lSecurely tighten the oil dipstick after adding oil and the fuel cap after adding gasoline. lAvoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water. Prolonged skin contact with gasoline or engine oil may cause severe skin irritation and other adverse reactions. lGenerator’s vibrate and bounce during normal operation. Check the generator and all of the cords connected to it for any damage that may have resulted from the vibration. Replace or repair damaged items as needed. Do not use the generator or any items that show signs of damage. lAll electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated. lBefore transporting the generator, disconnect the spark plug boot, drain the fuel tank and properly restrain the unit. lFuel or oil may leak from the generator during transport. Place a towel, plastic sheet, or absorbent pad beneath the unit to protect your vehicle. lTo prolong the life of this product, follow the instructions in the Care and Maintenance section of this manual. lReplace damaged or worn items with recommended or equivalent replacement parts. Using an incorrect or incompatible part might create a hazard that could result in serious personal injury. lAlways remove any tools or other service equipment used during maintenance away from the generator before operating. GROUNDING See Figure 3. WARNING Shock hazard. Failure to properly ground the generator can result in electric shock. NOTICE Only use grounded 3-prong extension cords, tools, and appliances, or double- insulated tools and appliances. The generator neutral is bonded to the frame. There is a permanent conductor between the generator (stator wire) and the frame. If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution. Before using the ground terminal, consult a qualied electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.English | 7 SAFETY

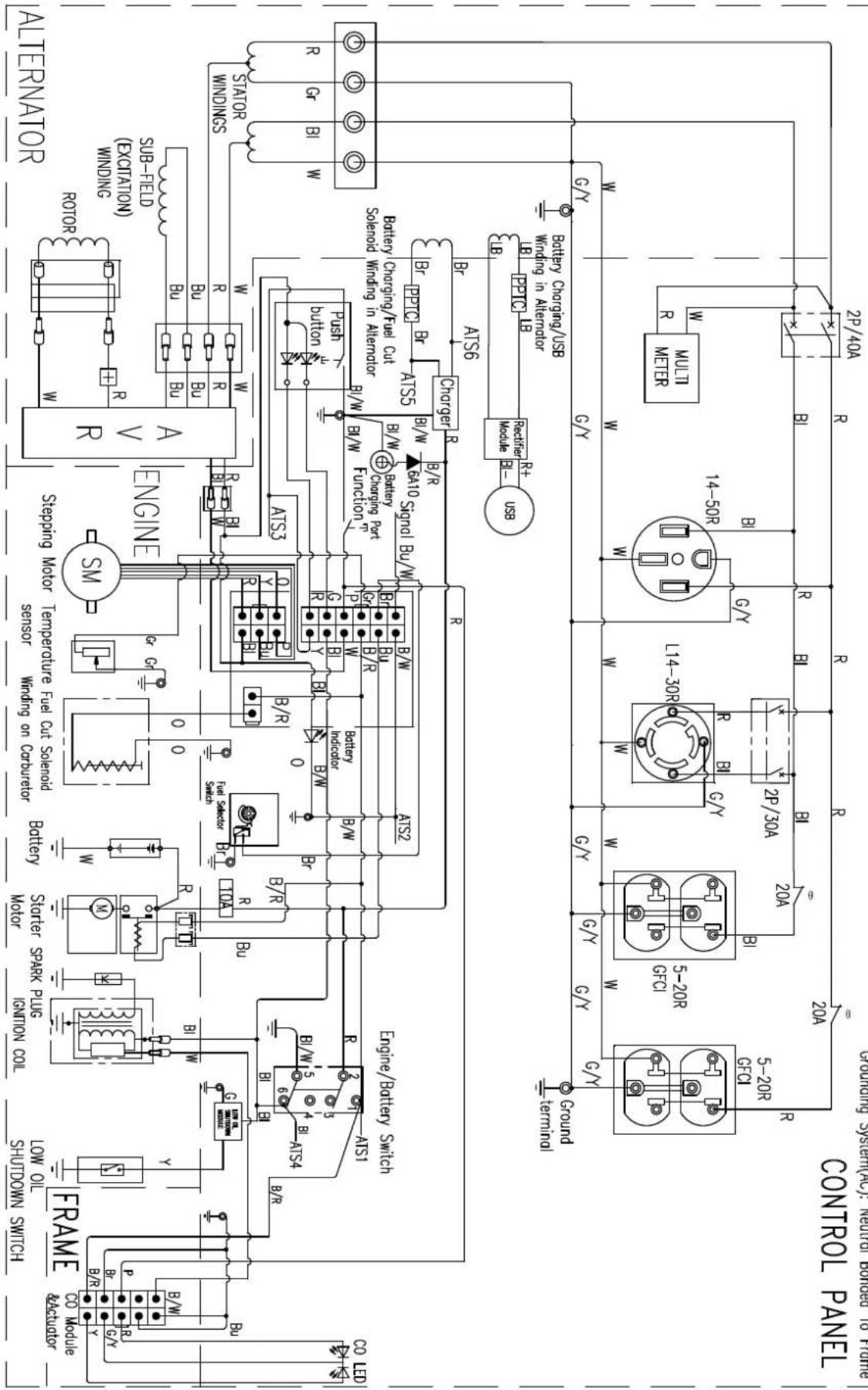

DISCONNECTING THE BONDED NEUTRAL

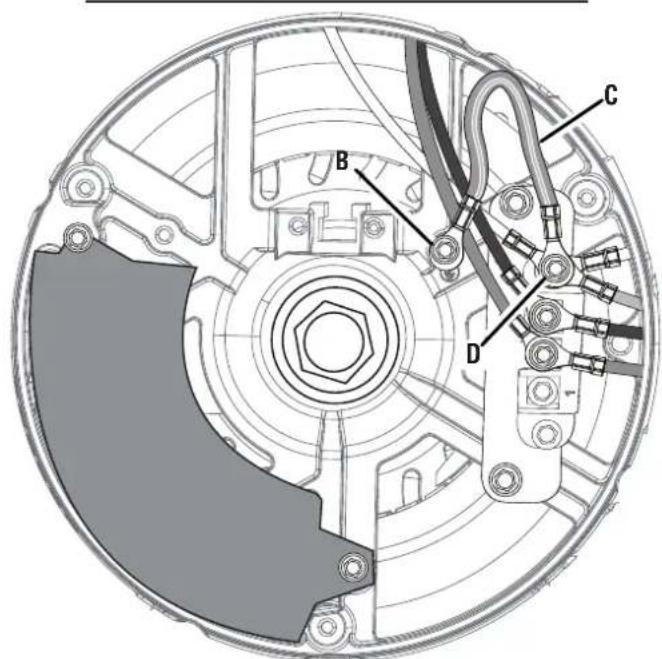

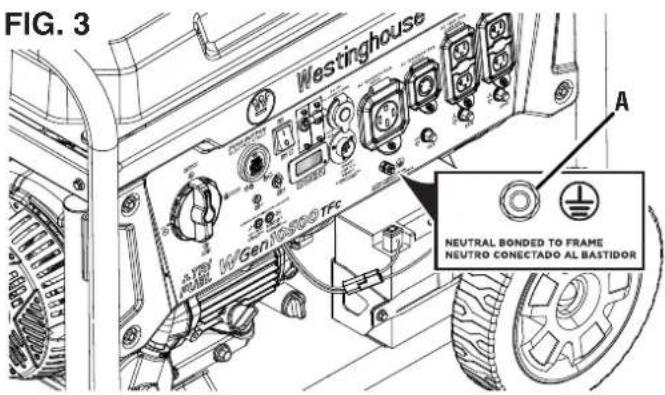

See Figure 3. The bonded neutral should only be removed under specic circumstances. Consult a qualied electrician to determine if circumstances require disconnecting the bonded neutral. lRemove the alternator cover. lRemove the green/yellow bonded jumper wire from the ground bolt and unmarked terminal connection. Reinstall the bolts and tighten securely. lKeep the bonded jumper wire in a secure location so that the generator can be returned to the original conguration. NOTICE Apply a new “NEUTRAL UNBONDED” Label over the “NEUTRAL BONDED TO FRAME” label on the front of the control panel.

DANGER Fire and explosion hazard. Gasoline is highly explosive and ammable and can cause severe burns or death. WARNING Fire and Burn Hazard. NEVER loosen or remove the fuel cap while the generator is running. Turn the unit off and allow it to cool for at least ve minutes before adding gasoline. Loosen the fuel cap slowly. WARNING In case of a gasoline re, do not attempt to extinguish the ame unless the fuel selector switch is in the OFF position. Introducing an extinguisher to a generator with an open fuel valve could create an explosion hazard. lFire Hazard. Gasoline is highly ammable. Handle with care. lNever use gasoline as a cleaning agent. lGasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin. lDo not store gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions. lKeep gasoline away from sparks, open ames, pilot lights, heat, and other sources of ignition. lStore any containers containing gasoline in a well- ventilated area, away from any combustibles or source of ignition. lALWAYS store gasoline in a container approved for gasoline. Unapproved containers can break or deteriorate allowing gasoline or gasoline vapors to escape which can create a serious hazard. lGasoline has a distinctive odor, this will help detect potential leaks quickly. lGas vapors can cause a re if ignited. lDo not smoke when handling fuel, adding fuel to the generator, or emptying the gas tank. lWear eye protection while refueling. lBefore adding fuel to the generator, turn the unit off and allow it to cool a minimum of ve minutes. If necessary, move the unit to level ground. lDo not remove the fuel tank cap when the generator is running. lLoosen the fuel cap slowly to safely release pressure, keep gasoline from escaping around the cap, and to avoid the heat from the mufer igniting fuel vapors. A - Ground Terminal B - Ground Bolt C - Bonded Jumper Wire (Green/Yellow) D - Unmarked Terminal Connection FIG. 3

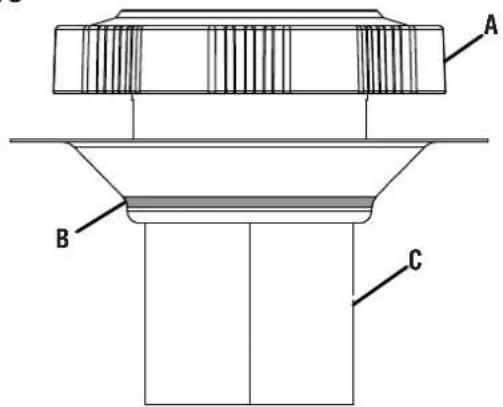

D8 | English SAFETY lNEVER ll the generator’s gasoline tank beyond the maximum ll ring on the fuel screen. Keeping gasoline levels at or below the ll ring will allow for fuel expansion. Overlling the fuel tank can result in a sudden overow of gasoline and result in spilled gasoline coming in contact with HOT surfaces. lSpilled fuel can ignite. Wipe up spills immediately and allow area to dry before operating the generator. NEVER attempt to burn off spilled fuel. lSecurely tighten the fuel cap after adding gasoline. lDo not cover the fuel cap while the generator is in operation. Covering the cap may cause the engine to fail or damage the product. lDrain fuel before storing the unit. Store the unit and the fuel separately in well-ventilated areas away from sparks, open ames, pilot lights, heat, and other sources of ignition. lTurn the unit off and allow it to cool a minimum of 30 minutes before draining fuel. LIQUID PETROLEUM GAS (LPG/PROPANE) WARNING Fire and explosion hazard. Never use a gas container, LPG/propane hose, propane cylinder or any other fuel item that appears to be damaged. If there is a strong smell of propane while operating the generator, fully close the propane cylinder valve immediately. Once the propane is off, use soapy water to check for leaks on the hose and connections on the tank valve and the generator. Do not smoke or light a cigarette or check for leaks using any open ame source such as a match or lighter. If a leak is found, contact a qualied technician to inspect and repair the LPG/ propane system before using the generator. CAUTION Fire and explosion hazard. Only use approved Propane cylinders with an Overlling Prevention Device (OPD) valve. Always keep the tank in a vertical position with the valve on top and placed at ground level on a at surface. Do not allow tanks to be near any heat source. When transporting and storing, turn the propane cylinder valve to the fully closed position and disconnect the tank. Make sure to always cover the generator inlet and tank outlet with protective plastic caps. lLPG/Propane is highly ammable and explosive. lIn case of a LPG/Propane re, DO NOT attempt to extinguish the ame if the fuel valve is in the gas position. Introducing an extinguisher to a generator with an open fuel valve could create an explosion hazard. lLPG/Propane can settle in low places because it is heavier than air. lLPG/Propane has a distinctive odor added to help detect potential leaks. If there is a smell, DO NOT use the engine. lAlways keep a propane cylinder in an upright position. lWhen exchanging propane cylinders, be sure the tank valve is the same type. lLPG/propane will burn the skin. Prevent skin contact at all times. lKeep the propane cylinder away from the generator exhaust. lLarge (500–1000 gallon) propane cylinders will require a certied plumber to install the fuel line to the generator and the loose regulator is not used (the regulator that is attached to the fuel tank). The pressure as measured at the regulator mounted to the generator must be 7 in. to 14 in. of water column. A certied plumber must ensure that the pressure is correct or install a step down regulator if needed. lMake sure the generator and propane cylinder are on a at surface before operating. lIf there is a propane odor do not start the unit because there may be a potential leak. Never place a propane cylinder near the engine exhaust. lWhen transporting, make sure the propane cylinder and LPG/propane hose are not attached to the generator. lStore propane cylinder away from sparks, open ames, pilot lights, heat, and other sources of ignition. lDo not store propane cylinder near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions. NATURAL GAS (NG) WARNING Fire and explosion hazard. Never use a natural gas supply line, natural gas hose, or any other fuel item that appears to be damaged. If there is a strong smell of natural gas while operating the generator, close off all gas sources immediately. Once the natural gas is off, use soapy water to check for leaks on the hose and connections on the branch supply and the generator. Do not smoke or light a cigarette or check for leaks using any open ame source such as a match or lighter. If a leak is found, contact a qualied plumber to inspect and repair the natural gas system before using the generator. WARNING Natural gas (NG) is highly explosive and ammable and can cause severe burns or death. WARNING Do not route the natural gas hose under a deck, oating patio, or other structure. The hose must be visible. WARNING For proper installation, consult a licensed professional natural gas plumber.English | 9 SAFETY WARNING Turn off the gas at the natural gas supply line when the generator is not in use. NOTICE Generator installation must strictly comply with all applicable federal, state, and local laws as well as codes and regulations. Laws and regulations pertaining to the installation of this equipment are routinely updated and may vary based on relevant local jurisdiction, how the generator will be used, and the installation site. Check with the authority having local jurisdiction (AHJ) for a complete list of laws, regulations, and codes that may apply to you. Information this manual should never be interpreted in a way that conicts with any local, state, or federal laws. When in doubt, always abide by local laws. lInspect natural gas hose before each use and replace if damaged. lOnly use natural gas hoses that comply with local, state, or federal laws. Hose requirements may vary in different regions. Check with the authority having local jurisdiction (AHJ). lVerify that the natural gas supply line from the house was properly installed by a qualied plumber and that the natural gas hose is securely connected before using the generator. lBefore starting the engine, purge the natural gas supply line and perform a leak test. lAlways disconnect the generator and natural gas hose from the natural gas supply line when the gas supply is being pressure tested.

Keep the natural gas hose and natural gas supply line away from the mufer and other heated surfaces.

Keep a re extinguisher near the generator at all times. LEAK TESTING See Figure 4. NOTICE Connections on the hose and the natural gas/propane inlet were tested at the factory to make sure there were no gas leaks. However, shipping and handling may have loosened connections. We recommend that you always test for leaks before using the generator. To test for natural gas (NG) leaks:

Connect the natural gas hose to the natural gas/ propane inlet on the generator and to the natural gas supply line.

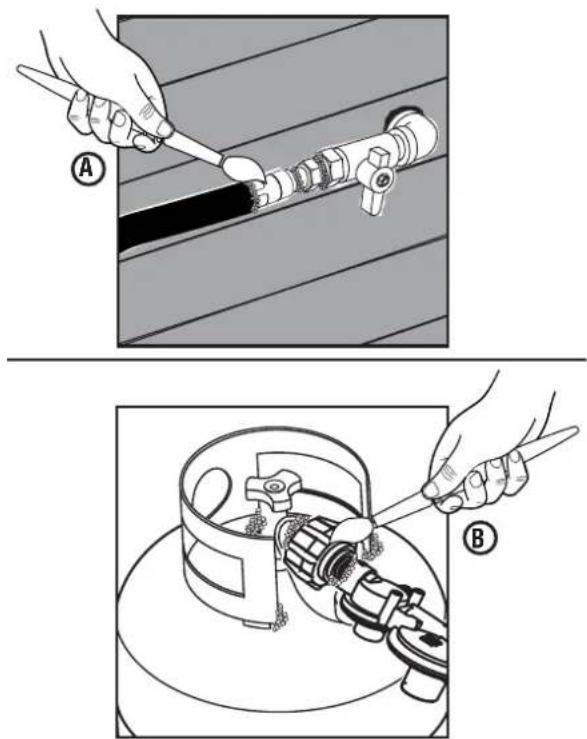

Brush the inlet, hose connections, and gas supply valve with a soapy solution made of a 20/80 mixture of mild soap and water.

If bubbles begin growing, there is a leak.

• If the leak is at the inlet, contact customer service. DO NOT USE THE GENERATOR.

• If the leak is at the hose connections, reinstall the hose securely and perform the check again. If the leaks persist, DO NOT USE THE GENERATOR.

• If the leak is at the natural gas supply line, DO NOT USE THE GENERATOR. To test for LPG/Propane leaks:

Connect the LPG/propane hose to the natural gas/ propane inlet on the generator and to the cylinder valve.

Open the cylinder valve. If you hear a rushing sound, immediately turn off the cylinder valve. This noise indicates a signicant leak at the connection. Replace the cylinder or have it repaired.

Brush the inlet, hose connections, and LP gas cylinder with a soapy solution made of a 20/80 mixture of mild soap and water.

If bubbles begin growing, there is a leak.

• If the leak is at the inlet, contact customer service. DO NOT USE THE GENERATOR.

• If the leak is at the hose connections, reinstall the hose securely and perform the check again. If the leaks persist, DO NOT USE THE GENERATOR.

• If the leak is at the cylinder, do not use or move the cylinder. Contact the re department or the gas supplier. A - Leak Testing with Soapy Water (Natural Gas)B - Leak Testing with Soapy Water (Propane) FIG. 4

B10 | English SAFETY

IMPORTANT INFORMATION FOR THE

CO SENSOR The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine. The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to rising CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings. NOTE: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs. Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine and the RED indicator light will ash notiying the user that there are unsafe levels of carbon monoxide. If the generator shuts off and the RED indicator light ashes, leave the area immediately. Wait for the carbon monoxide to dissipate and the RED indicator light to turn off before returning to the affected area. Once it is safe to return, read the Action Label for further steps to take. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home. WARNING Automatic shutoff accompanied with a ashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located which allowed carbon monoxide to accumulate to unsafe levels. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning.

UNDERSTANDING THE CO SENSOR’S

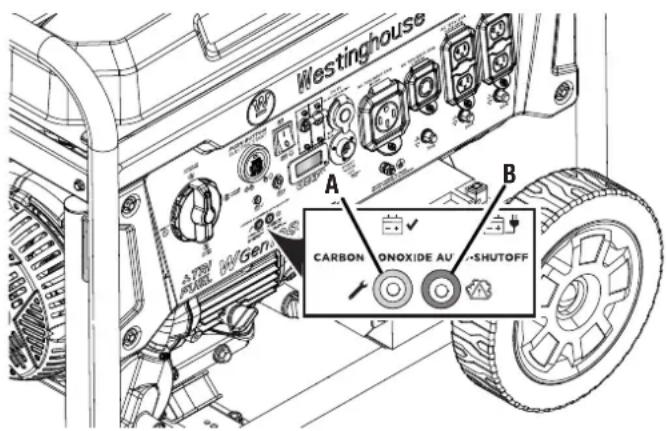

INDICATOR LIGHTS See Figure 5. COLOR DESCRIPTION RED Unsafe levels of carbon monoxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will flash to provide notification that the generator was shut-off due to carbon monoxide levels rising above a safe threshold. The RED light will flash for at least five minutes after a CO shut-off. When it is safe to do so, move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area and the red light is off, the generator can be restarted. Introduce fresh air and ventilate the area where the gener- ator had shut down. YELLOW A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will flash to provide notification that a fault has occurred. The YELLOW light will flash for at least five minutes after a fault. The generator can be restarted but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westing- house service center. A - Service Generator LEDB - Automatic Shutoff LED FIG. 5

The following information is on your generator’s labels and decals.

Action Label If unsafe levels of carbon monoxide accumulate around the generator, automatic shutoff will occur. If the unit shuts off, leave the area immediately. When it is safe to return, do the following: lMove the generator to an open, outdoor area. lPoint exhaust away. lDon’t run generator in enclosed areas (e.g. not in house or garage). lMove to fresh air. lGet medical help if sick, dizzy or weak. lWARNING -Tampering with carbon monoxide sensor could result in hazardous condition.

Carbon Monoxide lUsing a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. lNEVER use inside a home or a garage, EVEN IF doors and windows are open.

Take Generator Outside Generators are intended to be used outdoors.

California Proposition 65 Cancer and reproductive harm - www.P65Warnings.ca.gov/product

Pinch Point Hazard Keep ngers and hands away from pinch point.

Adding Oil Add engine oil until the oil level is within safe operating range.

Hot Surface Do not touch.

Choke On/Off The generator has a two position choke.

Performance Label (See page 3)

Fuel Capacity This generator has a 9.5 gallon fuel tank. ALWAYS use CLEAN, FRESH, unleaded gasoline (87–93 octane) in this unit. Do not use E15 or E85 fuel in this product.

Engine Displacement This unit has a 500 cc engine.

Danger Label Read User Manual before operating generator. Gasoline, Natural Gas, and LPG/Propane is highly ammable. Leaking gasoline, natural gas or LPG can cause a re or explosion if ignited. If you smell gasoline, natural gas, or propane while operating the unit, immediately shut OFF the fuel and/or propane valve. Keep gasoline container, natural gas hoses, and propane cylinder away from exhaust.

No Oil Oil has been drained from the unit for shipping. Add oil before attempting to operate the unit.

Caution Label Turn off propane and natural gas when the generator is off or when the generator is using gas.

Maintain Air Cleaner Clean air lter every 50 hours (every 10 hours if operating in dusty conditions).

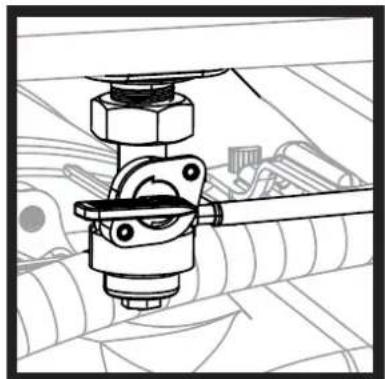

Fuel Valve Turn the fuel valve to the on position when starting the unit. Turn the fuel valve to the off position when the unit is not in use.

Customer Service For technical assistance or service call toll free at 1-855-944-9571

EZ Start Instructions Refer to the “EZ Start Instructions” label and the instructions in the Operations section when starting and stopping the generator.

Safety Symbols (See page 4)

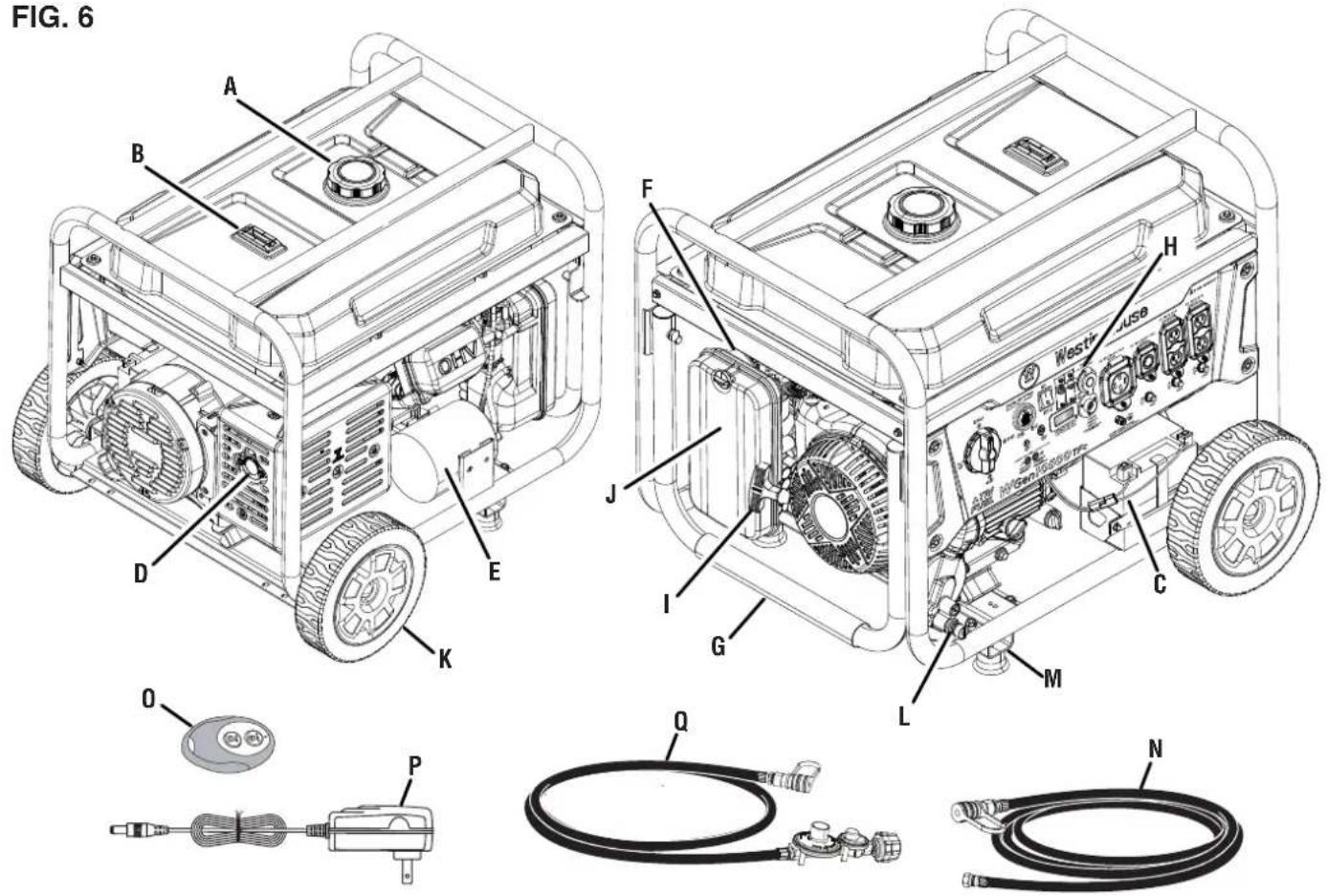

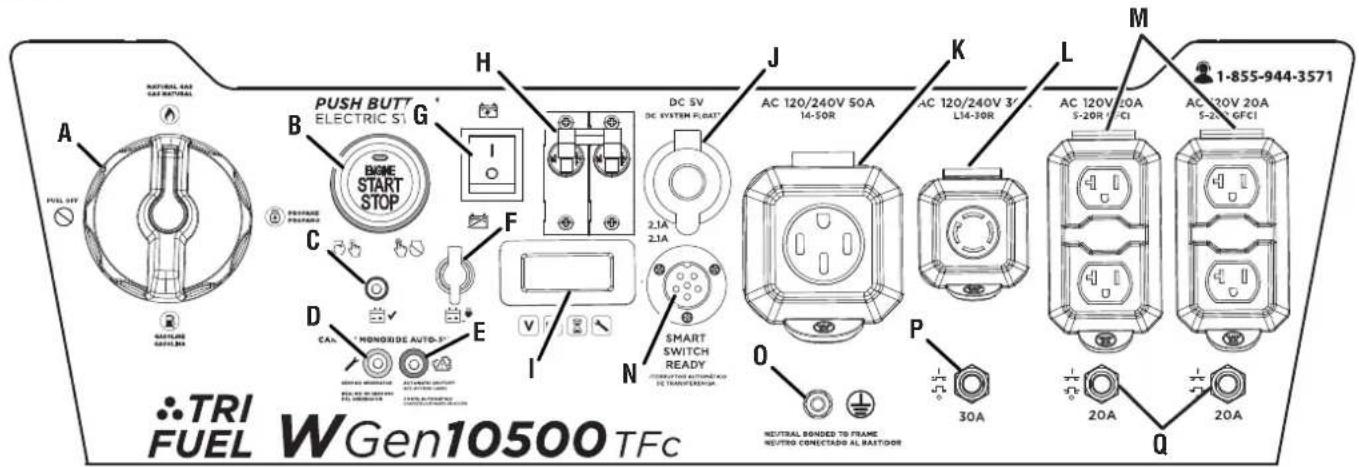

12 14 15English | 13 ELECTRICAL GENERATOR CAPACITY NOTICE Do not overload the generator’s capacity. Exceeding the generator’s wattage/ amperage capacity can damage the generator and/ or electrical devices connected to it. Review the Specications for this generator and record the running (continuous) and peak (starting) watts. In general the higher the wattage, the more devices can be powered at the same time. The total power requirements of all connected devices must be considered. Power requirements are often listed on a device’s data label or nameplate. To determine power requirements: lChoose the devices you want to power simultaneously. lRecord and total the running (continuous) watts of each device. The generator must continuously produce this amount of wattage to keep the devices running. lRecord the peak (starting) watts for each device. This is the momentary surge of power required to start electric motors in some tools and appliances. lSelect the device with the highest peak (starting) wattage. Add the peak (starting) watts for that device to the total running (continuous) watts for all the connected devices to determine the total peak wattage requirement for the generator. NOTE: Total peak wattage requirement assumes intermittent starting of devices. Adjust estimate if devices reach peak wattage at the same time.

MANAGING GENERATOR POWER

To extend the service life of the generator, use caution when adding electrical loads. Disconnect all loads before starting the generator. The safest way to manage generator power is to add loads sequentially by doing the following: lRemove all loads and start the generator as described later in this manual. lConnect and start the largest device or appliance. Power requirements are often listed on a device’s data label or nameplate. lAllow the generator output to stabilize. Once stable, the engine should run smoothly and the device should function properly. lConnect and start the next largest device or appliance. lAllow the generator output to stabilize. lRepeat this process for each additional load. EXTENSION CORDS WARNING Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. Always use battery- powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery. WARNING Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area far away from occupied spaces with exhaust pointed away. WARNING Fire and electrocution hazard. Never use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury. Before connecting an AC appliance or power cord to the generator: lUse grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances. lMake sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock. lMake sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used. NOTICE Do not exceed the unit’s capacity. Overloading the generator’s wattage and/ or amperage capacity could damage connected devices and critical generator components.

EXTENSION CORD SIZING

Make sure your extension cord can carry the required load. Cables that are too small may cause a voltage drop that can cause the cord to overheat or cause property damage. Refer to the cord manufacturer’s guidelines for the appropriate size and length.14 | English COMPONENTS FIG. 6 A - Fuel Cap B - Fuel Gauge C - Battery D - Muffler/Spark Arrestor E - Carbon Canister F - Carburetor/Choke G - Handle H - Control Panel I - Recoil Handle J - Air Filter Cover K - Wheel L - Natural Gas/Propane Inlet M - Foot N - Natural Gas Hose O - Key Fob P - Charger Q - LPG/Propane Hose

See Figures 6 - 7. To reduce the risk of injury and product failure, read and understand the information in this user’s manual as well as the information on the product labeling.

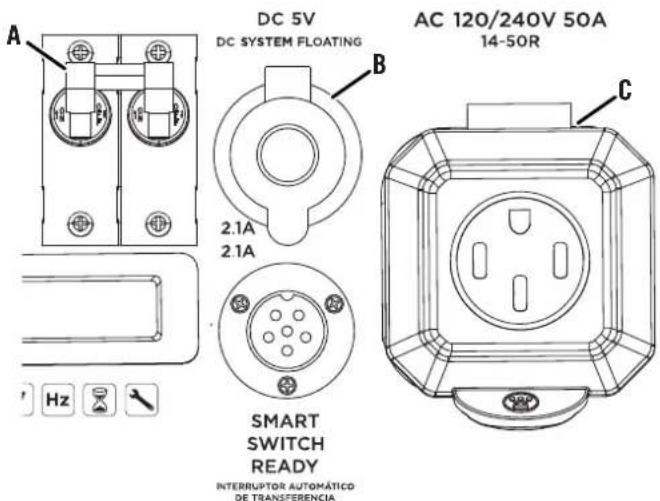

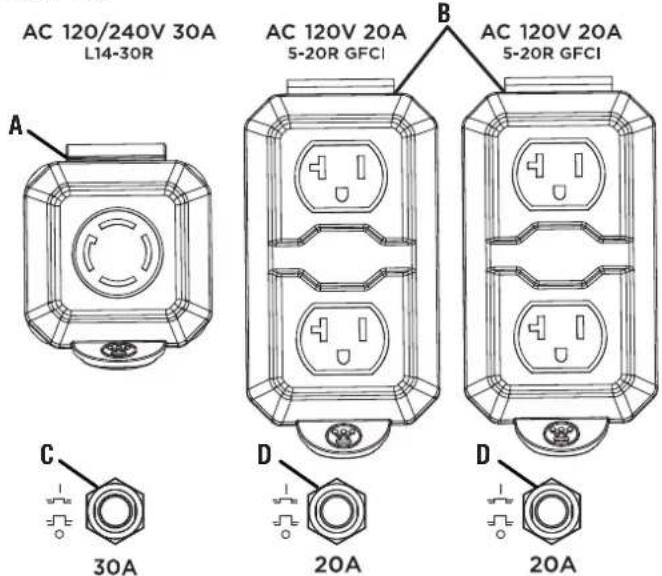

120 VOLT AC, 20 AMP RECEPTACLES

This unit has two single phase, 60 Hz receptacles capable of carrying a maximum of 20 amps. 120/240-VOLT AC RECEPTACLES (50 AMP) This receptacle can supply either 120V or 240V up to 50 amps.

BATTERY CHARGING PORT

Use the battery charging port along with the included battery charger to charge the battery. BATTERY INDICATOR Indicates that battery power is available. Light will remain illuminated while the battery has charge. BATTERY SWITCH Enables or disables electric start. The battery switch must be in the ON positoin to use remote start. CIRCUIT BREAKERS (20 AMP AND 30 AMP) The circuit breakers protect individual circuits from electrical overload. NOTE: The 20 amp circuit breaker limits the current that can be delivered through the 5-20R GFCI receptacles to 20 Amps and the 30 amp circuit breaker limits the current for the L14-30R receptacle to 30 amps.

The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine. DATA CENTER Displays voltage, frequency, total hour meter, and run/ maintenance timer.

ENGINE START/STOP BUTTON

Push once to automatically start the engine. Push again to stop the engine.

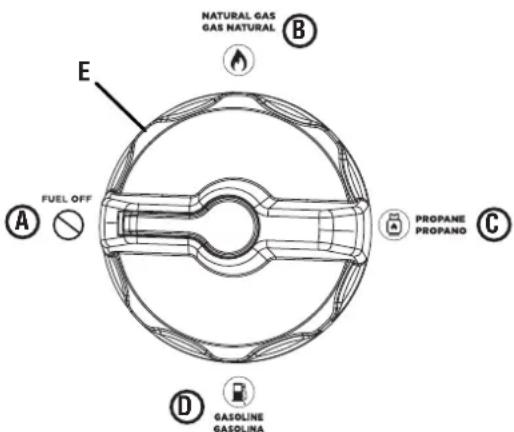

FUEL SELECTOR SWITCH

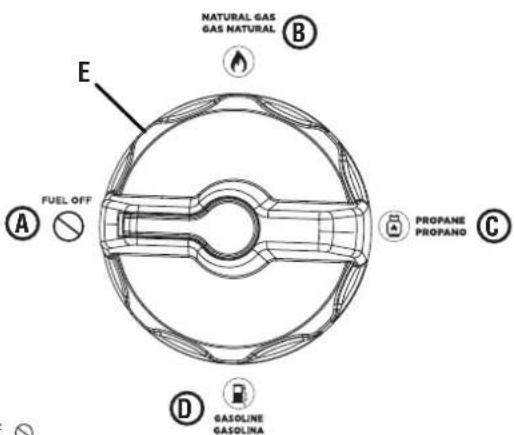

Use the fuel selector switch to choose a gasoline, propane, or natural gas fuel source. FUEL TANK The generator has a fuel tank with a capacity of 9.5gallons. NOTE: The fuel gauge on top of the tank shows the approximate fuel level. GROUND TERMINALS The ground terminals are used to externally ground the generator.

MAIN CIRCUIT BREAKER

The main circuit breaker controls total output of all outlets to protect the generator from overload or short circuit.

MUFFLER AND SPARK ARRESTOR

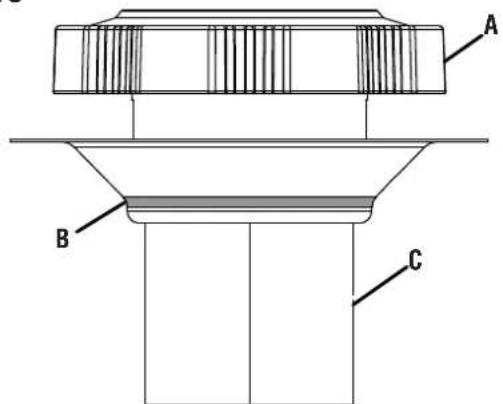

The spark arrestor prevents sparks from exiting the mufer. It must be removed for servicing. NOTICE The spark arrestor is a safety device that prevents sparks from exiting the mufer and creating a re hazard. In certain locations a spark arrestor may be required by law. It is the operator’s responsibility to know and follow all local laws and regulations related to re prevention requirements. OIL DIPSTICK Unscrew the oil dipstick to check oil levels and add oil when needed. RECOIL HANDLE Use the recoil handle (along with the fuel valve and choke) to manually start the generator. REMOTE START Use the key fob to start the generator remotely.

ASSEMBLY WARNING Weight hazard. Always have assistance when lifting the generator. Never attempt to lift the unit by the handle. Hold the unit by the frame and use proper lifting techniques to reduce the risk of back injury.

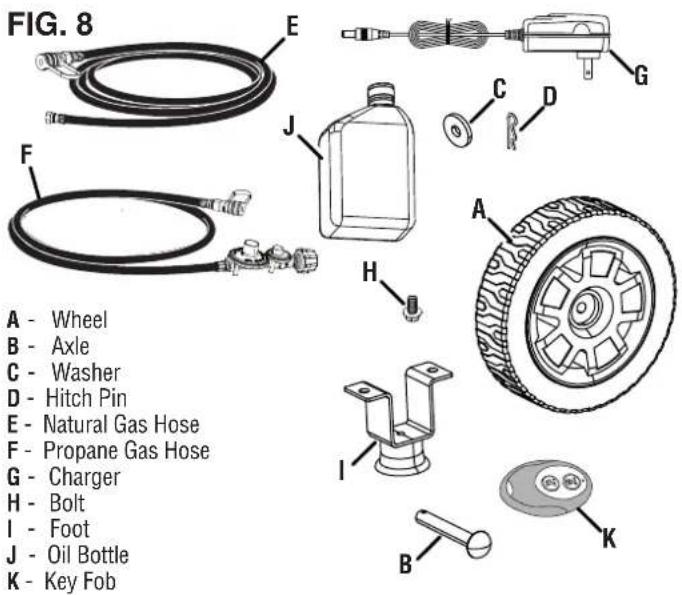

REMOVING CARTON CONTENTS

WARNING This product requires assembly. Do not attempt to operate this product if any items in the INCLUDED LIST are already assembled when you remove the carton contents . These items are not assembled by the manufacturer and should require customer assembly. Using an improperly assembled product can be hazardous and could result in serious personal injury. lCarefully cut down the sides of the packaging and remove the carton contents. lInspect the cartoon contents. Verify that all the items in the INCLUDED LIST are present and undamaged. lRecycle or dispose of the packaging materials properly. INCLUDED LIST See Figure 8. Generator, Wheels, Axles, Washers, Hitch Pins, Bolts, Feet, Key Fob, Charger, Propane Gas Hose, Natural Gas Hose, Engine Oil (SAE 10W 30), Funnel, Spark Plug Socket Wrench, Quick Start Guide, User Manual If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571.

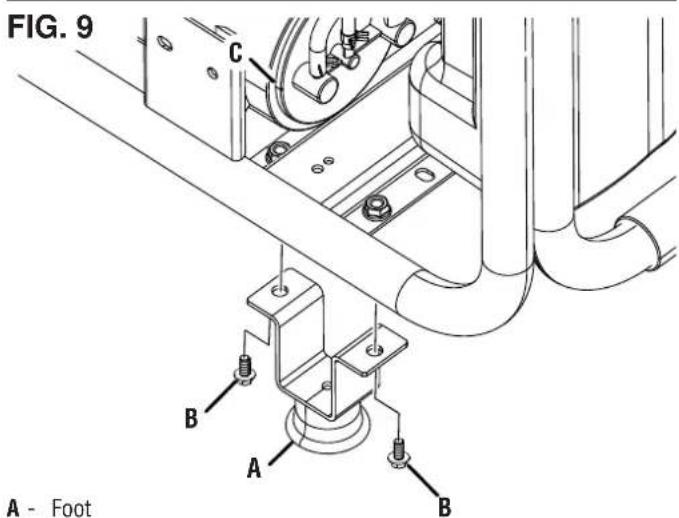

See Figure 9. lPlace the generator on a at surface. lLift the handle side of the generator high enough to gain access to the crossbar on the bottom of the frame. lPlace props beneath the generator to serve as a temporary support. lLocate the feet and bolts. lAlign the holes in a foot with the nuts in the crossbar. lInsert bolts through the holes in the foot and nuts in the cross bar. lTighten bolts securely. Do not over tighten. lRepeat these steps to install second foot.

INSTALLING THE WHEELS

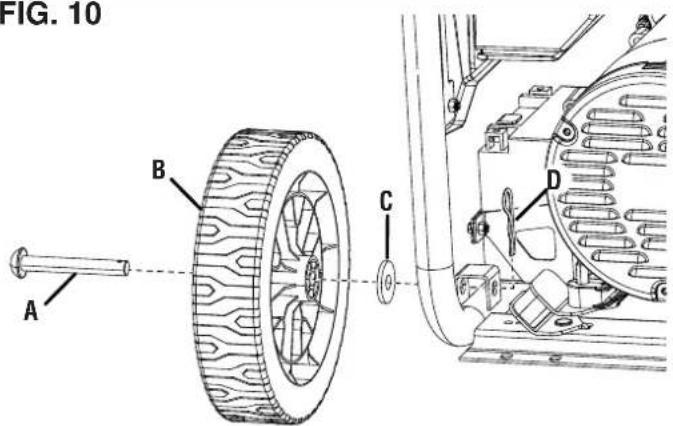

See Figure 10. lPlace the generator on a at surface. lLift the mufer side of the generator high enough to gain access to the bottom of the frame. lPlace props beneath the generator to serve as a temporary support. lLocate the axles, wheels, washers, and hitch pins. A - Wheel B - Axle C - Washer D - Hitch Pin E - Natural Gas Hose F - Propane Gas Hose G - Charger H - Bolt I - Foot J - Oil Bottle K - Key Fob A - Foot B - Bolt A - Axle B - Wheel C - Washer D - Hitch Pin FIG. 8 FIG. 9

FEnglish | 17 ASSEMBLY lInsert an axle through the middle of a wheel, washer, and the frame as shown. lPush a hitch pin into the axle until the center of the pin rests against the top of the axle. lRepeat these steps to install second wheel.

CONNECTING THE BATTERY

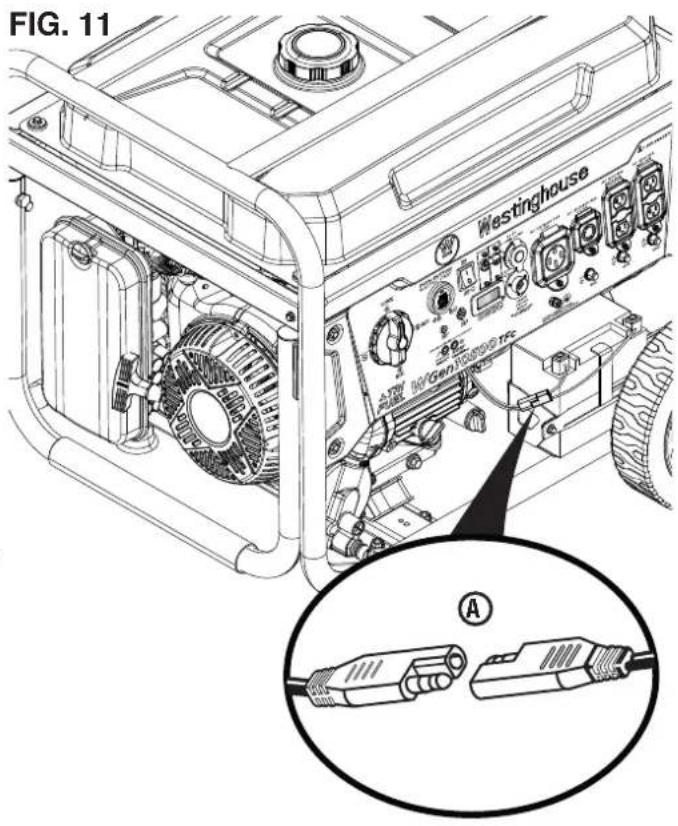

See Figure 11. A quick-connect battery cable is pre-installed on the battery. Remove the cable tie securing the plugs then push rmly to connect them. NOTE: The generator is equipped with a battery charging feature. Once the engine is running, a small charge will slowly recharge the battery.

RAISING/LOWERING THE HANDLE

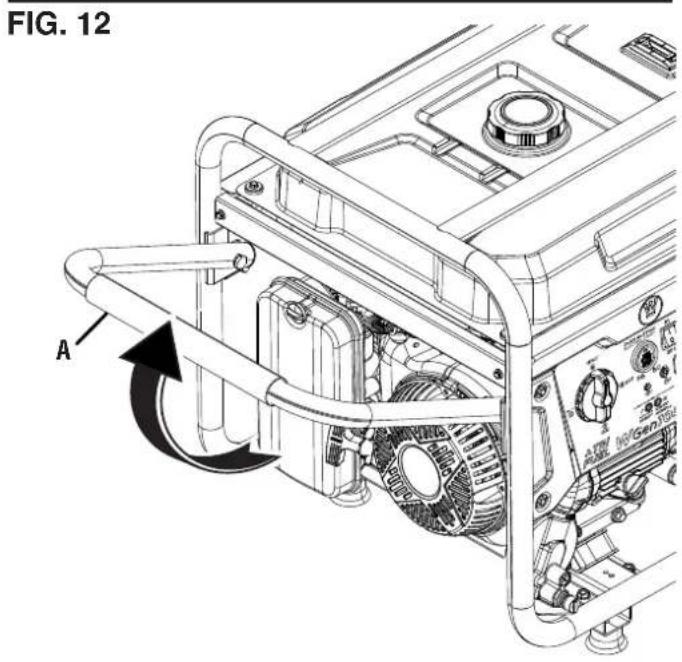

See Figure 12. lStand in front of the unit, grasp the handle rmly and lift it to the raised position. lWith the handle in the raised position, the generator can safely be rolled from one position to another. For information regarding transporting the unit in a vehicle, refer to the Transporting section in Operation. lTo lower the handle, gently guide the handle to the down position. CAUTION Pinch point hazard. Do not place your hand or ngers between the handle and the generator’s frame. WARNING Do not alter or modify this product unless instructed to so in this manual or by the manufacturer. Do not use attachments or accessories that are not recommended for use with this product. Making unauthorized modications and using incompatible accessories can damage the unit and void your warranty. OVERVIEW This portable generator can provide power to a wide range of items including household appliances, job-site tools, camping equipment, tailgating essentials, and much more. NOTICE

BEEN SHIPPED WITHOUT OIL. Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage that is not covered under warranty. FIG. 11 A - Handle A - Quick-connect battery cable FIG. 12

A18 | English OPERATION DANGER Generator exhaust contains high levels of carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas. If you smell exhaust fumes, you are breathing carbon monoxide. But, even if you do not smell exhaust fumes you may be inhaling CO. ONLY operate generators outside, in a well- ventilated area. NEVER operate generators indoors, doing so CAN KILL YOU IN MINUTES.

• Correct Use- ONLY use generators outside and downwind, far away from windows, doors and vents. ALWAYS direct exhaust away from occupied spaces. ALWAYS install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. See Figure 1.

• Incorrect Use- NEVER use a generator in your home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. An open door or a running fan WILL NOT provide adequate ventilation. See Figure2. If you start feeling dizzy, weak, or sick while using the generator, move to fresh air IMMEDIATELY. Contact a doctor. You may be experiencing carbon monoxide poisoning. WARNING Do not alter or modify this product unless instructed to so in this manual or by the manufacturer. Do not use attachments or accessories that are not recommended for use with this product. Making unauthorized modications and using incompatible accessories can damage the unit and may void your warranty. NOTICE In certain circumstances, the National Electric Code may require the generator to be grounded to an approved earth. Consult with a qualied electrician to determine grounding requirements before operation. WARNING Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water. Prolonged skin contact with gasoline or engine oil may cause severe skin irritation and other adverse reactions. NOTICE Check the physical condition of the product prior to each use. Look for loose bolts, uid leaks, and other signs of wear. Replace all damaged items. NOTICE Make sure the wheels and feet are properly installed before adding fuel or oil.

KNOW HOW TO SAFELY LOCATE AND

OPERATE YOUR GENERATOR

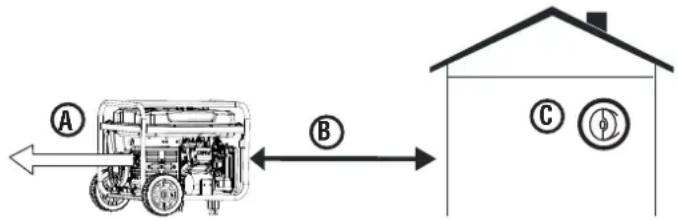

DANGER Asphyxiation hazard. Place the generator in a well-ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or conned spaces. Carefully consider wind and air currents when positioning the generator. WARNING Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution. WARNING Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage. lRead and understand all safety information before starting the generator (see pages 4 - 12). lNEVER use a generator in your home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. Carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas CAN KILL YOU IN MINUTES. lDO NOT operate the generator in the back of a SUV, camper, trailer, truck bed (regular, at, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the mufer. Operating the generator in enclosed or partially enclosed areas will allow dangerous levels of CO to accumulate. lDO NOT contain generators during operation. lOnly use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specic home and/or wind conditions may require additional distance. lDo not operate the generator on an incline. The unit should always be placed on a at stable surface. lThe generator should be on a at, level surface at all times (even while not in operation). lThe generator must have at least 5 ft. (1.5 m) of clearance from all combustible material.English | 19 OPERATION

Consider where and how you intend to use your generator, and familiarize yourself with any local, state, or federal ordinances concerning your intended use. It may be necessary to contact a qualied electrician or local governing agency for a full list of requirements.

ADDING OIL/CHECKING OIL LEVEL

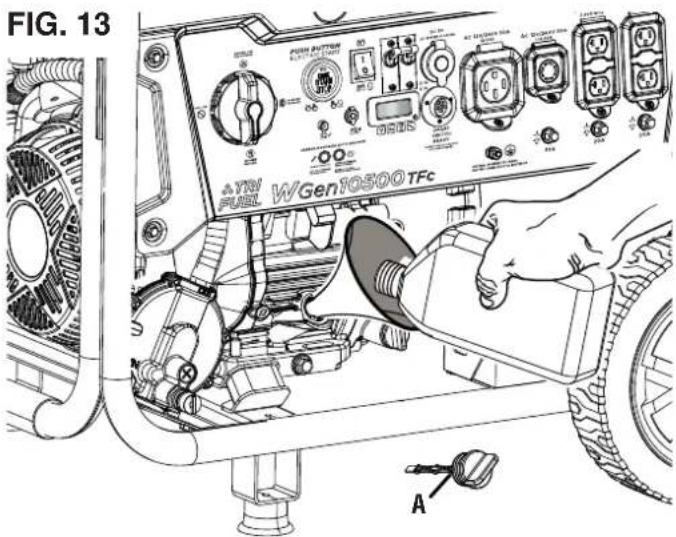

See Figure 13. If your product has a separate engine manual, disregard the information in this section and follow the instructions in the engine manual. NOTICE

THIS GENERATOR HAS BEEN

SHIPPED WITHOUT OIL. Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage that is not covered under warranty. NOTICE Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty. The included, recommended oil type for typical use is 10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart. -20 0 20 40 60 80 100 120 -28.9

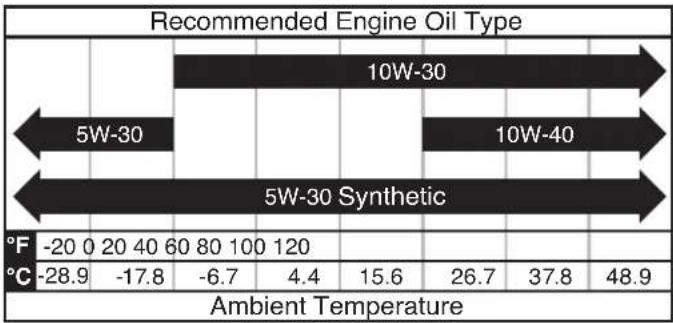

°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9 10W-305W-3010W-405W-30Recommended Engine Oil TypeAmbient TemperatureSynthetic NOTE: Check the engine oil level before each use or every 8 hours of operation. lTurn the generator off and allow the engine to cool for at least ve minutes. lPlace the generator on a level surface in a well- ventilated area. lClean the area around the oil dipstick. For initial oil ll: lSlowly unscrew and remove the oil dipstick. lUsing the funnel, slowly pour the supplied engine oil into the oil ll hole. Stop frequently to make sure you do not overll. NOTE: Your generator was functionally tested in the factory and may contain minimum residual oil. Additional oil is required to operate the unit. Do not overll. lReplace and tighten the oil dipstick. A - Oil DipstickB - Safe Operating Range

To check oil level: lSlowly unscrew and remove the oil dipstick. lClean the dipstick and re-seat it inside the oil ll hole. Do not thread the dipstick. lRemove the dipstick and verify that the oil level is within safe operating range. lIf the oil level is low, add recommended engine oil incrementally and recheck until the level is within the safe operating range. lReplace the oil dipstick and hand-tighten. GASOLINE REQUIREMENTS NOTICE Do not use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol. lALWAYS use CLEAN, FRESH, unleaded gasoline (87–93 octane) in this unit. NEVER use OLD, STALE, or CONTAMINATED gasoline. E85 E1520 | English OPERATION lUp to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended). lDO NOT use E85 or E15. lDO NOT use a gas oil mix. lDO NOT modify the engine to run on alternate fuels.

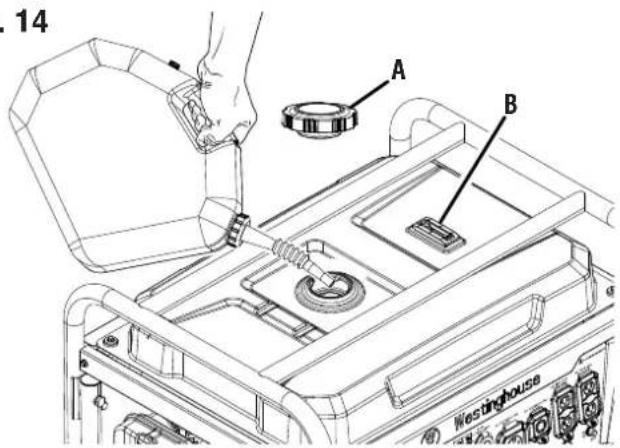

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer’s instructions for use. Always mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for ve minutes to allow the stabilizer to treat the entire fuel system. ADDING GASOLINE See Figures 14 - 15. DANGER Fire and explosion hazard. Never remove the fuel cap or refuel the generator while the engine is running. Do not smoke or create sparks while fueling. Always turn the engine off and allow the generator to cool for at least ve minutes before refueling. DANGER Fire and explosion hazard. Do not overll fuel tank. Fill only to the red maximum ll ring on the fuel screen. Overlling may cause fuel to spill onto engine causing a re or explosion hazard. WARNING Never use a gasoline container, gasoline tank, or any other fuel item that is broken, cut, torn or damaged. NOTICE Only ll the tank from an approved gasoline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination. lTurn the generator off and allow the engine to cool for at least ve minutes. lPlace the generator on a level surface in a well- ventilated area. DO NOT fuel indoors. lClean area around fuel cap and remove the cap slowly. lSlowly add the recommended fuel. Do not overll. NOTE: The gasoline level should NOT be higher than the red maximum ll ring on the fuel screen. NOTE: The fuel gauge on top of the tank shows the approximate fuel level. lInstall the fuel cap. Tighten securely. lClean up any spilled fuel. lMove at least 30 ft. away from refueling area before restarting the engine. NOTICE Fuel can damage paint and plastic. Use caution when lling the fuel tank. Damage caused by spilled fuel is not covered under warranty. NOTICE Clean the fuel screen lter of debris before and after each fueling. Remove the fuel screen lter by slightly compressing it while removing it from the fuel tank. FIG. 14 FIG. 15 A - Fuel Cap B - Fuel Gauge A - Fuel Cap B - Max Fill Line C - Screen Filter

NOTICE Propane cylinders that use liquid withdrawal system can not be used on these models. LP gas is extremely ammable and could ignite spontaneously when mixed with air. The LP gas cylinder used with this generator must meet the following requirements: lThe cylinder must be manufactured and labeled in accordance with the Specications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes for Transportation of Dangerous Goods; and Commission. lThe cylinder must have a safety relief valve. lThe cylinder must include a UL listed Overll Protection Device (OPD). Cylinders with this safety feature will have a unique triangular handwheel. Only use LP gas cylinders with this type of handwheel. lThe cylinder must be periodically certied for use by the authority having local jurisdiction (AHJ). Before use, verify that the certication date on the cylinder has not expired. lAll new cylinders must be purged of air and moisture prior to lling. Used cylinders that have not been plugged or kept closed must also be purged. The purging process should be done by a propane supplier (Cylinders from an exchange supplier should have been purged and lled properly).

CONNECTING AN LP GAS CYLINDER TO

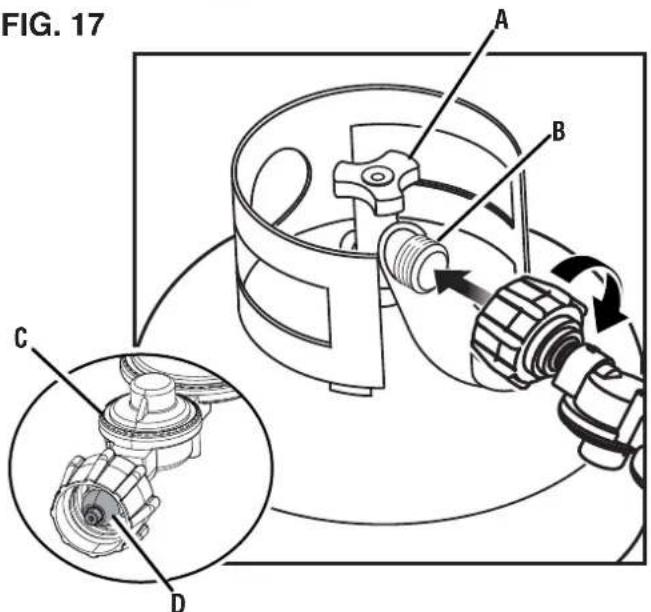

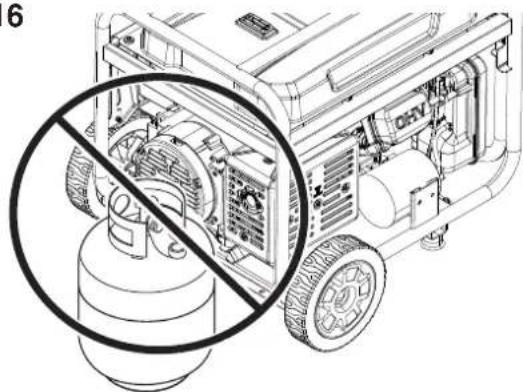

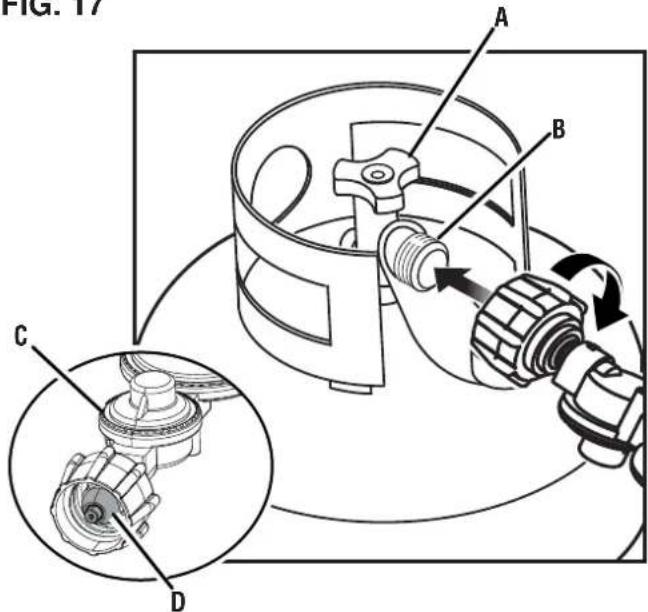

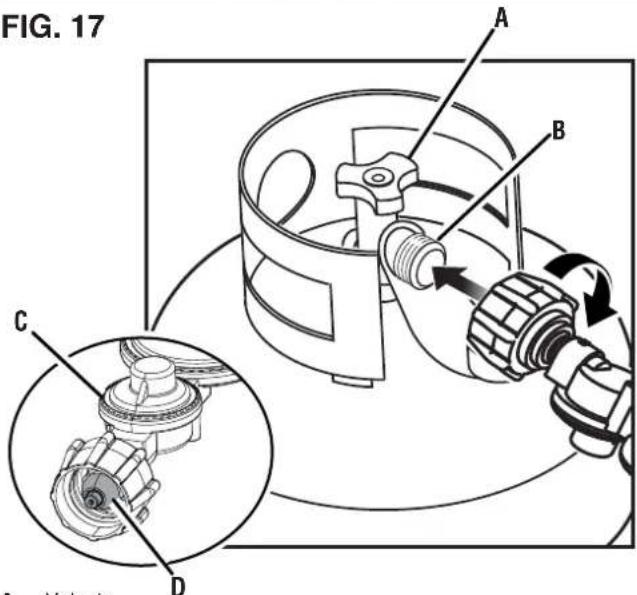

THE GENERATOR See Figures 16 - 18. DANGER Fire and explosion hazard. Never connect or disconnect the LPG/propane hose while the engine is running. Do not smoke or create sparks while handling LPG/propane. Always turn the engine off and allow the generator to cool for at least ve minutes before connecting the propane cylinder. WARNING Never use a gas container, LPG/propane hose, propane cylinder or any other fuel item that appears to be damaged. WARNING To reduce the risk of injury, perform a leak test any time the LP gas cylinder is disconnected and reconnected. FIG. 16 FIG. 17 A - Handwheel B - Cylinder Valve C - LPG/Propane Hose D - Nipple lTurn the generator off and allow the engine to cool for at least ve minutes. lPlace the generator on a level surface in a well- ventilated area. DO NOT connect or disconnect the LP gas cylinder indoors. lPlace the LP gas cylinder near the generator, but do not place it in the path of the mufer exhaust. NOTE: The propane cylinder can be of any capacity but it must conform to the LP Gas Cylinder Requirements listed earlier in this section. lVerify that the handwheel is in its full off position. lHold the LPG/propane hose rmly and push the nipple into the cylinder valve. lUse your hand to thread the LPG/propane hose to the cylinder valve. Do not cross-thread. Do not use tools or sealants.

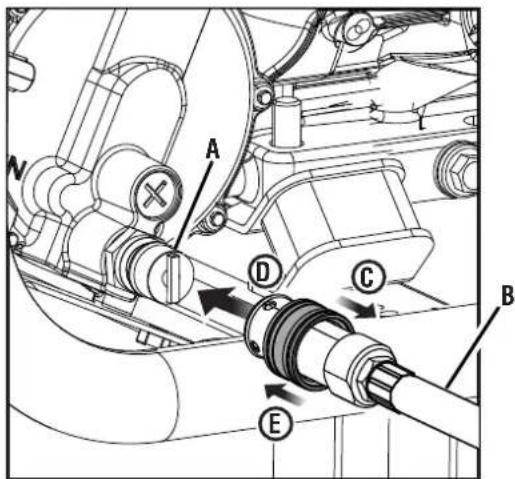

B22 | English OPERATION NOTE: You will feel some resistance as the hose seals in the cylinder valve. To complete the connection, turn the connector an additional one-half to three-quarters of a turn. If you are unable to complete the connection, disconnect the hose and try again. If you still cannot complete the connection, DO NOT use this hose! lConnect the LPG/propane hose to the generator using the quick-connect collar.

• Pull back the quick-connect collar.

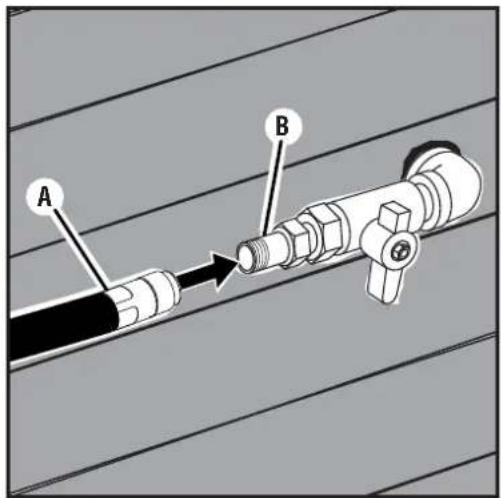

• Push the hose onto the natural gas/propane inlet.

• Push the collar forward so that the hose is secured properly. Gently pull the hose to see that it is secure.

See Figures 18 - 19. DANGER Fire and explosion hazard. Never connect or disconnect the natural gas hose while the engine is running. Do not smoke or create sparks while handling natural gas. Always turn the engine off and allow the generator to cool for at least ve minutes before connecting to natural gas. WARNING Never use a natural gas supply line, natural gas hose, or any other fuel item that appears to be damaged. WARNING To reduce the risk of injury, perform a leak test any time the natural gas hose is disconnected and reconnected. lTurn the generator off and allow the engine to cool for at least ve minutes. lVerify that the gas is turned off at the natural gas supply line. lCompletely unwrap and straighten the natural gas hose to prevent kinks. lUse your hand to thread the hose to the natural gas supply line. Do not cross-thread. Do not use tools or sealants. lConnect the natural gas hose to the generator using the quick-connect collar.

• Pull back the quick-connect collar.

• Push the hose onto the natural gas/propane inlet.

• Push the collar forward so that the hose is secured properly. Gently pull the hose to see that it is secure. A - Natural Gas/Propane Inlet B - Natural Gas Hose or LPG/Propane Hose C - Pull Collar Back D - Push Hose Onto Inlet E - Push Collar Forward A - Natural Gas Hose B - Natural Gas Supply Line

See Figure 20 - 21. DANGER Fire and explosion hazard. DO NOT add gasoline to the fuel tank or connect the LPG/propane hose or natural gas hose to the generator while the generator is in operation. NOTICE Do not overload the generator. Load capacities differ depending on the fuel source. Before switching fuel sources, make sure the generator can supply enough running (continuous) and peak (starting) watts for the items your connected items. NOTICE Do not overload the generator. Load capacities differ depending on the fuel source. Before switching fuel sources, make sure the generator can supply enough running (continuous) and peak (starting) watts for the items your connected items. The fuel source can be switched while the engine is off or while it is running if a propane tank or natural gas supply line is connected to the generator BEFORE operation. If you switch from gasoline to another fuel source while the engine is running, it may run rough for a few seconds as it purges gasoline from the carburetor. To switch to gasoline: lTurn the fuel valve to the open position to start the ow of gasoline. lRotate the fuel selector switch to GASOLINE . lTurn off the ow of natural or propane gas. To switch to propane: lOpen the cylinder valve on the LP gas cylinder to start the ow of propane. lRotate the fuel selector switch to PROPANE . lTurn off the ow of natural gas and gasoline. To switch to natural gas: lOpen the valve on the natural gas supply line to start the ow of natural gas. lRotate the fuel selector switch to NATURAL GAS . lTurn off the ow of propane and gasoline. FIG. 20 FIG. 21 A - Fuel Valve (Open) B - Fuel Valve (Close) A - Fuel Off B - Natural Gas C - Propane D - Gasoline E - Fuel Selector Switch

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1000 feet of increased altitude from sea level. High altitude adjustment is required for operation at altitudes over 5,000 ft. (1524 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. NOTICE DO NOT operate the generator at altitudes below 2,000 ft. (762 m) with the high altitude kit installed. Engine damage may occur. High Altitude Carburetor Kit Part# 51856324 | English OPERATION FIG. 22

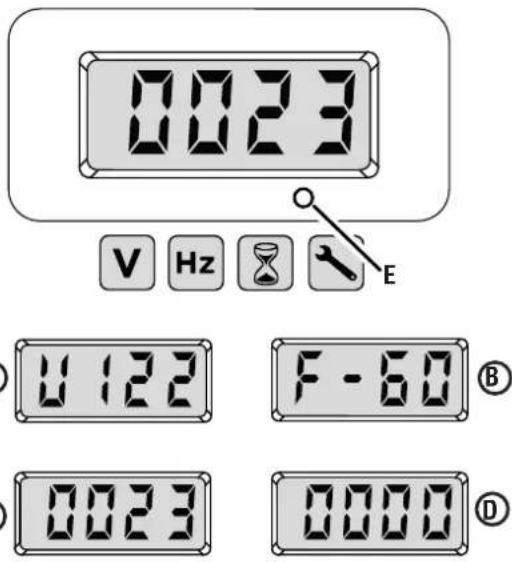

DATA CENTER See Figure 22. Push the mode button to cycle through the data display modes. Voltage: Displays current voltage output. Frequency (Hz): Displays power output frequency in Hertz. Lifetime Hours: Displays the lifetime run hours. Run Time/Maintenance: Displays current run time. Resets to zero when shut down. Maintenance reminder displayed when required. Maintenance Codes: P25 - Change engine oil P50 - Clean air lter, Change engine oil P100 - Change engine oil, clean air lter, replace fuel lter

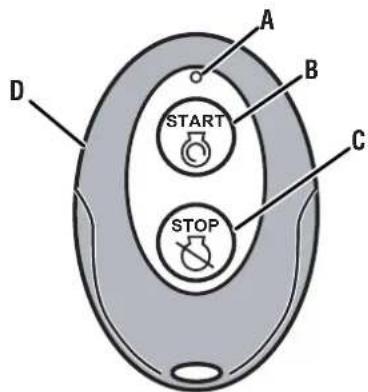

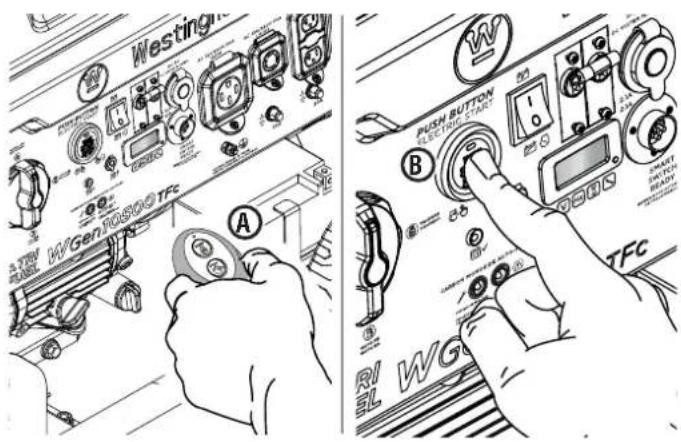

See Figures 23 - 24. lBring the key fob in range of the generator. lEnsure the battery is connected and the fuel selector switch is in the FUEL OFF position . lPush the battery switch to the ON position. NOTE: When battery power is available, the battery indicator light will illuminate and the LED around the engine start/stop button will illuminate solid green. lPress and hold the engine start/stop button for 10 seconds until the LED around the button ashes green, then release it. lPress and hold the start button on the key fob for one second, then release it.

• If the key fob paired successfully, the LED around the engine start/stop button will turn solid green.

• If pairing was unsuccessful, the LED around the en- gine start/stop button will continue ashing green. Wait several seconds, then make a second attempt. If the second attempt fails, turn the battery switch to the OFF position, wait several seconds and repeat the process. If subsequent attempts fail, turn the bat- tery switch to the OFF position and contact customer service. lAfter the key fob is successfully paired to the generator, turn the battery switch to the OFF position. BREAK-IN PERIOD For proper break-in, do not exceed 50% of the rated running watts during the rst ve hours of operation. Use supplied oil until rst recommend oil change. Do not use full synthetic oil during break in period. Full synthetic oil may prevent proper breaking and seating of the piston rings. Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings. A - Red LED B - Start Button C - Stop Button D - Key Fob FIG. 23

Verify that: lThe generator is placed in a safe, appropriate location. lThe generator is on a dry, at, and level surface. lOil and fuel levels are within safe operating range. lAll loads are disconnected from the control panel receptacles. DANGER Fire and explosion hazard. DO NOT move or tip the generator during operation.

STARTING THE GENERATOR

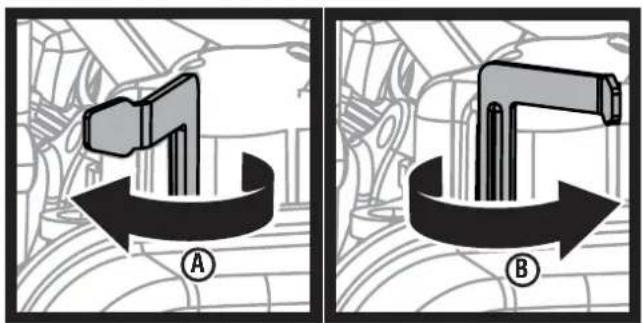

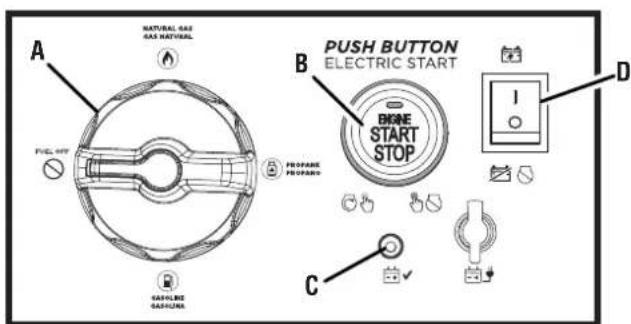

See Figures 24 - 27. lPlace the generator in a safe, appropriate location. lUnplug all loads. lCheck oil and fuel levels. If needed add oil, rell the LP gas cylinder, add gasoline, or contact your natural gas utility company. lUsing the fuel selector switch, select GASOLINE , PROPANE , or NATURAL GAS lStart the ow of your desired fuel and stop the ow from other fuel sources.

• For gasoline, open the fuel valve and turn off the ow of natural or propane gas.

• For propane, open the cylinder valve on the LP gas cylinder and turn off the ow of natural gas and gas- oline.

• For natural gas, open the valve on the natural gas supply line and turn off the ow of propane gas and gasoline. lPush the battery switch to the ON position. NOTE: When battery power is available, the battery indicator light and the green LED around the engine start/stop button will illuminate. To start the generator using the recoil handle: lMove the choke to the on/cold start position. NOTE: If the engine is warm, move the choke towards the on/warm start position (about 2/3 of the way). lFirmly grasp and pull the recoil handle slowly until you feel increased resistance. At this point, pull the recoil handle rapidly away from the generator until the engine starts. NOTE: Gently return the recoil handle into place after starting the unit. Do not let it snap back against the unit. During initial starting, additional pulls may be required to prime the fuel pump. lAfter the engine starts, move the choke to the off/warm start position. To start the generator using the remote start feature: lPush and hold the start button on the key fob for two seconds. NOTE: The red LED on the key fob should blink each time the start button is pressed. If the red LED does not blink and the generator does not start, then the battery in the fob may need to be replaced. If the red LED does blink but the generator does not start, the generator’s battery may need to charge. Start the unit using the recoil handle. The generator’s battery will charge as the unit runs. FIG. 25 A - Choke (On/Warm Start) B - Choke (Off/Cold Start)

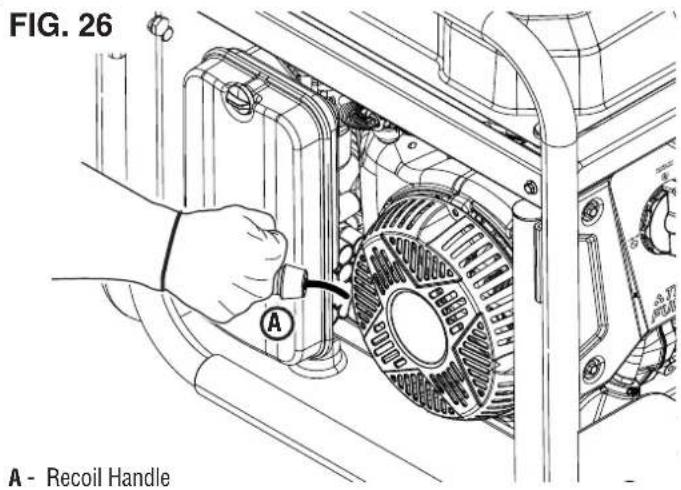

B26 | English OPERATION To start the generator using the engine start/stop button: lPush and hold the engine START/STOP button for two seconds. NOTE: If the engine START/STOP button does not start the generator, the generator’s battery may need to charge. Start the unit using the recoil handle. The generator’s battery will charge as the unit runs. To add loads after starting the generator: lWhen the generator output stabilizes, you can safely connect loads to the control panel receptacles. NOTE: Verify that all devices are turned off before connecting them to the generator. NOTE: Make sure that the wattage requirements for all connected devices are in line with your generator’s capabilities. lConnect and start the largest device or appliance. lAllow the generator output to stabilize. Once stable, the engine should run smoothly, and the device should function properly. lConnect and start the next largest device or appliance. lAllow the generator output to stabilize. lRepeat this process for each additional load.

STOPPING THE GENERATOR

See Figures 24 and 27. lRemove any connected loads from the control panel receptacles. lAllow the generator to run at “no load” to reduce and stabilize engine and alternator temperatures. lPress and hold the engine START/STOP button or the stop button on the key fob for one second to stop the generator. lTurn the battery switch off. lTurn the fuel selector switch to the FUEL OFF position . lStop the ow of fuel.

• For gasoline, close the fuel valve.

• For propane, close the cylinder valve on the LP gas cylinder.

• For natural gas, close the valve on the natural gas supply line. lDisconnect the propane hose from the LP gas cylinder and the generator or disconnect the natural gas hose from the natural gas supply line and the generator. To stop the unit quickly in an emergency: lPress and hold the engine START/STOP button or the stop button on the key fob for one second to stop the generator. CIRCUIT BREAKERS See Figures 28 - 29. The 20 amp circuit breaker protects devices and equipment connected to the 120V, 20 amp receptacles from electrical overload. The 30 amp circuit breaker protects devices and equipment connected to the 120V, 30 amp receptacles. The main circuit breaker will automatically switch OFF if the combined load of the receptacles exceeds the generator’s capacity. If a circuit breaker activates, turn off the connected device, remove it from the port or outlet, and reset the circuit breaker. A - 120/240 Volt AC 30 Amp Receptacle B - 120 Volt AC 20 Amp GFCI Receptacles C - 30 Amp Circuit Breaker D - 20 Amp Circuit Breakers A - Main Circuit Breaker B - USB Ports C - 120/240 Volt AC 50 Amp Receptacle FIG. 28 FIG. 29

WARNING Accidental start-up. Disconnect the spark plug boot (see gure 33) from the spark plug when performing maintenance on the generator. WARNING Replace damaged or worn items with recommended or equivalent replacement parts. Using an incorrect or incompatible part might create a hazard that could result in serious personal injury. WARNING Allow hot components to cool for 30 minutes before performing any maintenance procedure. WARNING Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water. Prolonged skin contact with gasoline or engine oil may cause severe skin irritation and other adverse reactions. OPERATION USB PORTS See Figure 29. Use the USB ports and USB cables (not included) to charge USB-compatible devices such as phones, tablets, and speakers (up to 2.1 Amps). NOTE: The USB ports are designed for charging only and do not have data transfer or communication capabilities. TRANSPORTING lTurn off the generator. lAllow the generator to cool a minimum of 30 minutes before transporting. lReplace all protective covers on the generator control panel. lAlways use the generator’s frame, not the handle, to lift the unit or attach any load restraints such as ropes or tie-down straps. DO NOT attempt to lift or secure the generator by holding onto any of its other components. lKeep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport. CAUTION Fire hazard. DO NOT up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur. NOTICE Check the physical condition of the product prior to each use. Look for loose bolts, uid leaks, and other signs of wear. Replace all damaged items. For replacement parts or assistance, contact our customer service team. To prolong the life of this product, follow the care and maintenance instructions in this section. Contact customer service before servicing any recall or warranty parts.

CLEANING THE GENERATOR

Do not store or operate your generator in dirty, dusty, or corrosive environments. Do not allow foreign materials and debris to clog the vents on the unit. NEVER clean the generator with a garden hose. Water can damage the generator’s fuel system and electrical components. If the unit needs to be cleaned, use a soft brush and damp cloth to clean the exterior and use low pressure air (no greater than 25 psi) to clean the vents. Never use gasoline as a cleaning agent.28 | English

CARE AND MAINTENANCE

CLEANING/REPLACING THE AIR FILTER

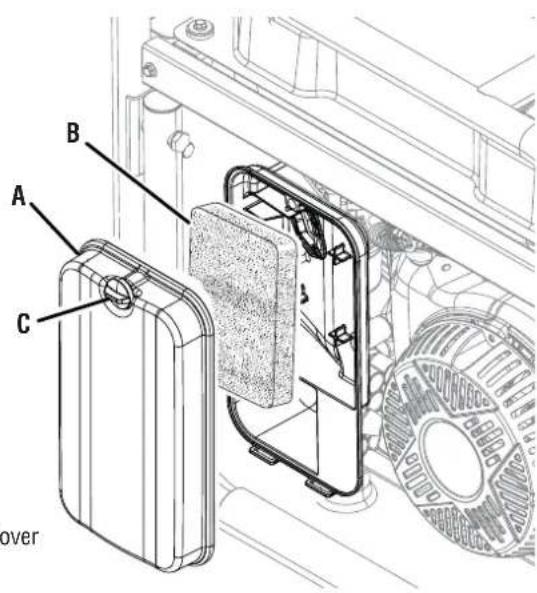

See Figure 30. Keep air lter clean. A dirty air lter can cause poor performance and decrease the service life of the product. NEVER operate the generator without an air lter in place. lTurn the generator off and allow the engine to cool for 30minutes. lRotate the knob counterclockwise and remove the cover. lRemove the air lter from the air cleaner housing and place it in a suitable cleaning container. Replace the air lter if damaged. NOTE: The air lter may be covered in oil. Use an appropriate container. lWash the air lter by submerging the lter in a solution of household detergent soap and warm water. Slowly squeeze the lter to thoroughly clean. NOTICE DO NOT twist or tear the air lter during cleaning or drying. Only apply slow but rm squeezing action. lRinse the air lter by submerging it in fresh water and applying a slow squeezing action. Allow the lter to dry thoroughly. NOTICE Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility. lDip the air lter in clean engine oil then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the lter. lInstall the air lter in the air cleaner housing and reinstall the air lter cover.

CHANGING THE ENGINE OIL

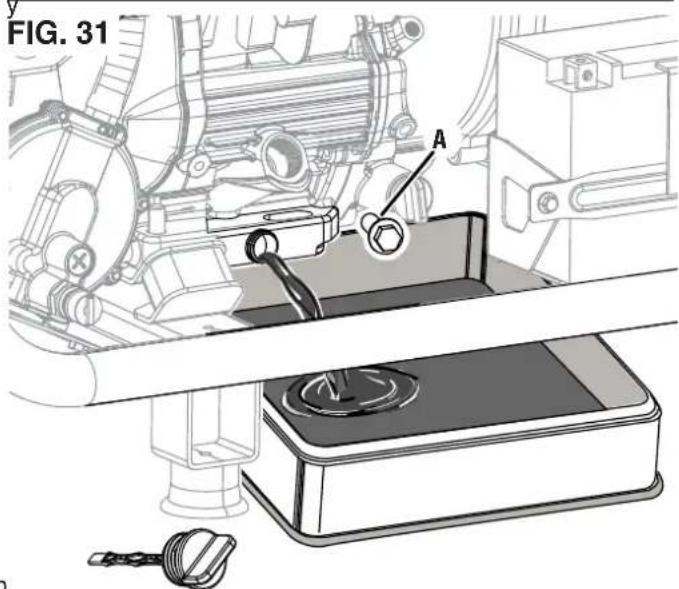

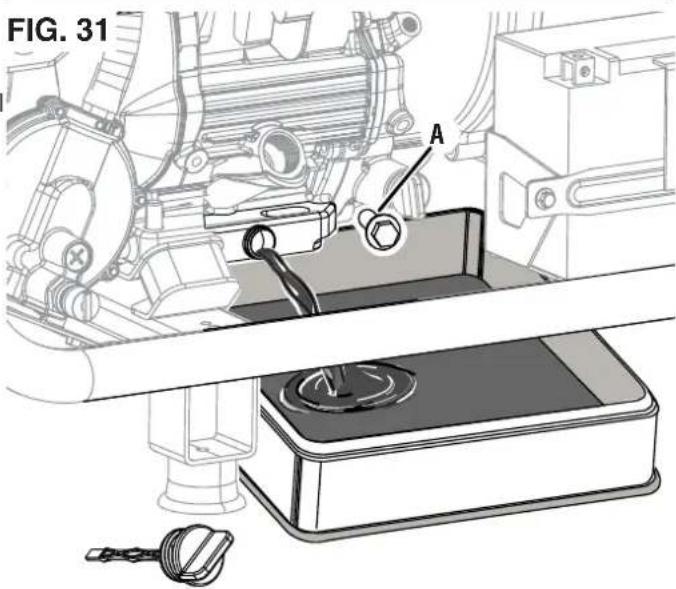

See Figures 31 - 32. For optimal performance, change the engine oil according to the gures specied in the maintenance schedule or the engine manual (if applicable). When using the generator under extreme, dirty, dusty conditions or in extremely hot weather, change the oil more frequently. NOTE: Change the oil while the engine is warm but not hot. Warm engine oil drains more quickly and thoroughly than cool lubricant. Contact with hot lubricant will cause serious burns. lTurn the generator off and allow the engine to cool for 30minutes. lPlace the generator on a level surface in a well- ventilated area. To change the engine oil: lClean the area around the oil dipstick. lSlowly unscrew and remove the oil dipstick. lPlace an oil pan (or suitable container) under the oil drain bolt. lRemove the oil drain bolt and allow the oil to drain. lAfter the oil has drained completely, replace the oil drain bolt. lRell the oil as described in the Operations section. lReplace the oil dipstick and hand-tighten. lClean up any spilled oil. A - Air Filter Cover B - Air Filter C - Knob FIG. 30

To clean the oil lter: lClean the area around the oil lter. lSlowly unscrew and remove the oil lter. lWash the oil lter with warm soapy water, then rinse and dry. lReplace the oil lter and hand-tighten. lClean up any spilled oil.

CLEANING/REPLACING THE SPARK PLUG

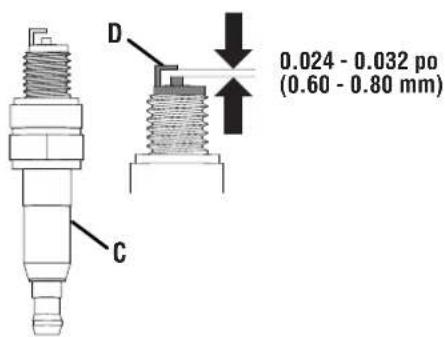

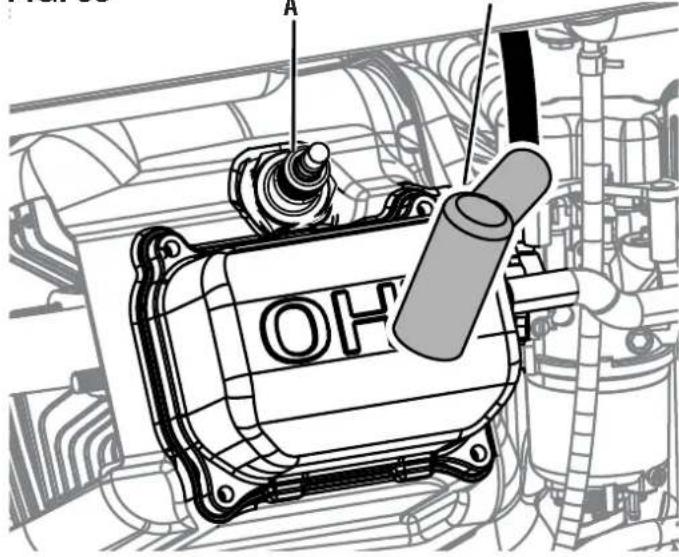

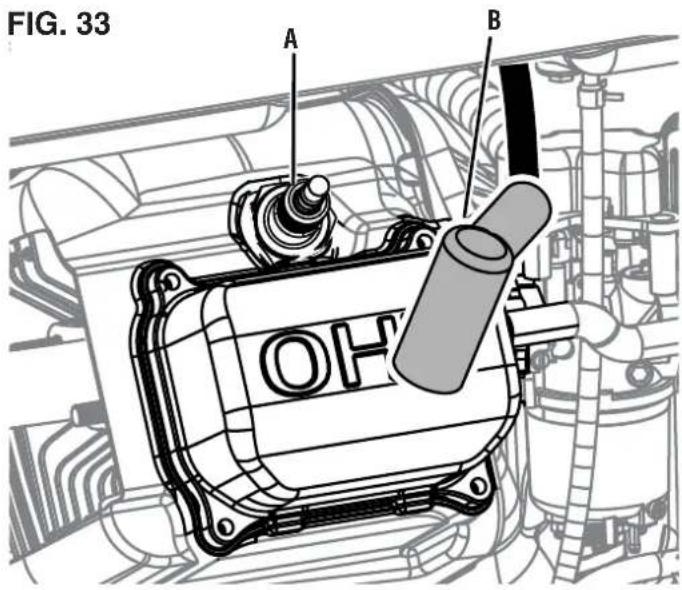

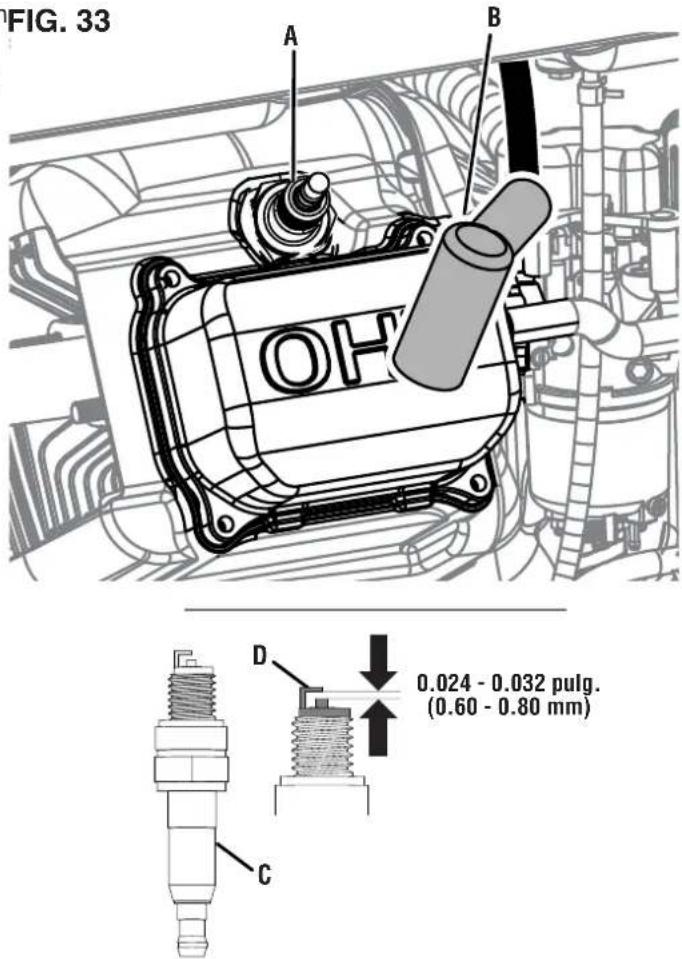

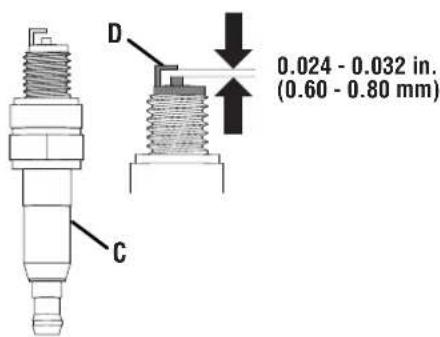

See Figure 33. NOTICE ALWAYS use the Westinghouse OEM or compatible non-resistor- type spark plug. Use of resistor-type spark plug can result in rough idling, misre, or may prevent the engine from starting. Make sure the spark is clean and properly gapped. To clean or replace your spark plug: lTurn the generator off and allow the engine to cool for 30minutes. lPlace the generator on a level surface in a well- ventilated area. lRemove the spark plug boot by rmly pulling the spark boot directly away from the engine. lClean the area around the spark plug. lRemove the spark plug with the included spark plug socket wrench. NOTICE Never apply any side load or move the spark plug laterally when removing the spark plug. lInspect the spark plug. Replace if electrodes are pitted, burned, or the insulator is cracked. Only use a recommended replacement plug. lMeasure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode. Spark plug gap: 0.024 - 0.032 in. (0.60 - 0.80 mm) lCarefully install the spark plug nger tight, then tighten as additional 3/8 to 1/2 turn with the spark plug wrench. lInstall the spark plug boot. A - Oil Filter FIG. 32

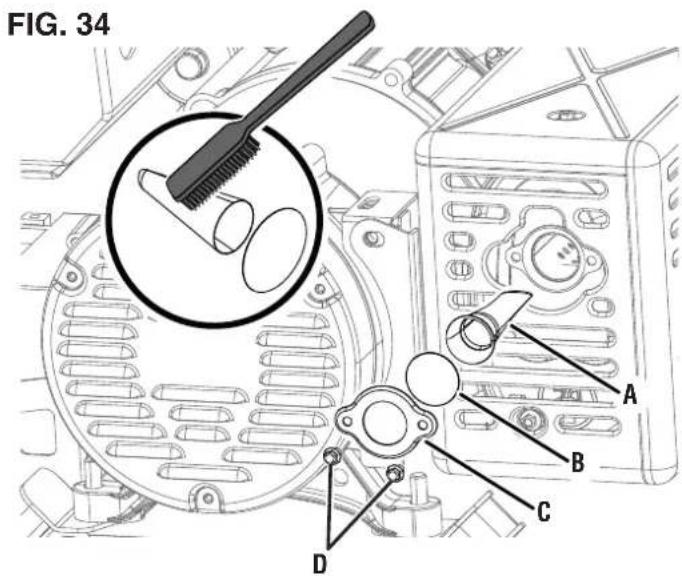

See Figure 34. Check and clean the spark arrestor according to the gures specied in the maintenance schedule or the engine manual (if applicable). Failure to clean the spark arrestor will result in degraded engine performance. lTurn the generator off and allow the engine to cool for 30minutes. lPlace the generator on a level surface in a well- ventilated area. lRemove the two screws securing the spark arrestor bracket. lRemove the bracket, screen, and spark arrestor from the generator. lGently clean the screen and spark arrestor using a wire brush. lReinstall the spark arrestor, screen, and bracket. Tighten screws securely.

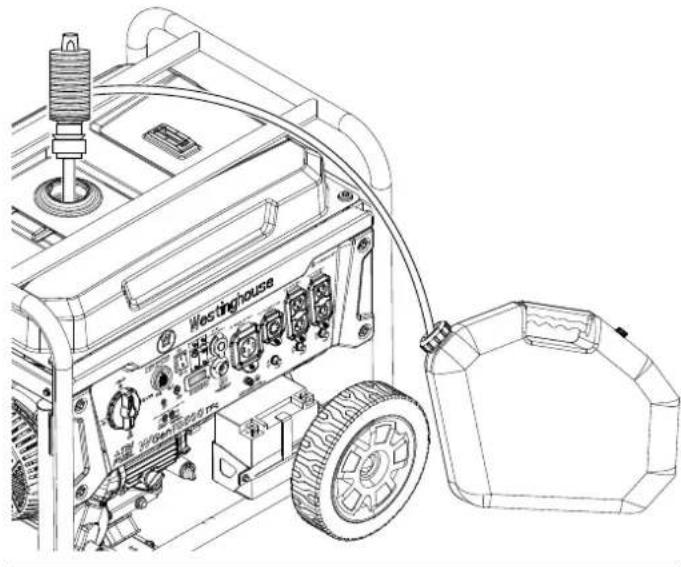

See Figures 35 - 36. WARNING ALWAYS store gasoline in a container approved for gasoline. Unapproved containers can break or deteriorate allowing gasoline or gasoline vapors to escape which can create a serious hazard. Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for two to six months, drain the oat bowl to prevent gum and varnish buildup in the carburetor. If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system. lTurn the generator off and allow the engine to cool for 30minutes. lPlace the generator on a level surface in a well- ventilated area. lDisconnect the propane hose from the LP gas cylinder and the generator or disconnect the natural gas hose from the natural gas supply line and the generator. To drain the oat bowl: lTurn the fuel selector switch to the FUEL OFF position and close the fuel valve. lPlace a drain hose (not included) on the bottom of the carburetor oat bowl as shown. lPlace the bottom end of the drain hose (not included) into an approved gasoline container to catch the drained fuel. lLoosen the oat bowl drain screw and allow the fuel to drain. Tighten the oat bowl drain screw. lRemove the drain hose (not included). A - Spark Arrestor B - Screen C - Bracket D - Screws FIG. 34

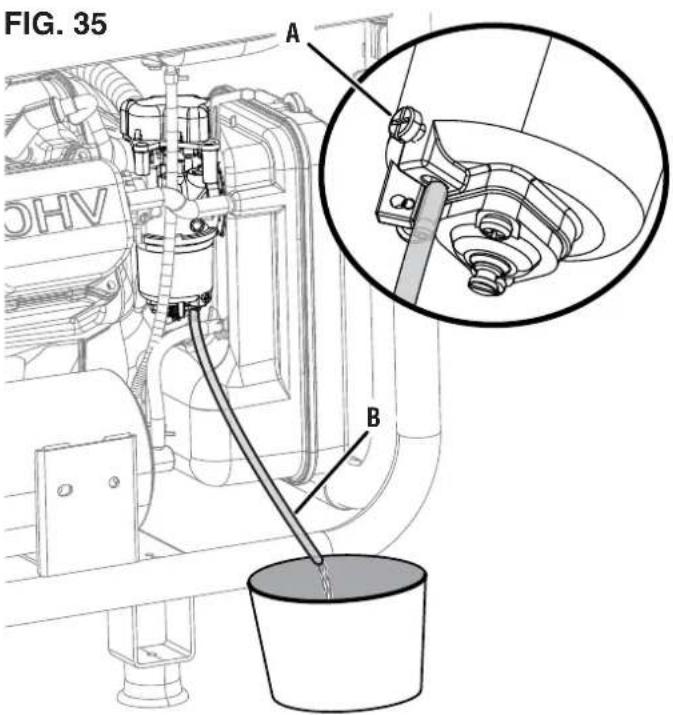

A - Drain Screw B - Drain Hose (Not Included) FIG. 35

To run the oat bowl dry: lTurn the fuel selector switch to GASOLINE and start the generator as described earlier. lAfter the engine starts, close the fuel valve. lAllow the generator to run until the fuel in the carburetor is depleted and the engine stops. To drain the fuel tank: NOTICE To prevent damage to the unit, drain the engine oil before emptying the fuel tank. See Changing the engine oil for details. lTurn the fuel selector switch to the FUEL OFF position and open the fuel valve. lClean area around fuel cap and remove the cap slowly. lRemove the fuel screen lter by slightly compressing it while removing it from the tank. lUsing a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump. NOTE: The fuel tank can also be drained using the carburetor drain screw and drain hose as described earlier. Turn the fuel selector switch to GASOLINE and open the fuel valve to allow fuel to ow from the tank through the carburetor. FIG. 36 FIG. 37 A - Fuel Valve B - Fuel Line C - Wrench (19 mm) [Not Included]

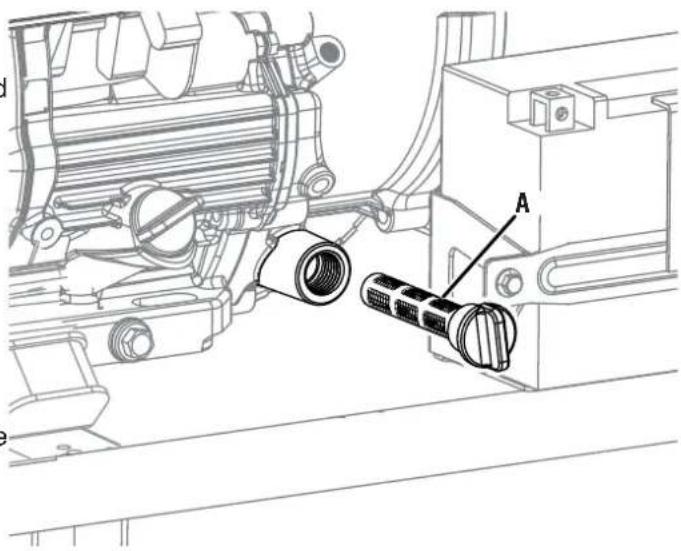

See Figure 37. Overtime, the fuel lter inside the fuel valve may become dirty or clogged. To reduce the risk of engine failure, replace the entire fuel valve including the lter according to the gures specied in the maintenance schedule or the engine manual (if applicable). lTurn the generator off and allow the engine to cool for 30minutes. lDrain the fuel tank as described previously. lLocate the fuel valve and note the valve’s orientation. NOTE: Place an approved gasoline container beneath the fuel valve to catch any remaining fuel. lUsing pliers, squeeze the fuel line clip and slide the fuel line away from the lter. lUsing a wrench (19 mm) [not included], loosen and remove the fuel valve from the tank. lThread the new fuel valve onto the fuel tank and tighten securely. lInstall the fuel line onto the new fuel valve.32 | English

CHECKING/ADJUSTING THE VALVE

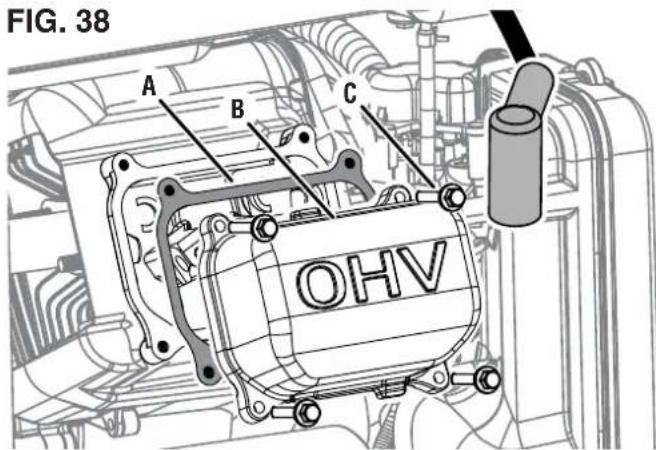

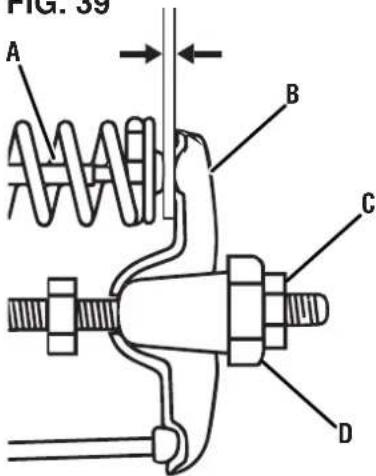

CLEARANCE See Figures 38 - 39. NOTICE Checking and adjusting valve clearance must be done when the engine is cold. lTurn the generator off and allow the engine to cool for 30minutes. lPlace the generator on a level surface in a well- ventilated area. lRemove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be replaced. lRemove the spark plug so the engine can be rotated more easily. lPull the recoil handle to rotate the engine to top dead center (TDC). Looking through the spark plug hole; the piston should be at the top (both valves are closed). lBoth rocker arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360°. lInsert a feeler gauge between the rocker arm and the valve stem to measure valve clearance. Intake Valve Exhaust Valve Valve Clearance 0.0031 – 0.0047 in (0.08 – 0.12 mm) 0.0051 – 0.0067 in (0.13 – 0.17 mm) Torque 8-12 Nm 8-12 Nm lIf an adjustment is necessary, hold the rocker arm pivot and loosen the pivot adjusting nut. lSlide the appropriate feeler gauge between the rocker arm and the valve stem. lTurn the rocker arm pivot to obtain the specied clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specied torque. Torque: 106 inch-pound (12 Nm) lRecheck valve clearance. lIf no further adjustments are needed, perform this procedure on the other valve. lWhen nished, install the gasket, rocker arm cover, and spark plug.

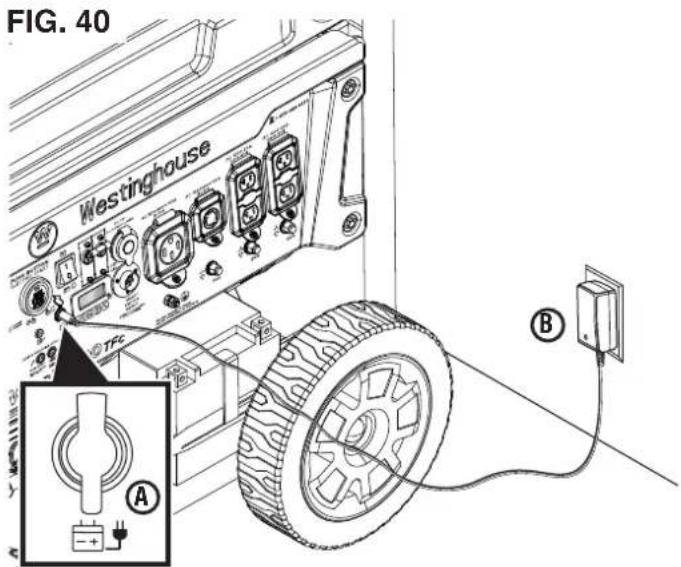

BATTERY MAINTENANCE See Figure 40. WARNING The battery gives off explosive hydrogen gas during normal operation. A spark or ame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance. WARNING Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery. WARNING NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, ush immediately with water and neutralize with baking soda. The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use for prolonged periods of time. NOTE: Once started, the generator will charge the battery after 30–60 minutes of use. When the generator is not running, the included trickle charger can remain connected and will maintain the battery for an indenite period of time. A red light on the charger indicates charging in progress. A green light indicates charging complete. Charge in a dry location. lPlug the charger into the battery charging port on the control panel. lPlug the wall receptacle end of the battery charger into a 120 Volt AC wall outlet. BATTERY REPLACEMENT See Figure 41 . CAUTION Battery posts, terminals contain lead and lead compounds. Wash hands after handling. lRemove the wheel in front of the battery. lRemove the two bolts and battery plate. Tilt the battery forward and remove. lDisconnect the negative (-) cable (black boot) from the negative (-) battery post. lDisconnect the positive (+) battery cable (red boot) from the positive (+) battery post. NOTICE Always connect the cables in the following sequence to avoid possible shock. A - Battery B - Battery Plate C - Bolt A - Battery Charging Port B - Charger

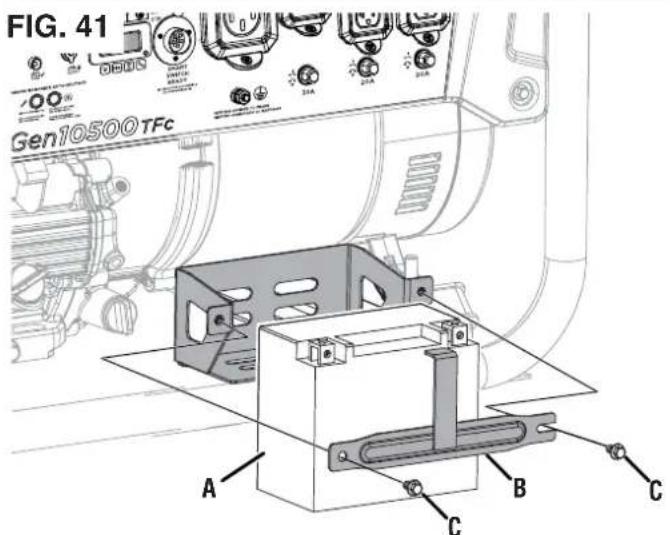

FIG. 41 lOn the replacement battery, connect the positive (+) battery cable (red boot) to the battery positive (+) terminal. Secure the boot over the battery post. lConnect the negative (-) battery cable (black boot) to the negative (-) positive terminal. Secure the boot over the battery post. lInstall the battery in the battery tray. Install the battery plate and bolts. Tighten the bolts securely. NOTICE Dispose of the used battery properly according to the guidelines established by your local or state government. lReinstall the wheel.34 | English

CARE AND MAINTENANCE

STORAGE Turn the unit off and allow it to cool a minimum of 30 minutes before storage. Keep the unit upright. Do not store the generator on its side. Drain fuel before storing the unit. Store the unit and the fuel separately in well-ventilated areas away from sparks, open ames, pilot lights, heat, and other sources of ignition. NOTICE Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the ow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer signicantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer’s instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month Replace all protective covers on the generator control panel. Clean the exterior of the generator and remove any debris from the mufer cooling vents. 2 to 6 months Replace all protective covers on the generator control panel. Clean the exterior of the generator and remove any debris from the mufer cooling vents. Drain the carburetor oat bowl. (Store gasoline in an approved gasoline container or dis- pose of it according to state and local ordinances.) 6 months or longer Replace all protective covers on the generator control panel. Clean the exterior of the generator and remove any debris from the mufer cooling vents. Drain the carburetor oat bowl and the fuel tank.(Store gasoline in an approved gasoline container or dispose of it according to state and local ordinances.) Put a tablespoon of engine oil into the spark plug cylinder. Gently pull the recoil handle to slowly turn the engine and distribute the lubricant. Reinstall the spark plug Change the engine oil. MAINTENANCE SCHEDULE Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs rst. More frequent service is required when operating in adverse conditions as noted below. NOTE: If your product has a separate engine manual, disregard the information in this chart and follow the instructions in the engine manual. Before Each Use After First 25 Hours or First Month After 50 Hours or Every Six Months After 100 Hours or Every Six Months After 300 Hours or Every Year Check Engine Oil X Change Engine Oil

Change oil every month when operating under heavy load or in high temperatures.

Clean more often under dirty or dusty conditions. Replace air lter if it cannot be adequately cleaned.

Recommend service to be performed by authorized Westinghouse service dealer.English | 35

PROBLEM POSSIBLE CAUSE CORRECTION

Engine starts, then shuts down Fuel level is low or depleted. Add gasoline, connect natural gas hose, or connect propane cylinder. Low engine oil level stopped generator. Fill oil to proper level and ensure the generator is on a at, level surface. Dirty air lter. Clean the air lter. Contaminated fuel source. Drain gasoline and rell the fuel tank, replace the propane cylinder, or have a professional clean the natural gas line. Defective low oil level switch. Contact Westinghouse customer service toll-free at 1 [phone]. Engine lacks power Air lter restricted. Clean or replace air lter. The choke lever is in the wrong position. Move the choke lever to the correct position. Fuel system malfunction, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 [phone]. Engine will not start Fuel level is low or depleted. Add gasoline, connect natural gas hose, or connect propane cylinder. Stale gasoline, generator stored without treating or draining gasoline, or refueled with bad gasoline. Drain the gasoline tank. Refuel with fresh gasoline. Dirty air lter. Clean the air lter. Low engine oil level stopped generator. Fill oil to proper level and ensure the generator is on a at, level surface. Spark plug wet with fuel (ooded engine). Wait ve minutes. Turn the fuel selector switch to the FUEL OFF position . Pull recoil handle rapidly several times. If the generator does not start, remove spark plug and dry. Spark plug faulty, fouled, or improperly gapped. Gap or replace the spark plug. Reinstall. The fuel selector switch is in the FUEL OFF position Turn the fuel selector switch to the appropriate position. CO sensor removed or modied. Return to original conguration. CO sensor activated or system fault occurred. Relocate generator / Contact Westinghouse customer service toll-free at 1 [phone]. Engine runs rough or bogs when load applied Dirty air lter. Clean the air lter. Generator overloaded. Unplug some devices. Faulty power tool or appliance. Replace or repair tool or appliance. Stop and restart the engine. Fuel system malfunction, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 [phone]. No power at AC receptacles AC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s. Faulty power tool or appliance. Replace or repair tool or appliance. Stop and restart the engine. Faulty generator. Contact Westinghouse customer service toll-free at 1 [phone].English | 37 SCHEMATICS2 | Español NO DEVUELVA ESTE PRODUCTO A LA TIENDA Si tiene preguntas o necesita ayuda, llame al servicio de atención al cliente al 855-944-3571. ESPAÑOL

CAUSE POSSIBLE CORRECTION
