Product type	Built-in surveillance camera (Dashcam)
Brand	Braun
Model	BBox T7
Screen	3-inch TFT LCD screen
Video resolution (front)	1920x1080P 30 fps, 1280x720P 30 fps, 848x480P 30 fps, 640x480 30 fps
Video resolution (rear)	1280x720P 30 fps
Photo resolution	12 M, 10 M, 8 M, 5 M, 3 M, 2 MHD, VGA, 1.3 M
Viewing angle	170° (front), 120° (rear)
Video format	MOV
Photo format	JPG
Power	5V/1A via cigarette lighter charger
Battery	Lithium-ion 600 mAh
Storage	micro SD card up to 64 GB (Class 6, 10 or higher recommended)
Main functions	Loop recording, G-sensor, motion detection, parking surveillance, interval recording, GPS, SOS, license plate
Connection	Micro USB, GPS port, rear camera input
Operating temperature	-10 °C to 50 °C
Storage temperature	-20 °C to 70 °C
Included accessories	Cigarette lighter charger, built-in GPS mount, USB cable, user manual
Maintenance	Clean the lens and windshield regularly; format the SD card once a month
Repairability	Reset via reset hole; no spare parts provided

Frequently Asked Questions - BBox T7 BRAUN

How to insert the micro SD card?

Insert the micro SD card into the slot, respecting the indicated direction. A Class 10 or higher card is recommended. It is advisable to format the card before first use via the device menu.

Why does the device display 'Please insert SD card'?

This message appears if no micro SD card is inserted or if the card is not detected. Check that the card is properly inserted and formatted. If the problem persists, try another compatible card.

How to start automatic recording?

Plug in the cigarette lighter charger: the device turns on and automatically starts recording. You can also press and hold the Power button to turn it on manually.

What to do if the battery is low?

The screen displays 'Low Battery' and the device saves the current file before turning off. Recharge the battery via the cigarette lighter charger. The charging indicator turns off when charging is complete.

How to activate motion detection?

In standby mode, press the Menu button (■), navigate to 'Motion detection' with ▲/▼, then press OK (●) to activate it. By default, it is disabled.

How to play recorded videos?

In video standby mode, press the Mode button (➞) twice briefly to enter playback mode. Use ▲/▼ to select a file, then press ● to play. During playback, use ▲/▼ to fast forward/reverse.

What to do if recording stops or the card is full?

Enable loop recording in the menu (default setting: 3 minutes). The oldest files will be overwritten automatically. You can also format the card regularly to free up space.

How to use GPS?

Plug the GPS module (G-mouse) into the corresponding port. Place the vehicle outdoors; the GPS icon appears when a signal is received. The time syncs automatically according to the time zone selected in the menu.

How to protect a file from being overwritten?

Use the SOS function: during recording, briefly press the ▲ button to manually lock the current video. The G-sensor also automatically protects files during sudden braking.

How to reset the device in case of malfunction?

Insert a small rigid object (e.g., paperclip) into the reset hole on the device. This restarts the system. If the problem persists, restore default settings via the 'Default settings' menu.

USER MANUAL BBox T7 BRAUN

Technical diagram of a camera with numbered parts for identification and assembly reference.

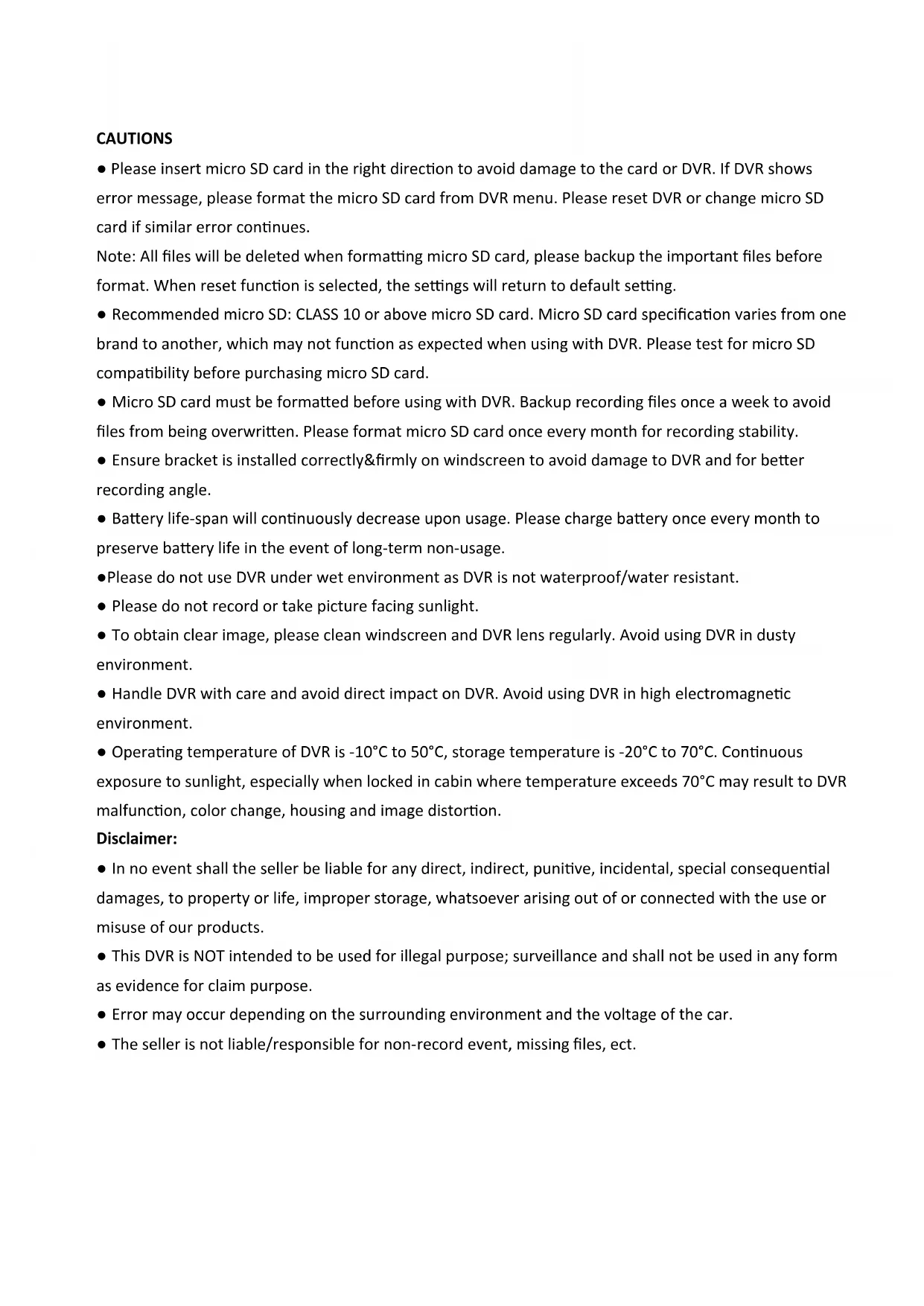

• Please insert micro SD card in the right direction to avoid damage to the card or DVR. If DVR shows error message, please format the micro SD card from DVR menu. Please reset DVR or change micro SD card if similar error continues.
  Note: All files will be deleted when formatting micro SD card, please backup the important files before format. When reset function is selected, the settings will return to default setting.
• Recommended micro SD: CLASS 10 or above micro SD card. Micro SD card specification varies from one brand to another, which may not function as expected when using with DVR. Please test for micro SD compatibility before purchasing micro SD card.
• Micro SD card must be formatted before using with DVR. Backup recording files once a week to avoid files from being overwritten. Please format micro SD card once every month for recording stability.
• Ensure bracket is installed correctly&firmly on windscreen to avoid damage to DVR and for better recording angle.
• Battery life-span will continuously decrease upon usage. Please charge battery once every month to preserve battery life in the event of long-term non-usage.
• Please do not use DVR under wet environment as DVR is not waterproof/water resistant.
• Please do not record or take picture facing sunlight.
• To obtain clear image, please clean windscreen and DVR lens regularly. Avoid using DVR in dusty environment.
• Handle DVR with care and avoid direct impact on DVR. Avoid using DVR in high electromagnetic environment.
• Operating temperature of DVR is -10^ to 50^ , storage temperature is -20^ to 70^ . Continuous exposure to sunlight, especially when locked in cabin where temperature exceeds 70^ may result to DVR malfunction, color change, housing and image distortion.

Disclaimer:

• In no event shall the seller be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of our products.
• This DVR is NOT intended to be used for illegal purpose; surveillance and shall not be used in any form as evidence for claim purpose.
• Error may occur depending on the surrounding environment and the voltage of the car.
• The seller is not liable/responsible for non-record event, missing files, ect.

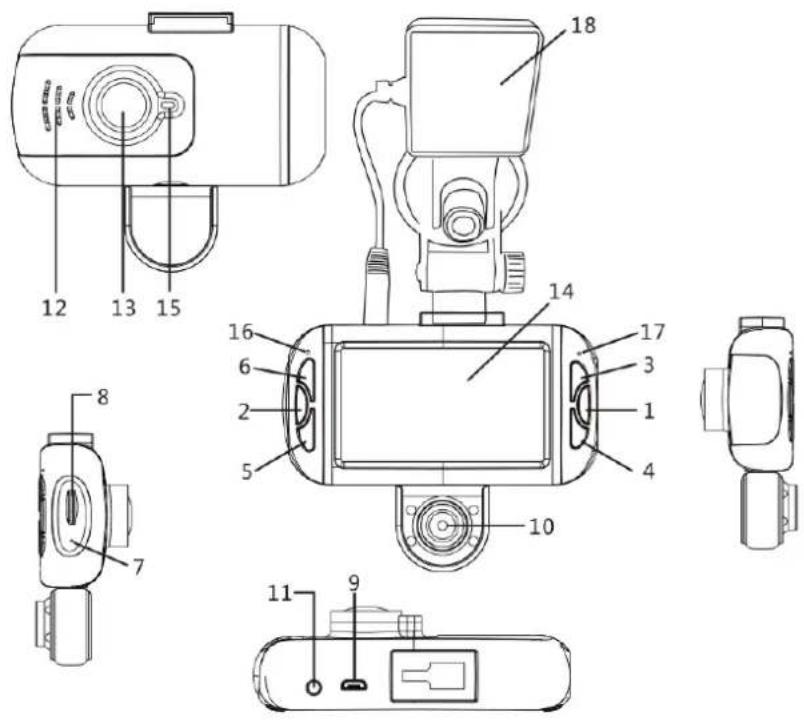

1. Structure

1.OK/REC

2.Menu

3.Up

1. Down

5.Mode

6.ON/OFF

1. Reset Hole

8.TF Card Slot

1. USB Port

2. Rearview lens

3. GPS Port

4. Speaker

5. Front lens

6. LCD screen Module

7. Working Indicator

8. Recording Indicator

9. Charging Indicator

10. GPS

2. Function

A. On/Off

1.Power On

In the off state, long press, DVR enters into video mode and start recording automatically.

Or DVR is connected with car charger in the off state to enter video mode and start recording automatically. When unplug the charger, DVR will automatically save the current file and shut down in 5 seconds delay.

Note: LCD screen writes ‘Please insert SD card’ if Micro SD card not inserted. If the Micro SD card is inserted with DVR in working state, DVR will automatically power off.

2.Power Off

In work state, long press

power off DVR.

Note: In low battery state, DVR display writes 'Low Battery' and automatically saves the current file and

shuts down.

B. Battery Charging

In the charging state, charging indicator will be steady on. After full charge, it is off.

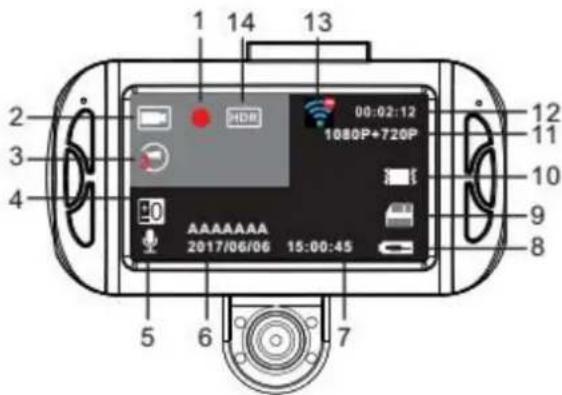

C. Video

Press ⏻ to power on DVR and enter into video mode automatically. Press to stop recording and save the current file, then DVR goes into standby mode. In standby mode, press OK button to restart recording, press again to pause.

In video mode, short press → to turn on or turn off sounds.

1 14 13 2 00:02:12 3 1080P+720P 4 0 AAAAAAA 2017/06/06 15:00:45 5 6 7 8 9 10 11 12

1.Recording 2.Video 3.Loop Recording 4.Exposure 5.Voice/Mute 6.Date 7.Time

8.Charging Icon 9.Micro SD Card in 10.G-sensor 11.Video Resolution 12.Recording Time

13.GPS Status Icon 14.HDR

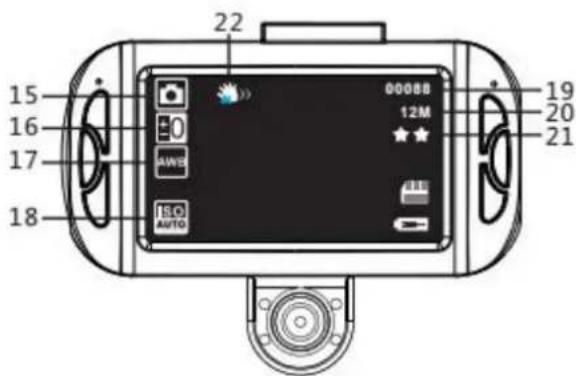

D.Photo

Press ↩ enter into photo mode, press ● to take photo with sounds prompt.

22 15 16 17 18 000BB 12M 20 21

1. Photo 16. Exposure 17. White Balance 18. ISO 19. Photo Quantity 20. Image Resolution 21. Image Quality 22. Anti-Shaking

E. Playback and Delete

In video standby mode, short press twice to enter into playback mode. Press ▲/▼ to select the file. ● is used for play or pause. When the video is playing ,press → to stop too and short press ▲/▼ to fast forward or reverse. Short press ▲/▼ every time, DVR will fast forward or reverse for 2x, 4x and max. is 8x. If you want to delete files, please stop the play first and press ■ be in Delete Menu.

Press ▲/▼ to select 'delete current' or 'delete all' and press ● to confirm. Press ■■ to exit and go back to playback mode.

F.G-Sensor

When car brakes suddenly or being hit heavily, G-sensor will activate to save and protect the current video clip from overwritten automatically. Three grades setting (high, medium, low) is to cater for different car owners.

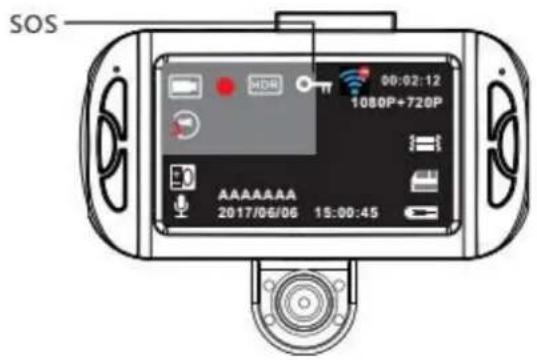

G.SOS

In recording, short press manually to save the current video from being overwritten.

SOS 00:02:12 1080P+720P AAAAAAA 2017/06/06 15:00:45

H. Digital Zoom

In photo mode, short press ▲ zoom in max. 4x . Press to zoom out min. 1:1.

I.Switch Lens

In recording/standby mode, press ⏻ to switch lens.

J.Parking Monitor

Parking monitor is for security monitoring in parking.

Please set Parking Monitor ON in settings menu. There will be a ☐ on the screen. (If Parking Monitor OFF, ☐ will be not there). After the car engines off, DVR will power off accordingly. If DVR detects vibration, it will power on to record automatically for 10 seconds and then power off. If it is continuous vibration, DVR will keep recording.

Long press to turn on/off parking monitor after DVR powers on.

K.Time Lapse Record

Time lapse record is to save memory capacity.

In standby mode, short press ■■ to enter into setting menu and press ▲/▼ to select Time-lapse Record. Press ● to select “Off/100ms/200ms/500ms” to activate this function. Short press ■■ to exit setting menu.

L. Motion Detection

In video standby mode, short press ■■ to enter into setting menu, then press ▲/▼ to select motion detection and press to turn on motion detection.

When DVR detects movement, it starts to record with green indicator flash. If there is no movement for 10 seconds, DVR stops to record and back to video standby mode. Factory default OFF and please turn on if needed.

M. Car License Plate Number

Go to car license plate number setting menu to input correct numbers. The first character can only be alphabet. The following characters can be alphabets or numbers. Press ▲/▼ to select among 0-9 or A-Z. Press to confirm and go to the next one. Press to exit.

N. GPS Tracking

A. Insert G-MOUSE into camera.
B. There will be a icon on the top of screen, when DVR don't receive GPS signal successfully. When icon appears on the top of screen, DVR locates GPS successfully.

C. Please use professional players to play video files. The current driving track and coordinates will be displayed on the player.

Go to Update time of GPS setting menu to select time zones. When DVR locates GPS successfully, DVR's current time will be synchronized with GPS satellite time. Please use GPS function at outdoor, DVR may not receive GPS signal at indoor.

O. System Setting

In standby mode, press ■■ to enter into system setting. Press ▲/▼ to select the setting item and press ● confirm. Press again to exit.

System Setting	Mode	Category	Sub-Category	Remarks
	Video	Resolution	1080P 1440x1080	Factory default: 1080FHD
			720P 1280x720
		Loop Recording	Off /3mins/5mins/10mins	Factory default: 3mins
		Time Lapse Record	Off/100MS/200MS/500MS	Factory default: Off
		HDR	Off/On	Factory default: On
		Exposure	+2.0、+5/3、+4/3、+1.0、+2/3、+1/3、+0.0, -1/3,-2/3,-1.0,-4/3,-5/3,-2.0	Factory default:+0.0
		Motion Detection	Off/On	Factory default: Off
		Record Audio	Off/On	Factory default:On
		Date Stamp	Off/On	Factory default:On
		Plate Number	Off/On	Factory default:On
		Gravity Sensor	Off/Low sensitivity/Medium sensitivity/ High sensitivity	Factory default: Mediumsensitivity
		Parking Monitor	Off/On	Factory default: Off
		GPS	Off/On	Factory default: On
		Daylight Saving Time	Off/On	Factory default: Off
		Update time of GPS	Off/GMT-12:00/GMT-11:00/GMT-10:00/GMT-09:00/GMT-08:00/GMT-07:00/GMT-06:00/GMT-05:00/GMT-04:30/GMT-04:00/GMT-03:30/GMT-03:00/GMT-02:00/GMT-01:00/GMT+00:00/GMT+01:00/GMT+02:00/GMT+03:00/GMT+03:30/GMT+04:00/GMT+04:30/GMT+05:00/GMT+05:30/GMT+05:45/GMT+06:00/GMT+06:30/GMT+07:00/GMT+08:00/GMT+09:00/GMT+09:30/GMT+10:00/GMT+11:00/GMT+12:00/GMT+13:00
	Photo	Capture Mode	Single/2sec/5sec/10sec	Factory default: Single
		Resolution	12M/10M/8M/5M/3M/2MHD/VGA/1.3M	Factory default: 5M
		Sequence	Off/On	Factory default: Off
		Quality	Fine/Normal/Economy	Factory default: Normal
		Sharpness	Strong/Normal/Soft	Factory default: Normal
		White Balance	Auto/daylight/cloudy/tungsten	Factory
			/Fluorescent	default:Auto
		Color	Color/Black & White/Sepia	Factory default:Color
		ISO	Auto/100/200/400	Factory default:Auto
		Exposure	+0.0, -1/3, -2/3, -1.0, -4/3, -5/3, -2.0, +2.0, +5/3, +4/3, +1.0, +2/3, +1/3	Factory default: +0.0
		Anti-shaking	Off/On	Factory default: Off
		Quick Review	Off/2seconds/5seconds	Factory default: Off
		Date Stamp	Off,Date,Date/Time	Factory default:Date/Time
	Playback	Delete	Delete current/Delete all
		Protect	Lock Current/Unlock Current/Lock A II/Unlock All
		Slide Play	2sec/5sec/8sec
System Setting		Date/Time	MM/DD/YY,DD/MM/YY,YY/MM/DD	Factory default:MM/DD /YY
		Auto Power Off	Off/3mins/5mins/10mins	Factory default:Off
		Beep Sound	Off/On	Factory default: On
		Language	English/Français/ Español/Português/Deutsch/Italiano/简体中文/繁體中文/Русский/日本語/	Factory default: English
		Frequency	50Hz/60Hz	Factory default: 50Hz
		Format	All data will be deleted/Cancel/OK
	Screen Saver	Off/30sec/1min/2mins	Factory default: 1min
	Lamp setting	Day Mode/Night Mode	Factory default: Day Mode
	Delay Shutdown	Off/5s/10s/30s	Factory default: 5s
	Default Setting	Return menu setting to defaults/Cancel/OK
	Version	Current version

P. Computer Connection

Video and Photo Download

1. When computer and DVR connected with USB cable, the screen pops up an option- Mass Storage and PC Camera.
2. If select Mass Storage and DVR will detect inserted Micro SD card to show files.
3. When select PC Camera, DVR can be used as PC Camera.

Note: Incorrect operation can leads to system crash. Please use small hard objects to press the reset hole to restart.

3. Specification

Specification may update without prior notice.

Screen	3.0”TFT LCD screen
Video Resolution	Single lens recording: 1920*1080P 30fps\1280*720P 30fps\848*480P30fps\640*480 30fps(front lens); 1280*720P 30fps(rearview lens)Dual lens recording: 1440*1080P 30fps(front lens); 1280*720P30fps(rearview lens)
Lens	170 diagonal for front lens; 120 diagonal for rearview lens
Video Format	MOV
Photo Resolution	12M/10M/8M/5M/3M/2MHD/VGA/1.3M
Photo Format	JPG
G-sensor	Support
SOS	support
GPS Tracking	Support
Motion Detection	Support
Parking Monitoring	Support
Loop Recording	Support
Car Licence Plate	Support
Microphone/Speaker	Support
Memory Card Capacity	Max. support 64GB( class 6 or class 10 or above suggested)
Frequency	50HZ/60HZ
Output	5V/1A
USB Type	Micro USB
Battery Capacity	600mAh
Language	English/Français/Espanol/Português/Deutsch/Italiano/简体中文/繁體中文/Русский/日
