USER MANUAL DM869 BUFFALO

Exterior view of a modern stainless steel milk carton with digital display and control panel (no visible text or symbols)

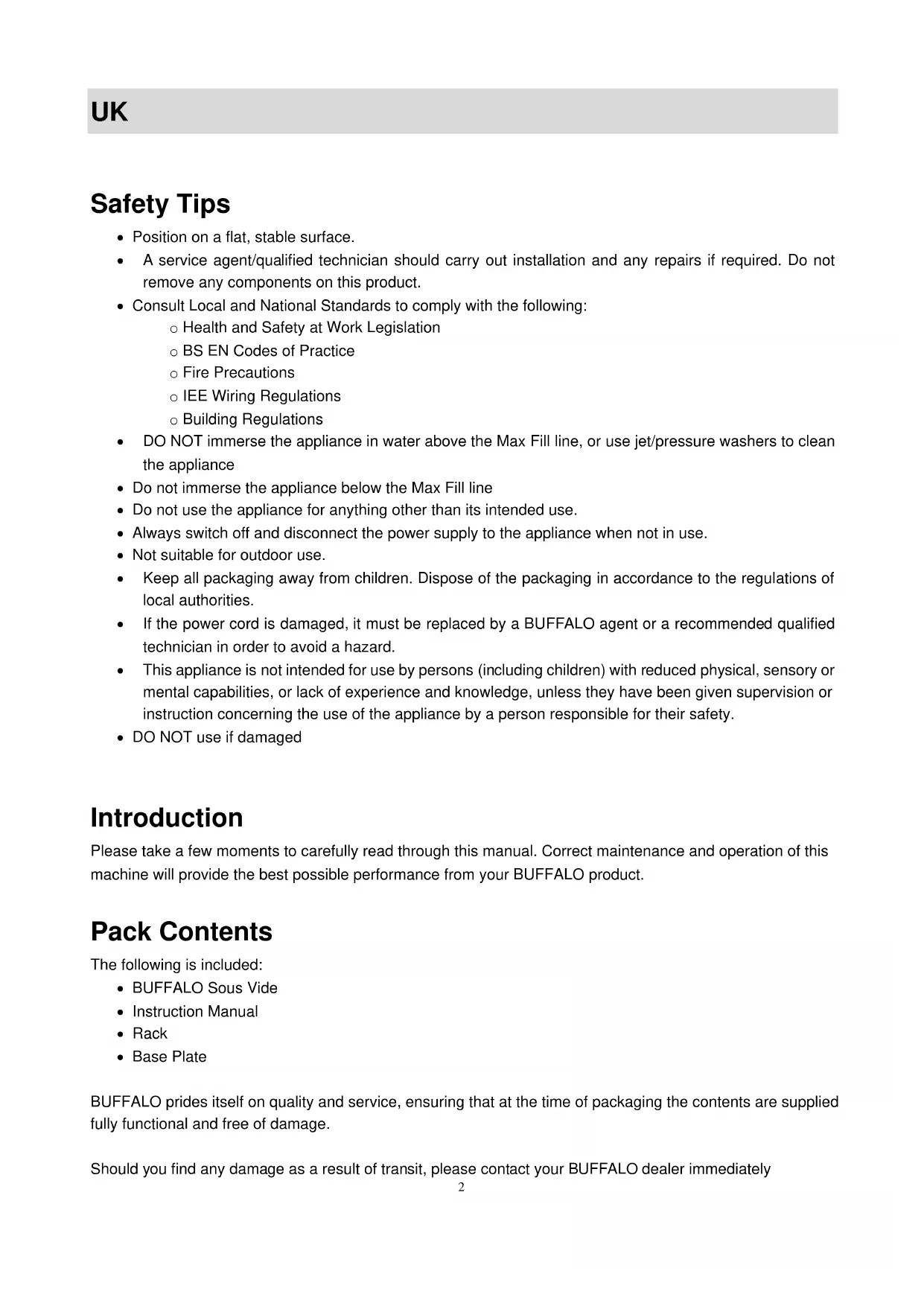

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

o Health and Safety at Work Legislation
o BS EN Codes of Practice
- Fire Precautions
○ IEE Wiring Regulations
○ Building Regulations

• DO NOT immerse the appliance in water above the Max Fill line, or use jet/pressure washers to clean the appliance
• Do not immerse the appliance below the Max Fill line
• Do not use the appliance for anything other than its intended use.
• Always switch off and disconnect the power supply to the appliance when not in use.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • DO NOT use if damaged

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Sous Vide
• Instruction Manual
• Rack
• Base Plate

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately

Function

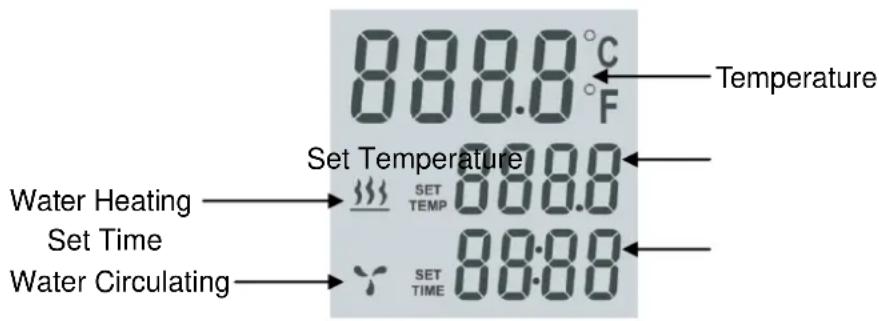

LCD Display

888.0 °C F Temperature Set Temperature Water Heating SET TEMP Set Time 888.0 SET TIME Water Circulating 88:00

Water Heating: When displayed water is being heated.

Water Circulating: When displayed water is being stirred.

Temperature: Displays actual temperature of water.

Set Temperature: Temperature set point.

Set Time: Under setting mode displays the time set point. In working mode display shows the time left.

Operation

1. Add water to the water bath.

Note: the water level (after the food is put in) should be higher than the MIN but lower than the MAX marked on the machine.

1. Turn on by pressing the On/Off button at the back of the machine.
2. Press the Temperature Display button to set the unit to display °C or °F

Note: Default setting is °C. After choosing °C or °F, the unit will remember your setting for future use.

and

to set working time and temperature.

1. After setting time and temperature, press ▶ to start the unit heating. Pressing ■ will stop the unit heating.

Note: Unit is designed to hold temperature with lid on. Unit will not hold temperature without lid

1. When the water reaches the desired temperature place the food to be cooked into the water bath.

Note: before Sous Vide cooking, the food should be vacuum packed first.

1. When set time has expired the Sous Vide will beep. Press to stop the machine heating.

Note: the machine will go on beeping every 20 seconds. If there is no action by the operator the water temperature will be held at the preset temperature.

Cleaning, Care & Maintenance

- Disconnect from power by removing the plug, allow to cool before wiping exterior surfaces and removing any loose debris.

- Unit should be regularly descaled using a food safe descaler

Trouble Shooting

Fault	Probable Cause	Action
Does not heat	No power	Make sure the machine is plugged in correctly
	Power switch is set to OFF	Set the power switch to ON
Slow to Heat	Unit needs Descaling	Descale unit
Error message E01 is displayed	Water level is too low.	Add water, make sure the water level is between the MIN and MAX line.
LCD Display does not switch on	Power switch is set to OFF	Set the power switch to ON

Technical Specification

Model	Voltage	Power	Current	Dimensionsh x w x d mm	Weight(kg)
DM869	230v 50hz	620w	2.8A	280 x 415 x 260	7.5kg

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice

Veiligheidstips

Support Plaque de base

Equipment Type	Sous Vide
Model	DM869
Application of Council Directives(s)	LVD Directive 2006/95/ECEMC Directive 2004/108/ECRoHS Directive 2011/65/EU
Standards	EN 60335-2-15:2002EN 62233:2008EN 55014-1:2006EN 55014-2:1997EN 61000-3-2:2006EN 61000-3-3:2008EN 62321:2009
Producer Name	Buffalo
Producer Address	Fourth Way,Avonmouth,Bristol,BS11 8TBUnited Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

Date

Signature

Full Name

Position

14/06/14

R.J. Connell.

Richard Cromwell

Commercial Director
