Product type	Radio alarm clock
Brand	TECHNOLINE
Model	WT 290
Power supply	3 AAA 1.5 V batteries (non-rechargeable alkaline)
Time reception	Automatic DCF77 (1am, 2am, 3am, 4am, 5am) and manual
Display	Time, date, indoor temperature, AM/PM icons, reception, day of week, low battery
Time format	12h (AM/PM) or 24h
Number of alarms	2 (ALARM 1 and ALARM 2)
Snooze function	Yes, 5 minutes
Backlight	Temporary (5 seconds) via SNOOZE/LIGHT button
Temperature unit	°C or °F selectable
Temperature range	0°C to +50°C
Time zone	Adjustable from -12 to +12 hours
Low battery indicator	Icon displayed when batteries are nearly depleted
Environment	Indoor use only
Precautions	Do not expose to water, shocks, direct sunlight, extreme temperatures, dust
Cleaning	With a dry cloth, do not use corrosive products
Batteries	Use only alkaline batteries, observe polarity, replace all batteries at the same time
Recycling	Do not dispose of with household waste, take to a collection point

Frequently Asked Questions - WT 290 TECHNOLINE

How to set the time manually?

Press and hold the SET button until the hour digits flash. Use °C/°F/HAUT or 12/24/BAS to set the hour, then press SET to confirm. Repeat for minutes, year, month, day, and time zone. No key press for 30 seconds automatically exits.

How to activate or deactivate DCF77 reception?

To start manual reception, press and hold the 12/24/BAS button in normal time display. The antenna icon flashes. To stop it, press and hold 12/24/BAS again. Automatic reception occurs every day at 1:00 am, 2:00 am, 3:00 am, 4:00 am, and 5:00 am.

What to do if the displayed time is wrong?

If the time is incorrect, you can start a manual reception by holding 12/24/BAS to search for the DCF77 signal. If that fails, set the time manually using the SET button. Make sure the device is placed near a window, away from metal obstacles or electronic devices.

How to set the alarms?

To set alarm 1, press ALARM 1 to activate/deactivate. Press and hold ALARM 1 to enter setting mode: set the hours with °C/°F/HAUT or 12/24/BAS, confirm with ALARM 1, then set the minutes and confirm. Do the same with ALARM 2 for the second alarm.

How to use the snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button to activate the snooze. The alarm will sound again after 5 minutes. The Zz and alarm icons flash. To stop the alarm, press any other button.

How to change the temperature unit (Celsius/Fahrenheit)?

In normal display mode, press the °C/°F/HAUT button to switch between °C and °F. The unit changes immediately.

What to do if the low battery indicator lights up?

The low battery icon appears when the batteries are nearly depleted. Replace them quickly with 3 new AAA alkaline batteries, observing polarity. Always replace all batteries at the same time.

Why does the DCF reception icon flash or disappear?

The icon flashes while searching for the DCF77 signal. If reception is successful, it stops flashing. If it disappears, reception has failed. This can be due to excessive distance, obstacles (mountains, buildings), interference (high-voltage cables, electrical devices), or unsuitable position. Place the device near a window.

How to clean the device?

Clean the device with a soft dry cloth. Do not use corrosive or abrasive products. Avoid any contact with water or moisture. Do not immerse the device in water.

What to do in case of malfunction (abnormal display)?

If the device displays irrelevant time or does not work correctly, remove the batteries and reinsert them after a few seconds, observing polarity. This restores default settings. You will then need to reconfigure the time, alarms, etc. If the problem persists, check the reception environment.

USER MANUAL WT 290 TECHNOLINE

1 PM 2 6:20 3 MO TU WE TH FR SA SU 14-5 210° ZONE DATE MONTH TEMP 7 8 9 10 6:00 8:00

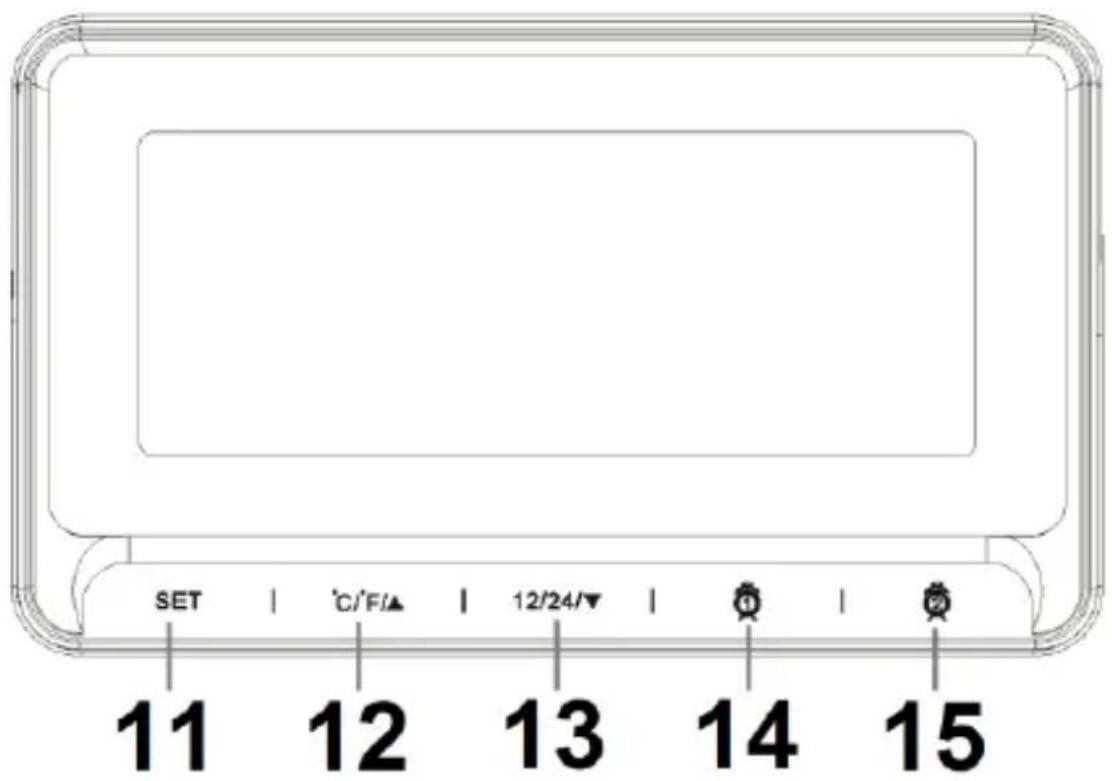

Frontansicht:

SET | ℃/℉/▲ | 12/24/▼ | 11 12 13 14 15

Seite 1

Draufsicht:

SNOOZE / LIGHT 16 17

Beschreibung:

1 PM 2 6:20 3 MO TU WE TH FR SA SU 14-5 210 ZONE DATE MONTH TEMP 7 8 9 10 6:00 8:00

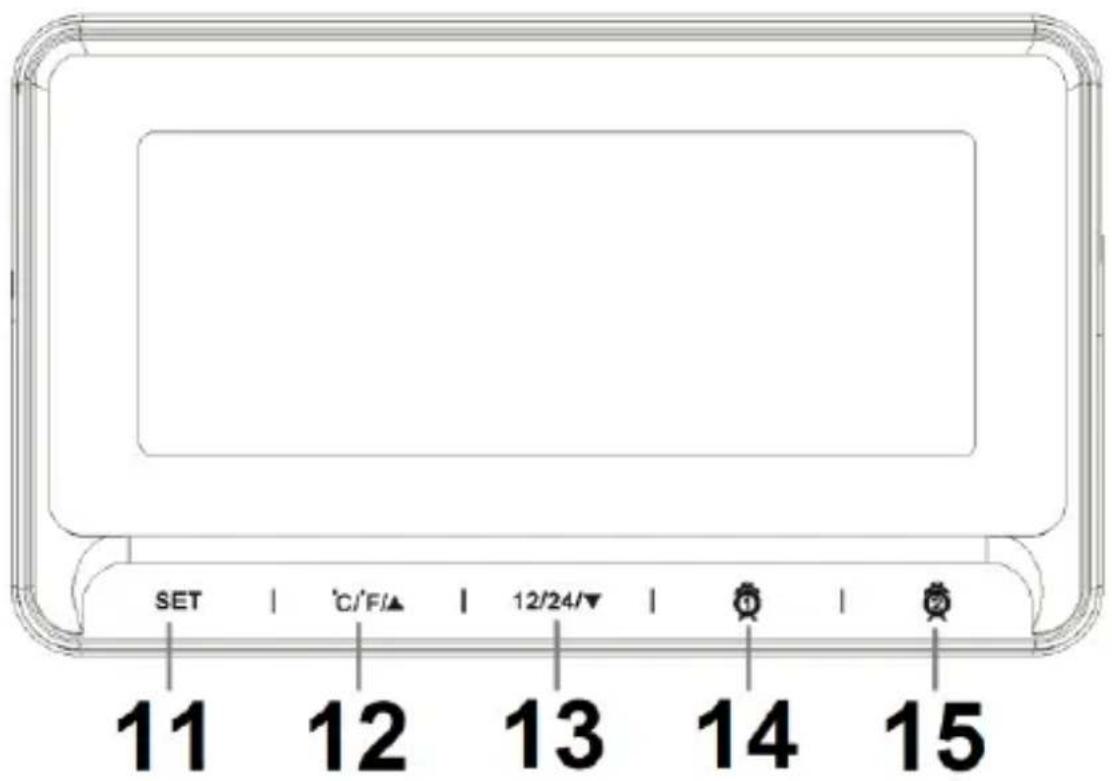

Front view:

SET | °C/°F/▲ | 12/24/▼ | 11 12 13 14 15

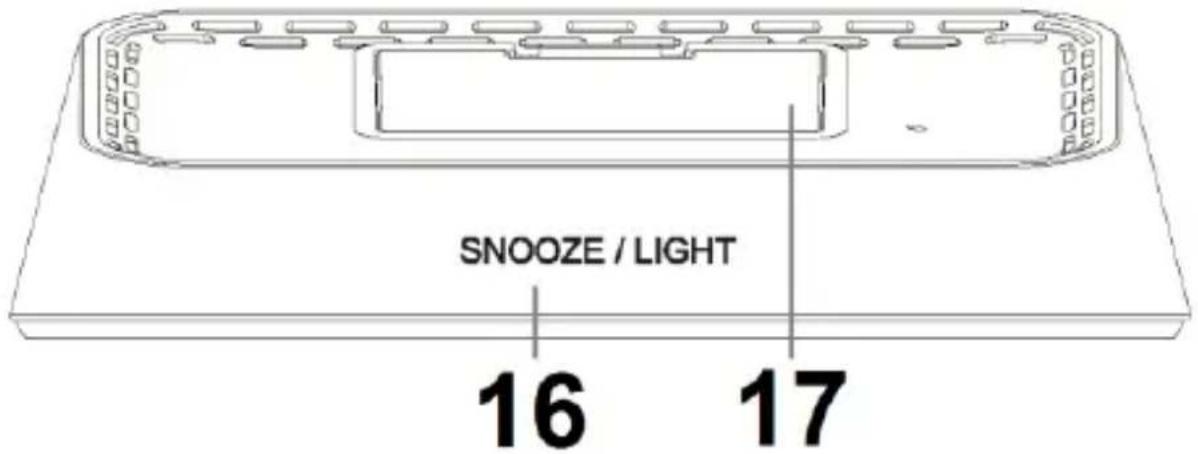

Top view:

SNOOZE / LIGHT 16 17

Description:

1 – AM/PM icons (only in 12 hour mode)
2 - Time
3 – Signal reception icon (radio antenna)
4 – Weekday icons
5 – Date and Month
6 – Indoor temperature
7 – Low battery indicator
8 - Time zone icon
9 – Time of alarm 1 with icon

10 – Time of alarm 2 with icon
11 - SET button
12 - °C/°F / UP button
13 - 12/24 / DOWN button
14 - ALARM 1 button
15 - ALARM 2 button
16 -SNOOZE / LIGHT button
17 - Battery compartment (with cover on)

INITIAL OPERATION

1. Open the battery cover at the back of your clock.

2. Insert 3 x new AAA batteries into the battery compartment by observing the correct “+” and “-” polarity.

3. Slide on to replace the battery cover. The clock will show all display components and a signal tone is heard.

4. After few seconds, the clock will automatically start reception of DCF77 time signal.

DCF77 SIGNAL RECEPTION AND SIGNAL INDICATOR

After your clock is powered up, it starts to receive DCF signal. The

icon flashes.

Receiving DCF signal

( △ icon flashing)

Successful Reception

icon becomes static)

Failed Reception

( icon disappear)

AUTOMATIC RECEPTION

Your clock starts automatic reception everyday at 1:00, 2:00, and 3:00. If it fails to receive the DCF time signal at 3:00, it will start reception at 4:00. If it fails again, it will start reception at 5:00. If it fails again, it will start automatic reception at 1:00 again in the next day.

MANUAL RECEPTION

While viewing normal time display, press and hold the 12/24 / DOWN button to start DCF77 reception and the radio antenna icon is flashing. Press and hold the 12/24 / DOWN button again to stop DCF77 reception and the radio antenna icon is no longer displayed.

12 / 24 HOUR TIME DISPLAY

While viewing normal time display, press the 12/24 / DOWN button to switch between 12 hour and 24

hour time display. In 12 hour time display the AM icon will be displayed in the time before noon and the PM icon will be displayed in the time after noon.

TIME SETTING

• While viewing normal time display, hold the SET button to enter the time setting and the hour digits flash. Press the °C/°F / UP or the 12/24 / DOWN button to set the hour.
• Press the SET button to confirm and the minute digits flash. Press the °C/°F / UP or the 12/24 / DOWN button to set the minute.
• Press the SET button to confirm and the year digits flash. Press the °C/°F / UP or the 12/24 / DOWN button to set the year.
• Press the SET button to confirm and the month digits flash. Press the °C/°F / UP or the 12/24 / DOWN button to set the month.
• Press the SET button to confirm and the date digits flash. Press the °C/°F / UP or the 12/24 / DOWN button to set the date.
• Press the SET button to confirm and the time zone digits flash. Press the °C/°F / UP or the 12/24 / DOWN button to set the time zone value between -12 and +12 hours. For example, +0 is used for Germany and -1 is used for the UK
• Press the SET button to confirm and exit the time setting.

Notes:

• Time zone icon (ZONE) is shown on the display once a time zone is set (beside 0)
- Press and hold the the °C/°F / UP or the 12/24 / DOWN button to speed up setting process.
• The setting will automatically return to time display mode, if no button is used for 30 seconds

ALARM SETTINGS

• Press the ALARM 1 button to turn on/off alarm 1. The alarm 1 icon is displayed when alarm 1 is active and is not displayed while alarm 1 is not active.
• Hold the ALARM 1 button to enter into alarm 1 setting and the hour digits flash. Press the °C/°F / UP or the 12/24 / DOWN button to set the hour of alarm 1.
• Press the ALARM 1 button to confirm and the minute digits flash. Press the °C/°F / UP or the 12/24 / DOWN button to set the minute of alarm 1.

- Press the ALARM 1 button to confirm and exit the alarm setting.

- Use the ALARM 2 button instead of ALARM 1 button in the above setting to set alarm 2.

Notes:

• Press and hold the the °C/°F / UP or the 12/24 / DOWN button to speed up setting process.
  • The setting will automatically return to time display mode, if no button is used for 30 seconds.
• Press any button except the SNOOZE button during the active alarm sound to stop the alarm and the alarm will sound again on the next day at the same time.
  • Alarm sound duration is 2 minutes and the alarm sound speed is increased during the duration

SNOOZE FUNCTION

When alarm sound is active, press SNOOZE/LIGHT to enter into snooze mode and the Zz icon and the alarm icon will flash. The alarm will sound again after 5 minutes. Press any button except the SNOOZE button during the active alarm sound to stop the alarm and the alarm will sound again on the next day at the same time.

BACKLIGHT

Press the SNOOZE/LIGHT button to turn on backlight for 5 seconds.

TEMPERATURE IN °C OR °F

Under normal display mode, press °C/°F / UP button to set °C or °F as temperature unit.

Note: the temperature range displayed is from 0^ C to +50^ C

LOW BATTERY INDICATOR

The low battery indicator icon is displayed once the batteries are low on energy. Change in a new set of batteries soon.

TROUBLE SHOOTING

If your clock displays irrelevant time or does not function properly, which maybe caused by electro-static discharge or other interference, slide open the battery cover, take out the batteries and reinstall them by observing the correct +/- polarity. Your unit will be reset to default settings and you need to set it again.

ENVIRONMENTAL RECEPTION EFFECTS

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys

• near freeway, railway, airports, high voltage cable etc.

• near construction site
• among tall buildings
  • inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
  • inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

PRECAUTIONS

• This clock is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

BATTERY SAFETY WARNINGS

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.

• Remove batteries when not in use.

• Do not recharge and do not dispose of batteries in fire as the batteries may explode.

• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to

bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all

countries of the European Union, and to other European countries with a separate waste collection system.

WT290 - MODE D'EMPLOI

1 PM 2 6:20 3 MO TU WE TH FR SA SU 14:5 210 ZONE DATE MONTH TEMP 7 8 9 10 6:00 8:00

Vue avant :

SET | 'C'/F/▲ | 12/24/▼ | 11 12 13 14 15

Vue de dessus :

SNOOZE / LIGHT 16 17

Description :

1 PM 2 6:20 3 MO TU WE TH FR SA SU 14:5 210° ZONE DATE MONTH TEMP 7 8 9 10 6:00 8:00

Vista delantera:

SET | 'C'/F/▲ | 12/24/▼ | 11 12 13 14 15

Página 1

Vista sARRIBAerior:

SNOOZE / LIGHT 16 17

Descripción:

1 PM 2 6:20 3 MO TU WE TH FR SA SU 14:5 210 ZONE DATE MONTH TEMP 7 8 9 10 6:00 8:00

Pohled zepredu:

SET | °C/°F/▲ | 12/24/▼ | 11 12 13 14 15

Strana 1

Pohled shora:

SNOOZE / LIGHT 16 17

Popis:

1 PM 2 6:20 3 MO TU WE TH FR SA SU 14:5 210 ZONE DATE MONTH TEMP 7 8 9 10 6:00 8:00

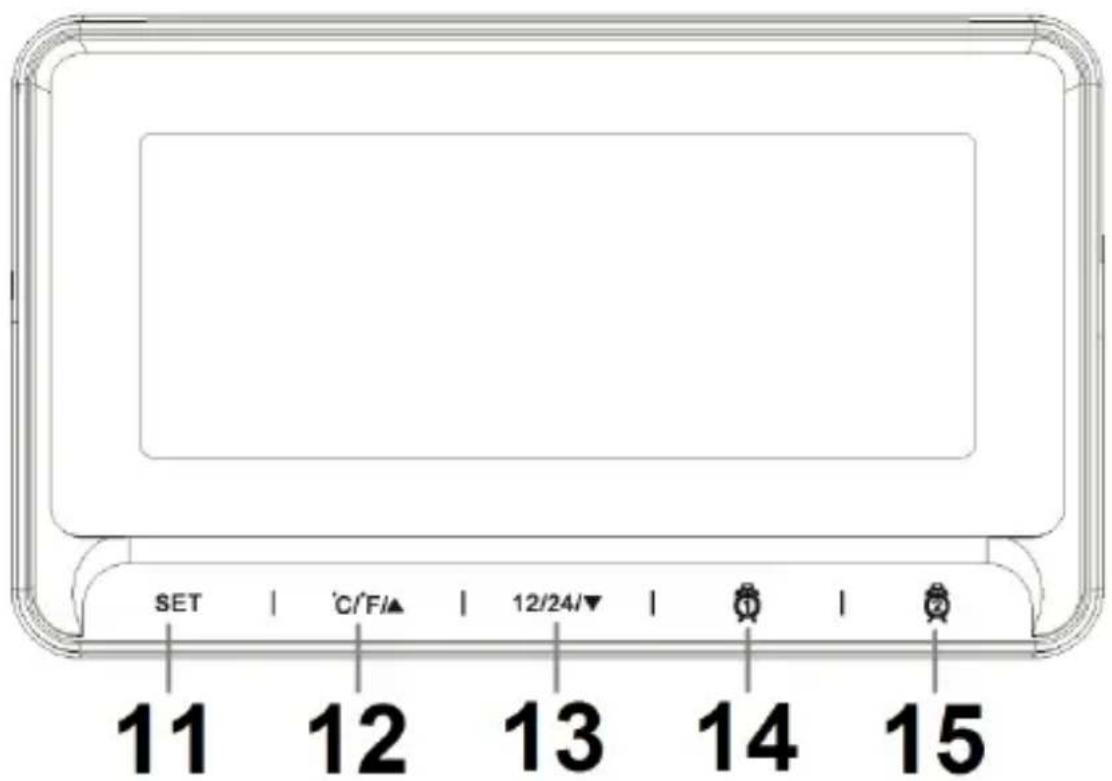

Vista anteriore:
