Product Type	Cordless Lawn Mower
Brand	Scotts
Model	62014S
Battery Voltage	20 V
Battery Capacity	4.0 Ah
Cutting Width	35.6 cm (14 in)
Cutting Height	2.54 to 6.35 cm (1 to 2.5 in)
No Load Speed	3000 rpm
Charge Time	160 minutes
Grass Bag Capacity	35 L (1 bushel)
Weight	12.5 kg (27.6 lb)
Front Wheels	14 cm (5.5 in)
Rear Wheels	17.8 cm (7 in)
Battery Type	Lithium-ion
Charger	20 V, model CHL82000
Main Functions	Mulching, rear discharge, bagging
Safety Device	Removable safety key, lock button
Tool Warranty	3 years
Battery and Charger Warranty	1 year
Replacement Parts	Blade (RB82014), Battery (BL80204), Charger (CHL82000)
Battery Recycling	RBRC Program

Frequently Asked Questions - 62014S Scotts

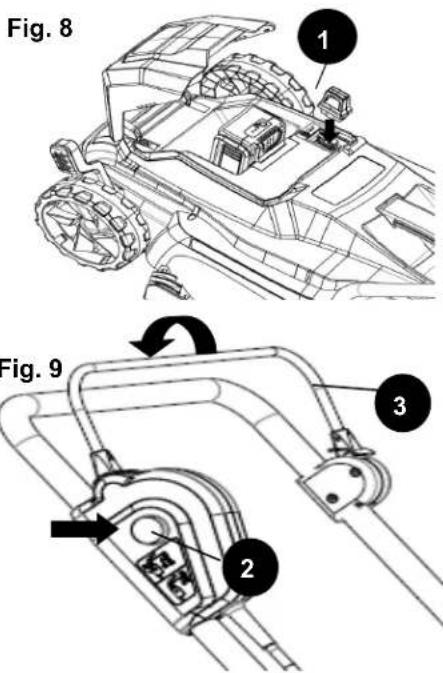

How to start the Scotts 62014S lawn mower?

Install a charged battery and insert the safety key into the slot. Press the safety lock button, then pull the blade control lever toward the handle while pressing the start button. Release the start button once the engine is running.

What type of battery and charger should I use?

Use only Scotts 20V Lithium-ion batteries (model BL80204) and the Scotts 20V charger (model CHL82000). Using other batteries or chargers may pose a fire or injury risk.

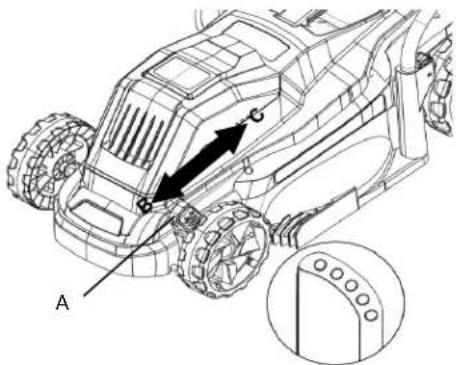

How to adjust the cutting height?

Remove the safety key and battery. Pull the height adjustment lever backward to increase height, or push it forward to decrease. Height can be adjusted from 2.54 to 6.35 cm (1 to 2.5 in). Reinstall the key and battery before mowing.

What to do if the mower won't start?

Check that the safety key is properly inserted, the battery is charged and securely attached, and the handle is in the operating position. If the battery or mower is too hot, allow it to cool. Clean the deck if obstructed.

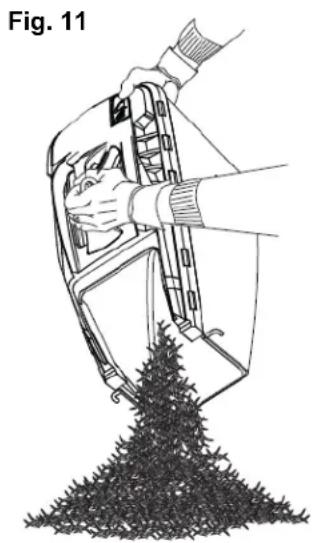

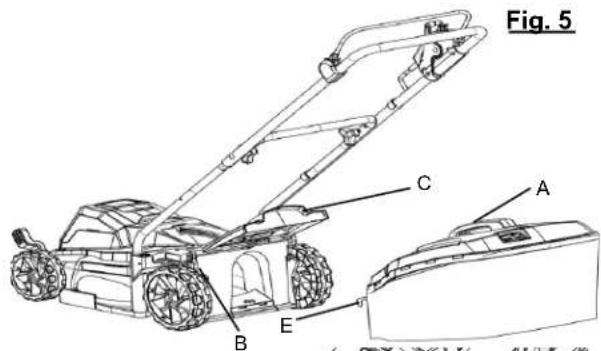

How to empty the grass bag?

Stop the mower and wait for the blade to stop completely. Remove the safety key and battery. Lift the rear discharge cover, then lift the grass bag by its handle to remove it. Empty the grass and reinstall the bag by hooking the brackets onto the housing.

What regular maintenance is needed for the mower?

After each use, clean accumulated grass from under the deck. At the start and end of each season, lubricate the rear discharge door springs, height lever, and wheels with a light oil. Sharpen or replace the blade if dull or damaged.

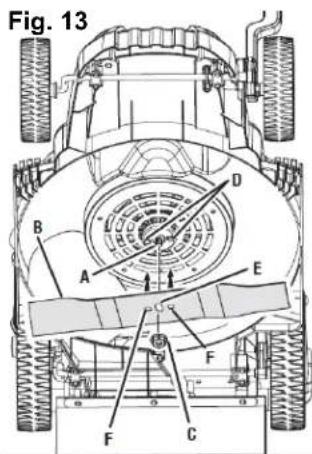

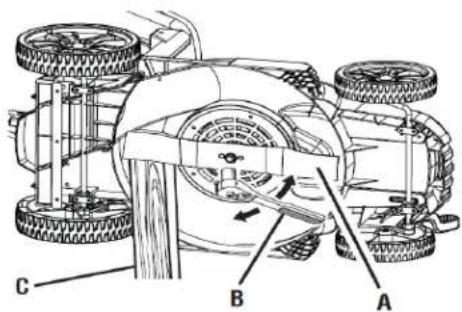

How to replace the cutting blade?

Remove the safety key and battery. Tip the mower on its side and place a wood block between the blade and the deck. Loosen the blade nut counterclockwise using a 17 mm wrench. Remove the nut, washer, insulator, and blade. Install the new blade with the cutting edges facing the ground, then tighten the nut to 350-400 in·lb.

What are important safety precautions?

Always wear safety glasses with side shields (ANSI Z87.1). Do not mow on slopes over 15 degrees or in rain. Keep children and pets away. Remove the safety key and battery before any maintenance or cleaning. Never leave the mower unattended.

How to store the mower for winter?

Remove the safety key and battery. Clean the mower thoroughly, especially under the deck. Lubricate moving parts. Lower the handle. Store the mower in a dry, clean place out of reach of children. Fully charge the battery every 90 days during storage.

How to recycle the battery at end of life?

Do not dispose of the battery in household waste. Cover the terminals with adhesive tape and take it to a local recycling center. The RBRC program facilitates lithium-ion battery recycling. Call 1-800-8-BATTERY to find a collection point.

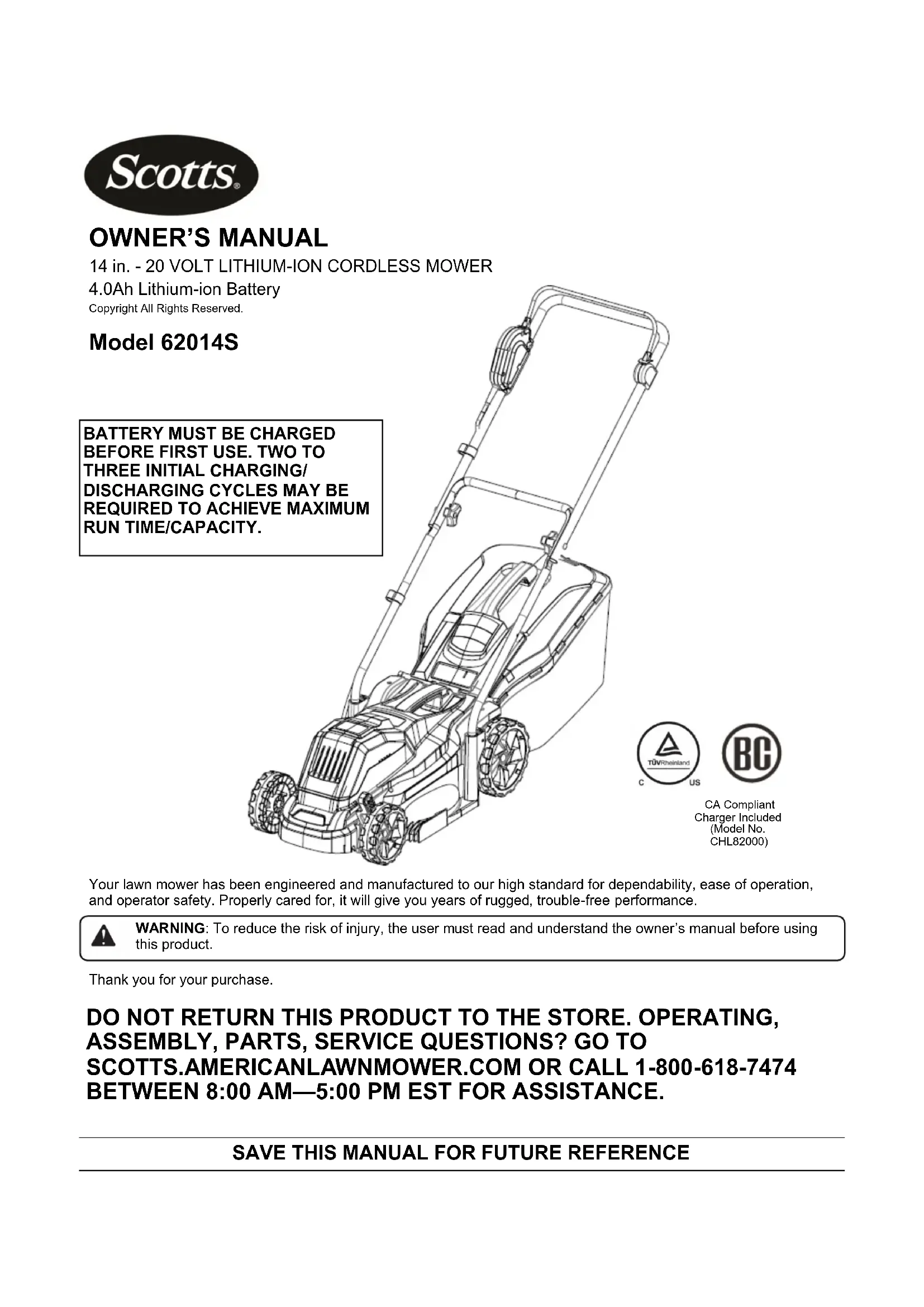

USER MANUAL 62014S Scotts

4.0Ah Lithium-ion Battery

Copyright All Rights Reserved.

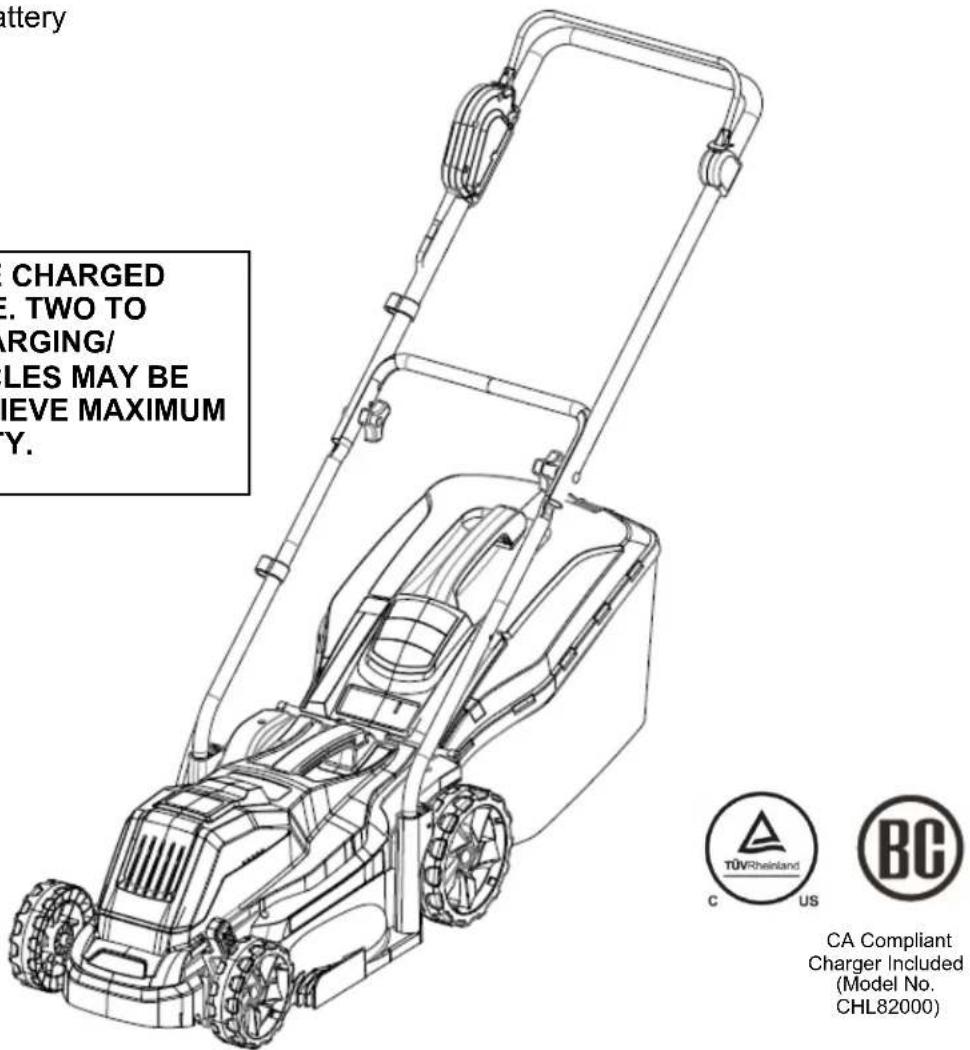

Model 62014S

BATTERY MUST BE CHARGED BEFORE FIRST USE. TWO TO THREE INITIAL CHARGING/ DISCHARGING CYCLES MAY BE REQUIRED TO ACHIEVE MAXIMUM RUN TIME/CAPACITY.

battery CHARGED E. TWO TO ARGING/ LES MAY BE IEVE MAXIMUM Y. CA Compliant Charger Included (Model No. CHL82000)

Your lawn mower has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

WARNING: To reduce the risk of injury, the user must read and understand the owner's manual before using this product.

Thank you for your purchase.

DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PARTS, SERVICE QUESTIONS? GO TO SCOTTS.AMERICANLAWNMOWER.COM OR CALL 1-800-618-7474 BETWEEN 8:00 AM—5:00 PM EST FOR ASSISTANCE.

TABLE OF CONTENTS

• Introduction......2
• Important Safety Instructions....3-5
• Symbols....6

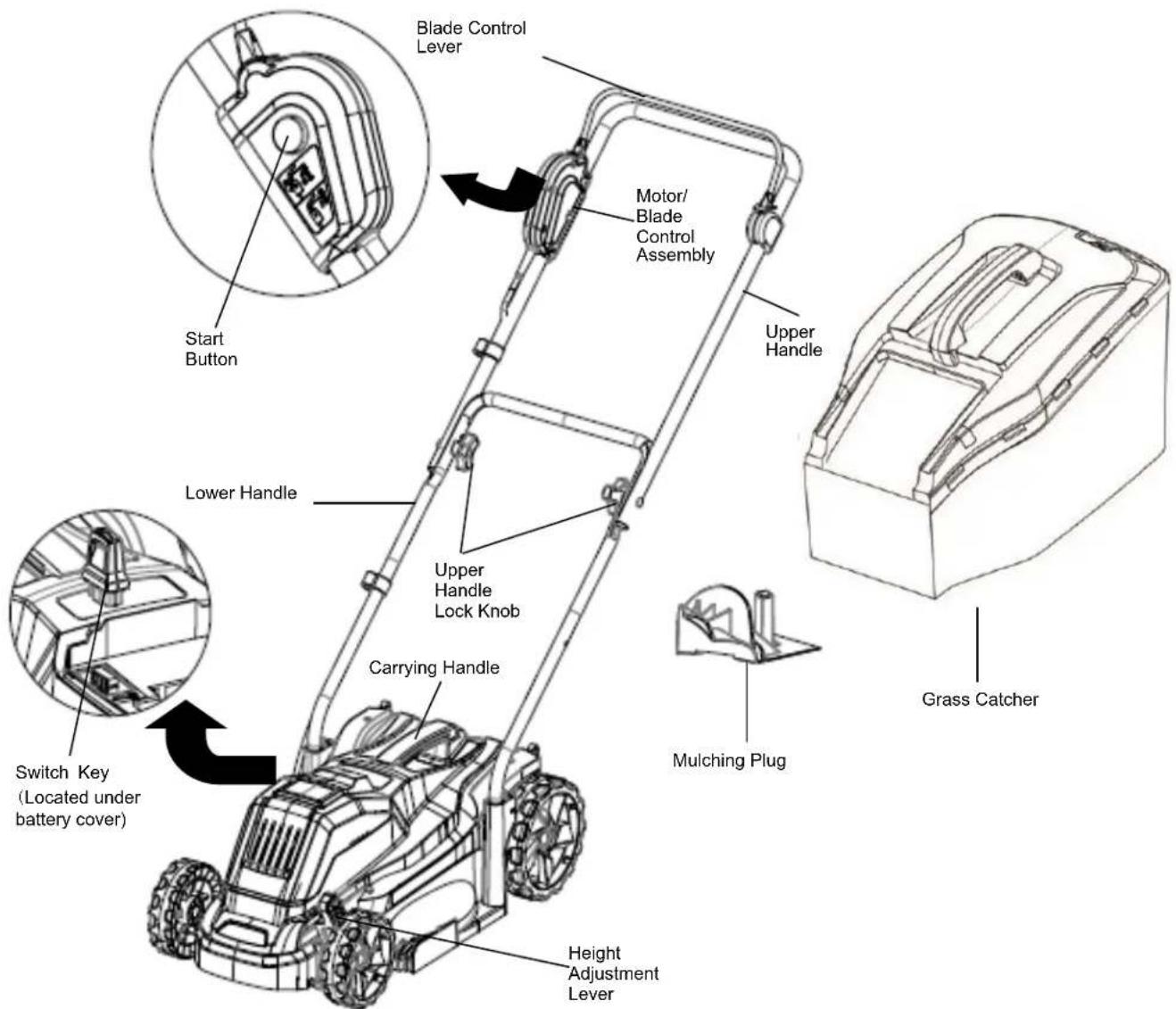

• Features....7-8
• Assembly....8-10
  • Operation....11-12

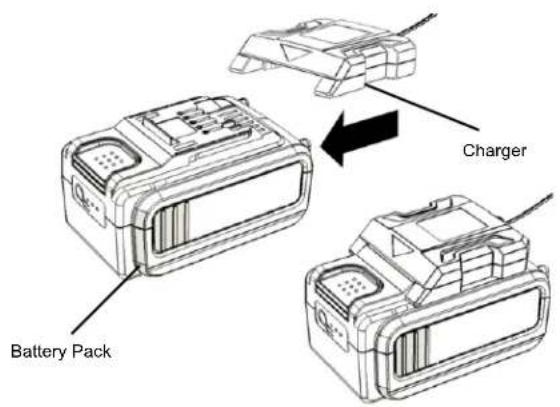

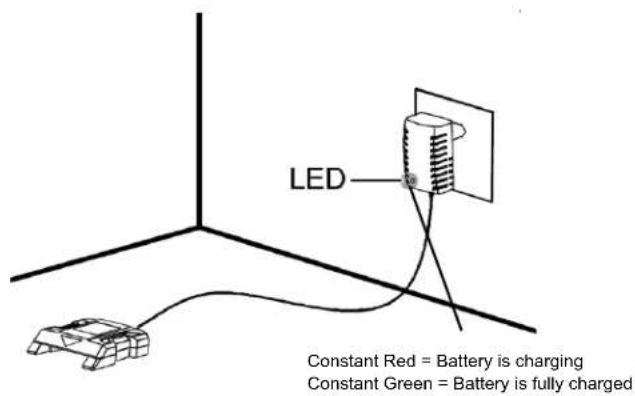

• Charging the battery pack....13
• Maintenance....14-16
• Troubleshooting.... 17
• Parts and Service....18
• Notes....19
• Warranty......Back Page

INTRODUCTION

This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

Refer to the recommended ambient temperature range for appliance and battery use and storage, and for charging system during charging.

	Recommended Ambient Temperature Range
Mower Operation	41 °F - 104 °F (5 °C - 40 °C)
Mower Storage	32 °F - 100 °F (0 °C - 38 °C)
Battery Charging	39 °F - 104 °F (4 °C - 40 °C)
Charger Operation	39 °F - 104 °F (4 °C - 40 °C)
Battery Storage	32 °F - 104 °F (0 °C - 40 °C) for 3 months before charging is required.
Battery Discharging	32 °F - 104 °F (0 °C - 40 °C)

WARNING:

To avoid serious injury, do not attempt to use this product until you read thoroughly and understand completely the owner's manual. If you do not understand the warnings and instructions in the owner's manual, do not use this product. Call Scotts customer service for assistance.

WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below and on the machine may result in electric shock, fire, and/or serious personal injury.

SAFETY INSTRUCTIONS FOR PEDESTRIAN-CONTROLLED MOWERS

IMPORTANT - Safe Practices for Pedestrian-Controlled Mower

This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

I. GENERAL INFORMATION

1. Read, understand and follow instructions and warnings in this manual and on the machine, engine and attachments.
2. Only allow operators who are responsible, trained, familiar with the instructions and physically capable to operate the machine.
3. Keep bystanders away.
4. Do not operate the machine while under the influence of alcohol or drugs.

II. PREPARATION BEFORE OPERATING

1. Clear the operating area of any objects which could be thrown by or interfere with operation of the machine.
2. Keep the area of operation clear of all bystanders, particularly small children. Stop the machine and attachment (s) if anyone enters the area.
3. Do not operate the machine without the entire grass catcher, discharge chute, or other safety devices in place and functioning properly. Check frequently for signs of wear or deterioration and replace as needed.
4. Wear appropriate personal protective equipment such as safety glasses, hearing protection, and footwear.

III. OPERATING

1. Only operate the machine in daylight or good artificial light.
2. Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the machine, or cause operator to lose their balance or footing.
3. Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.
4. Do not direct discharge material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blade (s) when crossing gravel surfaces.
5. Do not leave a running machine unattended. Always park on level ground, disengage the attachment, and stop engine.
6. Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

IV. CHILDREN SPECIFIC

1. Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

2. Keep children out of the operating area and under the watchful care of a responsible adult other than the operator.

V. SLOPE SPECIFIC

Slopes are a major factor related to accidents. Operation on slopes requires extra caution.

1. Travel in the manufacturer recommended direction on slopes. Use caution while operating near drop-offs.
2. Avoid mowing wet grass. (Poor footing could cause a slip and fall accident.)
3. Do not operate machine under any condition where traction, steering, or stability is in question. Tires could slide even if the wheels are stopped.
4. Always keep the machine in gear when going down slopes. Do not coast downhill.
5. Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make turns slowly and gradually.
6. Use extra care while operating machine with a grass catcher or other attachment (s). They can affect the stability of the machine.

VI. HAULING

1. Use full width ramps for loading and unloading a machine for transport.

VII. SERVICE

1. Keep machine in good working order. Replace worn or damaged parts.
2. Use caution when servicing blades. Wrap the blade (s) or wear gloves. Replace damaged blades. Do not repair or alter blade (s).
3. Remove or disconnect battery before servicing or making any repairs.

WARNING: California Proposition 65:

This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

WARNING: Some dust and debris created by the use of this tool could contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are:

* Chemicals in fertilizers
* Compounds in insecticides, herbicides and pesticides
* Arsenic and chromium from chemically treated lumber

Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.

IMPORTANT SAFETY INSTRUCTIONS

- Avoid Dangerous Environment - Do not use the lawn mower in damp or wet conditions or operate in the rain.

- Keep the area clear of all bystanders, children, and pets while mowing. Stop machine if anyone enters the area.

- Dress properly - Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and footwear is recommended when working outdoors.

- Don't over reach - Keep firm footing and balance. Do not overreach. Over-reaching can result in loss of balance.

- Do not operate the equipment with barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

- Use safety glasses - Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use face mask if environment is dusty.

- Wear safety glasses or goggles that are marked to comply with ANSI Z87.1 standard when operating this product.

- Use the right appliance - Do not use the lawn mower for any job except that for which it is intended.

- Do not force the lawn mower - It will do the job better and safer at the rate for which it was designed.

- Stay alert - Watch what you are doing and use common sense when operating the lawn mower. Do not operate the mower while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the lawn mower may result in serious personal injury.

- Maintain lawn mower with care - Keep machine in good working condition. Keep blades sharp and guards in place and in working order.

- Check all nuts, bolts, and screws at frequent intervals for proper tightness to be sure the equipment is in safe working condition.

- Stop the motor, remove the switch key and wait until the blade comes to a complete stop before cleaning the lawn mower, removing the grass catcher, unclogging the discharge opening, or making any repairs or inspections.

- When not in use, mower should be stored indoors in a dry, locked up place—out of reach of children.

- Always use safety protective devices. Do not operate the mower without the entire grass catcher discharge guard, rear guard, or other safety protective devices in place and working.

- Follow manufacturer's instructions for proper operation and installation of accessories. Only use accessories approved by the manufacturer.

- Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident. Walk, never run.

- Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view.

- Clear the work area before each use. Remove all objects such as rocks, sticks, wire, bones, toys, or other objects which can be thrown by the blade. Stay behind the handle when the motor is running.

- Do not mow near drop-offs, ditches, or embankments.

- Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes.

- Plan your mowing pattern to avoid discharge of material towards roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction, which may cause the material to ricochet back toward the operator.

- Do not pull the mower backward unless absolutely necessary. If you must back the mower away from a wall or obstruction first look down and behind to avoid tripping.

- Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.

- If the lawn mower strikes a foreign object, follow these steps:

* Stop the lawn mower and release the switch control bail wire,

* Remove the switch key

* Thoroughly inspect the mower for any damage

* Repair any damage before restarting and continuing to operate the mower.

- Stop the motor, remove the switch key, and wait until the blade comes to a complete stop before removing the grass catcher or unclogging the chute. The cutting blade continues to rotate for a few seconds after the motor is shut off. Never place any part of the body in the blade area until you are sure the blade has stopped rotating,

- If the mower should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble.

- Service on the product must be performed by qualified repair personnel only. Service or maintenance performed by unqualified personnel could result in injury to the user or damage to the product.

- Use only identical replacement parts when servicing the product. Use of unauthorized parts may create a risk of serious injury to the user or damage to the product.

- Replace blade if it is bent or cracked. An unbalanced blade causes vibration that could damage the motor drive unit or cause personal injury. Sharpen a dull blade equally at each end to maintain the balance. Clean the blade thoroughly and check its balance by supporting it horizontally on a thin nail through its center hole. The nail should be in a horizontal position. If either end of the blade rotates downward, remove some metal from the heavy or lower end until the blade is balanced. It is balanced when neither end drops.

- Maintain or replace safety instructions labels, as necessary.

- Store idle lawn mower indoors - When not in use, mower should be stored indoors in a dry, locked place out of the reach of children. The switch key should also be removed and stored in a separate location out of the reach of children.

- Follow instructions for lubricating and changing accessories.

- Never operate machine in a closed area.

- Never tamper with safety devices. Check for proper operation regularly.

- Never attempt to make a wheel height adjustment while the motor is running.

- Do not wash with a hose; avoid getting water in motor and electrical connections.

IMPORTANT SAFETY INSTRUCTIONS

SAFETY RULES FOR BATTERY AND CHARGER

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack. Energizing appliance that have the switch on invites accidents.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
• Recharge only with Scotts 20V charger (CHL82000). A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use appliances only with Scotts 20V lithium-ion battery packs (BL80204). Use of any other battery packs may create a risk of injury and fire. See Charger Manual.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. See Charger Manual.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
• Do not open or mutilate battery (ies). Released battery fluid may cause damage to the eyes, or skin. It may be toxic if swallowed.
• Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
• Disconnect battery - Disconnect battery pack from the appliance before storing, servicing, transporting, or changing accessories such as blades. Such preventive safety measures reduce the risk of starting the tool accidentally.

• Stop the unit and disconnect battery pack and switch key when not in use. Carry or push the unit with the motor stopped and the switch key and battery pack removed from the mower.

• Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.

• Do not use battery-operated appliance in rain.
• Remove or disconnect battery before servicing, cleaning or removing material from the gardening appliance.
• Do not charge lawn mower in rain, or in wet locations.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.
• Do not service mower with battery, switch key, or charger installed.
• Do not use the charger when the ambient temperature is above 104°F (40°C) or below 39°F (4°C).
• Do not operate charger with a damaged cord or plug which could cause shorting and electric shock. If damaged, replace the charger with an identical charger from an authorized service provider.
• Do not operate charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center for electrical check to determine if the charger is in good working order.
• Unplug charger from outlet before attempting any maintenance or cleaning to reduce the risk of electric shock.
• Disconnect charger from the power supply when not in use to prevent damage to the charger during a power surge,
• Risk of electric shock, Do not touch uninsulated portion of output connector or uninsulated battery terminal.
• Do not expose charger to wet or damp conditions, Water entering charger will increase the risk of electric shock,
• Make sure cord is located so that it will not be stepped on, tripped over, come in contact with sharp edges or moving parts or otherwise subjected to damage or stress. This will reduce the risk of accidental falls, which could cause injury, and damage to the cord, which could result in electric shock.
• Keep cord and charger away from heat to prevent damage to housing or internal parts.
• Do not let gasoline, oils, petroleum-based products, etc. come in contact with plastic parts. They contain chemicals that can damage, weaken or destroy plastic.

Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this tool, loan them these instructions also.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

S'
	Volts Voltage
	Amperes Current
	Hertz Frequency (cycles per second)
	Watt Power
	Hours Time
	Gallon Volume
	Quart Volume
	Wet Conditions Alert	Do not expose to rain or use in damp locations
	Read the Owner's Manual	To reduce the risk of injury, user must read and understand owner's manual before using this product.
	Eye Protection	Always wear safety goggles or safety glasses with side shields and, as necessary, a full face shield when operating this product.
	Safety Alert	Precautions that involve safety
	Electric Shock	Failure to use in dry conditions and to observe safe practices can result in electric shock

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL	SIGNAL	MEANING
	DANGER	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
[TGDS]	WARNING	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
	CAUTION	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

FEATURES

PRODUCT SPECIFICATIONS

62014S

*Battery....20V 4.0Ah Lithium-ion Battery

Input....20V DC only

No-load Speed 3000 RPM

Charge time....160 minutes

Height Adjustments....1 in. to 2.5 in.

Wheel Size....5.5 in. front, 7 in. rear

Grass Catcher Capacity....1 Bushel (35 L)

Weight....27.6 lbs (12.5 kg)

Fig. 1

Blade Control Lever Motor/ Blade Control Assembly Start Button Lower Handle Upper Handle Lock Knob Carrying Handle Switch Key (Located under battery cover) Height Adjustment Lever Upper Handle Mulching Plug Grass Catcher

* This product contains a rechargeable lithium-ion battery. Battery must be recycled. Do not dispose of this product in fire. Battery inside this product may explode or leak. Before disposing of damaged or worn out battery packs contact your local waste disposal agency or the local Environmental Protection Agency for information and specific instructions. Take the battery to a local recycling and/or disposal center for disposal. Never throw the battery pack away in a standard receptacle or have it incinerated. See page 13 for more details.

FEATURES

KNOW YOUR LAWN MOWER

See figure 1

The safe use of this product requires an understanding of the information on the product and in this owner's manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

BATTERY METER

The battery meter measures the amount of charge remaining in the battery.

GRASS CATCHER

The grass catcher prevents grass clippings from being strewn across your lawn as you mow.

HEIGHT ADJUSTMENT LEVER

The height adjustment lever provides cutting height adjustments.

MOTOR/BLADE CONTROL ASSEMBLY

The motor/blade control, located on the upper handle of the mower, engages and disengages the motor and blade.

MULCHING PLUG

Your mower is equipped with a mulching plug that allows the blade to cut and recut the grass for finer clippings.

SWITCH KEY

The switch key must be inserted before the mower can be started.

ADJUSTABLE HANDLE HEIGHT

The height of the handle is easily adjustable with the touch of a button.

CARRYING HANDLE

The lawn mower has a carrying handle for easy transport.

ASSEMBLY

UNPACKING

This product requires assembly.

• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
• If any parts are damaged or missing, please call 1-800-618-7474 for assistance.

PACKING LIST

Description Quantity
Lawn Mower 1
Switch Key 1
Upper Handle Assembly 1
Lower Handle 1
Mulching Plug 1
Upper Handle Lock Knob 2
Upper Handle Lock Bolt 2
Grass Catcher 1
20V 4.0Ah Battery 1
20V Charger 1
Owner's manual 1

WARNING:

If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING:

Do not insert switch key until assembly is complete. Failure to comply could result in accidental starting and possible serious injury.

DANGER:

To prevent accidental starting do not make any adjustments or installations with the switch key inserted or batteries installed.

WARNING:

Never operate the mower without the proper safety devices in place and working. Never operate the mower with damaged safety devices. Failure to heed this warning can result in serious personal injury.

ASSEMBLY

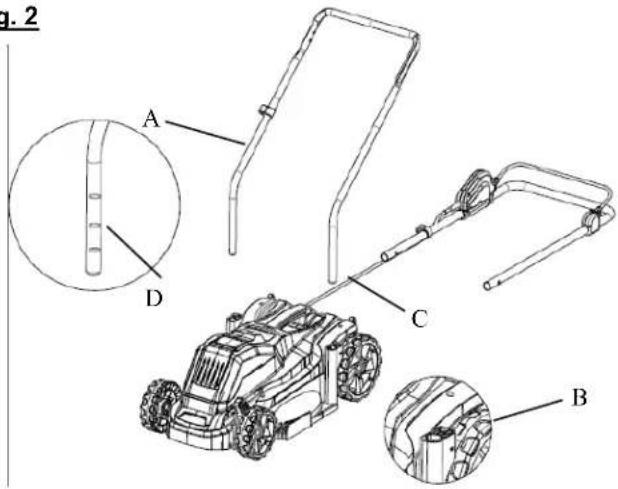

INSTALLING AND ADJUSTING HANDLE ASSEMBLY

See Figures 2 - 3

Fig. 2

g. 2 A D C B

To install lower handle:

• Insert the ends of the lower handle (A) into the mounting holes on the deck as shown.
  NOTE: Make sure to keep the cord (C) on the inside of the handle when installing.
• Depress the lock button (B) at the rear of the mounting hole to allow the handle to slide into position.

NOTE: There are three height position notches (D) that can be adjusted by depressing the lock button and raising or lowering the handle to the desired position.

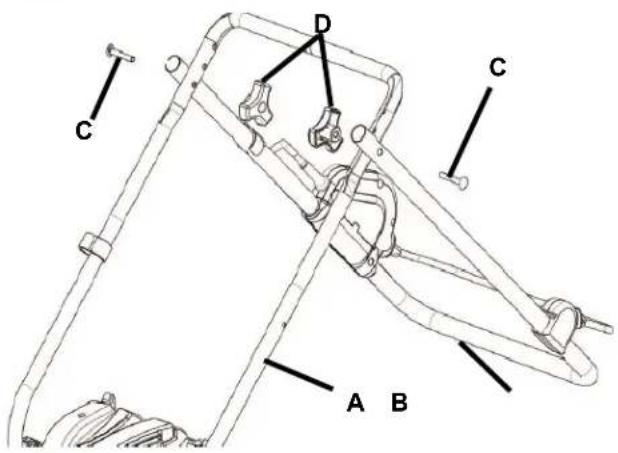

Fig. 3

C D C A B

To install upper handle assembly:

- Position the upper handle (B) as shown and insert the lock bolt (C) through the matching holes at the bottom of the upper handle and the top of the lower handle (A).

NOTE: The lower handle has three hole settings for height adjustment. Make sure you use the same height setting for each side.

• Thread the upper handle lock knob (D) onto the lock bolt.
• Repeat for other side.
• Pull up on the upper handle to raise it into operating position. Make sure that the upper handle is seated in the grooves at the top of the lower handle.

DANGER:

Do not allow any part of the power cord on the mower or extension cord to become pinched or trapped when assembling or raising the handles. A pinched live power cord can cause the handles to become electrically energized. Contact with electrically live conductive parts will result in death by electrocution, electric shock, and/or serious personal injury.

To secure the upper handle (B) in place, tighten the upper handle knobs (D). Avoid pinching or trapping any power cords.

NOTE: If the upper handle (B) is loose or separated from the lower handle (A), tighten the knobs (D) on the upper handle locks by turning them clockwise.

To lower the handle assembly:

• Loosen the upper handle lock knobs (D).
  NOTE: Loosen the knobs (D) on the upper handle by turning them counterclockwise.
• Lower the upper handle (B). Avoid pinching or trapping any power cords.

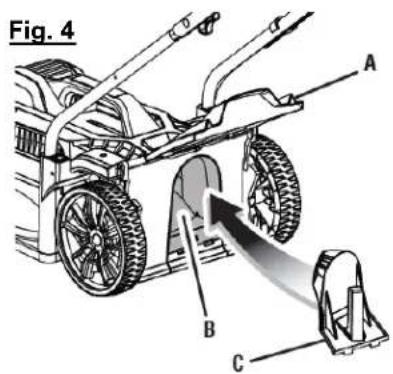

INSTALLING THE MULCHING PLUG (For Mulching Operation)

See figure 4

NOTE: When using the mulching plug, do not install the grass catcher.

• Remove switch key and battery pack.
• Lift and hold the rear discharge door (A).
• Grasp the mulching plug (C) by its handle and insert it at a slight angle, as shown.
• Push the mulching plug securely into place (B).
• Lower the rear discharge door.
• Reinstall switch key and battery pack when you are ready to mow.

Fig. 4 A B C

ASSEMBLY

INSTALLING THE GRASS CATCHER

(For Rear Bagging Operation)

See figure 5

Fig. 5 A B C E

• Remove switch key and battery pack.
• Lift the rear discharge door (C).
• Lift the grass catcher by its handle (A) and place under the rear discharge door so that the hooks (E) on the grass catcher are seated onto the slots on the mower housing (B).
• Release the rear discharge door.
• Reinstall switch key and battery pack when you are ready to mow.

SETTING BLADE HEIGHT

See Figure 6

When shipped, the wheels on the mower are set to a low-cutting position. Before using the mower for the first time, raise the cutting position to the height best suited for your lawn. The average lawn should be between 1-1/2 in. to 2 in. during cool months and 2 in. or higher during hot months.

To adjust the blade height:

• Remove switch key and battery pack.
• To raise the blade height, press inward on the height adjustment lever (A) and move it toward the back of the mower. C is the highest blade setting.
• To lower the blade height, press inward on the height adjustment lever and move it toward the front of the mower. B is the lowest blade setting.
• Reinstall switch key and battery pack when you are ready to mow.

Fig. 6

Technical line drawing of a vehicle's front wheel assembly with labeled component A (no text or symbols beyond label)

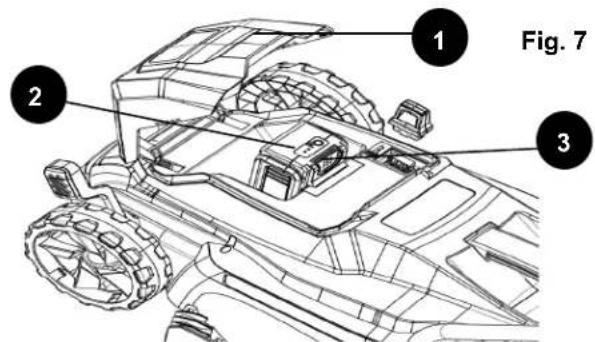

INSTALLING/REMOVING BATTERY PACK

See figure 7

To Install Battery Pack

• Lift and hold up the battery cover (1).
• Align the battery (2) with the mower's battery port.
• Make sure the battery release button (3) snaps in place and that battery is fully seated and secure in the mower before beginning operation.
• If the machine is not going to be used immediately, remove the battery.

To Remove Battery Pack

• Release the bail lever to stop the mower.
• Open the battery cover. Press the battery release button (3) on the mower.
• Remove battery from the mower.

Fig. 7 1 2 3

This product will accept Scotts 20V lithium-ion battery packs only.

For complete charging instructions, refer to the Owner's manuals for your battery pack and charger models.

WARNING: Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, carrying, transporting or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.
NOTE: To avoid serious personal injury, always remove the battery pack and keep hands clear of the trigger release button when carrying or transporting the tool.
WARNING: Make sure the latch on the tool snaps in place and the battery pack is fully seated and secure in the battery port before beginning operation. Failure to securely seat the battery pack could cause the battery pack to fall out, resulting in serious personal injury.

SWITCH KEY

In order to prevent accidental start-up or unauthorized use of your cordless mower, a removable switch key has been incorporated into the design of your mower. The mower will be completely disabled when the switch key has been removed from the mower.

WARNING: The cord on the switch key is used for storage; keep it out of the reach of children. DO NOT tether the switch key to mower.

DANGER: Rotating blades can cause serious injury. To prevent serious injury, remove the switch key when the mower is unattended, or when adjusting, cleaning, servicing, transporting, lifting, or storing the mower.

OPERATION

WARNING:

Do not allow familiarity with this type of product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always wear safety goggles or safety glasses with side shields when operating this product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

NOTICE:

Before each use, inspect the entire product for damaged, missing or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please contact customer service or an authorized service center for assistance.

APPLICATIONS:

You may use this product for the purpose listed below:

- Mowing your lawn

WARNING:

Always remove battery pack and switch key from the tool when you are assembling parts, making adjustments, cleaning or when not in use. This will prevent accidental starting that could cause serious personal injury.

STARTING/STOPPING THE MOWER

See figure 8-9

To start the mower:

• Raise the battery cover.
  • Install battery pack.
• Insert the switch key into (1) the slot beside the battery port.
• Lower the battery cover.
• Press and hold the safety lock-out button (2).
• While continuing to hold the start button, pull the bail wire (3) toward the handle. Once the motor starts, release the button.

Fig. 8 1 Fig. 9 2 3

To stop the mower:

- Release the bail wire.

OPERATION

MOWING TIPS

• Make sure the lawn is clear of stones, sticks, wires and other objects that could damage the lawn mower blades or motor. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others.
• For a healthy lawn, always cut off one-third or less of the total length of the grass.
• When cutting heavy grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
• Do not cut wet grass. It will stick to the underside of the deck and prevent proper mulching of grass clippings.
• New or thick grass may require a narrower cut.
• Clean the underside of the mower deck after each use to remove grass clippings, leaves, dirt and any other accumulated debris.

NOTE: Always stop mower, allow blades to completely stop, remove the switch key and remove the battery pack from the battery port before cleaning underneath the mower.

SLOPE OPERATION

See figure 10

WARNING: Slopes are a major factor related to slip and fall accidents that can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow slopes greater than 15 degrees.
- Mow across the face of slopes, not up and down. Exercise extreme caution when changing direction on slopes.
- Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be tripped over or thrown by the blade.
• Always be sure of your footing. A slip and fall can

cause serious personal injury. If you feel you are losing your balance, release the switch control bail wire immediately.

- Do not mow near drop-offs, ditches, or embankments; you could lose your footing or balance.

Fig. 10

Diagram of a vehicle under load with arrows indicating upward and downward motion (no text or symbols)

15° MAXIMUM

MULCHING TIPS

NOTE: Inspect the area where the mower is to be used, and remove all stones, sticks, wire, bones, and other debris that might be thrown by the rotating blade.

• Release the bail lever to turn the mower OFF when crossing any graveled area (stones can be thrown by the blade).
• Set mower to the highest cutting height when mowing on uneven ground or in tall weeds.
• For effective mulching, do not cut wet grass, because it tends to stick to the underside of the deck, preventing proper mulching of grass clippings. New or thick grass may require a narrower cut. The ground speed should be adjusted to the condition of the lawn.
• Walk at a steady pace. Overlap the cutting rows. Do not let the grass get too tall. If the grass gets too long, start at the highest cutting position and work down to the desired cutting height.

WARNING: If you strike a foreign object, stop the motor and remove the battery. Thoroughly inspect the mower for any damage. Repair any damage before operating the mower. Excessive vibration of the mower during operation is an indication of damage. Thoroughly inspect the mower and repair any damage before operating the mower.

EMPTYING THE GRASS CATCHER

See figure 11

• Stop mower and allow blades to completely stop.
• Open battery cover.
• Remove switch key and battery pack.
• Lift the rear discharge door.
• Lift the grass catcher by its handle to remove from mower.
  • Empty grass clippings.
• Lift the rear discharge door and reinstall the grass catcher as described earlier in this manual.
• Reinstall switch key and battery pack when you are ready to mow.

Illustration of a hand using a tool to lift a pile of pine needles, no text or symbols present

CHARGING THE BATTERY PACK

Charge the battery pack only with the charger provided.

Allow at least 70 minutes of charge time for 4.0Ah battery before initial use of the mower.

Make sure the power supply is normal household voltage, 120 volts, 60Hz, AC only.

The battery charger should be operated in temperatures between 39 and 104 degrees F (4 °C and 40 °C).

The battery should be charged in a cool, dry place. Two to three initial charging/discharging cycles may be required to achieve maximum run time/capacity.

DO NOT attempt to open the charger or the unit. There are no customer serviceable parts inside. Call customer service helpline at 1-800-618-7474 for assistance.

DO NOT incinerate battery packs even if they are severely damaged or completely worn out. They can explode in a fire causing injury.

DO NOT charge appliance in rain, or in wet locations.

Use the battery charger indoors only.

Disconnect charger from the power supply when not in use to prevent damage to the charger during a power surge.

When fully charged, the battery can be safely stored in temperatures down to -4 degrees F (-20 degrees C) for a period of up to four weeks, before requiring charging. Fully charge battery pack every 90 days.

If over a period of time the battery pack quickly runs down after a full 70 minutes charging period, a replacement battery pack is needed.

To prevent permanent damage to the battery, never store in a discharged condition.

WINTER STORAGE - Fully recharge before storage and then again every 90 days.

Since the battery will not develop a memory, it does not have to be fully discharged before recharging.

A small leakage of liquid from the battery cells may occur under extreme usage, charging or temperature conditions. This does not indicate a failure. However, if the outer seal is broken and this leakage gets on your skin.

a. Wash quickly with soap and water.

b. Neutralize with a mild acid such as lemon juice or vinegar.

c. If the battery liquid gets in your eyes, flush them with clean water for a minimum of 10 minutes and seek immediate medical attention.

TO CHARGE - SEE CHARGER MANUAL FOR COMPLETE INSTRUCTIONS

Battery Pack Charger

LED Constant Red = Battery is charging Constant Green = Battery is fully charged

BATTERY DISPOSAL

Remove the battery pack from the tool, cover the terminals with heavy duty adhesive tape. Do not attempt to destroy or disassemble battery pack or remove any components. This product contains lithium-ion batteries which must be recycled or disposed of properly. Local, state or federal laws may prohibit disposal of these batteries in the municipal solid waste or rural trash pick up systems.

The RBRC seal on the Li-Ion battery pack indicates that the cost to recycle the battery pack at the end of its useful life has already been paid by The Great States Corporation/American Lawn Mower Company. It is illegal to place spent Li-Ion batteries in the local municipal solid waste or in the trash. RBRC in cooperation with The Great States Corporation/American Lawn Mower Company has provided an environmentally friendly and easy way to recycle spent Li-Ion batteries. Just contact your local recycling center or call 1.800.8.BATTERY for information on where to drop off the spent battery.

MAINTENANCE

WARNING:

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING:

Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If environment is dusty, also wear a dust mask.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING:

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which may result in serious personal injury.

Periodically check all nuts and bolts for proper tightness to ensure safe operation of the mower.

Remove any buildup of grass and leaves on or around the motor cover. Wipe the mower clean with a dry cloth occasionally. Do not use water.

LUBRICATION

All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further bearing lubrication is required.

At the beginning and end of each mowing season:

• Lubricate the springs on the rear discharge door with light oil.
• Lubricate the height adjustment lever and related hardware with light oil.
• Remove the wheels and lubricate the surface of the axle bolt and the inner surface of the wheel with light oil.
• Remove the blade and blade hub assembly and lubricate the motor shaft with light oil or engine oil. See Replacing the Cutting Blade for instructions on removing the blade.

WARNING:

Always protect hands by wearing heavy gloves and/or wrapping the cutting edges of the blade with rags and other material when performing blade maintenance. Failure to heed this warning could result in serious personal injury.

DANGER:

Before performing any maintenance, make sure the battery is removed from the battery compartment and the switch key is removed. Failure to heed this warning could result in serious personal injury.

REPLACING THE CUTTING BLADE

See figures 12-13

NOTES: Only use identical replacement blades.

• Stop the motor and remove the switch key. Allow the blade to come to a complete stop. Remove battery from the battery compartment.
• Turn the mower on its side.
• Wedge a block of wood between the blade and mower deck to prevent the blade from turning.
• Loosen the blade nut by turning it COUNTERCLOCK WISE (as viewed from bottom of the mower) using a 17mm wrench or socket (B) (not provided).

Fig. 12

Technical diagram of a mechanical assembly with labeled parts A, B, and C

• Remove the blade nut and blade.
• Place the new blade (B) onto the shaft (A). Ensure

blade is properly seated with the two blade posts (D) inserted into the holes (F) on the blade. Make sure it is installed with the curved ends pointing up toward the mower deck and not down toward the ground. When seated properly, the blade should be flat.

- Replace the blade, then thread the blade nut (C) onto the shaft and finger tighten.

Fig. 13 A B C D E F G

MAINTENANCE

NOTE: Make certain all parts are replaced in the exact order in which they were removed.

- Torque the blade nut down CLOCKWISE using a torque wrench (not provided) to ensure the bolt is properly tightened. The recommended torque for the blade nut is 350-400 in. lbs.

For best mowing performance, the mower blade must be kept sharp. A dull blade does not cut grass evenly and overloads the motor. Under normal circumstances, sharpening the blade twice during the mowing season is usually sufficient. However, if your lawn has sandy soil, more frequent sharpenings may be required.

- Following the instructions in the Replacing the Cutting Blade section, remove the mower blade. DO NOT attempt to sharpen the blade while it is attached to the mower.

WARNING:

When removing, inspect the blade carefully. If blade is bent or damaged, replace immediately with a new blade. Failure to replace a bent or damaged blade could cause an accident resulting in possible serious injury.

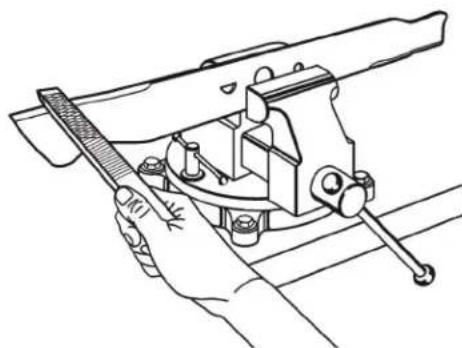

- Using a fine tooth file or stone, sharpen cutting edges on both ends of the blade, removing equal amounts of material from both ends.

Line drawing of a hand using a tool to measure a mechanical component (no text or symbols present)

Fig. 14

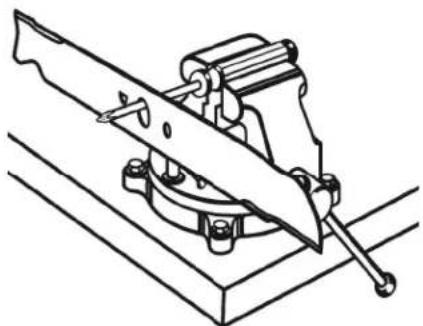

BALANCING THE BLADE

See Figure 15

When sharpening, care should be taken to keep the blade balanced. An unbalanced blade will cause excessive vibration when the mower is running. This vibration will eventually cause damage to the mower, especially the motor.

To check blade balance:

- Clamp a screwdriver horizontally in a vise as shown.

NOTE: If a vise is not available, a straight nail can also be used.

- Place the center hole of blade on the screwdriver (or nail) shank.

- If blade is balanced, it will remain in a horizontal position. If either end of the blade drops downward, sharpen the heavy side until the blade is balanced.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Fig. 15

BATTERY MAINTENANCE

It is recommended to charge the mower every 3 months for optimum performance when not in use. If the battery has been in storage for a long time without recharging, it will be in a low charge state.

MAINTENANCE

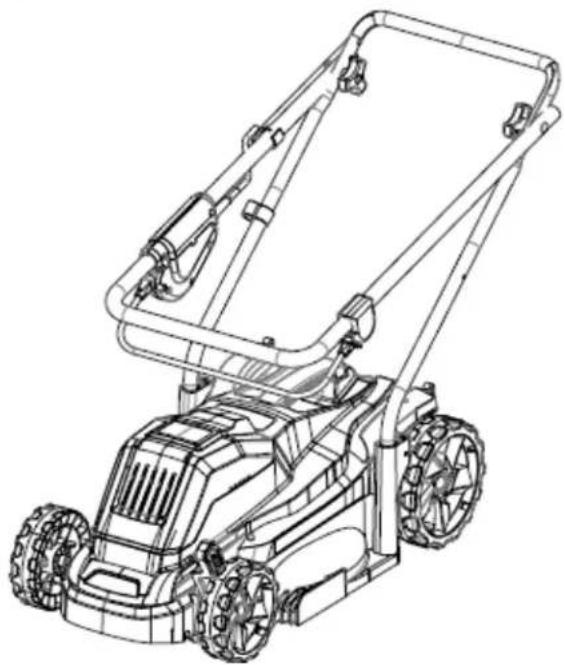

STORING THE MOWER

See Figure 16

• Remove the switch key and battery, and store in a secure location out of the reach of children.
• Before storage, wipe any dirt or debris from the battery area.
• Turn mower on its side and clean grass clippings that have accumulated on the underside of the mower deck.
• Wipe the mower clean with a dry cloth.
• Check all nuts, bolts, knobs, screws, fasteners, etc., for tightness.
• Inspect moving parts for damage, breakage and wear. Have repairs made on any damaged or missing parts.
• Lower the handle assembly as described earlier in this manual.
• Store mower indoors in a clean, dry place out of the reach of children.
• Do not store near corrosive materials such as fertilizer or rock salt.

WARNING:

USE EXTREME CAUTION WHEN FOLDING THE HANDLE. THE CORD CAN BE DAMAGED IF PINCHED BETWEEN HANDLE SECTIONS CREATING A SAFETY HAZARD.

Fig. 16

Line drawing of a grass lawn mower with extended boom (no text or symbols)

TROUBLESHOOTING

Problem Possible	cause Solution
The mower fails to start The	safety key is not inserted in the slot.The battery pack is depleted.The battery pack is not attached to the mower.The battery pack is on the wrong side.Battery or mower circuitry is too hot.The handle is not set at one of the operating positions.Mower deck is clogged with grass and debris.	Insert the safety key.Charge the battery pack.Attach the battery pack to the mower.Move the battery pack to the correct side of the battery compartment.Allow the battery pack or mower to cool down.Adjust the handle to the one of the operating positions.Clean the mower deck and make certain that the blade has freedom of movement.
The mower cuts unevenly.	Dull blade.The cutting height is not set properly.The blade is assembled incorrectly.	Sharpen or replace blade.Raise the blade to a higher setting.Reassemble the blade, following the section "Replacing the Cutting Blade" in this manual.
Mower stops while mowing.	The battery pack is depleted.Mower is in overload condition.Mower deck is clogged with grass and debris.Battery or mower circuitry is too hot.	Charge the battery pack.Raise cutting height or slow down the mowing.Unclog mower deck. Raise cutting height, or cut a narrow swath.Allow the battery pack or mower to cool down.
Mower does not mulch properly.	Wet grass clippings are sticking to the underside of the deck.Mulching plug is missing.The mower is set to cut too much grass.	Wait until the grass dries before mowing.Install the mulching plug.Raise the blade to a higher setting.
Excessive vibration Cutting	blade is loose.Cutting blade is unbalanced.Bent cutting blade.Bent motor shaft.	Tighten the blade bolt.Balance the blade following the instructions.Replace the blade.Contact the service center at 1-800-618-7474.
Handle not in position Carriage	bolts not seated properly.Handle knobs not tightened.	Adjust the height of the handle and make sure the carriage bolts are seated properly.Tighten handle knobs.

PARTS AND SERVICE

For parts or service, please call 1-800-618-7474 or visit us online at scotts.americanlawnmower.com. Be sure to provide all relevant information when you call or visit.

REPAIR PARTS (KITS/ ITEMS)

The model number of this tool is found on a plate or label attached to the housing. Please record the serial number in the space provided below.

MODEL NUMBER 62014S

SERIAL NUMBER

Always mention the model number when ordering kits/items for this tool.

No.	Kit/ Item Number Description
1 RB	82014 Mower Blade Kit
2	LM20-LHK-3	Lower Handle Kit
3	LM20-HDW-1	Handle Hardware Kit
4	LM20-FWK-1	Front Wheel Kit
5	LM20-RWK-1	Rear Wheel Kit
6	LM20-BK-1	Mower Blade Hardware Kit
7	LM62-RDK-1	Rear Door Kit
8	LM20-KEY-1	Key Kit
9	LM20-RFK-1	Rear Drag Flap Kit
10	BL80204	20V 4.0Ah Battery
11	CHL82000	20V Charger

CALL US FIRST !!

Call us first with questions about operating or maintaining your product at 1.800.618.7474 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on scotts.americanlawnmower.com.

NOTES

OWNER'S MANUAL

14 in. - 20 VOLT LITHIUM-ION CORDLESS MOWER

4.0Ah Lithium-ion Battery

Copyright All Rights Reserved.

Model 62014S

WARRANTY POLICY

Scotts Warranty policy

• 3 Year limited warranty on all Scotts 20V lithium ion power tools from date of purchase when used for personal, household, or family use.
• 1 Year limited warranty on all Scotts 20V lithium ion batteries and chargers from date of purchase when used for personal, household, or family use.

The Great States Corp. (GSC) warrants to the original owner that this Scotts product and service part is free from defects in materials and workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above.

• Warranty voided if used for commercial or industrial purposes or any other improper use as determined by GSC.
• Warranty does not include repairs necessary due to operator's abuse or negligence (including overloading the product beyond capacity or immersion in water), or the failure to assemble, operate, maintain or store the product according to the instructions in the owner's manual.
  • This warranty does not cover
  Wear items, including but not limited to - drive belts & gears, tines, cutting blades, mower blades, saw chains, mulching blades, blower fans, spool covers, trimmer line, blower and vacuum tubes, guide bars, high pressure hoses, wheels, handles, augers, worn bags, power cables, and other items subject to wear over time.
  Wear on batteries, including but not limited to – drops, wear and breakage on charger, exposure to extreme temperature swings (hot or cold), battery left on charger too long, battery left uncharged for too long, and misuse or abuse of the battery.

- This warranty does not cover damage caused by cold, heat, rain, excessive humidity or other environmental extremes.

- This warranty does not cover normal deterioration of the exterior finish or normal wear and tear on the products including, but not limited to scratches, cracks, dents, or damage caused by outside chemicals.

- This warranty is not transferable and only applies to new products sold directly from an authorized retailer. This warranty does not apply to any product, new or used, purchased through unauthorized third-party channels. For information on authorized dealers, contact our customer support hotline at 1-800-618-7474 (Mon-Fri 8am-5pm Est)

- Any incidental, indirect or consequential loss, damage, or expense that may result from any defect or malfunction of the products is not covered by the warranty.

- The warranty does not include installation, assembly or normal adjustments explained in the owner's manual. The expense of delivering the product to the vendor and the expense of returning the product or replacement parts to the owner is not covered by the warranty.

Additional Warranty Limitations

Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may not apply to you. Products sold damaged or incomplete, sold —as is, or sold as reconditioned are not covered under the warranty. Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring, improper maintenance, improper modification or the use of accessories and/or attachments not specifically recommended is not covered by this warranty.

Proof of purchase, original dated sales receipt, must accompany all warranty claims.

For claims go to scotts.americanlawnmower.com or call our customer support hotline from 8am-5pm EST, Mon-Fri at 1-800-618-7474

American Lawn Mower Company

The Great States Corporation

7444 Shadeland Station Way

Indianapolis, IN 46256, USA

Phone [phone]

scotts.americanlawnmower.com

MANUAL DEL OPERARIO

35,6 cm (14 pulg.) - 20 VOLTIOS CORTADORA SIN CABLE CON BATERÍA DE IONES DE LITIO

Technical diagram of a vehicle's front wheel assembly with labeled components A and C, including a magnified inset showing circular components.

Diagram of a vehicle on a road with directional arrows indicating movement or force (no text or symbols)

15° MAXIMUM

Line drawing of a hand using a tool to lift a pile of pine needles (no text or symbols)

CARGA DEL PAQUETE DE BATERÍAS

Make sure the power supply is normal household voltage, 120 volts, 60Hz, AC only.

Technical diagram of a vehicle's rear suspension system with labeled components A, B, and C

Line drawing of a hand using a tool to adjust or install a mechanical clamp (no text or symbols present)

Fig. 14

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Fig. 15

Line drawing of a lawn mower with extended boom and wheels (no text or symbols)

American Lawn Mower Company

The Great States Corporation

7444 Shadeland Station Way

Indianapolis, IN 46256

Estados Unidos

Technical diagram of a mechanical assembly with labeled parts B and E, showing components like gears and shafts.

Retirer le bloc-piles:

Line drawing of a vehicle chassis on a slope, no text or symbols present

15° MAXIMUM

Illustration of a hand using a tool to lift a pile of small debris (no text or symbols)

CHARGE DE LA BATTERIE

Technical diagram of a mechanical assembly with labeled parts A, B, and C

Fig. 12

- Place the new blade (B) onto the shaft (A). Ensure blade is properly seated with the two blade posts (D) inserted into the holes (F) on the blade. Make sure it is installed with the curved ends pointing up toward the mower deck and not down toward the ground. When seated properly, the blade should be flat.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Fig. 14

ÉQUILIBRER LA LAME

Voir la figure 15

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Fig. 15

ENTRETIEN DE LA BATTERIE

Line drawing of a lawn mower with extended boom and wheels (no text or symbols)

DÉPANNAGE

American Lawn Mower Company

The Great States Corporation

7444 Shadeland Station Way
