USER MANUAL AC5900 GermGuardian

4-in-1 Allergen and Odor Reducing Air Cleaning System Model No. AC5900 3-Year Limited Warranty Customer Service

www.guardiantechnologies.com Date Purchased month ________ year _________ English E - 1 French F - 1 Spanish S - 1 Use GENUINE Guardian Technologies replacement parts only.REV0920 LIMITED WARRANTY Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then referto the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.What is CADR? CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturingfine particles from things like tobacco smoke and plant pollens from the room. Refer to website for individual model CADR numbers. TROUBLESHOOTING GUIDE PROBLEM SOLUTION Unit shuts off unexpectedly or does not operate. Check that the unit is plugged into a working electrical outlet. Check that the filters, UV-C shield and front panel are installed correctly. Check if the motor protector is triggered. Unplug/replug into unit. Check that the front panel is latched firmly in place. Call Customer Service. No air circulating from unit. Unplug unit. Check filters. Clean Pre-filter if necessary. Replace Charcoal and HEPA filters if necessary. Increase in noise level. Make sure the filters are clean. Replace if necessary. Odors and smoke are not removed. Clean or replace the filters if they appear to be heavily soiled. Discharged air has an aroma or odor. Check to see if the filters are heavily soiled. Replace the filters. To t he c on su me r, G ua rd ia n Tec hn ol og ie s LL C wa rr an ts t hi s pr od uc t to b e fr ee o f de fe ct s in m at er ia ls o r wo rk ma ns hi p co mm en ci ng upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only. This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.) To s ub mi t pr od uc t un de r wa rr an ty t he c om pl et e ma ch in e mu st b e de li ve re d pr e- pa id t o Gu ar di an Tec hn ol og ie s LL C. P le as e in cl ud e complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below. Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service. USA and Canada Guardian Technologies LLC 26251 Bluestone Blvd. Euclid, Ohio 44132

www.guardiantechnologies.com Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.READ AND SAVE THESE INSTRUCTIONS WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

• Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.

• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.

• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.

• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

• Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.

• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.

• NEVER drop or insert any object into any openings.

• DO NOT run cord under carpeting.

• DO NOT cover cord with throw rugs, runners, or similar coverings.

• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service for assistance.

• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

• DO NOT use outdoors.

• DO NOT place anything on top of unit.

• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening. E-2 E-3 This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below. www.epa.gov/cflcleanup 1-866-284-4010

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Model No. LB4000, Manufactured by Guardian Technologies.

• Always unplug the unit before before cleaning or servicing in any way.

• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents. The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m3.

WARNING: Cancer and Reproductive Harm.

For more information go to www.P65Warnings.ca.gov. This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model’s CADR for Smoke and the electrical energy it consumes, or CADR/Watt.PRODUCT SPECIFICATIONS AND PARTS E-4

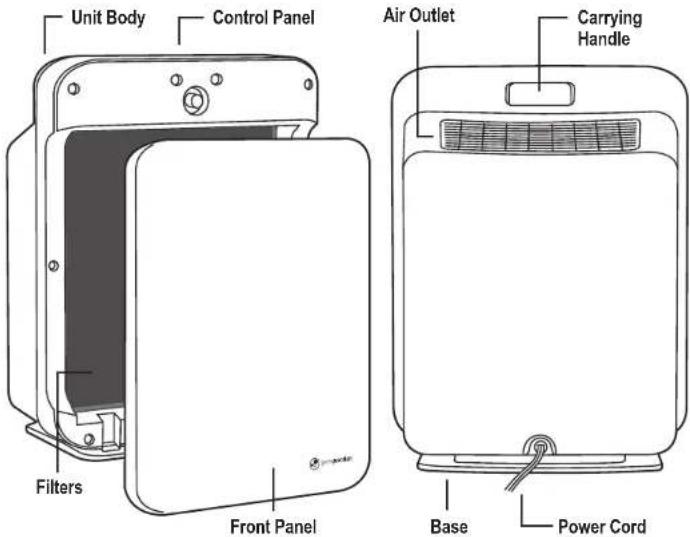

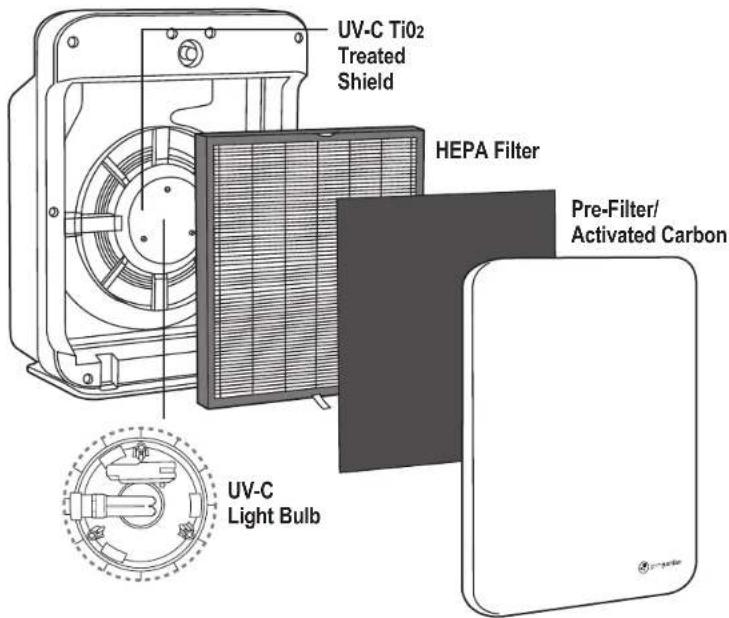

Improve your indoor air quality with your new Germguardian Air Cleaning System.Multiple levels of cleaning include a combination True HEPA filter that captures allergens,and Charcoal filter to remove odors. UV-C Light Technology enhances germ-killing. Pre-Filter/Activated Carbon Helps optimize the unit performance and extends the life of the filter by capturing larger dust and allergen particles. Traps and controls household odors and harmful VOC’s in the home. True HEPA Filter Captures 99.97% of dust and allergens down to .3 microns in size. UV-C Light UV-C Light Technology works with Titanium Dioxide (TiO2) to enhance the elimination ofairborne germs. TiO2 is activated by the UV-C light to decompose remaining odor moleculescaused by smoking, cooking and pets.

MPORTANT: To maintain the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only. o Purchase Contact Customer ServiceE-6 E-7 OPERATING INSTRUCTIONS Note: Proper filter and front panel installation is necessary for unit to turn on.

BEFORE OPERATING THE AIR PURIFIER

1. Select a firm, level and flat location for the air purifier.

• For proper air flow, locate the unit at least 1 foot from any wall or furniture.

• Make sure none of the grills are blocked.

2. Plug the power cord into a 120V AC outlet.

3. When moving the air purifier, always lift it by the carrying handle.

OPERATING THE AIR PURIFIER

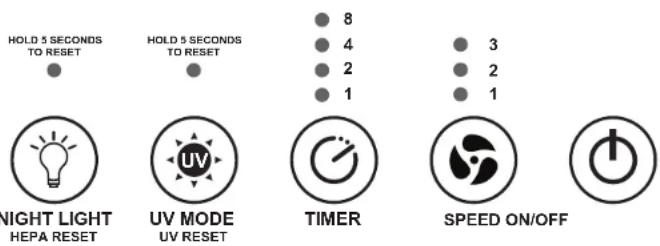

1. Turn unit power ON. The control panel power lights will turn on.

Note: The corresponding control panel lights will turn on depending on features selected.

If you prefer to run the purifier for a specific number of hours, you can select 1,2,4,8 hours by pressing the button.

4. UV Mode: Turn UV light on/off.

UV Reset: The UV mode light will turn red when it’s time to replace the UV bulb. Replace the bulb according to instructions (E9). Press and hold the UV mode button for 5 seconds to reset the UV indicator light.

5. Night Light: Turn night light ring on the front of the purifier on/off.

Hepa Reset: The night light indicator light will turn red when it’s time to change the HEPA filter. Replace the filter according to instructions (E8). Press and hold the Night light button for 5 seconds to reset the HEPA filter light. OPERATING INSTRUCTIONS

RESETTING THE AIR PURIFIER

The air purifier is equipped with a motor protection circuit. If activated, the overload warning indicator will initiate and shut off the unit power. An audible warning "ding" will sound for 60 seconds. To restart the unit, unplug the unit for 10 minutes, then plug back in and power on for normal operation. Note: If the unit continues to shut down, there may still be an abnormal condition and the unit may need service. Call Customer Service. CLEANING Always unplug the appliance before you clean it. Never immerse the appliance in water or any other liquid. Never use aggressive or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance.

BODY OF THE APPLIANCE

Regularly clean the inside and outside of the body to prevent dust from collecting on the inside and outside.

1. Wipe away dust with a soft dry cloth from the body of the appliance.

2. Clean the air inlet and the air outlet with a soft dry cloth.

PRE-FILTER SCREEN The pre-filter is designed to collect larger dust and debris and should be cleaned monthly or more frequently depending on use. Remove and clean regularly with the brush attachment of your vacuum cleaner. This will remove the lint and dirt and help maintain the life of the filters. (See filter replacement to locate and remove Pre-filter). CLEANING & MAINTENANCE

(CONTROL PANEL) NOTE: Do NOT stick any foreign objects or your fingers inside of the unit. CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.E-8 E-9 FILTER REPLACEMENT

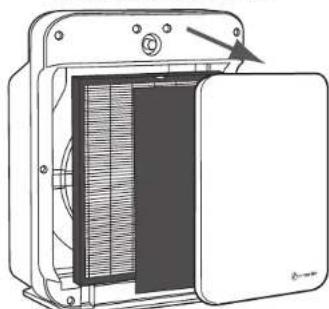

2. Gently pull the top of

the front panel and lift from base.

INSTALLING & REMOVING UV-C BULB

UV Bulb Replacement Indicator: The UV light on the display will turn red when it is time to replace the UV bulb.

3. Remove the filters by

pulling the top and bottom tabs.

4. Insert the new filters into the

unit – consult the arrows on the filters for correct installation direction.

5. Return the front panel: First insert the front panel bottom hooks then close the front panel.

Make sure the magnetic closure is secure. Note: Proper filter and front panel installation is necessary for unit to turn on.

6. Reset the filter indicator light by

holding the Night Light/Hepa Reset button for 5 seconds.

1. Pull and remove the front

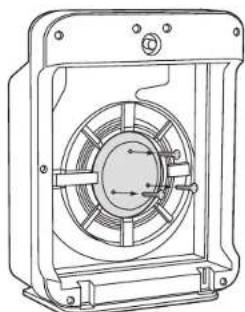

2. After removing the filter, use a Philips

head screwdriver to remove 3 screws and detach the round UV-C Shield.

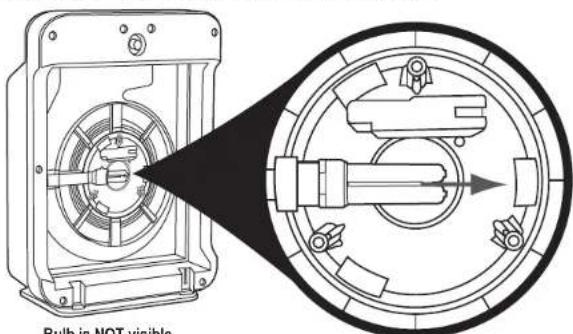

3. The UV-C Bulb is removed by carefully grasping the bulb with a

clean cloth or tissue and pulling the bulb straight out of the unit.

4. The UV-C Bulb is reinstalled by reversing the process in Step 3.

5. Replace the UV-C shield making sure to line up the notch in the

shield with the bracket. Re-attach with 3 screws.

6. Reset the UV light by holding the "UV" button down for 5 seconds.

IMPORTANT: The UV-C Bulb should be replaced every 10 - 12 months depending on use. Please contact Customer Service to purchase a replacement bulb. NIGHT LIGHT HEPA RESETBulb is NOT visible until the UV-C SHIELDhas been removed.PULL UV-C BULB STRAIGHT OUT OF UNIT.

UV MODE UV RESET The “Replace Filter” indicator will turn red when it is time to replace both your HEPA and Carbon filters. Depending on usage and environmental conditions the filters will last approximately 6 months and should be replaced at the same time. The HEPA filter will turn from white to gray when it is dirty and needs replacing. It is important to maintain and change the filters to continue to optimize the performance of the air purifier. IMPORTANT: DO NOT wash and re-use the filters. Please contact Customer Service to purchase a replacement filter.

REMOVE AND REPLACE FILTER
