AC4010 - Air purifier GermGuardian - Free user manual and instructions

Product Type	Tabletop Air Purifier
Brand	GermGuardian
Model	AC4010
Dimensions	21.6 cm (W) x 25.4 cm (D) x 11.4 cm (H)
Weight	1.56 kg
Power Supply	120 V AC, 60 Hz
Filtration Technology	Charcoal Pre-filter, HEPA Filter, PCO, UV Lamp
HEPA Filter Efficiency	Captures up to 99.97% of particles down to 0.3 microns
Replacement Filter	Model FLT4010
Filter Replacement Frequency	Every 6 months
UV Lamp	Yes, eliminates germs
PCO Technology	Yes, breaks down allergens and mold
Warranty	1-year limited
Cleaning	Soft, damp cloth (unit unplugged)
Safety	Safety switch prevents operation if filter is not in place
Use	Indoor only
Customer Service	1.866.603.5900 (US/Canada)
Website	www.germguardian.com

Frequently Asked Questions - AC4010 GermGuardian

How to install the filter?

Unplug the unit, lift the cover, remove the filter from its packaging, then replace it in the compartment with the dark grey side facing outward. Do not place the white side outward. Close the cover and plug the unit back in.

How often should I replace the filter?

It is recommended to change the filter every six months to ensure optimal performance. The replacement filter is model FLT4010.

How to clean the unit?

Turn off and unplug the unit. Clean the exterior with a soft, damp cloth. Do not pour water on the unit or use abrasive cleaners. Ensure the air intake and outlet grills are clean.

Why won't the unit turn on?

Check that the unit is plugged in on both ends. Make sure the filter is properly installed and that the metal safety switch inside is not bent. If the problem persists, call customer service at 1.866.603.5900.

The noise level has increased, what should I do?

Unplug the unit and check the filter condition. If the filter is dirty, clean or replace it. Open the base to check that the fan is not obstructed.

Where can I buy the replacement filter FLT4010?

You can order the filter directly from www.germguardian.com or by calling customer service at 1.866.603.5900.

Is the UV lamp dangerous to the eyes?

Yes, never look directly at the UV bulb when it is on. The UV lamp is designed to operate inside the purifier and does not emit visible light to the outside.

Can I use the unit outdoors?

No, the unit is designed for indoor use only. Do not use it outdoors, in a bathroom, or near flammable gases.

What is the warranty period?

The product comes with a one-year limited warranty from the date of purchase. Keep your original sales receipt to validate the warranty.

How to contact customer service?

You can reach customer service at 1.866.603.5900 (US/Canada) or visit www.germguardian.com for assistance.

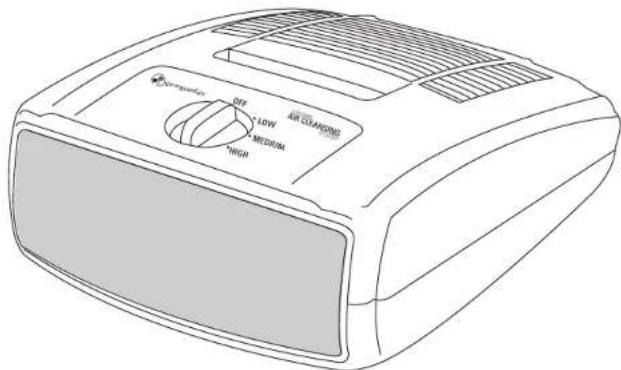

USER MANUAL AC4010 GermGuardian

Table Top Multi-Layer

Air Purifier

Model No. AC4010

1-Year Limited Warranty

www.germguardian.com

1.866.603.5900

REV0810

English E-1

French F-1

Spanish S-1

Date Purchased

month

year

Replacement Filter No: FLT4010

To Order Contact Customer Service

1.866.603.5900 or log on to www.gemguardian.com

INTRODUCTION

Thank you for purchasing the Germ Guardian®

Table Top Multi-Layer Air Purifier.

PLEASE READ AND SAVE THESE INSTRUCTIONS.

SAFETY PRECAUTIONS

Please read the following precautions carefully before operating the Table Top Multi-Layer Air Purifier. Failure to do so could result in a fire hazard, electrical shock, bodily injury or damage to the unit.

WARNING: THE CORDS, WIRES AND/OR CABLES SUPPLIED WITH THIS PRODUCT CONTAIN CHEMICALS, INCLUDING LEAD OR LEAD COMPOUNDS, KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER USING.

Do not damage, pull, twist, bend or place heavy objects on the electrical cord.

Never handle the electrical cord with wet hands.

Do not alter the plug in any way.

Do not use with extension cords.

Never tug on the electrical cord to unplug the unit from the outlet.

Unplug the unit before cleaning, installing or replacing filters.

If the electrical cord becomes damaged, please contact a qualified technician for repair.

Do not place fingers or foreign objects into the airflow openings of the unit.

Operate the unit in a well-ventilated area.

Do not operate unit with any power supply other than the one provided.

Do not operate the unit outdoors.

Do not operate the unit near flammable gases.

Do not operate the unit in humid or wet places such as a bathroom.

• Do not use chemical sprays near the unit, they will accumulate on the filter and potentially cause harmful fumes.
• Do not operate the unit in an area with a high oil content, such as mechanical oil or cooking oil, over time it will deteriorate the filter.
• Never look directly at the UV-light bulb when it.
  Make sure all filters are correctly installed before running the unit.
  This is not a toy and is not intended for use by children. For adult use only.
  Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
• Do not defeat interlock switch.

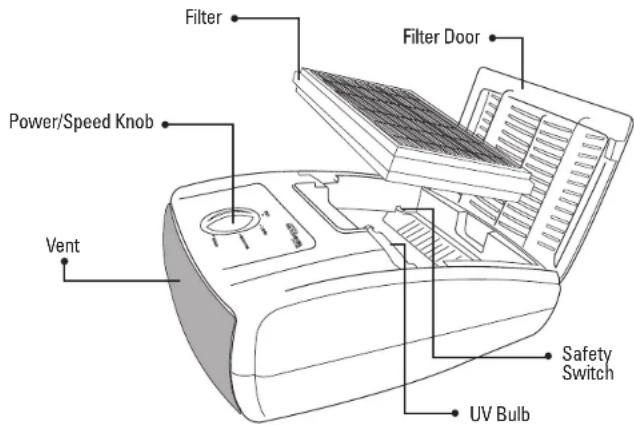

IDENTIFICATION OF PARTS

8. Power Supply

Modification not approved by the party responsible for compliance could void user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on; the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

INSTALLATION

The filter can be found packaged inside the Air Purifier. It is recommended to replace the filter every six months to maintain optimal performance. Replacement filter model number is FLT4010.

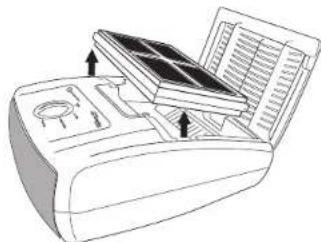

Installing the Filter

1. Unplug the air purifier from the electrical outlet.

2. Lift to release the filter cover.

3. Gently pull filter from unit (*and remove bag from the filter if the unit is new).

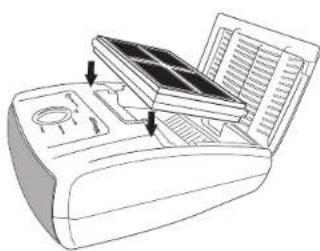

4. Replace filter into compartment.
Make sure the dark gray side faces up towards you.

Do NOT insert filter with white pleated side facing up.
Dark gray side should always face upwards.

1. To install new filter reverse steps 1-4.

INSTALLATION

Features: The filter is an all-in-one multi-stage filter.

Layers of air cleaning include:

1. Charcoal removes odors and smoke.
2. HEPA captures 99.97% of airborne dust and allergens.
3. PCO captures and dissolves airborne allergens and mold.
4. UV-light bulb works with filter to kill germs.

Cleaning the Unit

WARNING: To avoid serious injury from electric shock, the unit must be turned OFF and unplugged from the power outlet prior to any cleaning.

1. TURN THE UNIT OFF AND UNPLUG THE UNIT FROM THE POWER OUTLET.
2. Clean unit with a soft, damp cloth only. DO NOT pour or splash water on the unit or use any abrasive type cleaner. Clean all external surfaces, especially the air intake grills and air outlet.
3. Reposition the unit, plug power cord into power outlet and turn ON.

TROUBLESHOOTING GUIDE

PROBLEM SOLUTION
Unit doesn't operate.	Check that unit is plugged in. Check Safety Switch: Remove filter. Check small metal safety switch. Switch cannot be bent inside the unit. Call Customer Service at 1,866,603,5900.
No air circulating from unit.	Unplug unit: Check filter and remove bag before first use.
Increase in noise level.	Make sure filter is clean. Replace. Unplug unit: Open bottom, remove filters and make sure fan is clear.
Filter door does not close properly.	Check that the installation of the filter is correct.

PRODUCT SPECIFICATIONS

Model No.: AC4010
Dimensions: 8.5 in W x 10 in D x 4.5 in H
Weight: 3.45 pounds
Input Voltage: 120 volts AC, 60Hz

REPLACEMENT PARTS

Part Number Part Name Size Weight

FLT4010 Air Purifier Replacement Filter 5.25L x 5.25W x .5H (inches)

24px

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials and workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. The complete machine must be delivered pre-paid to any authorized Guardian Technologies LLC warranty service center. Please include complete information on the problem, date of purchase, copy of original sales receipt and your name, address and telephone number. If you are not near a warranty center, call the factory for assistance in the US and Canada at 1.866.603.5900. Use only genuine Guardian Technologies replacement parts.

The warranty does not include unusual wear, damage resulting from accident, or unreasonable use of the product. This warranty does not cover wearable parts. This warranty does not cover unauthorized repairs. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the USA).

We consider the registration process important to ensuring superior service to our customers, however submitting this card to Guardian Technologies LLC is optional and does not affect your rights to utilize this warranty according to the conditions stated above. If you have any questions or comments about our product call toll free at 1,866,603.5900 or email [e-mail]. If you would like to send written comments please address them to: ATTN: Customer Service

ATTN: Customer Service

Guardian Technologies LLC

7700 St. Clair Avenue

Mentor, Ohio 44060

germguardian

Guardian Technologies LLC

7700 St Clair Avenue | Mentor, Ohio 44060

1.866.603.5900|www.germguardian.com

germguardian

A HEALTHY HOME, THE SAFE NATURAL WAY
