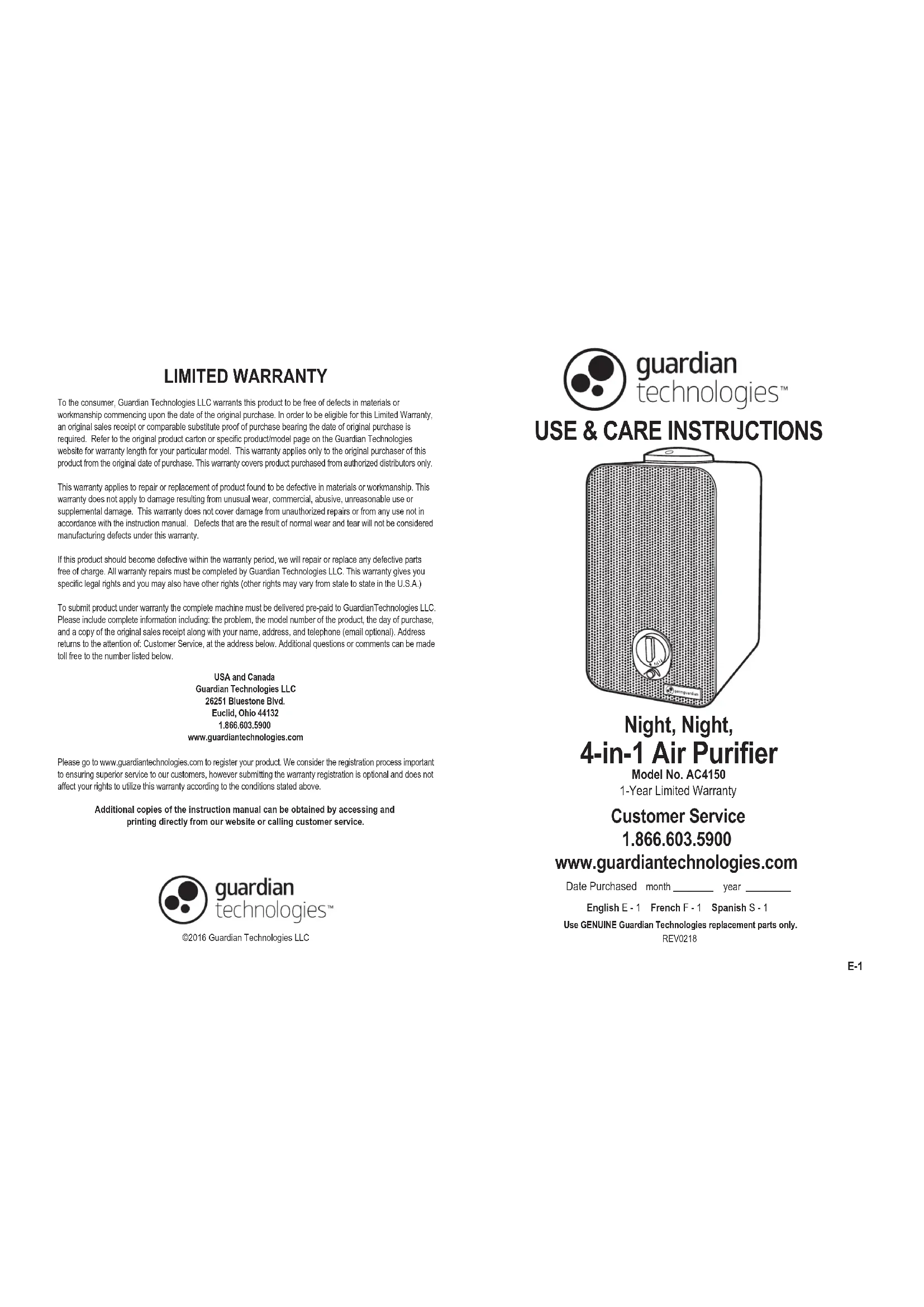

USER MANUAL AC4150 GermGuardian

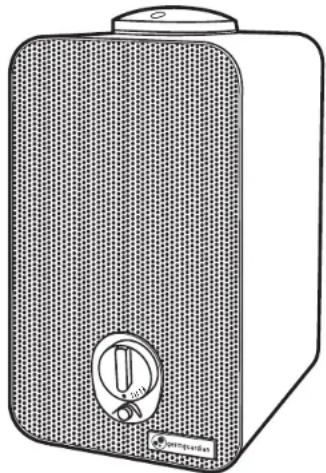

E-1 Night, Night, 4-in-1 Air Purifier

USE & CARE INSTRUCTIONS

Model No. AC41501-Year Limited Warranty English E - 1 French F - 1 Spanish S - 1 Date Purchased month ________ year _________ Customer Service

www.guardiantechnologies.com Use GENUINE Guardian Technologies replacement parts only.REV0218©2016 Guardian Technologies LLC LIMITED WARRANTY To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologieswebsite for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)To submit product under warranty the complete machine must be delivered pre-paid to GuardianTechnologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.Additional copies of the instruction manual can be obtained by accessing andprinting directly from our website or calling customer service.USA and CanadaGuardian Technologies LLC26251 Bluestone Blvd.Euclid, Ohio 441321.866.603.5900www.guardiantechnologies.comPlease go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

IREAD AND SAVE THESE INSTRUCTIONS

WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury. This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.

• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.

• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.

• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.

• NEVER drop or insert any object into any openings.

• DO NOT run cord under carpeting.

• DO NOT cover cord with throw rugs, runners, or similar coverings.

• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.

• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

• DO NOT use outdoors.

• DO NOT place anything on top of unit.

• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only. E-2

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Manufactured by Guardian Technologies.

• Always unplug the unit before before cleaning or servicing in any way.

• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents. E-3

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below. www.epa.gov/cflcleanup 1-866-284-4010 The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m

chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m

WARNING: This product can expose you to chemicals including lead or lead

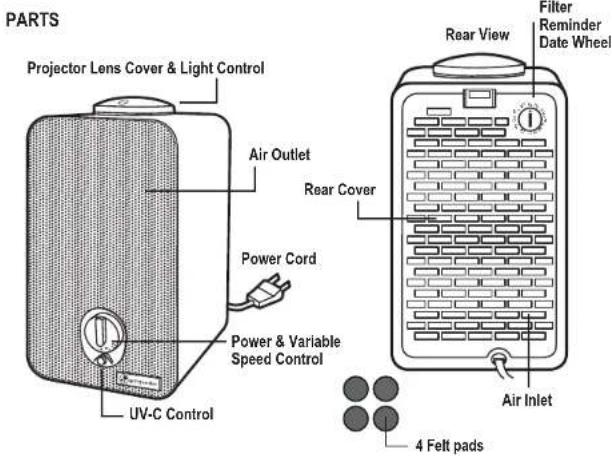

compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.PRODUCT SPECIFICATIONS AND PARTS FILTER: Filter Model No.FLT4100

UV-C BULB (2W): Model No. LB4100

DIGITAL AIR CLEANING SYSTEM

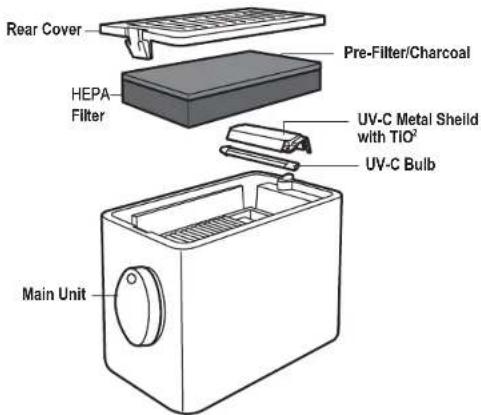

Improve your indoor air quality with your new 3-in-1 Air Cleaning System. Multiple levels of cleaning work together to capture allergens, kill germs and remove odors. COMBINATION FITER Pre-Filter/Charcoal -This layer serves as a pre-filter for capturing large dust particles; lint and pet hair which helps extend the life of your filter. The activated carbon absorbs household and pet odors. HEPA Filter- Captures 99.97% of dust and allergens. UV-C LIGHT The power of UV-C light kills bacteria and viruses, including: rhinovirus, E. coli and streptococcus..

IMPORTANT: To maintain the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only.To Purchase Contact Customer Service COMBINATION FILTER: 1 Pre-Filter/Charcoal1 HEPA Filter Filters last approximately 6-8 months depending on use. Pre-Filter/Charcoal 99.97% HEPA Filter

UV-C BULB REPLACEMENT

To maintain the performance of the air cleaner, it is recommended that the filter be replaced about every 6 months. The replacement requirements will vary depending on usage and environmental conditions.

1. It’s time to replace the filter when the white HEPA cartridge portion has changed

from white to grey or black.

2. A filter date wheel is also built into the rear of the unit

to track your filter changes. Simply set the wheel 6 months ahead from when it is replaced as a reminder. The wheel is marked with the months of the year (Figure 3).

1. Lift and remove the

Rear Cover from the unit. 4.The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit (Figure 4).

2. After removing the Rear

Cover from the unit, remove the Combination Filter.

3. After removing the

Combination Filter, use a Philips head screwdriver to remove screw and detach the UV-C Shield. IMPORTANT: The UV-C Bulb should be replaced every 10-12 months depending on use. Please contact Customer Service at

1.866.603.5900 or visit us at www.guardiantechnologies.com to

purchase a replacement bulb. Replacement UV-C Bulb: LB4100. Figure 1 Figure 4 5.The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots. Figure 3 Pull UV-C Bulb straight out of unit.

1. Select a firm, level and flat location for the air purifier. For proper air flow, locate the unit at

least 1 foot from any wall or furniture. Make sure none of the grills are blocked.

2. Carefully remove your air purifier from box and bag.

3. Adhere 4 felt pads to unit base to protect table top surface. Remove adhesive backing

and apply one pad to each corner of unit base. 4 Felt Pads

1. Plug the power cord into a 120V AC outlet.

2. Select 1 of the 3 project lenses. Rotate

lens cap counter clockwise to unlock position and lift off. Replace with new lens cap and rotate clockwise to lock position.

3. Turn unit power ON.

• Select fan speed MODE 1-3 = lowest speed setting = highest speed setting

4. Select UV-C ON or OFF using UV-C button.

5. Push button on projector lens to control lights.

One push - 3 colors auto-rotate Continue to push for specific colorTROUBLESHOOTING GUIDE Check that the unit is plugged in. PROBLEM Unit does not operate. SOLUTION Unit shuts off unexpectedly. Check that the unit is plugged into a working electrical outlet. Check that the HEPA Filter is firmly in place. Check that the Front Cover is latched firmly in place. Call Customer Service. No air circulating from unit. Unplug unit. Check Pre-Filter/Charcoal and HEPA Filters. Clean Pre-Filter/Charcoal if necessary. Replace HEPA Filter if necessary. Increase in noise level. An unpleasant odor is emitted from the unit. Make sure the filters are clean. Replace if necessary. Make sure the filters are clean. Replace if necessary. CLEANING & MAINTENANCE a. Lift and remove the Rear Cover from the unit. b. Remove Combination Filter from unit. Note: Pre-Filter/Charcoal is affixed to HEPA Filter with Velcro.c. Separate and clean both filter layers with the brush attachment of your vacuum cleaner to remove lint and dust.IMPORTANT: Do NOT try to wash and re-use the Combination Filter.d. Insert Combination Filter into the unit with the HEPA portion facing into the unit. Consult the arrow on the filter for correct installation direction. IMPORTANT: Do NOT try to wash and re-use the Combination Filter. Please contact Customer Service at 1.866.603.5900 or visit us at www.guardiantechnologies.com to purchase a replacement filter. Replacement Combination Filter: E (FLT4100) e. Reattach the Rear Cover of the unit and securely latch into place. GENERAL CLEANING Always unplug the unit before cleaning or servicing in any way. Caution: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents. Note: Do NOT stick any foreign objects or your fingers inside the unit.

1. Wipe the surface of the unit with a clean, dry soft cloth as needed.

2. Clean the Filter monthly with the brush of your vacuum cleaner.

3. Remove and Clean (or Replace) Filter.
