USER MANUAL AC9600 GermGuardian

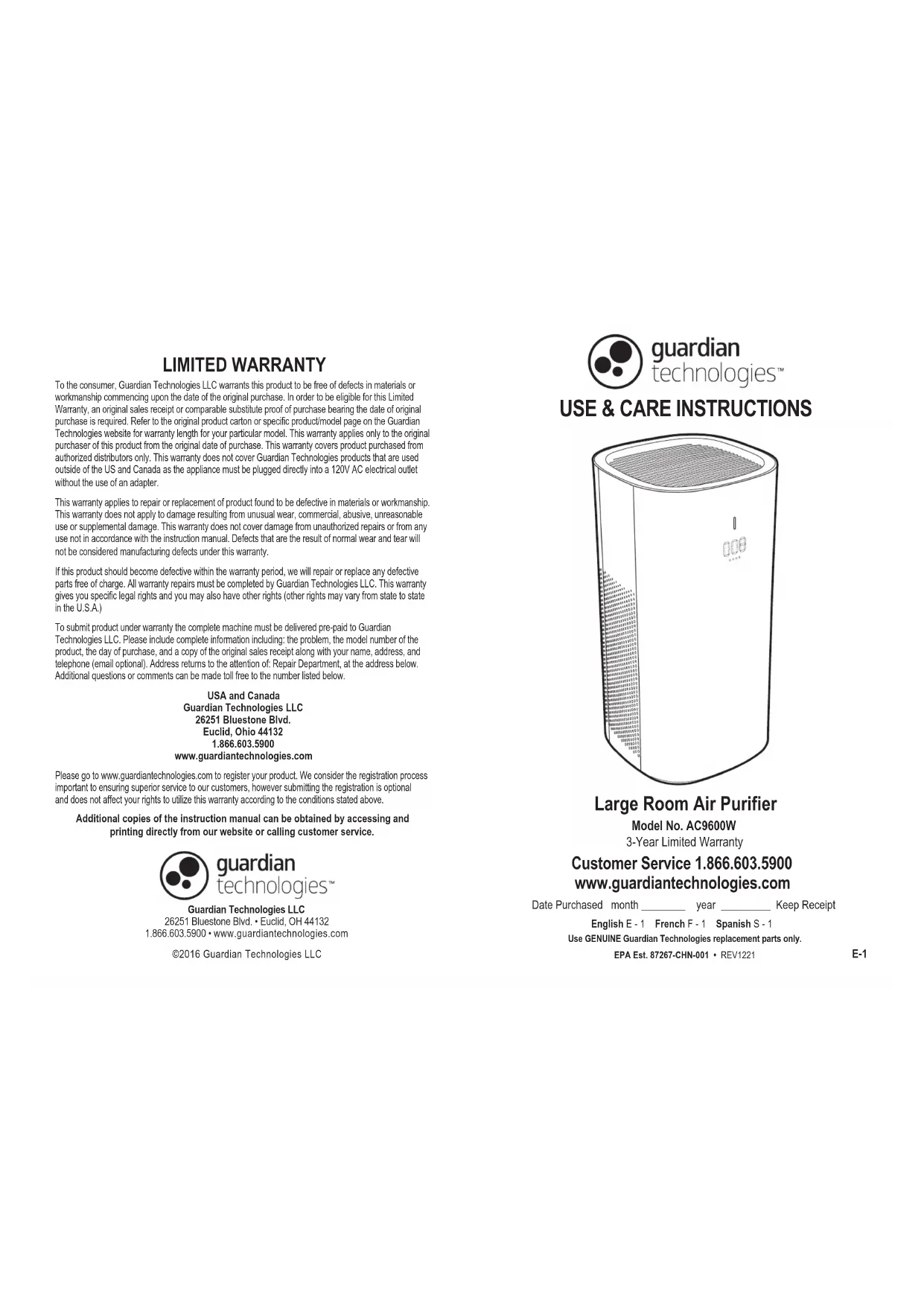

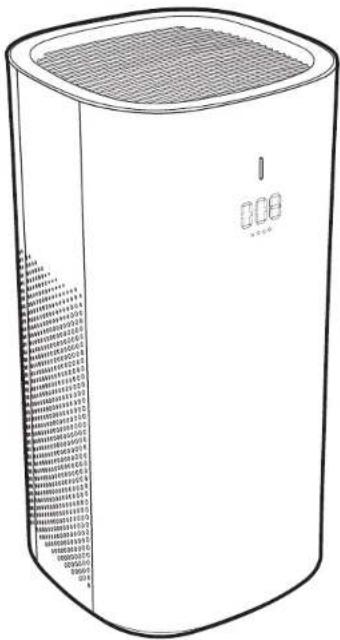

E-1 Large Room Air Purifier Model No. AC9600W 3-Year Limited Warranty English E - 1 French F - 1 Spanish S - 1 Date Purchased month ________ year _________ Keep Receipt

USE & CARE INSTRUCTIONS

Customer Service 1.866.603.5900 www.guardiantechnologies.com Use GENUINE Guardian Technologies replacement parts only.EPA Est. 87267-CHN-001 • REV1221©2016 Guardian Technologies LLCGuardian Technologies LLC26251 Bluestone Blvd. • Euclid, OH 441321.866.603.5900 • www.guardiantechnologies.com LIMITED WARRANTY To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials orworkmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only. This warranty does not cover Guardian Technologies products that are used outside of the US and Canada as the appliance must be plugged directly into a 120V AC electrical outlet without the use of an adapter. This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to statein the U.S.A.)To submit product under warranty the complete machine must be delivered pre-paid to GuardianTechnologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Repair Department, at the address below. Additional questions or comments can be made toll free to the number listed below.USA and CanadaGuardian Technologies LLC26251 Bluestone Blvd.Euclid, Ohio 441321.866.603.5900www.guardiantechnologies.comAdditional copies of the instruction manual can be obtained by accessing andprinting directly from our website or calling customer service.Please go to www.guardiantechnologies.com to register your product. We consider the registration processimportant to ensuring superior service to our customers, however submitting the registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.E-2 E-3

READ AND SAVE THESE INSTRUCTIONS

WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury. This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.

• WARNING: To reduce the risk of fire or electric shock do not use with an extension cord.

• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.

• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.

• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

• Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.

• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.

• NEVER drop or insert any object into any openings.

• DO NOT run cord under carpeting.

• DO NOT cover cord with throw rugs, runners, or similar coverings.

• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service for assistance.

• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

• DO NOT use outdoors.

• DO NOT place anything on top of unit.

• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this purifier with any solid-state speed control device.

WARNING: Cancer and Reproductive Harm.

For more information go to www.P65Warnings.ca.gov. This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model’s CADR for Smoke and the electrical energy it consumes, or CADR/Watt.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualifed electrician. Do not attempt to defeat this safety feature.

• Warning: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace with Lamp Model No. LB9000, Manufactured by Guardian Technologies.

• Always unplug the unit before cleaning or servicing in any way.

• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents. CAUTION: THIS EQUIPMENT SHOULD BE INSPECTED AND CLEANED IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS ON A REGULAR BASIS TO PREVENT EXCESSIVE ACCUMULATION OF DUST PARTICLES THAT CAN RESULT IN FLASHOVER OR A RISK OF FIRE.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below. www.epa.gov/cflcleanup 1-866-284-4010 The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue to follow all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces. The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m

chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m

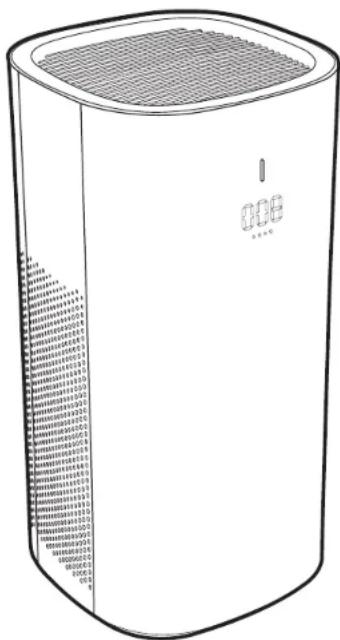

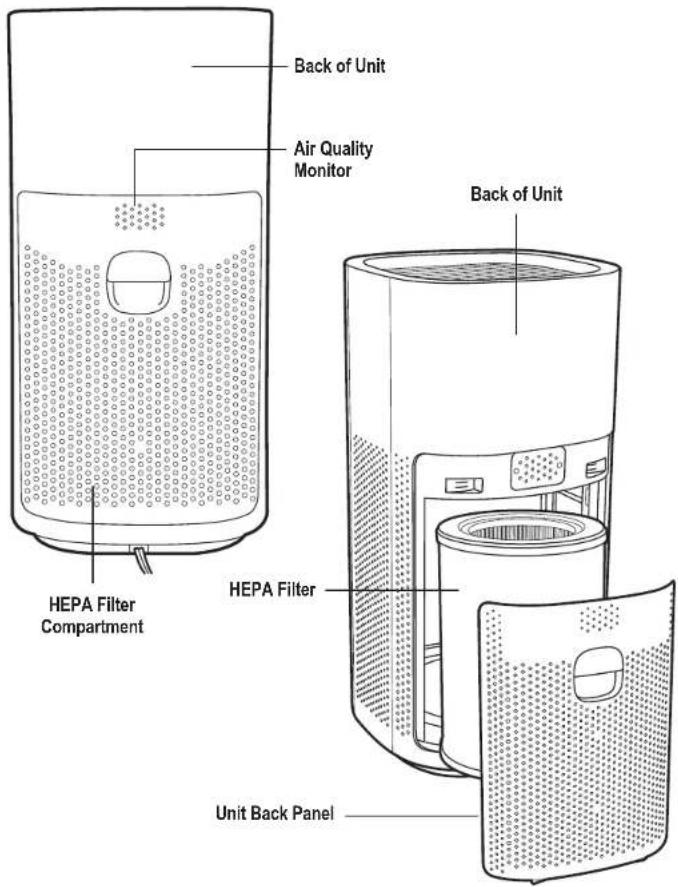

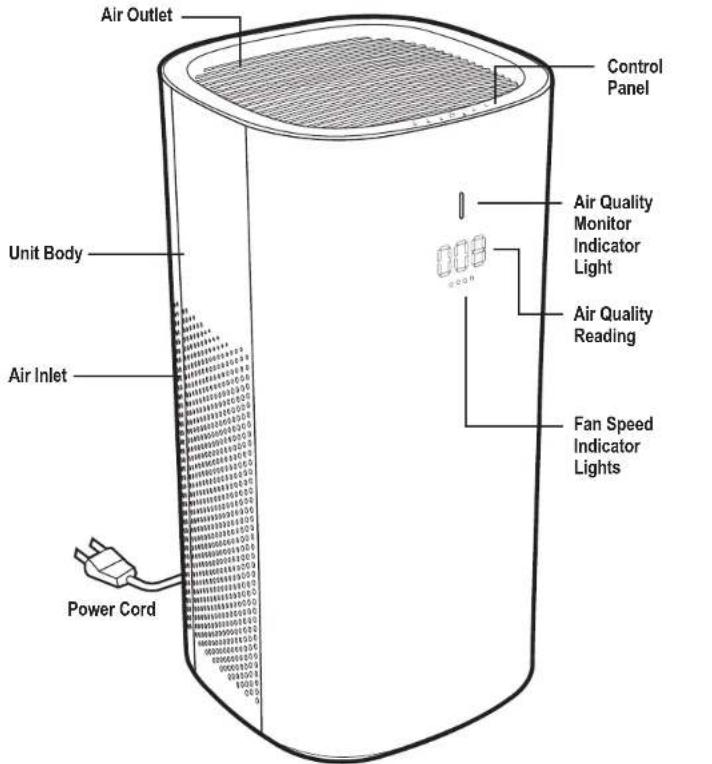

Improve your indoor air quality with your new Germguardian Air Purifier. The HEPA filter captures allergens and includes a charcoal filter layer to help reduce household odors. The UV-C light technology helps reduce germs and works with Titanium Dioxide (TiO2) to reduce volatile organic compounds. Power Cord Unit Body E-5 Air Outlet Air Inlet Control Panel IMPORTANT: The air purifier is shipped with the filter stored in the filter compartment. The filter is shipped in a bag to prevent degradation. Before using, remove and discard bag. Air Quality Monitor Indicator Light Back of Unit Air Quality Monitor HEPA Filter Compartment HEPA Filter Unit Back Panel Back of Unit Air Quality Reading Fan Speed Indicator Lights AUTO

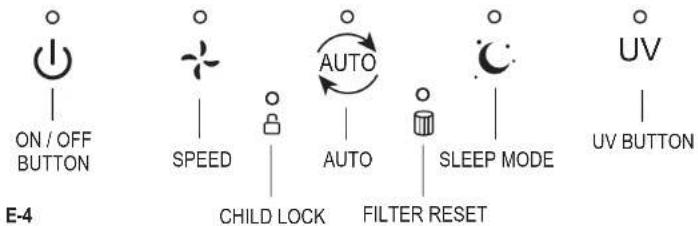

CONTROL PANEL ON / OFF BUTTON SPEED CHILD LOCK AUTO FILTER RESET SLEEP MODE UV BUTTON AUTO UVE-6 E-7 OPERATING INSTRUCTIONS IMPORTANT: The air purifier is shipped with the filter stored in the filter compartment. The filter is shipped in a bag to prevent degradation. Before using, remove and discard bag.

BEFORE OPERATING THE AIR PURIFIER

1. Select a firm, level and flat location for the air purifier.

• For proper air flow, locate the unit at least 1 foot from any wall or furniture.

• Make sure none of the grills are blocked.

2. Plug the power cord into a 120V AC outlet. An audible chime will sound when plugged in.

OPERATING THE AIR PURIFIER

1. Turn unit power ON by pressing the ON/OFF button.

Note: The first time the unit is plugged in and powered on, the air quality sensor will take a few minutes to calibrate.

2. Fan Speed – press SPEED and select speed level 1-4.

The fan speed will light on the display.

3. Auto Mode – press AUTO and an “A” will light on the display. When in AUTO the

fan speed will change depending on the air quality level in the room. See AQM chart. To exit AUTO mode, press AUTO control. Pressing on/off, speed or sleep controls will also exit AUTO mode.

4. Sleep Mode – Press Sleep control to turn display lights on/off. When selected, all

but the sleep light will turn off and purifier will run in low speed. Press any control to wake up the unit and exit Sleep mode.

6. Child Lock – Press and hold SPEED & AUTO controls for 3 seconds to lock

control panel so controls cannot be adjusted. The lock icon will light on the display. If other controls are pressed while locked, the Child Lock indicator will blink. To unlock, hold the SPEED & AUTO controls again for 3 seconds.

7. Filter Reset Indicator illuminates to indicate it is time to change the filter.

Replace the filter according to the instructions (pg. 7). Press and hold the SPEED button for approximately 3 seconds, the unit will beep before flashing indicator stops. Light Color Particulate Matter Value (Range) Air Quality Status Auto Fan Speed Green 0-100 Good 1 Yellow 101-200 Average 2 Red 201-300 Poor 3 Red 301-500 Very Poor 4

RESETTING THE AIR PURIFIER

The air purifier is equipped with a motor protection circuit. If activated, the overload warning will initiate and cut off the power. An audible warning "chime" will sound for 60 seconds and the AQM light will flash red. To restart the unit, unplug the unit for 10 minutes, then plug back in and power on. The filter reset indicator light will illuminate when it is time to replace your filter. Depending on usage and environmental conditions the filter will last approximately 6 months. The inside pleats of the filter will turn from white to grey when it is dirty and needs replacing. It is important to maintain and change the filter to continue to optimize the performance of the air purifier. IMPORTANT: Do NOT wash and re-use the filter. Please contact Customer Service or visit our website www.guardiantechnologies.com to purchase a replacement filter. Use only Genuine Guardian Technologies replacement parts to optimize the performance of your air purifier.

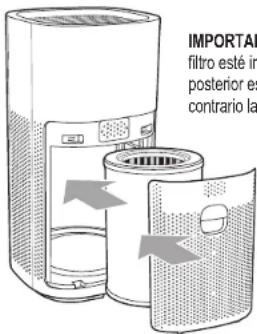

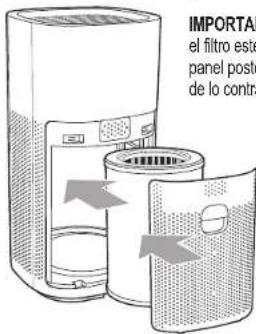

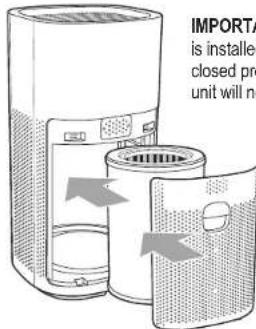

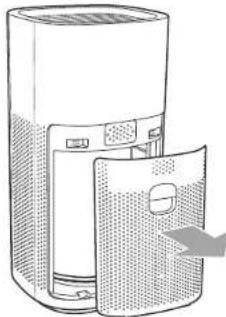

REMOVE AND REPLACE FILTER

1. Turn off and unplug the unit.

2. On the back of the unit, pull handle on filter panel and remove panel from unit.

3. Remove filter and disregard. Place new filter into air purifying unit.

4. Return filter panel, first insert the panel tabs in the base then close. Check that it’s secure.

5. Reset the filter light by holding the Speed controls down for 3 seconds.

again to turn OFF the UV-C. The light on the top of the UV button will turn on when the UV-C is on.

Air Quality Monitor senses and detects the amount of particulate matter (PM2.5) in the air. The bar above the display will change colors, indicating the air quality level in the room. The particulate matter numeric value (AQI) will be displayed. See values and status ranges in chart below. Also listed are the color values displayed on the indicator light and the fan speed “AUTO” mode will select based on the particulate matter that is detected. IMPORTANT: Make sure filter is installed and back panel is closed properly, otherwise unit will not function.TROUBLESHOOTING GUIDE Check that the unit is plugged into a working electrical outlet. Check to see if the motor protector is triggered. Check that the filter and back panel are installed correctly. Unplug/replug into the outlet. Call customer service. PROBLEM Unit shuts off unexpectedly or does not operate. SOLUTION No air circulating from the unit. Unplug unit. Check filter. Clean or replace filter if necessary. Odors not removed. Make sure the filter is clean. Replace if necessary. Discharged air has an odor. Check to see if the filter is heavily soiled. Replace if necessary. E-8 E-9 Increase in noise level. Make sure the filter is clean. Replace if necessary. Filter indicator light on display is illuminated. Replace filter and reset light. CLEANING

• Always unplug the appliance before you clean it.• Never immerse the appliance in water or any other liquid.• Never use aggressive or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance.

BODY OF THE APPLIANCE

Regularly clean the inside and outside of the body to prevent dust from collecting.1. Wipe away dust with a soft dry cloth from the body of the appliance.2. Clean the air inlet and the air outlet with a soft dry cloth. PRE-FILTER SCREEN The pre-filter/charcoal layer collects larger dust and debris and should be cleaned monthly ormore frequently depending on use. Remove and clean regularly with the brush attachment ofyour vacuum cleaner. This will remove the lint and dirt and help maintain the life of the filter.(See filter replacement to locate and clean or remove the filter). Air quality status remains poor. Check to see if the filter is heavily soiled. Replace if necessary. Increase the fan speed to circulate air. FILTER: Model No. FLT9400

Check out ourFilter Replacement Programwww.guardiantechnologies.com

IMPORTANT: To maintain performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only. To purchase visit our website www.guardiantechnologies.com. REPLACEMENT PARTS Note: Do NOT stick any foreign objects or your fingers inside the unit. What is CADR? CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered byan air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturingfine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the fasterthe unit filters the air. Refer to website for individual model CADR numbers.

CHANGE BULB INDICATOR

The white light above the UV indicator will begin to flash continuously when it is time to replacethe UV-C bulb. Replace the bulb according to the directions then press the UV control button andhold for 3 seconds to restart the system.

1. The UV-C bulb is in a compartment above the filter in the purifier.

2. To access, first follow the instructions to remove the filter.

3. Turn the purifier on its side for easier access to the compartment.

4. Reach inside to detach the UV-C grate. Use a Philips head screwdriver to remove the

four (4) screws. Detach the grate.5. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue, twisting it 90 degrees and pulling the bulb straight out of the unit.6. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit. Twist 90 degrees to lock into place.7. Press and hold the UV Control Button for 3 seconds to reset UV Bulb Change Indicator.IMPORTANT: The UV-C bulb should be replaced every 10 months depending on use.IMPORTANT: If the filter is not placed in properly or the filter cover is not secure, theunit will not turn on.

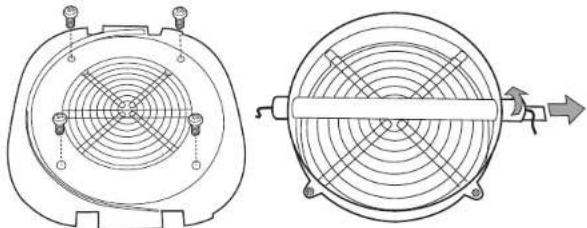

INSTALLING & REMOVING UV-C BULB

CLEANING & MAINTENANCE UV BULB: Model No. LB9000 UV-C indicator light is flashing. Replace bulb and reset light.F-1 Grande pièce Purificateur d’air Modèles des séries. AC9600W Garantie limitée de tres (3) ans Anglais E - 1 Français F - 1 Espagnol S - 1 Date d'chat mois ________ année _________ Conserver le reçu
