Product type	Electric plancha / Contact grill
Model	Optigrill+ Initial GC706D
Brand	Tefal
Automatic programs	6 programs: Hamburger, Panini/Sandwich, Poultry, Fish, Red meat, Pork/sausages/lamb
Manual mode	Yes, 5 temperature settings (120°C to 270°C)
Cooking plates	2 removable plates with non-stick coating, dishwasher safe
Drip tray	Removable, dishwasher safe
Audible signal	Yes, for preheating and end of cooking
Keep warm function	Yes, automatically activated after cooking
Safety	Automatic shutdown in case of prolonged preheating, extended opening or inactivity
Power supply	220-240 V, grounded plug
Power	2000 W (estimate)
Dimensions (L x W x H)	Approximately 40 x 30 x 15 cm
Weight	Approximately 5 kg
Maintenance	Plates and tray in dishwasher; housing cleaned with damp cloth; do not immerse
Included accessories	Cooking plates, drip tray, cooking guide
Warranty	2 years

Frequently Asked Questions - Optigrill+ Initial GC706D TEFAL

How to use automatic mode?

Select the appropriate program (Hamburger, Poultry, etc.) using the SELECT button, then press OK. The appliance preheats automatically. Once preheating is complete (audible signal), open the grill, place the food, close it, and cooking starts automatically. The cooking level (rare, medium, well-done) is displayed and an audible signal indicates the end.

What to do if the appliance turns off by itself?

This is normal: the appliance automatically shuts off after prolonged inactivity (preheating or keep warm). Unplug it, wait a few minutes, plug it back in and turn it on. If the problem persists, contact customer service.

How to clean the cooking plates?

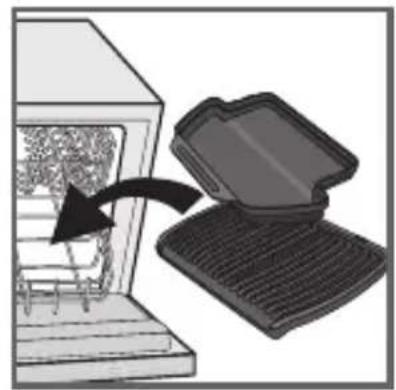

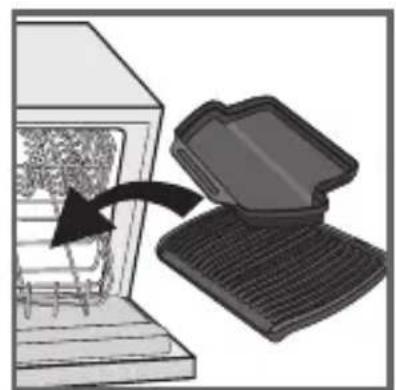

The plates are removable and dishwasher safe. You can also wash them in hot water with a little liquid detergent and a non-abrasive sponge. Rinse thoroughly and wipe with a soft cloth. Never use scouring powder or steel wool.

Can I use metal utensils on the plates?

No. To preserve the non-stick coating, use only plastic or wooden spatulas. Metal utensils scratch and damage the surface.

What is the maximum thickness of food to cook?

The thickness must not exceed 4 cm. If the food is too thick, the appliance will not detect cooking correctly and the OK button will flash. In that case, cut the food into thinner pieces.

How to start a new cooking cycle?

After cooking, close the empty grill. The control panel lights up and offers program selection again. Preheating is mandatory before each new cooking cycle, even if the appliance is still hot. Select the program or manual mode, then press OK.

The appliance does not heat up, what should I do?

Check that the appliance is plugged in and the switch is on. If the lights flash, consult the troubleshooting guide: flashing with beep may indicate that preheating was not completed or excessive thickness. Unplug it for a few minutes, then plug it back in and follow the preheating steps.

Can I leave the appliance unattended?

No. Never use the appliance unattended. Hot surfaces pose a burn risk. Additionally, the safety system may turn off the appliance in case of inactivity, but always stay present during cooking.

Are the plates and tray dishwasher safe?

Yes, the cooking plates and drip tray can go in the dishwasher. For the housing, clean it with a damp cloth and never immerse it. The heating elements should not be cleaned with water.

What do the flashing lights and beeps mean?

This generally indicates a preheating problem or a malfunction. If the lights flash with an intermittent beep after closing the grill with food, it means that preheating is not complete. Open the grill, remove the food, close it and wait for preheating to finish (steady light). If the problem persists, unplug and contact after-sales service.

USER MANUAL Optigrill+ Initial GC706D TEFAL

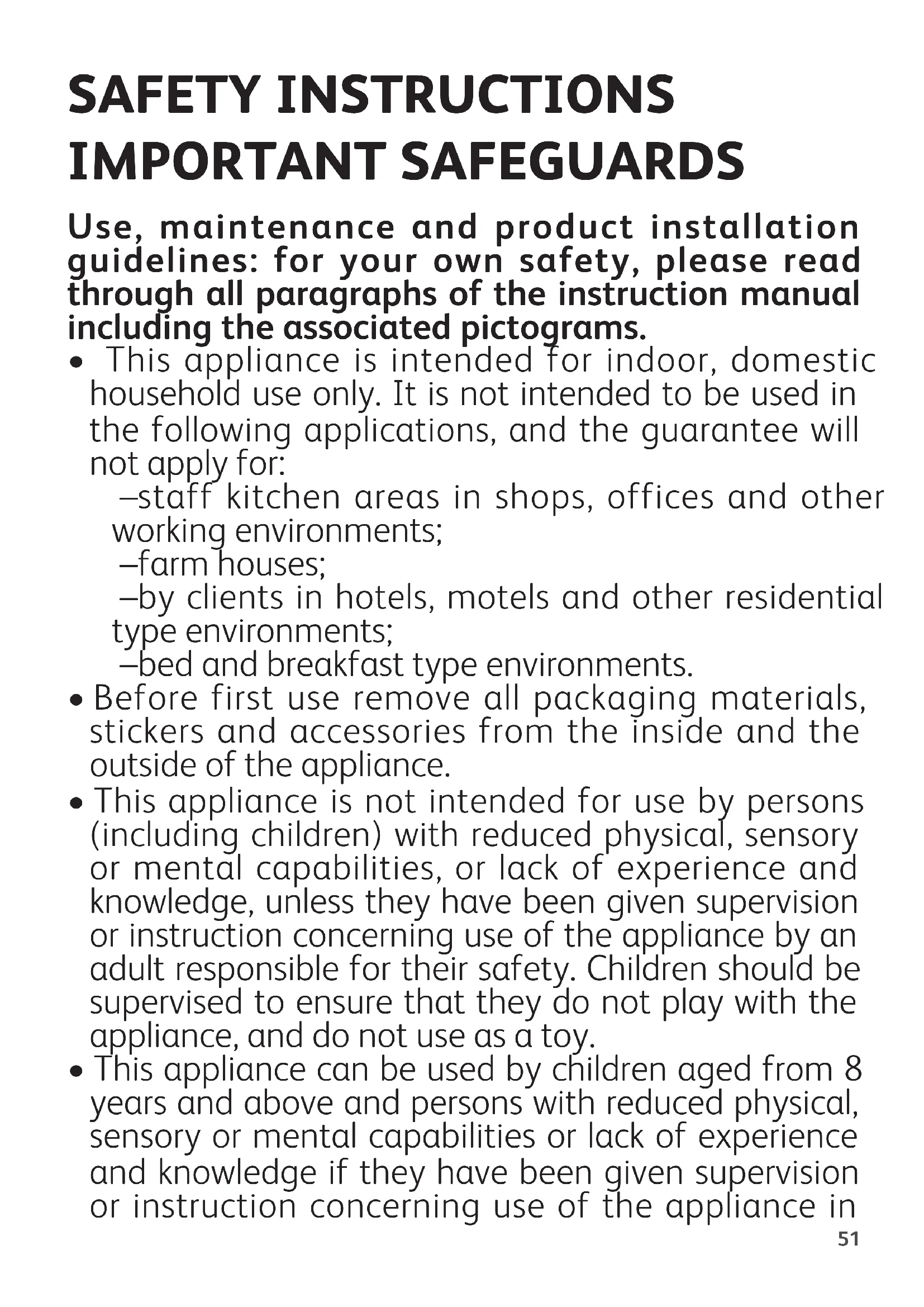

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS

Use, maintenance and product installation guidelines: for your own safety, please read through all paragraphs of the instruction manual including the associated pictograms.

• This appliance is intended for indoor, domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Before first use remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety. Children should be supervised to ensure that they do not play with the appliance, and do not use as a toy.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Never leave the appliance unattended when in use.
• Accessible surface temperatures can be high when the appliance is operating. Never touch the hot surfaces of the appliance.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Fully unwind the power cord before plugging in the appliance.
• If the power supply cord is damaged, it must be replaced by the manufacturer or its after sales service in order to avoid any danger.
• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance. Take all necessary precautions to prevent anyone tripping over an extension cord.
  Always plug the appliance into an earthed socket.
• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.
• Use a sponge, hot water and washing up liquid to clean the cooking plates.

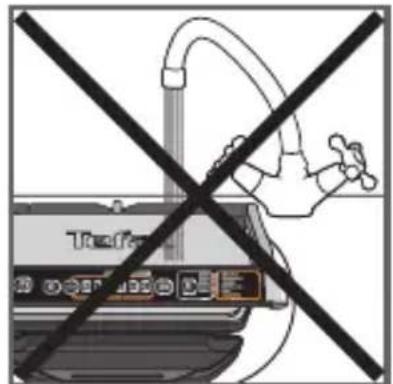

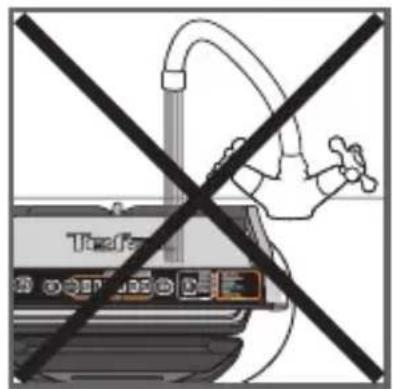

• Never immerse the appliance, its power cord or plug in water or any other liquid.

WARNING: Do not heat or pre-heat without the 2 cooking plates inside the grill.

Do

• Read the instructions carefully, common to different versions depending on the accessories supplied with your appliance, and keep them within reach.
• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• Before first use, wash the plates (see paragraph 5), pour a little cooking oil onto the plates and wipe with a soft cloth or paper kitchen towel.
• Position the power cord carefully, whether an extension is used or not, so that guests can move freely around the table without tripping over it.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.
• Always keep the appliance out of the reach of children.
• Check that both faces of the plate are clean before use.
• To prevent damage to the plates, only use them on the appliance for which they were designed (e.g., do not place in an oven, on the gas ring or electric hot-plate, etc.).
• Ensure that the plates are stable, well positioned and correctly clipped to the appliance. Only use the plates provided with the appliance or bought from an Approved Service Centre.
• Always use a wooden or plastic spatula to avoid damaging the cooking plates.
• Only use parts or accessories provided with the appliance or bought from an Approved Service Centre. Do not use them for other appliances or intention.

Do not

• Do not use the appliance outside.
• Never leave the appliance unattended when plugged in or in use.
• To prevent the appliance from overheating, do not place it in a corner or below a wall cupboard.
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.

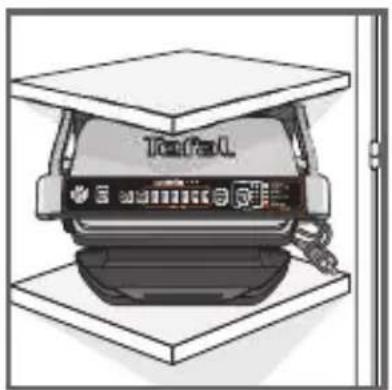

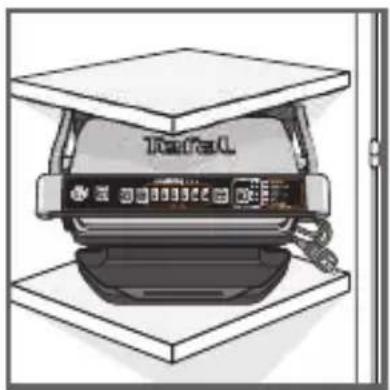

• Never place the appliance under a cupboard attached to a wall or a shelf or next to inflammable materials such as blinds, curtains or wall hangings.
• Never place the appliance on or near hot or slippery surfaces; the power cord must never be close to or in contact with hot parts of the appliance, close to a source of heat or resting on sharp edges.
• Do not place cooking utensils on the cooking surfaces of the appliance.

• Never cut food directly on the plates,

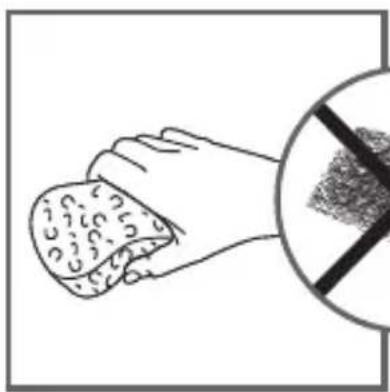

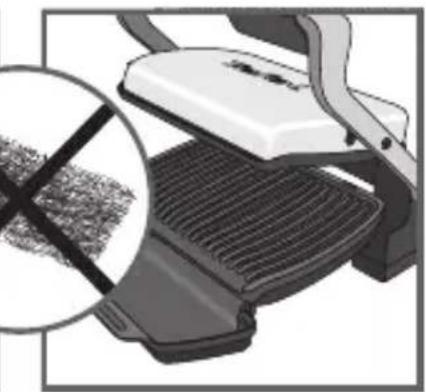

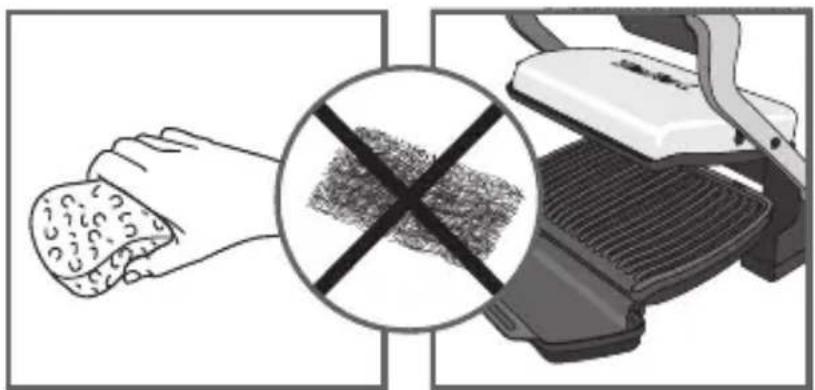

• Do not use metal scouring pads, abrasive wire wool or harsh scouring powder as this may damage the nonstick coating.

• Do not move the appliance when in use.
• Do not carry the appliance by the handle or metallic wires.
• Never run the appliance empty.
• Do not use aluminium foil or other objects between the plate and the food being cooked.
• Do not remove the grease collection tray while cooking. If the grease collection tray becomes full when cooking: let the appliance cool down before emptying.
• Do not place the hot plate on a fragile surface or under water.
• To preserve the non-stick properties of the coating, avoid excessive pre-heating with the appliance empty.
• The plates should never be handled when hot.
• Do not cook food in aluminium foil.
• To avoid spoiling your appliance, do not use flambé recipes in connection with it at any time.
• Do not place a sheet of aluminum or any other object between the plates and the heating element.
• Never heat or cook whilst the grill is open.
• Never heat up the appliance without the cooking plates.

Tips/information

• Thank you for buying this appliance, which is intended for domestic use only.
• For your safety, this appliance complies with the applicable standards and regulations - Low voltage directive - Electromagnetic compatibility - The environment - Materials in contact with food.
• On first use, there may be a slight odour and a little smoke during the first few minutes.
• Our company has an ongoing policy of research and development and may modify these products without prior notice.
• Do not consume foodstuff that comes into contact with the parts marked with logo

• If the food is too thick, the safety system will stop the appliance from working.

Environment

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
- Leave it at a local civic waste collection point.

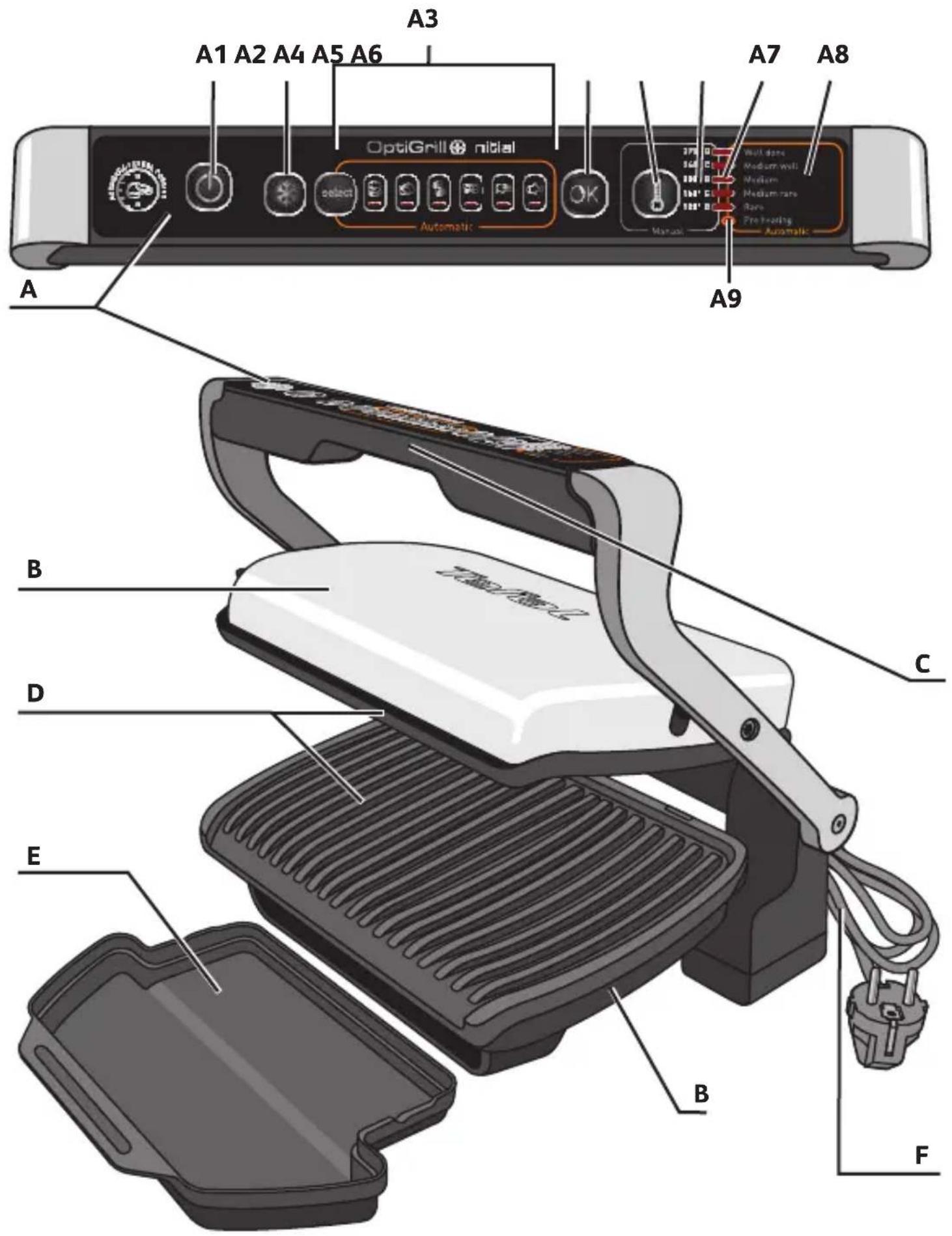

Description

A Control panel
A1 On/off button
A2 For automatic programs

A5 Manual mode "5 temperature settings"
A6 Temperature levels for manual mode.
A7 5 Leds : for temperature level in manual mode, or for cooking level for automatic programs.

B Body
C Handle

D Cooking plates

A3 6 Automatic cooking programs with "select" button
A4 OK button
A8 Cooking level for automatic programs. E Drip tray
A9 Preheating Led for automatic programs. F Power cord

Guide of automatic cooking programs

Burger Panini / Sandwich

Poultry Fish

Red meat Pork/sausageimb

Guide of manual cooking programs

Manual mode:

Traditional grill for manual operation with 5 different temperature settings (from 120^ to 270^ )

PREPARING THE APPLIANCE

1 Setting

1

2

3

4

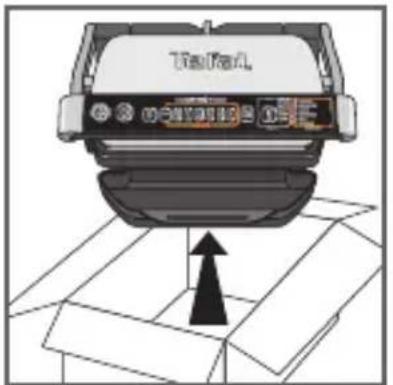

1 Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance. The handle sticker on the cooking level indicator can be changed, according to the language. You can replace it with the one on the inside of the packaging.
2 Before using for the first time, thoroughly clean the plates with warm water and a little dishwashing liquid, rinse and dry thoroughly.

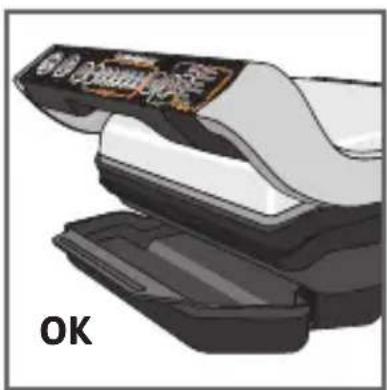

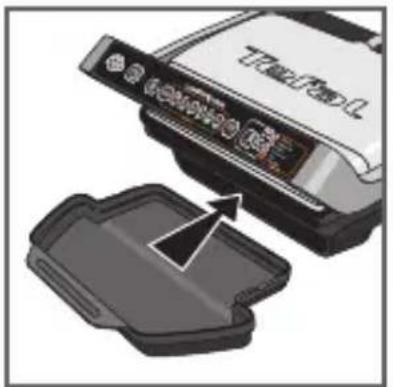

3-4 Position the removable drip tray at the front of the appliance.

2 Preparation

5

6

7

8

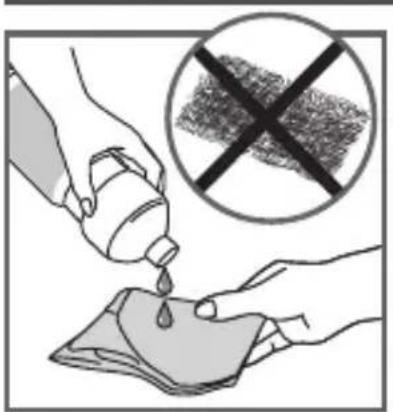

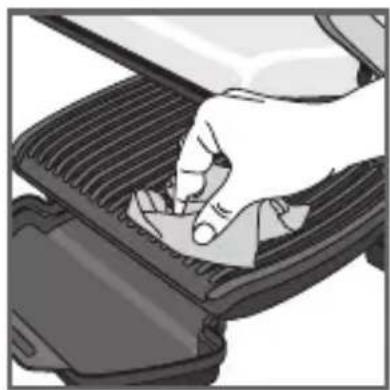

5 For the best results you may wipe the cooking plates using a paper towel dipped in a little cooking oil, to improve the non-stick release.

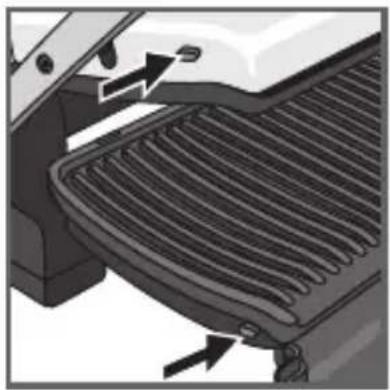

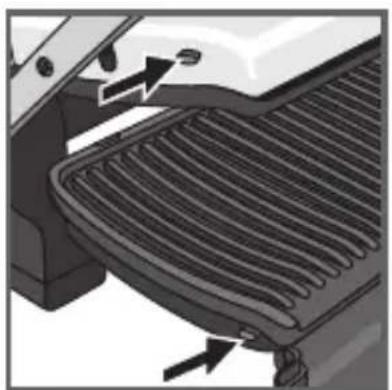

5bis Ensure that the bottom cooking plate and the upper cooking plate are correctly positioned in the product before the preheating phase begins.
6 Remove any surplus oil using a clean kitchen paper towel.

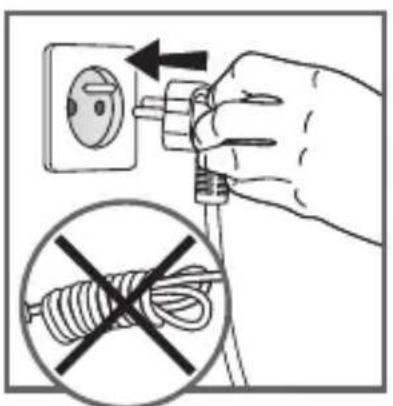

7 Connect the appliance to an outlet. (note the cord should be fully unwound).

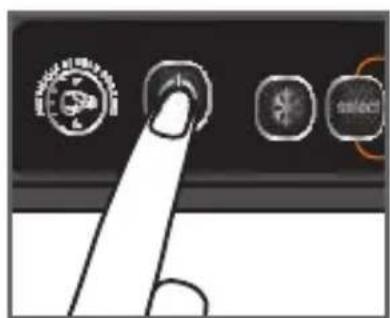

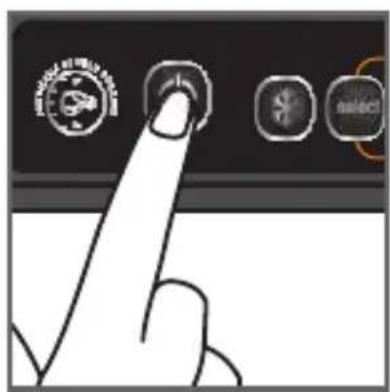

8 Press the On/Off button.

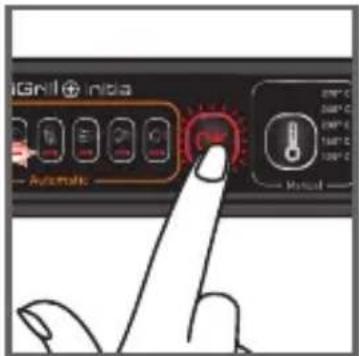

3a - AUTOMATIC cooking with 6 automatic programs

Automatic cooking - select a program and preheat before cooking:

9

10

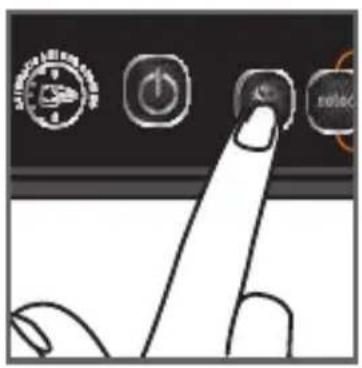

9 If the food that you wish to cook is frozen, press the "frozen food" button.

10 Select the appropriate cooking mode according to what type of food you wish to cook.

6 automatic cooking programs

	Select this cooking program if you want to cook burgers.		Select this cooking program if you want to cook pork/sausage/lamb.
	Select this cooking program if you want to cook poultry.		Select this cooking program if you want to cook red meat.
	Select this cooking program if you want to cook a panini or sandwich.		Select this cooking program if you want to cook fish.

If you are uncertain about what cooking mode to use for other foods because it is not listed above, please refer to the "Cooking table for out of program food" page 64.

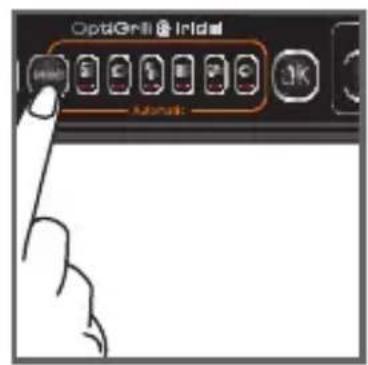

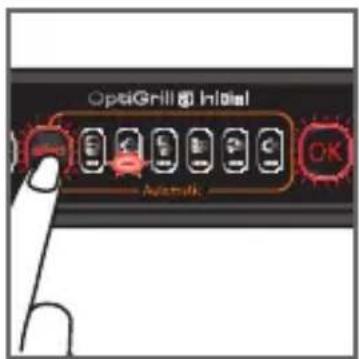

11 Press the « SELECT » button several times until you reach the desired program. Ensure that there is no food inside the grill When you have selected the wishing one then press the OK button.

NB: if you have selected the wrong program, return to stage 8.

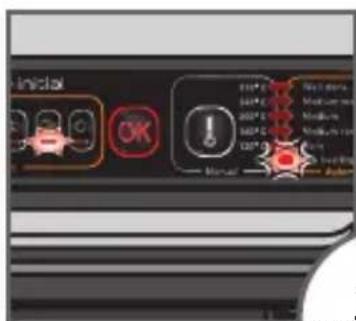

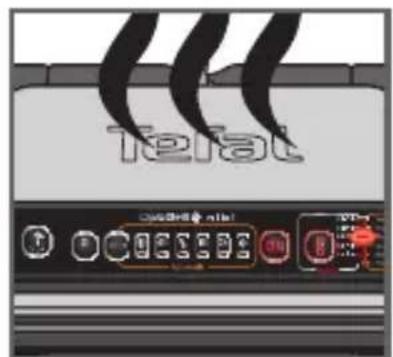

12 The selected program light stays on. The appliance starts pre-heating and the preheat indicator flashes during all the pre-heating phase. You must wait the preheat indicator stops flashing before opening the Grill and adding the food. Wait for 4-7 minutes.
13 When the pre-heating is complete, a melody is displayed, the preheat indicator stops flashing and stays lit during all the cooking process.

Comments: At the end of pre-heating, if the appliance remains closed, the safety system will turn off the appliance.

12 13

4-7 nutes

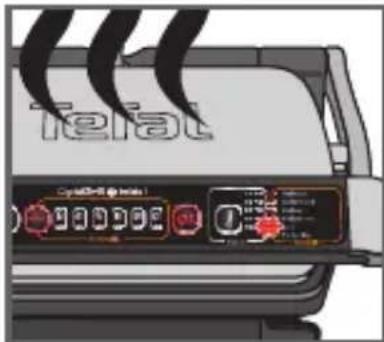

Cooking

14 15

16 17

18 19
20

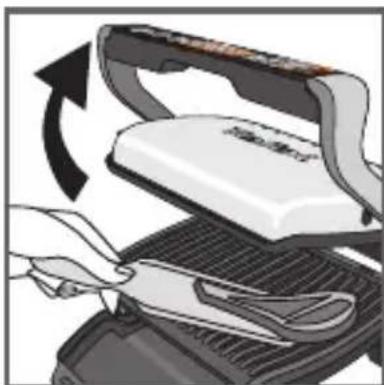

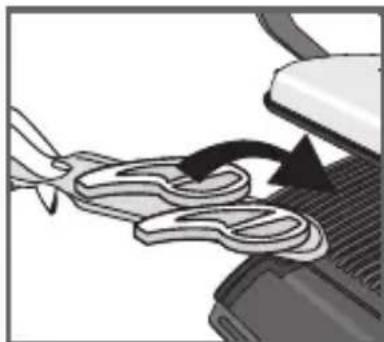

14-15 After pre-heating, the appliance is ready for use. Open the grill and place the food on the cooking plate.

Comments: if the appliance remains open for too long, the safety system will turn off the appliance automatically.

16-17 The appliance automatically adjusts the cooking cycle (time and temperature) according to the food thickness and quantity.

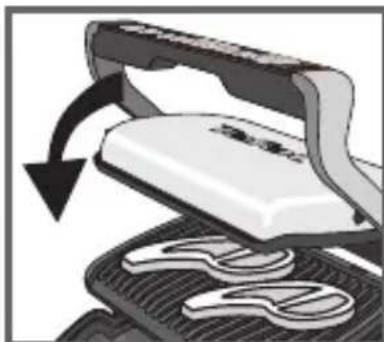

Close the appliance to start the cooking cycle. The indicator "Rare" is flashing to indicate that the rare cooking level is in progress. A beep is heard and the indicator becomes lighted fixed once the level of cooking is reached (for the best results do not open or move your food during the cooking process).

Please note, especially on meat, it is normal that cooking result vary depending on type, quality and origin of food.

Note: for thinly-cut food, after close the device, the button « OK » is blinking and remain on « pre heating fixed ». Press « OK » to enable the appliance to recognize the food to be cooked and launch the cooking program.

18-19 When the cooking level is reached, the lights indicator stop blinking and you can hear a « beep ». The next cooking is blinking until to be reached. Open the appliance and remove your food when the desired level is reached.

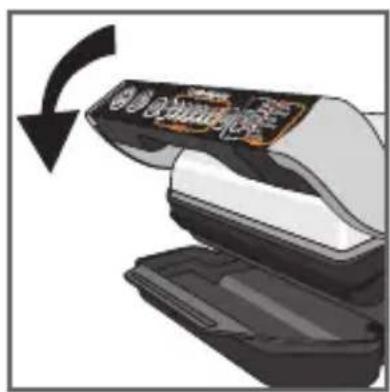

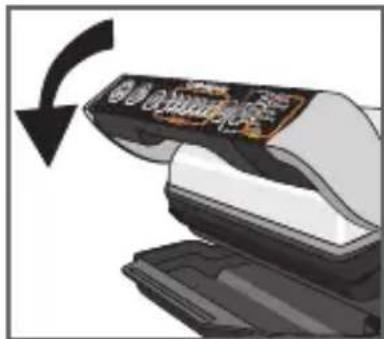

20 Close the appliance without food on plate The control panel will light up and set itself to 'choice of program' mode.

Restart to n°9 for a new cooking cycle in automatic mode.

Comment: the security system will turn off automatically if no program selection is made.

21 22

23 24

21-22-23 If you want to cook food to different personal tastes, open the grill and remove the food when it has reached the desired level and then close the grill and continue cooking the other food. The program will continue its cooking cycle until it reaches the 'well done' level.

24 Keep warm function

When the cooking process has ended the appliance will automatically go on the keep warm setting after having reached the "well done" level. If food is left on the grill it will continue to cook, while the cooking plates are cooling.

Comment: the safety system will turn the appliance off automatically after a certain amount of time.

Second cooking

If you want to cook more food, please refer to p. 61.

Cooking more food

If you want to cook a second batch of food, please pre-heat the appliance again (starting from point 9 in automatic mode or point 25) even if you want to cook the same type of food.

How to cook another batch of food:

After finishing your first batch of food:

1. Make sure the appliance is closed with no food inside.
2. Select the appropriate cooking mode/program (this step is necessary even if you decide to pick the same cooking mode than for the previous batch of food).
3. Press "OK" to start preheating. During this phase, the temperature indicator (in MANUAL mode) or the PREHEAT indicator (in automatic mode) will blink. This stage is mandatory even if your appliance seems hot.
4. The pre-heating is complete when an audible beep is heard and the cooking level indicator stops flashing.
5. After the pre-heating, the appliance is ready for use. Open the grill and place the food inside the appliance.

Important:

• Please note that any new batch of food, the pre-heating phase is mandatory.

Remember to always have the grill closed and no food inside in order for the preheating to effectively function.

• Then wait for the pre-heating to be complete before opening the grill and place the food inside. N.B.: if the new pre-heating cycle is carried out immediately after the end of the preceding cycle, the pre-heating time will be reduced.

3b - MANUAL cooking with manual mode

Manual cooking - select a temperature and preheat before cooking:

If you select Manual mode, you have manual control of the cooking time. 5 different temperature settings are available for this manual mode. See specific manual quick start guide.

If you are uncertain about what cooking mode to use for other foods because it is not listed above, please refer to the "Cooking table for out of program food" page 64.

25

26 27

Cooking

28 29

30 31

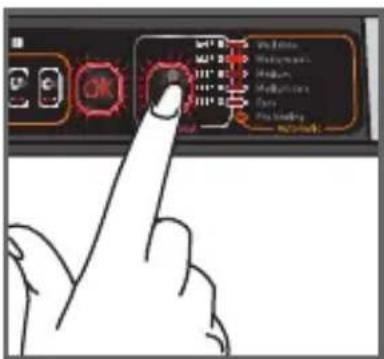

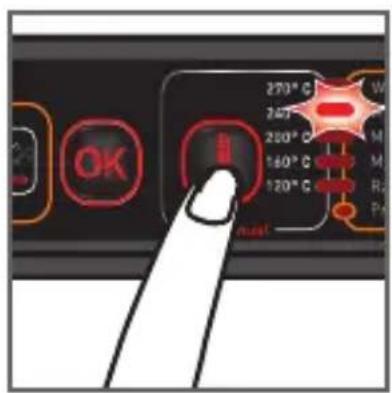

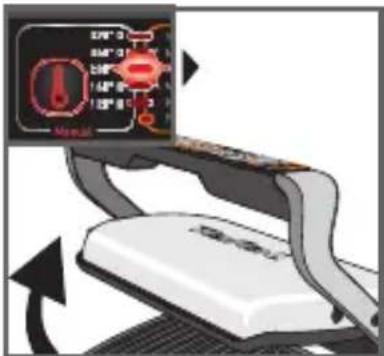

25 Press the « Manual mode » button until you reach the desired temperature you want to cook your food. When you have reached the desired one then press the « OK » button.

NB: If you have selected the wrong program, return to stage 8.

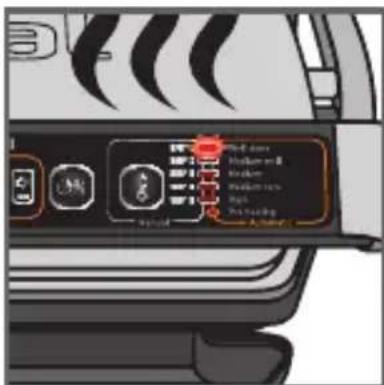

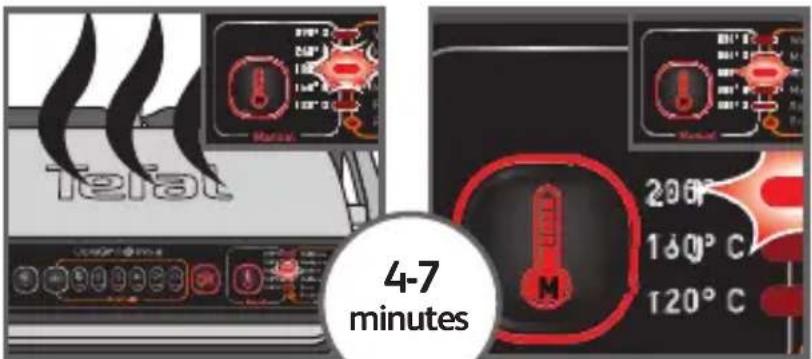

26 The led corresponding to the selected temperature will keep flashing during all the pre-heating phase.

Wait for 4-7 minutes

27 When the pre-heating is complete a melody is displayed the temperature indicator stops flashing and stays lit during the cooking process.

Comments: At the end of pre-heating, if the app licence remains closed, the safety system will turn off the appliance.

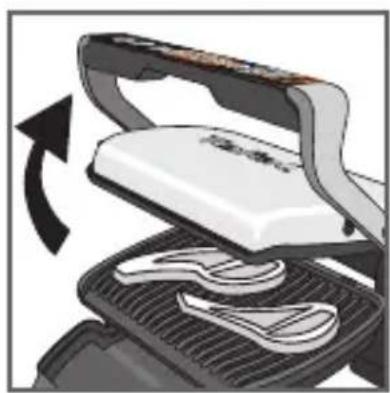

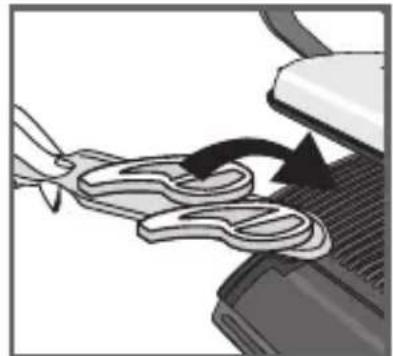

28-29 After pre-heating, the appliance is ready for use. Open the grill and place the food on the cooking plate

Comments: if the appliance remains open for too long, the safety system will turn off the appliance automatically.

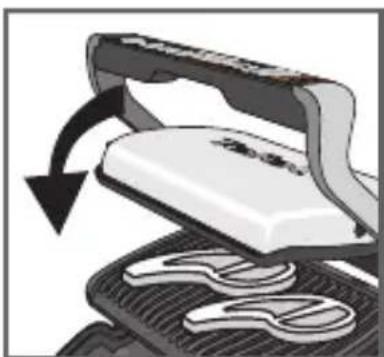

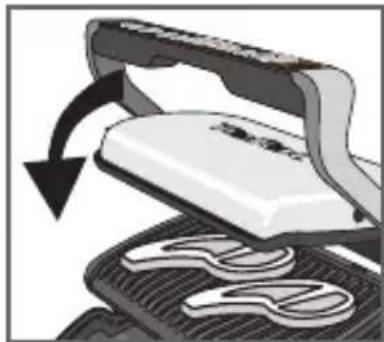

30-31 Close the appliance to start the cooking cycle. The grill heats continuously to the selected temperature. Regularly check the cooking by opening lightly the grill.

32 33

34 35

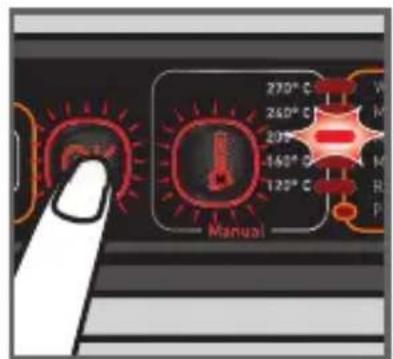

32 If you want to modify the cooking level of temperature during the cooking process, press the manual mode button (the temperature indicator will flash until you reach this new instruction if the temperature is higher). When the level is reached, the lights indicator stop blinking.

Please note, especially on meat, it is normal that cooking result vary depending on type, quality and origin of food.

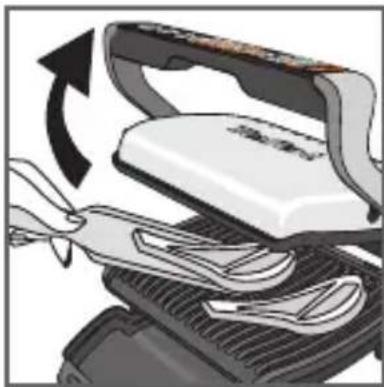

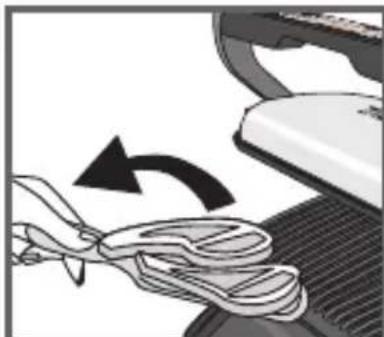

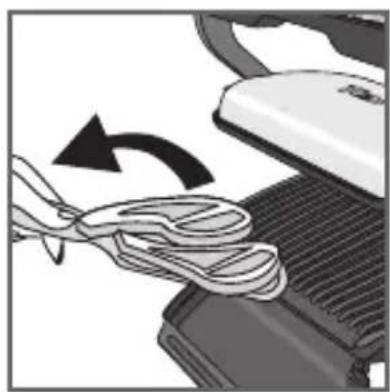

33-34 Open the appliance and remove your food when the desired cooking is got.

35 Close the appliance without food on plate. The control panel will light up and set itself to 'choice of program' mode. Restart to n°21 for a new cooking cycle in manual mode.

Comment: the security system will turn off automatically if no program selection is made.

4 Cooling

36 37

36 Press the on/off button to turn off the appliance.

37 Unplug grill from wall outlet.

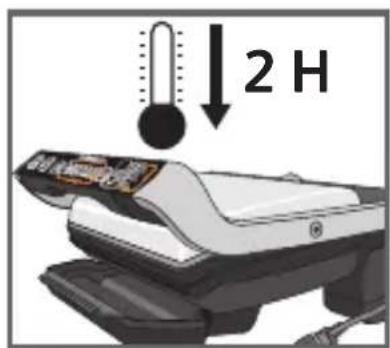

38 Allow to cool for at least 2 hours. To avoid accidental burns, allow grill to cool thoroughly before cleaning.

38

3940

4142

43 44

45

39 Before cleaning, unlock and remove the plates to avoid damaging the cooking surface. The drip tray and the cooking plates are dishwasher safe.

40 The appliance and its cord cannot be placed in the dishwasher. The heating elements, visible and accessible parts, should not be cleaned after removing the plates. If they are very dirty, wait until the appliance has completely cooled down and clean them with a dry cloth. If you do not want to clean them in a dishwasher, you can use warm water and a little dishwashing liquid to clean the cooking plates, then rinse thoroughly to remove any residue. Dry thoroughly using a paper towel.

41 Do not use metallic scouring pads, steel wool or any abrasive cleaners to clean any part of your grill, only use nylon or nonmetallic cleaning pads.

Empty the drip tray and wash in warm water and a little dishwashing liquid, dry thoroughly using a paper towel.

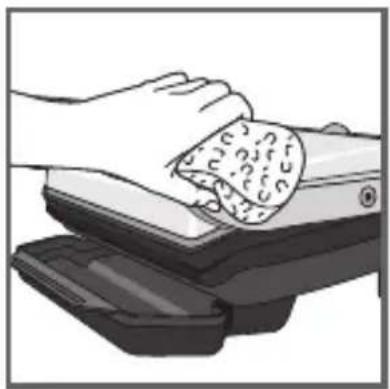

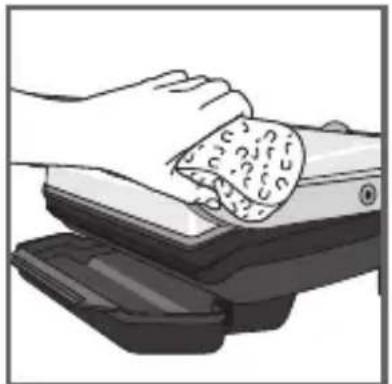

42 To clean the grill cover, wipe with a warm, wet sponge and dry with a soft, dry cloth.

43 Do not immerse the body of grill in water or any other liquid.

44 Always make sure grill is clean and dry before storing.

45 Any other servicing should be performed by an authorized service representative.

Trooble shooting

Problem Cause Solution
+ led + LED	Preheating not respected. Switching “ON” of the appliance or starting an automatic cooking cycle with food between plates. The manual mode is automatically activated.	·2 possible options: - choose the temperature setting by pressing the button and then press OK. Allow to cook, but you must monitor the cooking (manual mode). Temperature can be adjusted by button. - Open completely the appliance, remove the food, close the appliance properly, select a cooking program and press OK. Wait until end of preheating (Preheating indicator lighted fix).
After closing the appliance with food between plates, the appliance turns itself to manual mode with flashing + discontinue bip then after few seconds, it heats in manual mode under 270°C	Preheating time not completely done. Grill has been opened and food inserted on plate before end of preheating.	Allow to cook, but you must monitor the cooking because it is in manual mode. Temperature can be adjusted by button. or Open the appliance, remove the food, close the appliance properly, and wait until end of preheating (Preheating indicator lighted fix).
The appliance stops during the cycle of preheating or cooking.	The appliance has been kept open for too long while cooking. The appliance has been idle too long after the end of preheating or keep warm.	Unplug the appliance and wait few minutes. Plug again your appliance and switch ON.
The 6 indicator lights flashing + one of the discontinue bip + discontinue bip	Appliance failure.	Unplug the product and contact your customer service.
The appliance no longer beeps
After the preheating, I have put my food on the grill but cooking cycle does not start. The indicator stays on Preheating and button flashing	Your food is thicker than 4 cm. Food must not be thicker than 4 cm.
	You have not completely opened the grill to place the food.	Completely open the grill then close it.
	Not sensing the food. The food thickness too thin, “OK” is flashing.	Confirm the start of the cooking by pressing the button.
The 6 indicator lights flashing + one of the discontinue bip + discontinue or continue bip	Appliance failure: Appliance stored or used in a room that is too cold. Appliance over heating.	Unplug the appliance and wait few minutes. Plug again your appliance and switch ON. If the problem persists, contact your Customer service.

Tip, especially for meat: the cooking results on the preset programs may vary depending on origin, cut and quality of the food being cooked, the programs have been set and tested for good quality food.

Similarly, the thickness of the meat has to be taken into account during cooking; you cannot cook food that is thicker than 4cm

Cooking Guide (automatic programs)

Dedicated program	Cooking level color indicator
	Rare	Medium rare	Medium	Medium well	Well-done
Red meat	XXX	XXXX
Burger	XXX	XXXX
Panini/Sandwich		XXX	X
Fish		XXX	XX
Poultry					X
Pork/sausage/ lamb					X

Cooking Guide (including Manual Mode)

Food		Cooking program	Cooking level
Bread	Slices of bread, toasted sandwiches		medium
	Burger: (after pre-cooking the meat)		medium
Meat & Poultry	Pork fillet (boneless), pork belly		medium
	Lamb (boneless)		well-done
	Frozen chicken nuggets (or g chicken		well-done
	Pork belly		medium
	Slice of ham to cook		medium
	Marinated chicken breast		rare
	Duck breast		rare
Fish	Whole trout		well-done
	Shelled prawns		medium
	King prawns (with and without shells on)		medium
	Tuna steak		rare
Manual mode See specific manual quick start guide	Grilled vegetables and fruits (need to be of same cut and thickness)		5 different temperature settings

For frozen food, less before selecting your program.

INDICE

NORMEDI SICUREZZA /AVVERTENZE IMPORTANTI p.67
- CHE COSA FARE p.68
- CHE COSA NON FARE p.69
VISTA ESPLOSA p.71
DESCRIZIONE p.72
PREPARAZIONE DELL'APPARECCHIO p.73
COTTURA AUTOMATICA p.74
COTTURA MANUALE p.76
COTTURA DI UNA SECONDA PORZIONE p.77
RAFFREDDAMENTO p.78
PULIZIA E MANUTENZIONE p.79
RISOLUZIONE DEI PROBLEMIP.80
GUIDA DI COTTURA (PROGRAMMI AUTOMATICI) p.81
GUIDA DI COTTURA (CON MODALITA MANUALE) p.81

ISTRUZIONI DI SICUREZZA AVVERTENZE IMPORTANTI

F到账 0402020202020202020202020202020202020202020202020202020202020202020202020202020202020202020202020202020

36 NaTnOte To KouuPi on/off [EvpyoioiOn/AeVeypoioiOn] ia va aevypoioiOeTe T OoKEun.

37 Anouovse tnv notapi a nTv unoox n oiv tox.

38 ApnoTe va Kpuwoei Toulaixiotov yia 2 wpeC.

Poc aOpuyn TuXaiwv Eykaumatwv apnvTe Tnv ynoiepa va Kpuwvei KaIa npiv Tov kaapioo.

3940

41 42

43 44
45

39 Piv ToV kaapioo Eekieidwve Tc aonpaKpuVE Tc nakec poc aoquyn cmuac otnv enipaveia ayepaatoC. O diokoc taEmuatoc kai oI nakec,ayepaatoC evdeikuvvta iia Iauvtnpio niatw.
40 H ouokun kai to kaawio tnc dev npenei va tooetouvta oanuvtnpio niatwv. Ta eepuavtikac otoxieia, ta opata kai npooabaoima Eaaptnmuata dev npenei va kathetaovta apotou aopaieoov oi nakec. Eav eivai nolu bpouika nepiivee ewoc otou n ouakeun kpuwoei kala kai kathetaite ta eva oteyvo navi. Eav dev enithetaite va ta kaapioete OE anuvtnpio niatwv npopeite va xnpoiunoioote zoto vepo kai liyo uypo niatwv yia va kaapioete tic nakec mayipepaatoc, katoniv cenlauve TPOEKTIKA yia va apaipeoe t onoiadnoite uonlemuata. Teywote pooektkia xpouonoioiwvTac xaptkouzivac.
41 Mnv xpoiooioitee e tai k a oouyapia, aoaaloua lo n ooiadnoiote triika kaagpiotka yia tov kaogioo ooioundnoite tmuaTOC TNC uotapiac, va xpoiooioitee movo vaiovn mteaaikc oouyyapia. Adeiaote tv doko otalemuatoc kai nuvte oe zeto vpo kai liyo uypo niatow, oeywote npooekTKa xpoiooiovvtac yapf kouivac.
42 Tia tov kaapioo tou kalumuatoc 0notiepa oountiote eva zetoto, Uypo oopuyyapi kai oteywote e eva maakó, oteyv navi.
43 Mn u i e to oWma tnc snoTiepaoc oE vepo n oioio8nnoTe aAlo uypo.
44 EeaoopaIcTe navTa otI n ynoTIepa eivai kaOpn kai oEvyn npiv tnva anoNkEouon.
45 OioiaohnoTe aaln ouvtnpon npenei va dieayetao eoouioodotnevo eknpocno tou oepic.
