USER MANUAL P50LSLW Freeman

SAVE THIS MANUAL FOR FUTURE REFERENCE

Failure to follow warnings could result in DEATH OR SERIOUS INJURY. IMF500700AV 08/14

1-888-669-5672 PRIMEGLOBALPRODUCTS, INC.The warnings and precautions discussed in the manual cannot cover all possible conditions and situations that may occur. It must be understood by the user that common sense and caution are factors which cannot be built into this product, but must be supplied by the user.

Keep this manual for the safety warnings, precautions, operations, inspections and maintenance. Keep this manual and the receipt in a safe and dry place for future reference. In this manual, on the labels, packages and all other information provided with this tool. The following signal words and meanings are intended to explain the levels of risk associated with this tool. To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand it completely. Save this manual and review frequently for continuing safe operation and instructing others who may use this tool. the manual

WARNING:CAUTION:CAUTION:

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. (Without symbol) Indicates a situation that may result in property damage.

WORK AREA Keep the work area clean and well lighted. Keep bystanders, children, and others away while operating the tool. Cluttered benches and dark areas increase the risks of accidents. Distractions could result in improper use and cause injury. Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Avoid unintentional misfires. The tool creates a spark which may ignite flammable liquids, gases or dust. Always use caution to avoid accidentally firing. Do not point towards yourself or anyone whether it contains fasteners or not.

When using tools, basic precautions should always be followed, including the following:

This product or its power cord may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. PERSONAL SAFETY Always wear eye protection. Always wear hearing protection when using the tool. Operator and others in the work area should always wear ANSI-approved safety goggles with side shields. Eye protection is used to guard against flying fasteners and debris, which may cause severe eye injury. Prolonged exposure to high intensity noise may cause hearing loss. Use safety equipment. A dust mask, non-skid safety shoes and a hard hat must be used for the applicable conditions. Wear a full face shield if you are producing metal filings or wood chips. Dress properly. Stay alert, watch what you are doing and use common sense when operating a power tool. Keep proper footing and balance at all times. Make sure the hose is free of obstructions or snags. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may cause serious injury. Proper footing and balance enables better control of the tool in unexpected situations. Entangled or snarled hoses can cause loss of balance or footing and may become damaged, resulting in possible injury.

LOADING TOOL Do not load the tool with fasteners when any one of the operating controls is activated. Never place a hand or any part of body in fastener discharge area of tool. Never point tool at anyone.

The warnings and precautions discussed above cannot cover all possible conditions and situations that may occur. It must be understood by the user that common sense and caution are factors which cannot be built into this product, but must be supplied by the user.

UNPACKING This tool has been shipped completely assembled. Make sure that all items listed in the packing list are included. Carefully remove the tool and any accessories from the box. Inspect the tool carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool. If any parts are damaged or missing, please call 1-888-669-5672.

PACKING LIST 2 In 1 flooring nailer Color box Mallet Air connector(Pre-installed) Adjustment tools Lubrication oil Anti-dust cap 5/8" ot plate Instruction manual (Pre-installed)

DURABLE CONSTRUCTION AIR FILTER MALLET INCLUDED For use with Staples, L-Cleats. For long lasting durability. Light weight and durably constructed of high- strength aluminum and heat treated steel parts. Keeps interior components debris free, extending tool life. Provides increased protection from marring when working with a finished flooring surface.

If any parts are missing do not operate this tool until the missing parts are replaced. Failure to do so could result in possible serious personal injury.

Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration or modification is misuse and could result in hazardous condition leading to possible serious personal injury.

Know this tool. Use only fasteners that are recommended for your models. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool's operation. Maintain tools with care. Store tools out of the reach of children and other untrained people. Check operation of the tool before use. Do not force tool. Use clamps or another practical way to secure and support the workpiece to a stable platform. Keep the tool and its handle dry, clean and free from oil and grease. Do not use the tool as a hammer. Do not use the tool if it leaks air or does not function properly. Read manual carefully, learn its applications and limitations, as well as the specific potential hazards related to this tool. Do not use the wrong fasteners or load the fasteners incorrectly. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. Keep tool clean. A properly maintained tool, reduces the risk of binding and is easier to control. Tools are dangerous in the hands of untrained users. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed. Holding a tool by hand or against the body is unstable and may lead to loss of control. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean your tool. Never use this tool in a manner that could cause a fastener to be directed toward anything other than the workpiece. Always carry the tool by the handle. Never carry the tool by the air hose. Do not operate the tool if it does not contain a legible warning label. TOOL SERVICE Use only accessories that are identified by the manufacturer for the specific tool model. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of injury. Use only the lubricants supplied with the tool or specified by the manufacturer. Tool service must be performed only by qualified repair personnel. OPERATION Do not drive fasteners near edge of material. The workpiece may split causing the fastener or ricochet, injuring you or people around. Never engage in horseplay. Do not drive fasteners on top of other fasteners or with the tool at an overly steep angle as this may cause deflection of fasteners which could cause injury. Do not actuate the tool unless you intend to drive a fastener into the workpiece. Always handle the tool with care: ◆Respect the tool as a working implement.

◆Keep others a safe distance from the tool while tool is in operation as accidental actuation may occur, possibly causing injury.

AIR SUPPLY AND CONNECTIONS

The connector on the tool must not hold pressure when air supply is disconnected. Do not use oxygen, combustible gases or bottled gasses as a power source for this tool. Explosion may occur, causing injury or death.

an incorrect fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected, possibly causing injury. Do not connect with an air compressor which can potentially exceed 200 Psi. Always disconnect air source: As tool may burst, possibly causing injury.

Before unloading or making adjustments. When maintaining the tool. When clearing a jam. When touching the safety yoke. When tool is not in use. When moving to a different work area. Such precautionary measures reduce the risk of injury to persons. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672..

(15.5Ga.Staples) 38mm45mm50mm1-1/2"1-3/4"2"38mm45mm50mm1-1/2"1-3/4"2" (16Ga.L cleats) 12.7mm (1/2") 7.5mm (3/10")MODEL: PLSLW50 MODEL: PLSLW50

HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. Use only those fasteners recommended for use with this tool. Fasteners not identified for use with this tool by the tool manufacturer are able to result in a risk of injury to persons or tool damage when used in this tool.

The tool may fire when it first connected to the air source. Always connect the tool to the air source before loading fasteners to prevent injury from unintended cycling. Always make sure the tool's magazine is empty at the beginning of each work session, before connecting to an air source.

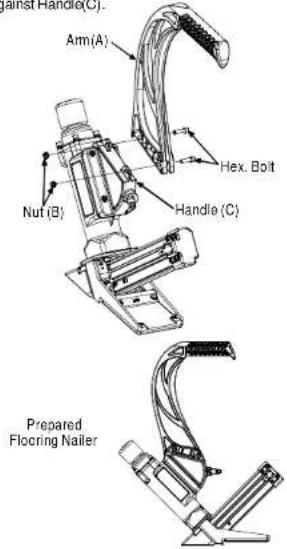

OPERATION The tool is shipped with the Arm part detached from the Main body part. (A)

Set the Arm(A) against the Handle . Wrench-tighten the Nuts(B) until the Arm(A) and Handle (C) are secured and the Arm is locked against Handle. (A) (C) Follow these instructions to prepare the tool for using.

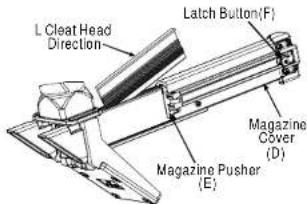

LOADING L CLEAT NAILS

Connect the tool to the air source. Press down on the Latch Button(F). Pull the Magazine Cover (D) back to the end of the magazine. Place full clip of desired fasteners into magazine from the side. Up to 100 cleat nails can be loaded into magazine. Be noted that, when loading the L cleat nails, the side with the L head should be in the left of the Magazine Pusher(E). Push the Magazine Cover(D) forward until Magazine Pusher(E) pops up.

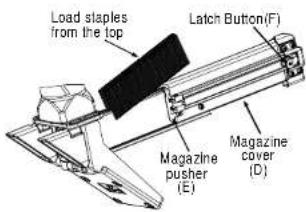

L Cleat Head Direction Magazine Pusher (E) Magazine Cover (D) LOADING STAPLES Connect the tool to the air supply. Press down the Latch Button(F), the pull the Magazine Cover(D) back to the end of the magazine. Place a full clip of 1/2" crown staples in the magazine from the top. Up to 90 staples can be loaded into magazine. Push the Magazine Cover(D) forward until the Magazine Pusher (E) pops up.

Loadstaples fromthetop

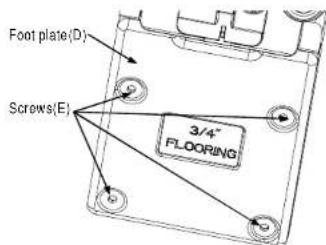

The tool is equipped with a factory pre-installed 3/4" Foot Plate(G). And an additional uninstalled 5/8" foot plate. To change the plate: Disconnect the tool from the air source. Empty the magazine completely. Fire the tool into a piece of scrap wood to ensure there is no compressed air or fasteners left in the tool. Set the tool on its side to expose the four Screws(H). Remove the four Screws(H), then, remove the foot plate. Align the four screw holes in the replacement foot plate with the four threaded mounting holes. Using the four screws you removed just now, secure the replacement foot plate to the tool. Ensure the correct Foot Plate is installed by firing into a scrap piece of flooring and checking for proper fastener placement. Disconnect the tool from the air source whenever changing the foot plate. Make sure there is no fastener in the magazine before changing the foot plate.

Screws(E) Foot plate(D) The amount of air pressure required depends on the size of the fasteners and the workpiece material. Begin testing the depth of drive by driving a test nail into the same type of workpiece material used for the actual job. Drive a test fastener with the air pressure set at 90-95psi. Raise or lower the air pressure to find the lowest setting that will perform the job with consistent results.

SETTING THE AIR PRESSURE

If any parts are missing, do not operate this tool until the missing parts are replaced. Before using this tool, make sure the arm part and the main body part are screwed together tightly. Failure to do so could result in possible serious personal injury.

Extreme caution must be used whenever this tool is connected to an air resource. If the tool is dropped, or if the Hammer Cap (I) is accidentally struck, then the tool will fire a fastener, potentially causing SERIOUS PERSONAL INJURY.

Keep your feet off the tool.

Before using the tool on a floor, test the tool on a scrap piece of wood. Adjust the driving depth by providing more or less air pressure. Never exceed 1PSI.15

HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. Hammer Cap(I) Arm(A) Attach the tool to the air source. Start your compressor and check the pressure, making sure it is set between 70-115psi. Do not exceed the maximum 120 psi Hold the Arm (A) securely and press Foot Plate(G) to the work surface. Make sure the plate is over the fastener target position. Press down hard so that the Foot Plate(G) is firmly contacting the work surface. Then, using the mallet packet with the tool, strike the Hammer Cap (I) firmly to drive the fastener into work surface. Lift the tool off the work surface. Repeat this process until the job is completed. When finished, make sure to store the tool in a clean, dry, safe location out of reach of children and other unauthorized people.

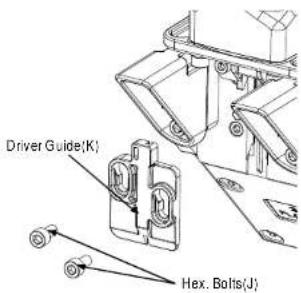

CLEARING JAMS Occasionally, fasteners may become jammed in the firing mechanism of the tool, making the tool inoperable. To remove a jammed fastener, follow the steps below: Make sure there is no fastener in the magazine before clearing a jam.

Disconnect the tool from air source. Empty the magazine. Make sure all fasteners are removed. Try to fire the tool into a piece of scrap wood or flooring to make sure that it's incapable of firing any fasteners. Set the tool on its side to expose the Nose Bolts(J). Remove Nose Bolts(J) and Driver Guide(K) to expose the jammed fastener. Remove jammed fastener, using plier or a screwdriver if required. Replace the Driver Guide(K) and Nose Bolts(J). Reconnect tool to the air source, then reload the tool with fasteners. Press the Drive Guide (K) against a piece of wood, and test fire the fasteners several times to check for proper operation. If the tool is properly firing, you may continue using the tool. If the tool fails to perform properly, immediately discontinue use and have the tool repaired by a qualified service technician. Driver Guide(K) Hex. Bolts(J) An improperly functioning tool must not be used. Do not actuate the tool unless the tool is placed firmly against the work piece.

MAINTENANCE Any time inspection, maintenance, and cleaning are done: ◆Disconnect the tool from the air Empty the magazine completely. source.

Each tool is packed with an anti-dust cap on the air connector, check it after unpacking. Keep the anti- dust cap to cover the air connector when the tool is not in use to prevent debris from entering the tool. ANTI-DUST Lubricate tool only with specified lubricants. CAUTION: LUBRICATION Frequent, but not excessive, lubrication is required for best performance. Oil for the tool added through the air line connection add will lubricate the internal parts. Do not detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance. Disconnect the air supply from the tool to add lubricant.

Turn the tool so the air inlet is facing up. Place 2-3 drops of pneumatic fastening tool oil into air inlet. Do not use detergent oils, oil additives, or air-tool oils as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.

After adding oil, run tool briefly. Wipe off any excess oil from the cap exhaust.

Do not store tools in a cold weather environment to prevent frost or ice formation on the tools' operating valves and mechanisms that could cause tool failure. CAUTION:

COLD WEATHER OPERATION

For cold weather operation, near and below freezing, the moisture in the air line may freeze and prevent tool operation. We recommend the use of air tool lubricant or permanent antifreeze (ethylene glycol) as a cold weather lubricant.

MODEL: PLSLW50 MODEL: PLSLW50

HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and maybe damaged by their use. Use clean cloths to remove dirt, dust , oil, grease, etc. CLEANING Do not at any time let brake fluids, gasoline, petroleum-based products, penetration oils, ect. come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

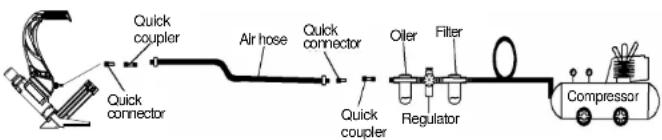

RECOMMENDED HOOKUP The air compressor must be able to maintain a minimum of 70psi when the tool is being used. An inadequate air supply can cause a loss of power and inconsistent driving. CAUTION: Do not connect with an air compressor which can potentially exceed 200psi. As tool may burst, possibly causing injury.

The air compressor must be able to maintain a minimum of 70 psi when the tool is being used. An inadequate air supply can cause a loss of power and inconsistent driving. An oiler can be used to provide oil circulation through the tool. A filter can be used to remove liquid and solid impurities which can rust or gum up internal parts of the tool. Always use air supply hoses with a minimum working pressure rating equal to or greater than the pressure from the power source if a regulator fails, or 150 psi, whichever is greater. Use 3/8" air hose for runs up to 50' and 3/8" quick coupler on the air hose. Use a pressure regulator on the compressor, with an operating pressure of 0-125 psi. A pressure regulator is required to control the operating pressure of the tool between 70 and 115 psi.

Air hose Quick connector OilerRegulatorFilter Compressor Quick couplerQuick couplerQuick connector TROUBLESHOOTING Air leaking in head cap. ⒈Loose screws. ⒉Worn or damaged O-rings or seals. ⒈Tighten screws. Install overhaul kit.⒉ Lack of power. Slow to cycle. ⒈Tool is too dry. Air pressure too low. Exhaust blocked.

⒈Add about 2-3 drops of lubrication into the air connector. ⒉Make sure the air compressor is set between 70psi and 115psi. Clean exhaust channel.⒊ Not shooting fasteners . ⒈Damaged pusher spring. Wrong size of fasteners.⒉ ⒈Replace spring. ⒉Use 1/2" crown staples or 1-1/2" to 2"nails. ⒈Fix the drive channel. Replace the piston. Remove the bent fasteners, replace with the 1/2"crown staples or 1-1/2" to 2"nails. Clean magazine. Tighten screws. Verify that fasteners are the correct size.

⒈Drive channel is worn. Piston is broken or worn. Bent fasteners. Dirty magazine. Loose magazine. Wrong fasteners.

Fasteners are jammed in the tool frequently. Stop using tool immediately if any of the following problems occur. Serious personal injury could result. Any repairs or replacements must be done by a qualified service person or an authorized service center.

UseonlyFreeman Authorized Repair Parts. For question please call 1-888-669-5672 or visit our website at http:// www.freemantools.com

WEARING PARTS Repair parts can be ordered from our website: http://www.freemantools.com

PROBLEMS POSSIBLE CAUSES CORRECTION ACTIONS12

MODEL: PLSLW50 FREEMAN Professional 7-Year Limited Warranty Professional 90 Day Limited Warranty This warranty of Freeman Nail Guns extends exclusively to the original purchaser of the Freeman Nailing Gun seven(7) years from the original purchase date. (PGP Inc.) expressly warrantsthatthe FreemanNailGunisfreefromdefectinmaterialsandworkmanshipsubjecttotheexceptionsandlimitations containedherein This warranty of PGP Inc.s driver blades, bumpers, o-rings, pistons, piston rings,andgasketstheFreeman Wearing PartscollectivelywiththeFreemanNailingGunstheFreeman Productextendsexclusivelytothe originalpurchaseroftheFreemanWearingPartsninetydaysfromtheoriginalpurchasedateduetoadefectin material and workmanship. PGP Inc., a Freeman Product that has a defect in materials or workmanship. The original purchaser must return the complete Freeman Product, postage prepaid and insured, with proof of purchase to PGP Inc. or any of its authorized service centers. Other than the postage and insurance requirement, no charge will be made for repairs covered by this warranty. These warranties do not apply to defects in materials or workmanship or damages resulting from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts. They further do not apply if the damage is due to normal wear and tear, abuse, improper maintenance, neglect or accident or caused by use of the Freeman Product after partial failure or use with improper accessories. The Freeman Product is intended for use by individuals and not for use on an assembly line, production line, or any commercial application. These warranties do not extend to such commercial use as it constitutes abuse of the Freeman Product. These warranties are the sole and exclusive warranties, express or implied for the Freeman Product. No employee, agent, dealer or other person is authorized to alter, modify, expand or reduce the terms of these warranties or to make any other warranty on behalf of PGP Inc. These express limited warrantiescontainstheentireagreement regardingexpressandimpliedwarrantiesrelatedtotheFreeman Product. No writing or languages in the purchase order or any other document shall be construed as an addition or alteration of PGP Inc.s warranties of the Freeman Product. All matters related to the sale and/or use of the Freeman Product that is the subject of these limited warranties, along with the construction and enforcement of the terms of these limited warranties themselves, shall be subject to the laws of the state of Georgia. Any dispute arising out of the sale and/or use of the Freeman Product that is the subject of these limited warranties shall be brought in Cherokee County, Georgia. Purchase and/or use of the Freeman Product, makes you subject to the benefits and limitations of these limited warranties. Accordingly, any writ, judgment or other enforcement, obtained from a jurisdiction, county, parish, state or federal court or other country, other than from the forum identified above, shall be void and unenforceable against PGP Inc. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. If any term or limitation contained in this limited warranty is deemed unenforceable by law, then that term shall be severed from the remaining portions of the limited warranties which shall remain enforceable.

NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS FREEMAN PRODUCT. PGP INC. DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES. IN NO EVENT SHALL PGP INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. THESE WARRANTIES ARE SUBJECT TO CHANGE WITHOUT NOTICE. Prime Global Products, Inc. shall repair, replace, or offer full refund, at its option

PGP INC. PRODUCT WARRANTIES
