USER MANUAL PFS9 Freeman

SAVE THIS MANUAL FOR FUTURE REFERENCE

Failure to follow warnings could result in DEATH OR SERIOUS INJURY.

HTTP://WWW.FREEMANTOOLS.COM

1-888-669-5672 PRIMEGLOBALPRODUCTS, INC.The warnings and precautions discussed in the manual cannot cover all possible conditions and situations that may occur. It must be understood by the user that common sense and caution are factors which cannot be built into this product, but must be supplied by the user.

Keep this manual for the safety warnings, precautions, operations, inspections and maintenance.Keep this manual and the receipt in a safe and dry place for future reference. SYMBOLS In this manual, on the labels, packages and all other information provided with this tool. The following signal words and meanings are intended to explain the levels of risk associated with this tool. To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand it completely. Save this manual and review frequently for continuing safe operation and instructing others who may use this tool. the manual

WARNING:CAUTION:CAUTION:

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. (Without symbol) Indicates a situation that may result in property damage.

WORK AREA Keep the work area clean and well lighted. Keep bystanders, children, and others away while operating the tool. Cluttered benches and dark areas increase the risks of accidents. Distractions could result in improper use and cause injury. Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Avoid unintentional misfires. The tool creates a spark which may ignite flammable liquids, gases or dust. Always use caution to avoid accidentally firing. Do not point towards yourself or anyone whether it contains fasteners or not.

When using tools,basic precautions should always be followed, including the following:

This product or its power cord may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. PERSONAL SAFETY

MODEL: PFS9 MODEL: PFS9

HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672..02 03 Do not nail on top of another nail. Remove finger from the trigger when not driving fasteners. This is able to cause the nail to be deflected and hit someone, or cause the tool to react and result in a risk of injury to persons. Never carry the tool with finger on trigger, the tool is able to fire a fastener. Always wear eye protection. Always wear hearing protection when using the tool. Use safety equipment. Dress properly. Do not wear loose clothing or jewelry. Stay alert, watch what you are doing and use common sense when operating a power tool. Avoid unintentional firing. Keep fingers away from trigger when not driving fasteners, especially when connecting the tool to the air supply. Keep proper footing and balance at all times. Operator and others in the work area should always wear ANSI-approved safety goggles with side shields. Eye protection is used to guard against flying fasteners and debris, which may cause severe eye injury. Prolonged exposure to high intensity noise may cause hearing loss. A dust mask, non-skid safety shoes and a hard hat must be used for the applicable conditions. Wear a full face shield if you are producing metal filings or wood chips. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may cause serious injury. Proper footing and balance enables better control of the tool in unexpected situations.

HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672..04 05 Know this tool. Use only fasteners that are recommended for your models. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool's operation. Maintain tools with care. Store tools out of the reach of children and other untrained people. Check operation of the tool before use. Do not use tool if trigger does not actuate properly. Do not force tool. Use clamps or another practical way to Read manual carefully, learn its applications and limitations, as well as the specific potential hazards related to this tool. Do not use the wrong fasteners or load the fasteners incorrectly. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. Keep tool clean. A properly maintained tool, reduces the risk of binding and is easier to control. Tools are dangerous in the hands of untrained users.

not use the tool if the workpiece contact mechanism is not working correctly as accidental driving of a fastener may occur. Any tool that cannot be controlled with the trigger is dangerous and must be repaired. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed. TOOL SERVICE Use only accessories that are identified by the manufacturer for the specific tool model. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of injury. Use only the lubricants supplied with the tool or specified by the manufacturer. Tool service must be performed only by qualified repair personnel. OPERATION Do not drive fasteners near edge of material. The workpiece may split causing the fastener or ricochet, injuring you or people around. Do not carry the tool from place to place holding the trigger. Accidental discharge could result. During normal use the tool will recoil immediately after driving a fastener. Do not drive fasteners on top of other fasteners or with the tool at an overly steep angle as this may cause deflection of fasteners which could cause injury. Choice of triggering method is important. Check manual for triggering options. This is a normal function of the tool. Do not attempt to prevent the recoil by holding the tool against the work. Restriction to the recoil can result in a second fastener being driven from the tool. Grip the handle firmly and let the tool do the work. Failure to heed this warning can result in serious personal injury.

Secure and support the workpiece to a stable platform. Keep the tool and its handle dry, clean and free from oil and grease. Do not use the tool as a hammer. Never use this tool in a manner that could cause a fastener to be directed toward anything other than the workpiece. Never use gasoline or other flammable liquids to clean the tool. Do not remove, tamper with, or otherwise cause the trigger lock or trigger to become inoperable. Do not touch the trigger unless driving fasteners. Always fit tool with a fitting or hose coupling on or near the tool in such a manner that all compressed air in the tool is discharged at the time the fitting or hose coupling is disconnected. Never place hands or any other body parts in the fastener discharge area of the tool. Never carry the tool by the air hose or pull the hose to move the tool or a compressor. Always assume the tool contains fasteners. Always keep others at a safe distance from the work area in case of accidental discharge of fasteners. Holding a tool by hand or against the body is unstable and may lead to loss of control. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean your tool. Never use the tool in the presence of flammable liquids or gases. Vapors could ignite by a spark and cause an explosion which will result in death or serious personal injury. Do not operate any tool which has been modified in a like fashion. Death or serious personal injury could result. Never attach air line to tool or carry tool while touching the trigger. The tool could eject a fastener which will result in death or serious personal injury. Also actuate the trigger lock to the safe position when not in use. Do not use a check valve or any other fitting which allows air to remain in the tool. Death or serious personal injury could occur. The tool might eject a fastener and could result in death or serious personal injury. Keep hoses away from heat, oil and sharp edges. Replace any hose that is damaged, weak or worn. Personal injury or tool damage could occur. Respect the tool as a working implement; no horseplay. Do not point the tool toward yourself or anyone whether it contains

fasteners or not. Accidental triggering of the tool could result in death or serious personal injury. Dropping or throwing the tool can result in damage that will make the tool unusable or unsafe. If the tool has been dropped or thrown, examine the tool closely for bent, cracked or broken parts and air leaks. STOP and repair before using, or serious injury could occur. Accelerated wear on the tool may occur. Replace any damaged or worn hoses or fittings. Tool performance or durability may be reduced. Do not drop or throw the tool. Avoid using the tool when the magazine is empty. Clean and check all air supply hoses and fittings before connecting the tool to an air supply. Do not use the tool if it leaks air or does not function properly. Do not operate the tool if it does not contain a legible warning label. Always carry the tool by the handle. Never carry the tool by the air hose.

Do not actuate the tool unless you intend to drive a fastener into the workpiece. Always handle the tool with care: ◆Respect the tool as a working implement. ◆Never pull the trigger unless nose is directed toward the work. ◆Never engage in horseplay. ◆Keep others a safe distance from the tool while tool is in operation as accidental actuation may occur, possibly causing injury.

AIR SUPPLY AND CONNECTIONS

The connector on the tool must not hold pressure when air supply is disconnected. Do not use any type of reactive gases, including, but not limited to, oxygen and combustible gases, as a power source. Use only a pressure-regulated compressed air source to limit the air pressure supplied to the tool.

an incorrect fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected, possibly causing injury. Use filtered, lubricated, regulated compressed air only. Use of a reactive gas instead of compressed air may cause the tool to explode which will cause death or serious personal injury. The regulated pressure must not exceed psi. If the regulator fails, the pressure delivered to the tool must not exceed 200 psi. The tool could explode which will cause death or serious personal injury. Always disconnect air source:

LOADING TOOL Do not load the tool with fasteners when any one of the operating controls is activated. Never place a hand or any part of body in fastener discharge area of tool. Never point tool at anyone. Do not pull the trigger or depress the workpiece contact as accidental actuation may occur, possibly causing injury.

Do not use on a ladder or unstable supports. Make sure the hose is free of obstructions or snags. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations. Do not attach the hose or tool to your body. Attach the hose to the structure to reduce the risk of loss of balance if the hose shifts. Always assume that the tool contains fasteners. Do not point the tool toward yourself or anyone whether it contains fasteners or not. Wash hands after handling. This product or its power cord may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Stable footing on a solid surface enables better control of the tool in unexpected situations. Entangled or snarled hoses can cause loss of balance or footing and may become damaged, resulting in possible injury. Before unloading or making adjustments. When maintaining the tool. When clearing a jam. When touching the safety yoke. When tool is not in use. When moving to a different work area. Such precautionary measures reduce the risk of injury to persons.MODEL: PFS9 MODEL: PFS9 HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672..06 07 FEATURES The warnings and precautions discussed above cannot cover all possible conditions and situations that may occur. It must be understood by the user that common sense and caution are factors which cannot be built into this product, but must be supplied by the user.

UNPACKING This tool has been shipped completely assembled. Carefully remove the tool and any accessories from the box. Inspect the tool carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool. If any parts are damaged or missing, please call 1-888-669-5672.

If any parts are missing do not operate this tool until the missing parts are replaced. Failure to do so could result in possible serious personal injury.

Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration or modification is misuse and could result in hazardous condition leading to possible serious personal injury.

Compatible with brands of 9 gauge fencing staples. generic OPERATION

ADJUSTING THE EXHAUST

The adjustable exhaust on the cap of the tool allows users to direct the exhaust according to operator preference. To adjust the direction, turn the exhaust cap in the desired direction. Connect the tool to the air supply. Pull the Pusher backward until the Pusher Pin set into the Stop Hole. Insert appropriate nail strips from the top of magazine. Pull the Pusher Handle to get the Pusher Pin released from the Stop Hole to let the Pusher go back to move fasteners up to the driving mechanism. The Pusher will stop when it rests against the end of the fastener.

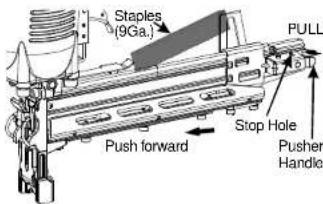

LOADING FASTENERS The tool may fire when it first connected to the air source. Always connect the tool to the air source before loading fasteners to prevent injury from unintended cycling. Always make sure the tool's magazine is empty at the beginning of each work session, before connecting to an air source.

Use only those fasteners recommended for use with this tool. Fasteners not identified for use with this tool by the tool manufacturer are able to result in a risk of injury to persons or tool damage when used in this tool.

UNLOADING FASTENERS Unloading is the reverse of loading, except always disconnect the air source before unloading. Never load fasteners with the workpiece contact or trigger activated. Doing so could result in possible serious personal injury.

Keep the tool pointed away from yourself and others when loading fasteners. Failure to do so could result in possible serious personal injury.

ADJUSTABLE DEPTH QUICK-JAM RELEASE Allows user to direct air away from face. For increased durability. For long lasting durability. For increased comfort and control. Rugged and Comfortable resulting in a light- weight tool great for extended use. Depth is easily adjustable for various applications. Allows for easy access clearing in the event of a jam. 1-1/2” 38mm 1-3/4” 45mm 2” 50mm (9 Gauge) Pull backwards Pusher Stop Hole Pusher Pin Staples(9Ga.) Stop Hole PusherHandlePULL Push forward Pusher handleMODEL: PFS9 MODEL: PFS9 HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672..08

Always unload all fasteners before removing tool from service.

Always disconnect the air source before unloading.

CLEARING JAMS Disconnect the tool from air source. Remove fasteners from the tool. Failure to do so will cause the fasteners to eject from the front of the tool. Pull up on the Latch and open the . Using caution not to bend or damage the driver blade, using pliers or a screwdriver if required to clear the jammed fastener. Close the jam release and latch. Reconnect the tool to the air source. Reload the tool with fasteners. Nose Cover Occasionally, a fastener may become jammed in the firing mechanism of the tool, making the tool inoperable. To remove a jammed fastener, follow the steps below: Make sure there is no fastener in the magazine before clearing a jam.

Disconnect the tool from the air source whenever clearing a jam. After disconnecting the tool from the air compressor, there should still be enough air pressure to fire the tool. After the air hose is disconnected, always fire the tool into scrap wood repeatedly to make sure all of the compressed air is expended.

The amount of air pressure required depends on the size of the fasteners and the workpiece material. Begin testing the depth of drive by driving a test nail into the same type of workpiece material used for the actual job. Drive a test fastener with the air pressure set at 90- 95psi. Raise or lower the air pressure to find the lowest setting that will perform the job with consistent results. It may be possible to achieve the desired depth with air pressure adjustments alone. DEPTH ADJUSTMENT During normal use the tool will recoil immediately after driving a fastener. This is a normal function of the tool. Do not attempt to prevent the recoil by holding the tool against the work. Restriction to the recoil can result in a second fastener being driven from the tool. Grip the handle firmly and let the tool do the work. Failure to heed this warning can result in serious personal injury.

MAINTENANCE Any time inspection, maintenance, and cleaning are done: ◆Disconnect the tool from the air source. ◆Empty the magazine completely.

(SINGLE SEQUENTIAL MODE) The tool is specially designed for single sequential mode. This mode requires the trigger to be pulled each time a fastener is driven. The tool can be actuated by depressing the work contact element against the work surface followed by pulling the trigger. The trigger must be released to reset the tool before another fastener can be driven. It is advisable to test the depth on a scrap workpiece to determine the required depth for the application. To determine depth of drive, first adjust the air pressure and drive a test fastener. Never exceed 120psi. CAUTION: Each tool is packed with an anti-dustcap on the air connector. Keep the anti-dust cap cover the air connector when the tool is not in use. Do not at any time let brake fluids, gasoline, petroleum-based products, penetration oils, ect., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Frequent, but not excessive, lubrication is required for best performance. Oil for the tool is added through the air line connection and will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance. LUBRICATION Lubricate tool only with specified lubricants. CAUTION: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and maybe damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. CLEANING

COLD WEATHER OPERATION

For cold weather operation, near and below freezing, the moisture in the air line may freeze and prevent tool operation. We recommend the use of air tool lubricant or permanent antifreeze (ethylene glycol) as a cold weather lubricant. Do not store tools in a cold weather environment to prevent frost or ice formation on the tool's operating valves and mechanisms that could cause tool failure. CAUTION: ANTI-DUST

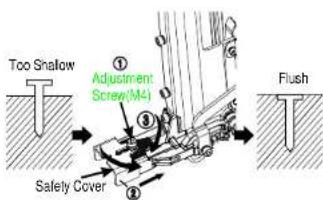

Latch Disconnect tool from air supply. Remove nails from the tool. Adjust tool driving depth: Use the attached M4 wrench to loose the screw. Move the Safey Cover up or down to change the driving depth. Reconnect to the air supply. After reach the desired depth, tighten the screw back. Drive a test nail after each adjustment until the desired depth is set.

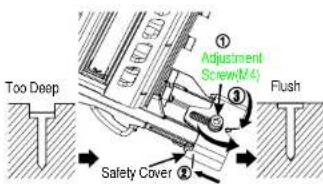

Too Deep Flush Flush Too Shallow Safety Cover Nose Cover The driving depth of the fasteners are adjustable. To adjust the depth, use the drive depth Adjustment on the side of the n Screw backose. Adjustment Screw(M4) Safety Cover Adjustment Screw(M4)MODEL: PFS9 MODEL: PFS9 HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672.. HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672..10 11 RECOMMENDED HOOKUP The air compressor must be able to maintain a minimum of 0 psi when the tool is being used. An inadequate air supply can cause a loss of power and inconsistent driving.

CAUTION: Do not connect with an air compressor which can potentially exceed 200 psi. As tool may burst, possibly causing injury.

The air compressor must be able to maintain a minimum of 70 psi when the tool is being used. An inadequate air supply can cause a loss of power and inconsistent driving. An oiler can be used to provide oil circulation through the tool. A filter can be used to remove liquid and solid impurities which can rust or gum up internal parts of the tool. Always use air supply hoses with a minimum working pressure rating equal to or greater than the pressure from the power source if a regulator fails, or 150 psi, whichever is greater. Use 3/8' air hose for runs up to 50' and use a 3/8' quick coupler on the air hose. Use a pressure regulator on the compressor, with an operating pressure of 0-125 psi. A pressure regulator is required to control the operating pressure of the tool between 70 and 115 psi.

TROUBLESHOOTING Stop using tool immediately if any of the following problems occur. Serious personal injury could result. Any repairs or replacements must be done by a qualified service person or an authorized service center.

Air leaking at trigger valve area. O-rings in trigger valve housing are damaged. Replace O-rings. Check operation of Work Contact Element(WCE). Air leaking between housing and nose. Loose screws in housing 1.Damaged O-rings. 2.Damaged to bumper. Tighten screws 1.Replace O-rings. 2.Replace bumper. Air leaking between housing and cap. 1.Loose screws. 2.Damaged gasket. 1.Tighten screws. 2.Replace gasket. 1.Replace bumper. 2.Clean drive channel. 3.Clean magazine. 4.Replace spring. 5.Check fitting, hose, or compressor. 6.Replace and lubricate O-rings. 7.Replace O-rings. 8.Tighten screws and fittings. 9.Replace gasket. 1.Worn bumper. 2.Dirt in nose piece. 3.Dirt or damage prevent fasteners or pusher from moving freely in magazine. 4.Damaged pusher spring. 5.Inadequate air flow to tool. 6.Worn O-ring on piston or lack of lubrication. 7.Damaged O-ring on trigger valve. 8.Air leaks. 9.Cap seal leaking. Tool skips driving fastener.

PROBLEMS POSSIBLE CAUSE(S) CORRECTIVE ACTION

1.Lubricate nailer. 2.Replace spring. 3.Replace damaged internal parts. 1.Tool not lubricated sufficiently. 2.Broken spring in cylinder cap. 3.Exhaust port in cap is blocked. Tool runs slow or has loss of power. 1.Replace guide. 2.Use only recommended fasteners. 3.Replace with undamaged fasteners. 4.Tighten screws. 5.Replace driver. 1.Guide on driver is worn. 2.Fasteners are not correct size. 3.Fasteners are bent. 4.Magazine or nose screws are loose. 5.Driver is damaged. Fasteners are jammed in tool. Use only Freeman Authorized Repair Parts. For questions please call 1-888-669-5672 or visit our website at http://www.freemantools.com

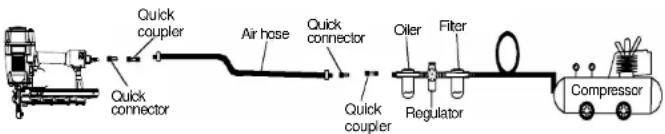

WEARING PARTS Repair parts can be ordered from our website: http://www.freemantools.com Air hose Quick connector Oiler Regulator Filter Compressor Quick coupler Quick coupler Quick connector 4.MODEL: PFS9

HTTP://WWWFREEMANTOOLSCOM 1-888-669-5672..12

FREEMAN Professional 7-Year Limited Warranty Professional 90 Day Limited Warranty This warranty of Freeman Nail Guns extends exclusively to the original purchaser of the Freeman Nailing Gun seven(7) years from the original purchase date. expressly warrantsthattheFreemanNailGun isfreefromdefectinmaterialsandworkmanshipsubjecttotheexceptionsandlimitationscontainedherein This warranty of PGP Inc.s driver blades, bumpers, o-rings, pistons, piston rings,andgasketstheFreeman Wearing PartscollectivelywiththeFreemanNailingGunstheFreeman Productextendsexclusivelytotheoriginalpurchaserof theFreemanWearingPartsninetydaysfromtheoriginalpurchasedateduetoadefectinmaterial and workmanship. a Freeman Product that has a defect in materials or workmanship. The original purchaser must return the complete Freeman Product, postage prepaid and insured, with proof of purchase to PGP Inc. or any of its authorized service centers. Other than the postage and insurance requirement, no charge will be made for repairs covered by this warranty. These warranties do not apply to defects in materials or workmanship or damages resulting from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts. They further do not apply if the damage is due to normal wear and tear, abuse, improper maintenance, neglect or accident or caused by use of the Freeman Product after partial failure or use with improper accessories. The Freeman Product is intended for use by individuals and not for use on an assembly line, production line, or any commercial application. These warranties do not extend to such commercial use as it constitutes abuse of the Freeman Product. These warranties are the sole and exclusive warranties, express or implied for the Freeman Product. No employee, agent, dealer or other person is authorized to alter, modify, expand or reduce the terms of these warranties or to make any other warranty on behalf of PGP Inc. These express limited warrantiescontainstheentireagreementregardingexpressand impliedwarrantiesrelatedtotheFreeman Product. No writing or languages in the purchase order or any other document shall be construed as an addition or alteration of PGP Inc.s warranties of the Freeman Product. All matters related to the sale and/or use of the Freeman Product that is the subject of these limited warranties, along with the construction and enforcement of the terms of these limited warranties themselves, shall be subject to the laws of the state of Georgia. Any dispute arising out of the sale and/or use of the Freeman Product that is the subject of these limited warranties shall be brought in Cherokee County, Georgia. Purchase and/or use of the Freeman Product, makes you subject to the benefits and limitations of these limited warranties. Accordingly, any writ, judgment or other enforcement, obtained from a jurisdiction, county, parish, state or federal court or other country, other than from the forum identified above, shall be void and unenforceable against PGP Inc. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. If any term or limitation contained in this limited warranty is deemed unenforceable by law, then that term shall be severed from the remaining portions of the limited warranties which shall remain enforceable.

NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS FREEMAN PRODUCT. PGP INC. DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES. IN NO EVENT SHALL PGP INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. THESE WARRANTIES ARE SUBJECT TO CHANGE WITHOUT NOTICE. Prime Global Products, Inc. (PGP Inc.) PGP Inc. shall repair, replace, or offer full refund, at its option,

PGP INC. PRODUCT WARRANTIES
