USER MANUAL EL5 EccoTemp

INSTALLATION, USE AND CARE INSTRUCTIONS

WARNING CARBON MONOXIDE HAZARDThis appliance can produce carbon monoxide which has no odor.Using it in an enclosed space can kill you.Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING Water temperature over 125°F can cause severe burns instantly or death scalds. Children, disabled and elderly are at highest risk of being scalded. See instruction manual before setting temperature at water heater. Feel water before bathing or showering. Temperature limiting valves are available, see manual. HOT/CHAUD

CAUTION Incorrect installation, use, adjustment, alteration, service or maintenance may cause injury or damage materials. Refer to this manual for a assistance or additional information consult a qualied installer, service agency or gas supplier. WARNING Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance. WARNING Fire or Explosion Hazard Vapors from ammable liquids will explode and catch re causing death or severe burns. Water heater has a main burner ame.The main burner ame:1. Can come on at any time and2. Will ignite ammable vapors.Vapors:1. Cannot be seen2. Are heavier than air3. Go a long way on the oor4. Can be carried from other rooms to the main burner ame by air currents.Installation:Do not Install water heater where ammable products will be stored or used unless the main burner ame is at least 18” above the oor. This will reduce, but not eliminate, the risk of vapors being ignited by the main burner ame.Read and follow water heater warnings and Instructions. If owners manual is missing, contact the retailer or manufacturer. CAUTION

THE FUTURE OF EFFICIENCY

FOR YOUR SAFETY: Do not use or store ammable products such as gasoline, solvents or adhesives in the same room or near the water heater. Keep ammable products :

1. Far away from heater

2. In approved containers

4. Out of children‘s reach

Support: Support.Eccotemp.com Shop Online: Eccotemp.com Store Locator: Eccotemp.com/locator PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE LATEST VERSION OF THE MANUAL AND WARRANTY. READ THE SAFETY INFORMATIONYour safety and the safety of others are very important. There are many important safety messages in this manual and on your water heater. Always read and obey all safety messages. This is the safety alert symbol. Recognize this symbol as an indication of Important Safety Information! This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and the words: “DANGER”, “WARNING”, “CAUTION” or “NOTICE”. These words mean:WARNING - A potentially hazardous situation that could result in death or serious injury and/or damage to property.DANGER - An imminently hazardous situation that will result in death or serious injury.CAUTION - A potentially hazardous situation that may result in minor or moderate injury.NOTICE - Attention is called to observe a speci ed procedure or maintain a speci c condition.FOR YOUR RECORDSWrite your serial number here: #_______________________________You can nd them on a label on the appliance and/or packaging. Staple sales slip or canceled check here. Proof of the original purchase date is needed to obtain service under the warranty.READ THIS MANUALInside you will nd many helpful hints on how to use and maintain your water heater properly. A little preventive care on your part can save you time and money over the life of your water heater. You will nd many answers to common problems in the Troubleshooting Guide. If you review the chart of Troubleshooting Tips rst, you may not need to call for service. CONGRATULATIONS! You’ve just purchased a new Eccotemp EL5 portable tankless water heater. This will open a world of enjoyment to going tankless! We highly suggest you take the time to read through all the safety and installation procedures in this manual before attempting to install your new tankless water heater. Should you have any questions, please feel free to visit our helpdesk located at support.eccotemp.com. Use & Care Manual With Installation Instructions for the Installer APPLICATIONRecreationalINSTALLATIONOutdoorBTU’S25,000-37,500FLOW RATE1.5 GPM

EL5 PORTABLE TANKLESS WATER HEATER

PLEASE RETAIN THE INSTRUCTION MANUAL FOR FUTURE REFERENCESAFETY Safety Information Safety Precautions Operating Instructions Installation Instructions Benefits and Recommendations Getting Started Water and Gas Connections Proper Installation Use and Operation Adjustment Functions and Features Maintenance Rain Cap Inspection Storage Cleaning Water Screen Flushing Water Heater Warranty Warranty

Be sure to read and understand the entire Use and Care Manual before attempting to install or operate this water heater. It may save you time and money. Pay particular attention to the Safety Instructions. Failure to follow these warnings could result in serious bodily injury or death. Should you have problems understanding the instructions in this manual, or have any questions, STOP,and get help from a qualied service technician, or the local gas utility. DANGER!

PROPERLY INSTALL WATER HEATER

Failure to properly install the tankless water heater outdoors as outlined in the installation could result in injury. Failure to follow instructions in this manual can result in unsafe operation of the water heater. To avoid the risk of re, explosion, or asphyxiation from carbon monoxide, never operate this water heater unless it is installed properly and has an adequate air supply for proper operation. Be sure to inspect the attached rain cap for proper installation at initial start-up; and at least annually thereafter. Refer to the Care and Cleaning section of this manual for more information regarding rain cap inspection. WARNING! Gasoline, as well as other ammable materials and liquids (adhesives, solvents, paint thinners etc.), and the vapors they produce are extremely dangerous. DO NOT handle, use or store gasoline or other ammable or combustible materials anywhere near or in the vicinity of a water heater or any other appliance. Be sure to read and follow the labels on the water heater, as well as the warnings printed in this manual. Failure to do so can result in property damage, bodily injury or death. SAFETY NOTICE! To ensure that this product is safe to use, Eccotemp has had this model tested and certied by CSA Group and it is marked CSA/ANSI Z21.96 - CSA 11.6 2020 Portable Water Heaters for Outdoor Use.ENGLISH

DO NOT attempt to nd the cause yourself.

DO NOT try to light the water heater.

DO NOT touch any electrical switch. ADDITIONAL WARNINGS! Liquid propane has an odorant added to aid in detecting a gas leak. Some people may not physically be able to smell or recognize this odorant. If you are unsure or unfamiliar with the smell of liquid propane, ask the gas supplier. Other conditions, such as “odorant fade”, which causes the odorant to diminish in intensity, can also hide or camou age a gas leak. Always check with commercial leak detector or soapy water.

Gas detectors are recommended in liquid propane applications and their installation should be in accordance with the detector manufacturer’s recommendations and/or local laws, rules and regulations.

Water heaters utilizing liquid propane gas are di erent from natural gas models. A natural gas water heater will not function safely on liquid propane gas and vice versa.

No attempt should ever be made to convert the tankless water heater from liquid propane to natural gas. To avoid possible equipment damage, personal injury or re, do not connect the water heater to a fuel type not in accordance with the portable tankless water heater data plate: propane for propane portable tankless water heaters and natural gas for natural gas portable tankless water heaters. These portable tankless water heaters are not certi ed for any other fuel type.

Liquid propane gas must be used with great caution. It is heavier than air and will collect rst in lower areas making it hard to detect at nose level.

Before attempting to light the water heater, make sure to look and smell for gas leaks. Use a soapy solution to check all gas ttings and connections. Bubbling at a connection indicates a leak that must be corrected. When smelling to detect a gas leak, be sure to sni near the oor also.

It is recommended that more than one method, such as soapy solution, gas detectors, etc., be used to detect leaks in gas applications.

1. Do not leave unattended.

2. The exhaust gas and top of the portable tankless water heater is HOT! Do not place

hands or any foreign object near the top of the heater.

3. Do not use in high wind conditions.

4. If the smell of gas is detected, turn o the gas valve at the tank immediately! Do not use

ame for leak detection.

5. Use only liquid propane.

6. Use only outdoors.

7. Do not over tighten the gas regulator connection to the portable tankless water heater

with a wrench. This may cause a crack in the gas regulator. IF A GAS LEAK IS PRESENT OR SUSPECTED:

WARNING: Never use an open ame to test for gas leaks, as property damage, personal

injury, or death could result. The tankless water heater and its gas connections must be leak tested at normal operating pressures before it is placed in operation.

Turn on the gas to the tankless water heater from the recommended gas cylinder.

Use a commercial leak detector or soapy water solution to test for leaks at all connections and ttings.

Bubbles indicate a gas leak that must be corrected. The factory connections should also be leak tested after the tankless water heater is placed in operation cause water damage which may or may not be reparable. Please check the warranty information found on our website at www.eccotemp.com for more information on freezing issues. Leak Testing Pressure Relief Valve A new pressure relief valve, complying with the standard for pressure relief valves and automatic gas shut-o Devices for Hot Water Supply Systems, ANSI Z21.22, must be installed at the hot water outlet connection of the tankless water heater at the time of installation. Local codes shall govern the installation of pressure relief valves. The diagram below illustrates a pressure only relief valve. If local codes require a combination and pressure relief valve be installed, an extension piece may be required. For safe operation of the water heater, be sure that:• The pressure rating of the pressure relief valve must not exceed 150 psi, the maximum working pressure of the tankless water heater as marked on the rating plate.• The BTUH rating of the pressure relief valve must equal or exceed the BTUH input of the tankless water heater as marked on its rating plate.• No valve of any type should be installed between the pressure relief valve and the water heater.• The discharge line must be NO SMALLER than the outlet of the valve and must pitch downward to allow complete drainage (by gravity) of the pressure relief valve and discharge line.• The end of the discharge line should not be threaded or concealed. No valve of any type, restriction or reducer coupling should be installed in discharge line. This water heater is for OUTDOOR installation ONLY. It must NOT be installed indoors or in a conned space. An air supply containing halogenated hydrocarbons may be safe to breathe, but when it passes through a gas ame corrosive elements are released that will shorten the life of any gas burning appliance. Propellants from common spray cans or gas leaks from A/C and refrigeration equipment are highly corrosive after passing through a ame and therefore should never be used around the water heater. The tankless water heater warranty is voided when failure of the heater is due to operation in a corrosive atmosphere. Combustion and Ventilation Air Warning! Gasoline, as well as other ammable materials and liquids (adhesives, solvents, paint thinners etc.), and the vapors they produce are extremely dangerous. DO NOT handle, use or store gasoline or other ammable or combustible materials anywhere near or in the vicinity of a water heater or any other appliance. Be sure to read and follow the labels on the water heater, as well as the warnings printed in this manual. Failure to do so can result in property damage, bodily injury or death. T-Shap

Connector Shower Hos

Drain Pipe Shower Hos

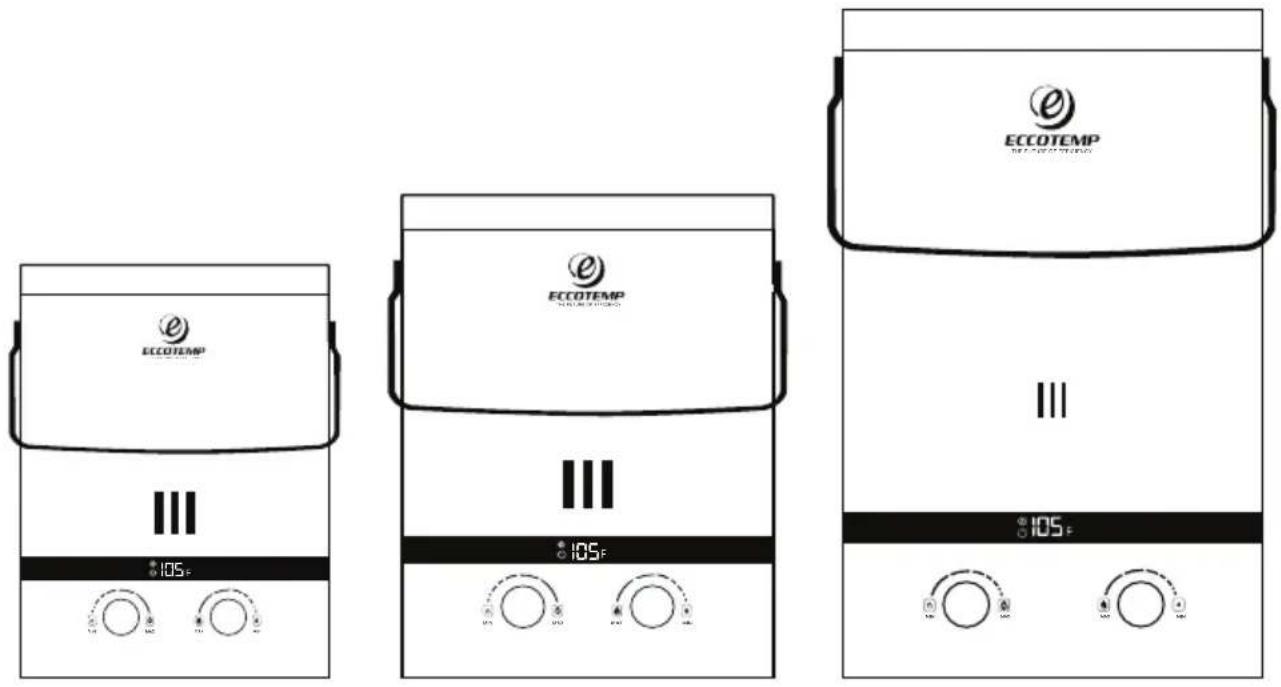

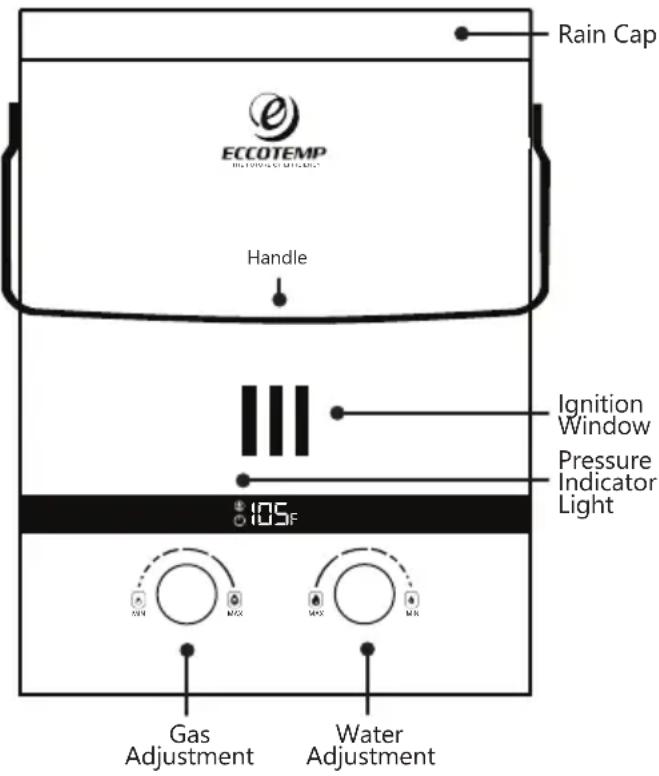

105F Rain Cap Ignition Window Water Adjustment Gas Adjustment The Eccotemp EL5 is a portable liquid propane red tankless water heater capable of delivering 1 to 1.5 gallons of hot water per minute to almost anywhere. The portable tankless water heater has standard 1/2” NPT pipe ttings and an adapter for using a standard garden hose for inlet water supply. People around the world use similar portable tankless water heaters to heat water for recreational use, safely and reliably. Required gas supply should be from a standard 20 pound liquid propane cylinder (not included). Included with your EL5 Portable Tankless Water Heater is a CSA approved regulator with hose and a multi-spray showerhead set with an on/o switch. If you purchased the EL5 Bundle then you received in addition to the above items the EccoFlo 12v water pump and strainer. The automatic ignition is powered by 4 “AA” Cell Batteries (not included). When water starts owing through the tankless water heater the burner ignites and starts producing instant hot water! No pilot light! Ideal water pressure for operation is 20-80 psi. The EL5 has a built-in tilt switch that will automatically shut o the tankless water heater any time it is tilted more than 45° in any direction. The EL5 Portable Tankless Water Heater

BENEFITS AND RECOMMENDED USES

Outdoor Recreational Uses Handle Pressure Indicator Light Required gas supply should be from a standard 20 pound liquid propane cylinder (not included). LP-gas cylinders must either be designed, fabricated, tested and marked (or stamped) in accordance with the regulations of the U.S. Department of Transportation (DOT) or for use in Canada, cylinders must be constructed and marked in accordance with the speci cations for Cylinders, Spheres, and Tubes for the Transportation of Dangerous Goods, CSA B339.

Do not store a spare LP gas cylinder under or near this appliance.

Never ll the cylinder beyond 80 percent full. HUNTING CAMPING SHOWER PET BATHING EQUESTRIAN GREEN HOUSES RECREATION TINY HOMES POOL SIDE EMERGENCY PREP FOOD TRUCKS OFF-GRID

WARNING: If the information above is not followed exactly, a re

causing death or serious injury may occur. INSTALLATIONENGLISH

This model is an outdoor model and must be mounted on a vertical wall. It must not be installed indoors or in a con ned space. Make sure people (particularly children, disabled, and elderly) will not touch the hot water outlet or the ue terminal. The ue terminal and air inlet must be clear of obstruction and shrubbery.

The tankless water heater must be installed on a re retardant area, and must be away from all ammable materials. Clearance should be 4 ft to the left and right side of ammable materials and

6.75 ft to the front.

The tankless water heater should be installed in open area where strong wind currents are not prevalent. Take measures to avoid direct wind, rain and snow.

Make sure the tankless water heater is not temporarily installed in a location where damage can occur, for example, by moving vehicles or area ooding, etc. Location THIS WATER HEATER IS FOR OUTDOOR USE ONLY! Water and Gas Connections NOTICE: Sealant tape included in your hardware pack should be used on your water inlet and outlet pipes before connecting your water source or output device. 1. Check box for damage. Damages caused in shipment must be reported immediately. 2. Make sure you have all the parts:Please note: included parts and accessories may vary depending on country and regulations. Getting Started qty. 1 - Water Heater qty. 1 - Shower Nozzle and Hose qty. 1 - 1/2” NPT to Garden Hose Adapter Pressure Relief Valve (Only in Canadian Shipments) qty. 1 - Gas Hose and Regulator qty. 1 - Hardware Pack 4 “AA” Cell Batteries (Not included) Manual qty. 1 - Rain Cap All accessories come with a 30 day manufacturer’s warranty. ¾” Threaded Tee Fitting ¾” x ½” Adapter x 2 ½” x ½” Hex Nipple ¾” Pressure Relief Valve (Provided in Canadian Shipments Only) INSTALLATION Parts Sold Separately WATER OUTPUT GAS INPUT DRAIN PLUG WATER INPUT BATTERY PACKENGLISH

1. Attach the rain cap securely to the top of your portable tankless water heater by sliding the shield into the

2. If using a standard garden hose, attach the 1/2” NPT to garden hose adapter to the tting marked “Water Input”.

Use sealant tape or other approved sealing method on the threads for a secure, watertight t. Check to make sure the screen inside the water inlet is in place and clean. Then attach your water input/garden hose.

3. Install gas supply line and regulator to the portable tankless water heater by using 2 wrenches, one on the

compression tting already attached to the tankless water heater and the other on the gas line. DO NOT OVER TIGHTEN. OVER TIGHTENING MAY CRACK THE GAS REGULATOR CAUSING A GAS LEAK! Check for any gas leaks before ignition! Make sure the gas connection is secured and cylinder in an upright position for proper vapor withdrawal.

4. Attach the shower nozzle hose to the water output to the tting marked “Water Outlet”. Do not over tighten. If

using with a pressure relief valve the pressure relief valve should be installed to the tankless water heater rst and then the shower nozzle hose.

5. Install four AA batteries in the compartment on the bottom left of the heater. Check that the batteries are facing

the correct direction. Additional parts are necessary when installing with pressure relief valve. See pg. 8 for more details.

6. Use the top tab on the portable tankless water heater to suspend from a mounted screw capable of holding 30

pounds. Place at a comfortable height without putting stress on the gas hose. Do not use suspended from the handle! Do not permanently mount this portable tankless water heater!

7. Attach gas regulator with hose to the LP tank. Use hand pressure only on the plastic connector. LEAVE GAS TANK

VALVE IN THE “OFF” POSITION.

WARNING: If using with non-potable water, do not heat water for human consumption.

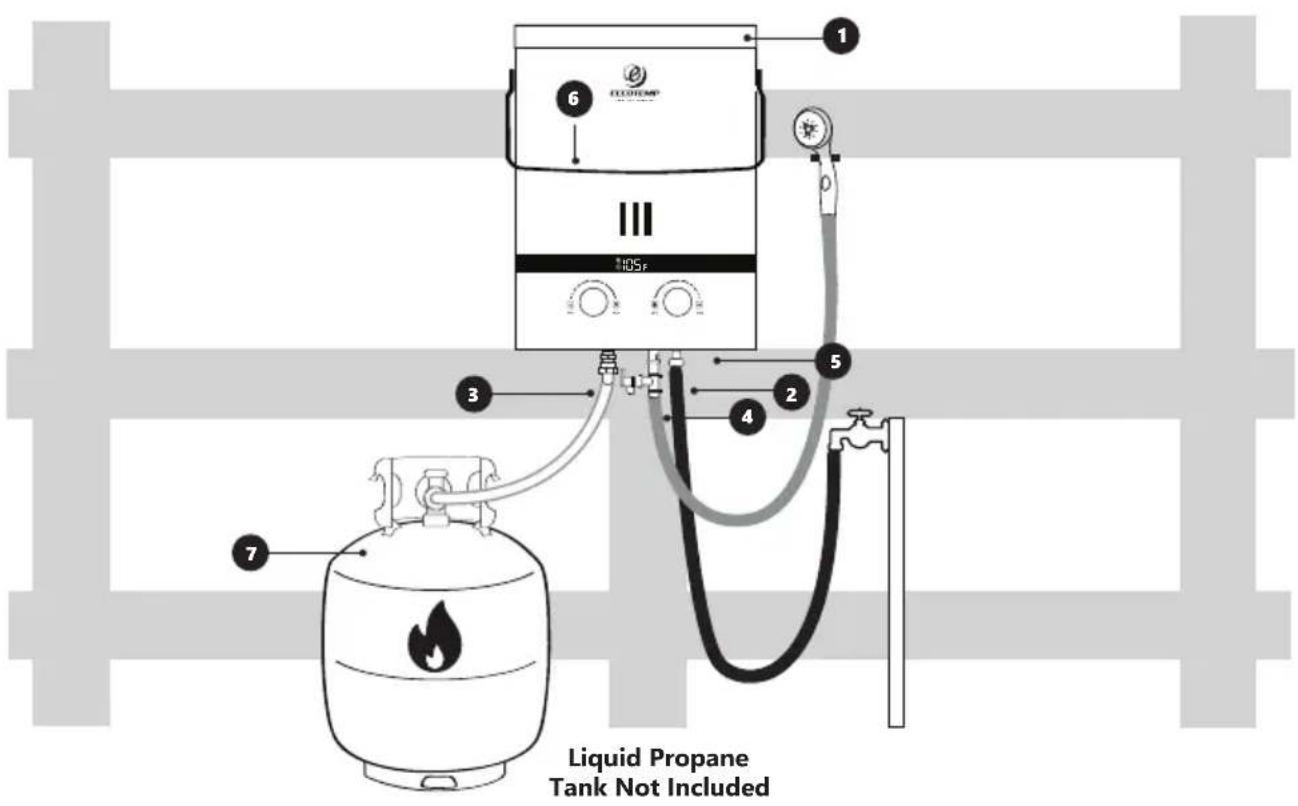

Liquid Propane Tank Not Included

C US Support: Support.Eccotemp.com Shop Online: Eccotemp.com Store Locator: Eccotemp.com/locator PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE LATEST VERSION OF THE MANUAL AND WARRANTY. Before going to the USE section: Check around area for ammables, especially gasoline or other vapors which may ignite. The exhaust and top of the portable tankless water heater will get HOT! Make sure there are no foreign objects around the portable tankless water heater or that have fallen into the top. This water heater is for point of use and is meant for temporary water heating. You should not connect to a permanent inlet water connection or connect to a water distribution system to supply multiple outlets. If this water heater is only intended for use with non-potable water (such as a portable shower) do not consume the water internally. This water heater does not screen contaminants and poses a potential health risk if used to heat water for consumption.

Warning: This model is intended for recreational & portable use only. This model CANNOT be

permanently mounted or plumbed in any way.

1. Be sure the showerhead or other water outlet device is in the “OFF” position.

2. Set the water regulator knob on the face of the portable tankless water heater to its highest setting.

3. Set the gas regulator knob on the face of the portable tankless water heater to its minimum setting.

4. Make sure the gas cylinder is in an upright position and turn the gas valve on the cylinder all the way

6. Turn on incoming water supply. Ensure that you have adequate water pressure between 20-80 PSI.

7. Turn on your showerhead or other water output device to the “on” position and adjust to the desired

8. There will be a series of audible clicks and the burner will ignite. Should the burner not ignite after 5

seconds, shut o and go to the “Trouble Shooting” section.

9. Upon completion, turn the showerhead o or other water output o.

10. Turn your gas and water supply o.

11. For storage, disconnect the water and gas lines from your portable tankless water heater.

12. Drain the water heater by unscrewing the drain plug from the bottom of the tankless water heater. See

page 9 for location.

13. Store water heater when not in use in a safe, warm and dry place.

WARNING: If the outside temperature is around or below freezing (32°F, 0° C), ensure that the drain

plug is opened and water drained from the portable tankless water heater after each use to avoid internal damage to the water heater. You will also need to unhook the outgoing water line to ensure that any water in the heat exchanger is drained. Failure to properly drain your portable tankless water heater will cause water damage which may or may not be repairable. Please check the warranty information found on our website at www.eccotemp.com for more information on freezing issues. This appliance must be installed in accordance with local codes or, in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling Code, CSA B149.2 Use and Operation WARNING!

105F The temperature of the outgoing water is dependent on the temperature of the incoming water balanced with the amount of heat applied. Use extreme caution when setting the outlet water temperature. Adjustment

SCALDING WATER TEMPERATURES!

1. Make sure showerhead is in the o position.

2. Turn the water knob to max.

6. Turn showerhead on. (Or other outlet device)

7. Wait to hear a series of audible clicks.

8. Upon completion turn o showerhead set.

9. Turn o water supply.

10. Turn o gas supply.

11. Disconnect water and gas lines.

12. Drain plug open. See page 9 for location of pressure drain plug.

13. Store in a safe, warm, dry place.

WARNING: Do not alter or change this water heater’s original temperature sensor.

WARNING: Should overheating occur or the gas supply fail to shut o , turn o the manual

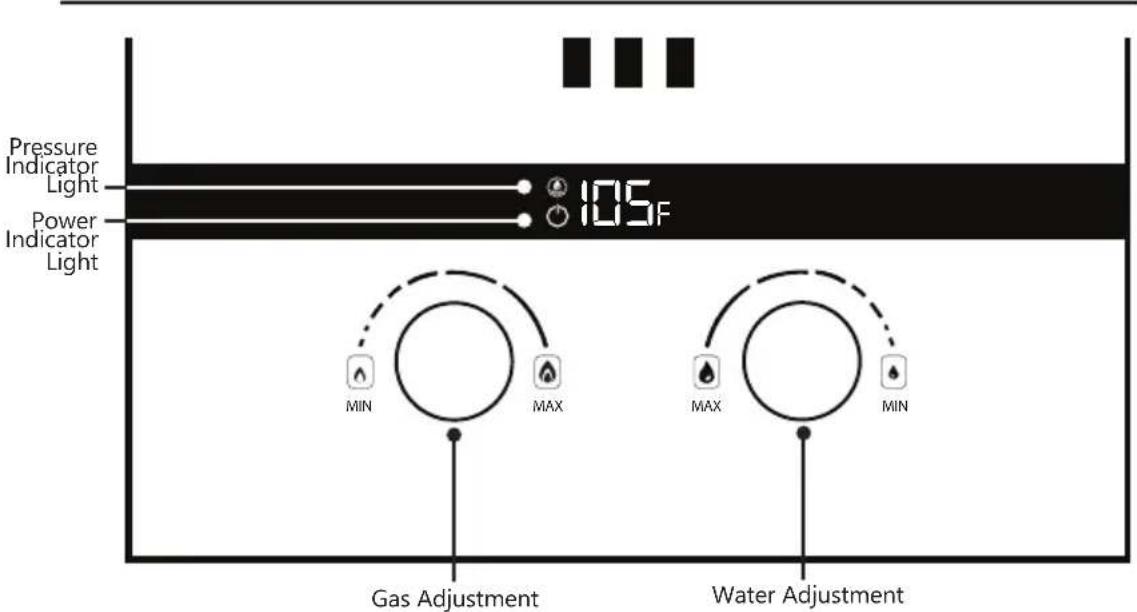

gas control valve to the appliance. Water Adjustment Gas Adjustment Pressure Indicator Light Power Indicator LightENGLISH

Water controlled automatic ignition: Water pressure between 20-80 PSI and 0.5-2.0 GPM opens the ignition circuit for easy and convenient operation.

Auto cut-o protection: The auto cut-o protection will shut the gas supply o immediately in the event of ameout to reduce the risk of gas leakage.

Remove drain valve to avoid water pipe and regulator damage caused by freezing water.*

Anti-dry combustion protection: The portable tankless water heater will shut o the gas supply in the event water stops owing through the portable tankless water heater. *Read the maintenance section on draining the portable tankless water heater entirely to avoid freeze related issues. Gas Type Model Water Pressure Gas Input Rating Manifold Gas Pressure Ignition Protections Dimensions Weight Pipe ttings Liquid Propane EL5 25 PSI 25,00-37,000 Btu/hr 11 in w.c. (2.74 kPa) Electric Pulse, AA Battery Powered (No electrical connection required) Auto cut-o water control, automatic ignition, anti-dry combustion protection, over-pressure overheating and ameout protection 15.9” x 11.9” x 4.8”

1/2” NPT, incoming/outgoing water & gas

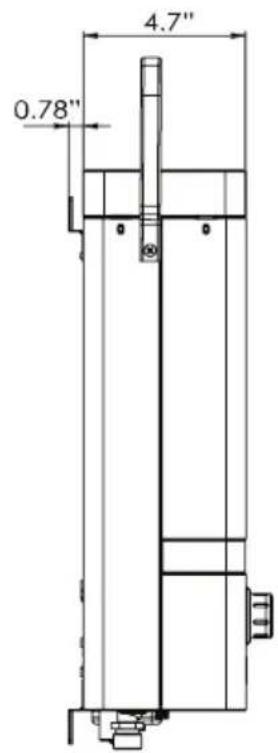

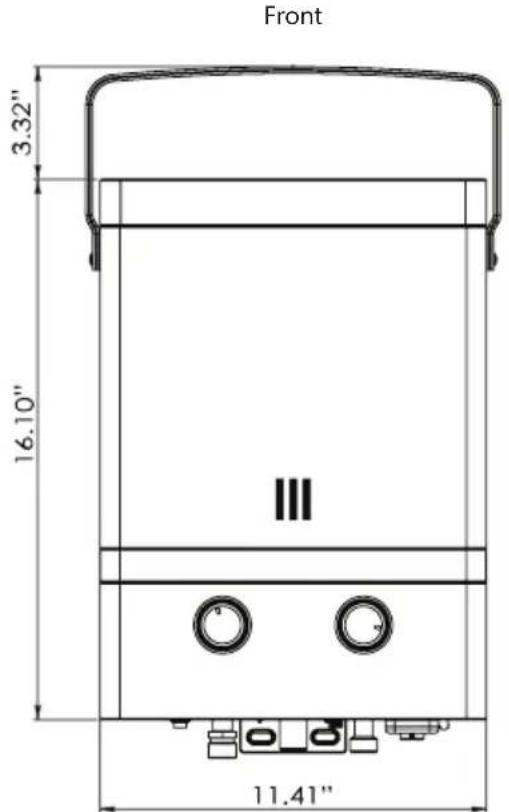

TECHNICAL SPECIFICATIONS - PORTABLE

Gas Setting Highest Lowest

25 ° 9 ° NOTICE - Temperature increases listed are based on use of the tankless water heater under optimal conditions. Variable factors such as incorrect or imperfect installation and varying incoming water temperatures may yield di erent results. OPERATINGENGLISH

WARNING: Item should not be left or stored in freezing conditions (at or below 32°F / 0°C). Internal

damage can occur. Upon completion of use, prepare your water heater for storage:

1. Turn OFF water and gas supply and then disconnect from water heater.

2. Unscrew the drain valve (ribbed cylindrical stem next to the water input valve) to ensure draining of

3. Remove the screen at the end of the water inlet pipe and clean. Return screen after cleaning. (see

housekeeping section above for instructions)

4. Store tankless water heater in a climate-controlled area.

When the tankless water heater is not in use and remains connected to the LP-gas supply cylinder, the tankless water heater and cylinder must be stored outdoors, in a well ventilated space, out of the reach of children, and must not be stored in a building, garage or any other enclosed area. Storage of the tankless water heater indoors is permissible only if the cylinder is disconnected and removed from the water heater. LP-gas cylinders must be stored outdoors, in a well-ventilated space, out of the reach of children, and must not be stored in a building, garage or any other enclosed area. Rain Cap Inspection

Cleaning the Water Screen

1. Make sure the water heater is OFF.

2. Disconnect the water supply from the water heater.

3. Locate the screen at the end of the water inlet pipe and gently

remove with a screwdriver.

4. Rinse the screen in a sink or with a hose to remove any debris.

5. Return the screen by gently inserting back into the end of the water

6. Reconnect the water supply and turn ON the water heater.

7. Clean the water screen on a monthly basis.

Internal Water Inlet ScreenENGLISH

C US Support: Support.Eccotemp.com Shop Online: Eccotemp.com Store Locator: Eccotemp.com/locator PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE LATEST VERSION OF THE MANUAL AND WARRANTY. Flushing your Water Heater ECCOTEMP DESCALER When properly maintained, your water heater will provide years of dependable trouble-free service. It is recommended that a periodic inspection of the burner, water screen and top exhaust should be made by service personnel quali ed in gas appliance repair. It is suggested that a routine preventive maintenance program be established and followed by the user. Inspect the area around the tankless water heater to ensure a safe operating environment. Keep water heater area clear and free from combustible materials, gasoline, and other ammable vapors and liquids. Ensure the tankless water heater has not been damaged. If damage or denting is present, contact a service personnel to verify proper operation. Check for any abnormal sounds during normal operation of the water heater. All piping should be checked for gas and/or water leaks. Refer to page 4 of this manual for instructions on leak testing. The air intake and cold water supply screen should be cleaned monthly. Refer to the “Housekeeping” section for further information. DO NOT operate the tankless water heater if you feel something is wrong with the unit. DO NOT allow children to operate or otherwise handle the unit.

DANGER: Before disconnecting the water supply, make certain no one will be exposed to the danger

of the hot water released by disconnecting. The water may be hot enough to create a scald hazard. The water should be released into a suitable drain to prevent injury or property damage.

DANGER: Hotter water increases the potential for hot water scalds.

DANGER: Failure to perform the recommended routine preventative maintenance can harm the

proper operation of this water heater, which can cause carbon monoxide dangers, excessive hot water temperatures and other potentially hazardous conditions. It is highly recommended that you clean your Eccotemp portable tankless water heater after every other use or every 3 months to ensure your water heater is running as e ciently as possible. Exposure to un ltered water can increase your chances of water scale, lime or rust deposit buildup. To do this we recommend that you use our Eccotemp EZ-Flush Descaler System to ush out any unwanted build-up and sediment. For more information and to purchase please visit us at www.eccotemp.com or call 1-866-356-1992. Use code: EZ2020 EZ2020 for 10% off EZ Flush MAINTENANCEENGLISH

1. The rst thing to check is to ensure that the incoming water is connected to the “right” connection side

of the portable tankless water heater. If the incoming and outgoing connections are reversed, the portable tankless water heater will not work. The incoming is on the far right and the outgoing water connection is in the middle.

2. The “On/O ” switch should be with the “-“ sign pushed down.

3. Check to make sure you have fresh batteries and they are installed in the correct position.

4. Make sure that you have a minimum of 25 PSI of sustained water pressure. Number one reason that the

portable tankless water heater does not ignite is that there is not enough water pressure.

5. Check to ensure that no wires have disconnected inside the portable tankless water heater during shipping.

Make sure the gas is OFF and the “On/O ” switch is in the OFF position. The front cover is held on 8 screws: 2 on top holding on the black vent screen, 2 on the upper/back of the rain cap, 2 on the bottom, and 2 inside the top under the rain cap. The knobs pull o . All the wiring is done with push together plastic connectors. They are all visible without further dismantling of the portable tankless water heater. It should be obvious when a wire has become disconnected. NOTE: Call technical support at 866.356.1992 if unsure how to remove the front cover.

6. It is possible that some debris or epoxy might have entered the water regulator. Check to see if the lter

screen on the water inlet is clear of debris. You can also reverse the hookup by taking your water source and hooking it up to the water outlet side and back ushing the system to ensure there is no blockage.

7. If you’ve checked everything and the water heater still continues to not ignite, you can try a water pressure

adjustment as follows: Looking up at the bottom of the portable tankless water heater, you will see 2 oval holes in the case. The hole that is the furthest on the right looks up at the water regulator where you will see two Phillips head screws. Take the screw that is furthest on the right in about a ¼ or ½ turn. This will enable the portable tankless water heater to operate on a lower water pressure by restricting ow.

8. There is a simple test that we can help you perform if you are unaware if you have enough water pressure.

Please visit the Eccotemp helpdesk at support.eccotemp.com or contact us via email at

9. Propane gas cylinders sometimes are contaminated with air, especially new tanks upon their rst lling.

Cycle the portable tankless water heater on and o by using the shower head switch several times (5) to purge the air from the gas.

10. Should a portable tankless water heater fail to light or stay lit after 10 cycles, please visit

Troubleshooting Visit our Helpdesk at support.eccotemp.com or contact us via email at support@eccotemp.com if you run into a problem.

DO NOT RETURN TO STORE

support@eccotemp.com for additional troubleshooting steps. support.eccotemp.com or contact us via email at support@eccotemp.com for additional troubleshooting steps. TROUBLESHOOTINGENGLISH

1. The portable tankless water heater requires a minimum of about .75 GPM and a minimum of about 25 PSI.

Note: water pressure is at the lower end of operating parameters. You will need a sustained water pressure of approximately 25 – 60 PSI for adequate use if you are using a 12/18/120 volt pump. See adjustment in previous section.

2. High Wind: for safety reasons the tankless heater will not start in sustained wind. Find an alternate location for

the tankless water heater.

3. Out of, or low on gas. Propane gas cylinders sometimes are contaminated with air. Especially new tanks upon

their rst lling. Cycle the portable tankless water heater on and o by using the shower head switch several times (5) to purge the air from the gas.

4. One of the ignition sensors is bent and/or too close to the burner. Look to ensure that the ignition pins and the

heat sensor are completely vertical and they do a 90 degree to the back of the box. If they are not straight (i.e. a 45 degree angle) then you can straighten them with pliers. Please visit support.eccotemp.com or call 1-866-356-1992 for assistance with this matter.

5. The gas sensor wire might have come loose or is no longer connected. Please visit support.eccotemp.com or call

1-866-356-1992 for assistance with this matter. The water does not get hot enough:

1. Ensure you are not operating the portable tankless water heater above 2,000 feet. While it has been eld tested

up to 2,000 feet, we only recommend using it below 2,000 feet. For every 1,000 feet above the recommended 2,000 feet, you will see a 10% decrease in eciency and performance.

2. Be sure you have your gas knob turned to max and your water knob turned a little lower towards min. The less

water moving through the water heater will allow for a higher temperature. Please note: Your incoming water temperature will play a major role in the achievable temperatures your water heater can reach. The colder the incoming water is, the lower the achievable temperature will be. You’ll need to adjust your hot and cold knobs to help counteract the colder incoming water. Variable factors such as incorrect or imperfect installations and varying incoming water temperatures may yield dierent results.

3. Look into the viewer panes (3 small windows on the front cover) to see if there is a blue ame. If the ame is

yellow there could be a cracked gas regulator. DO NOT ATTEMPT to use the portable tankless water heater if a cracked gas regulator is suspected. Visit support.eccotemp.com or call 1-866-356-1992 for assistance with this matter. Water is flowing, but there is no hot water coming out:

1. Ensure that you have the incoming water supply and the outgoing water supply hooked up properly. Your water

supply should be attached to your incoming connection (located on the far right) and the shower head should be attached to the outgoing water connection (located as the center connection).

2. Ensure that you have adequate water pressure of at least 25 PSI sustained.

3. Ensure that you have adequate gas in your propane bottle and that the LP regulator is threaded all of the way

onto the portable tankless water heater.

4. Fresh batteries are required for ignition spark. Make sure batteries are aligned in the proper polarity (+/-): at

negative of battery toward the spring side of battery compartment. The portable tankless water heater will not stay on:

1. The portable tankless water heater requires a minimum of about .75 GPM and a minimum of about 20 PSI to

activate and approximately 25 sustained PSI to continue to operate. Consider your water source: Are you using a pump to draw water from a source? Be sure the pump you are using provides adequate sustained water pressure to activate and keep the water heater running.

2. Check that your batteries are fresh and aligned with the proper polarity (+/-): at negative of battery toward the

spring side of the battery compartment. TROUBLESHOOTINGENGLISH

1/2” NPT to Garden Hose Adapter

Gas Hose and Regulator

REPLACEMENT PART SKU

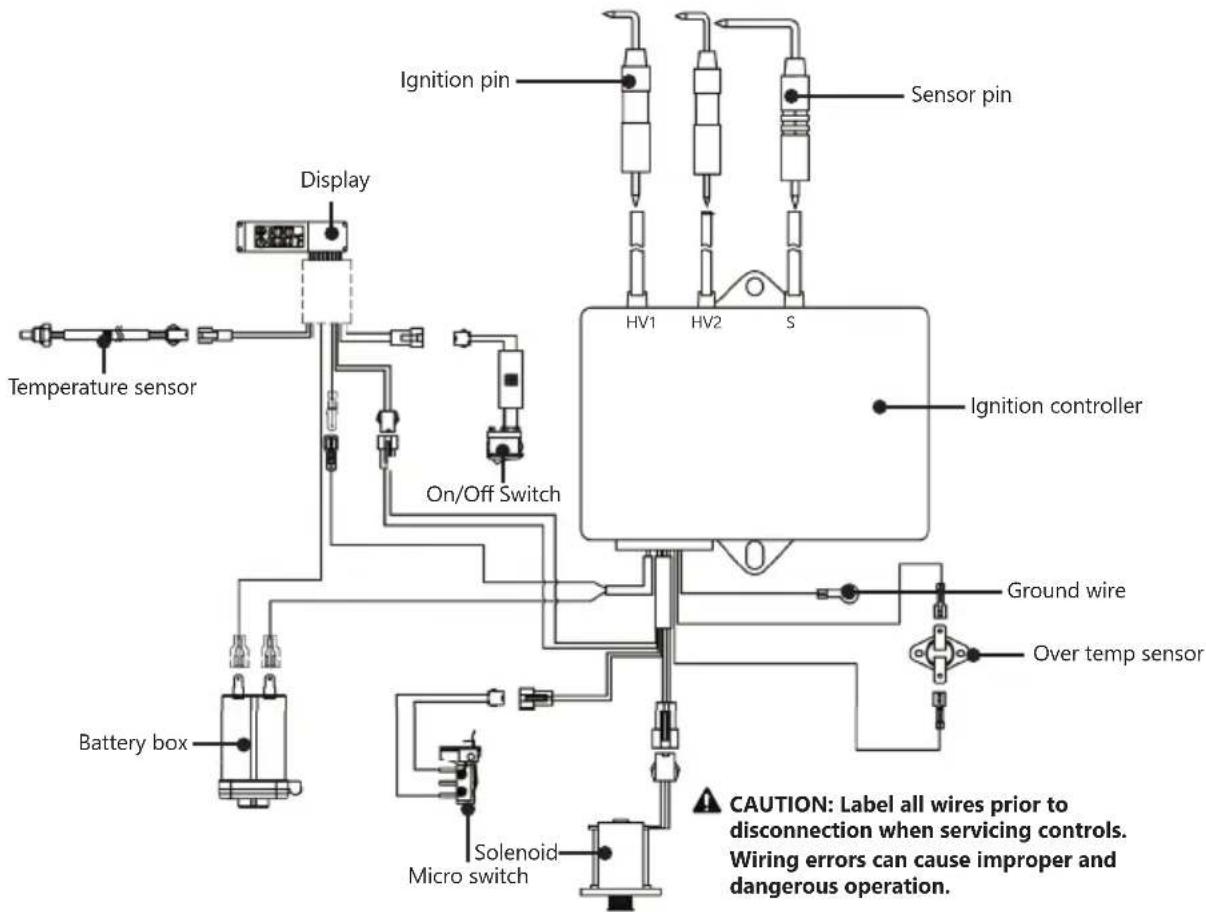

For more available parts for your Eccotemp Water Heater and to purchase, visit www.eccotemp.com/parts or call 1-866-356-1992. Electrical Wiring Replacement Parts CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. This connection is for low-voltage batteries or direct current only. Do not connect 120 or 240 volts AC. Ignition pin Sensor pin Ignition controller Ground wire Over temp sensor Solenoid Micro switch Battery box On/O Switch Temperature sensor Display HV1 HV2 S NOTICE - If any of the original wire as supplied with the appliance shall be replaced, it shall be replaced with the original type wire or its temperature equivalent. TROUBLESHOOTINGENGLISH

EL5 Eccotemp hereby warrants this product to be free of material defects in materials and workmanship when installed and operated according to Eccotemp’s installation and operating instructions. This Limited Warranty extends to the original purchaser and subsequent owners, but only while the product remains as the site of the original installation. This Limited Warranty terminates if moved or reinstalled at a new location. There are no warranties, express or implied made or given other than contained in this Limited Warranty. No agent, employee or representative of Eccotemp has any authority to bind Eccotemp to any representation or warranty concerning the Product not contained in this Limited Warranty. Eccotemp reserves the right and authority to change, modify or alter this warranty at any given time. Except as expressly set forth herein, THERE ARE NO REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO ANY GOODS SOLD HEREUNDER. BUYER’S EXCLUSIVE REMEDY IS LIMITED TO REPAIR OR REPLACEMENT OF THE GOODS SOLD, AT ECCOTEMP’S DISCRETION. ECCOTEMP SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Limited Warranty Period This Warranty is extended by Eccotemp Systems to the Owner. Limited Warranty Period This warranty takes e ect on the date of installation of the Product or 30 days after the date of purchase, whichever occurs rst, and is e ective until the speci ed anniversary of such date as follows: Item Period of CoverageHeat Exchanger 2 yearsAll other parts 2 yearsFree Accessories (Shower head, gas regulator, hardware pack, etc.) 30 days Coverages are void if the unit is used in a hot water circulation loop, in series with a circulation system or where an on-demand recirculation system is not incorporated. This portable water heater is for outdoor, temporary use only. Do not permanently install. If permanently installed or installed indoors, this warranty is void. Eccotemp will provide 1 round of parts per incident (deemed by Eccotemp Support Team) under the warranty prior to requesting the shipment of any item to our warehouse for repair/inspection. Shipping Related Costs:US ORDERS Within the rst 45 days of purchase, Eccotemp will cover all ground shipping costs for warranty related issues, excluding AK, HI and any location outside of the continental US. After the rst 45 days of purchase, the customer is responsible for all shipping to Eccotemp, regardless of reason or circumstance. Eccotemp will cover the warranty related shipping costs when returning a product to a customer after repair/inspection. The method for warranty related shipping will be Ground equivalent with the provider of Eccotemp’s choosing. CANADA ORDERS Within the rst 45 days of purchase, Eccotemp will cover all ground shipping costs for warranty related issues. After the rst 45 days of purchase, the customer is responsible for all shipping to Eccotemp, regardless of reason or circumstance. Eccotemp will cover the warranty related shipping costs when returning a product to a customer. The method for warranty related shipping will be Ground equivalent with the provider of Eccotemp’s choosing. All shipments of any type of product coming to Eccotemp for any reason must have an RGA for any repairs to be made. Please contact Eccotemp to obtain an RGA number prior to shipping anything to Eccotemp. Failure to do so could result in loss of product. Eccotemp will not be responsible for replacement due to loss or damage if these steps are not properly followed. CANADA Eccotemp Systems/Returns Department CO Eccotemp Canada Ottawa Logistics 1270 Humber Place Ottawa Ontario K1B 3W3

Eccotemp Systems/Returns Department 315-A Industrial Rd. Summerville, SC 29483ENGLISH

1. Abuse, misuse, alteration, neglect or misapplication.

2. Improper, dangerous, destructive maintenance procedures or inadequate maintenance.

3. Damages caused by services performed by servicers other than Eccotemp Systems.

4. Installation in a corrosive or otherwise destructive environment.

5. Damage as a result of freezing within the unit or surrounding piping.

7. Incorrect gas or water pressure.

8. Acts of force Majeure.

9. Damage as a result of use with non-potable, untreated or poorly treated well water, or water with high PH

levels or hardness levels in excess of 12 grains per gallon (200mg/L).

10. Incorrect sizing for the application.

11. Products with original serial numbers that have been removed or altered and cannot be readily determined.

12. Acts of God including, but not limited to; re, ood, or nature disaster.

This Product is not to be used as a pool or spa heater. In the event of an Eccotemp Systems recognized defect, malfunction, or failure to conform to this Warranty and based upon Eccotemp approval of warranty claim, Eccotemp Systems, at its sole and absolute discretion, will set- tle the warrant claim of such defect, malfunction, or failure to conform to this Warranty. In order to make a claim under this Warranty, The Owner must notify Eccotemp of the failure of the Product to conform to this Warranty. Under this Warranty, Eccotemp Systems will only provide replacement parts as described in the “Limited War- ranty Period”. The Owner will be responsible for any cost incurred including labor costs for servicing the unit, shipping, delivery, and handling of the replacement part, cost for permits or materials necessary for the repair, or incidental costs resulting from damage external to the unit resulting from the failure. NOTWITHSTANDING ANYTHING IN THIS WARRANTY TO THE CONTRARY, EXCEPT FOR ECCOTEMP SYSTEMS’ AFFIRMATIVE OBLIGATIONS EXPRESSLY SET FORTH IN THIS WARRANTY, ECCOTEMP SYSTEMS DISCLAIMS ANY AND ALL WARRANTIES, EITHER EXRESS OR IMPLIED, REGARDING THE PRODUCT AND ITS FUNCTIONALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE OR INTELLECTUAL PROPERTY RIGHTS. ECCOTEMP SYSTEMS DISCLAIMS ALL OTHER OBLIGATIONS OR LIABILITIES ON ITS PART AND NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR ECCOTEMP SYSTEMS ANY OTHER LIABILITIES IN CON- NECTION WITH THE PERFORMANCE OF THE PRODUCT. THIS WARRANTY ONLY COVERS REPLACEMENT PARTS AND DOES NOT COVER COST OF LABOR OR SERVICES UNDER ANY CIRCUMSTANCES. This warranty only applies to the 50 states of the U.S.A and Territories of Canada. Eccotemp Systems shall not be liable for any claim or demand against Eccotemp Systems by any other part for damages of any kind, including, but not limited to incidental and consequential damages, arising out of the subject matter of this Agreement. Some States do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights. You may also have other rights that vary from State to State. Please Note: This warranty and all Eccotemp content is subject to change. Please refer to support.eccotemp.com for the most updated version. For further questions, please email our support team at support@eccotemp.com.ENGLISH

105F Flow Rate BTU Portable Power Source Gas Type Venting Water Pressure Regulator & Hose Temperature Control Warranty Product Dimensions Package Dimensions 15.9” x 11.4” x 4.8” - 11.2 lbs 21.9” x 12.4” x 7.7” - 13.8 lbs 25,000 - 37,500 75,000 Rated 1.5 GPM Rated 2.65 GPM Ye s 4 “AA” Cell Batteries Liquid Propane Only None Needed 20-80 PSI Standard / Included Manual 80 30.2” x 13.6” x 9.5” - 30.8 lbs 25.1” x 11.5” x 6” - 23.7 lbs OUTDOOR ONLY EL10EL5

INSTALLATION OUTDOOR ONLY

Ye s 4 “AA” Cell Batteries Liquid Propane Only None Needed 20-80 PSI Standard / Included Manual 80 2 Years 2 Years 47,800 - 52,500 Rated 1.85 GPM Ye s 4 “AA” Cell Batteries Liquid Propane Only None Needed 20-80 PSI Standard / Included Manual 80 19.1” x 11.9” x 7.1” - 14.7 lbs 25.8” x 14” x 7.7” - 16 lbs OUTDOOR ONLY EL7 2 Years MAXMIN MAXMIN

EL5 CANADÁ Eccotemp Systems/Returns Department CO Eccotemp Canada Ottawa Logistics 1270 Humber Place Ottawa Ontario K1B 3W3 Estados Unidos Eccotemp Systems/Returns Department 315-A Industrial Rd. Summerville, SC 29483ESPAÑOL

REPLACEMENT PART SKU

Manual assistant

Waiting for your message

Product information

Brand : EccoTemp

Model : EL5

Category : Boiler
