USER MANUAL SGD67D0WG Avanti

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC 3265 Meridian Pkwy # 114 - Weston, Florida 33331 www.avantiproducts.comREAD AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE This manual contains important information on the installation, use, and care of your appliance. Please read this manual carefully before installation and operation of this machine to prevent injury and property damage. Warnings and Important Safety Instructions in this manual DO NOT cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your dryer. Dryer Care Troubleshooting Appendix4 This symbol indicates the possibility of injury or damage to property. For your safety the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury or death.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier. WARNING Fire Hazard

Failure to follow safety warnings exactly could result in serious injury, death or property damage.

Do not install a booster fan in the exhaust duct.

Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer. YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death. The level of risk is shown by the following indications. WARNING CAUTION

WARNING This symbol indicates the possibility of death or serious injury. This symbol indicates the possibility of dangerous voltage constituting a risk of electrical shock is present that could result in death or serious injury.5

WARNING To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions ,including the following:

• Read all instructions before using the appliance.

• Use this appliance only for its intended purpose as described in this Owner’s Manual.

• Before use, the dryer must be properly installed as described in this manual.

• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.

• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.

• Do not use the dryer to dry clothes which have traces of any flammable substance, such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals, such as mops and cleaning clothes. Flammable substances may cause the fabric to catch fire by itself.

• Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance.

• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

• Before the appliance is removed from service or discarded, remove the lid of the washing or door of the drying compartment.

• Do not reach into the appliance if the drum is moving.

• Do not install or store this appliance where it will be exposed to the weather or freezing temperatures below 33°F.

• Do not tamper with the controls and latch.

• Do not install a booster fan in the exhaust duct.

What to do if you smell gas: Do not try to light any appliance. Do not touch any electrical switch; do not use any phone in your building. Clear the room, building, or area of all occupants. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the fire department. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix6

• Do not repair or replace any part of the appliance or attempt any servicing unless it is specifically recommended in the user- maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.

• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

• Unplug the dryer if the machine is to be left for an extended period of time, such as during vacations.

• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging from children.

• Always check the inside of the dryer for foreign objects before loading laundry. Keep the door closed when not in use.

• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product manufacture.

Clean the lint screen before or after each load.

• Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

• The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.

• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

• This appliance must be grounded. See “Electric Requirements” and “Grounding” in the “Operation Requirements” section.

• This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. Refer to installation instructions for grounding this appliance.

• Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e. coins, knives, pins, etc. These objects could damage your dryer.

• Do not use heat to dry articles containing foam rubber or similarly textured rubber like - materials. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix7

• Do not sit on top of the dryer.

• Do not dry clothing with large buckles, buttons, or other heavy metal or solid things.

• Install and use in accordance with the manufacturer’s instructions.

• Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain significant amounts of these oils.

• Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion increases when items containing vegetable oil or cooking oil are exposed to heat. Heat source such as your dryer can warm these items, allowing an oxidation reaction in the oil to occur.

• Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping and can create a fire hazard.

• Take care that children’s fingers are not caught in door when closing it. This may result in injury.

• Gas leaks may occur in your system, resulting in a dangerous situation.

• Gas leaks may not be detected by smell alone.

• Gas suppliers recommend you purchase and install a UL approved gas detector. To reduce the risk of fire or explosion

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit vapors that could ignite or explode. Any material that has been in contact with a cleaning solvent or flammable liquids or solids should not be placed in the dryer until all traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax removers. Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials on a heat setting. Heated foam rubber materials can, under certain circumstances, produce fire by spontaneous combustion. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Care Troubleshooting Appendix8

WARNING: Cancer and Reproductive Harm

-www.P65Warnings.ca.gov.

• The dryer is not suitable for installation in a mobile home.

• Remove the door from all discarded appliances to avoid the danger of a child being trapped and suffocating, after unplugging cut off Power Cord. State of California Proposition 65 Warnings:

SAVE THESE INSTRUCTIONS

Please read the following instructions carefully before installing the dryer. These instructions should be kept for future reference. CAUTION Fire Hazard

• Clothes dryer installation must be performed by a qualified installer. Install the clothes dryer according to the manufacturer’s instructions and local codes. Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryer. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct with the clothes dryer’s airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions
• Save these instructions. WARNING Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix9

BASIC REQUIREMENTS Make sure you have everything necessary for the proper installation.

• A GROUNDED ELECTRICAL OUTLET is required. Refer to the

Electrical requirements ” section.

• A POWER CORD electric dryer (except for Canada).

• GAS LINES (if a gas dryer) must meet national and local codes.

• The EXHAUST SYSTEM must be made of rigid metal or flexible stiff- walled metal exhaust ducting. LOCATION REQUIREMENTS

1. The dryer should be located where there is enough space at the front

for loading the dryer, and enough space behind for the exhaust system.

2. This dryer is factory-ready for the rear exhaust option. If you want to

change the vent location

3. Make sure the room in which the dryer is located has enough fresh air.

The dryer must be located where there are no air-flow obstructions. Ambient temperature shall not be lower than 33°F.

4. For gas dryers, adequate clearance must be maintained as noted on

the data plate to ensure adequate air for combustion and the proper dryer operation.

5. The dryer must not be installed or stored in an area where it will be

exposed to water and/or weather. The dryer area must be kept clear of combustible materials, gasoline, and other flammable vapors and liquids. A dryer produces combustible lint. The area around the dryer should be kept lint-free. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix10

• The dryer must be exhausted to the outside to reduce the risk of fire when installed any place inside the house.

• No other fuel-burning appliance should be installed in the same closet as the dryer.

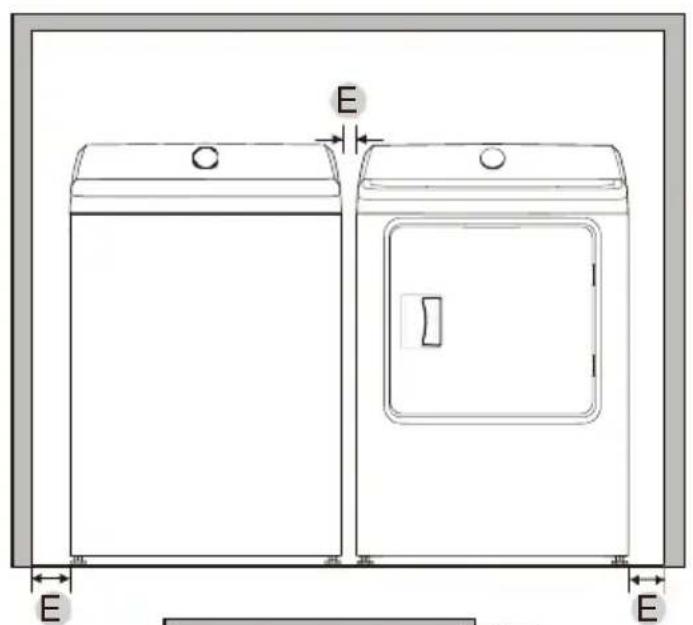

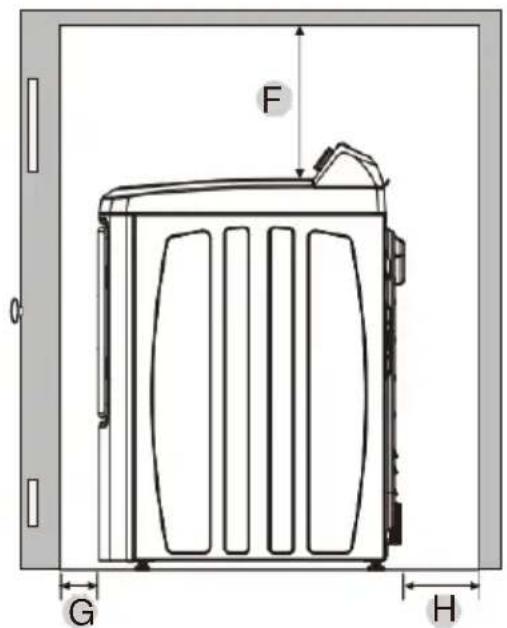

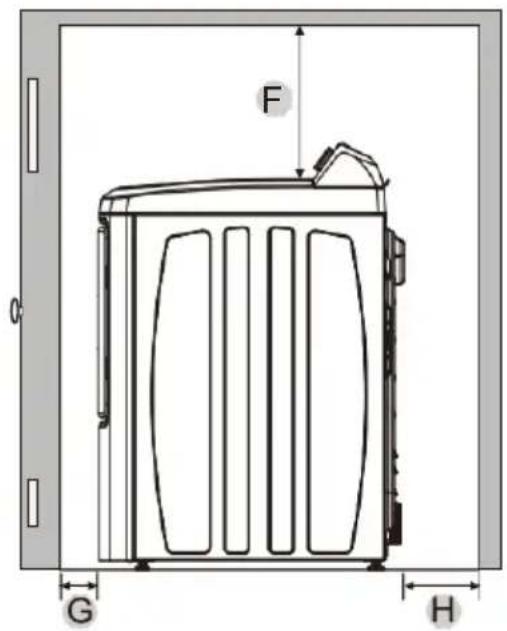

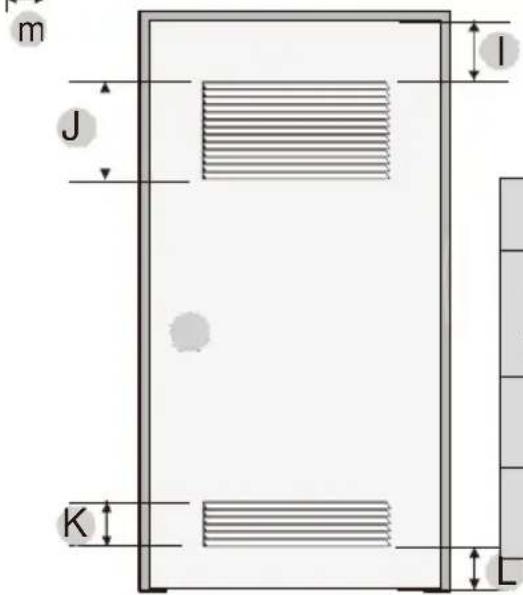

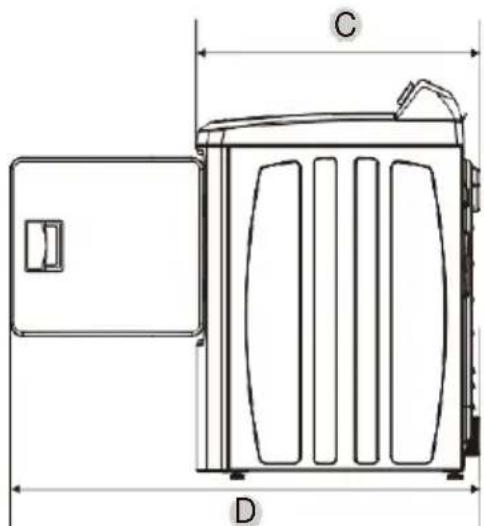

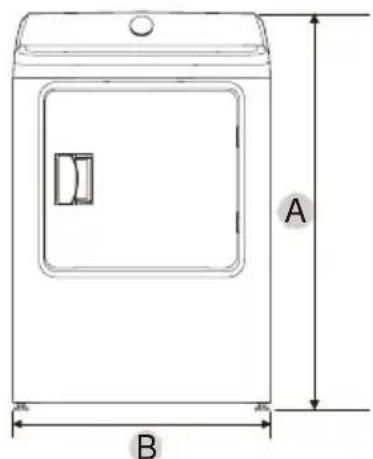

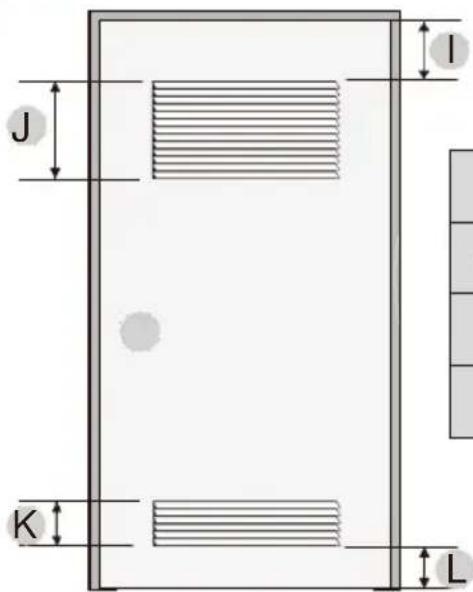

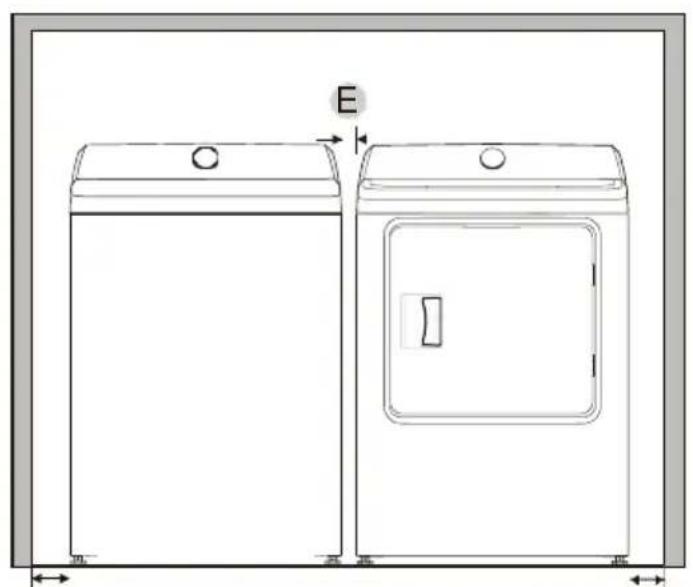

ALCOVE OR CLOSET OR WALL INSERT/RECESSED INSTALLATIONS WARNING Minimum clearances between the dryer and adjacent walls or other surfaces: Sides 1 in. (25 mm) Rear 5 in. (127 mm) Top 24 in. (610 mm) Closet front 2 in. (51 mm)

Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix11

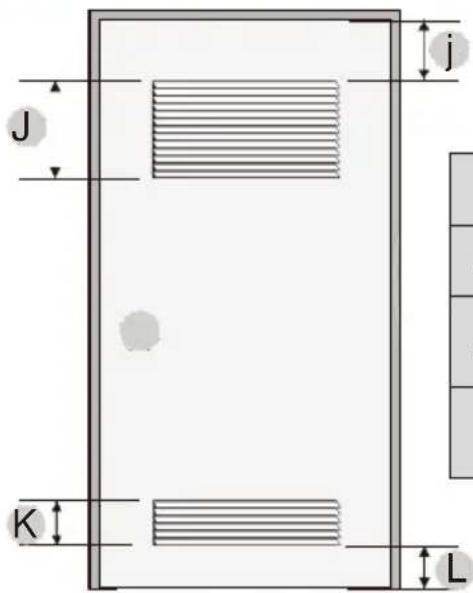

NOTE: The front of the closet must have two unobstructed air openings for a combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (76 mm) at the top and bottom. A slatted door with equivalent space clearance is acceptable.

Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix13

WARNING The correct exhaust installation is YOUR RESPONSIBILITY.

• Use a 4-inch (10.2cm) diameter rigid aluminum or rigid galvanized steel duct.

• Do not use smaller diameter than recommended diameter duct.

• Ducts larger than 4 inches (10.2cm) in diameter can result in increased accumulation of lint and changes in performance

• Lint should be removed regularly from internal filter every cycle and from ducts.

• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct with a thin foil wall. A serious blockage can result if the flexible metal duct is bent too sharply.

• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

• Keep the exhaust duct as straight, short as possible, minimum elbows

• Secure joints with aluminum tape. Do not use screws.

• Plastic flexible ducts can kink, sag, be punctured, reduce airflow, extend drying times, and affect the dryer operation.

• Exhaust systems longer than recommended 90 ft can extend drying times, affect machine operations, and collect lint.

• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and entry of wildlife. Never use an exhaust hood with a magnetic damper.

• The hood should have at least 12 inches (30.5cm) of clearance between the bottom of the hood and the ground or other obstruction. The hood opening should point down.

• Never install a screen over the exhaust outlet.

• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house or porch.

• If the exhaust duct must run through an unheated area, the duct should be insulated and slope slightly down towards the exhaust hood to reduce condensation and lint buildup.

• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before cleaning.

• Check frequently to make sure the exhaust hood damper opens and closes freely.

• Check once per month, and clean at least once per year. NOTE: If your clothes are not getting dry, then check the ducting for obstructions.

• Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space of a building, gas vent, or any other common duct or chimney. This could create a fire hazard from the lint expelled by the dryer.

• Do not use non-metallic flexible duct.

• To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix14

• The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space of a building.

• The dryer must be exhausted to the outside to reduce the risk of fire when installed in alcove or closet. EXHAUSTING REQUIREMENTS WARNING Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the room. WARNING

GAS REQUIREMENTS Use only natural or LP (liquid propane) gases. THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, LATEST REVISION (FOR THE UNITED STATES), OR THE NATURAL GAS AND PROPANE INSTALLATION CODE, CSA B149.1, LATEST REVISION (FOR CANADA). Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician. A 1/2" (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8" (1 cm) gas line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off valve be installed within 6" (15,24 cm) of your dryer. Gas dryers installed in residential garages must be raised 18" (46cm) above the floor. NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT If your existing ductwork is plastic, non-metal, or combustible, replace it with metal before installation this appliance Use only a metal exhaust duct that is non-flammable to ensure containment of the exhaust air heat, and lint. Refer to the “Ducting requirements” section on page 12 for the maximum duct length and number of bends.

• All dryers must be exhausted to the outside.

• Do not assemble the duct with screws or other fastening means that extend into the duct and catch lint.

• The exhaust duct should be 4 inches (102mm) in diameter.

• The total length of flexible metal duct shall not exceed 7.8 feet (2.4 meters). Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix16 ELECTRIC REQUIREMENTS The wiring diagram is located on the back board of the unit. WARNING

Electrical connections An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD. Gas models - U.S. and Canada A 120Volt, 60Hz AC approved electrical service, with a 15 ampere fuse or circuit breaker is required. Electric models - U.S. only The dryers require a 120/240 volt, 60Hz AC approved electrical service. The electric service requirements can be found on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of the line is required.

• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.

• The power cord is NOT provided with U.S. electric model dryers.

• The improper connection of the equipment grounding conductor can result in the risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is properly grounded. Do not modify the plug provided with your dryer - if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician.

• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70 - Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate electrical services for your dryer.

• All gas installations must be done in accordance with the National Fuel Code ANSI/Z2231 - Latest Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and local codes and ordinances. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix17

Electric models - Canada only

• A 120/240 volt, 60Hz AC approved electrical service fused through a 30-ampere fuse or circuit breaker on both sides of the line is required.

• All Canadian models are shipped with the power cord attached. The power cord should be plugged into a 30-ampere receptacle. WARNING Electrical Shock Hazard When local codes allow, the electrical supply of the dryer may be connected by means of a new power supply cord kit, marked for use with a dryer, that is UL listed and rated at a minimum of 120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be retained at the dryer cabinet with a suitable UL-listed strain relief.

• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. (Use a 4-prong plug for 4 wire receptacles, NEMA type 14-30R.) Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix18

Gas and Electric models

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel – Do not contact the following parts while the appliance is energized: inlet valve, control board and temperature-regulating thermistor (located on blower housing). Gas models

• Your dryer has a three prong power cord with grounding conductor. 120V 60 Hz

• The plug must be plugged into an appropriate individual outlet that is properly installed and grounded in accordance with all local codes and ordinances. Electric models Dryer must be grounded with 3 or 4 wire cord power cord with ground grounding conductor and a grounding plug, which is sold separately.

• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

• Do not modify the plug provided with your dryer - if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician.

• If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be connected to a permanently grounded metal wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dryer. GROUNDING This dryer must be grounded. In the event of a malfunction or breakdown, the grounding the product will reduce the risk of electrical shock by providing a path of least resistance for the electrical current. WARNING WARNING WARNING Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix19

Wiring box For electric dryer only Electric dryer Gas dryer

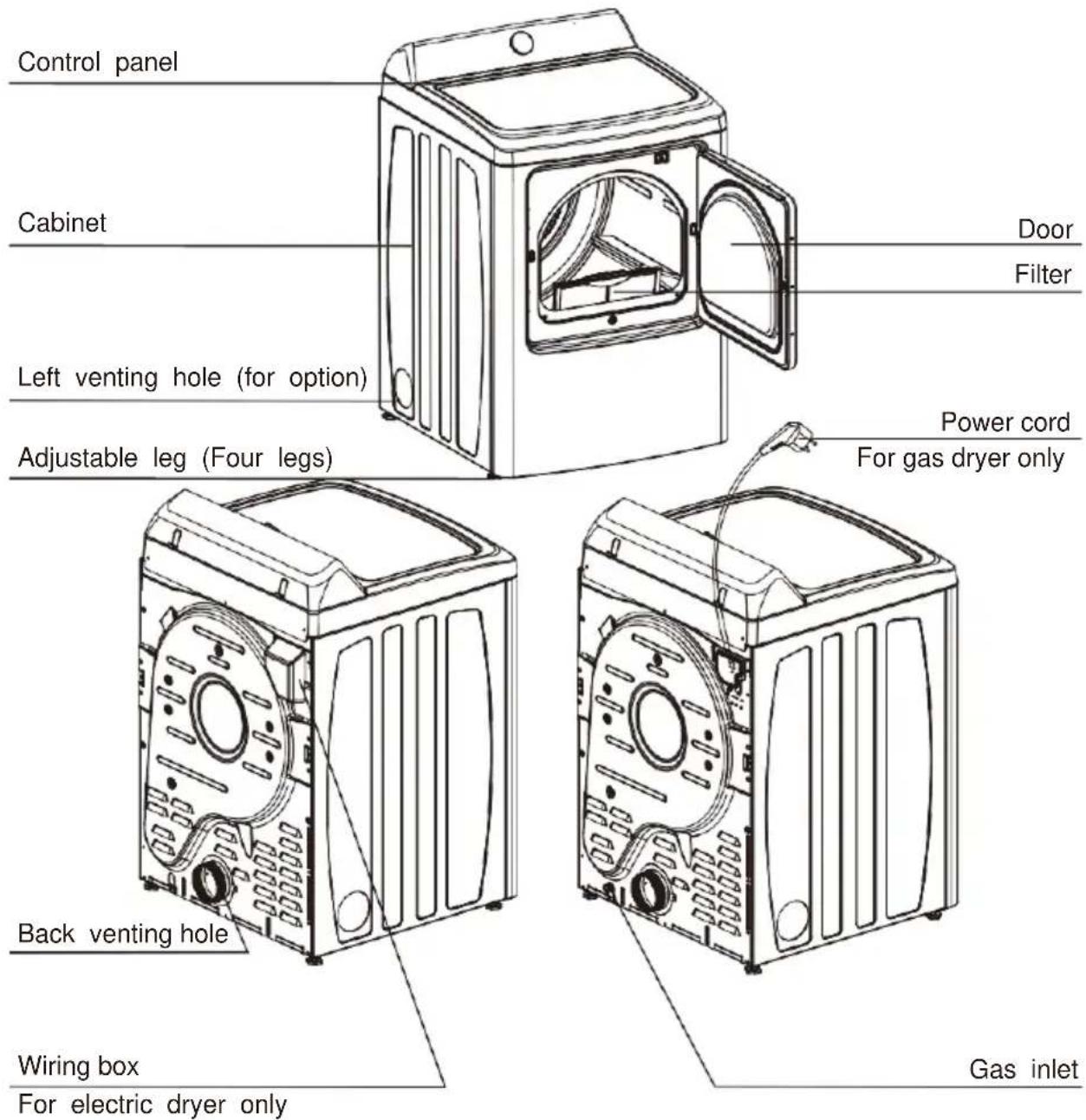

Control panel Cabinet Door Filter Left venting hole (for option) Adjustable leg (Four legs) Power cord For gas dryer only Gas inlet Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix20 Packaging materials can be dangerous to children; Keep all packaging material (plastic bags, polystyrene, etc.) well out of children’s reach. INSTALLATION INSTRUCTIONS For the proper installation, we recommend that you hire a qualified installer.

REMOVING FROM THE PACKAGE

• Unpack your dryer and inspect it for shipping damage. Make sure you have received all the items shown below.
• To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit. WARNING TOOLS REQUIRED

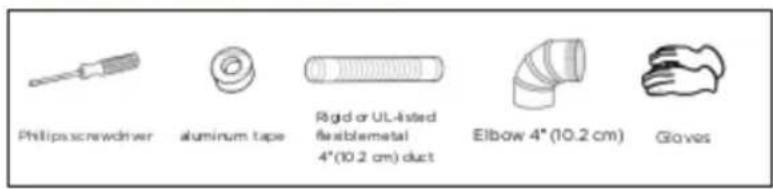

Phillips screwdriver Flat screwdriver Level Pliers

Adjustable wrench that opens to 1" (25 mm) aluminum tape Cutting knife Pipe wrench (gas only) Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix21

1. Move your dryer to an appropriate location for the installation.

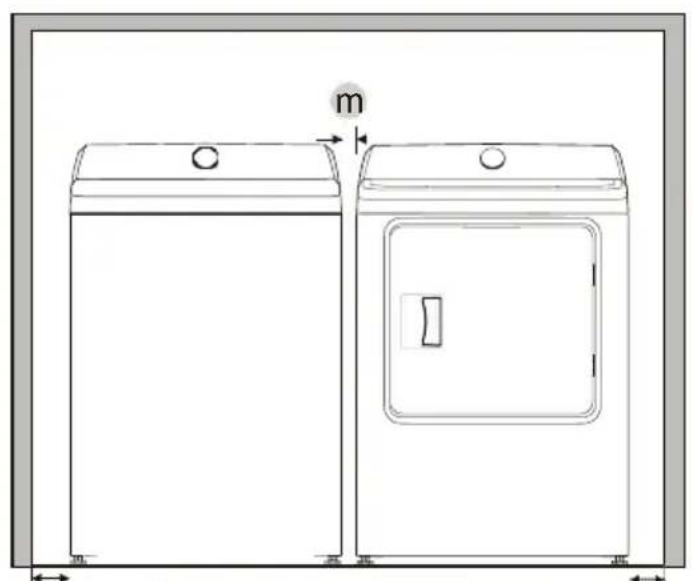

Consider installing the dryer and washer side-by-side, to allow access to the gas, electrical, and exhaust connections. Place two of the carton cushion-tops on the floor. Tip your dryer on its side so it lies across both cushion-tops.

2. Set your dryer back in an upright position.

INSTALL THE EXHAUST SYSTEM

1. Review the “Exhausting Requirements” section on before installing the

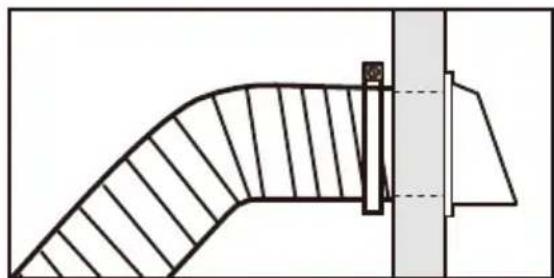

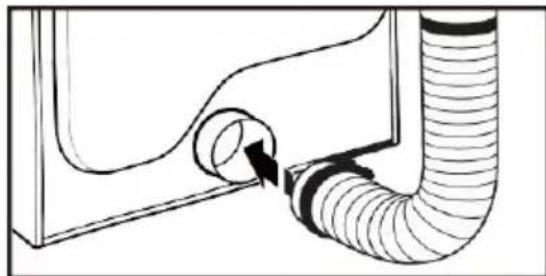

2. Install the ductwork from your dryer to the exhaust hood. The crimped

end of the duct sections must point away from your dryer.

3. DO NOT use sheet metal screws when assembling the ducting.

4. These joints should be taped.

5. Never use plastic flexible exhaust material.

6. Tip for tight installations: install a section of the exhaust system onto

your dryer before putting it in place.

7. Use aluminum tape to secure this section to your dryer, but do not

cover the ventilation slots at the back of the unit in dryer cabinet. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix22 WARNING Make sure your dryer is installed properly so it exhausts air easily. Keep ducts as straight as possible.

DO NOT restrict your dryer with a poor exhaust system.

DO NOT use unnecessarily long ducts that have many elbows.

Use a 4" (10.2 cm) diameter rigid metal duct. Tape all joints, including at the dryer. Never use lint-trapping screws. Clean all old ducts before installing your new dryer. Be sure the vent flap opens and closes freely. Inspect and clean the exhaust system annually. DO NOT use a plastic, thin foil, or non-metal flexible duct.

DO NOT use dented or clogged ducts and vent.

Duct exhaust Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix23

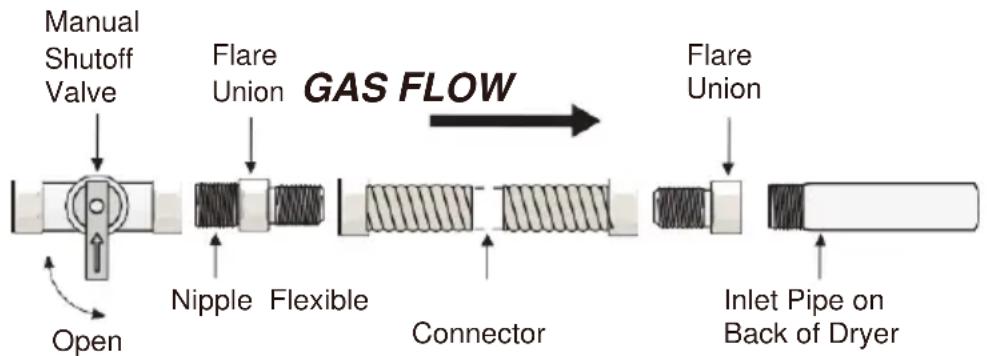

• All gas installations of the dryer must be equipped with Manual Shut- Off valve.

• Uncoated copper tubing will corrode when subjected to natural gas, causing gas leaks. Use ONLY black iron, stainless steel, or plastic- coated brass piping for gas supply.

• Check all gas connections for leaks using a soap solution.

• If bubbles appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks. CONNECT THE GAS LINE (FOR GAS MODELS) Review the “ Gas Requirements ” section on page 14. Remove the pipe thread protective cap. Apply a pipe joint compound or about 1 1/2" wraps of teflon tape over all threaded connections.

• The pipe joint compound must be resistant to the actions of any liquefied petroleum gas. Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9 cm) female thread end of a flexible connector to the 3/8" (1 cm) male threaded end on the dryer. Use only new AGA or CSA certified gas supply line with SS flexible connectors within 6 ft (1.8 m) of the dryer. Securely tighten the gas line fitting over the threads. Turn on the gas supply. Manual Shutoff Valve Flare Union GAS FLOW Flare Union

Open Nipple Flexible Connector Inlet Pipe on Back of Dryer All connections must be wrench-tightened

WARNING Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix24

If converting from a 4-wire electrical system to a 3-wire, the ground strap must be reconnected to the terminal block support to ground the dryer frame to the neutral conductor. Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.

Then choose a 3-wire power supply cord with ring or spade terminals and UL listed strain relief. The 3-wire power supply cord, at least 4 ft. (1.22 m) long, must have 3 10-gauge solid copper wires and match a 3-wire receptacle of NEMA Type 10-30R. 3-Wire receptacle (10-30R)

Wire system connections

1. Remove the center terminal block screw.

2. Connect the neutral wire (white or center wire) of the power cord to

the center terminal screw of the terminal block. Be sure to cross the screw through the ring of the power cord terminal and tighten the screw.

3. Connect the other wires to the outer terminal block screws. Be sure to

cross the screw through the terminal ring and tighten the screw.

4. Tighten the strain relief screws.

5. Insert the tab of the terminal block cover into your dryer’s rear panel

slot. Secure the cover with a screw. 3-wire system instructions: A Center terminal block screw B External ground connector C Neutral grounding wire (White) A D Neutral wire (white or center wire)

E 3/4" (1.9cm) UL-listed strain relief

WARNING Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix25

Then choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire power supply cord, at least 4 ft. (1.22 m) long, must have 4 10-gauge solid copper wires and match a 4-wire receptacle of NEMA Type 14- 30 R. The ground wire (ground conductor) may be 4-Wire receptacle (14-30R) either green or bare. The neutral conductor must be identified by a white color.

Wire system connections

1. Remove the center terminal block screw.

2. Connect the ground wire (green or unwrapped) of the power cord

to the external ground conductor screw.

3. Connect the neutral wire (white or center wire) of the power cord

and the appliance ground wire (white) under the center screw of the terminal block. Be sure to cross the screw through the ring of the power cord terminal and tighten the screw.

4. Connect the other wires to the outer terminal block screws. Be sure

to cross the screw through the terminal ring and tighten the screw.

5. Tighten the strain relief screws.

6. Insert the tab of the terminal block cover into your dryer’s rear

panel slot. Secure the cover with a screw.

4-wire system instructions: IMPORTANT: Ring-type terminals are recommended. If using strap terminals, make sure they are tightened. A Center terminal block screw B External ground connector C Green or bare copper wire of the power cord D Neutral grounding wire (White) E Neutral wire (white or center wire) F 3/4" (1.9cm) UL-listed strain relief

Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix26

WARNING Electrical Shock Hazard All U.S. models are produced for a 3-WIRE SYSTEM CONNECTION. The dryer frame is grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral conductor. If the 4-wire system is used, the dryer frame cannot be grounded to the neutral conductor at the terminal block. Refer to the “Electric Requirements” section on page 16 for 3-WIRE or 4-WIRE SYSTEM CONNECTIONS. Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the hose provided in the cabinet near the terminal block.

• A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure they are tight. Use a 3/8" (1 cm) deep-well socket. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix27

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure the gas supply to your dryer has been turned on. In order to confirm the gas ignition, check the exhaust for heat.

To ensure that the dryer provides the optimal drying performance, it must be leveled. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

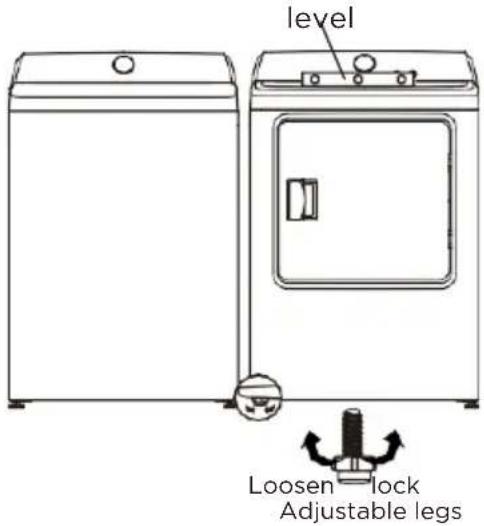

• Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate. level

Loosen lock POWER ON Adjustable legs Make sure all gas connections (Gas Models only), exhaust and electrical connections are complete. Plug in your dryer. FINAL CHECK

• Make sure the dryer is plugged into an electrical outlet and is properly grounded.

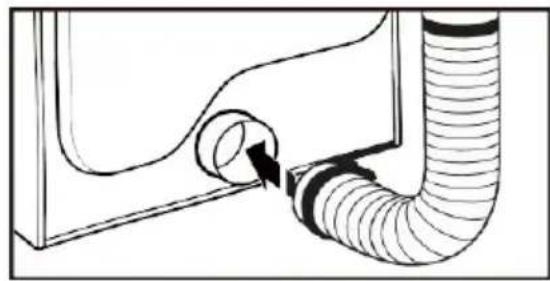

• The exhaust ductwork is hooked up and the joints are taped.

• A plastic flexible duct in NOT used.

• Use rigid or stiff-walled flexible metal vent material.

• The dryer is leveled and is sitting firmly on the floor.

• Gas models - the gas is turned on with no gas leakage.

• Start your dryer to confirm that it runs, heats, and shuts off. CAUTION Dryer Safety Dryer Use Dryer Care Troubleshooting Appendix28

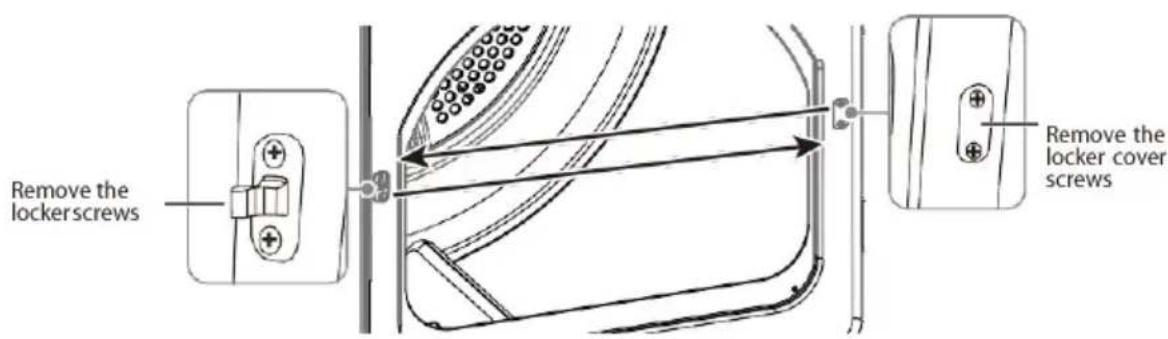

DOOR REVERSAL PROCEDURE

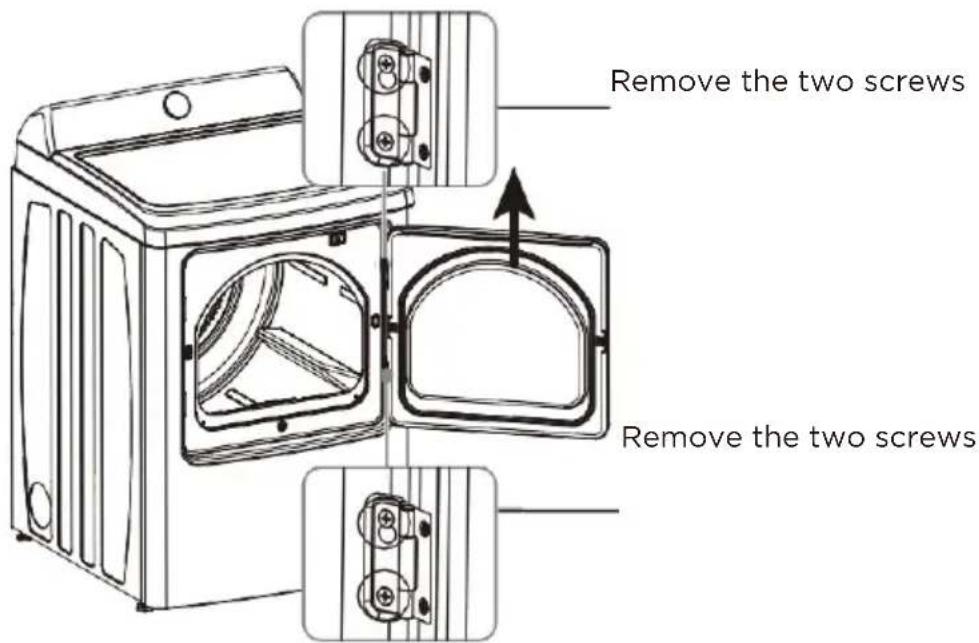

1 Make sure that the power ord is unplugged. 2 While supporting the door, remove he our hinge screws from the door, then lift the door to remove it and set the door aside.

Remove the two screws

Remove the two screws

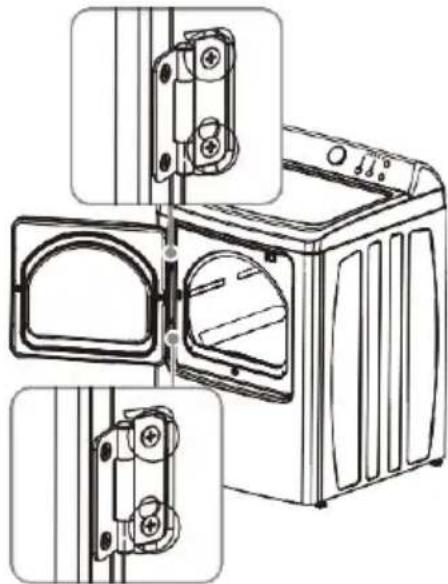

3 Remove the screws for the locker cover on the right side of the dryer and the screws for the locker cover on the left side of the dryer. 4 Install the locker onto the right side of the dryer with the screws you just removed, then install the locker cover on the left side of the dryer.

3-4 Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix29

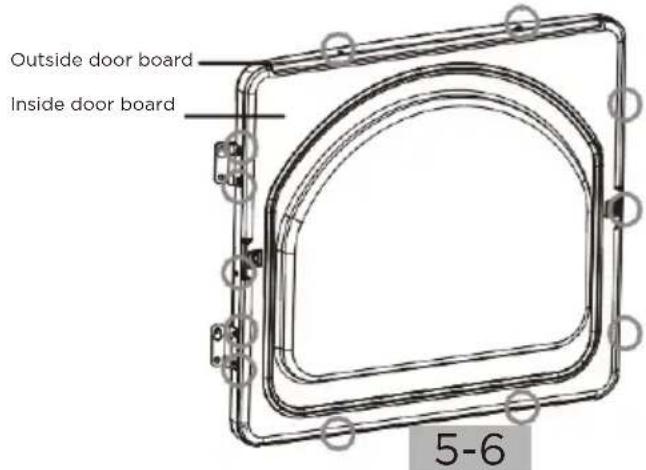

5 Remove the 12 screws around the door.

Pull the inside door board from the outside door board.

Outside door board Inside door board

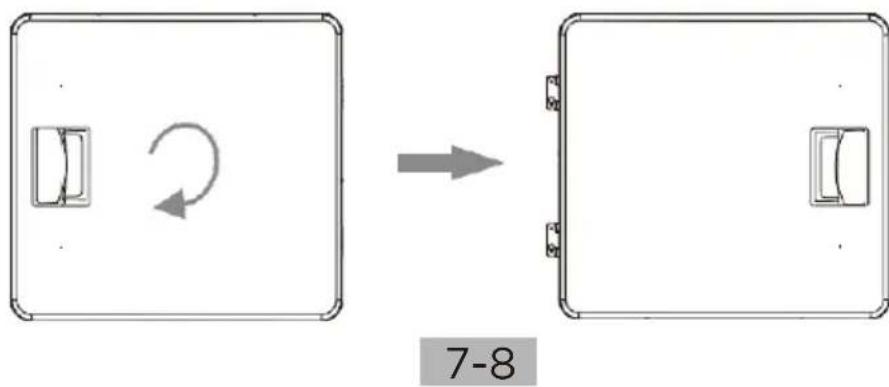

Rotate the outside door board 180°, then reassemble it with the inside door board with the screws you removed previously. 8 Install the hinges onto the left side of the dryer. 7-8 9 Align the hinges on the door with the hinge screw holes on the front of your dryer, then secure the door with the four screws you previously removed. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix33 DRYER USE CONTROL PANEL WARNING

Cycle selector Select your desired cycle for the type of load. The cycle you select determines the heat control for the cycle. The Normal, Heavy Duty, Bulky, Towels, Casual, Delicates and Sanitize cycles are Sensor Dry cycles. The Quick Dry, Air Fluff and Time Dry are Manual Dry cycles. Digital display Displays the time while you are pressing the Time Adjust +/ Time Adjust– to set the time for the Quick Dry, Time Dry and Air Fluff cycle. Displays the remaining cycle time while your dryer is running. Cycle status display The relative indicator Light will be flash when the dryer is in its drying program, other process indicators to be executed are lit. POWER Press to turn your dryer on or off. If your dryer is on for more than 10 minutes without any buttons being pressed, it automatically turns off.

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating the appliance. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix34

START/PAUSE Press to start or pause the program. You can’t change any setting except add a garment. Time Adjust +/Time Adjust– Press repeatedly to select the drying time. This button only works for the Quick Dry, Time Dry and Air Fluff cycles. Wrinkle Care Press once to add the Wrinkle Care step to the operating program. The “Wrinkle Care” indicator lit. Press again to cancel selection. Wrinkle Care provides approximately 90 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. The load is already dry, and can be removed at any time during the Wrinkle Care cycle. Damp Dry Signal This function is useful when you want to take some garments out for ironing. The unit will beep 6 times when the moisture in the clothes is good for ironing. At this time, you can take those garments out and continue drying the other by pressing the “START/PAUSE” button once. NOTE: The unit will not stop operating if you don’t take those garments out for ironing. Dryness Press the button to select the dryness level. Different dryness level will result in different drying time. For clothes to be ironed manually, a lower dryness level should be selected. Child Lock Press and hold the Dryness and Temp. buttons at the same time for three seconds to turn on the child lock function. Press and hold for three seconds to turn off the function. Whenthe child lock function is turned on, the only button that works is the POWER button . Temp. Press the button to select the drying temperature. High - For sturdy cottons or those labeled Tumble Dry. Medium - For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry Medium. Low - For lower heat than Medium to dry synthetic or washable knit fabrics. No Heat - Provides just the air cycle without any heat.

Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix35

1. Power on your dryer.

• Press this Power button to power your dryer on.

• The “Clean Filter” light in the process bar will flash 10 times when your dryer is powered on

• You should clean the filter before the dryer is loaded.

• Place only one wash load in your dryer at a time.

• Mixed loads of heavy and light weight fabrics will dry differently, which may result in lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying cycle.

• Add one or more similar items to your dryer when only one or two articles of clothing need drying. This improves the tumbling action and drying efficiency.

• Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics.

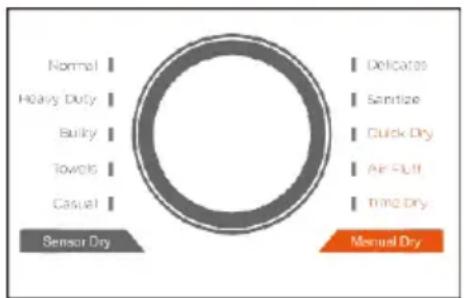

3. Select the appropriate cycle and options for the load.

• Select the appropriate cycle by Cycle Selector according to the cycle chart on page 36.

• Select the appropriate optional function by buttons according to the chart on page 36.

4. Start your dryer.

Pressing START/PAUSE button will start the selected cycle. To PAUSE cycle press START/PAUSE button then open the door. To resume operation after closing the door always press START/PAUSE. Opening the door during the operation will instantly stop operation and will require to press START/ PAUSE button to resume operation. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix36 Cycle Fabric type Temp. Dry Level Wrinkle Care Damp Dry Signal TIME ADJUST Default time Wet load max amount Normal ● Cotton ● Under wear ● Linen Medium More Dry

Normal Dry Less Dry Damp Dry Heavy Duty ● Jeans ● Corduroys ● Work clothes High More Dry

Normal Dry Less Dry Damp Dry Bulky ● Blankets ● Sheets ● Comforters Medium More Dry

Normal Dry Less Dry Damp Dry Towels ● Towels ● Heavy cottons High More Dry

Normal Dry Less Dry Damp Dry Casual ● Wrinkle-free cottons ● Synthetic fabrics ● knits Medium More Dry

Normal Dry Less Dry Damp Dry Delicates ● Sensitive items Low More Dry

Normal Dry Less Dry Damp Dry Sanitize ● Towels ● Bedding ● Children’s clothing

Medium Low No Heat Time Dry

• Table in grey is an initial setting. “Y” are all optional functions you can select.
• For even better drying effect, please select higher dryness level. * FOLLOW GARMENTS LABELS REQUIREMENTS Load Size Recommendations: For best results, follow the wet load size recommendations noted for each cycle. Small load: Fill the dryer drum with 3-4 items, not more than 1/4 full. Medium load: Fill the dryer drum up to about 1/2 full. Large load: Fill the dryer drum up to about 3/4 full. Do not overload. Items need to tumble freely. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix37

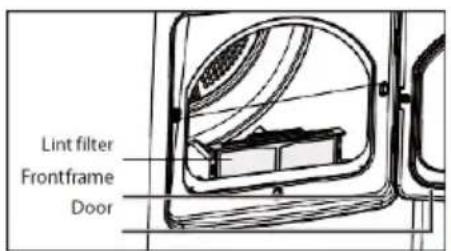

• Do not operate your dryer without the lint filter in place.

• Do not use a damage or broken lint filter. This may reduce performance and/or cause fire.

5. Unloading your laundry.

• The dryer will beep 6 times after the cycle is done. Child Lock

This function is useful to prevent children from playing with the unit.

• Press and hold the “Dryness” and “Temp.” buttons simultaneously for 3 seconds to activate this function. The “Child Lock” light will turn ON.

• Press and hold the “Dryness” and “Temp.” buttons simultaneously again for 3 seconds to deactivate this function. The “ Child Lock ” light will turn OFF.

• When this function is activated, all functions will be out of function except the POWER button and DEACTIVATE function above.

You can Power ON your unit and set this function then Power OFF . When you do so, even if the unit is powered on, you still cannot start it before the Child Lock function is deactivated.

• This function will be cancelled automatically if your unit loses power, such as unplug the unit, power supply out of service, etc. FILTER CLEAN

To prevent a risk of fire, make sure to clean the lint filter before or after every load.

• To shorten drying time.

• To operate more energy efficiently.

Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix38

Please follow the care label or manufacturer’s instructions for drying special items. If care label instructions are not available, use the following information as a guide. Items Drying guide Bedspreads & Comforters

• Follow the care label instructions or dry in Heavy Duty cycle.

• Make sure the item is thoroughly dry before using or storing.

• May require repositioning to ensure even drying. Blankets

• Use the Normal cycle and dry only one blanket at a time for best tumbling action.

• Make sure the item is thoroughly dry before using or storing.

• May require repositioning to ensure even drying. Curtains & Draperies

• Use the Casual cycle, medium temperature and less dry to help minimize wrinkling.

• Dry these in small loads for best results and remove as soon as possible. Cloth Diapers

• Use the Normal cycle on High temperature for soft fluffy diapers. Down Filled Items (jackets, sleeping bags, comforters, etc.)

• Use the Normal cycle on High temperature.

• Add a couple of dry towels to shorten drying time and absorb moisture. Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)

• DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).

Drying a rubber item with heat may damage it or create a fire hazard. Pillows

• Use the Normal cycle.

• Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to fluff the item. DO NOT dry kapok or foam pillows in the dryer. You can dry these items in the dryer as long as you use the air fluff cycle. Plastics (shower curtains, outdoor furniture covers, etc.)

• Use the Air fluff cycle or the Time Dry cycle on the Low temperature setting depending on the care label instructions. Items NOT to dry:

• Fiberglass items (curtains, draperies, etc.)

• Woolens, unless recommended on the label.

• Items spotted or soaked with vegetable or cooking oils. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix39

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel – Do not contact the following parts while the appliance is energized: inlet valve, control board and temperature-regulating thermistor (located on blower housing). DRYER CARE WARNING

CLEANING AND MAINTENANCE

• Clean with a soft, damp cloth. Do not use abrasive substances.

• Do not spray cleaners directly on the panel.

• The control panel finish may be damaged by some laundry pre- treatment soil and stain remover products. Apply such products away from your dryer and wipe up any spills or overspray immediately.

STAINLESS STEEL OR ANODIZED DRUM

• To clean the stainless steel or anodized drum, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel and anodized surfaces.

• Remove the cleaner residue and dry with a clean cloth. DRYER EXTERIOR

• Clean with a soft, damp cloth. Do not use abrasive substances.

• Protect the surface from sharp objects.

• Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased pedestal or in a separate storage box. This may scratch or damage the top cover of the dryer.

• Since the entire dryer has a high-gloss finish, the surface can be scratched or damaged.

• Avoid scratching or damaging the surface when using the dryer.

DRYER EXHAUST SYSTEM

• Should be inspected and cleaned yearly to maintain optimum performance.

• Disconnect the exhaust duct from the dryer and from the exhaust hood (at the exhaust outlet) outside of the building.

• Check the interior of the duct and remove any lint accumulation.

• Be sure that lint is removed from the exhaust hood. Lint may collect in the exhaust hood so that the flappers or louvers will not open or close completely. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix40

• After cleaning the exhaust hood, check that the flapper or louvers move freely.

• Reassemble the exhaust duct and hood, checking that the joints are secure and sealed.

• Operate the dryer and verify that the exhaust air is not obstructed in the vent and that there are no leaks in the system.

• The outside exhaust hood should be cleaned more frequently to ensure proper operation. TROUBLESHOOTING CHECK THESE SOLUTIONS IF YOUR DRYER... If your dryer has any problems as followings, you can check as the solutions listed below before making a service call. This will help you save time and money. Problem Solution The unit doesn’t start.

• Make sure the door is latched shut.

• Be sure the power cord is plugged into a live electrical outlet.

• Check the home’s circuit breaker and fuses.

• Press the Start/Pause button again if the door is opened during the cycle. The unit doesn’t heat.

• Check the home’s circuit breaker and fuses.

• Select a heat setting other than Air fluff and the Temp selection is not on “No heat”

• On a gas dryer, check that the gas supply is on.

• Clean the lint filter and exhaust duct.

• Dryer may have moved into the cool-down process of the cycle. Doesn’t dry.

• Check all of the above, plus...

• Be sure the exhaust hood outside the home can open and close freely.

• Check exhaust system for lint buildup. Ducting should be inspected and cleaned annually.

• Use a 4" rigid metal exhaust duct.

• Do not overload. 1 wash load = 1 dry load.

• Sort heavy items from lightweight items.

• Large, bulky items like blankets or comforters may require repositioning to ensure even drying.

• Load may be too small to tumble properly. Add a few towels.

Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix41

Problem Solution The unit is noisy.

• Check the load for objects such as coins, loose buttons, nails, broken zips, etc. Remove promptly.

• It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle.

• Be sure the dryer is leveled properly as outlined in the installation instruction.

• It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system. Clothes are unevenly dried.

• Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. Select the Extra Dry setting if desired.

• If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level. Sort heavy items from lightweight items for best drying results. Shuts off before load is dry.

• Dryer load is too small. Add more items or a few towels and restart the cycle.

• Dryer load is too large. Remove some items and restart the dryer. The unit has a special odor.

• Household odors from painting, varnishing, strong cleaners, etc. may enter the dryer with surrounding room air. This is normal as the dryer draws the air from surrounding air space of the dryer locations.

• When these odors linger in the air, ventilate the room completely before using the dryer. Odors remain in clothing after refresh

• Fabrics containing strong odors should be washed utilizing desired wash cycle. Garments still wrinkled after Wrinkle- prevent

• Small loads of 1 to 4 items work best.

• Load fewer garments. Load similar-type garments. Lint on clothes

• Clean lint filter before every cycle.

• Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they should be dried separately from clothes that are lint trappers (for example, a pair of lack linen pants).

• Divide larger loads into smaller loads for drying.

• Check pockets thoroughly before washing and drying clothes.

Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix42

Call the service center for help do not use dryer.

The humidity sensor failed. The unit will complete the current operating cycle but garments could be over dried. The unit can still operate under the Time Cycles. Call the service center for help.

The temperature sensor failed. Call the service center for help do not use dryer. Error Code Possible Cause Solutions Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Dryer Care Troubleshooting Appendix44

WARRANTY Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service center for repair.

LIMITED FIVE YEAR WARRANTY ON PLASTIC TUB After one year and until five years from the date of purchase, Avanti Products will furnish a replacement plastic tub, for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of the consumer. LIMITED SEVEN YEAR WARRANTY ON STAINLESS STEEL TUB After one year and until seven years from the date of purchase, Avanti Products will furnish a replacement plastic tub, for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of the consumer.

WARRANTY EXCLUSIONS / WHAT IS NOT COVERED: The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following: A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations. Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God. Shipping and handling costs associated with the replacement of the unit. Repairs performed by unauthorized servicers. Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God. Failure of the product if it is used for other than it intended purpose. The warranty does not apply outside the Continental USA. Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas. In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.

OUT OF WARRANTY PRODUCT

Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired. Warranty – Washing Machines45

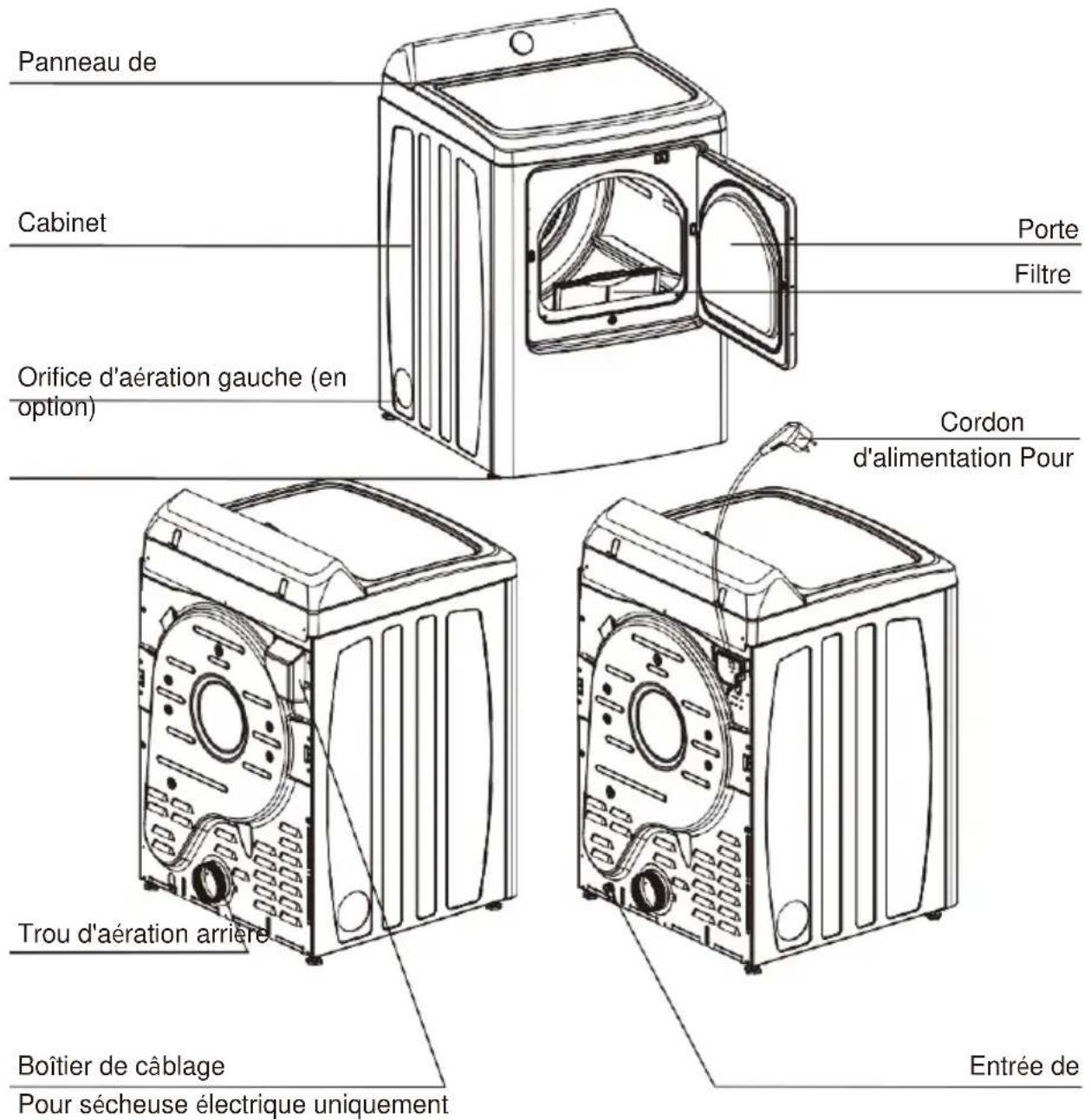

PIÈ CES ET CARACTÉ RISTIQUES

Registration Information Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits: Avanti Products LLC 3265 Meridian Pkwy # 114 – Weston, Florida 33331 Protect your product: We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft. Promote better products: We value your input. Your responses will help us develop products designed to best meet your future needs. -------------------------------------------------------(detach here)-------------------------------------------------------- Avanti Registration Card

Address Date Purchased Store / Dealer Name

City State Zip E-mail Address

Did You Purchase An Additional Warranty As your Primary Residence, Do You: Extended Own Rent None

Your Age: Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product: under 18 18-25 26-30 31-35 36-50 over 50 Marital Status: Married Single Price Product Features Avanti Reputation Product Quality Salesperson Recommendation Other: ___________________ Friend / Relative Recommendation Warranty Other: ___________________

Is This Product Used In The: Home Business How Did You Learn About This Product: Advertising In-Store Demo Personal Demo Comments:142
