USER MANUAL MOTR14K3SIS Avanti

Simple line drawing of a rectangular container with a curved top and bottom edge (no text or symbols)

MODEL / MODELO / MODÈLE: MOTR14K3S-IS

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC P.O. Box 520604 Miami, Florida 33152 www.avantiproducts.com

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:
① Door (bent),
② Hinges and latches (broken or loosened),
③ Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY	2
Help Us Help You	3
Important Safety Instructions	4 – 5
Unpacking Instructions	6
Electrical Connection / Grounding Instructions	6
Information You Need to Know	7 – 9
Specifications	10
Parts and Features	10
Control Panel Features	10
Basic ControlsSetting the ClockSetting the TimerEco ModeChild LockLight ControlVent Control	11 – 12
Microwave Cooking / Other Convenient FeaturesMicrowave CookingAdd 30 SecondsMulti-Stage CookingAuto Cook ProgramsKids MealsWeight DefrostAuto Defrost	13 – 16
Cleaning and Maintenance	16 – 17
Troubleshooting Guide	18
Service For Your Appliance	18
Your Product Warranty	19
Instruccionesen Español	20 – 38
Instructions enFrances	39 – 57
Product Registration	LastPage
HELP US HELP YOU...
Read this guide carefully.It is intended to help you operate and maintain your new appliance properly.Keep it handy to answer your questions. If you don't understand something or you need more help, please call:Avanti Customer Service800-220-5570Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.	Writedown the model and serial numbers.You'll find them on a plate located on the rear outside wall of the appliance.Please write these numbers here:Date of PurchaseModel NumberSerial NumberUse these numbers in any correspondence or service calls concerning your appliance.If you received a damaged appliance, immediately contact the dealer (or builder) that sold you the appliance.Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.
CAUTION:THIS APPLIANCE IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.
IF YOU NEED SERVICE
We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.FIRST, contact the people who serviced	NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:Customer Service Avanti Products

your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

P.O. Box 520604 Miami, FL 33152 USA

WARNING - To reduce the risk of burns, electric shock, fire, and injury to persons or exposure to excessive microwave energy:

IMPORTANT SAFETY INSTRUCTIONS

• Read all instructions before using the appliance.
• Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page1.
• This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" on page 4.
  • Install or locate this appliance only in accordance with the provided installation instructions.
• Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven.
• Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary when used by children.
  • To reduce the risk of fire in the oven cavity:

- Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

- Remove wire twist-ties from paper or plastic bags before placing bag in oven.

- If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel.

- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

- Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THEIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to person:

- Do not overheat the liquid.

- Stir the liquid both before and halfway through heating it.

- Do not use straight-sided containers with narrow necks.

- After heating, allow the container to stand in the microwave oven for a short time before removing the container.

- Use extreme care when inserting a spoon or other utensil into the container.

- Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven.

- Do not cover or block any openings on the appliance.

- Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

- Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly or if it has been damaged or dropped.

- Do not immerse cord or plug in water. Keep cord away from heated surface. Do not let cord hang over edge of table or counter.

- Use only thermometers, which are specifically designed for use in microwave ovens.

- This appliance should be serviced only by qualified service personnel, contact nearest authorized service facility for examination, repair, or adjustment.

- When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

- This equipment has been tested and found to comply with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

• VENTILATING HOODS

- Clean Ventilating Hoods Frequently-Grease should not be allowed to accumulate on hood or filter.

- When flaming foods under the hood, turn the fan on.

- Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter.

• Suitable for use above both gas and electric cooking equipment.

- This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

SAVE THESE INSTRUCTIONS

UNPACKING INSTRUCTIONS

Carefully remove oven from carton.

SAVE THE CARTON AS IT MAY MAKE INSTALLATION EASIER.

Remove:

1. All packing materials from inside the oven cavity; however, DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the side in the oven cavity. Check to see that there are Installation Instructions, Wall Template, Top Cabinet Template, bag of Installation Hardware, Charcoal Filter and Exhaust Damper Assembly. Read enclosures and SAVE the Owner's Instructions.
2. The feature sticker from the outside of the door, if there is one.

Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact your dealer.

See Installation Instruction for more details.

ELECTRICAL CONNECTION / GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING- Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

Electrical Requirements

The electrical requirements are a 120 volt 60 Hz, AC only, 20 amp. It is recommended that a separate circuit serving only the oven be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.

Power Supply Cord

1. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If long cord or extension cord is used :

a) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
b) The extension cord must be a grounding-type 3-wire cord, and the longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally.

INFORMATION YOU NEED TO KNOW

ABOUT YOUR OVEN

NEVER use the oven without the turntable and support nor turn the turntable over so that a large dish could be placed in the oven. The turntable will turn both clockwise and anticlockwise.

ALWAYS have food in the oven when it is on to absorb the microwave energy.

When using the oven at power levels below 100%, you may hear the magnetron cycling on and off.

Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will influence the amount of moisture that condenses in the oven.

Generally, covered foods will not cause as much condensation as uncovered ones. Ventilation openings must not be blocked.

In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly.

ABOUT MICROWAVE COOKING

Arrange food carefully. Place thickest areas towards outside of dish.

• Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
• Cover foods while cooking. Check recipe or cookbook for suggestions: paper towels, wax paper, microwave plastic wrap or a lid. Covers prevent spattering and help foods to cook evenly.
• Shield with small flat pieces of aluminum foil any thin areas of meat or poultry to prevent overcooking before dense, thick areas are cooked thoroughly.
• Stir foods from outside to center of dish once or twice during cooking, if possible.
• Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.
• Add standing time. Remove food from oven and stir, if possible. Cover for

standing time that allows the food to finish cooking without overcooking.

• Check for doneness. Look for signs indicating that cooking temperatures have been reached.

• Doneness signs include:

• Food steams throughout, not just at edge.

• Center bottom of dish is very hot to the touch.
• Poultry thigh joins move easily.
• Meat and poultry show no pinkness.
• Fish is opaque and flakes easily with a fork.

ABOUT CHILDREN AND THE MICROWAVE

• Children below the age of 7 should use the microwave oven with a supervising person very near to them. Between the ages of 7 and 12, the supervising person should be in the same room.
• The children must be able to reach the oven comfortably; if not, he/she should stand on a sturdy stool.
• At no time should anyone be allowed to lean or swing on the oven door.
• Children should be taught all safety precautions; use potholders, remove coverings carefully and pay special attention to packages that crisp food because they may be extra hot.
• Don't assume that because a child has mastered one cooking skill he/she can cook everything.
• Children need to learn that the microwave oven is not a toy.

ABOUT FOOD

FOOD DO DON'T
Eggs, sausages, fruits & vegetables	· Puncture egg yolks before cooking to prevent “explosion”. · Pierce skins of potatoes, apples, squash, hot dogs and sausages so that steam escapes.	· Cook egg in shells. · Reheat whole eggs.
Popcorn	· Use specially bagged popcorn for the microwave oven. · Listen while popping corn for the popping to slow to 1 or 2 seconds or use special Popcorn pad.	· Pop popcorn in regular brown bags or glass bowls. · Exceed maximum time on popcorn package.
Baby food	· Transfer baby food to small dish and heat carefully, stirring often. Check temperature before serving. · Put nipples on bottles after heating and shake thoroughly. “Wrist” test before feeding.	· Heat disposable bottles. · Heat bottles with nipples on. · Heat baby food in original jars.
General	· Cut baked goods with filling after heating to release steam and avoid burns. · Stir liquids briskly before and after heating to avoid “eruption”. · Use deep bowl, when cooking liquids or cereals, to prevent boilovers.	· Heat or cook in closed glass jars or airtight containers. · Can in the microwave as harmful bacteria may not be destroyed. · Deep fat fry. · Dry wood, gourds, herbs or wet papers.

ABOUT SAFETY

Check foods to see that they are cooked to the following recommended temperatures.

TEMP FOOD
160°F	...for fresh pork, ground meat, boneless white poultry, fish, seafood, egg dishes and frozen prepared food.
165°F	...for leftover, ready-to-reheat refrigerated, and deli and carry-out “fresh” food.
170°F	...white meat of poultry.
180°F	...dark meat of poultry.

- To test for doneness, insert a meat thermometer in a thick or dense area away from fat of bone.

NEVER leave the thermometer in the food during cooking, unless it is approved for microwave oven use.

• ALWAYS use potholders to prevent burns when handling utensils that are in contact with hot food. Enough heat from the food can transfer through utensils to cause skin burns.
• Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish's covering and carefully open popcorn and oven cooking bags away from the face.
• Stay near the oven while it's in use and check cooking progress frequently so that there is no chance of overcooking food.
  • NEVER use the cavity for storing cookbooks or other items.
• Select, store and handle food carefully to preserve its high quality and minimize the spread of food borne bacteria.
• Keep waveguide cover clean. Food residue can cause arcing and/or fires.
• Use care when removing items from the oven so that utensil, your clothes or accessories do not touch the safety door latches.

ABOUT UTENSILS AND COVERINGS

It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new microwave oven. Make sure the utensil

does not touch the interior walls during cooking.

Use these utensils for safe microwave cooking and reheating

• glass ceramic plastics
• heat-resistant glass
• microwave-safe
  • paper plates porcelain
• microwave-safe pottery, stoneware and
• browning dish

These items can be used for short time reheating of foods that have little fat or sugar in them:

- wood, straw, wicker

DO NOT USE

• metal pans and bake ware

• dishes with metallic trim

• non-heat-resistant glass

• non-microwave-safe plastic

• recycled paper bags

- food storage bags

- metal twist-ties

Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.

The following coverings are ideal:

• Paper towels are good for covering foods for reheating and absorbing fat while cooking bacon.
• Wax paper can be used for cooking and reheating.
• Plastic wrap that is specially marked for microwave use can be used for cooking and reheating. DO NOT allow plastic wrap to touch food. Vent so steam can escape.
• Lids that are microwave-safe are a good choice because heat is kept near the food to hasten cooking.
• Oven cooking bags are good for large meats or foods that need tenderizing. DO NOT use metal twist ties. Remember to slit bag so steam can escape.

How to use aluminum foil in your microwave oven:

• Small flat pieces of aluminum foil placed smoothly on the food can be used to shield areas that are either defrosting or cooking too quickly.
• Foil should not come closer than one inch to any surface of the oven.

ACCESSORIES There are many microwave accessories available for purchase. Evaluate carefully before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in determining correct doneness and assure you that foods have been cooked to safe temperatures. Galanz is not responsible for any damage to the oven when accessories are used

SPECIFICATIONS

Power Supply 120V 20AC 60Hz
Microwave	Power Consumption 1500W
	Output Power 1000W
	Frequency 2450MHz
Outside Dimensions 17		^1/_2''(H) × 23^7/_8''(W) × 16^11/_16''(D)
Cavity Dimensions 10		^13/_16''(H) × 15^5/_16''(W) × 15^1/_4''(D)
Oven Capacity 1.4Cu.Ft.
Cooking Uniformity		Turntable
Weight Approx. (net) 51.6lb

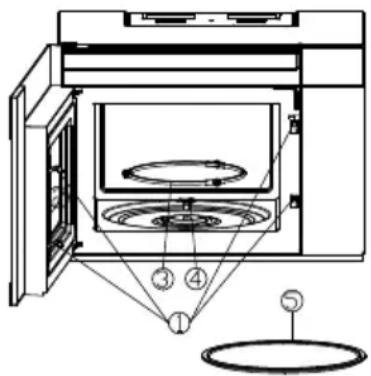

FEATURES DIAGRAM

Technical diagram of a microwave oven with labeled components and numbered parts

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Turntable Shaft

5. Glass Tray

CONTROL PANEL FEATURES

Display	Cooking time, power, indicators and clock time are displayed.
Auto Cook	Instant settings to cook popular foods.
Defrost	Used to set defrost program.
Kids Meals	Used to cook kid's meals.
Eco Mode	Used to set the power saving mode.
Vent 2 Speed	Press to turn the vent On/Off and to select the vent speed.
Light ON/OFF	Press to turn the surface light ON or OFF
Timer	Press to set timer function.
Clock	Used to set clock time.
Number Pads	Press to enter the cooking time, power level or food weight.
Power Level	Press to set cooking power level.
Time Cook	Used to set microwave cooking program.
Stop/Cancel	Press to stop cooking program.Press and hold for 3 seconds to set child lock.
Start / Add 30 Sec	Press to start cooking and defrosting programs.Simply press it a number of times to set cooking time and cook immediately at full power levelIt is used to add cooking time.

BASIC CONTROLS

Learn about your microwave oven.

CAUTION

• To avoid risk of personal injury or property damage, do not operation the microwave oven empty.
• To avoid risk of personal injury or property damage, do not use stoneware, aluminum foil, metal utensils, or mental trimmed utensils in the microwave oven.

Function description:

When the oven first plugged in, the display will show "12:00" and ":" flashing.
In the process of setting, broke about 1 minute the oven will return to standby mode.
During cooking, if press Stop/Cancel pad once or open the door, the program will be paused, then close the oven door, press Start/Add 30 Sec pad to resume, but if you press Stop/Cancel pad once at the pausing state, the program will be cancelled.
After cooking end, "END" will display, and the system will sound beeps to remind user every two minutes until user press Stop/Cancelpad or open the door.
In the process of operation, press a valid button, the buzzer rings once, but if press an invalid button, the buzzer rings twice.

Setting the Clock

Suppose you want to set the clock for 8:09.

1. In standby mode, pressClock pad once or twice to select 12 or 24 hour clock.
2. Press number pads 8, 0 and 9, the display will show "08:09".
3. PressClock pad to confirm.

NOTE: This is a 12 or 24 hour clock. "00:00" will display and two beeps will sound to remind user to re-enter the time, if you enter time is beyond the scope of clock when you set the clock. During cooking, you can check the current clock time by pressing CLOCK button.

Setting the Timer

1. In standby mode or during cooking, press Timer pad once.
2. Use the number pads to enter desired time. The longest time is 99 minutes and 99 seconds.
3. Press Timer pad to confirm.

NOTE: When the countdown ends, the buzzer will beep to remind you. Once you have set the timer function, in standby mode or during cooking, you can check the countdown by press Timerpad and you can press Stop/Cancel to cancel the timer function when the display shows timer time.

Eco Mode

To set: In standby mode, press Eco Mode pad once to enter the power saving mode. At this point, the display, outside lamp and exhaust fan are closed, press any pad, the oven will return to standby status, the display will normally show, but the oven cannot exit power saving mode. If there is not

any operation within 1 minute, the system automatically enters the power saving mode.

To cancel: After setting power saving mode, in standby mode, press Eco Mode pad once to cancel power saving mode and the oven will return to the previous settings state. And the oven cannot enter power save mode if there are not any operations within 1 minute.

Child Lock

Use to prevent unsupervised operation of the oven by little children.

To set: In standby mode, press and hold Stop/Cancel button for more than 3 seconds, then a beep will sound, the oven will auto enter child lock mode and the lock indicator light will turn on. In the lock state, all buttons are disabled.

To cancel: Press and hold Stop/Cancel button for more than 3 seconds, then a beep will sound and the indicator light will come off and the oven can be operated.

Light Control

This feature is designed for the convenience of doing things outside the oven. To turn on the light at the bottom of the oven, press Light On/Off pad:

Press Light On/Off button	Working Mode
Once	On
Twice	Off

Vent Fan Control

Your oven can be used as a range hood. When it is turned on, the fan motor starts filtering out smoke, odors, and grease generated from cooking.

In standby mode, the vent fan is manual control, press Vent 2 Speed pad to select the vent speed:

Press Vent 2 Speed button	Working Mode	Display
Once	Low wind	Vent .L
Twice	High Wind	Vent .H
3 times	Turn off	Put Out

NOTE: When cooking is started, the vent fan automatically works into a low wind gear. If not witched the wind gear by manual, after cooking for 18 minutes, the vent fan will work at low wind gear and the wind gear cannot be adjusted. After cooking end the fan auto stop working. If user switched the wind gear by manual before starting cooking, the vent fan will working with the wind gear you set, and the vent fan cannot be turned off during cooking.

Microwave cooking

1. In standby mode, press Time Cook pad once.
2. Use the number pads to enter cooking time. The longest time is 99 minutes and 59 seconds.
3. PressPower Level pad once, and then use the number pads to enter power level.
4. PressStart/Add 30 Sec pad to confirm.

Use number pad to choose cooking power level
Number pad	Percent (Display)	Number pad	Percent (Display)
1,0	100% (PL10)	4	40% (PL-4)
9	90% (PL-9)	3	30% (PL-3)
8	80% (PL-8)	2	20% (PL-2)
7	70% (PL-7)	1	10% (PL-1)
6	60% (PL-6)	0	0% (PL-0)
5	50% (PL-5)

NOTE: During cooking, you can press Power level pad to check the power level, and you can adjust the power level by pressing number pads when the display shows the power level.

OTHER CONVENIENT FEATURES

Add 30Sec

In standby mode, simply press the Start/Add 30 Sec pad once (Default cooking time is 30 seconds), the oven will start working automatically. During cooking, you can press Start/Add 30 Sec pad repeatedly to add cooking time, each press to increase 30 seconds, and up to 99 minutes and 59 seconds.

NOTE: During cooking (except auto cook menus and defrost), you can add cooking time by pressing the Start/Add 30 Sec during cooking.

Multi stage cooking

Your oven can be programmed for up to 2 microwave cooking sequences. Suppose you want to set the following cooking program.

1. In standby mode, input the first stage of microwave cooking.
   Do not pressStart/Add 30 Sec pad
2. Input the second stage of microwave cooking.
3. PressStart/Add 30 Sec to start.

NOTE: Auto cook menus, defrost and kids' meals cannot set in multi stage cooking program.

SPECIAL FEATURES

Auto cook

For foods such as Butter, Cheese, Ice cream and so on, it is not necessary to program the time and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight or servings of this food.

Pizza, Potato, Popcorn, Beverage, Cheese, Ice Cream, Butter.

1. In standby mode, press AUTO COOK pad repeatedly to select menu code "A-1", "A-2", "A-5", "A-6", "A-8", "A-9", "A-10".
2. Press number pad "1".
3. Press AUTO COOK pad once.
4. Use the number pads1\~4 to enter food weight or servings.

Press AUTO COOK	Menu	Code	Press Number Pad	Serving(Weight)
Once Pizza A-1			1 1(4 oz)
			2 2(8 oz)
			3 3(12 oz)
			4 4(16 oz)
Twice Potato A-2			1 1(8 oz)
			2 2(16 oz)
			3 3(24 oz)
			4 4(32 oz)
5 times Popcorn A-5			1 1(3.5 oz)
			2 2(3.0 oz)
6 times	Beverage	A-6	1 1(1 cup)
			2	2(2 cups)
			3	3(3 cups)
8 times	Cheese	A-8	1 1(4 oz)
			2 2(8 oz)
9 times	Ice cream	A-9	1 1(4 oz)
			2 2(8 oz)
10 times	Butter	A-10	1 1(4 oz)
			2 2(8 oz)

1. Press Start/Add 30 Secpad to start.

Meat, Reheat and Veggies

1. In standby mode, press AUTO COOK pad repeatedly to select menu code "A-3", "A-4" and "A-7".
2. Press number pad 1\~4 to select submenu.
3. Press AUTO COOK pad once.
4. Use the number pads to enter food weight or servings.

Press AUTO COOK	Menu	Code	Press Number Pad	Submenu	Press Number Pads	Serving (Weight)
3 times Meat A-3			1	Pork	0~9	4~32 oz
			2	Chops
			3	Ground Meat
			4	Chicken Piece
4 times	Reheat	A-4	1	Dinner Plate	1	1(8 oz)
					2	2(16 oz)
			2 Casserole		1	1(8 oz)
					2	2(16 oz)
					3	3(24 oz)
					4	4(32 oz)
			3 Pasta		1	1(8 oz)
					2	2(16 oz)
					3	3(24 oz)
					4	4(32 oz)
7 times	Veggies	A-7	1	Fresh Veggies	1	1(4 oz)
					2	2(8 oz)
					3	3(12 oz)
					4	4(16 oz)
			2	Frozen Veggies	1	1(4 oz)
					2	2(8 oz)
					3	3(12 oz)
					4	4(16 oz)

1. Press Start/Add 30 Sec pad to start.

Kids Meals

Using Kids Meals lets you heat common microwave-prepared foods without needing to program times and cook power.

For Hot dogs or Frozen sandwiches:

1. Press the Kids Meals pad once.
2. Press number pad "2 or 4" to choose Hot dogs or Frozen sandwiches.
3. Press Start/Add 30 Sec to confirm you choose.
4. Press Start/Add 30 Sec pad to start cooking.

For Chicken nuggets or Fresh fries:

1. Press the Kids Meals pad once.
2. Press number pad "1 or 3" to choose Chicken nuggets or Fresh fries.
3. Press Start/Add 30 Sec to confirm your choice. The display will show "4" and "START".
4. Press number pad "1 or 2" to choose the food weight (1 for 4 oz, 2 for 8 oz).
5. Press Start/Add 30 Sec pad to start cooking.

KIDS MEALS
Food	Press number pad	Serving/Weight
Chicken nuggets 1		4 oz
		8 oz
Hot dogs 2 1 serving
Fresh fries 3		4 oz
		8 oz
Frozen Sandwiches	4	1 serving

Weight Defrost

The defrosting time and power level are automatically set once the food weight is programmed. The frozen food weight ranges is 1\~96 oz.

1. In standby mode, pressDefrost pad twice.
2. Press number pads enter the food weight.
3. Press Start/Add 30 Sec pad to start.

NOTE: During defrosting, the oven will pause and sound beepto remind user to turn the food over, after that, press Start/Add 30 Secpad to resume.

Auto Defrost

The defrosting power is adjusted automatically once the cooking time is programmed.

1. In standby mode, pressDefrostpad once.
2. Press the number pads to enter defrosting time. The longest time is 99 minutes and 59 seconds.
3. Press Start/Add 30 Secpad to start.

NOTE: During defrosting, the oven will pause and sound beep to remind user to turn the food over, after that, press Start/Add 30 Secpad to resume.

CLEANING AND MAINTENANCE

Exterior

The outside surface is pre-coated steel and plastic. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner.

Door

Wipe the window on both sides with a damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a damp cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

Control Panel

Care should be taken in cleaning the press control panel. If the control panel becomes soiled, open the oven door before cleaning. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close door and press STOP/CANCEL.

Interior

Cleaning is easy because little heat is generated to the interior surfaces; therefore, there is no baking and setting of spills or spattering. To clean the interior surfaces, wipe with a soft cloth and warm water. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use baking soda or a mild soap; rinse thoroughly with hot water.

Waveguide Cover

The waveguide cover is on the right side of the cavity. It is made from mica so requires special care. Keep the waveguide cover clean to assure good oven performance. Carefully wipe with a damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire. DO NOT REMOVE THE WAVEGUIDE COVER.

Odor Removal

Occasionally, a cooking odor may remain in the oven. To remove, combine 1 cup water, grated peel and juice of 1 lemon and several whole cloves in a 2-cup glass measuring cup. Boil for several minutes using 100% power. Allow to set in oven until cool. Wipe interior with a soft cloth.

Turntable/Turntable Support

The turntable and turntable support can be removed for easy cleaning. Wash them in mild, sudsy water; for stubborn stains use a mild cleanser and non-abrasive scouring sponge as described above. They are also dishwasher-proof. Use upper rack of dishwasher. The turntable motor shaft is not sealed, so excess water or spills should be wiped up immediately.

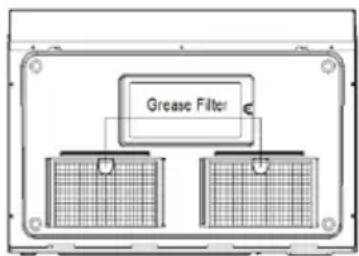

Grease Filters

Filters should be cleaned at least once a month. Never operate the fan or oven without the filters in place.

Pull down slightly on the tab toward the front of the oven and remove the filter. Repeat for the other filter.

Soak the filter in a sink or dish pan filled with hot water

Grease Filter

and detergent. DO NOT use ammonia or other alkali; they will react with the filter material and darken it.

Agitate and scrub with a brush to remove embedded dirt.

Rinse thoroughly and shake dry.

Replace by fitting the filter back into the opening.

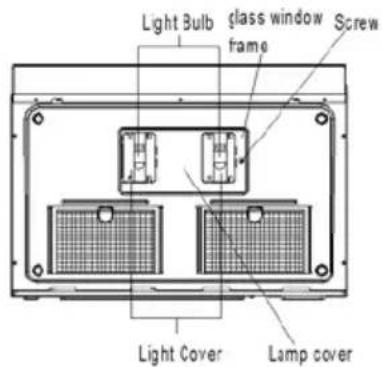

Light

• Unplug or Disconnect power.
• remove the screw on the glass window frame.
• Screw off the bulbs from the lamp sockets carefully and replace them.

DO NOT USE A BULB LARGER THAN 30 WATTS.

- Close glass window frame and secure with screw removed in step 2.

Light Bulb glass window Screw frame Light Cover Lamp cover

CAUTION: The light cover maybe very hot and please Do not touch the lamp cover when light is on.

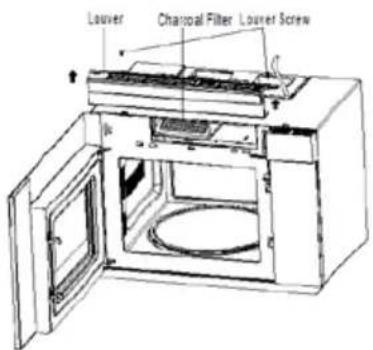

Charcoal Filter

Charcoal filter is used in a non-vented(recirculating) installation. The filter should be changed every 6 to 12 months depending on use.

• Unplug or Disconnect power.
• Using a Phillips screwdriver to remove the two screws from the shell top and panel.
• Open the door so you can lift the louver up to separate it from the oven.

- Change the charcoal filter.

- Carefully push the louver back into place and replace the screw remove in step 2. Light Cover Light Cover Screw

Lower Charcoal Filter Lower Screw

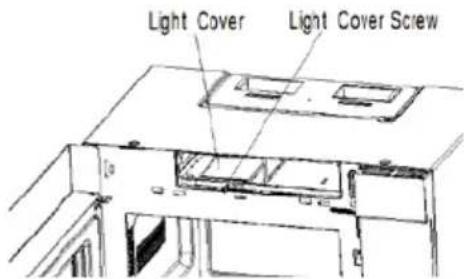

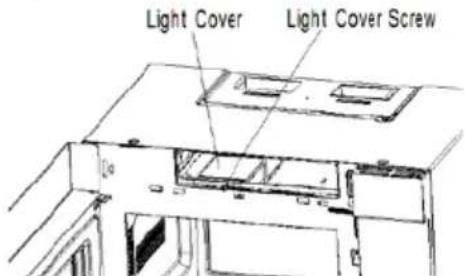

Oven Light

- According to the 1-3 step of changing charcoal filter, then take the filter out of the oven.

- Using a Phillips screwdriver to remove the light cover screw, then lift the cover up and take it out carefully.

- Screw off the bulb from the lamp socket carefully and replace it.

Light Cover Light Cover Screw

DO NOT USE A BULB LARGER THAN 30 WATTS.

- Replace the light cover, screw and the charcoal filter. Push the louver back into place and replace the louver mounting screws.

Troubleshooting

PROBLEM	POSSIBLE CAUSE(S)	SOLUTION
Oven will not start	Microwave oven power cord is not plugged into an electrical outlet.	Plug into a grounded 3 prong outlet.
	Door is open.	Close the door and try again.
	Wrong operation is set.	Check instruction.
Arcing or sparking	Materials to be avoided in microwave oven are used.	Use microwave-safe cookware only.
	Theovenisoperatedwhen empty.	Donotoperatewithoven empty.
	Spilled food remains in the oven cavity.	Clean oven cavity with a damp cloth and dry thoroughly. See “Cleaning.”
Unevenly cooked foods	Materials to be avoided in microwave oven are used.	Use microwave-safe cookware only.
	Food is not defrosted completely.	Completely defrost food.
	Cooking time, power level is not suitable.	Use correct cooking time, power level.
	Food is not turned or stirred.	Turn or stir food.
Overcooked foods	Cooking time, power level is not suitable.	Use correct cooking time, power level.
Undercooked foods	Materials to be avoided in microwave oven are used.	Use microwave-safe cookware only.
	Food is not defrosted completely.	Completely defrost food.
	Ovenventilationportsare restricted.	Check to see that oven ventilationportsarenot restricted.
	Cooking time, power level is not suitable.	Use correct cooking time, power level.
Improper defrosting	Materials to be avoided in microwave oven are used	Use microwave-safe cookware only.
	Cooking time, power level is not suitable.	Use correct cooking time, power level.
SERVICE FOR YOUR APPLIANCE
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance the Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information800-323 5029	Whatever your questions are about our products, help is available.
Part Orders800-220 5570	You may order parts and accessories that will be delivered directly to your home.You may order these items by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220 5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.
YOUR AVANTI PRODUCTS WARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED – LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
LIMITED TWO YEAR WARRANTYDuring the second year of use, Avanti Products will furnish, as needed a replacement part at no charge in exchange for any original part, which fails due to a defect in material or workmanship. All labor and transportation charges are the responsibility of the consumer.LIMITED SEVEN YEAR WARRANTYFor an additional 6-year period beyond the first year of the general coverage of this warranty, Avanti Products will replace a magnetron tube, which fails due to a defect in material or workmanship. All labor and transportation charges are the responsibility of the consumer.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Content losses of food or other content due to spoilage.Incidental or consequential damagesParts and labor costs for the		Shipping and handling costs associated with the replacement of the unit.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate

following will not be considered as warranty:Light bulbs and/or plastic housing.Plastic cabinet liners.

electrical power, accidents, fire, floods, or any other acts of God.Failure of the product if it is used for other than it intended purpose.The warranty does not apply outside the Continental USA.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.

In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.

OUT OF WARRANTY PRODUCT

Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.

Technical diagram of a microwave oven with numbered components for identification

Light Bulb glass window frame Screw Light Cover Lamp cover

Lower Charcoal Filter Lower Screw

Light Cover Light Cover Screw

Technical diagram of a microwave oven with numbered components for identification

Support de plaque tournante / plaque tournante

Light Bulb glass window frame Screw Light Cover Lamp cover

Lower Charcoal Filter Lower Screw

Light Cover Light Cover Screw

Dépannage

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products LLC

P.O. Box 520604

Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

▶ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

----(detach here)----

Avanti Registration Card

Name	Model Serial #	#
Address	Date Purchased Dealer Name	Store /
City Zip State	E-mail Address
Area Code Phone Number Did You Purchase An Additional Warranty	Occupation As your Primary Residence, Do You:

□ Extended
□ None
Reason for Choosing This Avanti Product:
Please indicate the most important factors
That influenced your decision to purchase this product:
□ Price
□ Product Features
□ Avanti Reputation
□ Product Quality
□ Salesperson Recommendation
□ Other:
□ Friend / Relative
Recommendation
□ Warranty
□ Other:
Comments:

□ Own □ Rent

Your Age:

□ under 18	□ 18-25	□
26-30
□ 31-35	□ 36-50	□
over 50
Marital Status:
□ Married□ Single

Is This Product Used In The:

□

Home□

Business

How Did You Learn About This Product:

□	Advertising
□	In-Store Demo
□	Personal Demo

MOTR14K3S-IS 06/02/2021

PRINTED IN CHINA
