Product Type	Countertop Oven
Brand	Avanti
Model	TD-25
Dimensions (W x D x H)	20 x 16 x 12 inches
Weight	25 lbs
Power Source	120V AC, 60Hz
Wattage	1500W
Capacity	0.6 cu ft
Temperature Range	200°F - 450°F (93°C - 232°C)
Control Type	Dial controls
Timer	60-minute mechanical timer with bell
Functions	Bake, Broil, Toast, Keep Warm
Interior Light	Yes
Rack Positions	2
Crumb Tray	Removable, easy to clean
Safety Features	Automatic shut-off, cool-touch handle, overheat protection
Cleaning	Wipe interior and exterior with damp cloth; do not use abrasive cleaners
Replacement Parts	Heating elements and glass door available from manufacturer
Warranty	1 year limited
Included Accessories	Baking pan, wire rack

Frequently Asked Questions - TD-25 Avanti

How do I set the timer on my Avanti TD-25 oven?

Turn the timer knob clockwise to the desired time (up to 60 minutes). The oven will start heating immediately. When the timer reaches zero, it will ring and the oven will shut off.

What is the maximum temperature?

The maximum temperature is 450°F (232°C). Use the temperature dial to set between 200°F and 450°F.

Can I cook frozen food directly?

Yes, but adjust cooking time as needed. For best results, thaw food first. Avoid placing frozen food on glass surfaces.

How should I clean the oven?

Unplug and let cool. Wipe interior and exterior with a damp cloth. Remove the crumb tray and wash with soapy water. Do not use abrasive cleaners or immerse the oven.

Is it safe to place the oven on a countertop?

Yes, but ensure the surface is heat-resistant and level. Keep at least 4 inches of space around the oven for ventilation. Do not place near curtains or flammable materials.

What accessories are included?

The oven comes with a baking pan and a wire rack. These are dishwasher safe.

How do I adjust the temperature?

Rotate the temperature dial to the desired setting. The dial is marked in increments of 50°F. Allow the oven to preheat for about 5 minutes.

Why is my oven not heating?

Check that it is plugged in and the timer is set. If still not heating, the heating element may be faulty. Contact Avanti customer service for replacement.

Does the oven have convection?

No, the TD-25 is a standard radiant oven without convection fan. For even cooking, rotate food midway.

How to replace the heating element?

Unplug the oven. Remove the screws on the back panel to access the element. Disconnect wires and replace with a new element from Avanti. Reassemble in reverse order. If unsure, consult a professional.

USER MANUAL TD-25 Avanti

Line drawing of a microwave oven with control panel and display (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Help Us Help You 4

Parts and Features 5

Important Safety Instructions 6

Installation Instructions 7

Installation of Your Appliance 7

Before Using Your Appliance 7

Using Your Appliance 7

Electrical Connection 8

Operating Your Appliance 9

Control Panel and Function Descriptions 9

Setting the Clock 10

TOAST – Using the Toasting Function 11

PIZZA – Using the Pizza Bake Function 12

BAKE – Using the Bake Functions (Bake, Convection, and Broil) 13 - 14

DEFROST – Using the Defrost Function 15

DEHYDRATE – Using the Dehydrate Function 15

Care and Maintenance 16

Problems with Your Appliance? - Troubleshooting Guide 16

Service for Your Appliance 17

Your Avanti Products Warranty 17

Registration Information and Registration Card 23

HELP US HELP YOU ...

Read this guide carefully.

It is intended to help you operate and maintain your new appliance properly.

Keep it handy to answer your questions.

If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a label located on the back side of the unit.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your appliance.

If you received a damaged appliance, immediately contact the dealer (or builder) that sold you the appliance.

Save time and money. Before you call for service, check the Problem Solver Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

PARTS AND FEATURES

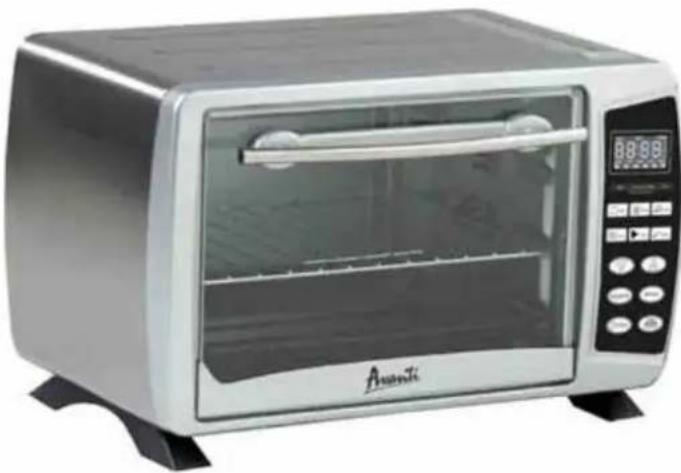

Exterior view of a modern stainless steel microwave oven with digital display and control buttons (no visible text or symbols)

Simple line drawing of an oven rack structure with vertical slats and a horizontal base (no text or symbols)

Pan Removal Tool (1)

Grayscale image of a crumb tray (labeled as Crumb Tray 1) with no visible text or symbols on the tray itself.

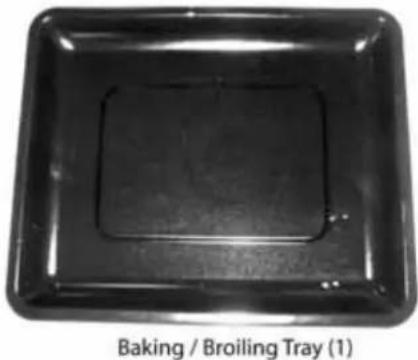

Black square baking / broiling tray (1) with no visible text or symbols on the tray itself

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

When using electrical appliances, basic safety precautions should always be followed including the following:READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE APPLIANCE.Do not touch hot surfaces, use handles or knobs. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly before putting in or taking off parts.When the unit is not in use and before cleaning, unplug the appliance from the wall outlet. Make sure the appliance is turned off before unplugging.To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.While using your appliance, you must take into consideration not to touch the surfaces as the entire cabinet, as well as the front glass door get very hot.Don't leave children alone or unattended where the appliance is hot or in operation. This appliance is not designed to be used by children.We do not recommend the use of extension cords to operate this unit.Never use your appliance for heating the room. Your oven is not designed to heat your kitchen.Do not operate this or any appliance with a frayed or damaged cord or plug, after the appliance malfunctions, is dropped or has been damaged in any manner.Do not use attachments not recommended by the manufacturer; they may cause fire, electric shock or personal injury.Do not use outdoors or for commercial purposes.Do not use this appliance for other than its intended use.Do not let the cord dangle over the edge of a tabletop, countertop or to touch hot surfaces.Do not place the appliance near a hot gas, electric burner or in a heated oven.Extreme caution should be used when using containers constructed of other than metal or glass.A fire may occur if the appliance is covered or touching flammable materials, including curtains, draperies, walls, etc., when in operation. Do not store any items on top of the appliance when in operation.Do not store any materials, other than manufacturer's recommended accessories, in this unit when not in use.Do not place any flammable materials in the appliance, such as paper, cardboard, plastic or any materials that may catch fire or melt.Never clean the appliance with flammable liquids. The fumes can create a fire hazard or explosion.Do not cover the appliance with metal foil. This will cause overheating of the appliance.Oversized foods or metal utensils must not be inserted in the appliance as they may create a fire or risk of electrical shock.Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.When broiling, use extreme caution when removing tray or disposing of hot grease.To turn this appliance off, press the "STOP / CANCEL" button, then remove plug from wall outlet.Cooked food can be very hot, especially pastry filling. Handle with care.Never pick up a flaming pan. Press the "STOP / CANCEL" button. Unplug the unit from the AC wall outlet. Smother a flaming pan on a surface unit by covering the pan completely with a well fitting lid.Do not use water on grease fires. Flaming grease outside a pan can be put out by covering it with baking soda, multipurpose dry chemical, or fire extinguisher. Flame in the oven can be smothered completely by closing the oven door and turning the oven off and unplugging the unit from the A/C outlet or by using baking soda, multipurpose dry chemical, or fire extinguisher.This Unit Is For Household Use Only- SAVE THESE INSTRUCTIONS -

INSTALLATION INSTRUCTIONS

Installation of Your Appliance

Select a location for the appliance. The location should be in an open area on a flat counter where the plug will reach an outlet.

• When positioning the appliance, it should be set on a flat, steady surface.
• Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause the appliance failure.
• Keep the appliance away from hot air, steam or splashing liquids when choosing a place to locate it, otherwise, the unit's operation may be adversely affected, causing it to break down.
• Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Plug the appliance into an exclusive properly installed grounded wall outlet. Any questions concerning power should be directed toward a certified electrician or an authorized Avanti Products service center.
• Do not place anything on the top of the oven.
• Keep the appliance at least 5 inches away from rear wall to ensure the proper ventilation.

Before Using Your Appliance

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

• 1 Baking/Broiling Tray
• 1 Pan Removal Tool
• 1 Oven Rack
- 1 Crumb Tray
• 1 Instruction Manual

• Remove all the items inside your oven and clean the interior surface with lukewarm water using a soft cloth.
• Do not attempt to repair or replace any part of your oven unless it is specially recommended in this manual.
• This appliance requires 1440W and should be the only appliance operating on the same circuit.

Using Your Oven

NOTICE

Before you use this oven for the first time: The heating elements have a protective coating, which must be burned off before use. To do this, open the oven door and press the OVEN function button and set the temperature to 250^ C/480°F. Press the TIMER button and set the oven to operate for a maximum of 20 minutes. It is important to ensure adequate ventilation during this period.

Be sure that you have removed all packing material, plastics, and have placed the oven rack in position before plugging the cord into the outlet for use. After use allow the oven to cool down completely before unplugging the appliance.

During usage of the oven the digital display panel will show current function being used as well as the time remaining. At the end of a cooking cycle, the word "END" will blink in the display and a beeping noise will continuously sound until you press the "STOP / CANCEL" button or one (1) minute has passed.

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

The appliance is supplied with a molded 2-prong type plug

A short power cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord.

Simple line drawing of a plug connected to a two-pin electrical outlet (no text or symbols)

An extension cord may be used with care, however, be sure the marked electrical rating is at least as great as the rating of this appliance. The extension cord should be positioned such that it does not drape over the counter or tabletop where it can be pulled on by children or tripped over. The electrical rating of this appliance is listed on the rear wall of the appliance.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

This unit requires a standard 115/120 Volts A.C. \~/60Hz electrical two flat electrical plug socket power cord polarity

The cord should be secured behind the mini kitchen and not left exposed or dangling to prevent accidental injury.

Do not pinch, knot, or bend the power cord in any manner.

To protect against electrical shock, do not immerse cord, plug, or appliance itself in water or other liquid.

Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

OPERATING YOUR APPLIANCE

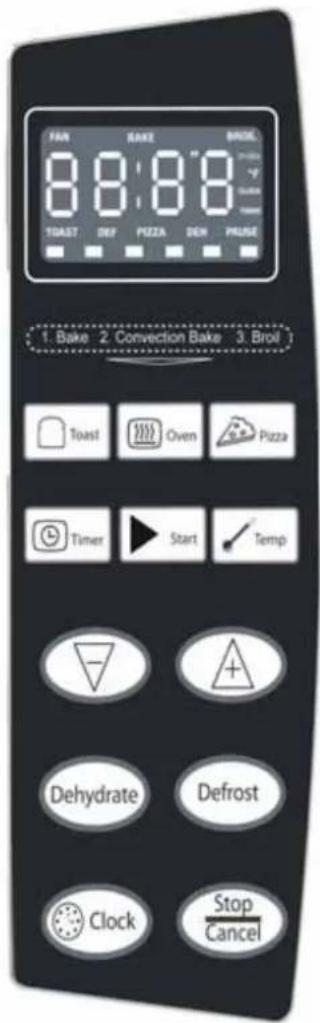

Control Panel

FAN BAKE BROOL 8:00:00 TOAST DEF PIZZA DEM PHASE 1. Bake 2. Convection Bake 3. Broil Toast Oven Pizza Timer Start Temp - + - Dehydrate Defrost Clock Stop Cancel

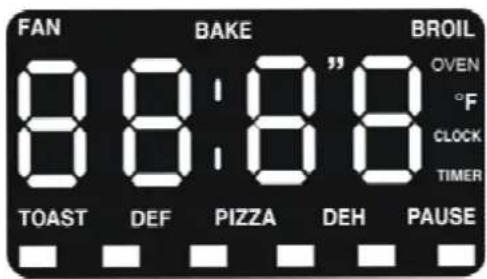

CLOCK / FUNCTION DISPLAY

This display window will display the clock once set and the current operation of the oven when in use.

FAN BAKE BROIL 88:8" OVEN °F CLOCK TIMER TOAST DEF PIZZA DEH PAUSE

FUNCTION SELECTOR BUTTONS

Your oven is equipped with three (3) convenient cooking programs:

TOAST

OVEN

Using this function you can toast bread or other baked items to your individual taste by selecting the shade of toasting.

By pressing the Oven function you can select from three (3) cooking types using the same button.

Press Function

One

Time

(1)

Bake

Both top and bottom

heating elements are on.

Two

Times

(2)

Both top and bottom

heating elements are on.

Convection fan is on and circulates heated air around the food.

Three

Times

(3)

Top&bottom heating

elements and bottom

heating element work alternatively.

Use this function when cooking most store-bought frozen pizzas

The preset temperature and timing will ensure that your pizza is cooked to perfection.

Use this function when you want to dehydrate your favorite fresh fruits or vegetables.

Use this function to thaw frozen foods to room temperature and ready for cooking preparation.

Note: For best results we recommend that you follow to specific cooking times and temperatures as required for the dish or item that you are cooking.

Frequently check on your food(s) while cooking to prevent over-cooking or burning.

Clock

Setting the Clock

Note: Your oven is equipped with a clock that will display the time in either a 12 hour or 24 hour (Military) time format. Once in the CLOCK SET mode you can switch between the default 24 hour (Military) and a 12 hour time format by pressing the CLOCK button.

Press and hold the CLOCK button until you hear a loud "beep" sound.

The word CLOCK in the display window will blink intermittently advising that you are now in the CLOCK SET Mode.

24 Hour (Military) Time Format:

HR 24 will be displayed in the window showing the default 24 hour (Military) time format.

To set the time using the 24 hour (Military) time format simply press either the or buttons to set the hour.

Each time you press either the 📄 or buttons the time will either increase or decrease by one hour and will be shown in the digital display.

Press the CLOCK button again to proceed to the minutes setting and set accordingly as shown in setting the hour. Each time you press either the 🔒 or buttons the minutes will either increase or decrease by one minute and will be shown in the digital display.

Once you have set the time (hours and minutes) press the CLOCK button to save the setting and exit the CLOCK SET mode.

12 Hour Time Format:

To switch between the default 24 hour (Military) time and a 12 hour time format press the CLOCK button once.

HR 12 will be displayed in the window showing the 12 hour time format.

To set the time using the 12 hour time format simply press either the or buttons to set the hour.

Each time you press either the 📄 or buttons the time will either increase or decrease by one hour and will be shown in the digital display.

Press the CLOCK button again to proceed to the minutes setting and set accordingly as shown in setting the hour. Each time you press either the 🔒 or 📋 buttons the minutes will either increase or decrease by one minute and will be shown in the digital display.

Once you have set the time (hours and minutes) press the CLOCK button to save the setting and exit the CLOCK SET mode.

Toasting

To Use the Toast Function:

Note:

No preheat period is required before toasting.

Place the oven rack in the middle position.

Place the bread to be toasted directly on the rack in the center of the oven, close the door.

Both the top and bottom elements will operate when TOAST function is used.

Different types of bread require different toasting times. Lighter breads and waffles require a shorter toasting time. Darker breads, muffins, and English muffins require a longer toasting time.

Press the TOAST function button.

The default setting for this function is Medium Light toast.

To either increase or decrease the toasting time, press the up or down buttons to select the appropriate toasting time.

Each time you press either the up or down buttons the toasting time will either increase or decrease by one shade and shade setting will show in the digital display. (See display images in figure 1).

button to initiate the toast cycle.

When time goes the last 1 minute, display will start to read the second, countdown until finished.

Once the toast cycle is finished the word "END" will blink in the display and a beeping noise will sound continuously for one (1) minute or until the STOP / CANCEL button is pressed.

End TIMER

Carefully remove the food from the oven and enjoy!

TOAST

VERY LIGHT Toast Shortest Cook Time

TOAST

LIGHT Toast Use this setting to reheat

TOAST

MEDIUM LIGHT Toast DEFAULT Setting

TOAST

MEDIUM Toast

TOAST

MEDIUM DARK Toast

TOAST

DARK Toast Longest Cook Time
Figure 1

PIZZA

To Use the PIZZA BAKE Function:

The oven will operate as in standard BAKE mode.

Note: The PIZZA BAKE function is a fast and convenient way to either reheat or cook most store-bought frozen pizzas. For best results, we recommend that you follow all instructions as shown on the pizza's packaging as cooking times and temperatures may vary.

Arrange food on the wire rack or in the drip/baking pan.

Press the PIZZA function button "PIZZA" will light up on the display

Press the TIMER button to set the baking time by pressing the up or down buttons; oven timer ranges between 30 seconds and 90 minutes (time will either

increase or decrease in 1 minute and then 5 minute increments). The default time is 20 minutes.

20:00 PIZZA

The temperature has been pre-set for you to 400^ F (Temperature will not show in the display window). This default temperature cannot be changed by pressing the up or down buttons as it has been pre-set as the default baking temperature.

Press the START button to initiate the baking function. (The cook time will appear and begin to countdown in the digital display).

At the end of the cooking cycle the word "END" will blink in the display and a beeping noise will sound continuously for one (1) minute or until the STOP / CANCEL button is pressed.

End TIMER

Carefully remove the food from the oven as the baking pan / dish will be extremely hot.

PRE-HEATING

Preheating the Oven:

Press the OVEN function button.

Press the TEMP button and press the up or down buttons to set the temperature to the desired setting. (Default temperature is 300^ F).

BAKE OVEN "F

Press the TIMER selector button to set the pre-heat time for 15\~20 minutes.

Press the START button to initiate the preheat.

End TIMES

At the end of the cooking cycle the word "END" will blink in the display and a beeping noise will sound continuously for one (1) minute or until the STOP / CANCEL button is pressed.

BAKING

To Use the BAKE Function:

Place the wire shelf in the middle position of the oven.

Arrange food to be cooked evenly in the Baking / Broiling / Drip tray or a similarly sized pan / dish that is specifically designed for baking.

Press the OVEN function button. "BAKE" will light up on the display

Press the TEMP button and press the up or down buttons to set the temperature to the desired setting (temperature will either increase or decrease in 10^9 increments).

The default temperature is 300^ F but the oven temperature ranges from 140^ F – 410^ F.

BAKE OVEN °F

Press the TIMER button to set the baking time by pressing the up or down buttons; from the very beginning, default time is 30 minutes; oven timer ranges between 30 seconds and 90 minutes (if time longer than 30 minutes, it will increase in 5 minutes increments; if time

shorter than 30 minutes, it will decrease in 1 minute increments).

Press the START button to initiate the baking function. (The cook time will appear and begin to countdown in the digital display).

End TIMEN

At the end of the cooking cycle the word "END" will blink in the display and a beeping noise will sound continuously for one (1) minute or until the STOP / CANCEL button is pressed.

Carefully remove the food from the oven as the baking pan / dish will be extremely hot.

BAKING

To Use the CONVECTION BAKE Function:

The oven will operate as in standard BAKE mode but the interior fan will operate and circulate the air around the food being cooked.

Arrange food on the wire rack or in the drip/baking pan.

Press the OVEN function button TWO TIMES. "FAN" will light up on the display

FAN BAKE OUTEN "F"

Press the TEMP button and press the up or down buttons to set the temperature to the desired setting (temperature will either increase or decrease in 10^ increments). The default temperature is 300^ F but the oven temperature ranges from 140^ F – 450^ F.

Press the TIMER button to set the baking time by pressing the up or down buttons; from the very beginning, default time is 30 minutes; oven timer ranges between 30 seconds and 90 minutes (if time longer than 30 minutes, it will increase in 5 minutes increments; if time increases 30 minutes, it will decrease in 1 minute increments).

Press the START button to initiate the baking function. (The cook time will appear and begin to countdown in the digital display).

At the end of the cooking cycle the word "END" will blink in the display and a beeping noise will sound continuously for one (1) minute or until the STOP / CANCEL button is pressed.

End TRACKS

Carefully remove the food from the oven as the baking pan / dish will be extremely hot.

To Use the BROIL Function:

Arrange food on the wire rack or in the drip/baking pan.

Press the OVEN function button THREE times. "BROIL" will light up on the display

BROIL OVEN °F

The default broiling temperature is 450°F.

Press the TIMER button to set the baking time by pressing the up or down buttons; from the very beginning, default time is 30 minutes; oven timer ranges between 30 seconds and 90 minutes (if time longer than 30 minutes, it will increase in 5 minutes increments; if time is 30 minutes, it will decrease in 1 minute increments).

Press the START button to initiate the baking function. (The cook time will appear and begin to countdown in the digital display).

End TIMES

Check on the food being cooked often to avoid burning.

At the end of the cooking cycle the word "END" will blink in the display and a beeping noise will sound continuously for one (1) minute or until the STOP / CANCEL button is pressed. Carefully remove the food from the oven as the baking pan / dish will be extremely hot.

Defrosting Foods

To Use the DEFROST Function:

Arrange food in the drip/baking pan.

Press the DEFROST button. "DEF" will light up on the display

The temperature is not selectable in this function as it is set for an optimal 150^ F (will not show in display)

30:00 DEF TIMER

Press the TIMER button to set the baking time by pressing the up or down buttons; from the very beginning, default time is 30 minutes; oven timer ranges between 30 seconds and 90 minutes (if time longer than 30 minutes, it will increase in 5 minutes increments; if time 30 minutes, it will decrease in 1 minute increments).

Press the START button to initiate the baking function. (The cook time will appear and begin to countdown in the digital display).

Once the defrost time has elapsed, the word "END" will blind in the display and a beeping noise will continuously sound until you press the "STOP / CANCEL" button or one (1) minute has passed.

End TIMER

Carefully remove the food from the oven as the baking pan / dish will be extremely hot.

When defrosting do not preheat the oven. Allow 15-20 minutes per side for meats or fish to defrost. Always cook food promptly after thawing.

Dehydrating Foods

To Use the DEHYDRATE Function:

Arrange food in the drip/baking pan.

Press the DEHYDRATE button. "DEH" will light up on the display

The temperature is not selectable in this function as it is set for an optimal 185°F (will not show in display)

30:00 DEH TIMER

Press the TIMER button to set the baking time by pressing the up or down buttons; from the very beginning, default time is 30 minutes; oven timer ranges between 30 seconds and 90 minutes (if time longer than 30 minutes, it will increase

in 5 minutes increments; if time shorter than 30 minutes, it will decrease in 1 minute increments).

Press the START button to initiate the baking function. (The cook time will appear and begin to countdown in the digital display).

End TIMER

Once the defrost time has elapsed, the word "END" will blind in the display and a beeping noise will continuously sound until you press the "STOP / CANCEL" button or one (1) minute has passed.

Carefully remove the food from the oven as the baking pan / dish will be extremely hot.

CARE AND MAINTENANCE

▶ Cleaning Your Appliance

• Before cleaning your appliance, unplug it and allow it to cool.
• Remove the wire rack, drip/baking pan and crumb tray.
• Use a damp cloth to wash the inside with warm water and a mild detergent. Do not immerse in water. Abrasive cleaners, scrubbing brushes and chemical cleaners may damage the coating on this unit.
• Wash the wire rack, drip/baking pan and crumb tray with a mild detergent solution.
• The glass oven door should be cleaned regularly with a non-abrasive liquid cleaner.
• Rinse with a damp cloth and then a dry one.
• The outside of the appliance should be cleaned with mild detergent and warm water.
• Occasionally wiping the surface of the burners with a trace of clean cooking oil will help to maintain their appearance.

Storing Your Appliance

Allow the appliance to cool completely before storing. If storing the appliance for long periods of time make certain that the appliance is clean and free of food particles. Store the appliance in a dry location such as on a table or countertop or in a cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

PROBLEMS WITH YOUR APPLIANCE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEMS	POSSIBLE CAUSES/SOLUTI
Appliance does not operate.	Unit not plugged in. Plug the unit into a 120V AC/ 60 Hz electrical outlet.The circuit breaker tripped or a blown fuse.Be sure that the function, temperature, timer selectors are set and the start button has been pressed.
Only one heating element is heating up.	Function setting selection determines which heating element will operate.When toasting and convection, make sure the oven is not set to BROIL and other settings.
Heating elements are not heating up.	Heating elements willONaled OFFmaintain proper heat. Make sure function selector is positioned to desired cooking setting.
Overcooked/undercooked Foods	Incorrect temperature setting. You may have to adjust the temperature to desired position.Rack placement. Rack may need to be adjusted to accommodate different foods.
Burnt Smell	If this occurs the first time you are using the unit, this is the initial burn in procedure (see Installation Instructions).Food build-up inside appliance, on heating elements or in drip/baking pan. Refer to “Cleaning Your Appliance”

SERVICE FOR YOUR APPLIANCE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

YOUR AVANTI WARRANTY

LENGTH OF WARRANTY
WE WILL PAY FOR

FULL ONE YEAR WARRANTY FROM DATE OF PURCHASE ON ALL PARTS EXCEPT GLASS PARTS, AND/OR PARTS DAMAGED AS A RESULT OF MISUSE OR LACK OF REASONABLE CARE.	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIALS OR WORKMANSHIP. SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.
FULL 30-DAY WARRANTY FROM DATE OF PURCHASE ON GLASS PARTS AND FINISH OF PORCELAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIAL OR WORKMANSHIP. SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.

CARRY IN SERVICE ONLY.

CUSTOMER WILL BE RESPONSIBLE FOR ALL TRANSPORTATION CHARGES TO AND FROM THE AUTHORIZED SERVICE COMPANY, ALSO MAKE SURE TO SEND A COPY OF PROOF OF PURCHASE WHEN SENDING THE UNIT FOR SERVICE REPAIRS.

AVANTI PRODUCTS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

This warranty is not valid outside the Continental United States.

Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100 days of purchase and receive these important benefits to the following address:

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152 USA

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name			Model #		Serial #
Address			Date	Purchased	Store/Dealer	Nar
City	State	Zip	Occupation

As Your Primary Residence, Do You:

Area Code

Phone Number

□Own

□Rent

Did You Purchase An Additional Warranty:

□Extended □None	□under 18 □18-25 □26-30
Reason For Choosing This Avanti Product:	□31-35 □36-50 □over 50
Please indicate the most important factors that influenced your decision to purchase this product.	Marital Status:
	□Married □Single
	Is This Product Used In The:
□Price	□Home □Business
□Product Features	How Did You Learn About This Product:
□Avanti Reputation	□Advertising
□Product Quality	□In Store Demo □Personal Demo
□Salesperson Recommendation	□Other_
□Friend/Relative Recommendation	Comments_
□Warranty
□Other_

VERSION 01

PRINTED IN CHINA
